Sayfa 2-44 - Isuzu EPC

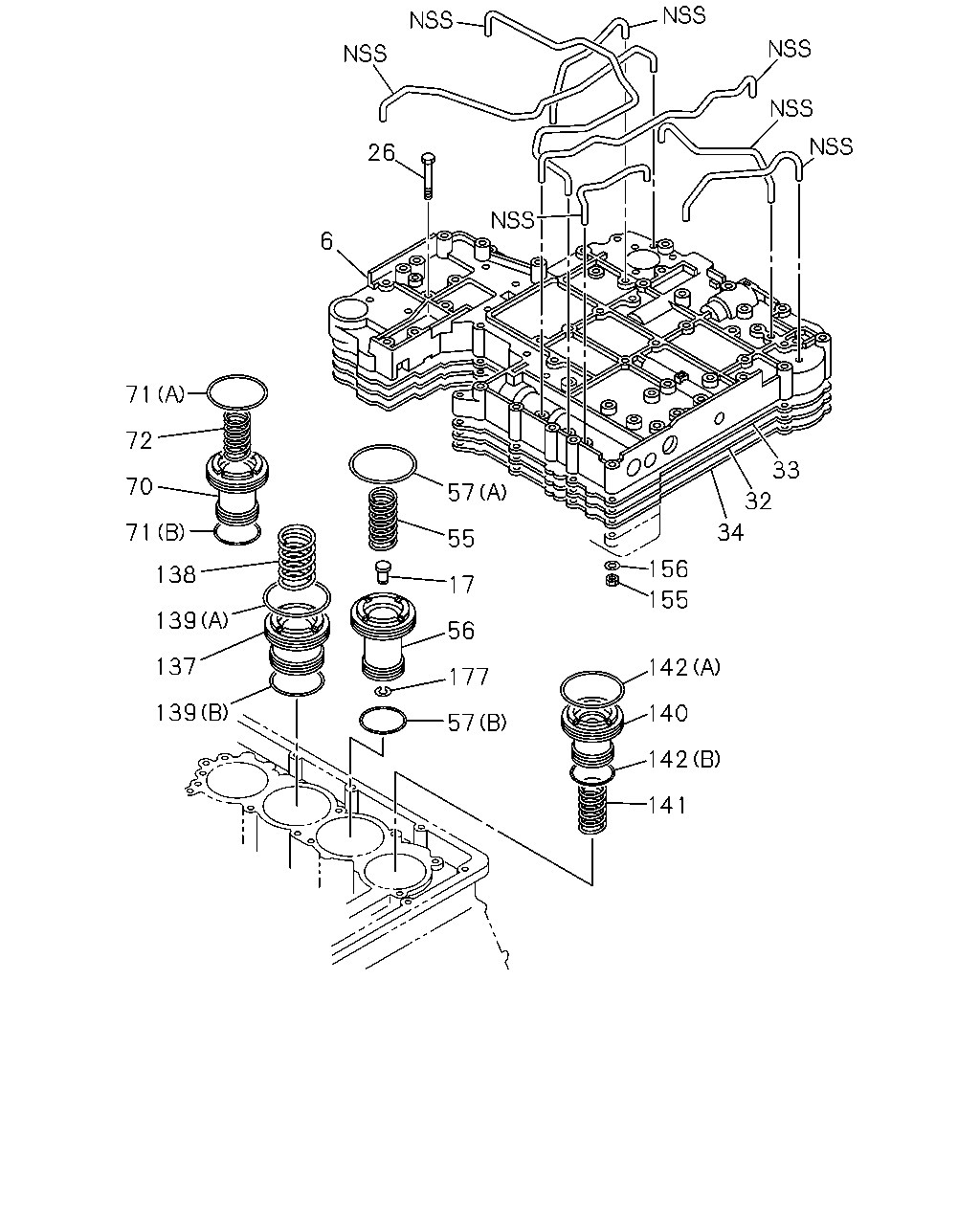

2-44 — AUTO TRANS CONTROL VALVE; LOWER BODY (#22144) — 312 parça

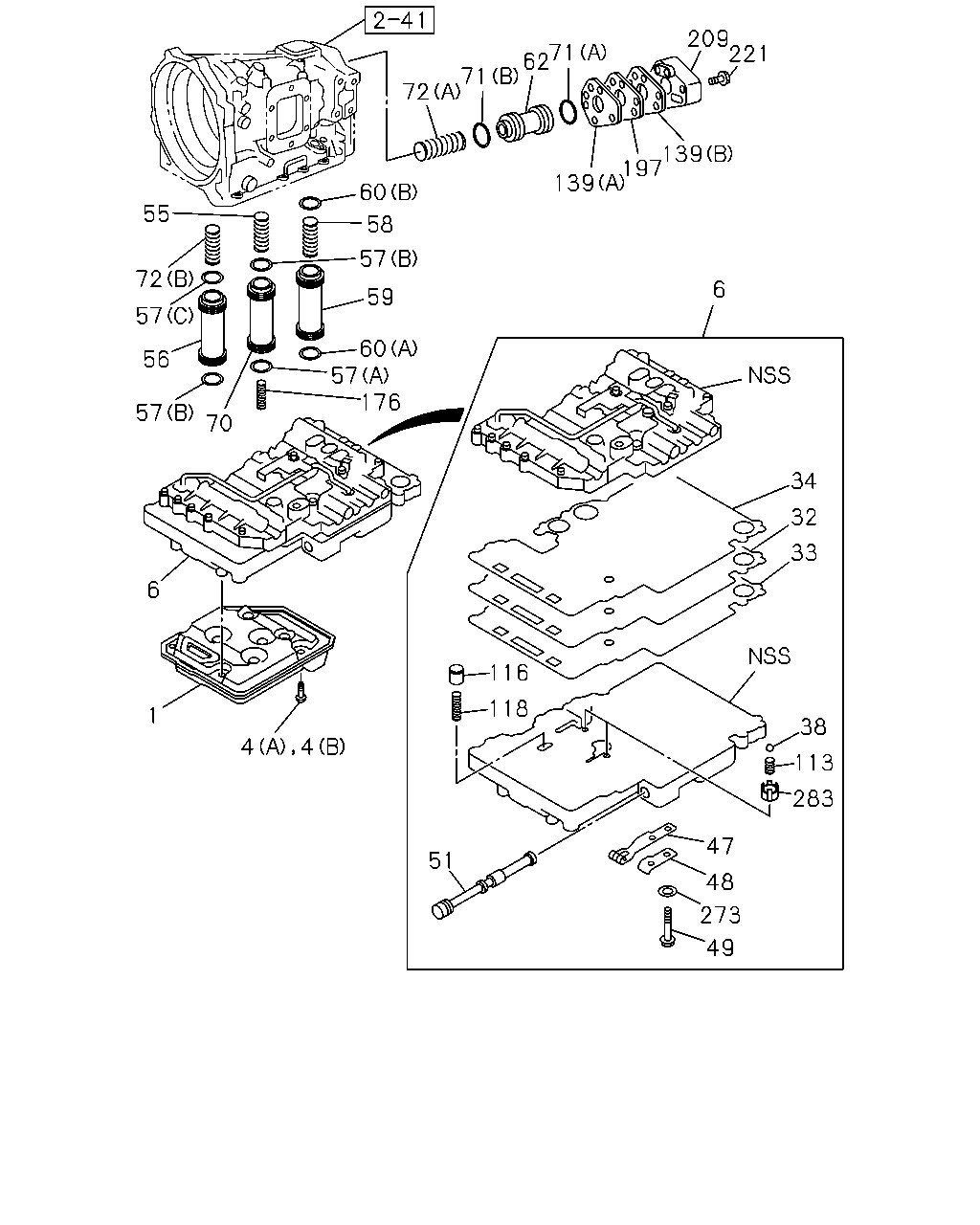

209 221 71 62 71 72 139 197 139 60 55 58 57 72 6 59 57 60 57 176 56 57 70 34 32 33 6 116 118 1 38 4 4 113 283 47 51 48 273 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.197 STRAINER ASM; OIL,A/T 4HG1 ENG(RJH)	8-94483-567-0	01	1	9811-	●
1	04.197 STRAINER ASM; OIL,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97202-067-0	01	1	9811-0105		●
1	04.197 STRAINER ASM; OIL,A/T	8-97202-067-0	01	1	0106-		●
4	04.197 BOLT; OIL STRAINER,A/T EXC. PTO TRANSMISSION SIDE(V66) (A)	8-97202-079-0	02	1	9811-0105		●
4	04.197 BOLT; OIL STRAINER,A/T (A)	8-97202-079-0	02	1	0106-		●
4	04.197 BOLT; OIL STRAINER,A/T EXC. PTO TRANSMISSION SIDE(V66) (B)	8-97202-081-0	02	1	9811-0105		●
4	04.197 BOLT; OIL STRAINER,A/T (B)	8-97202-081-0	02	1	0106-		●
6	04.265 BODY ASM; VLV LWR,A/T 4HG1 ENG(RJH)	8-97027-239-0	01	1	9811-	●
6	04.265 BODY ASM; VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-086-0	01	1	9811-0105		●
6	04.265 BODY ASM; VLV LWR,A/T	8-97257-086-0	01	1	0106-		●
32	04.265 PLATE; SEPARATOR,VLV BODY,A/T 4HG1 ENG(RJH)	8-97119-869-0	01	1	9811-	●
32	04.265 PLATE; SEPARATOR,VLV BODY,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-117-0	01	1	9811-0105		●
32	04.265 PLATE; SEPARATOR,VLV BODY,A/T	8-97257-117-0	01	1	0106-		●
33	04.265 GASKET; LWR,VLV BODY,A/T 4HG1 ENG(RJH)	8-94483-499-0	01	1	9811-	●
33	04.265 GASKET; LWR,VLV BODY,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-119-0	01	1	9811-0105		●
33	04.265 GASKET; LWR,VLV BODY,A/T	8-97257-119-0	01	1	0106-		●
34	04.265 GASKET; UPR,VLV BODY,A/T 4HG1 ENG(RJH)	8-97092-817-0	01	1	9811-	●
34	04.265 GASKET; UPR,VLV BODY,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-118-0	01	1	9811-0105		●
34	04.265 GASKET; UPR,VLV BODY,A/T	8-97257-118-0	01	1	0106-		●
38	04.265 BALL; BALL VALVE EXC. PTO TRANSMISSION SIDE(V66)	8-97257-110-0	02	1	9811-0105		●
38	04.265 BALL; BALL VALVE	8-97257-110-0	02	1	0106-		●
47	04.050 SPRING; DETENT,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-122-0	01	1	9811-0105		●
47	04.050 SPRING; DETENT,A/T	8-97257-122-0	01	1	0106-		●
48	04.052 PLATE; DETENT SPR,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-123-0	01	1	9811-0105		●
48	04.052 PLATE; DETENT SPR,A/T	8-97257-123-0	01	1	0106-		●
49	04.052 BOLT; DETENT SPR PLATE,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-128-0	01	1	9811-0105		●
49	04.052 BOLT; DETENT SPR PLATE,A/T	8-97257-128-0	01	1	0106-		●
51	04.265 VALVE; MANUAL,A/T 4HG1 ENG(RJH)	8-94483-555-0	01	1	9811-	●
51	04.265 VALVE; MANUAL,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-115-0	01	1	9811-0105		●
51	04.265 VALVE; MANUAL,A/T	8-97257-115-0	01	1	0106-		●
55	04.246 SPRING; ACCUMLATOR PISTON 4HG1 ENG(RJH)	8-94483-483-0	01	1	9811-	●
55	04.246 SPRING; ACCUMLATOR PISTON EXC. PTO TRANSMISSION SIDE(V66)	8-97257-084-0	01	1	9811-0105		●
55	04.246 SPRING; ACCUMLATOR PISTON	8-97257-084-0	01	1	0106-		●
56	04.241 PISTON; ACCUMLATOR 4HG1 ENG(RJH)	8-97119-870-0	01	1	9811-	●
56	04.241 PISTON; ACCUMLATOR EXC. PTO TRANSMISSION SIDE(V66)	8-97257-087-0	01	1	9811-0105		●
56	04.241 PISTON; ACCUMLATOR	8-97257-087-0	01	1	0106-		●
57	04.241 GASKET; 2ND SPD PISTON,A/T 4HG1 ENG(RJH) 04.242 (B) ID=26.9	8-94483-488-0	01	1	9811-	●
57	04.241 GASKET; 2ND SPD PISTON,A/T 4HG1 ENG(RJH) (A) ID=44.2	8-94483-489-0	01	1	9811-	●
57	04.241 GASKET; 2ND SPD PISTON,A/T EXC. PTO TRANSMISSION SIDE(V66) (A)	8-97257-095-0	01	1	9811-0105		●
57	04.241 GASKET; 2ND SPD PISTON,A/T (A)	8-97257-095-0	01	1	0106-		●
57	04.241 GASKET; 2ND SPD PISTON,A/T EXC. PTO TRANSMISSION SIDE(V66) (B)	8-97257-096-0	02	1	9811-0105		●
57	04.241 GASKET; 2ND SPD PISTON,A/T (B)	8-97257-096-0	02	1	0106-		●
57	04.241 GASKET; 2ND SPD PISTON,A/T EXC. PTO TRANSMISSION SIDE(V66) (C)	8-97257-097-0	01	1	9811-0105		●
57	04.241 GASKET; 2ND SPD PISTON,A/T (C)	8-97257-097-0	01	1	0106-		●
58	04.164 SPRING; DIRECT CLU (C-2 ACCUM),A EXC. PTO TRANSMISSION SIDE(V66)	8-97257-082-0	01	1	9811-0105		●
58	04.164 SPRING; DIRECT CLU (C-2 ACCUM),A	8-97257-082-0	01	1	0106-		●
59	04.166 PISTON; DIRECT CLU,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-090-0	01	1	9811-0105		●
59	04.166 PISTON; DIRECT CLU,A/T	8-97257-090-0	01	1	0106-		●
60	04.169 GASKET; DIRECT CLU PISTON,A/T EXC. PTO TRANSMISSION SIDE(V66) (A)	8-97257-093-0	01	1	9811-0105		●
60	04.169 GASKET; DIRECT CLU PISTON,A/T (A)	8-97257-093-0	01	1	0106-		●
60	04.169 GASKET; DIRECT CLU PISTON,A/T EXC. PTO TRANSMISSION SIDE(V66) (B)	8-97257-094-0	01	1	9811-0105		●
60	04.169 GASKET; DIRECT CLU PISTON,A/T (B)	8-97257-094-0	01	1	0106-		●
62	04.166 PISTON; FWD CLU,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-089-0	01	1	9811-0105		●
62	04.166 PISTON; FWD CLU,A/T	8-97257-089-0	01	1	0106-		●
70	04.241 PISTON; ACCUMLATOR 4HG1 ENG(RJH)	8-97027-236-0	01	1	9811-	●
70	04.241 PISTON; ACCUMLATOR EXC. PTO TRANSMISSION SIDE(V66)	8-97257-088-0	01	1	9811-0105		●
70	04.241 PISTON; ACCUMLATOR	8-97257-088-0	01	1	0106-		●
71	04.241 GASKET; ACCUMLATOR PISTON 4HG1 ENG(RJH) (A) ID=39.4	8-94483-485-0	01	1	9811-	●
71	04.241 GASKET; ACCUMLATOR PISTON 4HG1 ENG(RJH) (B) ID=24.0	8-94483-486-0	01	1	9811-	●
71	04.241 GASKET; ACCUMLATOR PISTON EXC. PTO TRANSMISSION SIDE(V66) (A)	8-97257-091-0	01	1	9811-0105		●
71	04.241 GASKET; ACCUMLATOR PISTON (A)	8-97257-091-0	01	1	0106-		●
71	04.241 GASKET; ACCUMLATOR PISTON EXC. PTO TRANSMISSION SIDE(V66) (B)	8-97257-092-0	01	1	9811-0105		●
71	04.241 GASKET; ACCUMLATOR PISTON (B)	8-97257-092-0	01	1	0106-		●
72	04.233 SPRING; ACCUMLATOR PISTON 4HG1 ENG(RJH)	8-94483-482-0	01	1	9811-	●
72	04.233 SPRING; ACCUMLATOR PISTON EXC. PTO TRANSMISSION SIDE(V66) (A)	8-97256-866-0	01	1	9811-0105		●
72	04.233 SPRING; ACCUMLATOR PISTON (A)	8-97256-866-0	01	1	0106-		●
72	04.233 SPRING; ACCUMLATOR PISTON EXC. PTO TRANSMISSION SIDE(V66) (B) M12X45	8-97257-083-0	01	1	9811-0105		●
72	04.233 SPRING; ACCUMLATOR PISTON (B) M12X45	8-97257-083-0	01	1	0106-		●
113	04.164 SPRING; CHECK BALL EXC. PTO TRANSMISSION SIDE(V66)	8-97257-109-0	02	1	9811-0105		●
113	04.164 SPRING; CHECK BALL	8-97257-109-0	02	1	0106-		●
116	04.265 VALVE; PRESSURE RELIEF EXC. PTO TRANSMISSION SIDE(V66)	8-97257-111-0	01	1	9811-0105		●
116	04.265 VALVE; PRESSURE RELIEF	8-97257-111-0	01	1	0106-		●
118	04.265 SPRING; PRESSURE RELIEF VALVE EXC. PTO TRANSMISSION SIDE(V66)	8-97257-112-0	01	1	9811-0105		●
118	04.265 SPRING; PRESSURE RELIEF VALVE	8-97257-112-0	01	1	0106-		●
139	04.241 GASKET; ACCUMLATOR PISTON 4HG1 ENG(RJH) (B)	8-97138-485-0	01	1	9811-	●
139	04.241 GASKET; ACCUMLATOR PISTON 4HG1 ENG(RJH) (A)	8-97138-486-0	01	1	9811-	●
139	04.241 GASKET; ACCUMLATOR PISTON EXC. PTO TRANSMISSION SIDE(V66) (A)	8-97256-862-0	01	1	9811-0105		●
139	04.241 GASKET; ACCUMLATOR PISTON (A)	8-97256-862-0	01	1	0106-		●
139	04.241 GASKET; ACCUMLATOR PISTON EXC. PTO TRANSMISSION SIDE(V66) (B)	8-97256-863-0	01	1	9811-0105		●
139	04.241 GASKET; ACCUMLATOR PISTON (B)	8-97256-863-0	01	1	0106-		●
176	04.265 SPRING; ACCUM INNER EXC. PTO TRANSMISSION SIDE(V66)	8-97257-085-0	01	1	9811-0105		●
176	04.265 SPRING; ACCUM INNER	8-97257-085-0	01	1	0106-		●
197	04.241 PLATE; ACCUMLATOR CONT VLV 4HG1 ENG(RJH) 04.265	8-94385-910-0	01	1	9811-	●
197	04.241 PLATE; ACCUMLATOR CONT VLV EXC. PTO TRANSMISSION SIDE(V66)	8-97256-864-0	01	1	9811-0105		●
197	04.241 PLATE; ACCUMLATOR CONT VLV	8-97256-864-0	01	1	0106-		●
209	04.105 COVER; ACCUMURATOR EXC. PTO TRANSMISSION SIDE(V66)	8-97256-861-0	01	1	9811-0105		●
209	04.105 COVER; ACCUMURATOR	8-97256-861-0	01	1	0106-		●
221	04.265 BOLT; COVER,ACCUM PISTON EXC. PTO TRANSMISSION SIDE(V66)	8-97256-867-0	04	1	9811-0105		●
221	04.265 BOLT; COVER,ACCUM PISTON	8-97256-867-0	04	1	0106-		●
273	04.265 WASHER; COVER,VLV BODY,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-138-0	05	1	9811-0105		●
273	04.265 WASHER; COVER,VLV BODY,A/T	8-97257-138-0	05	1	0106-		●
283	04.265 CASE; VALVE,PRESSURE RELIEF EXC. PTO TRANSMISSION SIDE(V66)	8-97257-108-0	02	1	9811-0105		●
283	04.265 CASE; VALVE,PRESSURE RELIEF	8-97257-108-0	02	1	0106-		●

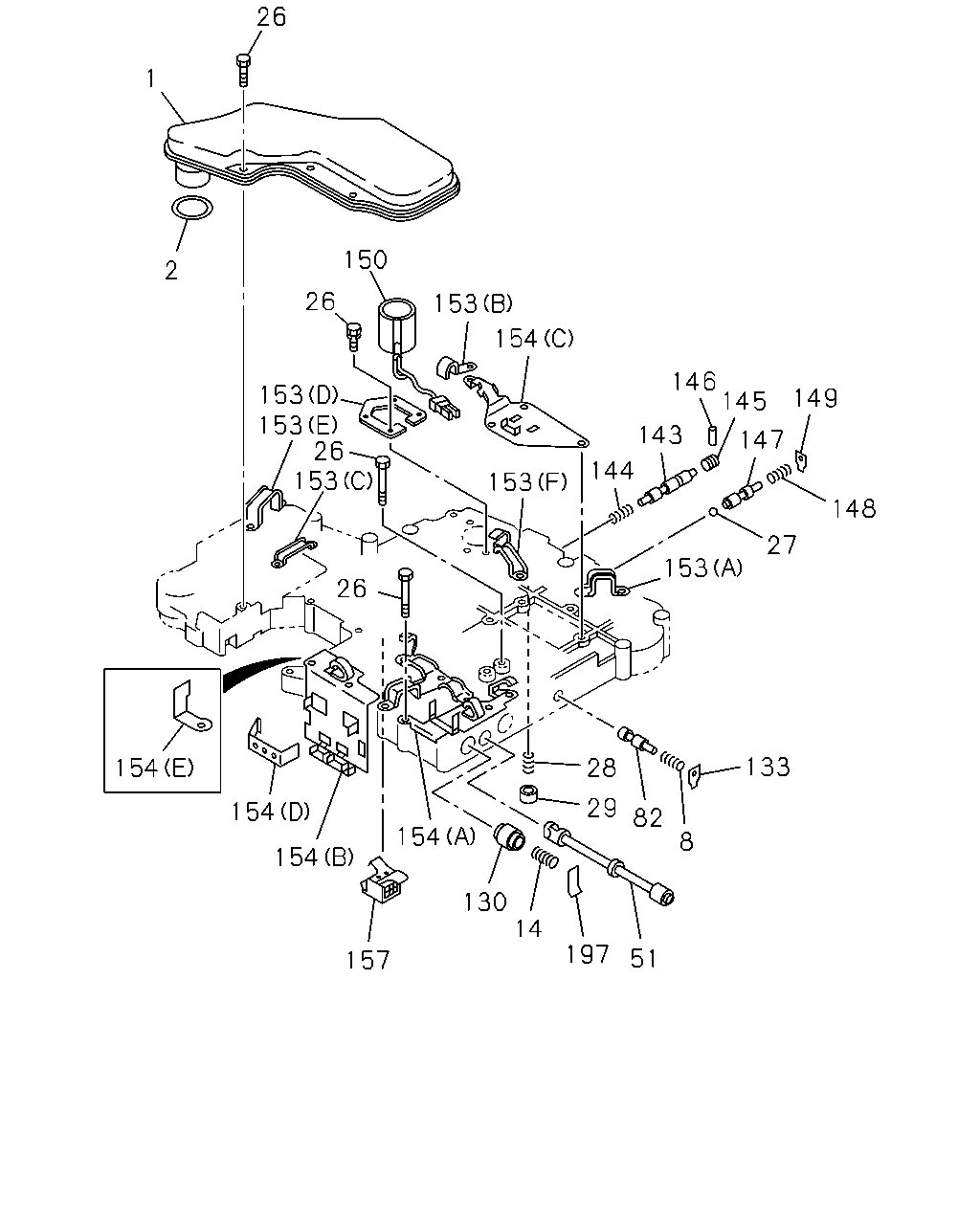

26 1 150 2 26 153 154 146 145 153 153 26 153 149 143 147 144 153 148 27 153 26 133 28 154 29 154 82 154 8 154 130 14 197 51 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.197 STRAINER ASM; OIL,A/T 4HG1 ENG(RJH)	8-94483-567-0	01	1	9811-	●
1	04.197 STRAINER ASM; OIL,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97202-067-0	01	1	9811-0105		●
1	04.197 STRAINER ASM; OIL,A/T	8-97202-067-0	01	1	0106-		●
2	04.197 GASKET; OIL STRAINER,A/T 4HG1 ENG(RJH)	8-94483-568-0	01	1	9811-	●
8	04.265 SPRING; 1ST VALVE 4HG1 ENG(RJH)	8-94483-557-0	01	1	9811-	●
14	04.246 SPRING; ACCUMLATOR CONT VALVE 4HG1 ENG(RJH)	8-97092-821-0	01	1	9811-	●

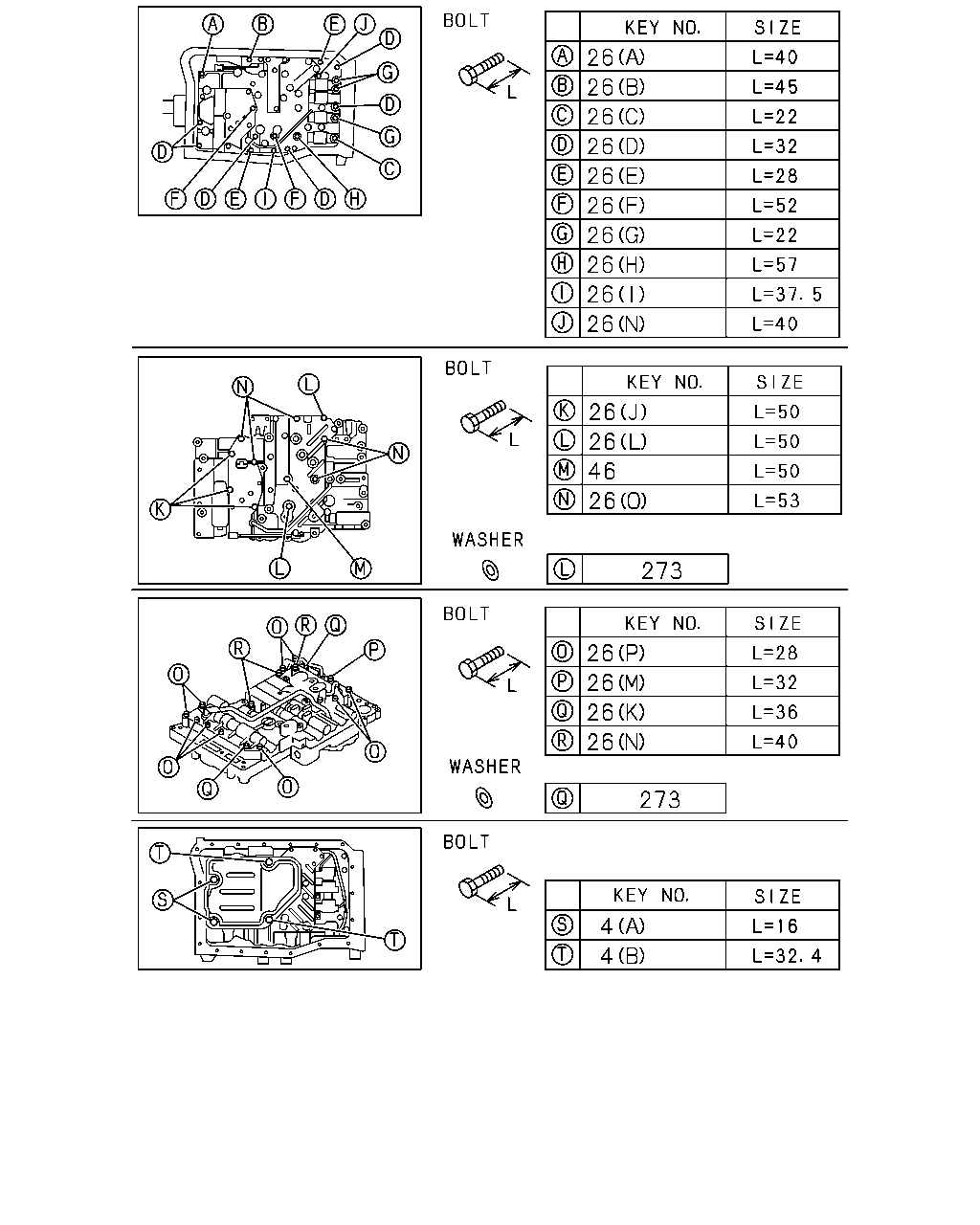

26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH) M6X25	8-94343-064-0	02	1	9811-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH) M6X55	8-94483-587-0	01	1	9811-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH) M6X45	8-94483-588-0	01	1	9811-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH) M6X33	8-94483-589-0	16	1	9811-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH) M6X50	8-94483-590-0	10	1	9811-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH) M6X16	8-94483-591-0	02	1	9811-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH) M6X70	8-94483-592-0	02	1	9811-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (A) L=41	8-97257-098-0	01	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (A) L=41	8-97257-098-0	01	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (B) L=45	8-97257-099-0	01	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (B) L=45	8-97257-099-0	01	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (C) L=22	8-97257-100-0	01	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (C) L=22	8-97257-100-0	01	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (D) L=32	8-97257-101-0	07	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (D) L=32	8-97257-101-0	07	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (E) L=28	8-97257-102-0	02	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (E) L=28	8-97257-102-0	02	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (F) L=52	8-97257-103-0	02	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (F) L=52	8-97257-103-0	02	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (G) L=22	8-97257-104-0	03	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (G) L=22	8-97257-104-0	03	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (H) L=57	8-97257-105-0	01	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (H) L=57	8-97257-105-0	01	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (I) L=37.5	8-97257-106-0	01	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (I) L=37.5	8-97257-106-0	01	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (J) L=50	8-97257-127-0	02	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (J) L=50	8-97257-127-0	02	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (K) L=36	8-97257-129-0	02	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (K) L=36	8-97257-129-0	02	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (L) L=50	8-97257-130-0	02	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (L) L=50	8-97257-130-0	02	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (M) L=32	8-97257-131-0	01	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (M) L=32	8-97257-131-0	01	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (N) L=40	8-97257-132-0	04	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (N) L=40	8-97257-132-0	04	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (O) L=53	8-97257-133-0	06	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (O) L=53	8-97257-133-0	06	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (P) L=28	8-97257-134-0	10	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (P) L=28	8-97257-134-0	10	1	0106-		●
27	04.265 BALL; STEEL,VLV,A/T 4HG1 ENG(RJH)	8-94320-297-0	01	1	9811-	●
28	04.265 SPRING; ORIFICE VLV,A/T 4HG1 ENG(RJH)	8-94140-856-0	01	1	9811-	●
29	04.265 VALVE; ORIFICE,CHECK,A/T 4HG1 ENG(RJH)	8-94483-605-0	01	1	9811-	●
51	04.265 VALVE; MANUAL,A/T 4HG1 ENG(RJH)	8-94483-555-0	01	1	9811-	●
51	04.265 VALVE; MANUAL,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-115-0	01	1	9811-0105		●
51	04.265 VALVE; MANUAL,A/T	8-97257-115-0	01	1	0106-		●
82	04.262 VALVE; 1ST 4HG1 ENG(RJH)	8-94483-556-1	01	1	9811-	●
130	04.241 PISTON; ACCUMLATOR CONT 4HG1 ENG(RJH)	8-94342-922-0	01	1	9811-	●
133	04.216 PLATE; RET,1ST REDUCING VALVE 4HG1 ENG(RJH)	8-94483-558-0	01	1	9811-	●
143	04.265 VALVE; SERVO CHARGER 4HG1 ENG(RJH)	8-94483-559-0	01	1	9811-	●
144	04.265 SPRING; SERVO CHARGER VALVE 4HG1 ENG(RJH)	8-94483-560-0	01	1	9811-	●
145	04.265 PLUG; SERVO CHARGER VALVE 4HG1 ENG(RJH)	8-94483-561-0	01	1	9811-	●
146	04.265 PIN; PLUG,SERVO CHARGER VALVE 4HG1 ENG(RJH)	8-94483-507-0	01	1	9811-	●
147	04.265 VALVE; 3-2 TIMING CONT 4HG1 ENG(RJH)	8-97112-976-0	01	1	9811-	●
148	04.265 SPRING; 3-2 TIMING CONT VALVE 4HG1 ENG(RJH)	8-94316-252-0	01	1	9811-	●
149	04.265 PLATE; 3-2 TIMING CONT VALVE 4HG1 ENG(RJH) 04.216	8-94483-558-0	01	1	9811-	●
150	04.265 VALVE; SOLENOID,LOCKUP 4HG1 ENG(RJH)	8-97027-250-0	01	1	9811-	●
153	04.265 BRACKET; OIL TUBE,LWR VALVE BODY 4HG1 ENG(RJH) (A)	8-94483-576-0	01	1	9811-	●
153	04.265 BRACKET; OIL TUBE,LWR VALVE BODY 4HG1 ENG(RJH) (E)	8-94483-580-0	01	1	9811-	●
153	04.265 BRACKET; OIL TUBE,LWR VALVE BODY 4HG1 ENG(RJH) (F)	8-94483-581-0	01	1	9811-	●
153	04.265 BRACKET; OIL TUBE,LWR VALVE BODY 4HG1 ENG(RJH) (B)	8-94483-582-0	01	1	9811-	●
153	04.265 BRACKET; OIL TUBE,LWR VALVE BODY 4HG1 ENG(RJH) (D)	8-97024-245-0	01	1	9811-	●
153	04.265 BRACKET; OIL TUBE,LWR VALVE BODY 4HG1 ENG(RJH) (C)	8-97112-970-0	01	1	9811-	●
154	04.265 CLIP; HARNESS 4HG1 ENG(RJH) (B)	8-94343-062-1	01	1	9811-	●
154	04.265 CLIP; HARNESS 4HG1 ENG(RJH) (D)	8-94343-063-0	01	1	9811-	●
154	04.265 CLIP; HARNESS 4HG1 ENG(RJH) (A)	8-94483-584-1	01	1	9811-	●
154	04.265 CLIP; HARNESS 4HG1 ENG(RJH) (C)	8-94483-586-0	01	1	9811-	●
154	04.265 CLIP; HARNESS 4HG1 ENG(RJH) (E)	8-97092-798-0	01	1	9811-	●
157	04.265 FILTER; OIL,LWR VALVE BODY 4HG1 ENG(RJH)	8-94483-604-0	01	1	9811-	●
197	04.241 PLATE; ACCUMLATOR CONT VLV 4HG1 ENG(RJH) 04.265	8-94385-910-0	01	1	9811-	●
197	04.241 PLATE; ACCUMLATOR CONT VLV EXC. PTO TRANSMISSION SIDE(V66)	8-97256-864-0	01	1	9811-0105		●
197	04.241 PLATE; ACCUMLATOR CONT VLV	8-97256-864-0	01	1	0106-		●

26 6 71 72 33 70 57 32 71 34 55 156 138 17 155 139 56 137 142 177 139 140 57 142 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	04.265 BODY ASM; VLV LWR,A/T 4HG1 ENG(RJH)	8-97027-239-0	01	1	9811-	●
6	04.265 BODY ASM; VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-086-0	01	1	9811-0105		●
6	04.265 BODY ASM; VLV LWR,A/T	8-97257-086-0	01	1	0106-		●
17	04.265 RETAINER; ACCUMLATOR CONT VALVE 4HG1 ENG(RJH)	8-97119-871-0	01	1	9811-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH) M6X25	8-94343-064-0	02	1	9811-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH) M6X55	8-94483-587-0	01	1	9811-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH) M6X45	8-94483-588-0	01	1	9811-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH) M6X33	8-94483-589-0	16	1	9811-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH) M6X50	8-94483-590-0	10	1	9811-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH) M6X16	8-94483-591-0	02	1	9811-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH) M6X70	8-94483-592-0	02	1	9811-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (A) L=41	8-97257-098-0	01	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (A) L=41	8-97257-098-0	01	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (B) L=45	8-97257-099-0	01	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (B) L=45	8-97257-099-0	01	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (C) L=22	8-97257-100-0	01	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (C) L=22	8-97257-100-0	01	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (D) L=32	8-97257-101-0	07	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (D) L=32	8-97257-101-0	07	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (E) L=28	8-97257-102-0	02	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (E) L=28	8-97257-102-0	02	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (F) L=52	8-97257-103-0	02	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (F) L=52	8-97257-103-0	02	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (G) L=22	8-97257-104-0	03	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (G) L=22	8-97257-104-0	03	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (H) L=57	8-97257-105-0	01	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (H) L=57	8-97257-105-0	01	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (I) L=37.5	8-97257-106-0	01	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (I) L=37.5	8-97257-106-0	01	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (J) L=50	8-97257-127-0	02	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (J) L=50	8-97257-127-0	02	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (K) L=36	8-97257-129-0	02	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (K) L=36	8-97257-129-0	02	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (L) L=50	8-97257-130-0	02	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (L) L=50	8-97257-130-0	02	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (M) L=32	8-97257-131-0	01	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (M) L=32	8-97257-131-0	01	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (N) L=40	8-97257-132-0	04	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (N) L=40	8-97257-132-0	04	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (O) L=53	8-97257-133-0	06	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (O) L=53	8-97257-133-0	06	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (P) L=28	8-97257-134-0	10	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (P) L=28	8-97257-134-0	10	1	0106-		●
32	04.265 PLATE; SEPARATOR,VLV BODY,A/T 4HG1 ENG(RJH)	8-97119-869-0	01	1	9811-	●
32	04.265 PLATE; SEPARATOR,VLV BODY,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-117-0	01	1	9811-0105		●
32	04.265 PLATE; SEPARATOR,VLV BODY,A/T	8-97257-117-0	01	1	0106-		●
33	04.265 GASKET; LWR,VLV BODY,A/T 4HG1 ENG(RJH)	8-94483-499-0	01	1	9811-	●
33	04.265 GASKET; LWR,VLV BODY,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-119-0	01	1	9811-0105		●
33	04.265 GASKET; LWR,VLV BODY,A/T	8-97257-119-0	01	1	0106-		●
34	04.265 GASKET; UPR,VLV BODY,A/T 4HG1 ENG(RJH)	8-97092-817-0	01	1	9811-	●
34	04.265 GASKET; UPR,VLV BODY,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-118-0	01	1	9811-0105		●
34	04.265 GASKET; UPR,VLV BODY,A/T	8-97257-118-0	01	1	0106-		●
55	04.246 SPRING; ACCUMLATOR PISTON 4HG1 ENG(RJH)	8-94483-483-0	01	1	9811-	●
55	04.246 SPRING; ACCUMLATOR PISTON EXC. PTO TRANSMISSION SIDE(V66)	8-97257-084-0	01	1	9811-0105		●
55	04.246 SPRING; ACCUMLATOR PISTON	8-97257-084-0	01	1	0106-		●
56	04.241 PISTON; ACCUMLATOR 4HG1 ENG(RJH)	8-97119-870-0	01	1	9811-	●
56	04.241 PISTON; ACCUMLATOR EXC. PTO TRANSMISSION SIDE(V66)	8-97257-087-0	01	1	9811-0105		●
56	04.241 PISTON; ACCUMLATOR	8-97257-087-0	01	1	0106-		●
57	04.241 GASKET; 2ND SPD PISTON,A/T 4HG1 ENG(RJH) 04.242 (B) ID=26.9	8-94483-488-0	01	1	9811-	●
57	04.241 GASKET; 2ND SPD PISTON,A/T 4HG1 ENG(RJH) (A) ID=44.2	8-94483-489-0	01	1	9811-	●
57	04.241 GASKET; 2ND SPD PISTON,A/T EXC. PTO TRANSMISSION SIDE(V66) (A)	8-97257-095-0	01	1	9811-0105		●
57	04.241 GASKET; 2ND SPD PISTON,A/T (A)	8-97257-095-0	01	1	0106-		●
57	04.241 GASKET; 2ND SPD PISTON,A/T EXC. PTO TRANSMISSION SIDE(V66) (B)	8-97257-096-0	02	1	9811-0105		●
57	04.241 GASKET; 2ND SPD PISTON,A/T (B)	8-97257-096-0	02	1	0106-		●
57	04.241 GASKET; 2ND SPD PISTON,A/T EXC. PTO TRANSMISSION SIDE(V66) (C)	8-97257-097-0	01	1	9811-0105		●
57	04.241 GASKET; 2ND SPD PISTON,A/T (C)	8-97257-097-0	01	1	0106-		●
70	04.241 PISTON; ACCUMLATOR 4HG1 ENG(RJH)	8-97027-236-0	01	1	9811-	●
70	04.241 PISTON; ACCUMLATOR EXC. PTO TRANSMISSION SIDE(V66)	8-97257-088-0	01	1	9811-0105		●
70	04.241 PISTON; ACCUMLATOR	8-97257-088-0	01	1	0106-		●
71	04.241 GASKET; ACCUMLATOR PISTON 4HG1 ENG(RJH) (A) ID=39.4	8-94483-485-0	01	1	9811-	●
71	04.241 GASKET; ACCUMLATOR PISTON 4HG1 ENG(RJH) (B) ID=24.0	8-94483-486-0	01	1	9811-	●
71	04.241 GASKET; ACCUMLATOR PISTON EXC. PTO TRANSMISSION SIDE(V66) (A)	8-97257-091-0	01	1	9811-0105		●
71	04.241 GASKET; ACCUMLATOR PISTON (A)	8-97257-091-0	01	1	0106-		●
71	04.241 GASKET; ACCUMLATOR PISTON EXC. PTO TRANSMISSION SIDE(V66) (B)	8-97257-092-0	01	1	9811-0105		●
71	04.241 GASKET; ACCUMLATOR PISTON (B)	8-97257-092-0	01	1	0106-		●
72	04.233 SPRING; ACCUMLATOR PISTON 4HG1 ENG(RJH)	8-94483-482-0	01	1	9811-	●
72	04.233 SPRING; ACCUMLATOR PISTON EXC. PTO TRANSMISSION SIDE(V66) (A)	8-97256-866-0	01	1	9811-0105		●
72	04.233 SPRING; ACCUMLATOR PISTON (A)	8-97256-866-0	01	1	0106-		●
72	04.233 SPRING; ACCUMLATOR PISTON EXC. PTO TRANSMISSION SIDE(V66) (B) M12X45	8-97257-083-0	01	1	9811-0105		●
72	04.233 SPRING; ACCUMLATOR PISTON (B) M12X45	8-97257-083-0	01	1	0106-		●
137	04.241 PISTON; ACCUMLATOR,A/T 4HG1 ENG(RJH)	8-97138-484-0	01	1	9811-	●
138	04.246 SPRING; ACCUMLATOR PISTON 4HG1 ENG(RJH)	8-94483-484-0	01	1	9811-	●
139	04.241 GASKET; ACCUMLATOR PISTON 4HG1 ENG(RJH) (B)	8-97138-485-0	01	1	9811-	●
139	04.241 GASKET; ACCUMLATOR PISTON 4HG1 ENG(RJH) (A)	8-97138-486-0	01	1	9811-	●
139	04.241 GASKET; ACCUMLATOR PISTON EXC. PTO TRANSMISSION SIDE(V66) (A)	8-97256-862-0	01	1	9811-0105		●
139	04.241 GASKET; ACCUMLATOR PISTON (A)	8-97256-862-0	01	1	0106-		●
139	04.241 GASKET; ACCUMLATOR PISTON EXC. PTO TRANSMISSION SIDE(V66) (B)	8-97256-863-0	01	1	9811-0105		●
139	04.241 GASKET; ACCUMLATOR PISTON (B)	8-97256-863-0	01	1	0106-		●
140	04.241 PISTON; ACCUMLATOR,(N-D),A/T 4HG1 ENG(RJH)	8-97027-237-0	01	1	9811-	●
141	04.246 SPRING; ACCUMLATOR PISTON (N-D) 4HG1 ENG(RJH)	8-94483-492-0	01	1	9811-	●
142	04.241 GASKET; ACCUMLATOR PISTON 4HG1 ENG(RJH) (A) ID=39.4	8-94483-485-0	01	1	9811-	●
142	04.241 GASKET; ACCUMLATOR PISTON 4HG1 ENG(RJH) (B) ID=24.0	8-94483-486-0	01	1	9811-	●
155	04.265 NUT; VALVE BODY 4HG1 ENG(RJH)	8-97112-969-0	04	1	9811-	●
156	04.265 WASHER; PL,VALVE BODY 4HG1 ENG(RJH) 04.228	8-94483-601-0	02	1	9811-	●
177	04.265 RING; SNAP 4HG1 ENG(RJH)	8-97119-872-0	01	1	9811-	●

26 26 26 26 26 26 26 26 26 26 26 26 46 26 273 26 26 26 26 273 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	04.197 BOLT; OIL STRAINER,A/T EXC. PTO TRANSMISSION SIDE(V66) (A)	8-97202-079-0	02	1	9811-0105		●
4	04.197 BOLT; OIL STRAINER,A/T (A)	8-97202-079-0	02	1	0106-		●
4	04.197 BOLT; OIL STRAINER,A/T EXC. PTO TRANSMISSION SIDE(V66) (B)	8-97202-081-0	02	1	9811-0105		●
4	04.197 BOLT; OIL STRAINER,A/T (B)	8-97202-081-0	02	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH) M6X25	8-94343-064-0	02	1	9811-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH) M6X55	8-94483-587-0	01	1	9811-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH) M6X45	8-94483-588-0	01	1	9811-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH) M6X33	8-94483-589-0	16	1	9811-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH) M6X50	8-94483-590-0	10	1	9811-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH) M6X16	8-94483-591-0	02	1	9811-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH) M6X70	8-94483-592-0	02	1	9811-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (A) L=41	8-97257-098-0	01	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (A) L=41	8-97257-098-0	01	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (B) L=45	8-97257-099-0	01	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (B) L=45	8-97257-099-0	01	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (C) L=22	8-97257-100-0	01	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (C) L=22	8-97257-100-0	01	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (D) L=32	8-97257-101-0	07	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (D) L=32	8-97257-101-0	07	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (E) L=28	8-97257-102-0	02	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (E) L=28	8-97257-102-0	02	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (F) L=52	8-97257-103-0	02	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (F) L=52	8-97257-103-0	02	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (G) L=22	8-97257-104-0	03	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (G) L=22	8-97257-104-0	03	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (H) L=57	8-97257-105-0	01	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (H) L=57	8-97257-105-0	01	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (I) L=37.5	8-97257-106-0	01	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (I) L=37.5	8-97257-106-0	01	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (J) L=50	8-97257-127-0	02	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (J) L=50	8-97257-127-0	02	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (K) L=36	8-97257-129-0	02	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (K) L=36	8-97257-129-0	02	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (L) L=50	8-97257-130-0	02	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (L) L=50	8-97257-130-0	02	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (M) L=32	8-97257-131-0	01	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (M) L=32	8-97257-131-0	01	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (N) L=40	8-97257-132-0	04	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (N) L=40	8-97257-132-0	04	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (O) L=53	8-97257-133-0	06	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (O) L=53	8-97257-133-0	06	1	0106-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T EXC. PTO TRANSMISSION SIDE(V66) (P) L=28	8-97257-134-0	10	1	9811-0105		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (P) L=28	8-97257-134-0	10	1	0106-		●
46	04.265 BOLT; COVER TO BODY,LWR VLV,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-137-0	01	1	9811-0105		●
46	04.265 BOLT; COVER TO BODY,LWR VLV,A/T	8-97257-137-0	01	1	0106-		●
273	04.265 WASHER; COVER,VLV BODY,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-138-0	05	1	9811-0105		●
273	04.265 WASHER; COVER,VLV BODY,A/T	8-97257-138-0	05	1	0106-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
