2-43 — AUTO TRANS CONTROL VALVE; UPPER BODY (#22143) — 81 parça

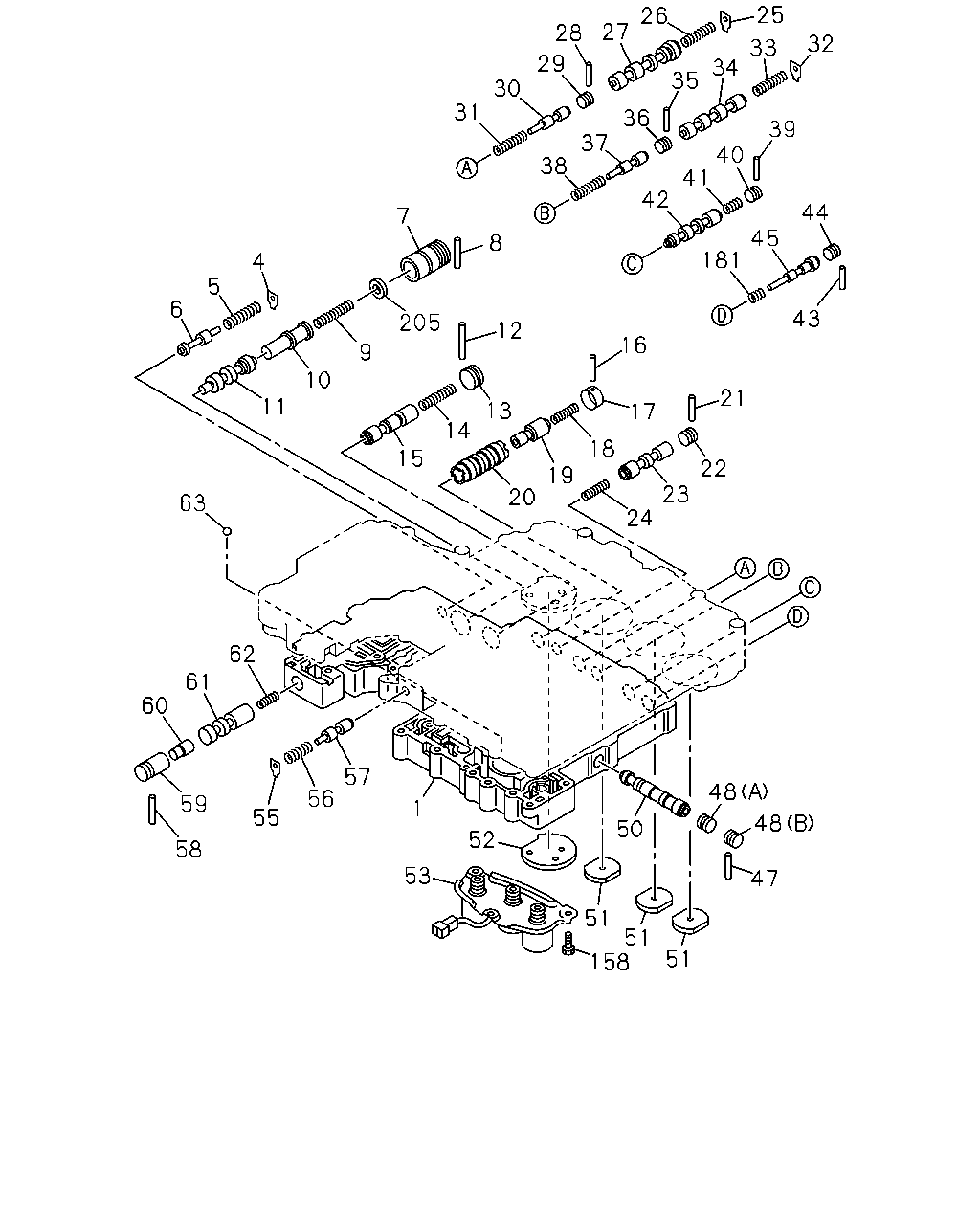

25 26 27 28 32 33 29 34 35 30 31 36 39 37 40 38 41 42 44 7 45 8 181 4 5 6 43 205 12 16 9 10 21 11 13 17 14 18 15 22 19 23 24 20 63 62 61 60 57 48 56 59 1 55 48 50 52 58 53 47 51 51 158 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
1	04.265 BODY ASM; UPR,VALVE,A/T 4HG1 ENG(RJH)	8-94483-496-0	01	1	9811-	●
4	04.265 PLATE; RET,RELIEF VALVE,A/T 4HG1 ENG(RJH)	8-94483-502-0	01	1	9811-	●
5	04.265 SPRING; RELIEF VALVE,UPR BODY,A/ 4HG1 ENG(RJH)	8-97024-246-0	01	1	9811-	●
6	04.265 VALVE; RELIEF,UPR BODY,A/T 4HG1 ENG(RJH)	8-97024-247-0	01	1	9811-	●
7	04.265 SLEEVE; PRESSURE REG VLV,A/T 4HG1 ENG(RJH)	8-97078-319-0	01	1	9811-	●
8	04.265 PIN; PRESSURE REG VLV PLUG 4HG1 ENG(RJH)	8-94483-507-0	01	1	9811-	●
9	04.265 SPRING; PRESSURE REG VLV,A/T 4HG1 ENG(RJH)	8-97024-250-0	01	1	9811-	●
10	04.265 PLUG; PRESSURE REG VALVE,A/T 4HG1 ENG(RJH)	8-97078-318-0	01	1	9811-	●
11	04.265 VALVE; PRESSURE REG,UPR BODY,A/T 4HG1 ENG(RJH)	8-94483-503-0	01	1	9811-	●
12	04.265 PIN; PLUG,PRESSURE MODIFIER VLV 4HG1 ENG(RJH)	8-94483-507-0	01	1	9811-	●
13	04.265 PLUG; PRESSURE MODIFIER VLV 4HG1 ENG(RJH)	8-94483-510-0	01	1	9811-	●
14	04.265 SPRING; PRESSURE MODIFIER VLV 4HG1 ENG(RJH)	8-94483-509-0	01	1	9811-	●
15	04.265 VALVE; PRESSURE MODIFIER,UPR BOD 4HG1 ENG(RJH)	8-94342-919-0	01	1	9811-	●
16	04.265 PIN; PLUG,ACCUMLATOR CONT VLV 4HG1 ENG(RJH)	8-94483-507-0	01	1	9811-	●
17	04.265 PLUG; ACCUMLATOR CONT VLV 4HG1 ENG(RJH)	8-94483-515-0	01	1	9811-	●
18	04.265 SPRING; ACCUMLATOR CONT VLV 4HG1 ENG(RJH)	8-97027-246-0	01	1	9811-	●
19	04.265 VALVE; ACCUMLATOR CONT,UPR VLV 4HG1 ENG(RJH)	8-97078-320-0	01	1	9811-	●
20	04.265 SLEEVE; ACCUMLATOR CONT VLV 4HG1 ENG(RJH)	8-97078-321-0	01	1	9811-	●
21	04.265 PIN; PLUG,SHUTTLE SHIFT VLV 4HG1 ENG(RJH)	8-94483-507-0	01	1	9811-	●
22	04.265 PLUG; SHUTTLE SHIFT VLV 4HG1 ENG(RJH)	8-94483-519-0	01	1	9811-	●
23	04.265 VALVE; SHUTTLE SHIFT,UPR BODY 4HG1 ENG(RJH)	8-94483-517-0	01	1	9811-	●
24	04.265 SPRING; SHUTTLE SHIFT VLV 4HG1 ENG(RJH)	8-94483-518-0	01	1	9811-	●
25	04.265 PLATE; RET,SHIFT CONT VLV 4HG1 ENG(RJH)	8-97044-700-0	01	1	9811-	●
26	04.265 SPRING; SHIFT CONT VLV 4HG1 ENG(RJH)	8-94483-522-0	01	1	9811-	●
27	04.265 VALVE; SHIFT CONT,UPR BODY 4HG1 ENG(RJH)	8-94483-521-0	01	1	9811-	●
28	04.265 PIN; PLUG,SPOOL VALVE 4HG1 ENG(RJH)	8-94483-507-0	01	1	9811-	●
29	04.265 PLUG; SPOOL VALVE 4HG1 ENG(RJH)	8-97112-973-0	01	1	9811-	●
30	04.265 VALVE; SPOOL,UPR BODY 4HG1 ENG(RJH)	8-94483-524-0	01	1	9811-	●
31	04.265 SPRING; SPOOL VLV,UPR BODY 4HG1 ENG(RJH)	8-94483-532-0	01	1	9811-	●
32	04.265 PLATE; RET,SHIFT CONT VLV 4HG1 ENG(RJH)	8-94483-530-0	01	1	9811-	●
33	04.265 SPRING; SHIFT CONT VLV 4HG1 ENG(RJH)	8-94483-522-0	01	1	9811-	●
34	04.265 VALVE; SHIFT CONT 4HG1 ENG(RJH)	8-94483-528-0	01	1	9811-	●
35	04.265 PIN; PLUG,SPOOL CONT VLV 4HG1 ENG(RJH)	8-94483-507-0	01	1	9811-	●
36	04.265 PLUG; SPOOL CONT VLV,UPR BODY 4HG1 ENG(RJH)	8-97112-973-0	01	1	9811-	●
37	04.265 VALVE; SPOOL CONT,UPR BODY 4HG1 ENG(RJH)	8-94483-524-0	01	1	9811-	●
38	04.265 SPRING; SPOOL CONT VLV 4HG1 ENG(RJH)	8-94483-532-0	01	1	9811-	●
39	04.265 PIN; PLUG,OVERRUN CLU CONT VALVE 4HG1 ENG(RJH)	8-94483-507-0	01	1	9811-	●
40	04.265 PLUG; OVERRUN CLU CONT VALVE 4HG1 ENG(RJH)	8-97112-974-0	01	1	9811-	●
41	04.265 SPRING; OVERRUN CLU CONT VALVE 4HG1 ENG(RJH)	8-94483-536-0	01	1	9811-	●
42	04.265 VALVE; OVERRUN CLU CONT 4HG1 ENG(RJH)	8-94483-535-0	01	1	9811-	●
43	04.265 PIN; PLUG,OVERRUN CLU REDUCING V 4HG1 ENG(RJH)	8-94483-507-0	01	1	9811-	●
44	04.265 PLUG; OVERRUN CLU REDUCING VALVE 4HG1 ENG(RJH)	8-97112-974-0	01	1	9811-	●
45	04.265 VALVE; OVERRUN CLU REDUCING 4HG1 ENG(RJH)	8-97027-247-0	01	1	9811-	●
47	04.265 PIN; PLUG,SHUTTLE SHIFT CONT VAL 4HG1 ENG(RJH)	8-94483-507-0	01	1	9811-	●
48	04.265 PLUG; SHUTTLE SHIFT CONT VALVE 4HG1 ENG(RJH) (A)	8-94483-519-0	01	1	9811-	●
48	04.265 PLUG; SHUTTLE SHIFT CONT VALVE 4HG1 ENG(RJH) (B)	8-97078-322-0	01	1	9811-	●
50	04.265 VALVE; SHUTTLE,SHIFT CONT 4HG1 ENG(RJH)	8-97027-248-0	01	1	9811-	●
51	04.265 PLATE; SUPPORT,ACCUMLATOR PISTON 4HG1 ENG(RJH)	8-97140-016-0	03	1	9811-	●
52	04.265 PLATE; SIDE,SOLENOID VALVE 4HG1 ENG(RJH)	8-97027-253-0	01	1	9811-	●
53	04.265 VALVE; SOLENOID,UPR VLV BODY 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97072-030-0	01	1	0106-0203	●
53	04.265 VALVE; SOLENOID,UPR VLV BODY 4HG1 ENG(RJH)	8-97027-249-0	01	1	9811-0105	●
53	04.265 VALVE; SOLENOID,UPR VLV BODY 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51)	8-97027-249-0	01	1	0106-0203	●
53	04.265 VALVE; SOLENOID,UPR VLV BODY 4HG1 ENG(RJH)	8-97027-249-0	01	1	0204-	●
55	04.265 PLATE; RET,PILOT VALVE SPRING 4HG1 ENG(RJH)	8-94483-502-0	01	1	9811-	●
56	04.265 SPRING; PILOT VALVE,SPOOL CONT 4HG1 ENG(RJH)	8-94483-544-0	01	1	9811-	●
57	04.265 VALVE; PILOT,SPOOL CONT 4HG1 ENG(RJH)	8-94483-543-0	01	1	9811-	●
58	04.265 PIN; PLUG,LOCKUP CONT VALVE 4HG1 ENG(RJH)	8-94483-507-0	01	1	9811-	●
59	04.265 SLEEVE; LOCKUP CONT VALVE 4HG1 ENG(RJH)	8-94483-548-0	01	1	9811-	●
60	04.265 PLUG; LOCKUP CONT VALVE 4HG1 ENG(RJH)	8-94483-547-0	01	1	9811-	●
61	04.265 VALVE; LOCKUP CONT,UPR BODY 4HG1 ENG(RJH)	8-94342-920-0	01	1	9811-	●
62	04.265 SPRING; LOCKUP CONT VALVE 4HG1 ENG(RJH)	8-94342-921-0	01	1	9811-	●
63	04.265 BALL; STEEL,VLV UPR,A/T 4HG1 ENG(RJH)	8-97135-609-0	09	1	9811-	●
158	04.115 BOLT; SOLENOID 4HG1 ENG(RJH) 04.265 M6X27	8-94483-598-0	02	1	9811-	●
181	04.265 SPRING; OVERRUN CLU REDUCING VAL 4HG1 ENG(RJH)	8-97044-701-0	01	1	9811-	●
205	04.265 SEAT; SPR 4HG1 ENG(RJH) 04.256	8-97024-249-0	01	1	9811-	●

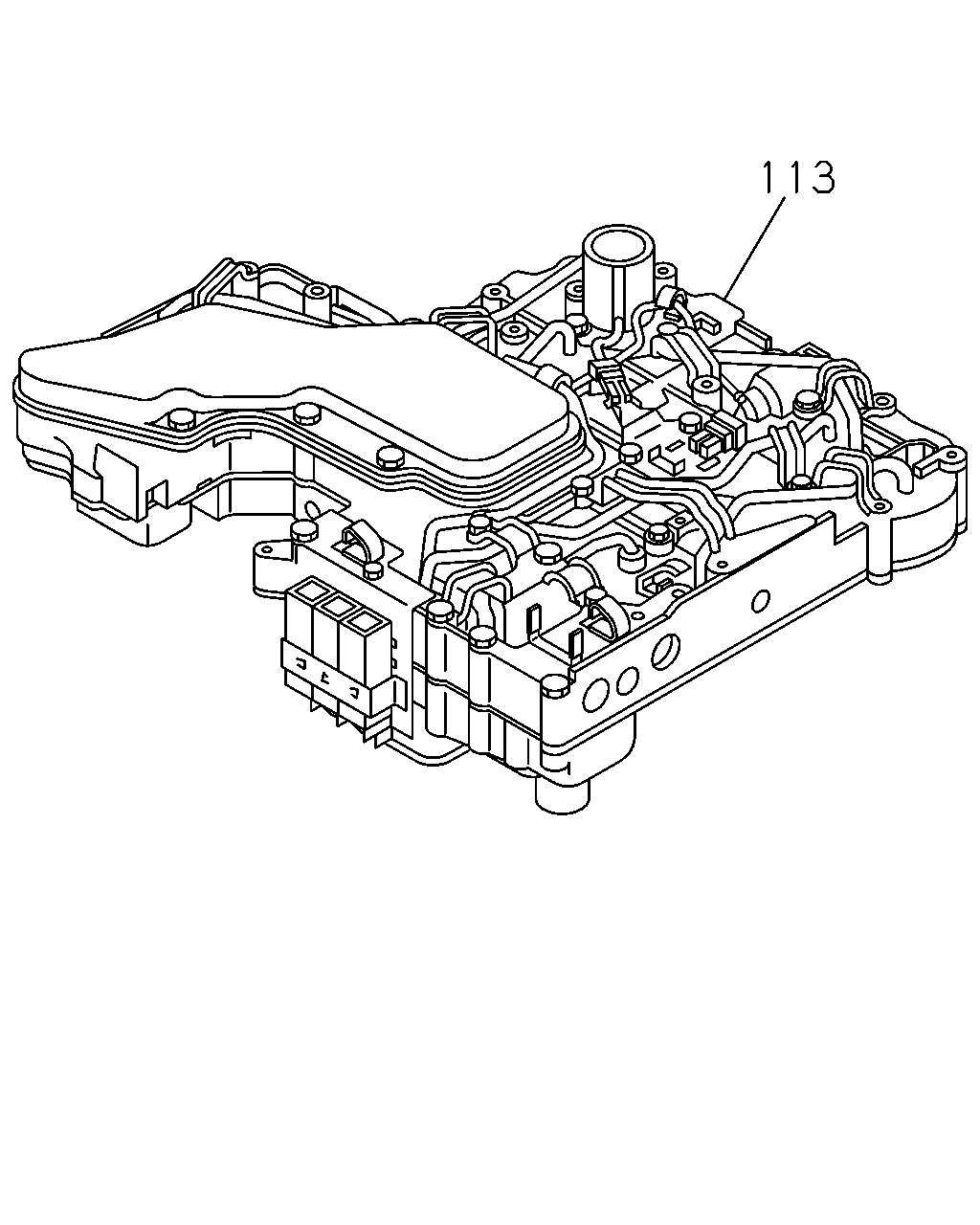

113

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	113	04.265 VALVE ASM; CONT,A/T 4HG1 ENG(RJH)	8-97119-868-0	01	1	9811-	●

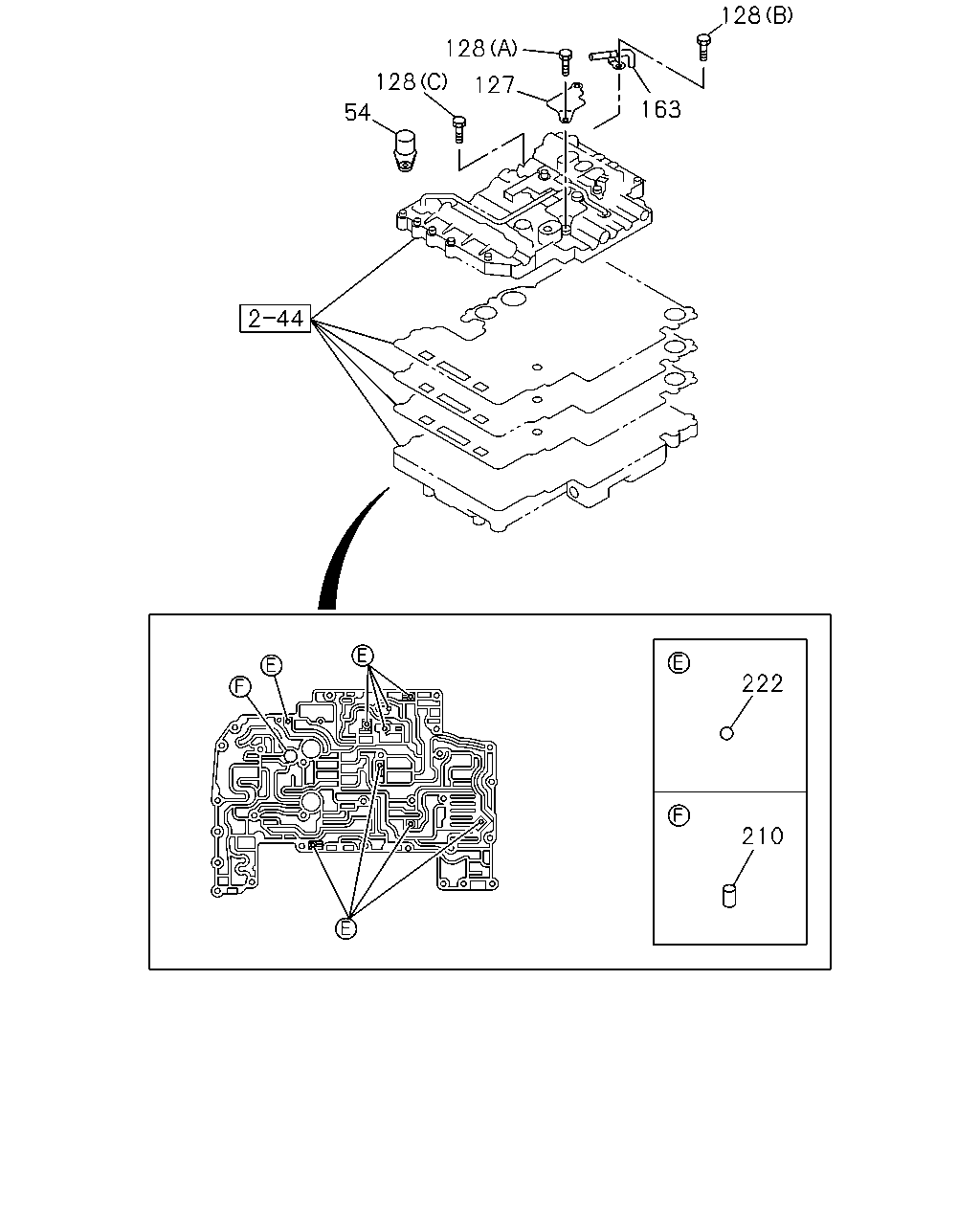

128 128 163 128 127 54 222 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	04.265 VALVE; SOLENOID,LINE PRESSURE CO 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97072-038-0	01	1	0106-0203	●
127	04.265 COVER; VALVE BODY EXC. PTO TRANSMISSION SIDE(V66)	8-97257-126-0	01	1	9811-0105		●
127	04.265 COVER; VALVE BODY	8-97257-126-0	01	1	0106-		●
128	04.265 BOLT; COVER EXC. PTO TRANSMISSION SIDE(V66) (C)	8-97257-132-0	01	1	9811-0105		●
128	04.265 BOLT; COVER (C)	8-97257-132-0	01	1	0106-		●
128	04.265 BOLT; COVER EXC. PTO TRANSMISSION SIDE(V66) (B)	8-97257-136-0	01	1	9811-0105		●
128	04.265 BOLT; COVER (B)	8-97257-136-0	01	1	0106-		●
128	04.265 BOLT; COVER EXC. PTO TRANSMISSION SIDE(V66) (A)	8-97257-137-0	01	1	9811-0105		●
128	04.265 BOLT; COVER (A)	8-97257-137-0	01	1	0106-		●
163	04.265 PIPE; VLV BODY EXC. PTO TRANSMISSION SIDE(V66)	8-97257-116-0	01	1	9811-0105		●
163	04.265 PIPE; VLV BODY	8-97257-116-0	01	1	0106-		●
210	04.265 STRAINER EXC. PTO TRANSMISSION SIDE(V66)	8-97257-113-0	01	1	9811-0105		●
210	04.265 STRAINER	8-97257-113-0	01	1	0106-		●
222	04.265 BALL; STEEL,CHECK EXC. PTO TRANSMISSION SIDE(V66)	8-97257-125-0	09	1	9811-0105		●
222	04.265 BALL; STEEL,CHECK	8-97257-125-0	09	1	0106-		●
