◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50817 - NPR/NQR-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-42 - AUTO TRANS OIL PAN AND OIL CONTROL ▶
2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#22142) — 71 parça
çizim 10735
10 13 11 12
BalonParca AdiParca NoAdetTipApplied Date A B
10 04.197 GAUGE; OIL LEVEL
4HG1 ENG(RJH) 		8-97061-278-3 01 1 9811-9903 ●
10 04.197 GAUGE; OIL LEVEL
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 		8-97061-278-3 01 1 9904- ●
10 04.197 GAUGE; OIL LEVEL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97227-175-1 01 1 9904- ●
10 04.197 GAUGE; OIL LEVEL 8-97210-885-0 01 1 9811- ●
11 04.197 TUBE; OIL FILLER
4HG1 ENG(RJH) 		8-97077-401-5 01 1 9811-9903 ●
11 04.197 TUBE; OIL FILLER
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 		8-97077-401-5 01 1 9904-0002 ●
11 04.197 TUBE; OIL FILLER
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 		8-97233-311-0 01 1 0003- ●
11 04.197 TUBE; OIL FILLER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97225-132-1 01 1 9904- ●
11 04.197 TUBE; OIL FILLER 8-97148-538-3 01 1 9811- ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
06.673 		9-09561-216-0 01 1 9811- ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
04.133 ID=9.8 		9-09561-110-0 01 1 9811- ●
13 04.197 BOLT; OIL FILLER
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9811- ●

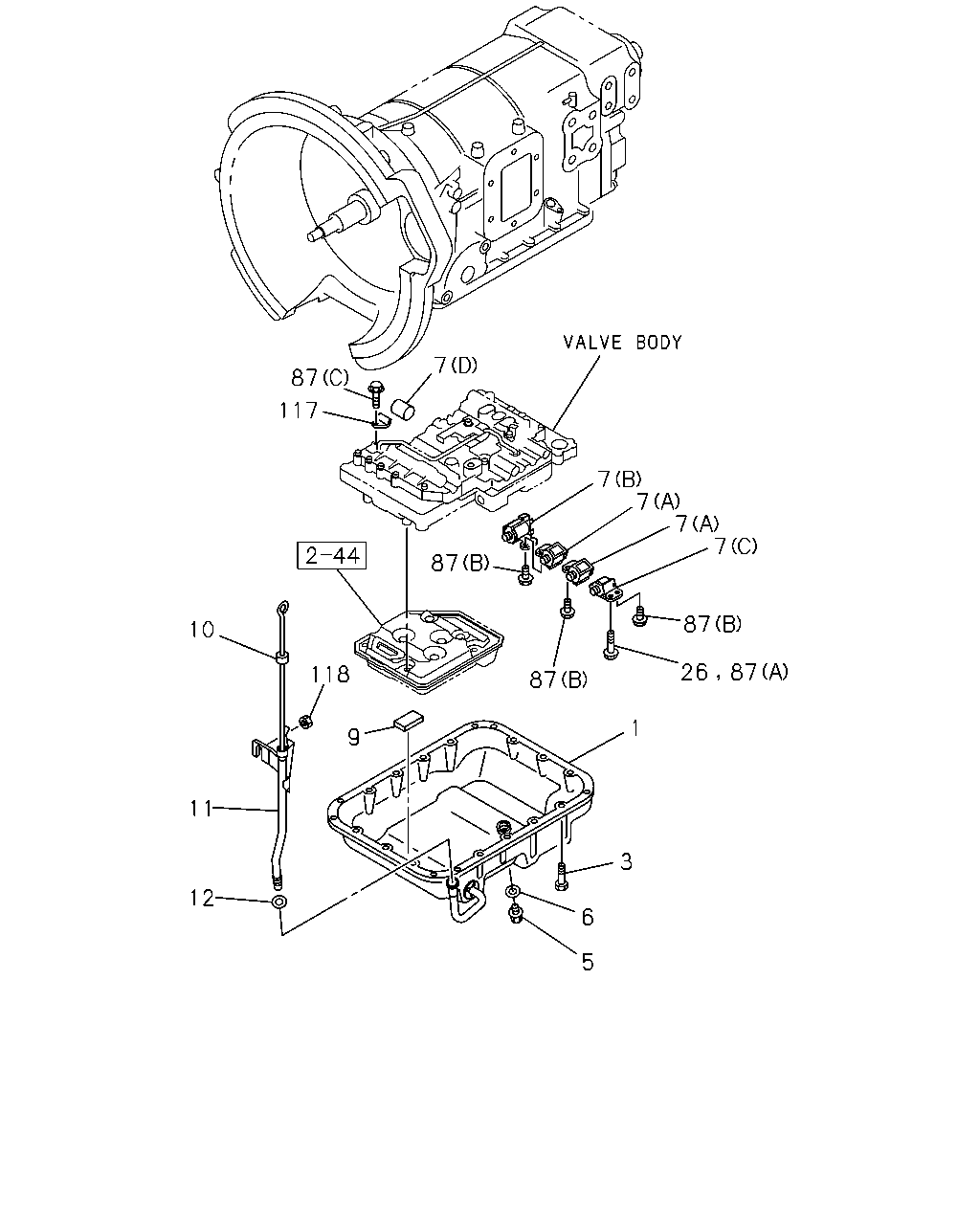

çizim 47200
7 87 117 7 7 7 7 87 87 7 10 118 87 1 9 11 3 12 6 5 26 87
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.195 PAN ASM; OIL,A/T
4HG1 ENG(RJH) 		8-97189-182-0 01 1 9811- ●
1 04.195 PAN ASM; OIL,A/T
EXC. PTO TRANSMISSION SIDE(V66) 		8-97202-066-0 01 1 9811-0105 ●
1 04.195 PAN ASM; OIL,A/T 8-97202-066-0 01 1 0106- ●
3 04.196 BOLT; OIL PAN TO CASE
4HG1 ENG(RJH) 		8-97134-264-0 18 1 9811- ●
3 04.196 BOLT; OIL PAN TO CASE
EXC. PTO TRANSMISSION SIDE(V66) 		8-97202-101-0 20 1 9811-0105 ●
3 04.196 BOLT; OIL PAN TO CASE 8-97202-101-0 20 1 0106- ●
5 04.195 PLUG; OIL PAN
4HG1 ENG(RJH) 		8-97131-023-0 01 1 9811- ●
5 04.195 PLUG; OIL PAN
EXC. PTO TRANSMISSION SIDE(V66) 		1-34139-022-0 01 1 9811-0105 ●
5 04.195 PLUG; OIL PAN 1-34139-022-0 01 1 0106- ●
6 04.195 GASKET; OIL PAN TO PLUG
4HG1 ENG(RJH) 		8-97044-671-0 01 1 9811- ●
6 04.195 GASKET; OIL PAN TO PLUG
EXC. PTO TRANSMISSION SIDE(V66) 		8-97202-032-0 01 1 9811-0105 ●
6 04.195 GASKET; OIL PAN TO PLUG 8-97202-032-0 01 1 0106- ●
7 04.265 SOLENOID; DOWN SHIFT,A/T
EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-97216-036-0 02 1 9811-0105 ●
7 04.265 SOLENOID; DOWN SHIFT,A/T
(A) 		8-97216-036-0 02 1 0106- ●
7 04.265 SOLENOID; DOWN SHIFT,A/T
EXC. PTO TRANSMISSION SIDE(V66) (B) 		8-97216-037-0 01 1 9811-0105 ●
7 04.265 SOLENOID; DOWN SHIFT,A/T
(B) 		8-97216-037-0 01 1 0106- ●
7 04.265 SOLENOID; DOWN SHIFT,A/T
EXC. PTO TRANSMISSION SIDE(V66) (C) 		8-97216-038-0 01 1 9811-0105 ●
7 04.265 SOLENOID; DOWN SHIFT,A/T
(C) 		8-97216-038-0 01 1 0106- ●
7 04.265 SOLENOID; DOWN SHIFT,A/T
EXC. PTO TRANSMISSION SIDE(V66) (D) 		8-97257-141-0 01 1 9811-0105 ●
7 04.265 SOLENOID; DOWN SHIFT,A/T
(D) 		8-97257-141-0 01 1 0106- ●
9 04.195 MAGNET; OIL PAN
EXC. PTO TRANSMISSION SIDE(V66) 		8-97202-068-0 04 1 9811-0105 ●
9 04.195 MAGNET; OIL PAN 8-97202-068-0 04 1 0106- ●
10 04.197 GAUGE; OIL LEVEL
4HG1 ENG(RJH) 		8-97061-278-3 01 1 9811-9903 ●
10 04.197 GAUGE; OIL LEVEL
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 		8-97061-278-3 01 1 9904- ●
10 04.197 GAUGE; OIL LEVEL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97227-175-1 01 1 9904- ●
10 04.197 GAUGE; OIL LEVEL 8-97210-885-0 01 1 9811- ●
11 04.197 TUBE; OIL FILLER
4HG1 ENG(RJH) 		8-97077-401-5 01 1 9811-9903 ●
11 04.197 TUBE; OIL FILLER
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 		8-97077-401-5 01 1 9904-0002 ●
11 04.197 TUBE; OIL FILLER
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 		8-97233-311-0 01 1 0003- ●
11 04.197 TUBE; OIL FILLER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97225-132-1 01 1 9904- ●
11 04.197 TUBE; OIL FILLER 8-97148-538-3 01 1 9811- ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
06.673 		9-09561-216-0 01 1 9811- ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
04.133 ID=9.8 		9-09561-110-0 01 1 9811- ●
26 04.265 BOLT; ACTUATOR
EXC. PTO TRANSMISSION SIDE(V66) 		8-97202-080-0 02 1 0002-0105 ●
26 04.265 BOLT; ACTUATOR 8-97202-080-0 02 1 0106- ●
87 04.265 BOLT; SOLENOID
EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-97202-080-0 01 1 9811-0001 ●
87 04.265 BOLT; SOLENOID
EXC. PTO TRANSMISSION SIDE(V66) (C) 		8-97257-139-0 01 1 9811-0105 ●
87 04.265 BOLT; SOLENOID
(C) 		8-97257-139-0 01 1 0106- ●
87 04.265 BOLT; SOLENOID
EXC. PTO TRANSMISSION SIDE(V66) (B) 		8-97202-099-0 03 1 9811-0105 ●
87 04.265 BOLT; SOLENOID
(B) 		8-97202-099-0 03 1 0106- ●
117 04.265 CLIP
EXC. PTO TRANSMISSION SIDE(V66) 		8-97257-140-0 01 1 9811-0105 ●
117 04.265 CLIP 8-97257-140-0 01 1 0106- ●
118 04.197 NUT; OIL FILLER TUBE
04.785 M10 FLANGE 		0-91150-110-0 01 1 9811- ●

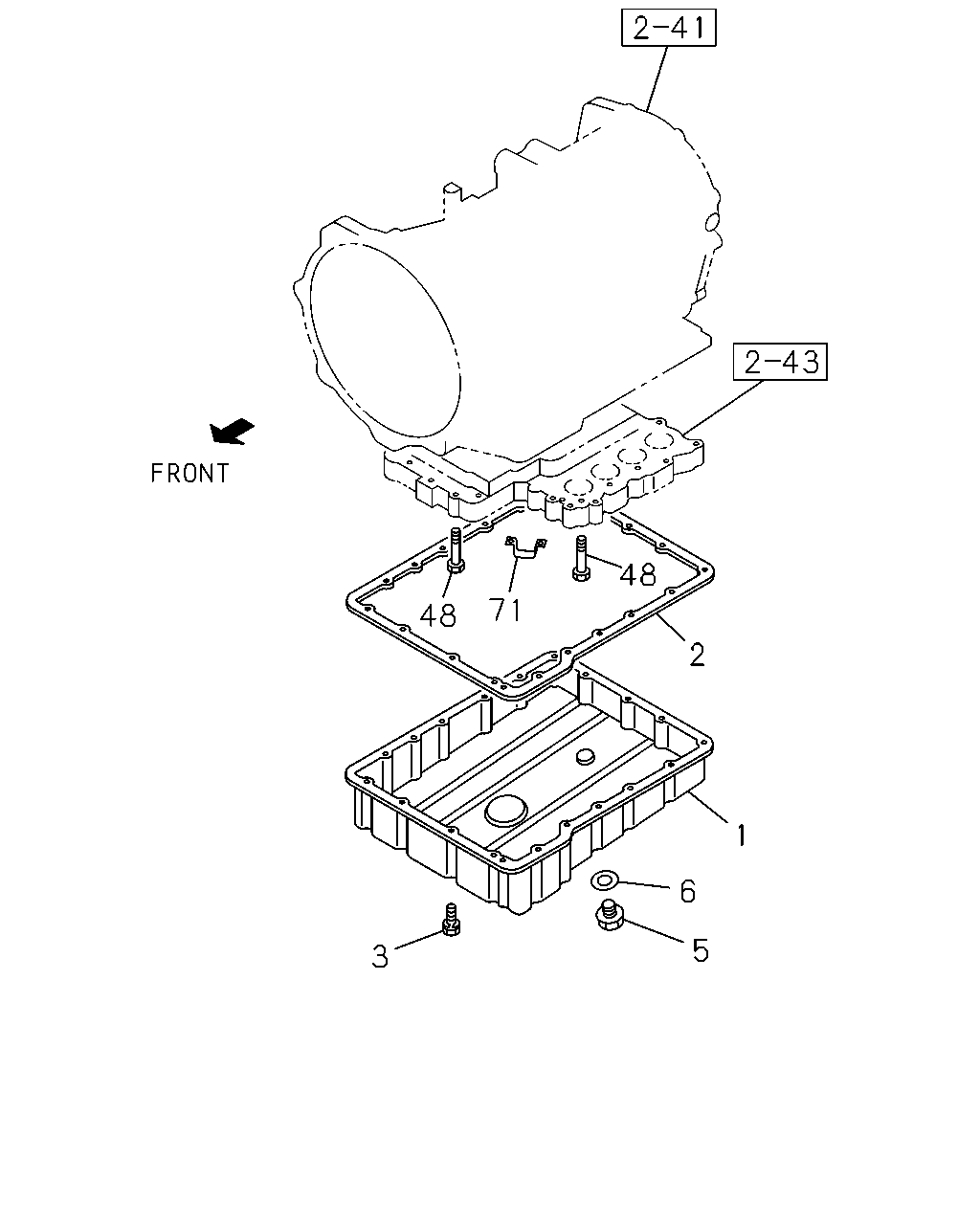

çizim 50973
48 71 48 2 1 6 5 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.195 PAN ASM; OIL,A/T
4HG1 ENG(RJH) 		8-97189-182-0 01 1 9811- ●
1 04.195 PAN ASM; OIL,A/T
EXC. PTO TRANSMISSION SIDE(V66) 		8-97202-066-0 01 1 9811-0105 ●
1 04.195 PAN ASM; OIL,A/T 8-97202-066-0 01 1 0106- ●
2 04.196 GASKET; OIL PAN,A/T
4HG1 ENG(RJH) 		8-97109-221-0 01 1 9811- ●
3 04.196 BOLT; OIL PAN TO CASE
4HG1 ENG(RJH) 		8-97134-264-0 18 1 9811- ●
3 04.196 BOLT; OIL PAN TO CASE
EXC. PTO TRANSMISSION SIDE(V66) 		8-97202-101-0 20 1 9811-0105 ●
3 04.196 BOLT; OIL PAN TO CASE 8-97202-101-0 20 1 0106- ●
5 04.195 PLUG; OIL PAN
4HG1 ENG(RJH) 		8-97131-023-0 01 1 9811- ●
5 04.195 PLUG; OIL PAN
EXC. PTO TRANSMISSION SIDE(V66) 		1-34139-022-0 01 1 9811-0105 ●
5 04.195 PLUG; OIL PAN 1-34139-022-0 01 1 0106- ●
6 04.195 GASKET; OIL PAN TO PLUG
4HG1 ENG(RJH) 		8-97044-671-0 01 1 9811- ●
6 04.195 GASKET; OIL PAN TO PLUG
EXC. PTO TRANSMISSION SIDE(V66) 		8-97202-032-0 01 1 9811-0105 ●
6 04.195 GASKET; OIL PAN TO PLUG 8-97202-032-0 01 1 0106- ●
48 04.265 BOLT; VLV BODY,A/T
4HG1 ENG(RJH) M6X33 		8-94483-589-0 12 1 9811- ●
48 04.265 BOLT; VLV BODY,A/T
4HG1 ENG(RJH) M6X45 		8-94483-609-0 08 1 9811- ●
71 04.265 CLIP; HARNESS,A/T CASE
4HG1 ENG(RJH) 		8-94483-610-0 01 1 9811- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
