2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#22141) — 264 parça

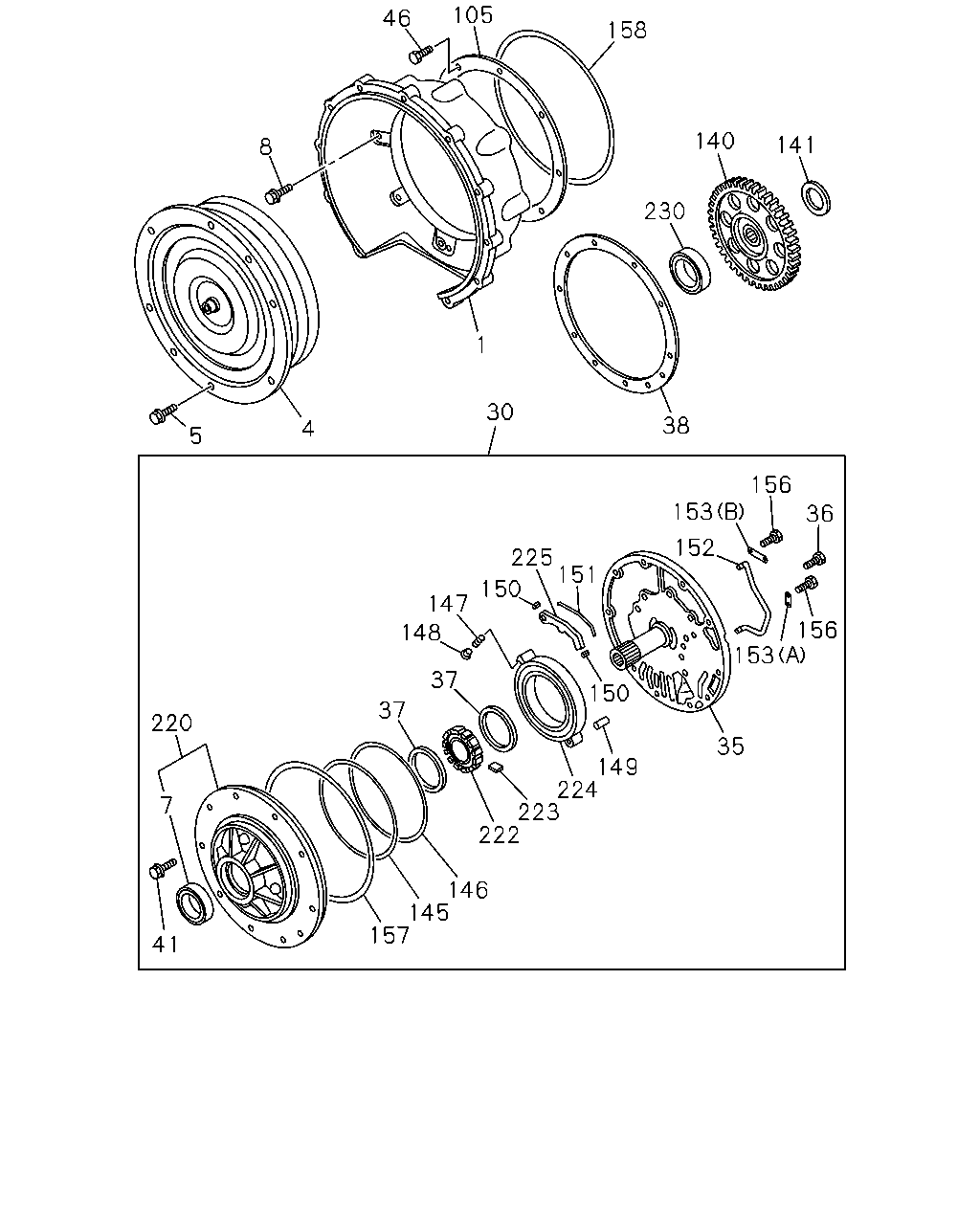

105 46 158 140 141 8 230 1 30 38 4 5 156 153 36 152 225 151 150 147 156 148 153 37 150 37 220 35 149 224 223 222 7 146 145 157 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.103 HOUSING; CONV,A/T 4HG1 ENG(RJH)	8-97027-231-0	01	1	9811-9903	●
1	04.103 HOUSING; CONV,A/T 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51)	8-97027-231-0	01	1	9904-	●
1	04.103 HOUSING; CONV,A/T 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97204-874-0	01	1	9904-	●
1	04.103 HOUSING; CONV,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-079-0	01	1	9811-0105		●
1	04.103 HOUSING; CONV,A/T	8-97257-079-0	01	1	0106-		●
4	04.115 CONVERTER ASM; TORQUE,A/T 4HG1 ENG(RJH)	8-97183-139-0	01	1	9811-9903	●
4	04.115 CONVERTER ASM; TORQUE,A/T 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51)	8-97183-139-0	01	1	9904-	●
4	04.115 CONVERTER ASM; TORQUE,A/T 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97204-873-0	01	1	9904-	●
4	04.115 CONVERTER ASM; TORQUE,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97202-043-0	01	1	9811-0105		●
4	04.115 CONVERTER ASM; TORQUE,A/T	8-97202-043-0	01	1	0106-		●
5	04.008 BOLT; RR PLATE TO TORQUE CONV 03.417 M10X25 FLANGE	0-28081-025-0	06	1	9811-	●	●
7	04.226 SEAL; OIL,LIP,A/T 4HG1 ENG(RJH)	8-97135-606-0	01	1	9811-	●
7	04.226 SEAL; OIL,LIP,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97218-280-0	01	1	9811-0105		●
7	04.226 SEAL; OIL,LIP,A/T	8-97218-280-0	01	1	0106-		●
8	04.217 BOLT; HSG TO CASE 4HG1 ENG(RJH) M12X40	8-94483-327-0	08	1	9811-	●
8	04.217 BOLT; HSG TO CASE 4HG1 ENG(RJH) 04.290 M10X49	8-94483-337-0	02	1	9811-	●
8	04.217 BOLT; HSG TO CASE EXC. PTO TRANSMISSION SIDE(V66) (A) L=35	8-97256-912-0	06	1	9811-0105		●
8	04.217 BOLT; HSG TO CASE (A) L=35	8-97256-912-0	06	1	0106-		●
8	04.217 BOLT; HSG TO CASE EXC. PTO TRANSMISSION SIDE(V66) (B) L=45	8-97256-913-0	02	1	9811-0105		●
8	04.217 BOLT; HSG TO CASE (B) L=45	8-97256-913-0	02	1	0106-		●
30	04.224 PUMP ASM; OIL,A/T 4HG1 ENG(RJH)	8-97177-197-0	01	1	9811-	●
30	04.224 PUMP ASM; OIL,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97256-916-0	01	1	9811-0105		●
30	04.224 PUMP ASM; OIL,A/T	8-97256-916-0	01	1	0106-		●
35	04.224 COVER; OIL PUMP,A/T 4HG1 ENG(RJH)	8-97044-674-0	01	1	9811-	●
36	04.226 BOLT; OIL PUMP COVER,A/T 4HG1 ENG(RJH)	8-94483-297-0	06	1	9811-	●
37	04.226 RING; SEAL,OIL PUMP,A/T 4HG1 ENG(RJH)	8-94483-310-0	02	1	9811-	●
37	04.226 RING; SEAL,OIL PUMP,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97256-917-0	02	1	9811-0105		●
37	04.226 RING; SEAL,OIL PUMP,A/T	8-97256-917-0	02	1	0106-		●
38	04.226 GASKET; OIL PUMP,A/T 4HG1 ENG(RJH)	8-97109-223-0	01	1	9811-	●
38	04.226 GASKET; OIL PUMP,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97256-924-0	01	1	9811-0105		●
38	04.226 GASKET; OIL PUMP,A/T	8-97256-924-0	01	1	0106-		●
41	04.226 BOLT; OIL PUMP HSG,A/T 4HG1 ENG(RJH)	8-97112-975-0	10	1	9811-	●
41	04.226 BOLT; OIL PUMP HSG,A/T EXC. PTO TRANSMISSION SIDE(V66) (A) L=60	8-97256-910-0	10	1	9811-0105		●
41	04.226 BOLT; OIL PUMP HSG,A/T (A) L=60	8-97256-910-0	10	1	0106-		●
41	04.226 BOLT; OIL PUMP HSG,A/T EXC. PTO TRANSMISSION SIDE(V66) (B) L=60	8-97256-911-0	01	1	9811-0105		●
41	04.226 BOLT; OIL PUMP HSG,A/T (B) L=60	8-97256-911-0	01	1	0106-		●
41	04.226 BOLT; OIL PUMP HSG,A/T EXC. PTO TRANSMISSION SIDE(V66) (C)	8-97256-921-0	07	1	9811-0105		●
41	04.226 BOLT; OIL PUMP HSG,A/T (C)	8-97256-921-0	07	1	0106-		●
46	04.226 BOLT; RET 4HG1 ENG(RJH)	8-94483-320-0	10	1	9811-	●
105	04.226 SPACER; OIL PUMP 4HG1 ENG(RJH)	8-94483-325-0	01	1	9811-	●
140	04.175 GEAR; PTO DRIVE,A/T 4HG1 ENG(RJH)	8-97092-785-0	01	1	9811-	●
141	04.176 BEARING; THRUST,PTO DRIVE GEAR 4HG1 ENG(RJH)	8-94483-242-0	01	1	9811-	●
145	04.226 RING; FRICTION,OIL PUMP CAM RING 4HG1 ENG(RJH)	8-94483-290-0	01	1	9811-	●
146	04.226 GASKET; CAM RING,OIL PUMP 4HG1 ENG(RJH)	8-94483-291-1	01	1	9811-	●
147	04.226 SPRING; CAM RING,OIL PUMP 4HG1 ENG(RJH)	8-94483-292-0	01	1	9811-	●
148	04.226 RETAINER; SPRING,CAM RING,OIL PU 4HG1 ENG(RJH)	8-94483-293-0	01	1	9811-	●
149	04.226 PIN; PIVOT,OIL PUMP 4HG1 ENG(RJH)	8-94483-294-0	02	1	9811-	●
150	04.166 SEAL; CONT PISTON,SIDE,OIL PUMP 4HG1 ENG(RJH)	8-94483-295-0	02	1	9811-	●
151	04.166 SEAL; CONT PISTON,OIL PUMP 4HG1 ENG(RJH)	8-94483-296-0	01	1	9811-	●
152	04.226 TUBE; OIL,OIL PUMP,A/T 4HG1 ENG(RJH)	8-94483-299-0	01	1	9811-	●
153	04.226 BRACKET; OIL TUBE,A/T 4HG1 ENG(RJH) (B)	8-94483-300-0	01	1	9811-	●
153	04.226 BRACKET; OIL TUBE,A/T 4HG1 ENG(RJH) (A)	8-94483-308-0	01	1	9811-	●
156	04.226 BOLT; OIL TUBE BRKT,OIL PUMP 4HG1 ENG(RJH) M8X12	8-94483-307-0	02	1	9811-	●
156	04.226 BOLT; OIL TUBE BRKT,OIL PUMP 4HG1 ENG(RJH) M8X55	8-94483-309-0	02	1	9811-	●
157	04.166 SEAL; GASKET,OIL PUMP,A/T 4HG1 ENG(RJH)	8-94483-298-0	01	1	9811-	●
158	04.166 SEAL; OIL PUMP TO A/T CASE 4HG1 ENG(RJH)	8-94483-319-0	01	1	9811-	●
220	04.200 HOUSING ASM; OIL PUMP,A/T 4HG1 ENG(RJH)	8-97044-673-1	01	1	9811-	●
222	04.224 ROTOR; OIL PUMP 4HG1 ENG(RJH) T=16.967	8-97066-822-0	01	1	9811-	●
222	04.224 ROTOR; OIL PUMP 4HG1 ENG(RJH) T=16.974	8-97066-823-0	01	1	9811-	●
222	04.224 ROTOR; OIL PUMP 4HG1 ENG(RJH) T=16.981	8-97066-824-0	01	1	9811-	●
222	04.224 ROTOR; OIL PUMP 4HG1 ENG(RJH) T=16.988	8-97066-825-0	01	1	9811-	●
223	04.224 VANE; OIL PUMP 4HG1 ENG(RJH) T=16.967	8-97066-814-0	13	1	9811-	●
223	04.224 VANE; OIL PUMP 4HG1 ENG(RJH) T=16.974	8-97066-815-0	13	1	9811-	●
223	04.224 VANE; OIL PUMP 4HG1 ENG(RJH) T=16.981	8-97066-816-0	13	1	9811-	●
223	04.224 VANE; OIL PUMP 4HG1 ENG(RJH) T=16.988	8-97066-817-0	13	1	9811-	●
224	04.224 RING; CAM 4HG1 ENG(RJH) T=16.987	8-97066-826-1	01	1	9811-	●
224	04.224 RING; CAM 4HG1 ENG(RJH) T=16.994	8-97066-827-1	01	1	9811-	●
224	04.224 RING; CAM 4HG1 ENG(RJH) T=17.001	8-97066-828-1	01	1	9811-	●
224	04.224 RING; CAM 4HG1 ENG(RJH) T=17.008	8-97066-829-1	01	1	9811-	●
225	04.224 PISTON; CONT 4HG1 ENG(RJH) T=13.467	8-97066-818-0	01	1	9811-	●
225	04.224 PISTON; CONT 4HG1 ENG(RJH) T=13.474	8-97066-819-0	01	1	9811-	●
225	04.224 PISTON; CONT 4HG1 ENG(RJH) T=13.481	8-97066-820-0	01	1	9811-	●
225	04.224 PISTON; CONT 4HG1 ENG(RJH) T=13.488	8-97066-821-0	01	1	9811-	●
230	04.176 BEARING; BALL,PTO DRIVE GEAR 4HG1 ENG(RJH)	8-97044-690-0	01	1	9811-	●

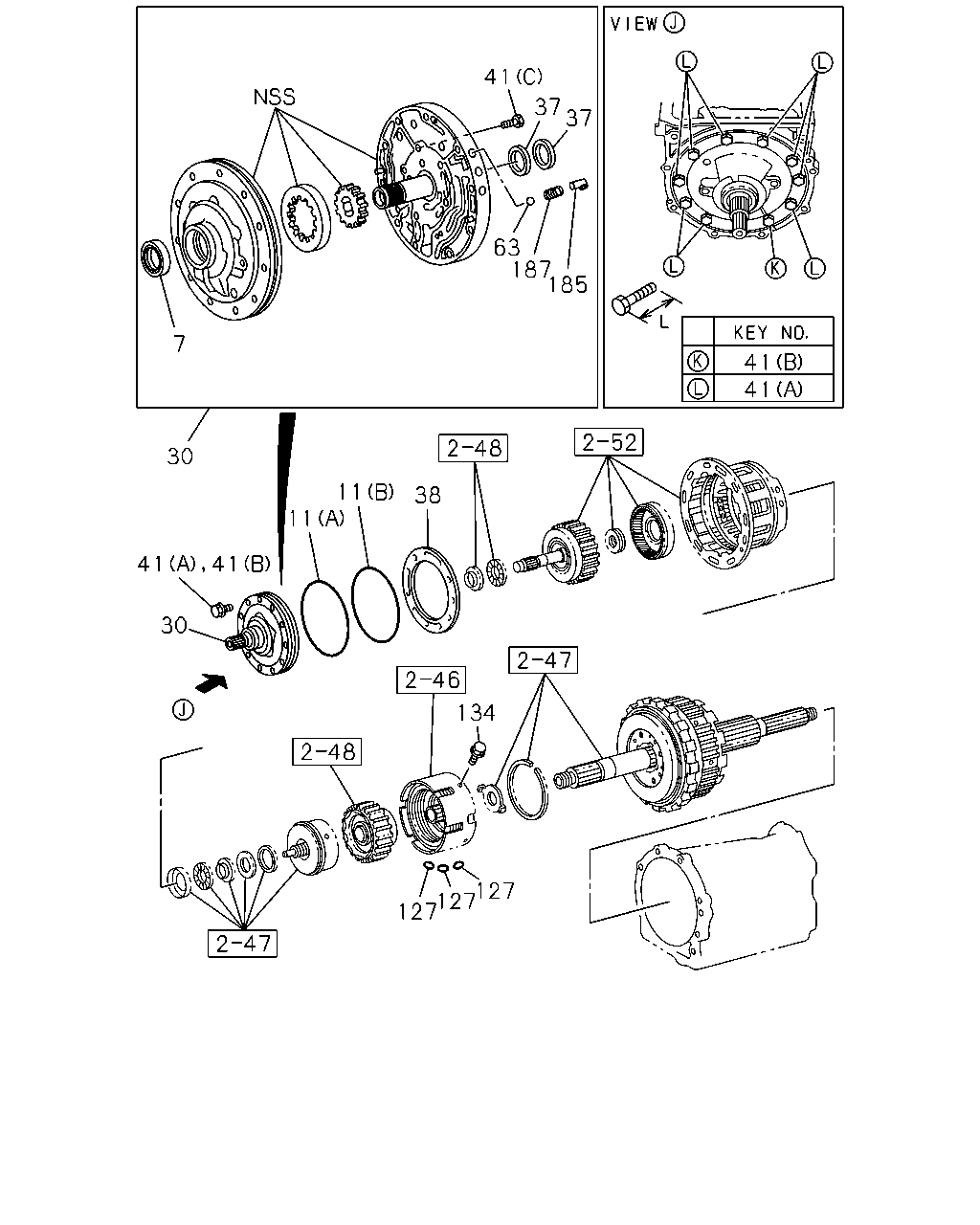

41 37 37 63 187 185 7 41 41 30 11 38 11 41 41 30 134 127 127 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	04.226 SEAL; OIL,LIP,A/T 4HG1 ENG(RJH)	8-97135-606-0	01	1	9811-	●
7	04.226 SEAL; OIL,LIP,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97218-280-0	01	1	9811-0105		●
7	04.226 SEAL; OIL,LIP,A/T	8-97218-280-0	01	1	0106-		●
11	04.104 RING; SEALING,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66) (A)	8-97256-922-0	01	1	9811-0105		●
11	04.104 RING; SEALING,TRANS CASE (A)	8-97256-922-0	01	1	0106-		●
11	04.104 RING; SEALING,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66) (B)	8-97256-923-0	01	1	9811-0105		●
11	04.104 RING; SEALING,TRANS CASE (B)	8-97256-923-0	01	1	0106-		●
30	04.224 PUMP ASM; OIL,A/T 4HG1 ENG(RJH)	8-97177-197-0	01	1	9811-	●
30	04.224 PUMP ASM; OIL,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97256-916-0	01	1	9811-0105		●
30	04.224 PUMP ASM; OIL,A/T	8-97256-916-0	01	1	0106-		●
37	04.226 RING; SEAL,OIL PUMP,A/T 4HG1 ENG(RJH)	8-94483-310-0	02	1	9811-	●
37	04.226 RING; SEAL,OIL PUMP,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97256-917-0	02	1	9811-0105		●
37	04.226 RING; SEAL,OIL PUMP,A/T	8-97256-917-0	02	1	0106-		●
38	04.226 GASKET; OIL PUMP,A/T 4HG1 ENG(RJH)	8-97109-223-0	01	1	9811-	●
38	04.226 GASKET; OIL PUMP,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97256-924-0	01	1	9811-0105		●
38	04.226 GASKET; OIL PUMP,A/T	8-97256-924-0	01	1	0106-		●
41	04.226 BOLT; OIL PUMP HSG,A/T 4HG1 ENG(RJH)	8-97112-975-0	10	1	9811-	●
41	04.226 BOLT; OIL PUMP HSG,A/T EXC. PTO TRANSMISSION SIDE(V66) (A) L=60	8-97256-910-0	10	1	9811-0105		●
41	04.226 BOLT; OIL PUMP HSG,A/T (A) L=60	8-97256-910-0	10	1	0106-		●
41	04.226 BOLT; OIL PUMP HSG,A/T EXC. PTO TRANSMISSION SIDE(V66) (B) L=60	8-97256-911-0	01	1	9811-0105		●
41	04.226 BOLT; OIL PUMP HSG,A/T (B) L=60	8-97256-911-0	01	1	0106-		●
41	04.226 BOLT; OIL PUMP HSG,A/T EXC. PTO TRANSMISSION SIDE(V66) (C)	8-97256-921-0	07	1	9811-0105		●
41	04.226 BOLT; OIL PUMP HSG,A/T (C)	8-97256-921-0	07	1	0106-		●
63	04.103 BALL; HSG EXC. PTO TRANSMISSION SIDE(V66)	8-97256-918-0	01	1	9811-0105		●
63	04.103 BALL; HSG	8-97256-918-0	01	1	0106-		●
127	04.103 GASKET; CASE TO COVER EXC. PTO TRANSMISSION SIDE(V66) 04.166	8-97256-927-0	03	1	9811-0105		●
127	04.103 GASKET; CASE TO COVER 04.166	8-97256-927-0	03	1	0106-		●
134	04.103 BOLT; COVER TO CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97256-914-0	03	1	9811-0105		●
134	04.103 BOLT; COVER TO CASE	8-97256-914-0	03	1	0106-		●
185	04.205 SEAT; SPR,REG VALVE EXC. PTO TRANSMISSION SIDE(V66)	8-97256-920-0	01	1	9811-0105		●
185	04.205 SEAT; SPR,REG VALVE	8-97256-920-0	01	1	0106-		●
187	04.205 VALVE; PRESSURE REG EXC. PTO TRANSMISSION SIDE(V66)	8-97256-919-0	01	1	9811-0105		●
187	04.205 VALVE; PRESSURE REG	8-97256-919-0	01	1	0106-		●

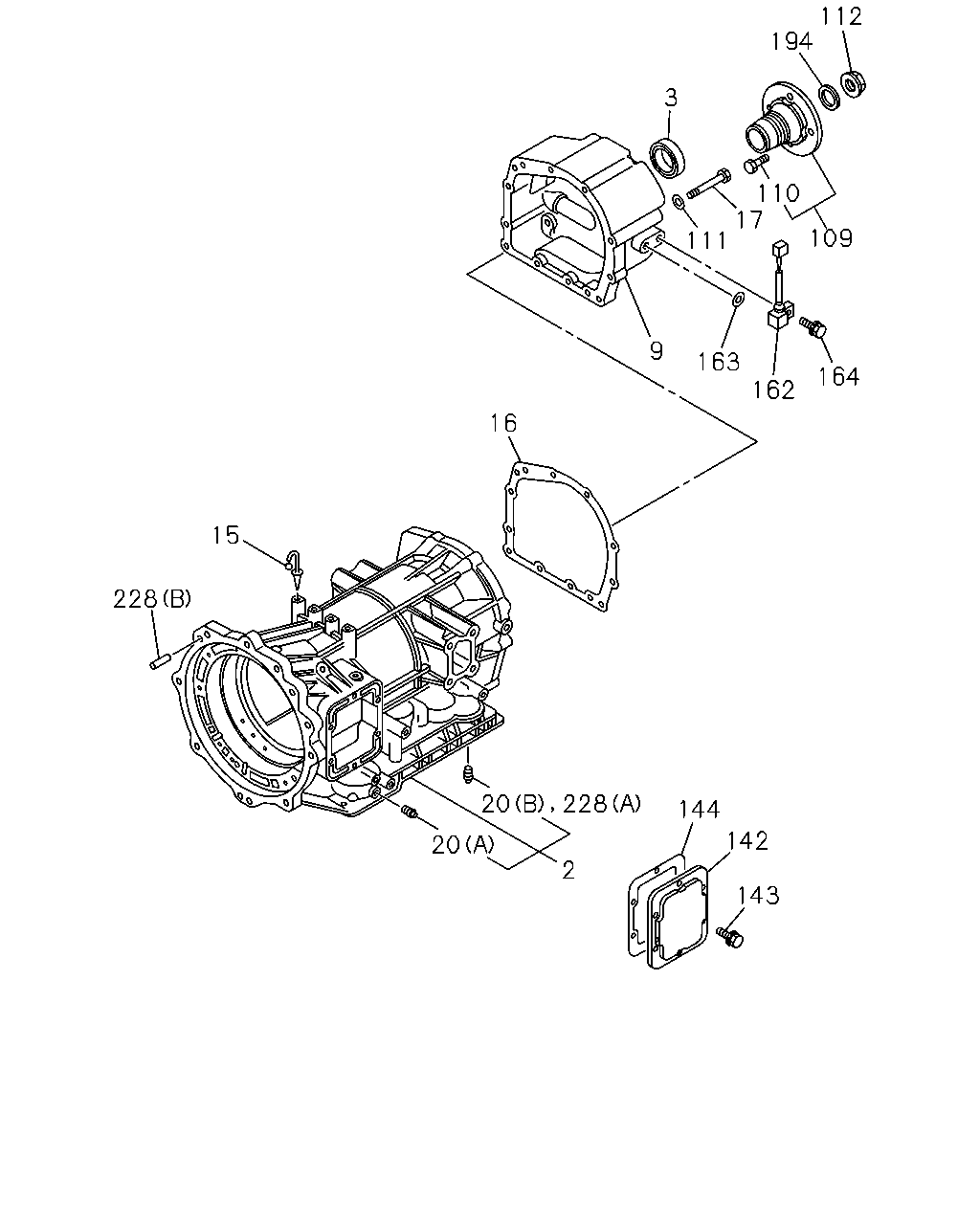

112 194 3 110 17 109 111 9 163 164 162 16 15 228 144 142 20 2 143 20 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	04.103 CASE ASM; A/T 4HG1 ENG(RJH)	8-97178-706-0	01	1	9811-	●
2	04.103 CASE ASM; A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97256-859-0	01	1	9811-0105		●
2	04.103 CASE ASM; A/T	8-97256-859-0	01	1	0106-		●
3	04.241 SEAL; OIL,RR COVER,A/T 4HG1 ENG(RJH)	8-94483-329-0	01	1	9811-	●
3	04.241 SEAL; OIL,RR COVER,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97202-071-0	01	1	9811-0105		●
3	04.241 SEAL; OIL,RR COVER,A/T	8-97202-071-0	01	1	0106-		●
9	04.317 COVER ASM; RR,A/T 4HG1 ENG(RJH)	8-97178-707-0	01	1	9811-	●
9	04.317 COVER ASM; RR,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97256-869-0	01	1	9811-0105		●
9	04.317 COVER ASM; RR,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97311-619-0	01	1	0106-0106		●
9	04.317 COVER ASM; RR,A/T	8-97311-619-0	01	1	0106-		●
15	04.104 BREATHER; A/T CASE 4HG1 ENG(RJH)	8-97044-669-0	01	1	9811-	●
16	04.318 GASKET; EXT HSG 4HG1 ENG(RJH)	8-97109-220-0	01	1	9811-	●
16	04.318 GASKET; EXT HSG EXC. PTO TRANSMISSION SIDE(V66)	8-97256-870-0	01	1	9811-0105		●
16	04.318 GASKET; EXT HSG	8-97256-870-0	01	1	0106-		●
17	04.319 BOLT; REAR COVER TO CASE 4HG1 ENG(RJH) M10X100	8-94483-342-0	03	1	9811-	●
17	04.319 BOLT; REAR COVER TO CASE 4HG1 ENG(RJH) M10X115	8-94483-343-0	03	1	9811-	●
17	04.319 BOLT; REAR COVER TO CASE 4HG1 ENG(RJH) M10X50	8-94483-344-0	04	1	9811-	●
17	04.319 BOLT; REAR COVER TO CASE EXC. PTO TRANSMISSION SIDE(V66) (A) L=45	8-97256-873-0	04	1	9811-0105		●
17	04.319 BOLT; REAR COVER TO CASE (A) L=45	8-97256-873-0	04	1	0106-		●
17	04.319 BOLT; REAR COVER TO CASE EXC. PTO TRANSMISSION SIDE(V66) (B) L=50	8-97256-874-0	02	1	9811-0105		●
17	04.319 BOLT; REAR COVER TO CASE (B) L=50	8-97256-874-0	02	1	0106-		●
17	04.319 BOLT; REAR COVER TO CASE EXC. PTO TRANSMISSION SIDE(V66) (C) L=85	8-97256-887-0	01	1	9811-0105		●
17	04.319 BOLT; REAR COVER TO CASE (C) L=85	8-97256-887-0	01	1	0106-		●
17	04.319 BOLT; REAR COVER TO CASE EXC. PTO TRANSMISSION SIDE(V66) (D) L=117	8-97256-908-0	01	1	9811-0105		●
17	04.319 BOLT; REAR COVER TO CASE (D) L=117	8-97256-908-0	01	1	0106-		●
17	04.319 BOLT; REAR COVER TO CASE EXC. PTO TRANSMISSION SIDE(V66) (E) L=120	8-97256-909-0	02	1	9811-0105		●
17	04.319 BOLT; REAR COVER TO CASE (E) L=120	8-97256-909-0	02	1	0106-		●
20	04.105 PLUG; TAPER,A/T CASE 4HG1 ENG(RJH) 04.104 (A)	8-94140-708-0	07	1	9811-	●
20	04.105 PLUG; TAPER,A/T CASE 4HG1 ENG(RJH) (B)	8-97092-790-0	02	1	9811-	●
109	04.175 DRIVER; COUPLING,A/T 4HG1 ENG(RJH)	8-97092-812-0	01	1	9811-	●
110	04.176 BOLT; COUPLING DRIVER,A/T 4HG1 ENG(RJH) 05.605 M12X41	8-94476-729-0	04	1	9811-	●
111	04.319 WASHER; PL,RR COVER 4HG1 ENG(RJH) 04.317	8-94483-345-0	11	1	9811-	●
112	04.176 NUT; COUPLING DRIVER,A/T 4HG1 ENG(RJH)	8-97129-649-0	01	1	9811-	●
112	04.176 NUT; COUPLING DRIVER,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97202-082-0	01	1	9811-0105		●
112	04.176 NUT; COUPLING DRIVER,A/T	8-97202-082-0	01	1	0106-		●
142	04.318 COVER; PTO HOLE,A/T CASE 4HG1 ENG(RJH)	8-97119-879-0	01	1	9811-	●
142	04.318 COVER; PTO HOLE,A/T CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97202-050-0	01	1	9811-0105		●
142	04.318 COVER; PTO HOLE,A/T CASE	8-97202-050-0	01	1	0106-		●
143	04.319 BOLT; HOLE COVER,PTO,A/T 4HG1 ENG(RJH)	8-94483-251-0	06	1	9811-	●
143	04.319 BOLT; HOLE COVER,PTO,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97202-102-0	06	1	9811-0105		●
143	04.319 BOLT; HOLE COVER,PTO,A/T	8-97202-102-0	06	1	0106-		●
144	04.316 GASKET; PTO HOLE COVER,A/T CASE 4HG1 ENG(RJH)	8-97109-222-0	01	1	9811-	●
144	04.316 GASKET; PTO HOLE COVER,A/T CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97202-051-0	01	1	9811-0105		●
144	04.316 GASKET; PTO HOLE COVER,A/T CASE	8-97202-051-0	01	1	0106-		●
162	04.054 SENSOR; REVOLUTION,A/T CONT 4HG1 ENG(RJH)	8-97039-486-0	01	1	9811-9903	●
162	04.054 SENSOR; REVOLUTION,A/T CONT 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51)	8-97039-486-0	01	1	9904-	●
162	04.054 SENSOR; REVOLUTION,A/T CONT 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97220-800-0	01	1	9904-	●
163	04.054 GASKET; REV SENSOR,A/T 4HG1 ENG(RJH) 04.205	8-94483-615-0	01	1	9811-	●
164	04.054 BOLT; REV SENSOR,A/T 4HG1 ENG(RJH) 04.205	8-94483-616-0	01	1	9811-	●
194	04.205 GASKET; COUPLING DRIVE 4HG1 ENG(RJH)	8-97100-696-0	01	1	9811-	●
194	04.205 GASKET; COUPLING DRIVE EXC. PTO TRANSMISSION SIDE(V66)	8-97202-087-0	01	1	9811-0105		●
194	04.205 GASKET; COUPLING DRIVE	8-97202-087-0	01	1	0106-		●
228	04.105 DOWEL; CASE,A/T 4HG1 ENG(RJH) (B)	8-97044-667-0	04	1	9811-	●
228	04.105 DOWEL; CASE,A/T 4HG1 ENG(RJH) (A)	8-97148-998-0	01	1	9811-	●

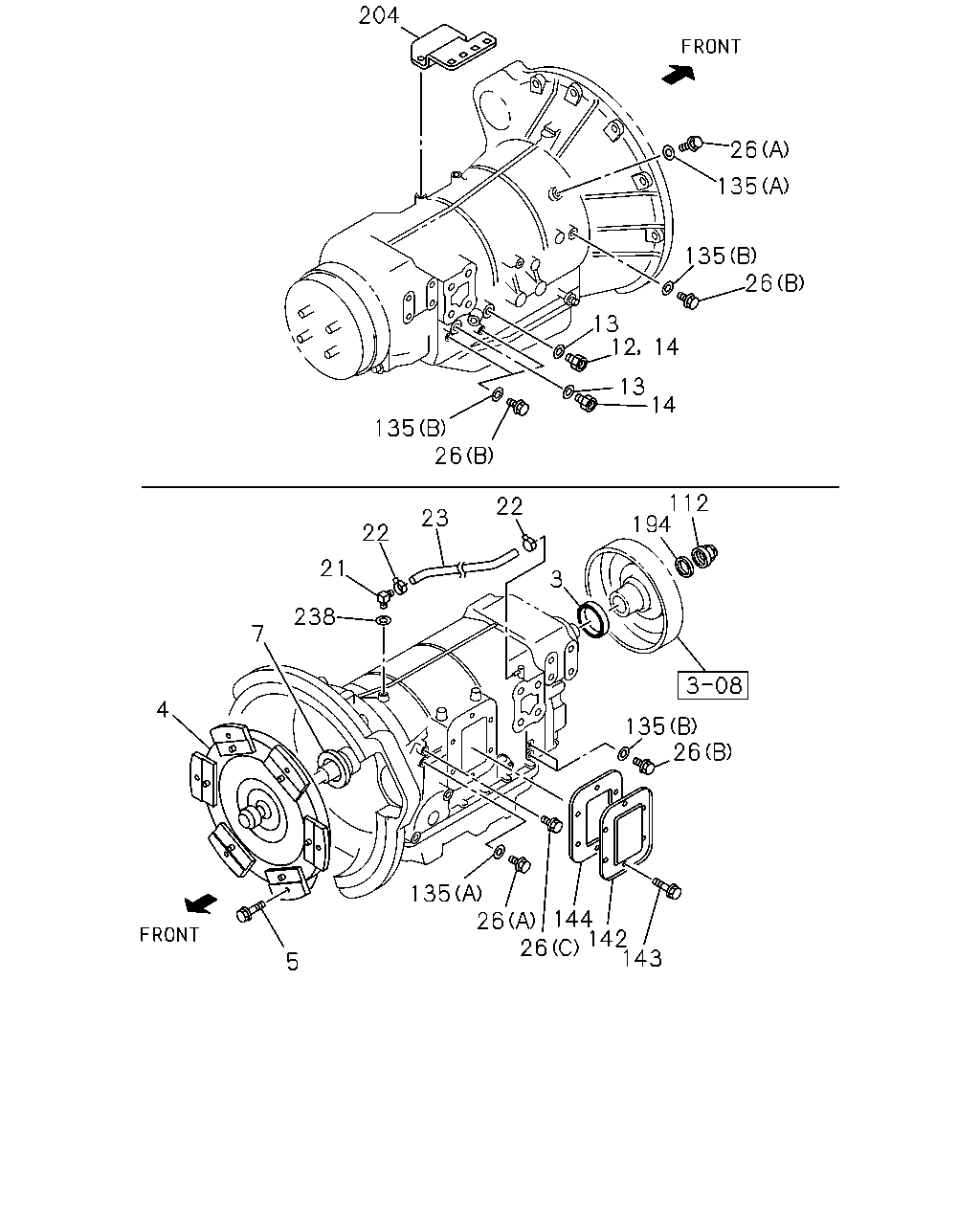

204 26 135 135 26 13 12 14 13 14 135 26 112 194 22 23 22 21 3 238 7 4 135 26 135 26 144 142 26 143 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	04.241 SEAL; OIL,RR COVER,A/T 4HG1 ENG(RJH)	8-94483-329-0	01	1	9811-	●
3	04.241 SEAL; OIL,RR COVER,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97202-071-0	01	1	9811-0105		●
3	04.241 SEAL; OIL,RR COVER,A/T	8-97202-071-0	01	1	0106-		●
4	04.115 CONVERTER ASM; TORQUE,A/T 4HG1 ENG(RJH)	8-97183-139-0	01	1	9811-9903	●
4	04.115 CONVERTER ASM; TORQUE,A/T 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51)	8-97183-139-0	01	1	9904-	●
4	04.115 CONVERTER ASM; TORQUE,A/T 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97204-873-0	01	1	9904-	●
4	04.115 CONVERTER ASM; TORQUE,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97202-043-0	01	1	9811-0105		●
4	04.115 CONVERTER ASM; TORQUE,A/T	8-97202-043-0	01	1	0106-		●
5	04.008 BOLT; RR PLATE TO TORQUE CONV 03.417 M10X25 FLANGE	0-28081-025-0	06	1	9811-	●	●
7	04.226 SEAL; OIL,LIP,A/T 4HG1 ENG(RJH)	8-97135-606-0	01	1	9811-	●
7	04.226 SEAL; OIL,LIP,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97218-280-0	01	1	9811-0105		●
7	04.226 SEAL; OIL,LIP,A/T	8-97218-280-0	01	1	0106-		●
12	04.205 CONNECTOR; OIL COOLER OUTLET PIP EXC. PTO TRANSMISSION SIDE(V66)	8-97202-090-0	01	1	9811-0001		●
13	04.205 GASKET; OIL COOLER PIPE EXC. PTO TRANSMISSION SIDE(V66)	8-97202-084-0	02	1	9811-0105		●
13	04.205 GASKET; OIL COOLER PIPE	8-97202-084-0	02	1	0106-		●
14	04.205 UNION; OIL COOLER RETURN PIPE EXC. PTO TRANSMISSION SIDE(V66)	8-97202-090-0	01	1	9811-0001		●
14	04.205 UNION; OIL COOLER RETURN PIPE EXC. PTO TRANSMISSION SIDE(V66)	8-97202-090-0	02	1	0002-0105		●
14	04.205 UNION; OIL COOLER RETURN PIPE	8-97202-090-0	02	1	0106-		●
21	04.104 PLUG; BREATHER,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97202-098-0	01	1	9811-0105		●
21	04.104 PLUG; BREATHER,A/T	8-97202-098-0	01	1	0106-		●
22	04.101 CLIP; BREATHER HOSE,A/T EXC. PTO TRANSMISSION SIDE(V66)	1-09701-190-0	02	1	9811-0105		●
22	04.101 CLIP; BREATHER HOSE,A/T	1-09701-190-0	02	1	0106-		●
23	04.101 HOSE; BREATHER,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97202-070-0	01	1	9811-0105		●
23	04.101 HOSE; BREATHER,A/T	8-97202-070-0	01	1	0106-		●
26	04.195 PLUG; TRANS CASE EXC. PTO TRANSMISSION SIDE(V66) (A)	1-34119-017-0	03	1	9811-0105		●
26	04.195 PLUG; TRANS CASE (A)	1-34119-017-0	03	1	0106-		●
26	04.195 PLUG; TRANS CASE EXC. PTO TRANSMISSION SIDE(V66) (B)	1-34559-007-0	05	1	9811-0105		●
26	04.195 PLUG; TRANS CASE (B)	1-34559-007-0	05	1	0106-		●
26	04.195 PLUG; TRANS CASE EXC. PTO TRANSMISSION SIDE(V66) (C)	8-97264-848-0	01	1	0106-0106		●
26	04.195 PLUG; TRANS CASE (C)	8-97264-848-0	01	1	0106-		●
112	04.176 NUT; COUPLING DRIVER,A/T 4HG1 ENG(RJH)	8-97129-649-0	01	1	9811-	●
112	04.176 NUT; COUPLING DRIVER,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97202-082-0	01	1	9811-0105		●
112	04.176 NUT; COUPLING DRIVER,A/T	8-97202-082-0	01	1	0106-		●
135	04.195 GASKET; PLUG,A/T CASE EXC. PTO TRANSMISSION SIDE(V66) (B)	1-09623-581-0	05	1	9811-0105		●
135	04.195 GASKET; PLUG,A/T CASE (B)	1-09623-581-0	05	1	0106-		●
135	04.195 GASKET; PLUG,A/T CASE EXC. PTO TRANSMISSION SIDE(V66) (A)	1-09623-604-0	03	1	9811-0105		●
135	04.195 GASKET; PLUG,A/T CASE (A)	1-09623-604-0	03	1	0106-		●
142	04.318 COVER; PTO HOLE,A/T CASE 4HG1 ENG(RJH)	8-97119-879-0	01	1	9811-	●
142	04.318 COVER; PTO HOLE,A/T CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97202-050-0	01	1	9811-0105		●
142	04.318 COVER; PTO HOLE,A/T CASE	8-97202-050-0	01	1	0106-		●
143	04.319 BOLT; HOLE COVER,PTO,A/T 4HG1 ENG(RJH)	8-94483-251-0	06	1	9811-	●
143	04.319 BOLT; HOLE COVER,PTO,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97202-102-0	06	1	9811-0105		●
143	04.319 BOLT; HOLE COVER,PTO,A/T	8-97202-102-0	06	1	0106-		●
144	04.316 GASKET; PTO HOLE COVER,A/T CASE 4HG1 ENG(RJH)	8-97109-222-0	01	1	9811-	●
144	04.316 GASKET; PTO HOLE COVER,A/T CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97202-051-0	01	1	9811-0105		●
144	04.316 GASKET; PTO HOLE COVER,A/T CASE	8-97202-051-0	01	1	0106-		●
194	04.205 GASKET; COUPLING DRIVE 4HG1 ENG(RJH)	8-97100-696-0	01	1	9811-	●
194	04.205 GASKET; COUPLING DRIVE EXC. PTO TRANSMISSION SIDE(V66)	8-97202-087-0	01	1	9811-0105		●
194	04.205 GASKET; COUPLING DRIVE	8-97202-087-0	01	1	0106-		●
204	04.226 BRACKET; HARNESS CONNECTOR EXC. PTO TRANSMISSION SIDE(V66)	8-97180-853-1	01	1	9811-		●
238	04.195 GASKET; PLUG EXC. PTO TRANSMISSION SIDE(V66)	8-97202-083-0	01	1	9811-0105		●
238	04.195 GASKET; PLUG	8-97202-083-0	01	1	0106-		●

167 2 1 8 8 112 194 28 9 139 214 16 3 17 17 17 17 8 8 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.103 HOUSING; CONV,A/T 4HG1 ENG(RJH)	8-97027-231-0	01	1	9811-9903	●
1	04.103 HOUSING; CONV,A/T 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51)	8-97027-231-0	01	1	9904-	●
1	04.103 HOUSING; CONV,A/T 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97204-874-0	01	1	9904-	●
1	04.103 HOUSING; CONV,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-079-0	01	1	9811-0105		●
1	04.103 HOUSING; CONV,A/T	8-97257-079-0	01	1	0106-		●
2	04.103 CASE ASM; A/T 4HG1 ENG(RJH)	8-97178-706-0	01	1	9811-	●
2	04.103 CASE ASM; A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97256-859-0	01	1	9811-0105		●
2	04.103 CASE ASM; A/T	8-97256-859-0	01	1	0106-		●
3	04.241 SEAL; OIL,RR COVER,A/T 4HG1 ENG(RJH)	8-94483-329-0	01	1	9811-	●
3	04.241 SEAL; OIL,RR COVER,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97202-071-0	01	1	9811-0105		●
3	04.241 SEAL; OIL,RR COVER,A/T	8-97202-071-0	01	1	0106-		●
8	04.217 BOLT; HSG TO CASE 4HG1 ENG(RJH) M12X40	8-94483-327-0	08	1	9811-	●
8	04.217 BOLT; HSG TO CASE 4HG1 ENG(RJH) 04.290 M10X49	8-94483-337-0	02	1	9811-	●
8	04.217 BOLT; HSG TO CASE EXC. PTO TRANSMISSION SIDE(V66) (A) L=35	8-97256-912-0	06	1	9811-0105		●
8	04.217 BOLT; HSG TO CASE (A) L=35	8-97256-912-0	06	1	0106-		●
8	04.217 BOLT; HSG TO CASE EXC. PTO TRANSMISSION SIDE(V66) (B) L=45	8-97256-913-0	02	1	9811-0105		●
8	04.217 BOLT; HSG TO CASE (B) L=45	8-97256-913-0	02	1	0106-		●
9	04.317 COVER ASM; RR,A/T 4HG1 ENG(RJH)	8-97178-707-0	01	1	9811-	●
9	04.317 COVER ASM; RR,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97256-869-0	01	1	9811-0105		●
9	04.317 COVER ASM; RR,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97311-619-0	01	1	0106-0106		●
9	04.317 COVER ASM; RR,A/T	8-97311-619-0	01	1	0106-		●
16	04.318 GASKET; EXT HSG 4HG1 ENG(RJH)	8-97109-220-0	01	1	9811-	●
16	04.318 GASKET; EXT HSG EXC. PTO TRANSMISSION SIDE(V66)	8-97256-870-0	01	1	9811-0105		●
16	04.318 GASKET; EXT HSG	8-97256-870-0	01	1	0106-		●
17	04.319 BOLT; REAR COVER TO CASE 4HG1 ENG(RJH) M10X100	8-94483-342-0	03	1	9811-	●
17	04.319 BOLT; REAR COVER TO CASE 4HG1 ENG(RJH) M10X115	8-94483-343-0	03	1	9811-	●
17	04.319 BOLT; REAR COVER TO CASE 4HG1 ENG(RJH) M10X50	8-94483-344-0	04	1	9811-	●
17	04.319 BOLT; REAR COVER TO CASE EXC. PTO TRANSMISSION SIDE(V66) (A) L=45	8-97256-873-0	04	1	9811-0105		●
17	04.319 BOLT; REAR COVER TO CASE (A) L=45	8-97256-873-0	04	1	0106-		●
17	04.319 BOLT; REAR COVER TO CASE EXC. PTO TRANSMISSION SIDE(V66) (B) L=50	8-97256-874-0	02	1	9811-0105		●
17	04.319 BOLT; REAR COVER TO CASE (B) L=50	8-97256-874-0	02	1	0106-		●
17	04.319 BOLT; REAR COVER TO CASE EXC. PTO TRANSMISSION SIDE(V66) (C) L=85	8-97256-887-0	01	1	9811-0105		●
17	04.319 BOLT; REAR COVER TO CASE (C) L=85	8-97256-887-0	01	1	0106-		●
17	04.319 BOLT; REAR COVER TO CASE EXC. PTO TRANSMISSION SIDE(V66) (D) L=117	8-97256-908-0	01	1	9811-0105		●
17	04.319 BOLT; REAR COVER TO CASE (D) L=117	8-97256-908-0	01	1	0106-		●
17	04.319 BOLT; REAR COVER TO CASE EXC. PTO TRANSMISSION SIDE(V66) (E) L=120	8-97256-909-0	02	1	9811-0105		●
17	04.319 BOLT; REAR COVER TO CASE (E) L=120	8-97256-909-0	02	1	0106-		●
28	04.105 WASHER; HSG TO CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97256-915-0	01	1	9811-0105		●
28	04.105 WASHER; HSG TO CASE	8-97256-915-0	01	1	0106-		●
112	04.176 NUT; COUPLING DRIVER,A/T 4HG1 ENG(RJH)	8-97129-649-0	01	1	9811-	●
112	04.176 NUT; COUPLING DRIVER,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97202-082-0	01	1	9811-0105		●
112	04.176 NUT; COUPLING DRIVER,A/T	8-97202-082-0	01	1	0106-		●
139	04.107 BEARING; OUTPUT SHAFT,RR END,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97256-871-0	01	1	9811-0105		●
139	04.107 BEARING; OUTPUT SHAFT,RR END,A/T	8-97256-871-0	01	1	0106-		●
167	04.052 CONNECTOR; CASE,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97256-868-0	01	1	9811-0105		●
167	04.052 CONNECTOR; CASE,A/T	8-97256-868-0	01	1	0106-		●
194	04.205 GASKET; COUPLING DRIVE 4HG1 ENG(RJH)	8-97100-696-0	01	1	9811-	●
194	04.205 GASKET; COUPLING DRIVE EXC. PTO TRANSMISSION SIDE(V66)	8-97202-087-0	01	1	9811-0105		●
194	04.205 GASKET; COUPLING DRIVE	8-97202-087-0	01	1	0106-		●
214	04.107 RING; SNAP,EXT HSG EXC. PTO TRANSMISSION SIDE(V66)	8-97256-872-0	01	1	9811-0105		●
214	04.107 RING; SNAP,EXT HSG	8-97256-872-0	01	1	0106-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
