Isuzu WW
▶
TRUCKS
▶
NPR
▶
50817 - NPR/NQR-RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-40 - AUTO TRANS ASM AND REPAIR KIT
▶
2-40 — AUTO TRANS ASM AND REPAIR KIT
(#22140) — 29 parça
Tümü
A - A/T 4 SPEED-JATCO
B - A/T 4 SPEED-AISIN
◀
[240A] A/T 4 SPEED-AISIN (9 parça)

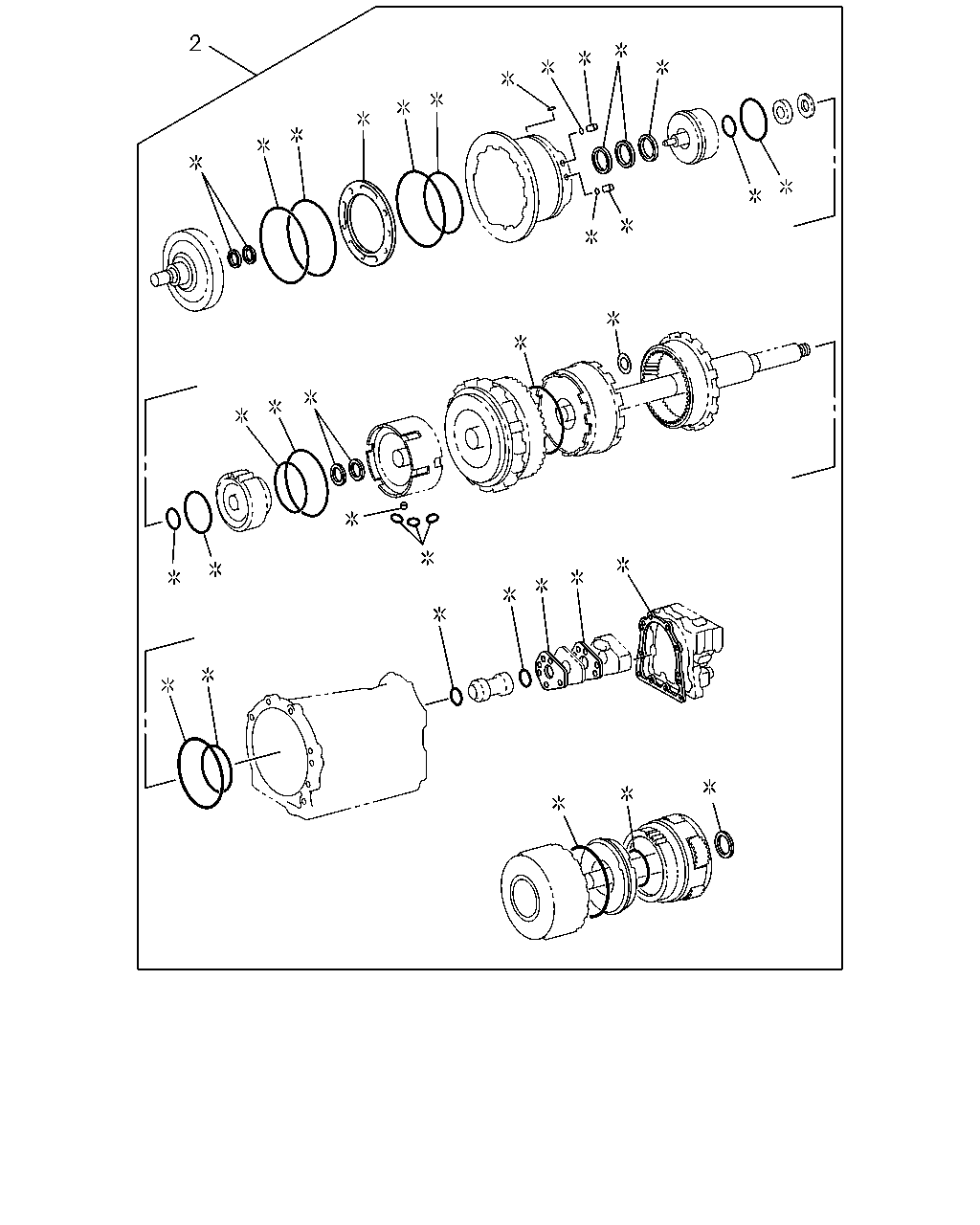

[240A] A/T 4 SPEED-AISIN;REPAIR KIT(NO.2) (3 parça)
[240A] A/T 4 SPEED-JATCO (11 parça)

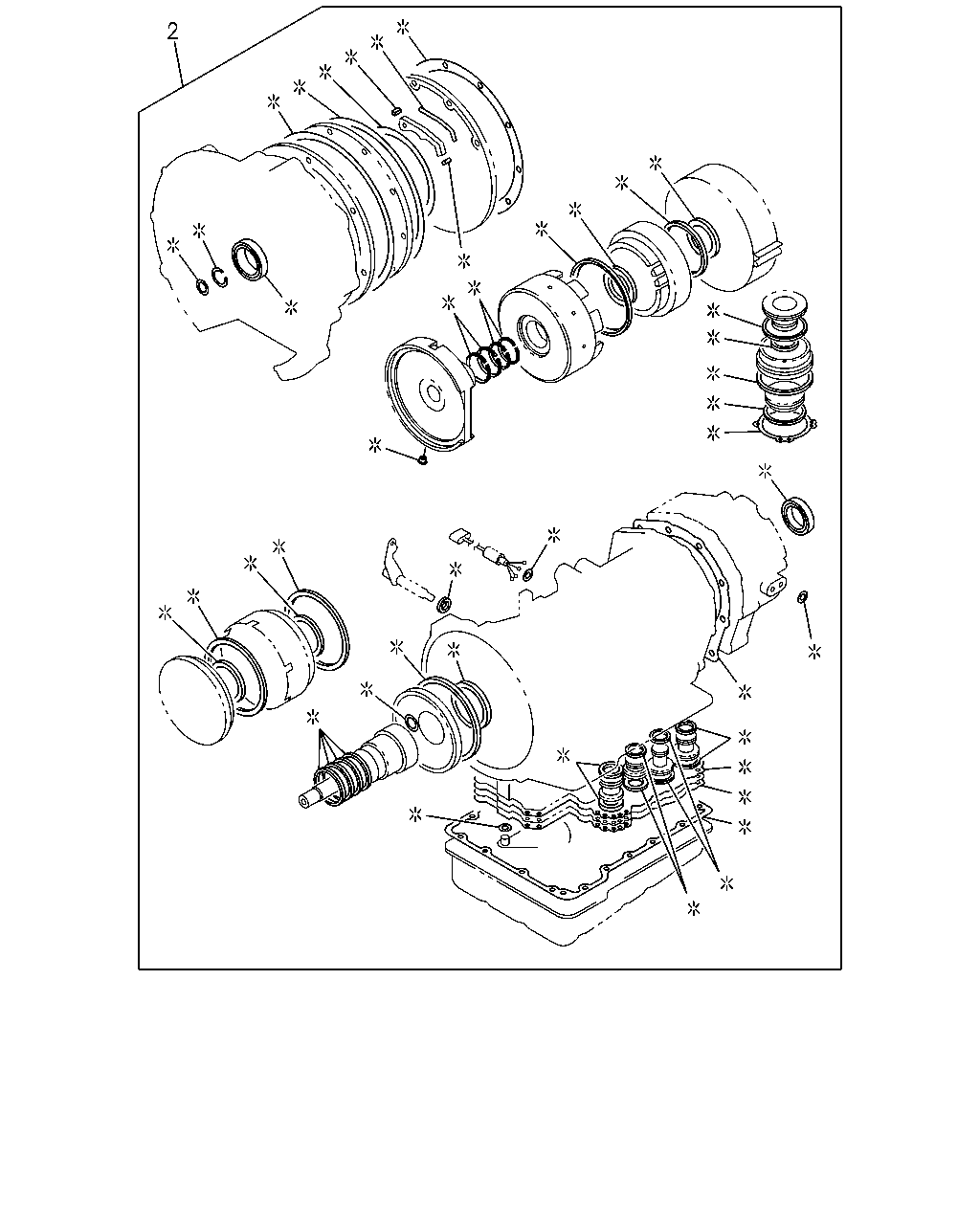

[240A] A/T 4 SPEED-JATCO;REPAIR KIT (3 parça)

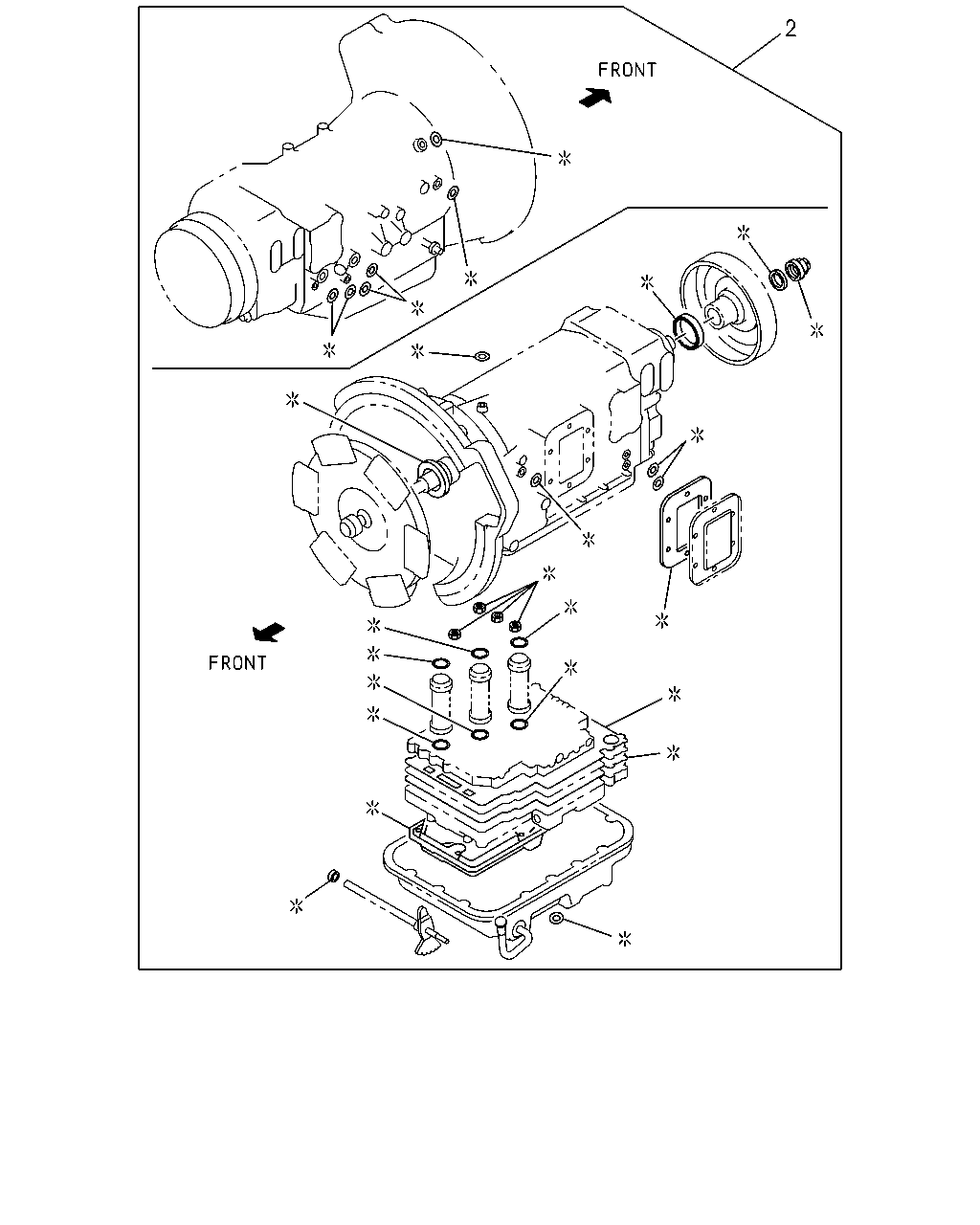

[240A] A/T 4 SPEED-AISIN;REPAIR KIT(NO.1) (3 parça)
▶
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
5

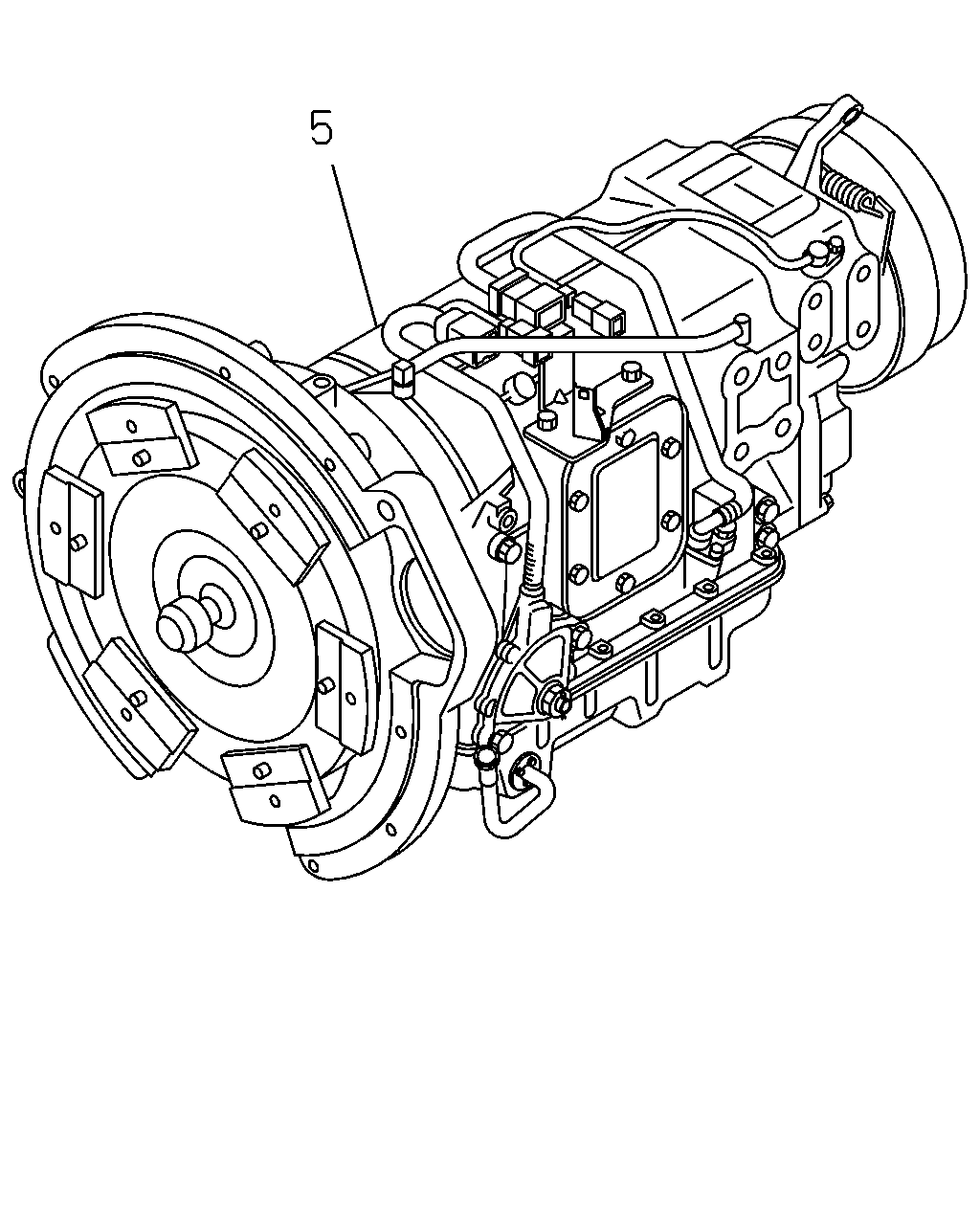

04.003 TRANSMISSION ASM; AUTO
4HG1 ENG(RJH)
8-97178-570-0
01
1
9811-9903
●
5
04.003 TRANSMISSION ASM; AUTO
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51)
8-97178-570-0
01
1
9904-
●
5
04.003 TRANSMISSION ASM; AUTO
4HG1 ENG(RJH) TURBOCHARGER(K51)
8-97204-224-0
01
1
9904-0203
●
5
04.003 TRANSMISSION ASM; AUTO
4HG1 ENG(RJH) TURBOCHARGER(K51)
8-97322-709-0
01
1
0204-
●
5
04.003 TRANSMISSION ASM; AUTO
EXC. PTO TRANSMISSION SIDE(V66)
8-97184-231-0
01
1
9811-9908
●
5
04.003 TRANSMISSION ASM; AUTO
EXC. PTO TRANSMISSION SIDE(V66)
8-97224-890-0
01
1
9909-0001
●
5
04.003 TRANSMISSION ASM; AUTO
EXC. PTO TRANSMISSION SIDE(V66)
8-97228-548-0
01
1
0002-0105
●
5
04.003 TRANSMISSION ASM; AUTO
EXC. PTO TRANSMISSION SIDE(V66)
8-97250-955-0
01
1
0106-0106
●
5
04.003 TRANSMISSION ASM; AUTO
8-97250-955-0
01
1
0106-
●
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
04.005 REPAIR KIT; A/T
4HG1 ENG(RJH)
8-97171-225-0
01
1
9811-
●
2
04.005 REPAIR KIT; A/T
EXC. PTO TRANSMISSION SIDE(V66)
8-97257-471-0
01
1
9811-0105
●
2
04.005 REPAIR KIT; A/T
8-97257-471-0
01
1
0106-
●
20
5
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3

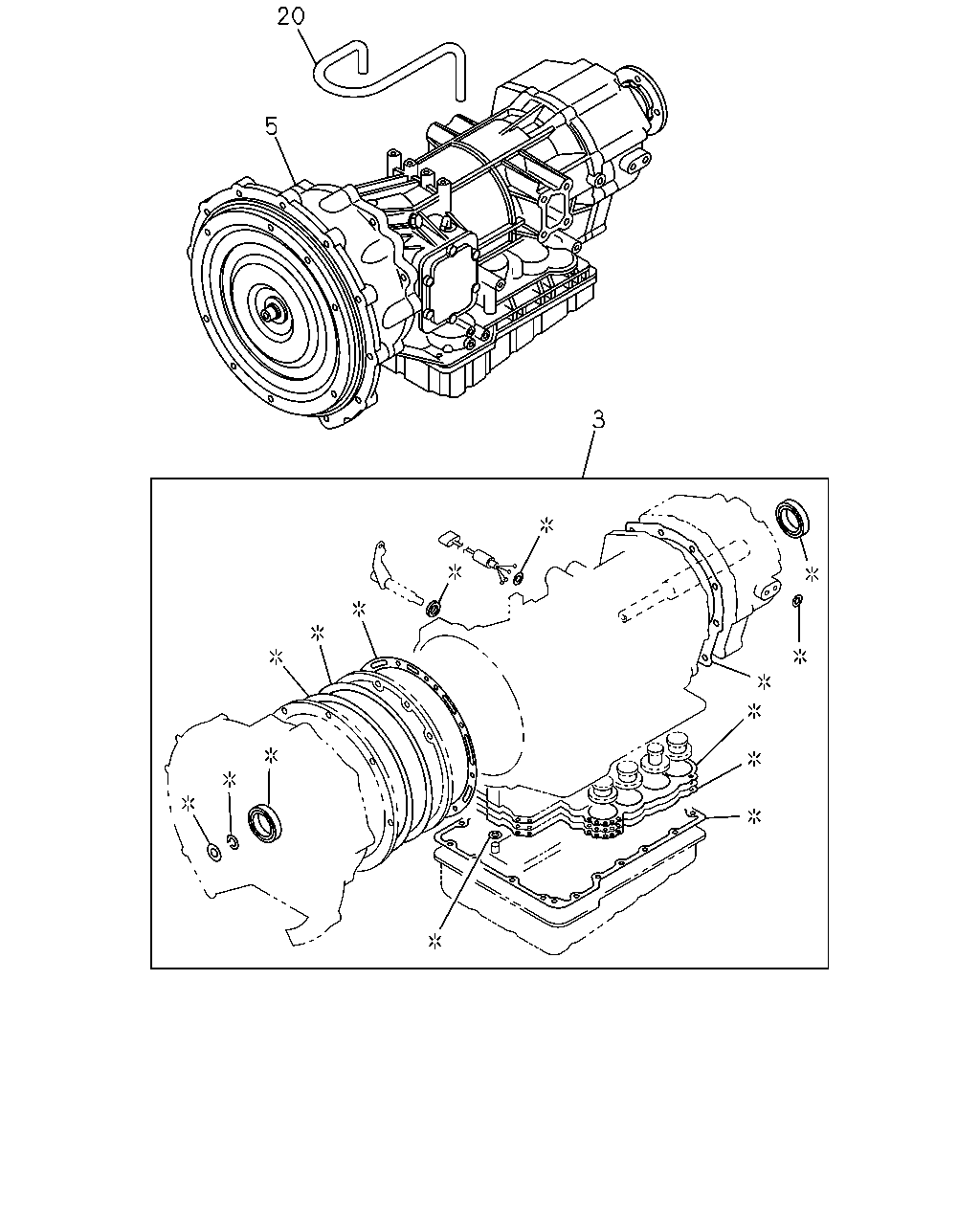

04.005 REPAIR KIT; SEAL & GASKET,A/T
4HG1 ENG(RJH)
8-94316-250-0
01
1
9811-
●
5
04.003 TRANSMISSION ASM; AUTO
4HG1 ENG(RJH)
8-97178-570-0
01
1
9811-9903
●
5
04.003 TRANSMISSION ASM; AUTO
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51)
8-97178-570-0
01
1
9904-
●
5
04.003 TRANSMISSION ASM; AUTO
4HG1 ENG(RJH) TURBOCHARGER(K51)
8-97204-224-0
01
1
9904-0203
●
5
04.003 TRANSMISSION ASM; AUTO
4HG1 ENG(RJH) TURBOCHARGER(K51)
8-97322-709-0
01
1
0204-
●
5
04.003 TRANSMISSION ASM; AUTO
EXC. PTO TRANSMISSION SIDE(V66)
8-97184-231-0
01
1
9811-9908
●
5
04.003 TRANSMISSION ASM; AUTO
EXC. PTO TRANSMISSION SIDE(V66)
8-97224-890-0
01
1
9909-0001
●
5
04.003 TRANSMISSION ASM; AUTO
EXC. PTO TRANSMISSION SIDE(V66)
8-97228-548-0
01
1
0002-0105
●
5
04.003 TRANSMISSION ASM; AUTO
EXC. PTO TRANSMISSION SIDE(V66)
8-97250-955-0
01
1
0106-0106
●
5
04.003 TRANSMISSION ASM; AUTO
8-97250-955-0
01
1
0106-
●
20
04.104 HOSE; AIR BREATHER
4HG1 ENG(RJH)
8-97178-810-0
01
1
9811-
●
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
04.005 REPAIR KIT; A/T
4HG1 ENG(RJH)
8-97171-225-0
01
1
9811-
●
2
04.005 REPAIR KIT; A/T
EXC. PTO TRANSMISSION SIDE(V66)
8-97257-471-0
01
1
9811-0105
●
2
04.005 REPAIR KIT; A/T
8-97257-471-0
01
1
0106-
●
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
04.005 REPAIR KIT; A/T
4HG1 ENG(RJH)
8-97171-225-0
01
1
9811-
●
2
04.005 REPAIR KIT; A/T
EXC. PTO TRANSMISSION SIDE(V66)
8-97257-471-0
01
1
9811-0105
●
2
04.005 REPAIR KIT; A/T
8-97257-471-0
01
1
0106-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
