Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#2214) — 282 parça

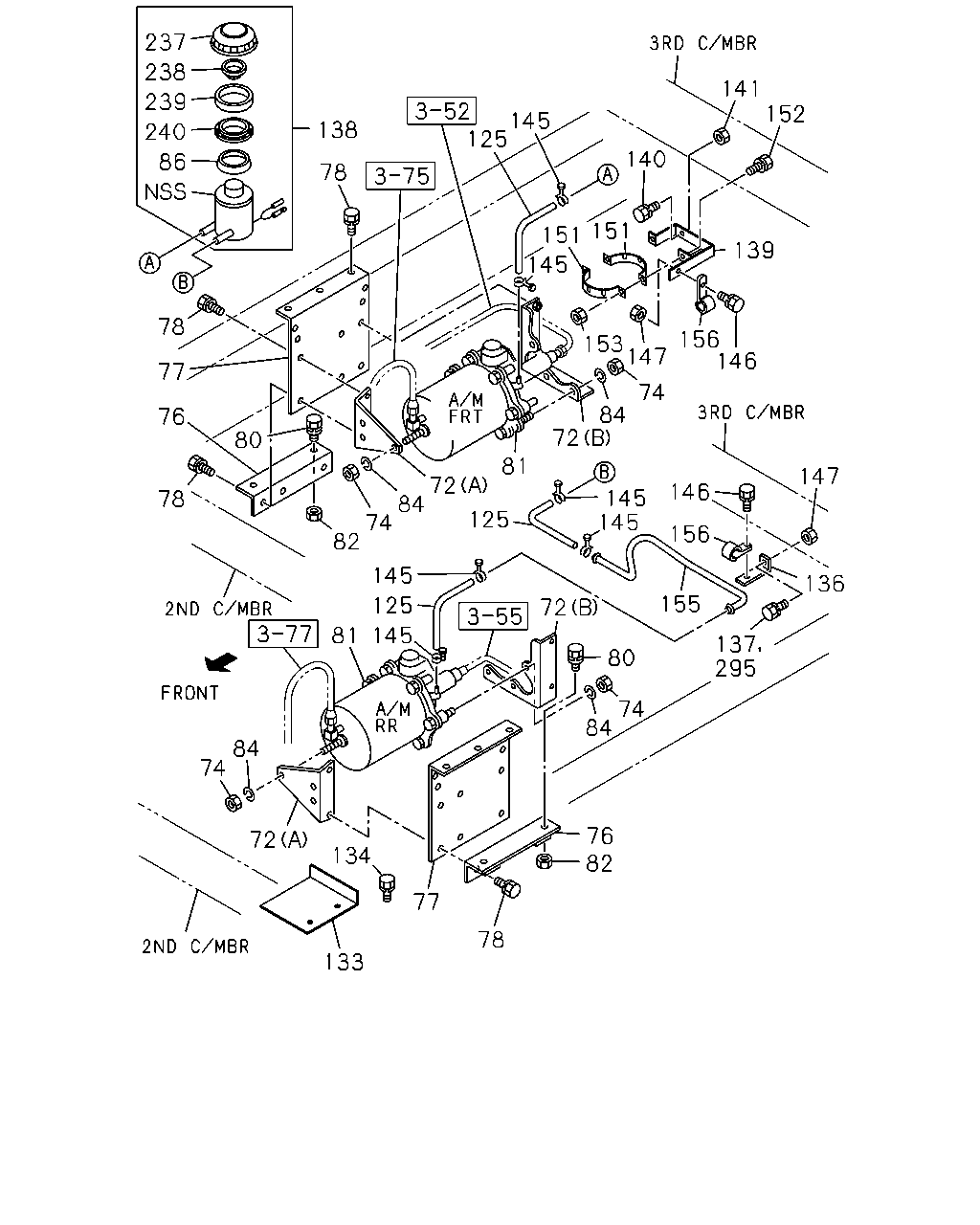

237 238 141 239 145 125 152 138 240 140 86 78 151 151 139 145 78 156 146 153 147 77 74 84 72 76 80 81 145 145 147 72 84 74 82 146 78 125 156 136 145 72 155 125 81 145 137 295 80 74 84 84 74 76 82 72 134 77 78 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
72	BRACKET; AIR MASTER (A)	1-53318-229-0	02	1	9101-	●	●
72	BRACKET; AIR MASTER (B)	1-53318-230-1	02	1	9101-	●	●
74	NUT; STAY AIR MASTER M10	9-09110-410-0	08	1	9101-9307	●	●
74	NUT; STAY AIR MASTER M10	9-09110-510-0	08	1	9308-	●	●
76	STAY; AIR MASTER LWR BUS USER THAILAND BMTA<D5B>	1-53318-291-0	02	1	9101-9204	●
76	STAY; AIR MASTER LWR WHEEL BASE 6000MM(60W)	1-53318-291-0	02	1	9205-	●
76	STAY; AIR MASTER LWR EXC. BUS USER THAILAND BMTA<D5B>	1-53318-231-3	02	1	9101-9204	●
76	STAY; AIR MASTER LWR	1-53318-231-3	02	1	9101-9204		●
76	STAY; AIR MASTER LWR WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)	1-53318-231-3	02	1	9205-	●	●
77	STAY; AIR MASTER UPR USER DAEWOO MOTORS<D4S>	1-53153-989-2	02	1	9101-0203	●	●
77	STAY; AIR MASTER UPR EXC. USER DAEWOO MOTORS<D4S>	1-53153-889-2	02	1	9101-0203	●	●
77	STAY; AIR MASTER UPR	1-53153-889-2	02	1	0204-	●	●
78	BOLT; STAY AIR MASTER M10X30 W/LK WASHER	0-50041-030-0	10	1	9101-9101	●	●
78	BOLT; STAY AIR MASTER M10X30 W/LK WASHER	0-50041-030-0	22	1	9102-	●	●
80	BOLT; BRKT M10X30 W/LK&PL WASHER	0-50141-030-0	06	1	9101-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-401-2	02	1	9101-	●	●
82	NUT; STAY,AIR MASTER BRKT M10	9-09110-410-0	10	1	9101-9101	●	●
82	NUT; STAY,AIR MASTER BRKT M10	9-09110-410-0	12	1	9102-9307	●	●
82	NUT; STAY,AIR MASTER BRKT M10	9-09110-510-0	12	1	9308-	●	●
84	WASHER; LK,AIR MASTER ID=10.2	9-09150-510-0	08	1	9101-	●	●
86	SEAL; DUST	1-47529-019-0	01	1	9101-	●	●
125	HOSE; OIL TANK TO AIR MASTER L=185 SERVICED BY L=1800	1-09360-320-0	03	1	9101-	●	●
133	COVER; AIR MASTER	1-48317-452-0	02	1	9101-	●	●
134	BOLT; COVER FIX M8X20 W/LK WASHER	0-50040-820-0	04	1	9101-	●	●
136	BRACKET; CLIP	1-47475-519-0	01	1	9101-	●	●
137	BOLT; BRKT M8X25 W/LK WASHER	9-01900-825-0	01	1	9101-9204	●	●
137	BOLT; BRKT M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-154-1	01	1	9101-	●	●
139	BRACKET; OIL TANK	1-47537-104-1	01	1	9101-	●	●
140	BOLT; OIL TANK TO BRKT M10X25 W/LK WASHER	0-50041-025-0	02	1	9101-	●	●
141	NUT; OIL TANK TO BRKT M10	9-09110-410-0	02	1	9101-9307	●	●
141	NUT; OIL TANK TO BRKT M10	9-09110-510-0	02	1	9308-	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=15	1-09704-018-1	06	1	9101-9307	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	06	1	9308-	●	●
146	BOLT; CLIP M8X20 W/LK WASHER	9-01900-820-0	02	1	9101-9204	●	●
146	BOLT; CLIP M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-	●	●
147	NUT; CLIP BUS USER THAILAND BMTA<D5B> M4	9-99111-404-0	04	1	9101-0203	●
147	NUT; CLIP THAILAND EQUIPMENT(PM9) M4	9-99111-404-0	04	1	9101-0203	●
147	NUT; CLIP M8	9-09110-408-0	02	1	9101-	●	●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	9101-	●	●
152	BOLT; OIL TANK TO BAND M8X16 W/LK WASHER	9-01900-816-0	02	1	9101-9204	●	●
152	BOLT; OIL TANK TO BAND M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-	●	●
153	NUT; OIL TANK TO BAND M8	9-09110-408-0	02	1	9101-	●	●
155	PIPE; OIL,HOSE TO AIR MASTER L=576 SERVICED BY L=600	1-47434-473-0	01	1	9101-	●	●
156	CLIP; OIL PIPE ID=11 L=20	9-09525-035-0	02	1	9101-	●	●
237	CAP; OIL TANK	1-47525-026-1	01	1	9101-	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	9101-	●	●
239	FILTER; DUST	1-47529-017-0	01	1	9101-	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	9101-	●	●
295	SCREW; CLIP,VINYL PIPE BUS USER THAILAND BMTA<D5B> M4	9-93430-425-0	04	1	9101-0203	●
295	SCREW; CLIP,VINYL PIPE THAILAND EQUIPMENT(PM9) M4	9-93430-425-0	04	1	9101-0203	●

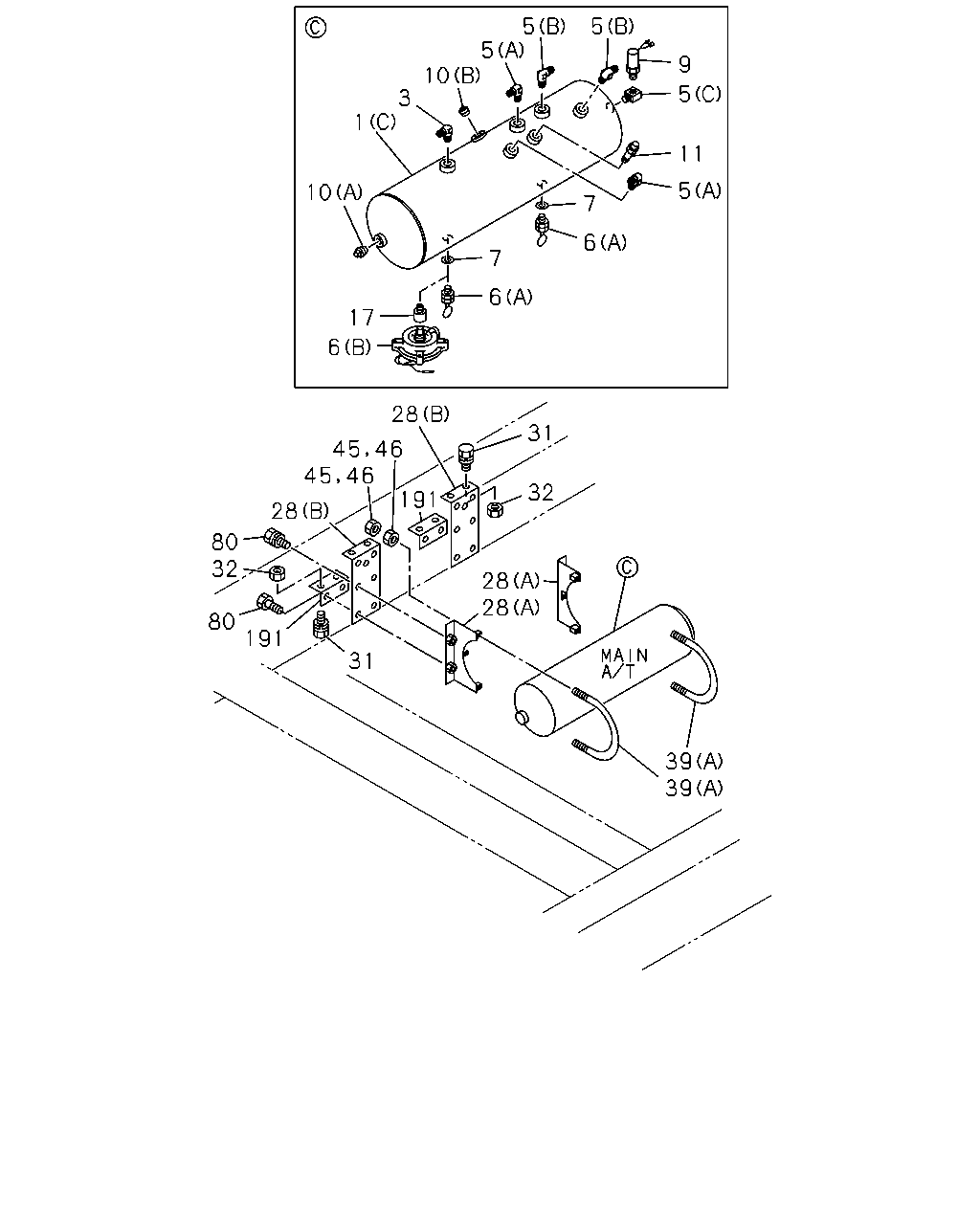

5 5 5 10 9 5 3 1 11 5 10 7 6 7 6 17 6 28 31 45 45 191 32 28 80 32 28 28 80 191 31 39 39 46 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR AUTO DRAIN<J78> (C)	1-48330-161-0	01	1	9101-0203	●	●
1	TANK ASM; AIR EXC. USER DAEWOO MOTORS<D4S>,AUTO DRAIN<J78> (C)	1-48330-161-0	01	1	9101-0203	●	●
1	TANK ASM; AIR (C)	1-48330-161-0	01	1	0204-	●	●
1	TANK ASM; AIR USER DAEWOO MOTORS<D4S> (C)	1-48330-643-0	01	1	9101-0203	●	●
1	TANK ASM; AIR USER DAEWOO MOTORS<D4S> (A)	1-48330-644-0	01	1	9101-0203	●	●
1	TANK ASM; AIR USER DAEWOO MOTORS<D4S> (B)	1-48330-645-0	01	1	9101-0203	●	●
1	TANK ASM; AIR EXC. USER DAEWOO MOTORS<D4S> (A)	1-48330-163-1	01	1	9101-0203	●	●
1	TANK ASM; AIR (A)	1-48330-163-1	01	1	0204-	●	●
1	TANK ASM; AIR EXC. USER DAEWOO MOTORS<D4S> (B)	1-48330-222-2	01	1	9101-0203	●	●
1	TANK ASM; AIR (B)	1-48330-222-2	01	1	0204-	●	●
3	VALVE; CHECK,AIR TANK AUTO DRAIN<J78>	1-48410-133-2	01	1	9101-9606	●	●
3	VALVE; CHECK,AIR TANK EXC. USER DAEWOO MOTORS<D4S>,AUTO DRAIN<J78>	1-48410-133-2	01	1	9101-9606	●	●
3	VALVE; CHECK,AIR TANK USER DAEWOO MOTORS<D4S> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>	1-48410-133-2	01	1	9101-9606	●	●
3	VALVE; CHECK,AIR TANK AUTO DRAIN<J78> M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9607-0203	●	●
3	VALVE; CHECK,AIR TANK EXC. USER DAEWOO MOTORS<D4S>,AUTO DRAIN<J78> M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9607-0203	●	●
3	VALVE; CHECK,AIR TANK USER DAEWOO MOTORS<D4S> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9607-0203	●	●
3	VALVE; CHECK,AIR TANK M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0204-	●	●
3	VALVE; CHECK,AIR TANK USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW>	1-48410-133-2	02	1	9101-9606	●	●
3	VALVE; CHECK,AIR TANK	1-48410-133-2	02	1	9101-9606	●	●
3	VALVE; CHECK,AIR TANK USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9607-0203	●	●
3	VALVE; CHECK,AIR TANK M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9607-0203	●	●
3	VALVE; CHECK,AIR TANK M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0204-	●	●
5	UNION; AIR TANK AUTO DRAIN<J78> (C) PT1/4 2WAY	1-09660-693-0	01	1	0203-0203	●	●
5	UNION; AIR TANK EXC. USER DAEWOO MOTORS<D4S>,AUTO DRAIN<J78> (C) PT1/4 2WAY	1-09660-693-0	01	1	0203-0203	●	●
5	UNION; AIR TANK (C) PT1/4 2WAY	1-09660-693-0	01	1	0204-	●	●
5	UNION; AIR TANK EXC. USER DAEWOO MOTORS<D4S> (C) PT1/4 2WAY	1-09660-693-0	02	1	0203-0203	●	●
5	UNION; AIR TANK (C) PT1/4 2WAY	1-09660-693-0	02	1	0204-	●	●
5	UNION; AIR TANK (A) PT1/4 & M12 ELBOW	1-09650-117-1	02	1	9101-9302	●	●
5	UNION; AIR TANK (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9303-0203	●	●
5	UNION; AIR TANK (C) PT1/4	9-09903-738-0	01	1	9101-0202	●	●
5	UNION; AIR TANK USER DAEWOO MOTORS<D4S> (C) PT1/4	9-09903-738-0	01	1	0203-0203	●	●
5	UNION; AIR TANK (B) M20 & PT3/8 ELBOW	1-09650-439-0	02	1	0204-	●	●
5	UNION; AIR TANK (C) PT1/4	9-09903-738-0	02	1	9101-0202	●	●
5	UNION; AIR TANK USER DAEWOO MOTORS<D4S> (C) PT1/4	9-09903-738-0	02	1	0203-0203	●	●
5	UNION; AIR TANK AUTO DRAIN<J78> (B) M20 & PT3/8 ELBOW	9-09234-312-1	02	1	9101-9302	●	●
5	UNION; AIR TANK EXC. USER DAEWOO MOTORS<D4S>,AUTO DRAIN<J78> (B) M20 & PT3/8 ELBOW	9-09234-312-1	02	1	9101-9302	●	●
5	UNION; AIR TANK USER DAEWOO MOTORS<D4S> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) M20 & PT3/8 ELBOW	9-09234-312-1	02	1	9101-9302	●	●
5	UNION; AIR TANK (B) M20 & PT3/8 ELBOW	9-09234-312-1	02	1	9101-9302	●	●
5	UNION; AIR TANK (B) M20 & PT3/8 ELBOW	1-09650-439-0	02	1	9303-0203	●	●
5	UNION; AIR TANK USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) M20 & PT3/8 ELBOW	9-09234-312-1	03	1	9101-9302	●	●
5	UNION; AIR TANK USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) M20 & PT3/8 ELBOW	1-09650-439-0	03	1	9303-0203	●	●
5	UNION; AIR TANK (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0204-	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (A)	1-48312-004-1	01	1	9101-9604	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	9605-	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	9101-	●	●
6	COCK; DRAIN,AIR TANK USER DAEWOO MOTORS<D4S> EXC. AUTO DRAIN<J78> (C)	1-09680-052-1	02	1	9101-0203	●	●
6	COCK; DRAIN,AIR TANK USER DAEWOO MOTORS<D4S> EXC. AUTO DRAIN<J78> (A)	1-48312-004-1	02	1	9101-9604	●	●
6	COCK; DRAIN,AIR TANK USER DAEWOO MOTORS<D4S> EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	02	1	9605-0203	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	0204-	●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	02	1	0204-	●	●
6	COCK; DRAIN,AIR TANK USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A)	1-09680-052-1	03	1	9101-0203	●	●
7	GASKET; DRAIN COCK AUTO DRAIN<J78> ID=14.2 OD=23.0	9-09572-014-0	02	1	9101-9608	●	●
7	GASKET; DRAIN COCK EXC. USER DAEWOO MOTORS<D4S>,AUTO DRAIN<J78> ID=14.2 OD=23.0	9-09572-014-0	02	1	9101-9608	●	●
7	GASKET; DRAIN COCK AUTO DRAIN<J78> ID=14.2 OD=23.0	9-09572-014-0	01	1	9609-	●	●
7	GASKET; DRAIN COCK AUTO DRAIN<J78> ID=14	1-09630-145-0	01	1	9609-	●	●
7	GASKET; DRAIN COCK USER DAEWOO MOTORS<D4S> EXC. AUTO DRAIN<J78> ID=14	1-09630-145-0	02	1	9609-0203	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	0204-	●	●
7	GASKET; DRAIN COCK EXC. AUTO DRAIN<J78> ID=14	1-09630-145-0	02	1	0204-	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK	1-48340-035-0	01	1	9101-9411	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK	1-48340-052-0	01	1	9412-	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	9101-	●	●
10	PLUG; AIR TANK (A) PT3/4	9-09204-526-0	01	1	9101-	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	02	1	9101-	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-003-1	01	1	9101-	●	●
17	ADAPTER; AUTO DRAIN AUTO DRAIN<J78>	1-48319-031-0	01	1	9101-	●	●
28	BRACKET; AIR TANK (A)	1-48317-401-2	04	1	9101-0203	●	●
28	BRACKET; AIR TANK (A)	1-48317-401-2	02	1	0204-	●	●
28	BRACKET; AIR TANK (B)	1-53318-248-3	02	1	9101-	●	●
28	BRACKET; AIR TANK AUTO DRAIN<J78> (A)	1-48317-401-2	02	1	9101-0203	●	●
28	BRACKET; AIR TANK EXC. USER DAEWOO MOTORS<D4S>,AUTO DRAIN<J78> (A)	1-48317-401-2	02	1	9101-0203	●	●
28	BRACKET; AIR TANK USER DAEWOO MOTORS<D4S> (A)	1-48317-401-2	02	1	9101-0203	●	●
28	BRACKET; AIR TANK (A)	1-48317-401-2	04	1	0204-	●	●
31	BOLT; BRKT TO FRAME BUS USER THAILAND BMTA<D5B> M10X35 W/LK&PL WASHER	0-50141-035-0	24	1	9101-9112	●
31	BOLT; BRKT TO FRAME BUS USER THAILAND BMTA<D5B> M10X35 W/LK&PL WASHER	0-50141-035-0	36	1	9201-9204	●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W) M10X35 W/LK&PL WASHER	0-50141-035-0	36	1	9205-	●
31	BOLT; BRKT TO FRAME EXC. BUS USER THAILAND BMTA<D5B> M10X25 W/LK&PL WASHER	0-50141-025-0	16	1	9101-9112	●
31	BOLT; BRKT TO FRAME M10X25 W/LK&PL WASHER	0-50141-025-0	16	1	9101-9112		●
31	BOLT; BRKT TO FRAME EXC. BUS USER THAILAND BMTA<D5B> M10X25 W/LK&PL WASHER	0-50141-025-0	08	1	9201-9204	●
31	BOLT; BRKT TO FRAME M10X25 W/LK&PL WASHER	0-50141-025-0	08	1	9201-9204		●
31	BOLT; BRKT TO FRAME WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) M10X25 W/LK&PL WASHER	0-50141-025-0	08	1	9205-	●	●
31	BOLT; BRKT TO FRAME M10X30 W/LK&PL WASHER	0-50141-030-0	20	1	9101-9112	●	●
31	BOLT; BRKT TO FRAME EXC. BUS USER THAILAND BMTA<D5B> M10X30 W/LK&PL WASHER	0-50141-030-0	28	1	9201-9204	●
31	BOLT; BRKT TO FRAME M10X30 W/LK&PL WASHER	0-50141-030-0	28	1	9201-9204		●
31	BOLT; BRKT TO FRAME WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) M10X30 W/LK&PL WASHER	0-50141-030-0	28	1	9205-	●	●
31	BOLT; BRKT TO FRAME USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X30 W/LK WASHER	0-50041-230-0	08	1	9101-0203	●	●
32	NUT; BRKT TO FRAME M10	9-09110-510-0	30	1	9101-	●	●
32	NUT; BRKT TO FRAME USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12	9-99110-512-0	04	1	9101-0203	●	●
39	U-BOLT; AIR TANK (A) L=210	1-48317-458-0	06	1	9101-0203	●	●
39	U-BOLT; AIR TANK (A) L=210	1-48317-458-1	02	1	0204-	●	●
39	U-BOLT; AIR TANK USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48317-248-1	02	1	9101-0203	●	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	04	1	0204-	●	●
45	NUT; AIR TANK,MAIN AUTO DRAIN<J78> M8	9-09110-408-0	08	1	9101-0203	●	●
45	NUT; AIR TANK,MAIN EXC. USER DAEWOO MOTORS<D4S>,AUTO DRAIN<J78> M8	9-09110-408-0	08	1	9101-0203	●	●
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	08	1	0204-	●	●
45	NUT; AIR TANK,MAIN EXC. USER DAEWOO MOTORS<D4S> M8	9-09110-408-0	16	1	9101-0203	●	●
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	16	1	0204-	●	●
46	NUT; U-BOLT USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	9-09110-408-0	16	1	9101-0203	●	●
46	NUT; U-BOLT USER DAEWOO MOTORS<D4S> M8	9-09110-408-0	16	1	9101-0203	●	●
46	NUT; U-BOLT USER DAEWOO MOTORS<D4S> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	9-09110-408-0	08	1	9101-0203	●	●
80	BOLT; BRKT M10X30 W/LK&PL WASHER	0-50141-030-0	06	1	9101-	●	●
191	BRACKET; STOPPER,AIR TANK BUS USER THAILAND BMTA<D5B>	1-53318-292-0	02	1	9101-9204	●
191	BRACKET; STOPPER,AIR TANK WHEEL BASE 6000MM(60W)	1-53318-292-0	02	1	9205-	●
191	BRACKET; STOPPER,AIR TANK EXC. BUS USER THAILAND BMTA<D5B>	1-53318-236-3	02	1	9101-9204	●
191	BRACKET; STOPPER,AIR TANK	1-53318-236-3	02	1	9101-9204		●
191	BRACKET; STOPPER,AIR TANK WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)	1-53318-236-3	02	1	9205-	●	●

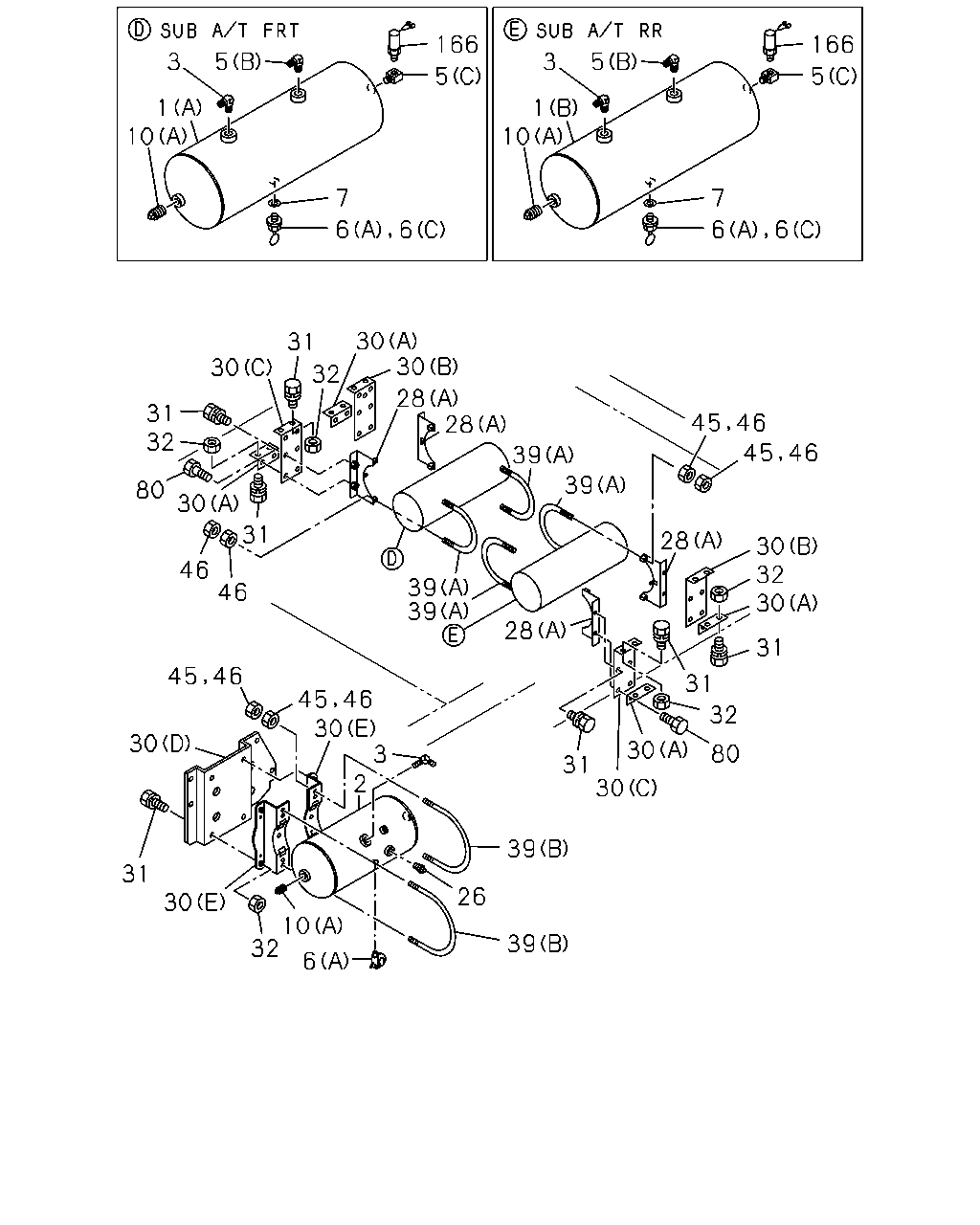

166 166 5 5 3 3 5 5 1 10 1 10 7 7 6 6 6 6 30 30 31 30 32 28 28 31 32 45 45 39 39 80 30 31 28 30 32 30 46 46 39 39 28 31 45 31 45 30 3 2 32 30 30 80 31 30 39 31 26 30 10 32 39 6 46 46 46 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR AUTO DRAIN<J78> (C)	1-48330-161-0	01	1	9101-0203	●	●
1	TANK ASM; AIR EXC. USER DAEWOO MOTORS<D4S>,AUTO DRAIN<J78> (C)	1-48330-161-0	01	1	9101-0203	●	●
1	TANK ASM; AIR (C)	1-48330-161-0	01	1	0204-	●	●
1	TANK ASM; AIR USER DAEWOO MOTORS<D4S> (C)	1-48330-643-0	01	1	9101-0203	●	●
1	TANK ASM; AIR USER DAEWOO MOTORS<D4S> (A)	1-48330-644-0	01	1	9101-0203	●	●
1	TANK ASM; AIR USER DAEWOO MOTORS<D4S> (B)	1-48330-645-0	01	1	9101-0203	●	●
1	TANK ASM; AIR EXC. USER DAEWOO MOTORS<D4S> (A)	1-48330-163-1	01	1	9101-0203	●	●
1	TANK ASM; AIR (A)	1-48330-163-1	01	1	0204-	●	●
1	TANK ASM; AIR EXC. USER DAEWOO MOTORS<D4S> (B)	1-48330-222-2	01	1	9101-0203	●	●
1	TANK ASM; AIR (B)	1-48330-222-2	01	1	0204-	●	●
2	TANK; AIR USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW>	1-48330-646-0	01	1	9101-0203	●	●
3	VALVE; CHECK,AIR TANK AUTO DRAIN<J78>	1-48410-133-2	01	1	9101-9606	●	●
3	VALVE; CHECK,AIR TANK EXC. USER DAEWOO MOTORS<D4S>,AUTO DRAIN<J78>	1-48410-133-2	01	1	9101-9606	●	●
3	VALVE; CHECK,AIR TANK USER DAEWOO MOTORS<D4S> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>	1-48410-133-2	01	1	9101-9606	●	●
3	VALVE; CHECK,AIR TANK AUTO DRAIN<J78> M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9607-0203	●	●
3	VALVE; CHECK,AIR TANK EXC. USER DAEWOO MOTORS<D4S>,AUTO DRAIN<J78> M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9607-0203	●	●
3	VALVE; CHECK,AIR TANK USER DAEWOO MOTORS<D4S> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9607-0203	●	●
3	VALVE; CHECK,AIR TANK M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0204-	●	●
3	VALVE; CHECK,AIR TANK USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW>	1-48410-133-2	02	1	9101-9606	●	●
3	VALVE; CHECK,AIR TANK	1-48410-133-2	02	1	9101-9606	●	●
3	VALVE; CHECK,AIR TANK USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9607-0203	●	●
3	VALVE; CHECK,AIR TANK M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9607-0203	●	●
3	VALVE; CHECK,AIR TANK M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0204-	●	●
5	UNION; AIR TANK AUTO DRAIN<J78> (C) PT1/4 2WAY	1-09660-693-0	01	1	0203-0203	●	●
5	UNION; AIR TANK EXC. USER DAEWOO MOTORS<D4S>,AUTO DRAIN<J78> (C) PT1/4 2WAY	1-09660-693-0	01	1	0203-0203	●	●
5	UNION; AIR TANK (C) PT1/4 2WAY	1-09660-693-0	01	1	0204-	●	●
5	UNION; AIR TANK EXC. USER DAEWOO MOTORS<D4S> (C) PT1/4 2WAY	1-09660-693-0	02	1	0203-0203	●	●
5	UNION; AIR TANK (C) PT1/4 2WAY	1-09660-693-0	02	1	0204-	●	●
5	UNION; AIR TANK (A) PT1/4 & M12 ELBOW	1-09650-117-1	02	1	9101-9302	●	●
5	UNION; AIR TANK (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9303-0203	●	●
5	UNION; AIR TANK (C) PT1/4	9-09903-738-0	01	1	9101-0202	●	●
5	UNION; AIR TANK USER DAEWOO MOTORS<D4S> (C) PT1/4	9-09903-738-0	01	1	0203-0203	●	●
5	UNION; AIR TANK (B) M20 & PT3/8 ELBOW	1-09650-439-0	02	1	0204-	●	●
5	UNION; AIR TANK (C) PT1/4	9-09903-738-0	02	1	9101-0202	●	●
5	UNION; AIR TANK USER DAEWOO MOTORS<D4S> (C) PT1/4	9-09903-738-0	02	1	0203-0203	●	●
5	UNION; AIR TANK AUTO DRAIN<J78> (B) M20 & PT3/8 ELBOW	9-09234-312-1	02	1	9101-9302	●	●
5	UNION; AIR TANK EXC. USER DAEWOO MOTORS<D4S>,AUTO DRAIN<J78> (B) M20 & PT3/8 ELBOW	9-09234-312-1	02	1	9101-9302	●	●
5	UNION; AIR TANK USER DAEWOO MOTORS<D4S> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) M20 & PT3/8 ELBOW	9-09234-312-1	02	1	9101-9302	●	●
5	UNION; AIR TANK (B) M20 & PT3/8 ELBOW	9-09234-312-1	02	1	9101-9302	●	●
5	UNION; AIR TANK (B) M20 & PT3/8 ELBOW	1-09650-439-0	02	1	9303-0203	●	●
5	UNION; AIR TANK USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) M20 & PT3/8 ELBOW	9-09234-312-1	03	1	9101-9302	●	●
5	UNION; AIR TANK USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) M20 & PT3/8 ELBOW	1-09650-439-0	03	1	9303-0203	●	●
5	UNION; AIR TANK (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0204-	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (A)	1-48312-004-1	01	1	9101-9604	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	9605-	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	9101-	●	●
6	COCK; DRAIN,AIR TANK USER DAEWOO MOTORS<D4S> EXC. AUTO DRAIN<J78> (C)	1-09680-052-1	02	1	9101-0203	●	●
6	COCK; DRAIN,AIR TANK USER DAEWOO MOTORS<D4S> EXC. AUTO DRAIN<J78> (A)	1-48312-004-1	02	1	9101-9604	●	●
6	COCK; DRAIN,AIR TANK USER DAEWOO MOTORS<D4S> EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	02	1	9605-0203	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	0204-	●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	02	1	0204-	●	●
6	COCK; DRAIN,AIR TANK USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A)	1-09680-052-1	03	1	9101-0203	●	●
7	GASKET; DRAIN COCK AUTO DRAIN<J78> ID=14.2 OD=23.0	9-09572-014-0	02	1	9101-9608	●	●
7	GASKET; DRAIN COCK EXC. USER DAEWOO MOTORS<D4S>,AUTO DRAIN<J78> ID=14.2 OD=23.0	9-09572-014-0	02	1	9101-9608	●	●
7	GASKET; DRAIN COCK AUTO DRAIN<J78> ID=14.2 OD=23.0	9-09572-014-0	01	1	9609-	●	●
7	GASKET; DRAIN COCK AUTO DRAIN<J78> ID=14	1-09630-145-0	01	1	9609-	●	●
7	GASKET; DRAIN COCK USER DAEWOO MOTORS<D4S> EXC. AUTO DRAIN<J78> ID=14	1-09630-145-0	02	1	9609-0203	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	0204-	●	●
7	GASKET; DRAIN COCK EXC. AUTO DRAIN<J78> ID=14	1-09630-145-0	02	1	0204-	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	9101-	●	●
10	PLUG; AIR TANK (A) PT3/4	9-09204-526-0	01	1	9101-	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	02	1	9101-	●	●
26	PLUG; SUB AIR TANK USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> PT3/8	9-09204-517-0	01	1	9101-0203	●	●
26	PLUG; SUB AIR TANK USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> PT1/4	9-99204-513-0	02	1	9101-0203	●	●
28	BRACKET; AIR TANK (A)	1-48317-401-2	04	1	9101-0203	●	●
28	BRACKET; AIR TANK (A)	1-48317-401-2	02	1	0204-	●	●
28	BRACKET; AIR TANK (B)	1-53318-248-3	02	1	9101-	●	●
28	BRACKET; AIR TANK AUTO DRAIN<J78> (A)	1-48317-401-2	02	1	9101-0203	●	●
28	BRACKET; AIR TANK EXC. USER DAEWOO MOTORS<D4S>,AUTO DRAIN<J78> (A)	1-48317-401-2	02	1	9101-0203	●	●
28	BRACKET; AIR TANK USER DAEWOO MOTORS<D4S> (A)	1-48317-401-2	02	1	9101-0203	●	●
28	BRACKET; AIR TANK (A)	1-48317-401-2	04	1	0204-	●	●
30	BRACKET; AIR TANK,SUB BUS USER THAILAND BMTA<D5B> (A)	1-53318-292-0	04	1	9101-9204	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 6000MM(60W) (A)	1-53318-292-0	04	1	9205-	●
30	BRACKET; AIR TANK,SUB EXC. BUS USER THAILAND BMTA<D5B> (A)	1-53318-236-3	04	1	9101-9204	●
30	BRACKET; AIR TANK,SUB (A)	1-53318-236-3	04	1	9101-9204		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) (A)	1-53318-236-3	04	1	9205-	●	●
30	BRACKET; AIR TANK,SUB (B)	1-53318-247-3	02	1	9101-	●	●
30	BRACKET; AIR TANK,SUB (C)	1-53318-248-3	02	1	9101-	●	●
30	BRACKET; AIR TANK,SUB USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> (D)	1-48317-453-2	01	1	9101-0203	●	●
30	BRACKET; AIR TANK,SUB USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> (E)	1-48317-454-0	02	1	9101-0203	●	●
31	BOLT; BRKT TO FRAME BUS USER THAILAND BMTA<D5B> M10X35 W/LK&PL WASHER	0-50141-035-0	24	1	9101-9112	●
31	BOLT; BRKT TO FRAME BUS USER THAILAND BMTA<D5B> M10X35 W/LK&PL WASHER	0-50141-035-0	36	1	9201-9204	●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W) M10X35 W/LK&PL WASHER	0-50141-035-0	36	1	9205-	●
31	BOLT; BRKT TO FRAME EXC. BUS USER THAILAND BMTA<D5B> M10X25 W/LK&PL WASHER	0-50141-025-0	16	1	9101-9112	●
31	BOLT; BRKT TO FRAME M10X25 W/LK&PL WASHER	0-50141-025-0	16	1	9101-9112		●
31	BOLT; BRKT TO FRAME EXC. BUS USER THAILAND BMTA<D5B> M10X25 W/LK&PL WASHER	0-50141-025-0	08	1	9201-9204	●
31	BOLT; BRKT TO FRAME M10X25 W/LK&PL WASHER	0-50141-025-0	08	1	9201-9204		●
31	BOLT; BRKT TO FRAME WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) M10X25 W/LK&PL WASHER	0-50141-025-0	08	1	9205-	●	●
31	BOLT; BRKT TO FRAME M10X30 W/LK&PL WASHER	0-50141-030-0	20	1	9101-9112	●	●
31	BOLT; BRKT TO FRAME EXC. BUS USER THAILAND BMTA<D5B> M10X30 W/LK&PL WASHER	0-50141-030-0	28	1	9201-9204	●
31	BOLT; BRKT TO FRAME M10X30 W/LK&PL WASHER	0-50141-030-0	28	1	9201-9204		●
31	BOLT; BRKT TO FRAME WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) M10X30 W/LK&PL WASHER	0-50141-030-0	28	1	9205-	●	●
31	BOLT; BRKT TO FRAME USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X30 W/LK WASHER	0-50041-230-0	08	1	9101-0203	●	●
32	NUT; BRKT TO FRAME M10	9-09110-510-0	30	1	9101-	●	●
32	NUT; BRKT TO FRAME USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12	9-99110-512-0	04	1	9101-0203	●	●
39	U-BOLT; AIR TANK (A) L=210	1-48317-458-0	06	1	9101-0203	●	●
39	U-BOLT; AIR TANK (A) L=210	1-48317-458-1	02	1	0204-	●	●
39	U-BOLT; AIR TANK USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48317-248-1	02	1	9101-0203	●	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	04	1	0204-	●	●
45	NUT; AIR TANK,MAIN AUTO DRAIN<J78> M8	9-09110-408-0	08	1	9101-0203	●	●
45	NUT; AIR TANK,MAIN EXC. USER DAEWOO MOTORS<D4S>,AUTO DRAIN<J78> M8	9-09110-408-0	08	1	9101-0203	●	●
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	08	1	0204-	●	●
45	NUT; AIR TANK,MAIN EXC. USER DAEWOO MOTORS<D4S> M8	9-09110-408-0	16	1	9101-0203	●	●
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	16	1	0204-	●	●
46	NUT; U-BOLT USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	9-09110-408-0	16	1	9101-0203	●	●
46	NUT; U-BOLT USER DAEWOO MOTORS<D4S> M8	9-09110-408-0	16	1	9101-0203	●	●
46	NUT; U-BOLT USER DAEWOO MOTORS<D4S> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	9-09110-408-0	08	1	9101-0203	●	●
80	BOLT; BRKT M10X30 W/LK&PL WASHER	0-50141-030-0	06	1	9101-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	1-48340-035-0	02	1	9101-9411	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	1-48340-052-0	02	1	9412-0203	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	1-48340-052-0	02	1	0204-	●	●

203 337 93 245 215 81 245 299 266

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-401-2	02	1	9101-	●	●
93	BOLT; FIX BUS USER THAILAND BMTA<D5B> M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9101-0203	●
93	BOLT; FIX THAILAND EQUIPMENT(PM9) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9101-0203	●
203	NUT BUS USER THAILAND BMTA<D5B> M6	9-09110-406-0	04	1	9101-0203	●
203	NUT THAILAND EQUIPMENT(PM9) M6	9-09110-406-0	04	1	9101-0203	●
215	PIPE; VINYL BUS USER THAILAND BMTA<D5B> L=950 SERVICED BY L=1000	9-09912-776-0	02	1	9101-0203	●
215	PIPE; VINYL THAILAND EQUIPMENT(PM9) L=950 SERVICED BY L=1000	9-09912-776-0	02	1	9101-0203	●
245	CLIP; VINYL PIPE BUS USER THAILAND BMTA<D5B> ID=23 W/SCREW	9-09915-656-0	04	1	9101-0203	●
245	CLIP; VINYL PIPE THAILAND EQUIPMENT(PM9) ID=23 W/SCREW	9-09915-656-0	04	1	9101-0203	●
266	HOSE; RUBBER,ACL BUS USER THAILAND BMTA<D5B> L=950 SERVICED BY L=1800	1-09360-320-0	02	1	9101-0203	●
266	HOSE; RUBBER,ACL THAILAND EQUIPMENT(PM9) L=950 SERVICED BY L=1800	1-09360-320-0	02	1	9101-0203	●
299	CONNECTOR; ACL BUS USER THAILAND BMTA<D5B>	8-94241-962-0	02	1	9101-0203	●
299	CONNECTOR; ACL THAILAND EQUIPMENT(PM9)	8-94241-962-0	02	1	9101-0203	●
337	AIR CLEANER BUS USER THAILAND BMTA<D5B>	1-47870-005-2	02	1	9101-0203	●
337	AIR CLEANER THAILAND EQUIPMENT(PM9)	1-47870-005-2	02	1	9101-0203	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
