◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50817 - NPR/NQR-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#22139) — 303 parça

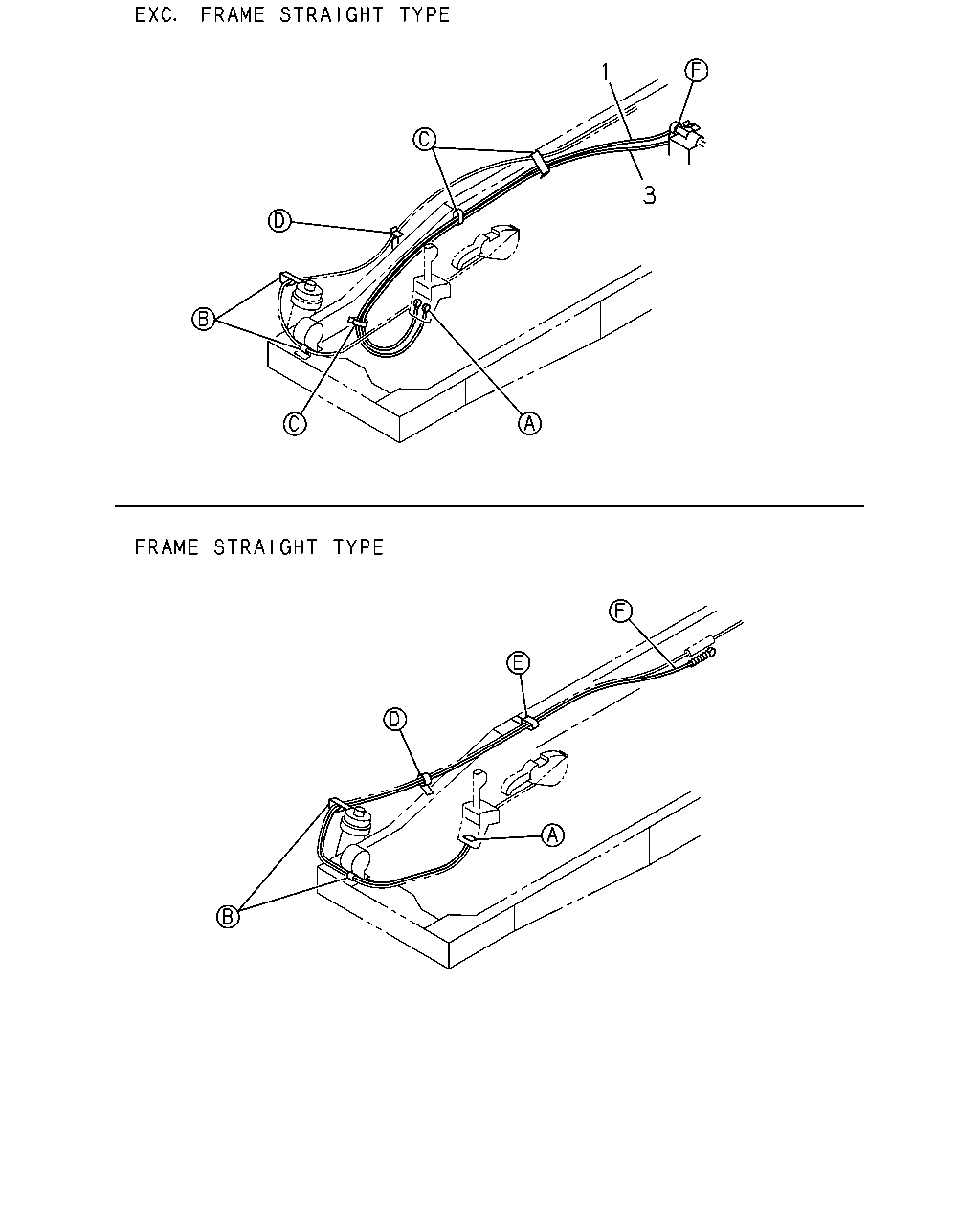

çizim 8032
1 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3070 		8-97329-417-0 01 1 0208- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2977 		8-97259-000-2 01 1 0208- ●
1 00.854 CABLE; SHIFT,TRANS CONT
FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3024 		8-97148-592-1 01 1 9811-0105 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3024 		8-97148-592-2 01 1 0106-0203 ●
1 00.854 CABLE; SHIFT,TRANS CONT
FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3024 		8-97351-344-0 01 1 0204- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> L=2942 		8-97096-511-2 01 1 9811-0105 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2942 		8-97096-511-2 01 1 9811-0105 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> L=2942 		8-97096-511-3 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2942 		8-97096-511-3 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> L=2745 		8-97216-339-0 01 1 9811-0105 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=2745 		8-97216-339-0 01 1 9811-0105 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> L=2745 		8-97216-339-0 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=2745 		8-97216-339-0 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=2745 		8-97205-652-0 01 1 9811-0105 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=2745 		8-97205-652-0 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2942 		8-97216-873-0 01 1 9811-0105 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2942 		8-97216-873-0 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3070 		8-97148-590-0 01 1 9811- ●
1 00.854 CABLE; SHIFT,TRANS CONT
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2988 		8-97096-508-1 01 1 9811-0203 ●
1 00.854 CABLE; SHIFT,TRANS CONT
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2988 		8-97351-345-0 01 1 0204- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3151 		8-97329-418-0 01 1 0208- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3055 		8-97259-001-2 01 1 0208- ●
3 00.852 CABLE; SELECT,TRANS CONT
FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3094 		8-97148-588-1 01 1 9811-0105 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3094 		8-97148-588-2 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> L=3012 		8-97096-506-2 01 1 9811-0105 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3012 		8-97096-506-2 01 1 9811-0105 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> L=3012 		8-97096-506-3 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3012 		8-97096-506-3 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=2800 		8-97205-642-0 01 1 9811-0105 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=2800 		8-97205-642-0 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3012 		8-97216-874-0 01 1 9811-0105 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3012 		8-97216-874-0 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> L=2800 		8-97203-060-1 01 1 9811-0105 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> L=2800 		8-97203-060-1 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3207 		8-97148-586-0 01 1 9811- ●
3 00.852 CABLE; SELECT,TRANS CONT
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3125 		8-97096-503-0 01 1 9811- ●
çizim 10129
6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
6 04.047 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 02 1 9811-0105 ● ●
6 04.047 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 02 1 0106- ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (D) 		9-09917-171-0 01 1 9811-0105 ● ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (D) 		9-09917-171-0 01 1 0106- ●
6 04.047 CLIP; CABLE
(A) 		8-97011-448-0 02 1 9811-0105 ● ● ●
6 04.047 CLIP; CABLE
(A) 		8-97011-448-0 02 1 0106- ● ● ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=33X16.5 L=50 		5-09700-341-0 01 1 9811-0105 ● ● ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=33X16.5 L=50 		5-09700-341-0 01 1 0106- ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (F) 		8-97036-332-1 01 1 9811-0105 ● ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (F) 		8-97036-332-1 01 1 0106- ● ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (G) 		8-97036-333-1 01 1 9811-9901 ● ● ● ● ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (G) 		8-97036-333-1 01 1 9811-9901 ● ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (G) 		8-97036-333-1 02 1 9902-0105 ● ● ● ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (G) 		8-97036-333-1 02 1 0106- ● ● ● ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (H) 		8-97147-985-0 01 1 9811-0105 ● ● ● ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (H) 		8-97147-985-0 01 1 0106- ● ● ● ● ●
6 04.047 CLIP; CABLE
00.854 (C) ID=22.2 		1-09701-209-1 01 1 9811-0207 ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 00.854 (C) ID=22.2 		1-09701-209-1 01 1 0208- ● ●
6 04.047 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 01 1 9811- ● ● ● ●
6 04.047 CLIP; CABLE
(A) 		8-97011-448-0 01 1 9811- ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> 06.672 (I) 		8-94107-545-0 01 1 9811- ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> 04.785 (J) 		8-94458-385-1 01 1 9811- ● ●

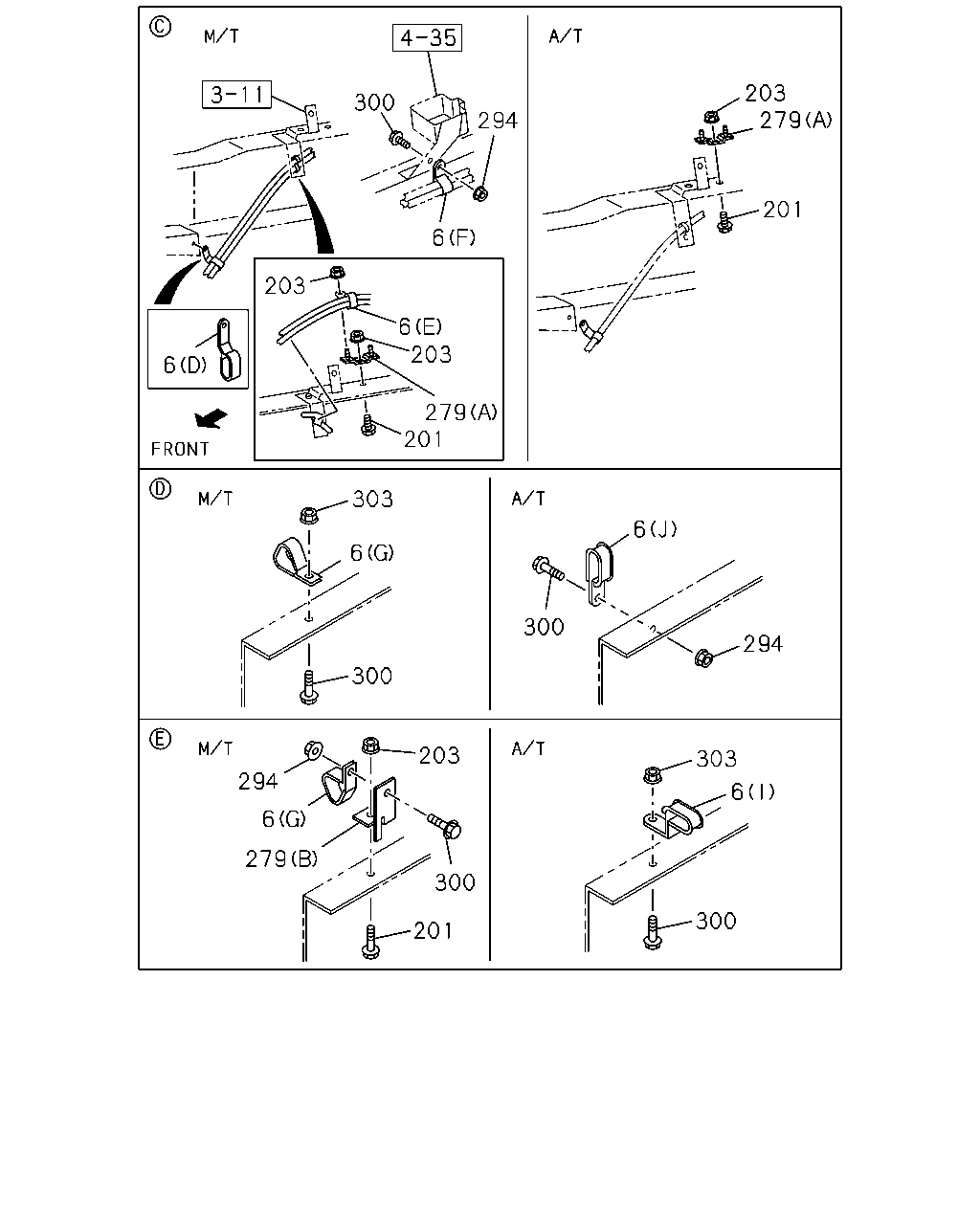

çizim 47313
203 279 300 294 201 6 203 6 203 6 279 201 303 6 6 300 294 300 203 303 294 6 6 279 300 300 201
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
6 04.047 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 02 1 9811-0105 ● ●
6 04.047 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 02 1 0106- ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (D) 		9-09917-171-0 01 1 9811-0105 ● ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (D) 		9-09917-171-0 01 1 0106- ●
6 04.047 CLIP; CABLE
(A) 		8-97011-448-0 02 1 9811-0105 ● ● ●
6 04.047 CLIP; CABLE
(A) 		8-97011-448-0 02 1 0106- ● ● ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=33X16.5 L=50 		5-09700-341-0 01 1 9811-0105 ● ● ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=33X16.5 L=50 		5-09700-341-0 01 1 0106- ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (F) 		8-97036-332-1 01 1 9811-0105 ● ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (F) 		8-97036-332-1 01 1 0106- ● ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (G) 		8-97036-333-1 01 1 9811-9901 ● ● ● ● ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (G) 		8-97036-333-1 01 1 9811-9901 ● ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (G) 		8-97036-333-1 02 1 9902-0105 ● ● ● ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (G) 		8-97036-333-1 02 1 0106- ● ● ● ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (H) 		8-97147-985-0 01 1 9811-0105 ● ● ● ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (H) 		8-97147-985-0 01 1 0106- ● ● ● ● ●
6 04.047 CLIP; CABLE
00.854 (C) ID=22.2 		1-09701-209-1 01 1 9811-0207 ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 00.854 (C) ID=22.2 		1-09701-209-1 01 1 0208- ● ●
6 04.047 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 01 1 9811- ● ● ● ●
6 04.047 CLIP; CABLE
(A) 		8-97011-448-0 01 1 9811- ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> 06.672 (I) 		8-94107-545-0 01 1 9811- ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> 04.785 (J) 		8-94458-385-1 01 1 9811- ● ●
201 04.032 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ●
201 04.032 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ●
203 04.032 NUT; BRKT FIX
POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ● ● ●
203 04.032 NUT; BRKT FIX
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ●
203 04.032 NUT; BRKT FIX
POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ●
203 04.032 NUT; BRKT FIX
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97171-065-0 01 1 9811-0105 ● ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97171-065-0 01 1 0106- ● ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97028-496-1 01 1 9811-0105 ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97028-496-1 01 1 0106- ● ●
294 00.854 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ● ● ● ●
294 00.854 NUT; CLIP
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ● ●
294 00.854 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ●
294 00.854 NUT; CLIP
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ●
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811-0105 ● ● ●
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0106- ● ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ● ● ●
300 00.854 BOLT; CLIP
POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ● ● ●
300 00.854 BOLT; CLIP
POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ●
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> EXC. POWER STEERING<N40> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9811-0105 ● ● ● ● ● ●
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> EXC. POWER STEERING<N40> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0106- ● ● ● ●
303 00.855 NUT; CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ● ● ●
303 00.855 NUT; CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106-0211 ● ● ● ● ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0212- ● ● ● ● ●
303 00.855 NUT; CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-0105 ● ● ● ● ●
303 00.855 NUT; CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106- ● ● ● ● ●

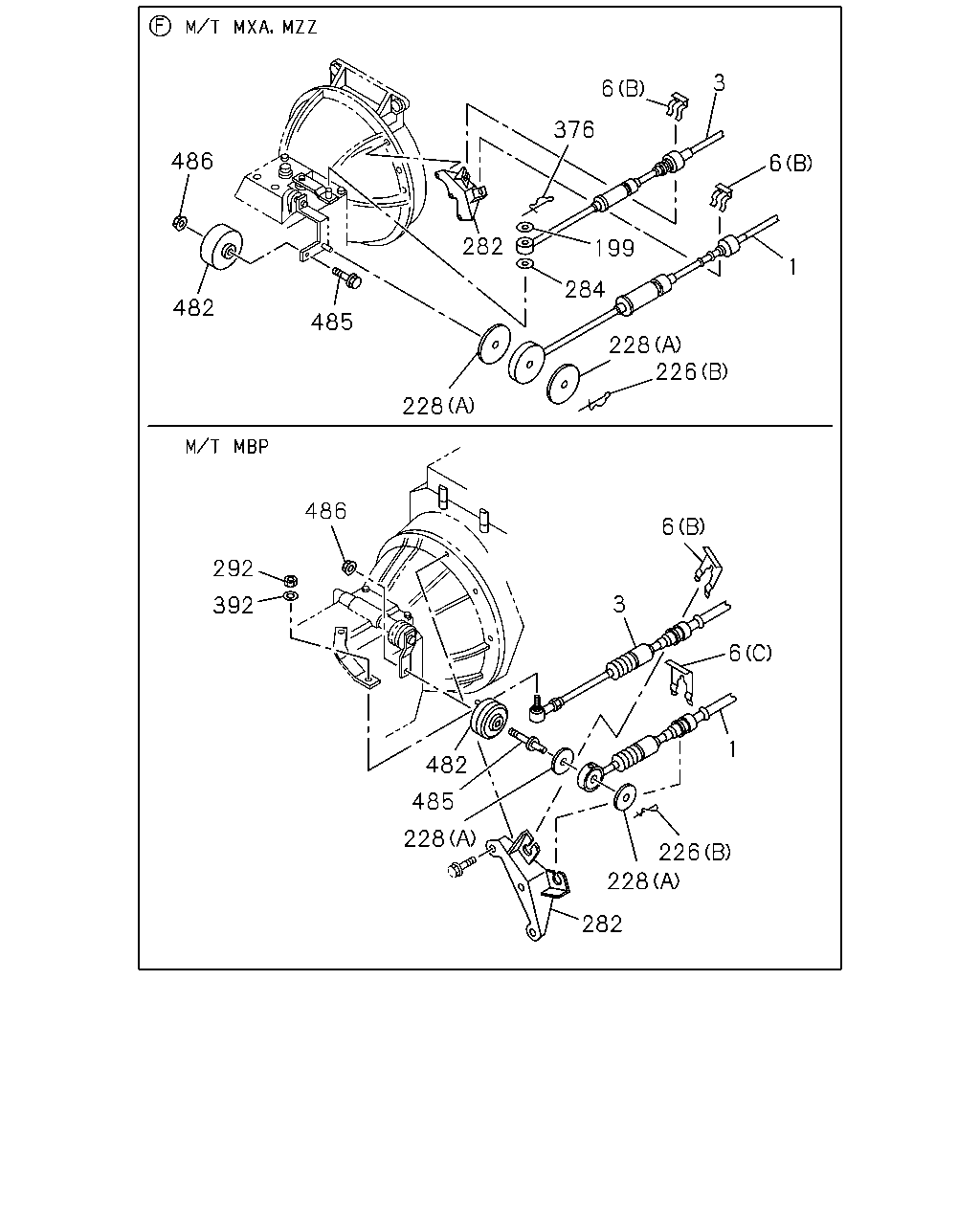

çizim 48844
3 6 376 486 6 199 282 1 284 482 485 228 226 228 486 6 292 3 392 6 1 482 485 228 226 228 282
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3070 		8-97329-417-0 01 1 0208- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2977 		8-97259-000-2 01 1 0208- ●
1 00.854 CABLE; SHIFT,TRANS CONT
FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3024 		8-97148-592-1 01 1 9811-0105 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3024 		8-97148-592-2 01 1 0106-0203 ●
1 00.854 CABLE; SHIFT,TRANS CONT
FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3024 		8-97351-344-0 01 1 0204- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> L=2942 		8-97096-511-2 01 1 9811-0105 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2942 		8-97096-511-2 01 1 9811-0105 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> L=2942 		8-97096-511-3 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2942 		8-97096-511-3 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> L=2745 		8-97216-339-0 01 1 9811-0105 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=2745 		8-97216-339-0 01 1 9811-0105 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> L=2745 		8-97216-339-0 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=2745 		8-97216-339-0 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=2745 		8-97205-652-0 01 1 9811-0105 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=2745 		8-97205-652-0 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2942 		8-97216-873-0 01 1 9811-0105 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2942 		8-97216-873-0 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3070 		8-97148-590-0 01 1 9811- ●
1 00.854 CABLE; SHIFT,TRANS CONT
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2988 		8-97096-508-1 01 1 9811-0203 ●
1 00.854 CABLE; SHIFT,TRANS CONT
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2988 		8-97351-345-0 01 1 0204- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3151 		8-97329-418-0 01 1 0208- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3055 		8-97259-001-2 01 1 0208- ●
3 00.852 CABLE; SELECT,TRANS CONT
FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3094 		8-97148-588-1 01 1 9811-0105 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3094 		8-97148-588-2 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> L=3012 		8-97096-506-2 01 1 9811-0105 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3012 		8-97096-506-2 01 1 9811-0105 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> L=3012 		8-97096-506-3 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3012 		8-97096-506-3 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=2800 		8-97205-642-0 01 1 9811-0105 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=2800 		8-97205-642-0 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3012 		8-97216-874-0 01 1 9811-0105 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3012 		8-97216-874-0 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> L=2800 		8-97203-060-1 01 1 9811-0105 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> L=2800 		8-97203-060-1 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3207 		8-97148-586-0 01 1 9811- ●
3 00.852 CABLE; SELECT,TRANS CONT
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3125 		8-97096-503-0 01 1 9811- ●
6 04.047 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 02 1 9811-0105 ● ●
6 04.047 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 02 1 0106- ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (D) 		9-09917-171-0 01 1 9811-0105 ● ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (D) 		9-09917-171-0 01 1 0106- ●
6 04.047 CLIP; CABLE
(A) 		8-97011-448-0 02 1 9811-0105 ● ● ●
6 04.047 CLIP; CABLE
(A) 		8-97011-448-0 02 1 0106- ● ● ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=33X16.5 L=50 		5-09700-341-0 01 1 9811-0105 ● ● ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=33X16.5 L=50 		5-09700-341-0 01 1 0106- ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (F) 		8-97036-332-1 01 1 9811-0105 ● ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (F) 		8-97036-332-1 01 1 0106- ● ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (G) 		8-97036-333-1 01 1 9811-9901 ● ● ● ● ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (G) 		8-97036-333-1 01 1 9811-9901 ● ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (G) 		8-97036-333-1 02 1 9902-0105 ● ● ● ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (G) 		8-97036-333-1 02 1 0106- ● ● ● ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (H) 		8-97147-985-0 01 1 9811-0105 ● ● ● ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (H) 		8-97147-985-0 01 1 0106- ● ● ● ● ●
6 04.047 CLIP; CABLE
00.854 (C) ID=22.2 		1-09701-209-1 01 1 9811-0207 ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 00.854 (C) ID=22.2 		1-09701-209-1 01 1 0208- ● ●
6 04.047 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 01 1 9811- ● ● ● ●
6 04.047 CLIP; CABLE
(A) 		8-97011-448-0 01 1 9811- ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> 06.672 (I) 		8-94107-545-0 01 1 9811- ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> 04.785 (J) 		8-94458-385-1 01 1 9811- ● ●
199 04.012 WASHER; PL,SELECT
16.674 ID=8.4 		9-09160-508-0 01 1 9811-0105 ● ● ●
199 04.012 WASHER; PL,SELECT
16.674 ID=8.4 		9-09160-508-0 01 1 0106-0112 ● ● ●
199 04.012 WASHER; PL,SELECT
16.674 ID=8.4 		9-09160-508-0 01 1 0201-0207 ●
199 04.012 WASHER; PL,SELECT
16.674 ID=8.4 		9-09160-508-0 01 1 0208- ● ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 9811-0105 ● ● ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 0106- ● ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 9811-0105 ● ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 0106- ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 9811-0105 ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 0106- ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 9811-0105 ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 0106- ● ● ●
282 04.010 BRACKET; TRANS SIDE 8-97311-442-1 01 1 0208- ●
282 04.010 BRACKET; TRANS SIDE
FLOOR REMOTE SHIFT<M11> 		8-97182-260-0 01 1 9811-0105 ● ●
282 04.010 BRACKET; TRANS SIDE 8-97182-260-0 01 1 0106- ●
282 04.010 BRACKET; TRANS SIDE 8-97040-198-1 01 1 9811- ●
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 9811-0105 ● ● ●
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 0106-0112 ● ● ●
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 0201-0207 ●
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 0208- ● ●
292 04.047 NUT; CABLE TO RELAY LEVER
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-9905 ●
292 04.047 NUT; CABLE TO RELAY LEVER
04.037 M8 T=8.0 		8-94363-045-0 01 1 9906- ●
376 04.047 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 9811-0105 ● ● ●
376 04.047 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 0106-0112 ● ● ●
376 04.047 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 0201-0207 ●
376 04.047 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 0208- ● ●
392 00.854 WASHER; LK,SELECT CABLE,CAB
01.276 ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 9811- ●
482 04.047 WEIGHT; SHIFT CABLE
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> 		8-97066-730-1 01 1 9811-0105 ● ●
482 04.047 WEIGHT; SHIFT CABLE
AUSTRALIA EQUIPMENT(RR3) 		8-97066-730-2 01 1 0106-0207 ●
482 04.047 WEIGHT; SHIFT CABLE
AUSTRALIA EQUIPMENT(RR3) 		8-97066-730-2 01 1 0208- ●
482 04.047 WEIGHT; SHIFT CABLE 8-97066-730-2 01 1 0208- ●
482 04.047 WEIGHT; SHIFT CABLE 8-97079-982-2 01 1 9811- ●
485 04.047 BOLT; WEIGHT
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> M12X60 FLANGE 		0-28091-260-0 01 1 9811-0105 ● ●
485 04.047 BOLT; WEIGHT
AUSTRALIA EQUIPMENT(RR3) M12X60 FLANGE 		0-28091-260-0 01 1 0106-0207 ●
485 04.047 BOLT; WEIGHT
AUSTRALIA EQUIPMENT(RR3) M12X60 FLANGE 		0-28091-260-0 01 1 0208- ●
485 04.047 BOLT; WEIGHT
M12X60 FLANGE 		0-28091-260-0 01 1 0208- ●
485 04.047 BOLT; WEIGHT
L=88 		8-97017-375-0 01 1 9811- ●
486 04.047 NUT; WEIGHT
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> 06.509 M12 FLANGE 		8-94436-194-0 01 1 9811-0105 ● ●
486 04.047 NUT; WEIGHT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 06.509 M12 FLANGE 		8-94436-194-0 01 1 9811-0105 ●
486 04.047 NUT; WEIGHT
AUSTRALIA EQUIPMENT(RR3) 06.509 M12 FLANGE 		8-94436-194-0 01 1 0106- ●
486 04.047 NUT; WEIGHT
06.509 M12 FLANGE 		8-94436-194-0 01 1 0106- ● ●

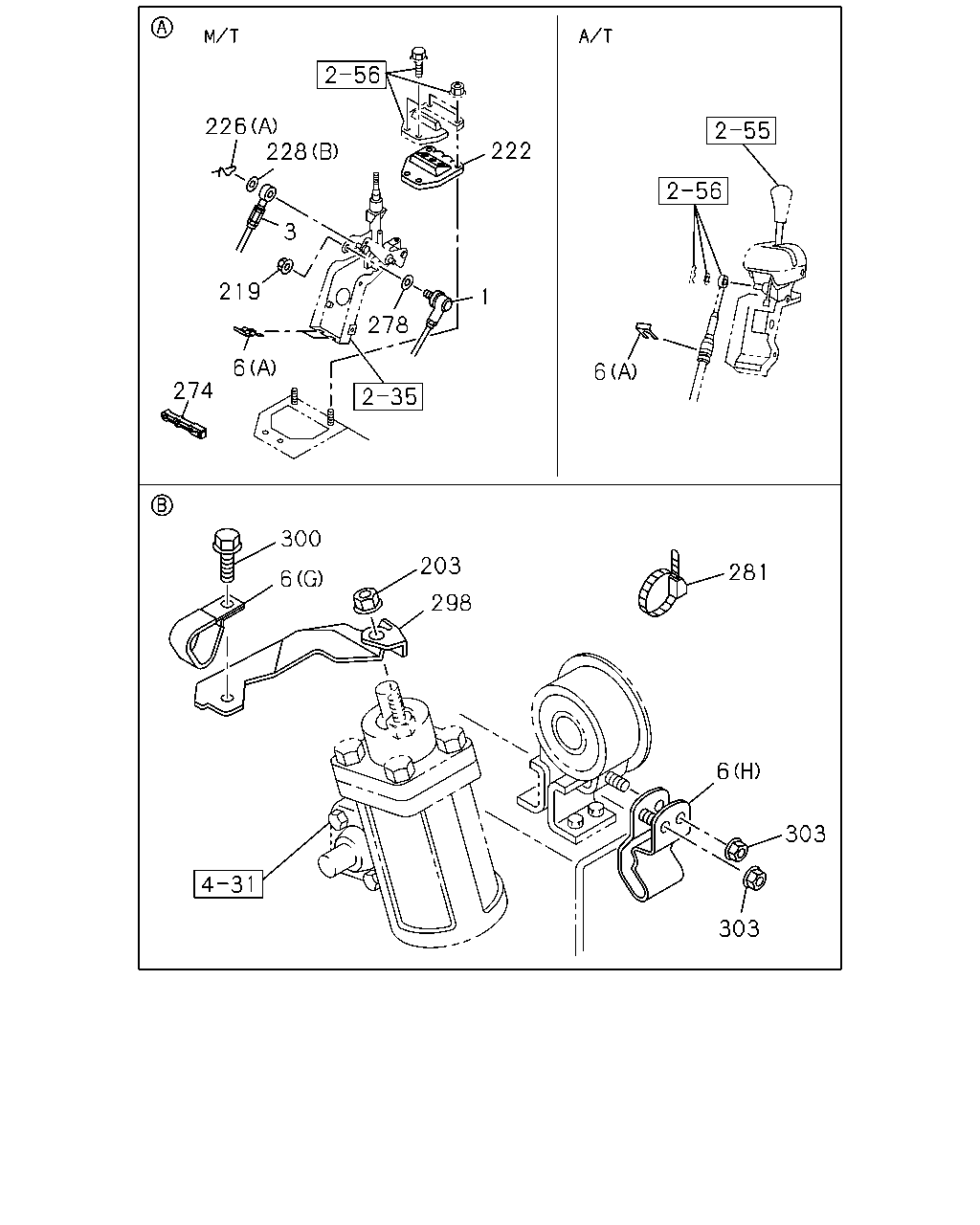

çizim 50974
226 228 222 3 219 1 278 6 6 274 300 203 281 6 298 303 303 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3070 		8-97329-417-0 01 1 0208- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2977 		8-97259-000-2 01 1 0208- ●
1 00.854 CABLE; SHIFT,TRANS CONT
FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3024 		8-97148-592-1 01 1 9811-0105 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3024 		8-97148-592-2 01 1 0106-0203 ●
1 00.854 CABLE; SHIFT,TRANS CONT
FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3024 		8-97351-344-0 01 1 0204- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> L=2942 		8-97096-511-2 01 1 9811-0105 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2942 		8-97096-511-2 01 1 9811-0105 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> L=2942 		8-97096-511-3 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2942 		8-97096-511-3 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> L=2745 		8-97216-339-0 01 1 9811-0105 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=2745 		8-97216-339-0 01 1 9811-0105 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> L=2745 		8-97216-339-0 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=2745 		8-97216-339-0 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=2745 		8-97205-652-0 01 1 9811-0105 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=2745 		8-97205-652-0 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2942 		8-97216-873-0 01 1 9811-0105 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2942 		8-97216-873-0 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3070 		8-97148-590-0 01 1 9811- ●
1 00.854 CABLE; SHIFT,TRANS CONT
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2988 		8-97096-508-1 01 1 9811-0203 ●
1 00.854 CABLE; SHIFT,TRANS CONT
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2988 		8-97351-345-0 01 1 0204- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3151 		8-97329-418-0 01 1 0208- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3055 		8-97259-001-2 01 1 0208- ●
3 00.852 CABLE; SELECT,TRANS CONT
FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3094 		8-97148-588-1 01 1 9811-0105 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3094 		8-97148-588-2 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> L=3012 		8-97096-506-2 01 1 9811-0105 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3012 		8-97096-506-2 01 1 9811-0105 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> L=3012 		8-97096-506-3 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3012 		8-97096-506-3 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=2800 		8-97205-642-0 01 1 9811-0105 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=2800 		8-97205-642-0 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3012 		8-97216-874-0 01 1 9811-0105 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3012 		8-97216-874-0 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> L=2800 		8-97203-060-1 01 1 9811-0105 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> L=2800 		8-97203-060-1 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3207 		8-97148-586-0 01 1 9811- ●
3 00.852 CABLE; SELECT,TRANS CONT
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3125 		8-97096-503-0 01 1 9811- ●
6 04.047 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 02 1 9811-0105 ● ●
6 04.047 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 02 1 0106- ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (D) 		9-09917-171-0 01 1 9811-0105 ● ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (D) 		9-09917-171-0 01 1 0106- ●
6 04.047 CLIP; CABLE
(A) 		8-97011-448-0 02 1 9811-0105 ● ● ●
6 04.047 CLIP; CABLE
(A) 		8-97011-448-0 02 1 0106- ● ● ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=33X16.5 L=50 		5-09700-341-0 01 1 9811-0105 ● ● ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=33X16.5 L=50 		5-09700-341-0 01 1 0106- ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (F) 		8-97036-332-1 01 1 9811-0105 ● ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (F) 		8-97036-332-1 01 1 0106- ● ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (G) 		8-97036-333-1 01 1 9811-9901 ● ● ● ● ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (G) 		8-97036-333-1 01 1 9811-9901 ● ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (G) 		8-97036-333-1 02 1 9902-0105 ● ● ● ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (G) 		8-97036-333-1 02 1 0106- ● ● ● ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (H) 		8-97147-985-0 01 1 9811-0105 ● ● ● ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (H) 		8-97147-985-0 01 1 0106- ● ● ● ● ●
6 04.047 CLIP; CABLE
00.854 (C) ID=22.2 		1-09701-209-1 01 1 9811-0207 ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 00.854 (C) ID=22.2 		1-09701-209-1 01 1 0208- ● ●
6 04.047 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 01 1 9811- ● ● ● ●
6 04.047 CLIP; CABLE
(A) 		8-97011-448-0 01 1 9811- ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> 06.672 (I) 		8-94107-545-0 01 1 9811- ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> 04.785 (J) 		8-94458-385-1 01 1 9811- ● ●
203 04.032 NUT; BRKT FIX
POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ● ● ●
203 04.032 NUT; BRKT FIX
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ●
203 04.032 NUT; BRKT FIX
POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ●
203 04.032 NUT; BRKT FIX
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-9905 ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0 		8-94363-045-0 01 1 9906-0105 ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0 		8-94363-045-0 01 1 0106- ● ● ●
222 04.010 GROMMET; CABLE 8-97065-212-1 01 1 9811-0105 ● ● ●
222 04.010 GROMMET; CABLE 8-97065-212-1 01 1 0106- ● ● ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 9811-0105 ● ● ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 0106- ● ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 9811-0105 ● ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 0106- ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 9811-0105 ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 0106- ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 9811-0105 ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 0106- ● ● ●
274 04.008 CLIP; CONT CABLE
EXC. MANUAL TILT CAB<RWZ> 		8-97093-491-1 01 1 9811-0105 ● ● ●
274 04.008 CLIP; CONT CABLE
EXC. MANUAL TILT CAB<RWZ> 		8-97093-491-1 01 1 0106- ● ● ●
278 00.854 WASHER; LK,SHIFT WIRE
01.276 ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 9811-0105 ● ● ●
278 00.854 WASHER; LK,SHIFT WIRE
01.276 ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 0106- ● ● ●
281 04.042 CLIP; BAND
DUAL RR TIRE(NPC***) 02.559 L=250 		5-09707-030-1 01 1 9811-0012 ● ● ● ● ● ●
281 04.042 CLIP; BAND
02.559 L=250 		5-09707-030-1 01 1 0101- ● ● ● ● ● ●
298 00.854 BRACKET
POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> 04.785 		8-97065-098-1 01 1 9811-0008 ● ● ● ● ●
298 00.854 BRACKET
POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> 		8-97288-446-0 01 1 0009-0105 ● ● ● ● ●
298 00.854 BRACKET
POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> 		8-97288-446-0 01 1 0106- ● ● ● ● ●
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811-0105 ● ● ●
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0106- ● ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ● ● ●
300 00.854 BOLT; CLIP
POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ● ● ●
300 00.854 BOLT; CLIP
POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ●
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> EXC. POWER STEERING<N40> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9811-0105 ● ● ● ● ● ●
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> EXC. POWER STEERING<N40> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0106- ● ● ● ●
303 00.855 NUT; CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ● ● ●
303 00.855 NUT; CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106-0211 ● ● ● ● ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0212- ● ● ● ● ●
303 00.855 NUT; CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-0105 ● ● ● ● ●
303 00.855 NUT; CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
