2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#22138) — 65 parça
çizim 47418
356 401 401 401 249 185
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
185 04.012 BOLT; BRKT,COVER
DUAL RR TIRE(NPC***) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9811-0012 ● ● ● ● ● ●
185 04.012 BOLT; BRKT,COVER
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0101- ● ● ● ● ● ●
249 04.012 BRACKET; COVER
DUAL RR TIRE(NPC***) 		8-97065-170-0 01 1 9811-0012 ● ● ● ● ● ●
249 04.012 BRACKET; COVER 8-97065-170-0 01 1 0101- ● ● ● ● ● ●
356 04.012 SCREW; COVER
02.510 (A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 0106- ● ● ●
356 04.012 SCREW; COVER
02.510 (A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9811-0105 ● ● ●
356 04.012 SCREW; COVER
DUAL RR TIRE(NPC***) (B) M6X12 		8-97094-854-0 01 1 9811-0012 ● ● ● ● ● ●
356 04.012 SCREW; COVER
(B) M6X12 		8-97094-854-0 01 1 0101- ● ● ● ● ● ●
401 04.012 CLIP; COVER
DUAL RR TIRE(NPC***) (A) DARK GRAY 		8-97098-523-0 02 1 9811-0012 ● ● ● ● ● ●
401 04.012 CLIP; COVER
(A) DARK GRAY 		8-97098-523-0 02 1 0101- ● ● ● ● ● ●
401 04.012 CLIP; COVER
DUAL RR TIRE(NPC***) (B) DARK GRAY 		8-97098-524-0 01 1 9811-0012 ● ● ● ● ● ●
401 04.012 CLIP; COVER
(B) DARK GRAY 		8-97098-524-0 01 1 0101- ● ● ● ● ● ●

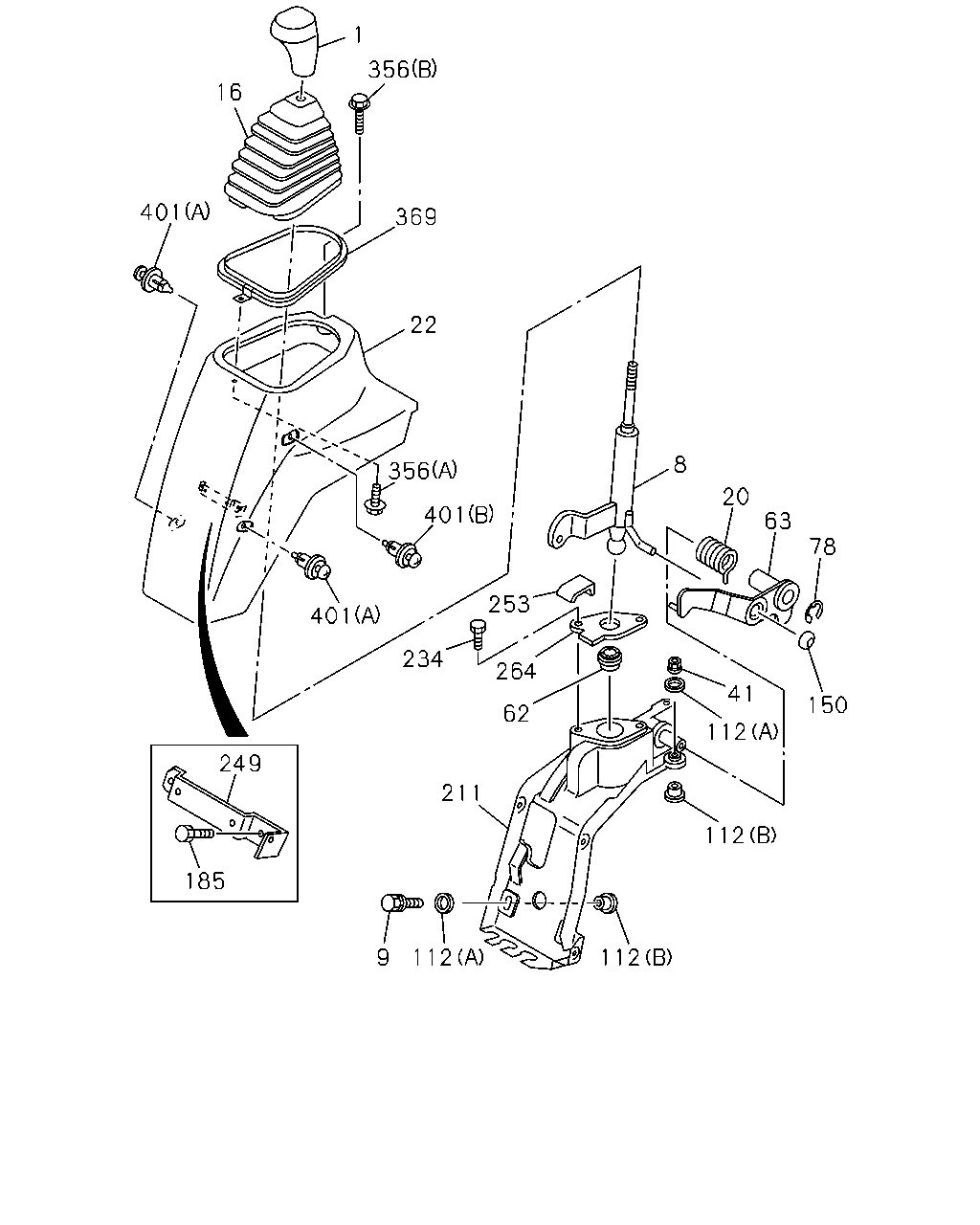

çizim 48849
1 356 16 401 369 22 8 356 20 401 63 78 253 401 234 264 41 150 62 112 249 211 112 185 9 112 112
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.006 KNOB; CHANGE LEVER
DARK GRAY 		8-97098-657-0 01 1 9811-0105 ● ●
1 04.006 KNOB; CHANGE LEVER
DARK GRAY 		8-97098-657-0 01 1 0106- ●
1 04.006 KNOB; CHANGE LEVER
DARK GRAY 		8-97155-986-0 01 1 9811- ● ●
8 04.006 LEVER; CHANGE 8-97204-506-0 01 1 9811-0105 ● ●
8 04.006 LEVER; CHANGE 8-97204-506-0 01 1 0106- ●
8 04.006 LEVER; CHANGE 8-97204-507-0 01 1 9811- ● ●
9 04.012 BOLT; CHANGE LEVER
07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 9811-0105 ● ● ●
9 04.012 BOLT; CHANGE LEVER
07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 0106- ● ● ●
16 04.015 BOOT; CHANGE LEVER 8-97066-287-1 02 1 0106- ● ● ●
16 04.015 BOOT; CHANGE LEVER 8-97066-287-1 01 1 9811-0105 ● ● ●
20 04.012 SPRING; CHANGE LEVER 8-97204-514-0 01 1 9811- ● ● ●
22 04.015 COVER; DUST,CHANGE LEVER
DARK GRAY 		8-97867-625-3 01 1 9811-0105 ● ● ●
22 04.015 COVER; DUST,CHANGE LEVER
DARK GRAY 		8-97867-625-3 01 1 0106- ● ● ●
41 04.012 NUT; CHANGE LEVER
09.011 M8 W/LK WASHER 		8-97065-435-0 02 1 9811-0105 ● ● ●
41 04.012 NUT; CHANGE LEVER
09.011 M8 W/LK WASHER 		8-97065-435-0 02 1 0106-0110 ● ● ●
41 04.012 NUT; CHANGE LEVER
04.010 M8 FLANGE 		8-97046-127-0 02 1 0111- ● ● ●
62 04.012 SEAT; BALL,CHANGE LEVER 8-97011-895-1 01 1 9811-0105 ● ● ●
62 04.012 SEAT; BALL,CHANGE LEVER 8-97011-895-1 01 1 0106-0207 ● ●
62 04.012 SEAT; BALL,CHANGE LEVER 8-97011-895-1 01 1 0208- ● ● ●
63 04.006 LEVER; RELAY,SELECT 8-97143-199-0 01 1 9811-0105 ● ●
63 04.006 LEVER; RELAY,SELECT 8-97143-199-0 01 1 0106- ●
63 04.006 LEVER; RELAY,SELECT 8-97163-768-0 01 1 9811- ● ●
78 04.008 RING; SNAP,CHANGE LEVER
08.934 ID=10 		9-09185-410-0 01 1 9811-0105 ● ● ●
78 04.008 RING; SNAP,CHANGE LEVER
08.934 ID=10 		9-09185-410-0 01 1 0106- ● ● ●
112 04.012 RUBBER; CUSHION
(A) 		8-97091-426-0 04 1 9811-0105 ● ● ●
112 04.012 RUBBER; CUSHION
(A) 		8-97091-426-0 04 1 0106- ● ● ●
112 04.012 RUBBER; CUSHION
(B) 		8-97091-427-0 04 1 9811-0105 ● ● ●
112 04.012 RUBBER; CUSHION
(B) 		8-97091-427-0 04 1 0106- ● ● ●
150 04.008 BALL; DETENT,CONT LEVER 8-97049-147-0 01 1 9811-0105 ● ● ●
150 04.008 BALL; DETENT,CONT LEVER 8-97049-147-0 01 1 0106- ● ● ●
185 04.012 BOLT; BRKT,COVER
DUAL RR TIRE(NPC***) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9811-0012 ● ● ● ● ● ●
185 04.012 BOLT; BRKT,COVER
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0101- ● ● ● ● ● ●
211 04.010 BRACKET; CHANGE LEVER 8-97204-505-0 01 1 9811-0105 ● ●
211 04.010 BRACKET; CHANGE LEVER 8-97204-505-0 01 1 0106- ● ● ●
211 04.010 BRACKET; CHANGE LEVER 8-97143-198-0 01 1 9811-0105 ●
234 04.010 BOLT; BRKT 8-97204-512-0 02 1 9811-0105 ● ● ●
234 04.010 BOLT; BRKT 8-97204-512-0 02 1 0106- ● ● ●
249 04.012 BRACKET; COVER
DUAL RR TIRE(NPC***) 		8-97065-170-0 01 1 9811-0012 ● ● ● ● ● ●
249 04.012 BRACKET; COVER 8-97065-170-0 01 1 0101- ● ● ● ● ● ●
253 04.012 STOPPER; CHANGE LEVER 8-97204-510-0 01 1 9811-0105 ● ● ●
253 04.012 STOPPER; CHANGE LEVER 8-97204-510-0 01 1 0106- ● ● ●
264 04.015 PLATE; COVER 8-97204-511-0 01 1 9811-0105 ● ● ●
264 04.015 PLATE; COVER 8-97204-511-0 01 1 0106- ● ● ●
356 04.012 SCREW; COVER
02.510 (A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 0106- ● ● ●
356 04.012 SCREW; COVER
02.510 (A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9811-0105 ● ● ●
356 04.012 SCREW; COVER
DUAL RR TIRE(NPC***) (B) M6X12 		8-97094-854-0 01 1 9811-0012 ● ● ● ● ● ●
356 04.012 SCREW; COVER
(B) M6X12 		8-97094-854-0 01 1 0101- ● ● ● ● ● ●
369 04.012 RETAINER; REINF 8-97066-288-0 02 1 0106- ● ● ●
369 04.012 RETAINER; REINF 8-97066-288-0 01 1 9811-0105 ● ● ●
401 04.012 CLIP; COVER
DUAL RR TIRE(NPC***) (A) DARK GRAY 		8-97098-523-0 02 1 9811-0012 ● ● ● ● ● ●
401 04.012 CLIP; COVER
(A) DARK GRAY 		8-97098-523-0 02 1 0101- ● ● ● ● ● ●
401 04.012 CLIP; COVER
DUAL RR TIRE(NPC***) (B) DARK GRAY 		8-97098-524-0 01 1 9811-0012 ● ● ● ● ● ●
401 04.012 CLIP; COVER
(B) DARK GRAY 		8-97098-524-0 01 1 0101- ● ● ● ● ● ●
