Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#22137) — 345 parça

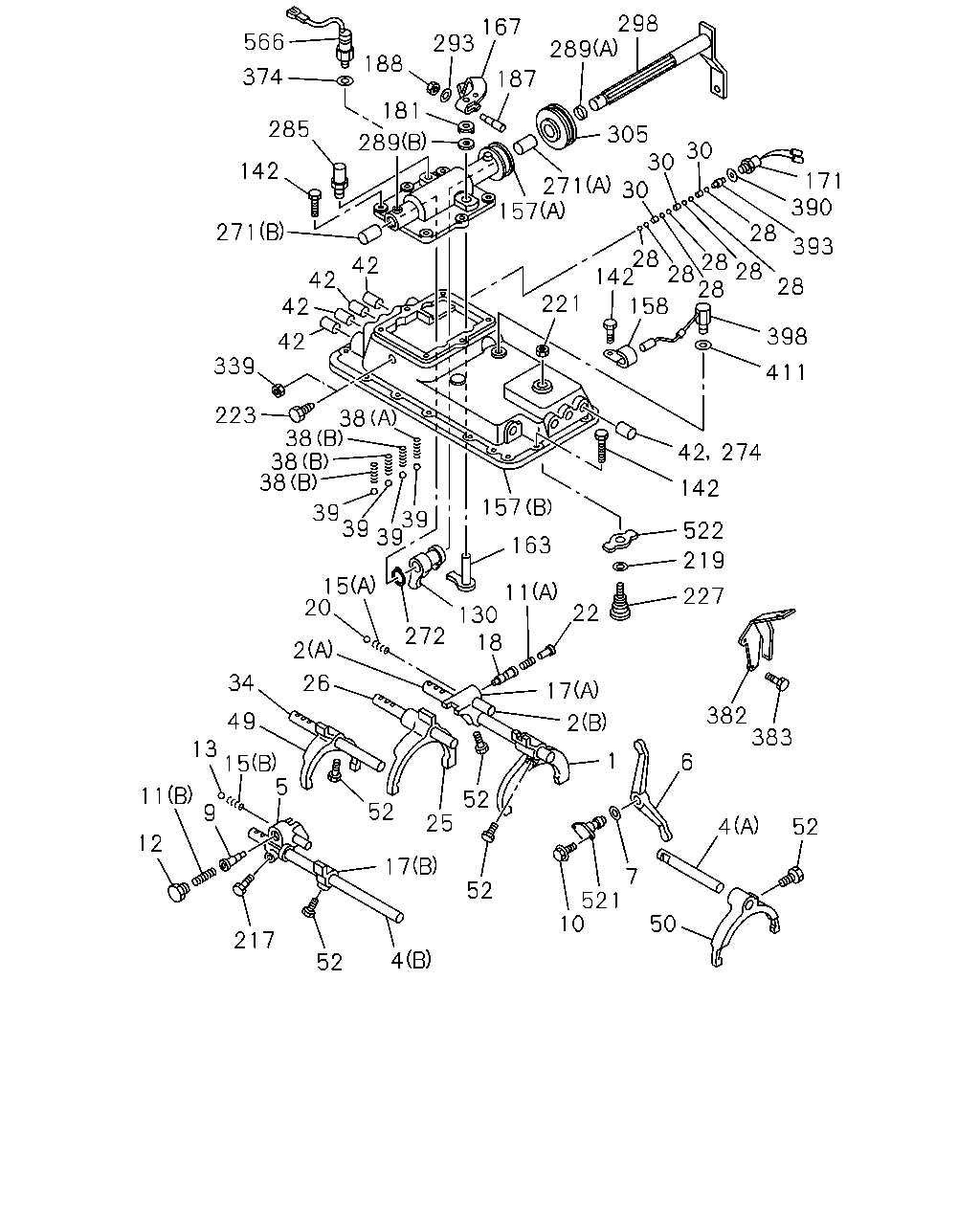

298 167 293 566 289 188 374 187 181 289 285 305 30 30 30 142 171 390 271 157 271 28 393 28 28 142 28 28 28 42 42 42 28 221 158 398 42 339 411 223 38 38 38 38 42 274 142 157 39 39 39 39 522 163 219 15 20 11 130 18 227 22 272 2 34 26 17 382 383 49 13 15 5 2 1 6 11 52 52 9 25 52 4 12 17 7 521 10 52 50 217 4 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.302 ARM; SHIFT,1ST & REV	8-97241-319-2	01	1	0208-	●
1	04.302 ARM; SHIFT,1ST & REV	8-97034-825-1	01	1	9811-0105		●	●
1	04.302 ARM; SHIFT,1ST & REV	8-97034-825-1	01	1	0106-		●
1	04.302 ARM; SHIFT,1ST & REV	1-33511-502-1	01	1	9811-				●
2	04.309 ROD; SHIFT,1ST & REV	8-97034-820-0	01	1	9811-0105		●	●
2	04.309 ROD; SHIFT,1ST & REV	8-97034-820-0	01	1	0106-		●
2	04.309 ROD; SHIFT,1ST & REV (A)	1-33531-360-1	01	1	9811-				●
2	04.309 ROD; SHIFT,1ST & REV (B)	1-33531-361-1	01	1	9811-				●
4	04.309 ROD; SHIFT,6TH (A)	1-33531-341-1	01	1	9811-				●
4	04.309 ROD; SHIFT,6TH (B)	1-33531-387-0	01	1	9811-				●
5	04.303 BLOCK; SHIFT,6TH	1-33511-326-1	01	1	9811-				●
6	04.302 LEVER; RELAY	1-33511-462-0	01	1	9811-0005				●
6	04.302 LEVER; RELAY	1-33511-574-0	01	1	0006-				●
7	04.302 GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). 01.456 ID=24.4	1-09623-057-0	01	1	9811-				●
9	04.307 SLEEVE; 6TH,SHIFT BLOCK	1-33516-029-0	01	1	9811-				●
10	04.302 BOLT; SPINDLE 09.171 M14X20	1-09044-078-0	02	1	9811-				●
11	04.307 SPRING; RETURN,SHIFT SLEEVE (A)	1-09580-444-0	01	1	9811-				●
11	04.307 SPRING; RETURN,SHIFT SLEEVE (B)	9-09941-160-0	01	1	9811-				●
12	04.307 CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9811-				●
13	04.311 BALL; LK,SHIFT SLEEVE	9-00097-009-0	01	1	9811-				●
15	04.307 SPRING; LK,SHIFT SLEEVE (A)	1-09580-445-0	01	1	9811-				●
15	04.307 SPRING; LK,SHIFT SLEEVE (B)	1-09580-526-0	01	1	9811-				●
17	04.303 BLOCK; SHIFT,1ST & REV	8-97034-829-1	01	1	9811-0105		●	●
17	04.303 BLOCK; SHIFT,1ST & REV	8-97034-829-1	01	1	0106-		●
17	04.303 BLOCK; SHIFT,1ST & REV (A)	1-33511-387-2	01	1	9811-				●
17	04.303 BLOCK; SHIFT,1ST & REV (B)	1-33511-432-1	01	1	9811-				●
18	04.307 SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-029-0	01	1	9811-				●
20	04.311 BALL; DETENT SLEEVE	9-00097-009-0	01	1	9811-				●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9811-				●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97258-708-1	01	1	0208-	●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97034-826-2	01	1	9811-0105		●	●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97034-826-2	01	1	0106-		●
25	04.302 ARM; SHIFT,2ND & 3RD	1-33511-580-1	01	1	9811-				●
26	04.309 ROD; SHIFT,2ND & 3RD	8-97129-493-0	01	1	9811-0105		●	●
26	04.309 ROD; SHIFT,2ND & 3RD	8-97129-493-0	01	1	0106-		●
26	04.309 ROD; SHIFT,2ND & 3RD	1-33531-384-0	01	1	9811-				●
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	9811-0105		●	●	●
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	0106-		●		●
30	04.307 PIN; INTER LK	8-97035-041-0	01	1	9811-0105		●	●
30	04.307 PIN; INTER LK	8-97035-041-0	01	1	0106-		●
30	04.307 PIN; INTER LK	1-33534-002-0	03	1	9811-				●
34	04.309 ROD; SHIFT,4TH & 5TH ARM	1-33531-385-0	01	1	9811-				●
38	04.311 SPRING; DETENT (A)	1-09580-374-0	01	1	9811-				●
38	04.311 SPRING; DETENT (B)	1-09580-548-0	03	1	9811-				●
39	04.307 BALL; DETENT	9-00097-013-0	04	1	9811-				●
42	04.105 CAP; QUAD BOX OD=20	1-33545-002-1	08	1	9811-				●
49	04.302 ARM; SHIFT,4TH & 5TH	8-97258-709-2	01	1	0208-	●
49	04.302 ARM; SHIFT,4TH & 5TH	1-33511-581-1	01	1	9811-				●
50	04.302 ARM; SHIFT,6TH	8-97241-324-1	01	1	0208-	●
50	04.302 ARM; SHIFT,6TH	1-33511-477-0	01	1	9811-				●
52	04.302 BOLT; SHIFT ARM	1-09052-034-2	07	1	9811-				●
130	04.302 LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	0208-	●
130	04.302 LEVER; SHIFT,INTERNAL	8-94340-131-2	01	1	9811-0105		●	●
130	04.302 LEVER; SHIFT,INTERNAL	8-94340-131-2	01	1	0106-		●
130	04.302 LEVER; SHIFT,INTERNAL	1-33521-131-1	01	1	9811-				●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0208-	●
142	04.012 BOLT; QUAD BOX 00.685 M10X28 FLANGE	0-28181-028-0	15	1	9811-				●
142	04.012 BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-1	02	1	9811-				●
142	04.012 BOLT; QUAD BOX 08.900 M10X20,M10X26 L=56	1-09049-014-1	01	1	9811-				●
157	04.105 BOX; QUAD,TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97177-066-0	01	1	9811-0105		●	●
157	04.105 BOX; QUAD,TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97177-066-0	01	1	0106-		●
157	04.105 BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97167-640-0	01	1	9811-9903		●	●
157	04.105 BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97167-640-0	01	1	9904-9911		●
157	04.105 BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97167-640-0	01	1	9904-9911			●
157	04.105 BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97249-547-0	01	1	9912-0012		●
157	04.105 BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97249-547-0	01	1	9912-0012			●
157	04.105 BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97249-547-0	01	1	0101-0105		●	●
157	04.105 BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97249-547-0	01	1	0106-		●
157	04.105 BOX; QUAD,TRANS (A)	1-33541-465-1	01	1	9811-0105				●
157	04.105 BOX; QUAD,TRANS EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-33541-465-1	01	1	0106-				●
157	04.105 BOX; QUAD,TRANS (B)	1-33541-503-0	01	1	9811-9903				●
157	04.105 BOX; QUAD,TRANS (B)	1-33541-512-0	01	1	9904-				●
157	04.105 BOX; QUAD,TRANS HONG KONG EQUIPMENT(PQ1) (A)	1-33541-521-0	01	1	0106-				●
158	04.105 CLIP; HARNESS 04.342	9-09716-059-0	02	1	9811-0105				●
158	04.105 CLIP; HARNESS EXC. HONG KONG EQUIPMENT(PQ1) 04.342	9-09716-059-0	02	1	0106-				●
158	04.105 CLIP; HARNESS HONG KONG EQUIPMENT(PQ1) 04.342	9-09716-059-0	03	1	0106-				●
163	04.302 LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	0208-	●
163	04.302 LEVER; SELECT,INTERNAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97177-068-1	01	1	9811-0105		●	●
163	04.302 LEVER; SELECT,INTERNAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97177-068-1	01	1	0106-		●
163	04.302 LEVER; SELECT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-886-0	01	1	9811-9903		●	●
163	04.302 LEVER; SELECT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-886-0	01	1	9904-0012		●
163	04.302 LEVER; SELECT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97034-886-0	01	1	9904-0012			●
163	04.302 LEVER; SELECT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-886-0	01	1	0101-0105		●	●
163	04.302 LEVER; SELECT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-886-0	01	1	0106-		●
163	04.302 LEVER; SELECT,INTERNAL	1-33522-130-0	01	1	9811-				●
167	04.302 LEVER; SELECT,EXTERNAL NEW ZEALAND EQUIPMENT(PK5)	8-97306-648-0	01	1	0208-	●
167	04.302 LEVER; SELECT,EXTERNAL HONG KONG EQUIPMENT(PQ1)	8-97305-665-0	01	1	0208-	●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-558-1	01	1	9811-0105		●	●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-558-1	01	1	0106-		●
167	04.302 LEVER; SELECT,EXTERNAL	1-33521-137-1	01	1	9811-				●
171	04.054 SWITCH; NEUTRAL	8-97316-688-1	01	1	0208-	●
171	04.054 SWITCH; NEUTRAL	8-97165-946-1	01	1	9811-0105		●	●
171	04.054 SWITCH; NEUTRAL	8-97165-946-1	01	1	0106-		●
171	04.054 SWITCH; NEUTRAL	1-82340-534-0	01	1	9811-				●
181	04.302 WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	0208-	●
181	04.302 WASHER; PL,SELECT LEVER OD=37	1-09532-007-0	01	1	9811-				●
187	04.302 BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9811-				●
188	04.302 NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9811-				●
217	04.312 SCREW; SET,6TH SHIFT BLOCK M8X12.5	9-09814-533-0	01	1	9811-				●
219	04.302 WASHER; PL,SPINDLE ID=14	9-09851-275-0	01	1	9811-				●
221	04.302 NUT; SPINDLE 04.785 M10 FLANGE	0-91150-110-0	01	1	9811-				●
223	04.105 SCREW; SET,QUAD BOX 04.312 M8X12.5	9-09814-533-0	01	1	9811-9902				●
223	04.105 SCREW; SET,QUAD BOX 02.183 M8X35 FLANGE	0-28680-835-0	01	1	9903-9903				●
223	04.105 SCREW; SET,QUAD BOX 04.312 M8X12.5	9-09814-533-0	01	1	9904-				●
227	04.302 SPINDLE; 1ST & REV	1-33519-130-0	01	1	9811-				●
271	04.105 BUSHING; QUAD BOX (A) ID=25 OD=28	1-33549-107-0	01	1	9811-				●
271	04.105 BUSHING; QUAD BOX (B) ID=17 OD=19	1-33549-108-0	01	1	9811-				●
272	04.027 RING; SNAP,QUAD BOX 04.302	1-09588-174-0	01	1	9811-				●
274	04.105 COVER; SHAFT,QUAD BOX OD=24 L=31	9-33545-011-1	01	1	9811-				●
285	04.104 BREATHER; AIR,QUAD BOX 05.387	1-33149-003-0	01	1	9811-				●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-269-0	01	1	9811-				●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-369-0	01	1	9811-				●
293	04.302 WASHER; PL,TAPER BOLT 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	9811-				●
298	04.309 SHAFT; SHIFT LEVER	1-33522-115-1	01	1	9811-0105				●
298	04.309 SHAFT; SHIFT LEVER EXC. HONG KONG EQUIPMENT(PQ1)	1-33522-115-1	01	1	0106-				●
298	04.309 SHAFT; SHIFT LEVER HONG KONG EQUIPMENT(PQ1)	1-33522-176-0	01	1	0106-				●
305	04.107 BOOT; LEVER SHAFT	1-33529-051-0	01	1	9811-				●
339	04.105 NUT; QUAD BOX 01.540 M8 FLANGE	0-91150-208-0	01	1	9903-9903				●
374	04.107 GASKET ALSO INCLUDED IN GASKET SET(M/T). HONG KONG EQUIPMENT(PQ1) 04.075 ID=14.2	8-94462-114-0	01	1	0106-				●
382	04.105 BRACKET; PARKING BRK CONT CABLE	8-97081-310-0	01	1	9811-				●
383	04.105 BOLT; BRKT,PARK BRAKE 03.604 M10X16 FLANGE	0-28181-016-0	01	1	9811-				●
390	04.075 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9811-				●
393	02.698 PIN; SW 04.307	1-33534-003-0	01	1	9811-				●
398	02.698 SWITCH; REV LAMP 04.054	8-97316-688-1	01	1	0208-	●
398	02.698 SWITCH; REV LAMP	8-97165-947-1	01	1	9811-0105		●	●
398	02.698 SWITCH; REV LAMP	8-97165-947-1	01	1	0106-		●
398	02.698 SWITCH; REV LAMP	1-82440-083-3	01	1	9811-				●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	9811-				●
521	04.309 SPINDLE; 6TH	1-33519-008-1	01	1	9811-				●
522	16.069 LEVER; SHIFT,1-REV	1-33521-135-0	01	1	9811-				●
566	04.054 SWITCH; SELECT,LOW REV 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.052	8-97177-088-0	01	1	9811-0105		●	●
566	04.054 SWITCH; SELECT,LOW REV 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.052	8-97177-088-0	01	1	0106-		●
566	04.054 SWITCH; SELECT,LOW REV HONG KONG EQUIPMENT(PQ1)	8-97313-465-0	01	1	0106-				●

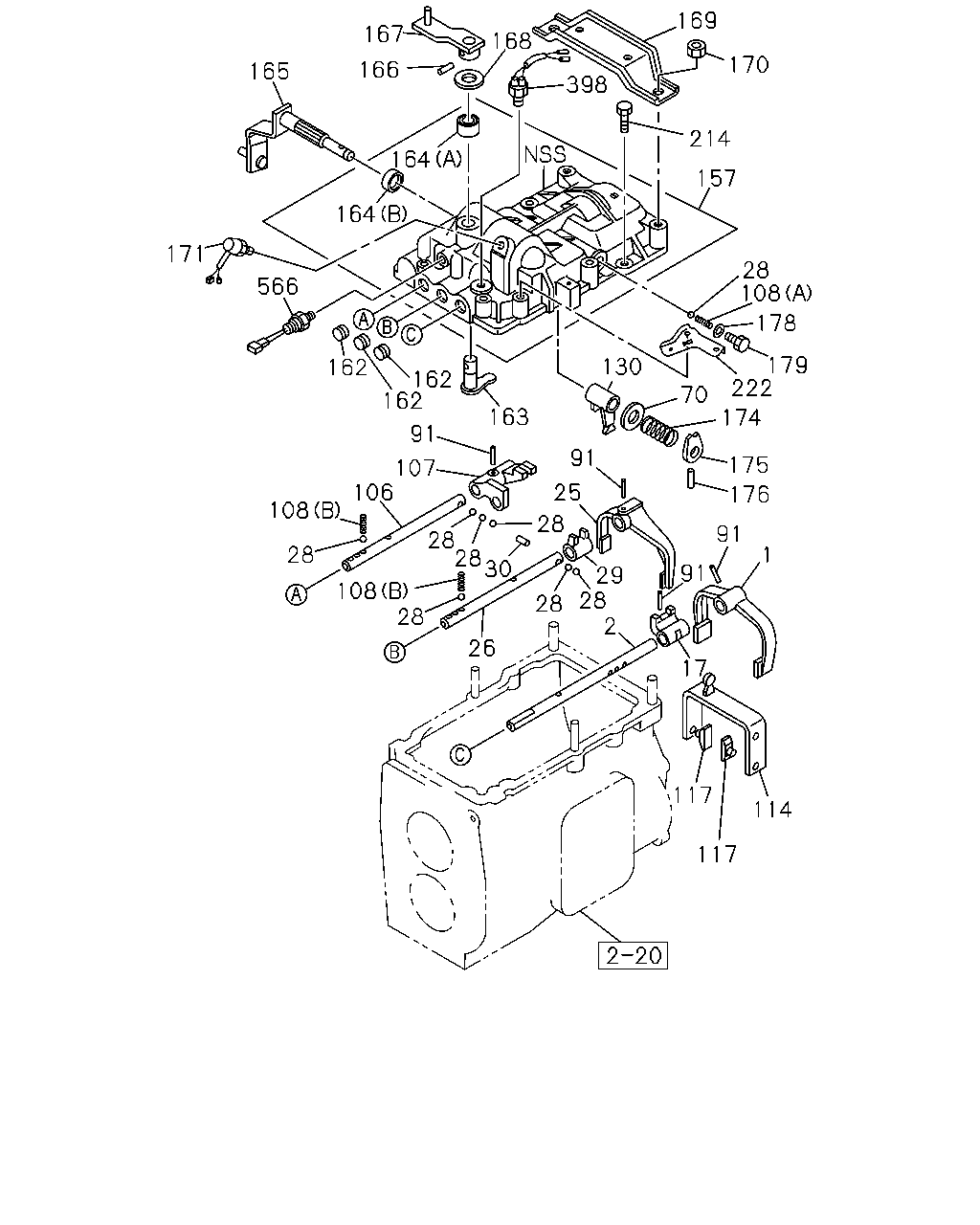

169 167 168 170 166 165 398 214 164 157 164 171 28 108 566 178 179 222 130 162 162 162 70 163 174 91 91 175 107 106 25 176 108 28 91 28 28 30 28 1 91 29 28 2 108 28 28 26 17 117 114 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.302 ARM; SHIFT,1ST & REV	8-97241-319-2	01	1	0208-	●
1	04.302 ARM; SHIFT,1ST & REV	8-97034-825-1	01	1	9811-0105		●	●
1	04.302 ARM; SHIFT,1ST & REV	8-97034-825-1	01	1	0106-		●
1	04.302 ARM; SHIFT,1ST & REV	1-33511-502-1	01	1	9811-				●
2	04.309 ROD; SHIFT,1ST & REV	8-97034-820-0	01	1	9811-0105		●	●
2	04.309 ROD; SHIFT,1ST & REV	8-97034-820-0	01	1	0106-		●
2	04.309 ROD; SHIFT,1ST & REV (A)	1-33531-360-1	01	1	9811-				●
2	04.309 ROD; SHIFT,1ST & REV (B)	1-33531-361-1	01	1	9811-				●
17	04.303 BLOCK; SHIFT,1ST & REV	8-97034-829-1	01	1	9811-0105		●	●
17	04.303 BLOCK; SHIFT,1ST & REV	8-97034-829-1	01	1	0106-		●
17	04.303 BLOCK; SHIFT,1ST & REV (A)	1-33511-387-2	01	1	9811-				●
17	04.303 BLOCK; SHIFT,1ST & REV (B)	1-33511-432-1	01	1	9811-				●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97258-708-1	01	1	0208-	●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97034-826-2	01	1	9811-0105		●	●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97034-826-2	01	1	0106-		●
25	04.302 ARM; SHIFT,2ND & 3RD	1-33511-580-1	01	1	9811-				●
26	04.309 ROD; SHIFT,2ND & 3RD	8-97129-493-0	01	1	9811-0105		●	●
26	04.309 ROD; SHIFT,2ND & 3RD	8-97129-493-0	01	1	0106-		●
26	04.309 ROD; SHIFT,2ND & 3RD	1-33531-384-0	01	1	9811-				●
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	9811-0105		●	●	●
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	0106-		●		●
29	04.303 BLOCK; SHIFT,2ND & 3RD	8-97034-830-0	01	1	9811-0105		●	●
29	04.303 BLOCK; SHIFT,2ND & 3RD	8-97034-830-0	01	1	0106-		●
30	04.307 PIN; INTER LK	8-97035-041-0	01	1	9811-0105		●	●
30	04.307 PIN; INTER LK	8-97035-041-0	01	1	0106-		●
30	04.307 PIN; INTER LK	1-33534-002-0	03	1	9811-				●
70	04.302 WASHER; PL,SHIFT LEVER	8-94461-345-0	01	1	9811-0105		●	●
70	04.302 WASHER; PL,SHIFT LEVER	8-94461-345-0	01	1	0106-		●
91	04.302 PIN; SPR,SHIFT ARM 04.303 L=25 OD=5	8-94135-771-0	03	1	9811-0105		●	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 L=25 OD=5	8-94135-771-0	03	1	0106-		●
91	04.302 PIN; SPR,SHIFT ARM L=32	8-97011-596-2	02	1	9811-0105		●	●
91	04.302 PIN; SPR,SHIFT ARM L=32	8-97011-596-2	02	1	0106-		●
106	04.309 ROD; SHIFT,OD TO TOP	8-97166-578-0	01	1	9811-0105		●	●
106	04.309 ROD; SHIFT,OD TO TOP	8-97166-578-0	01	1	0106-		●
107	04.303 BLOCK; SHIFT,OD TO TOP	8-97034-832-0	01	1	9811-0105		●	●
107	04.303 BLOCK; SHIFT,OD TO TOP	8-97034-832-0	01	1	0106-		●
108	04.311 SPRING; LOCK BALL (A)	8-97035-053-0	01	1	9811-0105		●	●
108	04.311 SPRING; LOCK BALL (A)	8-97035-053-0	01	1	0106-		●
108	04.311 SPRING; LOCK BALL (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9811-0105		●	●
108	04.311 SPRING; LOCK BALL (B) OD=6.8 L=31.6	9-09740-114-0	03	1	0106-		●
114	04.302 ARM; SHIFT,OD TO TOP	8-97034-827-1	01	1	9811-0105		●	●
114	04.302 ARM; SHIFT,OD TO TOP	8-97034-827-1	01	1	0106-		●
117	04.302 PIECE; SHIFT,OD TO TOP	8-94316-996-0	02	1	9811-0105		●	●
117	04.302 PIECE; SHIFT,OD TO TOP	8-94316-996-0	02	1	0106-		●
130	04.302 LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	0208-	●
130	04.302 LEVER; SHIFT,INTERNAL	8-94340-131-2	01	1	9811-0105		●	●
130	04.302 LEVER; SHIFT,INTERNAL	8-94340-131-2	01	1	0106-		●
130	04.302 LEVER; SHIFT,INTERNAL	1-33521-131-1	01	1	9811-				●
157	04.105 BOX; QUAD,TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97177-066-0	01	1	9811-0105		●	●
157	04.105 BOX; QUAD,TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97177-066-0	01	1	0106-		●
157	04.105 BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97167-640-0	01	1	9811-9903		●	●
157	04.105 BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97167-640-0	01	1	9904-9911		●
157	04.105 BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97167-640-0	01	1	9904-9911			●
157	04.105 BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97249-547-0	01	1	9912-0012		●
157	04.105 BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97249-547-0	01	1	9912-0012			●
157	04.105 BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97249-547-0	01	1	0101-0105		●	●
157	04.105 BOX; QUAD,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97249-547-0	01	1	0106-		●
157	04.105 BOX; QUAD,TRANS (A)	1-33541-465-1	01	1	9811-0105				●
157	04.105 BOX; QUAD,TRANS EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-33541-465-1	01	1	0106-				●
157	04.105 BOX; QUAD,TRANS (B)	1-33541-503-0	01	1	9811-9903				●
157	04.105 BOX; QUAD,TRANS (B)	1-33541-512-0	01	1	9904-				●
157	04.105 BOX; QUAD,TRANS HONG KONG EQUIPMENT(PQ1) (A)	1-33541-521-0	01	1	0106-				●
162	04.105 COVER; SHIFT ROD,QUAD BOX	8-94101-319-0	04	1	9811-0105		●	●
162	04.105 COVER; SHIFT ROD,QUAD BOX	8-94101-319-0	04	1	0106-		●
163	04.302 LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	0208-	●
163	04.302 LEVER; SELECT,INTERNAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97177-068-1	01	1	9811-0105		●	●
163	04.302 LEVER; SELECT,INTERNAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97177-068-1	01	1	0106-		●
163	04.302 LEVER; SELECT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-886-0	01	1	9811-9903		●	●
163	04.302 LEVER; SELECT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-886-0	01	1	9904-0012		●
163	04.302 LEVER; SELECT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97034-886-0	01	1	9904-0012			●
163	04.302 LEVER; SELECT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-886-0	01	1	0101-0105		●	●
163	04.302 LEVER; SELECT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-886-0	01	1	0106-		●
163	04.302 LEVER; SELECT,INTERNAL	1-33522-130-0	01	1	9811-				●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 04.309 (A) OD=27	8-94128-784-0	01	1	9811-0011		●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=27	8-97304-068-0	01	1	0012-0105		●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=27	8-97304-068-0	01	1	0106-		●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=32	8-94462-019-0	01	1	9811-0011		●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=32	8-97304-066-0	01	1	0012-0105		●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=32	8-97304-066-0	01	1	0106-		●
165	04.302 LEVER; SHIFT	8-97034-816-0	01	1	9811-0105		●	●
165	04.302 LEVER; SHIFT	8-97034-816-0	01	1	0106-		●
166	04.302 PIN; SPR,SELECT LEVER 04.303 L=25 OD=5	8-94135-771-0	01	1	9811-0105		●	●
166	04.302 PIN; SPR,SELECT LEVER 04.303 L=25 OD=5	8-94135-771-0	01	1	0106-		●
167	04.302 LEVER; SELECT,EXTERNAL NEW ZEALAND EQUIPMENT(PK5)	8-97306-648-0	01	1	0208-	●
167	04.302 LEVER; SELECT,EXTERNAL HONG KONG EQUIPMENT(PQ1)	8-97305-665-0	01	1	0208-	●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-558-1	01	1	9811-0105		●	●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-558-1	01	1	0106-		●
167	04.302 LEVER; SELECT,EXTERNAL	1-33521-137-1	01	1	9811-				●
168	04.302 WASHER; LK,SELECT LEVER	8-94249-250-1	01	1	9811-0105		●	●
168	04.302 WASHER; LK,SELECT LEVER	8-94249-250-1	01	1	0106-		●
169	00.029 BRACKET; ENG MTG TO TRANS	8-94112-892-1	02	1	9811-9901		●	●
169	00.029 BRACKET; ENG MTG TO TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94112-892-2	04	1	9902-0012		●
169	00.029 BRACKET; ENG MTG TO TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94112-892-2	04	1	0101-0105		●
169	00.029 BRACKET; ENG MTG TO TRANS	8-94112-892-2	04	1	0101-0105			●
169	00.029 BRACKET; ENG MTG TO TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94112-892-2	04	1	0106-0201		●
169	00.029 BRACKET; ENG MTG TO TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3)	8-94112-892-2	02	1	0202-		●
169	00.029 BRACKET; ENG MTG TO TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94112-892-2	02	1	9902-0012		●	●
169	00.029 BRACKET; ENG MTG TO TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-94112-892-2	02	1	9902-0012			●
169	00.029 BRACKET; ENG MTG TO TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94112-892-2	02	1	0101-0201		●
169	00.029 BRACKET; ENG MTG TO TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3)	8-94112-892-2	04	1	0202-		●
170	04.105 NUT; CONT BOX M12 FLANGE	8-94249-242-0	04	1	9811-0105		●	●
170	04.105 NUT; CONT BOX M12 FLANGE	8-94249-242-0	04	1	0106-		●
171	04.054 SWITCH; NEUTRAL	8-97316-688-1	01	1	0208-	●
171	04.054 SWITCH; NEUTRAL	8-97165-946-1	01	1	9811-0105		●	●
171	04.054 SWITCH; NEUTRAL	8-97165-946-1	01	1	0106-		●
171	04.054 SWITCH; NEUTRAL	1-82340-534-0	01	1	9811-				●
174	04.307 SPRING; REV	8-97035-052-0	01	1	9811-0105		●	●
174	04.307 SPRING; REV	8-97035-052-0	01	1	0106-		●
175	04.302 RING; STOPPER,SHIFT LEVER	8-97034-819-0	01	1	9811-0105		●	●
175	04.302 RING; STOPPER,SHIFT LEVER	8-97034-819-0	01	1	0106-		●
176	04.302 PIN; SPR,STOPPER 04.555 L=30 OD=4	9-09678-549-0	02	1	9811-0105		●	●
176	04.302 PIN; SPR,STOPPER 04.555 L=30 OD=4	9-09678-549-0	02	1	0106-		●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	0208-	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 08.929	9-09571-612-0	01	1	9811-0105		●	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 08.929	9-09571-612-0	01	1	0106-		●
179	04.311 PLUG; LOCK BALL	8-97031-668-0	01	1	9811-0105		●	●
179	04.311 PLUG; LOCK BALL	8-97031-668-0	01	1	0106-		●
214	04.510 BOLT; CONT BOX,SUB TRANS 04.105 M8X25	8-94128-786-0	04	1	9811-0105		●	●
214	04.510 BOLT; CONT BOX,SUB TRANS 04.105 M8X25	8-94128-786-0	04	1	0106-		●
214	04.510 BOLT; CONT BOX,SUB TRANS 04.105 M8X45	8-94132-164-0	06	1	9811-0105		●	●
214	04.510 BOLT; CONT BOX,SUB TRANS 04.105 M8X45	8-94132-164-0	06	1	0106-		●
222	04.057 BRACKET; CLIP	8-97061-051-0	01	1	9811-0105		●	●
222	04.057 BRACKET; CLIP	8-97061-051-0	01	1	0106-		●
398	02.698 SWITCH; REV LAMP 04.054	8-97316-688-1	01	1	0208-	●
398	02.698 SWITCH; REV LAMP	8-97165-947-1	01	1	9811-0105		●	●
398	02.698 SWITCH; REV LAMP	8-97165-947-1	01	1	0106-		●
398	02.698 SWITCH; REV LAMP	1-82440-083-3	01	1	9811-				●
566	04.054 SWITCH; SELECT,LOW REV 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.052	8-97177-088-0	01	1	9811-0105		●	●
566	04.054 SWITCH; SELECT,LOW REV 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.052	8-97177-088-0	01	1	0106-		●
566	04.054 SWITCH; SELECT,LOW REV HONG KONG EQUIPMENT(PQ1)	8-97313-465-0	01	1	0106-				●

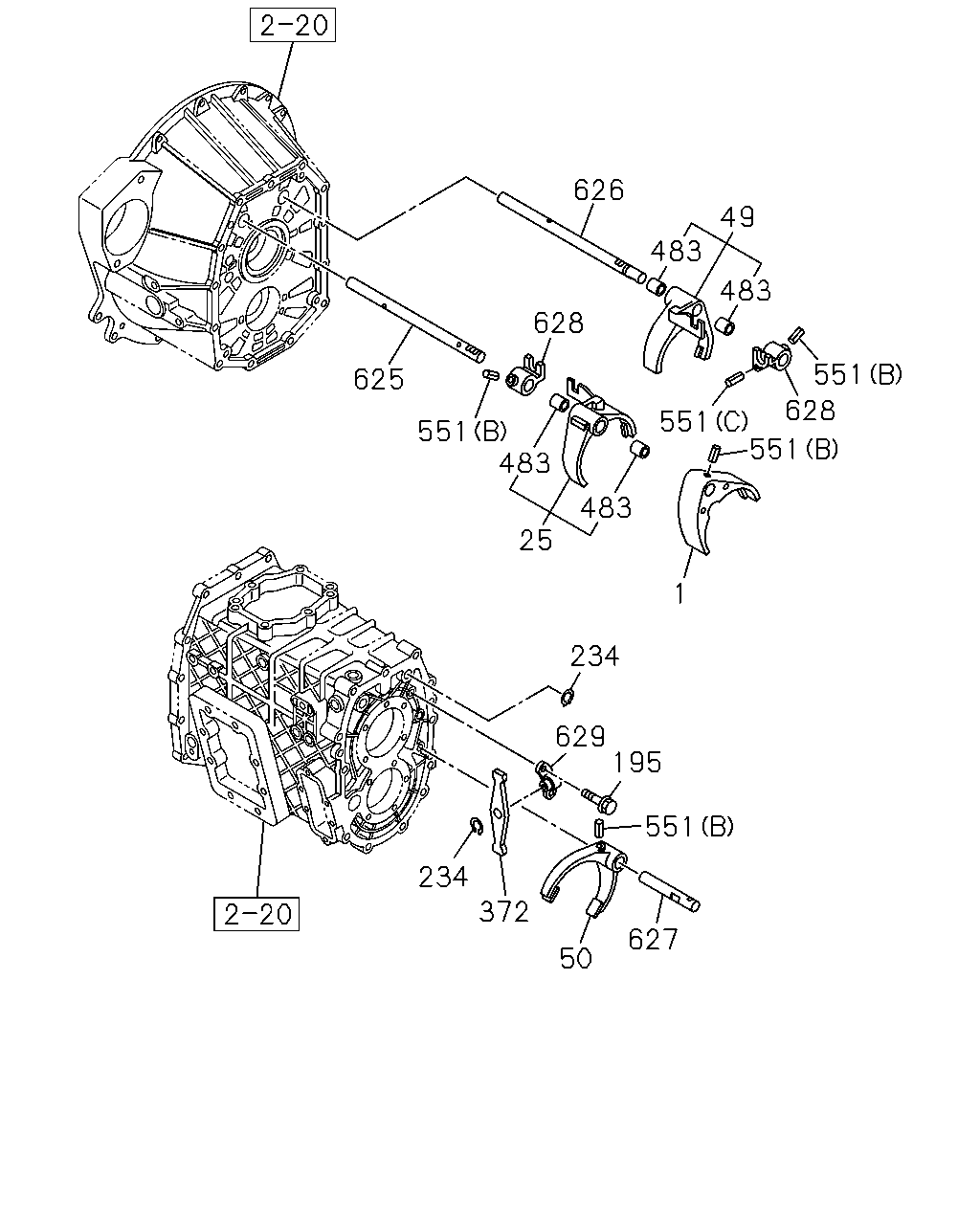

626 49 483 483 628 551 625 628 551 551 551 483 483 25 1 234 629 195 551 234 372 627 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.302 ARM; SHIFT,1ST & REV	8-97241-319-2	01	1	0208-	●
1	04.302 ARM; SHIFT,1ST & REV	8-97034-825-1	01	1	9811-0105		●	●
1	04.302 ARM; SHIFT,1ST & REV	8-97034-825-1	01	1	0106-		●
1	04.302 ARM; SHIFT,1ST & REV	1-33511-502-1	01	1	9811-				●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97258-708-1	01	1	0208-	●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97034-826-2	01	1	9811-0105		●	●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97034-826-2	01	1	0106-		●
25	04.302 ARM; SHIFT,2ND & 3RD	1-33511-580-1	01	1	9811-				●
49	04.302 ARM; SHIFT,4TH & 5TH	8-97258-709-2	01	1	0208-	●
49	04.302 ARM; SHIFT,4TH & 5TH	1-33511-581-1	01	1	9811-				●
50	04.302 ARM; SHIFT,6TH	8-97241-324-1	01	1	0208-	●
50	04.302 ARM; SHIFT,6TH	1-33511-477-0	01	1	9811-				●
195	04.105 BOLT 04.012 M10X28 FLANGE REAMER	1-09040-089-1	02	1	0208-	●
234	04.311 RING; SNAP ID=16.5	9-09180-418-0	02	1	0208-	●
372	04.302 LEVER; RELAY,6TH	8-97241-342-0	01	1	0208-	●
483	04.419 BUSHING; SHIFT ARM 00.683	8-97241-326-1	04	1	0208-	●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	0208-	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	0208-	●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	0208-	●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R	8-97241-332-2	01	1	0208-	●
626	04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH	8-97241-334-1	01	1	0208-	●
627	04.309 ROD; GEAR SHIFT,6TH SUB	8-97241-339-0	01	1	0208-	●
628	04.303 BLOCK; SHIFT,LOW,REV & 6TH	8-97241-327-1	02	1	0208-	●
629	04.555 BRIDGE; LEVER	8-97241-345-1	01	1	0208-	●

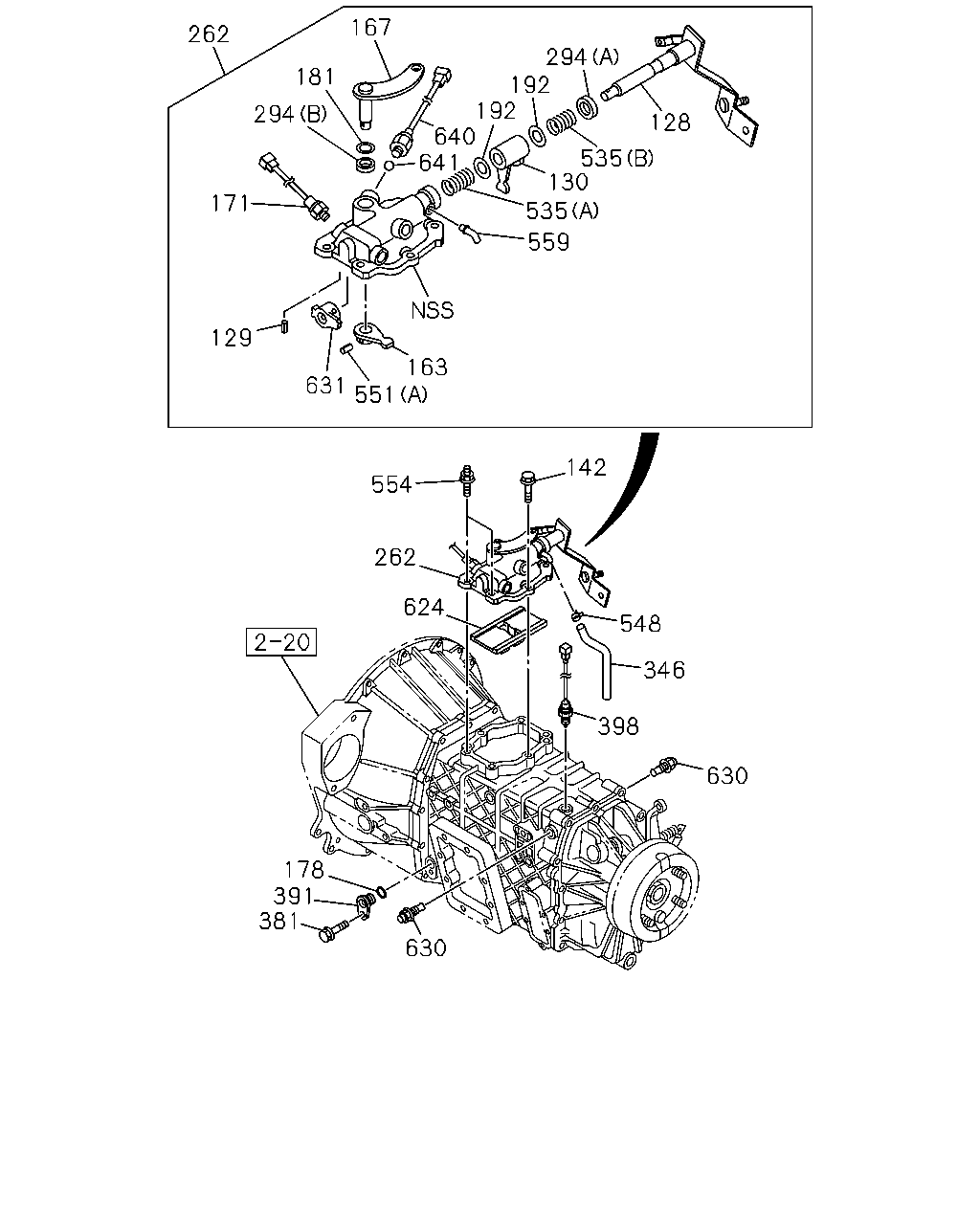

167 262 294 192 192 640 641 181 294 128 535 130 171 535 559 129 163 551 631 142 554 262 624 548 346 398 630 178 391 381 630

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
128	04.030 LEVER; SHIFT,EXTERNAL	8-97305-725-0	01	1	0208-	●
129	04.027 PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	0208-	●
130	04.302 LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	0208-	●
130	04.302 LEVER; SHIFT,INTERNAL	8-94340-131-2	01	1	9811-0105		●	●
130	04.302 LEVER; SHIFT,INTERNAL	8-94340-131-2	01	1	0106-		●
130	04.302 LEVER; SHIFT,INTERNAL	1-33521-131-1	01	1	9811-				●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0208-	●
142	04.012 BOLT; QUAD BOX 00.685 M10X28 FLANGE	0-28181-028-0	15	1	9811-				●
142	04.012 BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-1	02	1	9811-				●
142	04.012 BOLT; QUAD BOX 08.900 M10X20,M10X26 L=56	1-09049-014-1	01	1	9811-				●
163	04.302 LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	0208-	●
163	04.302 LEVER; SELECT,INTERNAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97177-068-1	01	1	9811-0105		●	●
163	04.302 LEVER; SELECT,INTERNAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97177-068-1	01	1	0106-		●
163	04.302 LEVER; SELECT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-886-0	01	1	9811-9903		●	●
163	04.302 LEVER; SELECT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-886-0	01	1	9904-0012		●
163	04.302 LEVER; SELECT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97034-886-0	01	1	9904-0012			●
163	04.302 LEVER; SELECT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-886-0	01	1	0101-0105		●	●
163	04.302 LEVER; SELECT,INTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97034-886-0	01	1	0106-		●
163	04.302 LEVER; SELECT,INTERNAL	1-33522-130-0	01	1	9811-				●
167	04.302 LEVER; SELECT,EXTERNAL NEW ZEALAND EQUIPMENT(PK5)	8-97306-648-0	01	1	0208-	●
167	04.302 LEVER; SELECT,EXTERNAL HONG KONG EQUIPMENT(PQ1)	8-97305-665-0	01	1	0208-	●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-558-1	01	1	9811-0105		●	●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-558-1	01	1	0106-		●
167	04.302 LEVER; SELECT,EXTERNAL	1-33521-137-1	01	1	9811-				●
171	04.054 SWITCH; NEUTRAL	8-97316-688-1	01	1	0208-	●
171	04.054 SWITCH; NEUTRAL	8-97165-946-1	01	1	9811-0105		●	●
171	04.054 SWITCH; NEUTRAL	8-97165-946-1	01	1	0106-		●
171	04.054 SWITCH; NEUTRAL	1-82340-534-0	01	1	9811-				●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	0208-	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 08.929	9-09571-612-0	01	1	9811-0105		●	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 08.929	9-09571-612-0	01	1	0106-		●
181	04.302 WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	0208-	●
181	04.302 WASHER; PL,SELECT LEVER OD=37	1-09532-007-0	01	1	9811-				●
192	04.309 WASHER; PL	8-97305-661-0	02	1	0208-	●
262	04.105 BOX ASM; SHIFT CONT NEW ZEALAND EQUIPMENT(PK5)	8-97256-823-8	01	1	0208-	●
262	04.105 BOX ASM; SHIFT CONT HONG KONG EQUIPMENT(PQ1)	8-97329-083-1	01	1	0208-	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-599-0	01	1	0208-	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97305-662-0	01	1	0208-	●
346	04.545 HOSE; AIR	8-97309-855-0	01	1	0208-	●
381	04.105 BOLT 04.439 M6X16 FLANGE	0-28680-616-0	01	1	0208-	●
391	04.104 PLUG; SW HOLE	8-97300-273-1	01	1	0208-	●
398	02.698 SWITCH; REV LAMP 04.054	8-97316-688-1	01	1	0208-	●
398	02.698 SWITCH; REV LAMP	8-97165-947-1	01	1	9811-0105		●	●
398	02.698 SWITCH; REV LAMP	8-97165-947-1	01	1	0106-		●
398	02.698 SWITCH; REV LAMP	1-82440-083-3	01	1	9811-				●
535	04.302 SPRING; LEVER (A)	8-97305-659-0	01	1	0208-	●
535	04.302 SPRING; LEVER (B)	8-97305-660-0	01	1	0208-	●
548	04.457 CLIP; HOSE 03.278	8-97031-674-0	01	1	0208-	●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	0208-	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	0208-	●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	0208-	●
554	04.302 STUD; CONT BOX M8X15,M8X25 L=49	8-97352-677-0	02	1	0208-	●
559	04.302 PIPE; BREATHER	8-97305-517-0	01	1	0208-	●
624	04.105 PLATE; INTER LOCK	8-97241-317-2	01	1	0208-	●
630	04.307 DETENT ASM	8-97241-341-0	04	1	0208-	●
631	04.105 STOPPER; SPRING	8-97305-666-0	01	1	0208-	●
640	04.054 SWITCH; SELECT HONG KONG EQUIPMENT(PQ1)	8-97316-687-1	01	1	0208-	●
641	04.311 BALL HONG KONG EQUIPMENT(PQ1)	8-97305-668-0	01	1	0208-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
