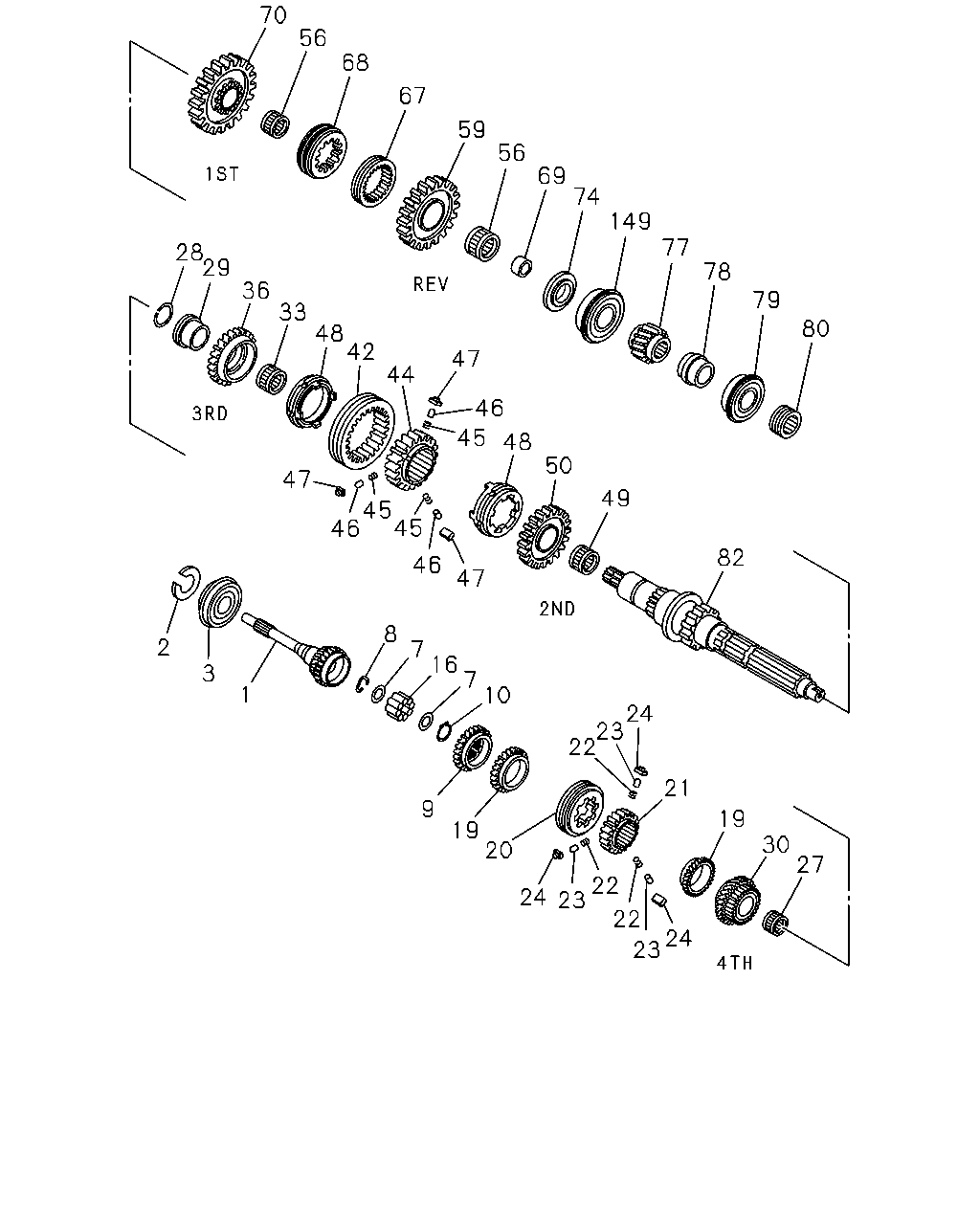

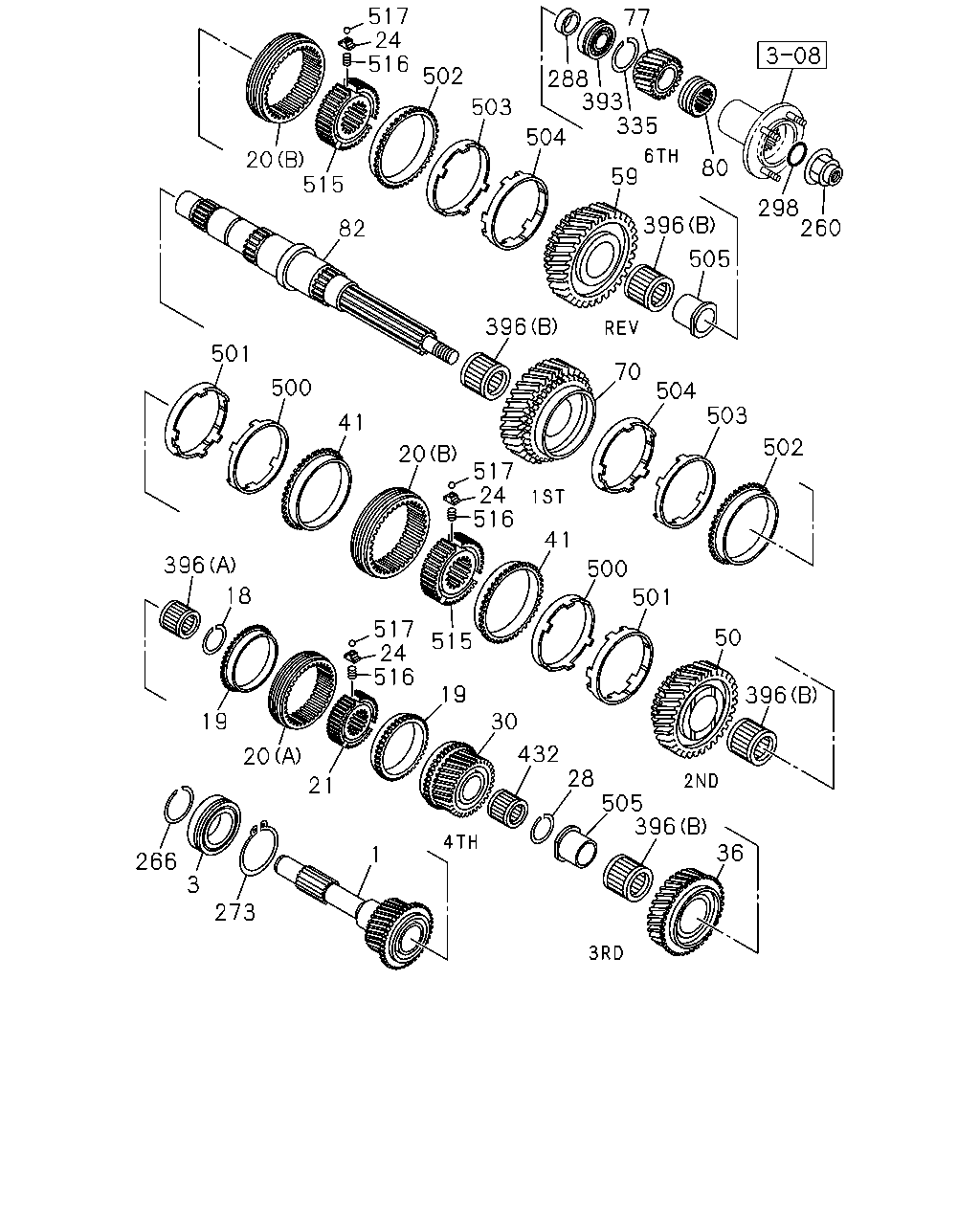

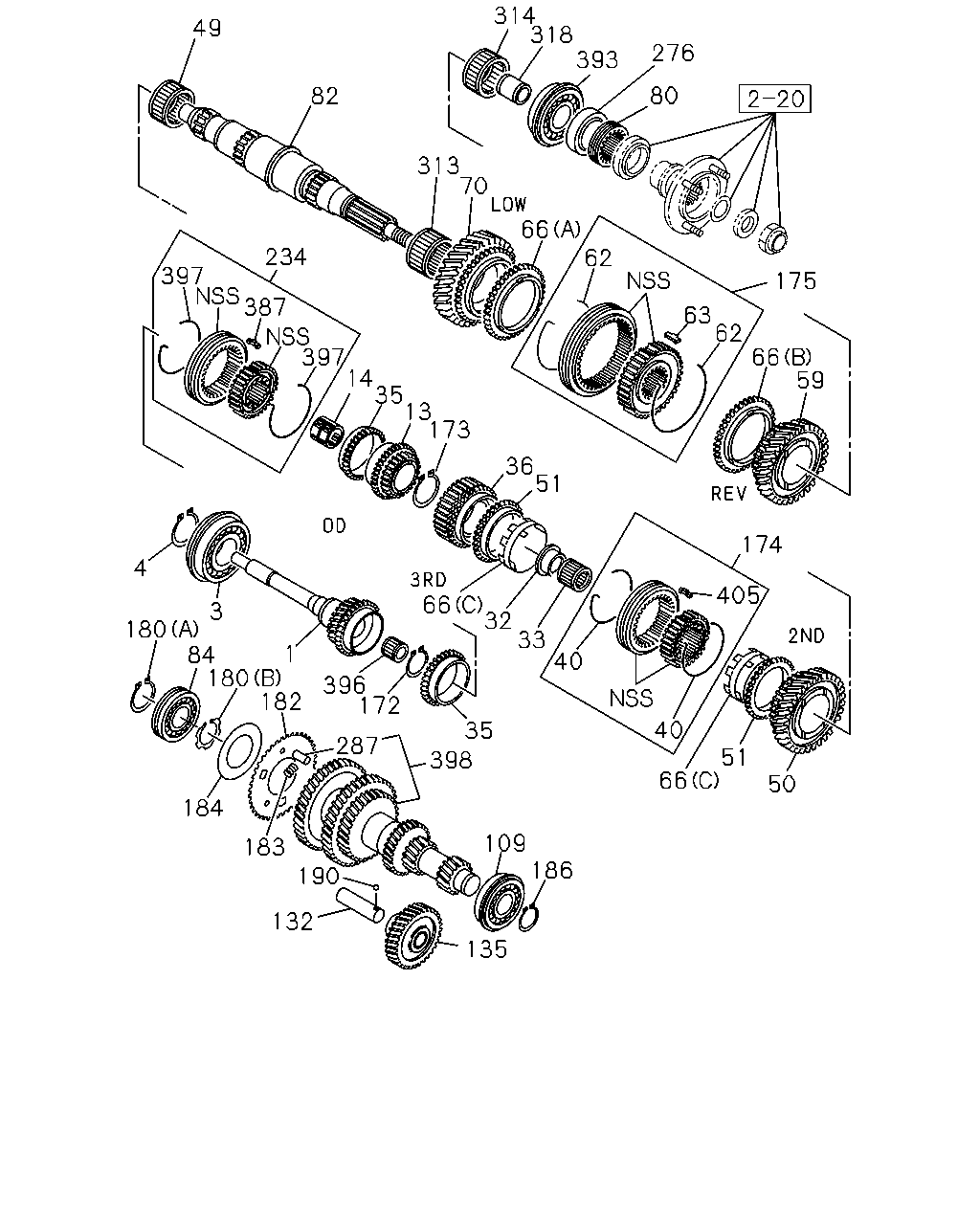

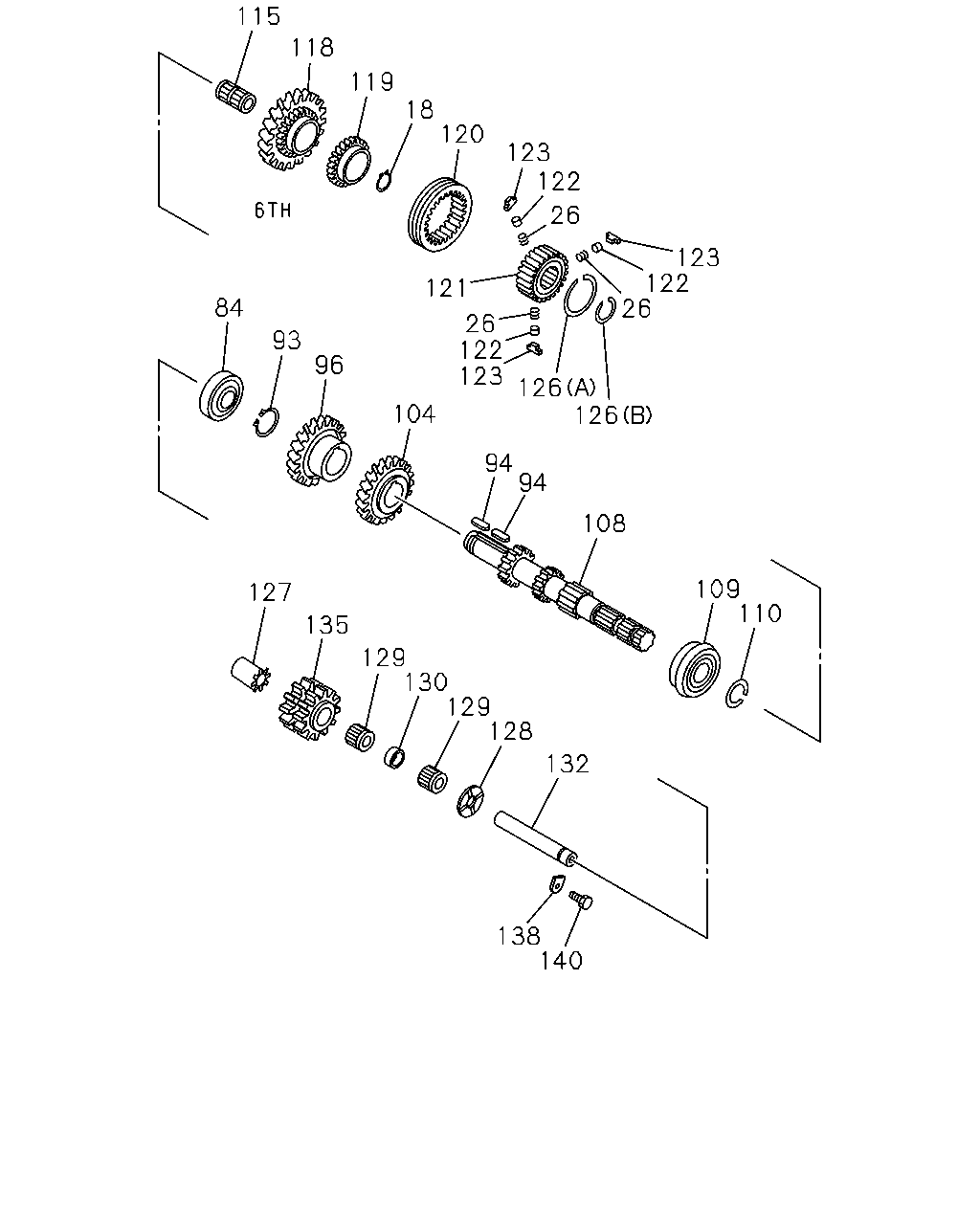

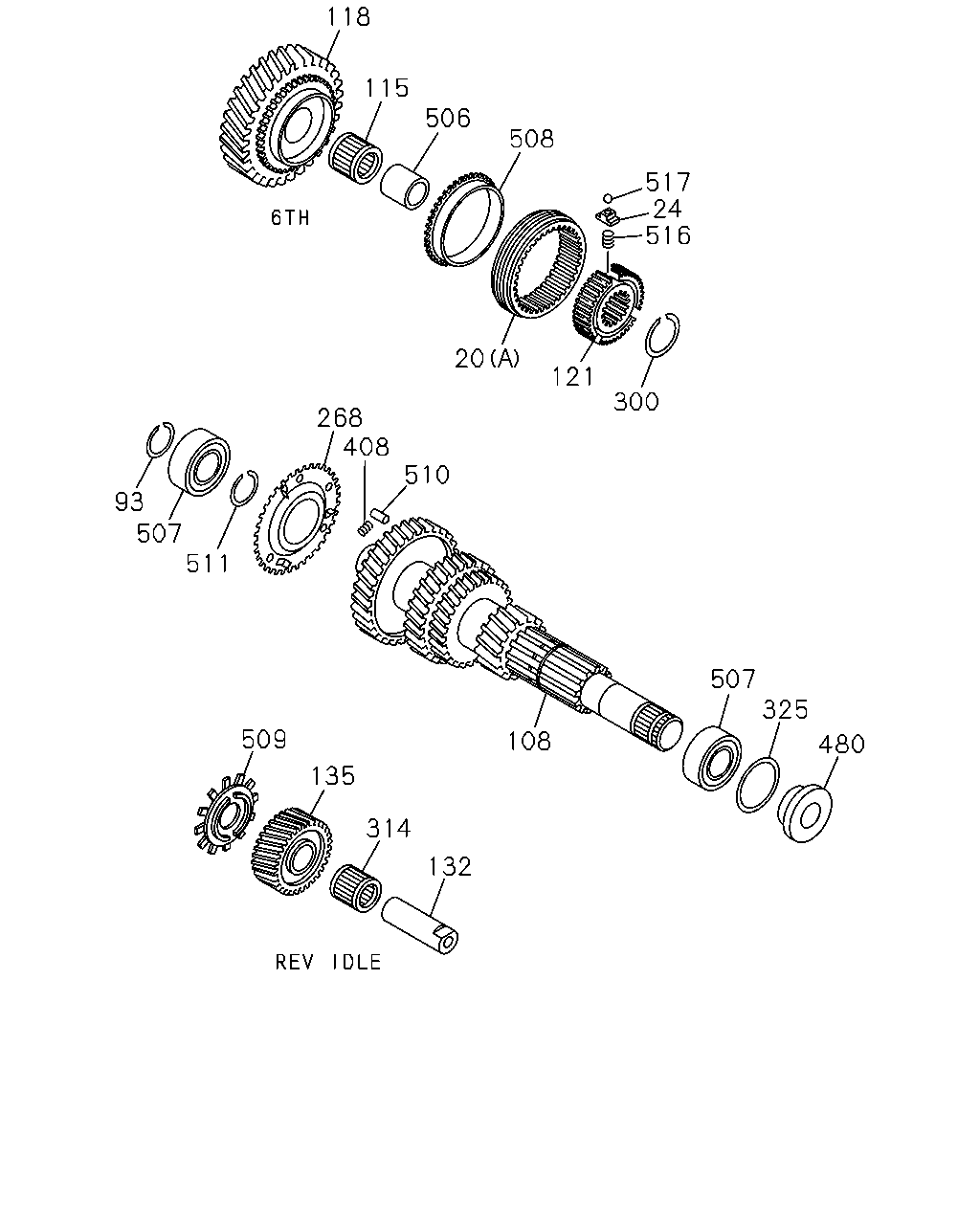

2-26 — MANUAL TRANSMISSION GEAR (#22136) — 520 parça

314 318 393 49 276 80 82 313 70 66 62 234 397 387 175 63 62 397 14 35 13 173 66 59 36 51 174 4 66 32 33 40 405 3 180 84 1 180 182 396 172 40 35 287 51 66 398 50 184 109 186 183 190 132 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97252-922-1	01	1	0208-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=29	8-97183-680-0	01	1	9811-0105		●	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=29	8-97183-680-0	01	1	0106-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) Z=29	8-97168-980-0	01	1	9811-9903		●	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) Z=29	8-97168-980-0	01	1	9904-0012		●
1	04.351 SHAFT; TOP GEAR,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> Z=29	8-97168-980-0	01	1	9904-0012			●
1	04.351 SHAFT; TOP GEAR,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) Z=29	8-97168-980-0	01	1	0101-0105		●	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) Z=29	8-97168-980-0	01	1	0106-		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=20	1-33211-916-0	01	1	9811-				●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	0208-	●
3	04.403 BEARING; TOP GEAR SHAFT	8-97035-047-0	01	1	9811-0105		●	●
3	04.403 BEARING; TOP GEAR SHAFT	8-97035-047-0	01	1	0106-		●
3	04.403 BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9811-9909				●
3	04.403 BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	9910-0109				●
3	04.403 BEARING; TOP GEAR SHAFT	1-09810-280-0	01	1	0110-				●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT	8-97035-040-0	01	1	9811-0105		●	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT	8-97035-040-0	01	1	0106-		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=23	8-97034-856-0	01	1	9811-0105		●	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=23	8-97034-856-0	01	1	0106-		●
14	04.419 BEARING; NEEDLE,5TH	8-97147-572-0	01	1	9811-0105		●	●
14	04.419 BEARING; NEEDLE,5TH	8-97147-572-0	01	1	0106-		●
32	04.415 COLLAR; 3RD GEAR	8-94178-500-2	01	1	9811-0105		●	●
32	04.415 COLLAR; 3RD GEAR	8-94178-500-2	01	1	0106-		●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NTN	8-97201-005-0	01	1	9811-0105		●	●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NTN	8-97201-005-0	01	1	0106-		●
33	04.352 BEARING; NEEDLE,3RD GEAR NSK	9-00096-638-0	01	1	9811-0105		●	●
33	04.352 BEARING; NEEDLE,3RD GEAR NSK	9-00096-638-0	01	1	0106-		●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-370-0	01	1	9811-				●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 KOYO	1-09811-387-1	01	1	9811-				●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NTN	1-09811-414-0	01	1	9811-				●
35	04.383 RING; BLOCK,4TH & 3RD Z=36	8-94128-775-2	02	1	9811-0105		●	●
35	04.383 RING; BLOCK,4TH & 3RD Z=36	8-94128-775-2	02	1	0106-		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-233-1	01	1	0208-	●
36	04.415 GEAR; 3RD,MAINSHAFT 4HG1 ENG(RJH),4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) Z=37	8-97034-854-1	01	1	0202-		●
36	04.415 GEAR; 3RD,MAINSHAFT DUAL RR TIRE&SGL CAB&SHORT(NPC5SC) DUAL RR TIRE&SGL CAB&MIDDLE(NPC5SF) DUAL RR TIRE&SGL CAB&LONG(NPC5SK) DUAL RR TIRE&DBL CAB&MIDDLE(NPC5WF) 4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3) ENGINE POWER N-SPEC(7QV) Z=37	8-97209-518-0	01	1	0202-		●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=37	8-97205-048-0	01	1	9811-0201		●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) EXC. AUSTRALIA EQUIPMENT(RR3) Z=37	8-97205-048-0	01	1	0202-		●
36	04.415 GEAR; 3RD,MAINSHAFT 4HG1 ENG(RJH),4HF1 ENG(RLS) Z=37	8-97091-430-1	01	1	9811-0201		●
36	04.415 GEAR; 3RD,MAINSHAFT 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3) Z=37	8-97091-430-1	01	1	0202-		●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=38	8-97183-678-0	01	1	9811-0105			●
36	04.415 GEAR; 3RD,MAINSHAFT 4HG1 ENG(RJH),4HF1 ENG(RLS) Z=38	8-97208-021-0	01	1	9811-0105			●
36	04.415 GEAR; 3RD,MAINSHAFT Z=33	1-33252-415-0	01	1	9811-				●
40	04.384 SPRING; INSERT,LOW & 2ND	8-97023-708-0	02	1	9811-0105		●	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-97023-708-0	02	1	0106-		●
49	04.352 BEARING; NEEDLE,2ND GEAR 04.419 NTN	8-97201-005-0	01	1	9811-0105		●	●
49	04.352 BEARING; NEEDLE,2ND GEAR 04.419 NTN	8-97201-005-0	01	1	0106-		●
49	04.352 BEARING; NEEDLE,2ND GEAR NSK	9-00096-638-0	01	1	9811-0105		●	●
49	04.352 BEARING; NEEDLE,2ND GEAR NSK	9-00096-638-0	01	1	0106-		●
49	04.352 BEARING; NEEDLE,2ND GEAR NSK	1-09811-371-0	02	1	9811-				●
49	04.352 BEARING; NEEDLE,2ND GEAR KOYO	1-09811-373-0	02	1	9811-				●
50	04.395 GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	0208-	●
50	04.395 GEAR; 2ND,MAINSHAFT AUSTRALIA EQUIPMENT(RR3) Z=37	8-97262-951-0	01	1	0202-		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=37	8-94178-506-4	01	1	9811-0105		●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=37	8-97315-471-0	01	1	0106-0201		●
50	04.395 GEAR; 2ND,MAINSHAFT EXC. AUSTRALIA EQUIPMENT(RR3) Z=37	8-97315-471-0	01	1	0202-		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=42	1-33251-345-0	01	1	9811-				●
51	04.383 RING; BLOCK,LOW & 2ND Z=42	8-97074-619-2	02	1	9811-0105		●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=42	8-97074-619-3	02	1	0106-		●
59	04.417 GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	0208-	●
59	04.417 GEAR; REV MAINSHAFT AUSTRALIA EQUIPMENT(RR3) Z=40	8-97094-821-1	01	1	0202-		●
59	04.417 GEAR; REV MAINSHAFT Z=40	8-94317-146-2	01	1	9811-0105		●	●
59	04.417 GEAR; REV MAINSHAFT Z=40	8-94317-146-2	01	1	0106-0201		●
59	04.417 GEAR; REV MAINSHAFT EXC. AUSTRALIA EQUIPMENT(RR3) Z=40	8-94317-146-2	01	1	0202-		●
59	04.417 GEAR; REV MAINSHAFT Z=45	1-33257-072-0	01	1	9811-				●
62	04.384 SPRING; INSERT,REV & 5TH	8-97023-709-0	02	1	9811-0105		●	●
62	04.384 SPRING; INSERT,REV & 5TH	8-97023-709-0	02	1	0106-		●
63	04.384 INSERT; SYN,REV & 5TH AUSTRALIA EQUIPMENT(RR3)	5-33263-001-0	03	1	0202-		●
63	04.384 INSERT; SYN,REV & 5TH	9-33263-613-0	03	1	9811-0105		●	●
63	04.384 INSERT; SYN,REV & 5TH	9-33263-613-0	03	1	0106-0201		●
63	04.384 INSERT; SYN,REV & 5TH EXC. AUSTRALIA EQUIPMENT(RR3)	9-33263-613-0	03	1	0202-		●
66	04.383 RING; BLOCK,SYN AUSTRALIA EQUIPMENT(RR3) (C) OUTSIDE	8-94316-749-0	02	1	0202-		●
66	04.383 RING; BLOCK,SYN AUSTRALIA EQUIPMENT(RR3) (C) INSIDE	8-97248-220-0	02	1	0202-		●
66	04.383 RING; BLOCK,SYN AUSTRALIA EQUIPMENT(RR3) (B) Z=30	8-97034-840-1	01	1	0202-		●
66	04.383 RING; BLOCK,SYN (A) Z=45	8-97061-752-0	01	1	9811-0105		●	●
66	04.383 RING; BLOCK,SYN (A) Z=45	8-97061-752-0	01	1	0106-		●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	0208-	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97084-377-1	01	1	9811-0105		●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97084-377-1	01	1	0106-		●
70	04.417 GEAR; 1ST,MAINSHAFT Z=47	1-33255-069-0	01	1	9811-				●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	0208-	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97011-348-0	01	1	9811-0105		●	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97011-348-0	01	1	0106-		●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 39/7(GV1) Z=4	1-33371-054-1	01	1	9811-				●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/8(RU1) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127(AUH),FRT&RR TIRE 215-75R17.5 DISC17.5-6J-127WHITE(AUJ),FRT&RR TIRE 21 5-75R17.5 DISC 17.5-6J-127(AUS), FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WH ITE(AVK) Z=4	1-33371-054-1	01	1	9811-				●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 43/9(S2J),FINAL GEARRATIO 43/10(S7C) Z=6	1-33371-053-1	01	1	9811-9903				●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/8(RU1) FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP) EXC. TIRE SIZE 8.25-16<7QP> Z=6	1-33371-053-1	01	1	9811-9903				●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/8(RU1) TIRE SIZE 8.25-16<7QP> Z=6	1-33371-053-1	01	1	9811-9903				●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 43/9(S2J),FINAL GEARRATIO 43/10(S7C) Z=6	1-33371-053-1	01	1	9904-0105				●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/8(RU1) FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-12 7(ASH),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) EXC. TIRE SIZE 8.25-16<7QP>,ENGINE POWER N-SPEC(7QV) Z=6	1-33371-053-1	01	1	9904-0105				●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/8(RU1) TIRE SIZE 8.25-16<7QP> Z=6	1-33371-053-1	01	1	9904-0105				●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 43/9(S2J),FINAL GEARRATIO 43/10(S7C) Z=6	1-33371-053-1	01	1	0106-				●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/8(RU1) FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7.5-16-12 6GSX16-12 7 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5-16 -6 6GSX16-127(09H),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16 -127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FR T&RR 7.5-16-10L 6GSX16-127(15H), FRT&RR 7.5-16-12L 6GSX16-127(16H),FRT&RR 7 .5-16-10 6GSX16-127 H/D(52C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N UT(9BP),FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8. 25-16-14L 16X6.00GS-135 6-WHL/NUT(9ZQ),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX 16-127 6-WHL/NUT DYNAMIC(97V) Z=6	1-33371-053-1	01	1	0106-				●
82	04.403 SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	0208-	●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-40-28	8-97034-847-2	01	1	9811-0105		●	●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-40-28	8-97034-847-2	01	1	0106-		●
82	04.403 SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-263-0	01	1	9811-9909				●
82	04.403 SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-312-0	01	1	9910-				●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK	8-97035-048-0	01	1	9811-0105		●	●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK	8-97035-048-0	01	1	0106-		●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK	1-09810-209-0	01	1	9811-				●
84	04.422 BEARING; COUNTER SHAFT,FRT KOYO	1-09810-210-0	01	1	9811-				●
109	04.422 BEARING; COUNTER SHAFT,RR	8-97035-049-0	01	1	9811-0105		●	●
109	04.422 BEARING; COUNTER SHAFT,RR	8-97035-049-0	01	1	0106-		●
109	04.422 BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	9811-				●
109	04.422 BEARING; COUNTER SHAFT,RR KOYO	1-09810-212-0	01	1	9811-				●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0208-	●
132	04.433 SHAFT; REV	8-94415-162-1	01	1	9811-0105		●	●
132	04.433 SHAFT; REV	8-94415-162-1	01	1	0106-		●
132	04.433 SHAFT; REV	1-33351-023-1	01	1	9811-				●
135	04.430 GEAR; REV IDLER Z=26	8-97241-292-1	01	1	0208-	●
135	04.430 GEAR; REV IDLER Z=27	5-33361-042-2	01	1	9811-0105		●	●
135	04.430 GEAR; REV IDLER Z=27	5-33361-042-2	01	1	0106-		●
135	04.430 GEAR; REV IDLER Z=27	1-33361-073-0	01	1	9811-				●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.75	8-94402-405-0	01	1	9811-0105		●	●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.75	8-94402-405-0	01	1	0106-		●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.80	8-94402-406-0	01	1	9811-0105		●	●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.80	8-94402-406-0	01	1	0106-		●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.85	8-94402-407-0	01	1	9811-0105		●	●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.85	8-94402-407-0	01	1	0106-		●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.85	8-94151-522-0	01	1	9811-0105		●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.85	8-94151-522-0	01	1	0106-		●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.90	8-94151-523-0	01	1	9811-0105		●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.90	8-94151-523-0	01	1	0106-		●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.95	8-94151-524-0	01	1	9811-0105		●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.95	8-94151-524-0	01	1	0106-		●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=2.00	8-94157-747-0	01	1	9811-0105		●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=2.00	8-94157-747-0	01	1	0106-		●
174	04.380 SYNCHRONIZER ASM; 2ND-3RD AUSTRALIA EQUIPMENT(RR3)	8-97190-991-0	01	1	0202-		●
174	04.380 SYNCHRONIZER ASM; 2ND-3RD	8-97190-992-0	01	1	9811-0105		●	●
174	04.380 SYNCHRONIZER ASM; 2ND-3RD	8-97190-992-0	01	1	0106-0201		●
174	04.380 SYNCHRONIZER ASM; 2ND-3RD EXC. AUSTRALIA EQUIPMENT(RR3)	8-97190-992-0	01	1	0202-		●
175	04.380 SYNCHRONIZER; LOW-REV AUSTRALIA EQUIPMENT(RR3)	8-97048-738-0	01	1	0202-		●
175	04.380 SYNCHRONIZER; LOW-REV	8-97091-434-0	01	1	9811-0105		●	●
175	04.380 SYNCHRONIZER; LOW-REV	8-97091-434-0	01	1	0106-0201		●
175	04.380 SYNCHRONIZER; LOW-REV EXC. AUSTRALIA EQUIPMENT(RR3)	8-97091-434-0	01	1	0202-		●
180	04.422 RING; SNAP,CLUSTER GEAR (B) ID=44.5	5-09589-010-0	01	1	9811-0105		●	●
180	04.422 RING; SNAP,CLUSTER GEAR (B) ID=44.5	5-09589-010-0	01	1	0106-		●
180	04.422 RING; SNAP,CLUSTER GEAR 08.934 (A) ID=32.2	9-09180-035-0	01	1	9811-0105		●	●
180	04.422 RING; SNAP,CLUSTER GEAR 08.934 (A) ID=32.2	9-09180-035-0	01	1	0106-		●
182	04.422 PLATE; CLUSTER GEAR	8-94131-924-1	01	1	9811-0105		●	●
182	04.422 PLATE; CLUSTER GEAR	8-94131-924-1	01	1	0106-		●
183	04.422 SPRING; PLATE,CLUSTER GEAR	8-94148-196-0	03	1	9811-0105		●	●
183	04.422 SPRING; PLATE,CLUSTER GEAR	8-94148-196-0	03	1	0106-		●
184	04.422 SPRING; CLUSTER GEAR	8-94101-320-0	01	1	9811-0105		●	●
184	04.422 SPRING; CLUSTER GEAR	8-94101-320-0	01	1	0106-		●
186	04.422 RING; SNAP,CLUSTER GEAR 08.934 ID=32.2	9-09180-035-0	01	1	9811-0105		●	●
186	04.422 RING; SNAP,CLUSTER GEAR 08.934 ID=32.2	9-09180-035-0	01	1	0106-		●
190	04.435 BALL; LK,REV SHAFT 04.311	9-00097-509-0	01	1	9811-0105		●	●
190	04.435 BALL; LK,REV SHAFT 04.311	9-00097-509-0	01	1	0106-		●
234	04.380 SYNCHRONIZER ASM; 4TH TO 5TH	8-97034-841-1	01	1	9811-0105		●	●
234	04.380 SYNCHRONIZER ASM; 4TH TO 5TH	8-97034-841-1	01	1	0106-		●
276	04.419 SPACER; BRG TO DRIVE GEAR	8-97034-876-0	01	1	9811-0105		●	●
276	04.419 SPACER; BRG TO DRIVE GEAR	8-97034-876-0	01	1	0106-		●
287	04.422 PIN; COUNTER GEAR	8-94402-462-0	03	1	9811-0105		●	●
287	04.422 PIN; COUNTER GEAR	8-94402-462-0	03	1	0106-		●
313	04.419 BEARING; NEEDLE,LOW GEAR NTN	8-97201-005-0	01	1	9811-0105		●	●
313	04.419 BEARING; NEEDLE,LOW GEAR NTN	8-97201-005-0	01	1	0106-		●
313	04.419 BEARING; NEEDLE,LOW GEAR 04.352 NSK	9-00096-638-0	01	1	9811-0105		●	●
313	04.419 BEARING; NEEDLE,LOW GEAR 04.352 NSK	9-00096-638-0	01	1	0106-		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0208-	●
314	04.419 BEARING; NEEDLE,REV GEAR NTN	8-97201-005-0	01	1	9811-0105		●	●
314	04.419 BEARING; NEEDLE,REV GEAR NTN	8-97201-005-0	01	1	0106-		●
314	04.419 BEARING; NEEDLE,REV GEAR 04.352 NSK	9-00096-638-0	01	1	9811-0105		●	●
314	04.419 BEARING; NEEDLE,REV GEAR 04.352 NSK	9-00096-638-0	01	1	0106-		●
318	04.419 COLLAR; DIST,REV GEAR	8-97076-908-0	01	1	9811-0105		●	●
318	04.419 COLLAR; DIST,REV GEAR	8-97076-908-0	01	1	0106-		●
387	04.384 INSERT; SYN,4TH & 3RD	5-33263-001-0	03	1	9811-0105		●	●
387	04.384 INSERT; SYN,4TH & 3RD	5-33263-001-0	03	1	0106-		●
393	04.352 BEARING; MAINSHAFT END	8-97253-104-0	01	1	0208-	●
393	04.352 BEARING; MAINSHAFT END 04.355	8-94178-731-0	01	1	9811-0105		●	●
393	04.352 BEARING; MAINSHAFT END 04.355	8-94178-731-0	01	1	0106-		●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-099-1	01	1	0208-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0208-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT	8-97035-050-0	01	1	9811-9904		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT	8-97228-274-0	01	1	9905-0105		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT	8-97228-274-0	01	1	0106-		●
397	04.384 SPRING; INSERT,4TH & 3RD	8-97023-710-0	02	1	9811-0105		●	●
397	04.384 SPRING; INSERT,4TH & 3RD	8-97023-710-0	02	1	0106-		●
398	04.421 GEAR; COUNTER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=45-49-36-20-14-13	8-97205-051-0	01	1	9811-		●
398	04.421 GEAR; COUNTER 4HG1 ENG(RJH),4HF1 ENG(RLS) Z=45-49-36-20-14-13	8-97075-976-0	01	1	9811-		●
398	04.421 GEAR; COUNTER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=45-49-35-20-14-13	8-97183-677-0	01	1	9811-0105			●
398	04.421 GEAR; COUNTER 4HG1 ENG(RJH),4HF1 ENG(RLS) Z=45-49-35-20-14-13	8-97208-023-0	01	1	9811-0105			●
405	04.384 INSERT; SYN,LOW & 2ND	5-33263-001-0	03	1	9811-0105		●	●
405	04.384 INSERT; SYN,LOW & 2ND	5-33263-001-0	03	1	0106-		●

70 56 68 67 59 56 69 74 149 77 28 29 78 36 33 48 42 79 80 47 44 46 45 48 50 47 49 45 82 46 47 8 2 7 16 7 10 3 1 24 23 22 21 9 19 19 20 30 27 22 23 24 22 24 23 46 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97252-922-1	01	1	0208-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=29	8-97183-680-0	01	1	9811-0105		●	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=29	8-97183-680-0	01	1	0106-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) Z=29	8-97168-980-0	01	1	9811-9903		●	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) Z=29	8-97168-980-0	01	1	9904-0012		●
1	04.351 SHAFT; TOP GEAR,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> Z=29	8-97168-980-0	01	1	9904-0012			●
1	04.351 SHAFT; TOP GEAR,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) Z=29	8-97168-980-0	01	1	0101-0105		●	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) Z=29	8-97168-980-0	01	1	0106-		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=20	1-33211-916-0	01	1	9811-				●
2	04.353 RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9811-				●
2	04.353 RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9811-				●
2	04.353 RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9811-				●
2	04.353 RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9811-				●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	0208-	●
3	04.403 BEARING; TOP GEAR SHAFT	8-97035-047-0	01	1	9811-0105		●	●
3	04.403 BEARING; TOP GEAR SHAFT	8-97035-047-0	01	1	0106-		●
3	04.403 BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9811-9909				●
3	04.403 BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	9910-0109				●
3	04.403 BEARING; TOP GEAR SHAFT	1-09810-280-0	01	1	0110-				●
7	04.384 WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	9811-				●
8	04.353 CLIP; DOG CLU	1-33219-020-0	01	1	9811-				●
9	04.351 CLUTCH; DOG,TOP GEAR Z=45	1-33265-413-1	01	1	9811-				●
10	04.412 RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	9811-				●
16	04.399 BEARING; PILOT,MAINSHAFT NSK	1-09844-021-0	14	1	9811-				●
16	04.399 BEARING; PILOT,MAINSHAFT NTN	1-09844-022-0	14	1	9811-				●
16	04.399 BEARING; PILOT,MAINSHAFT KOYO	1-09844-023-0	14	1	9811-				●
19	04.383 RING; BLOCK,4TH & 5TH Z=45	8-97241-306-1	02	1	0208-	●
19	04.383 RING; BLOCK,4TH & 5TH Z=45	1-33265-414-0	02	1	9811-				●
20	04.383 SLEEVE (B) Z=54	8-97241-295-1	02	1	0208-	●
20	04.383 SLEEVE (A) Z=45	8-97241-296-0	02	1	0208-	●
20	04.383 SLEEVE	1-33262-167-0	01	1	9811-				●
21	04.384 HUB; CLU,4TH & 5TH	8-97241-299-2	01	1	0208-	●
21	04.384 HUB; CLU,4TH & 5TH	1-33261-210-0	01	1	9811-9811				●
21	04.384 HUB; CLU,4TH & 5TH	1-33261-258-0	01	1	9812-				●
22	04.384 SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	9811-				●
23	04.384 PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9811-				●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	12	1	0208-	●
24	04.383 BLOCK; INDEX,SYN	1-33269-035-1	03	1	9811-				●
27	04.408 BEARING; 4TH GEAR NSK	1-09811-372-0	01	1	9811-				●
27	04.408 BEARING; 4TH GEAR NTN	1-09811-386-0	01	1	9811-				●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0208-	●
28	04.416 RING; SNAP,3RD GEAR	1-09588-195-0	01	1	9811-				●
29	04.416 COLLAR; 3RD GEAR	1-33234-076-0	01	1	9811-				●
30	04.415 GEAR; 4TH,MAINSHAFT Z=29	8-97241-228-0	01	1	0208-	●
30	04.415 GEAR; 4TH,MAINSHAFT Z=26	1-33253-555-0	01	1	9811-				●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NTN	8-97201-005-0	01	1	9811-0105		●	●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NTN	8-97201-005-0	01	1	0106-		●
33	04.352 BEARING; NEEDLE,3RD GEAR NSK	9-00096-638-0	01	1	9811-0105		●	●
33	04.352 BEARING; NEEDLE,3RD GEAR NSK	9-00096-638-0	01	1	0106-		●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-370-0	01	1	9811-				●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 KOYO	1-09811-387-1	01	1	9811-				●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NTN	1-09811-414-0	01	1	9811-				●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-233-1	01	1	0208-	●
36	04.415 GEAR; 3RD,MAINSHAFT 4HG1 ENG(RJH),4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) Z=37	8-97034-854-1	01	1	0202-		●
36	04.415 GEAR; 3RD,MAINSHAFT DUAL RR TIRE&SGL CAB&SHORT(NPC5SC) DUAL RR TIRE&SGL CAB&MIDDLE(NPC5SF) DUAL RR TIRE&SGL CAB&LONG(NPC5SK) DUAL RR TIRE&DBL CAB&MIDDLE(NPC5WF) 4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3) ENGINE POWER N-SPEC(7QV) Z=37	8-97209-518-0	01	1	0202-		●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=37	8-97205-048-0	01	1	9811-0201		●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) EXC. AUSTRALIA EQUIPMENT(RR3) Z=37	8-97205-048-0	01	1	0202-		●
36	04.415 GEAR; 3RD,MAINSHAFT 4HG1 ENG(RJH),4HF1 ENG(RLS) Z=37	8-97091-430-1	01	1	9811-0201		●
36	04.415 GEAR; 3RD,MAINSHAFT 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3) Z=37	8-97091-430-1	01	1	0202-		●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=38	8-97183-678-0	01	1	9811-0105			●
36	04.415 GEAR; 3RD,MAINSHAFT 4HG1 ENG(RJH),4HF1 ENG(RLS) Z=38	8-97208-021-0	01	1	9811-0105			●
36	04.415 GEAR; 3RD,MAINSHAFT Z=33	1-33252-415-0	01	1	9811-				●
42	04.383 SLEEVE Z=45	1-33262-162-0	01	1	9811-				●
44	04.384 HUB; CLU,2ND & 3RD,MAIN	1-33261-193-0	01	1	9811-				●
45	04.384 SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	9811-				●
46	04.384 PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9811-				●
47	04.383 BLOCK; INDEX,SYN	1-33269-035-1	03	1	9811-				●
48	04.380 SYNCHRONIZER ASM; 2ND & 3RD	1-33265-409-0	02	1	9811-				●
49	04.352 BEARING; NEEDLE,2ND GEAR 04.419 NTN	8-97201-005-0	01	1	9811-0105		●	●
49	04.352 BEARING; NEEDLE,2ND GEAR 04.419 NTN	8-97201-005-0	01	1	0106-		●
49	04.352 BEARING; NEEDLE,2ND GEAR NSK	9-00096-638-0	01	1	9811-0105		●	●
49	04.352 BEARING; NEEDLE,2ND GEAR NSK	9-00096-638-0	01	1	0106-		●
49	04.352 BEARING; NEEDLE,2ND GEAR NSK	1-09811-371-0	02	1	9811-				●
49	04.352 BEARING; NEEDLE,2ND GEAR KOYO	1-09811-373-0	02	1	9811-				●
50	04.395 GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	0208-	●
50	04.395 GEAR; 2ND,MAINSHAFT AUSTRALIA EQUIPMENT(RR3) Z=37	8-97262-951-0	01	1	0202-		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=37	8-94178-506-4	01	1	9811-0105		●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=37	8-97315-471-0	01	1	0106-0201		●
50	04.395 GEAR; 2ND,MAINSHAFT EXC. AUSTRALIA EQUIPMENT(RR3) Z=37	8-97315-471-0	01	1	0202-		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=42	1-33251-345-0	01	1	9811-				●
56	04.419 BEARING; NEEDLE,1ST,REV NSK	1-09811-370-0	02	1	9811-				●
56	04.419 BEARING; NEEDLE,1ST,REV KOYO	1-09811-387-1	02	1	9811-				●
56	04.419 BEARING; NEEDLE,1ST,REV NTN	1-09811-414-0	02	1	9811-				●
59	04.417 GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	0208-	●
59	04.417 GEAR; REV MAINSHAFT AUSTRALIA EQUIPMENT(RR3) Z=40	8-97094-821-1	01	1	0202-		●
59	04.417 GEAR; REV MAINSHAFT Z=40	8-94317-146-2	01	1	9811-0105		●	●
59	04.417 GEAR; REV MAINSHAFT Z=40	8-94317-146-2	01	1	0106-0201		●
59	04.417 GEAR; REV MAINSHAFT EXC. AUSTRALIA EQUIPMENT(RR3) Z=40	8-94317-146-2	01	1	0202-		●
59	04.417 GEAR; REV MAINSHAFT Z=45	1-33257-072-0	01	1	9811-				●
67	04.384 HUB; CLU,1ST TO REV	1-33261-192-0	01	1	9811-				●
68	04.419 SLEEVE; 1ST TO REV	1-33262-175-1	01	1	9811-				●
69	04.417 COLLAR; 1ST GEAR MAIN	1-33234-073-0	01	1	9811-				●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	0208-	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97084-377-1	01	1	9811-0105		●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97084-377-1	01	1	0106-		●
70	04.417 GEAR; 1ST,MAINSHAFT Z=47	1-33255-069-0	01	1	9811-				●
74	04.419 WASHER; THRUST,REV GEAR	1-33239-147-0	01	1	9811-				●
77	04.421 GEAR; 6TH,MAINSHAFT Z=20	8-97252-634-0	01	1	0208-	●
77	04.421 GEAR; 6TH,MAINSHAFT Z=17	1-33253-543-0	01	1	9811-				●
78	04.419 COLLAR; DIST,MAINSHAFT BRG	1-33235-099-0	01	1	9811-				●
79	04.408 BEARING; BALL,MAINSHAFT NSK	1-09800-019-0	01	1	9811-9902				●
79	04.408 BEARING; BALL,MAINSHAFT NSK	1-09800-287-0	01	1	9903-				●
79	04.408 BEARING; BALL,MAINSHAFT KOYO	1-09800-120-1	01	1	9811-				●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	0208-	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97011-348-0	01	1	9811-0105		●	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97011-348-0	01	1	0106-		●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 39/7(GV1) Z=4	1-33371-054-1	01	1	9811-				●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/8(RU1) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127(AUH),FRT&RR TIRE 215-75R17.5 DISC17.5-6J-127WHITE(AUJ),FRT&RR TIRE 21 5-75R17.5 DISC 17.5-6J-127(AUS), FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WH ITE(AVK) Z=4	1-33371-054-1	01	1	9811-				●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 43/9(S2J),FINAL GEARRATIO 43/10(S7C) Z=6	1-33371-053-1	01	1	9811-9903				●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/8(RU1) FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP) EXC. TIRE SIZE 8.25-16<7QP> Z=6	1-33371-053-1	01	1	9811-9903				●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/8(RU1) TIRE SIZE 8.25-16<7QP> Z=6	1-33371-053-1	01	1	9811-9903				●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 43/9(S2J),FINAL GEARRATIO 43/10(S7C) Z=6	1-33371-053-1	01	1	9904-0105				●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/8(RU1) FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-12 7(ASH),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) EXC. TIRE SIZE 8.25-16<7QP>,ENGINE POWER N-SPEC(7QV) Z=6	1-33371-053-1	01	1	9904-0105				●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/8(RU1) TIRE SIZE 8.25-16<7QP> Z=6	1-33371-053-1	01	1	9904-0105				●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 43/9(S2J),FINAL GEARRATIO 43/10(S7C) Z=6	1-33371-053-1	01	1	0106-				●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/8(RU1) FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7.5-16-12 6GSX16-12 7 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5-16 -6 6GSX16-127(09H),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16 -127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FR T&RR 7.5-16-10L 6GSX16-127(15H), FRT&RR 7.5-16-12L 6GSX16-127(16H),FRT&RR 7 .5-16-10 6GSX16-127 H/D(52C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N UT(9BP),FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8. 25-16-14L 16X6.00GS-135 6-WHL/NUT(9ZQ),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX 16-127 6-WHL/NUT DYNAMIC(97V) Z=6	1-33371-053-1	01	1	0106-				●
82	04.403 SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	0208-	●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-40-28	8-97034-847-2	01	1	9811-0105		●	●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-40-28	8-97034-847-2	01	1	0106-		●
82	04.403 SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-263-0	01	1	9811-9909				●
82	04.403 SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-312-0	01	1	9910-				●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR NSK	1-09810-215-0	01	1	9811-				●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR KOYO	1-09810-216-0	01	1	9811-				●

115 118 119 18 120 123 122 26 123 122 26 121 84 26 122 123 93 96 126 126 104 94 94 108 109 110 127 135 129 130 129 128 132 138 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
18	04.384 RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	0208-	●
18	04.384 RING; SNAP,CLU HUB T=1.75	1-09588-196-0	01	1	9811-				●
26	04.384 SPRING; BLOCK,INSERT	1-09580-373-0	03	1	9811-				●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK	8-97035-048-0	01	1	9811-0105		●	●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK	8-97035-048-0	01	1	0106-		●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK	1-09810-209-0	01	1	9811-				●
84	04.422 BEARING; COUNTER SHAFT,FRT KOYO	1-09810-210-0	01	1	9811-				●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	0208-	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	0208-	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	0208-	●
93	04.422 RING; SNAP,COUNTER FRT BRG	1-09588-091-0	01	1	9811-				●
94	04.422 KEY; FEATHER,COUNTER SHAFT L=41	1-09735-021-0	01	1	9811-				●
94	04.422 KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	01	1	9811-				●
96	04.421 GEAR; COUNTER DRIVE Z=38	1-33331-222-0	01	1	9811-				●
104	04.415 GEAR; 4TH,COUNTER Z=34	1-33332-110-0	01	1	9811-				●
108	04.428 SHAFT; COUNTER Z=46-37-28-21	8-97252-636-0	01	1	0208-	●
108	04.428 SHAFT; COUNTER Z=28-22-14	1-33311-287-0	01	1	9811-				●
109	04.422 BEARING; COUNTER SHAFT,RR	8-97035-049-0	01	1	9811-0105		●	●
109	04.422 BEARING; COUNTER SHAFT,RR	8-97035-049-0	01	1	0106-		●
109	04.422 BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	9811-				●
109	04.422 BEARING; COUNTER SHAFT,RR KOYO	1-09810-212-0	01	1	9811-				●
110	04.422 RING; SNAP,COUNTER BRG ID=41.9	1-09588-075-1	01	1	9811-				●
115	04.352 BEARING; NEEDLE,6TH,COUNTER	8-97253-113-0	01	1	0208-	●
115	04.352 BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-267-0	01	1	9811-				●
115	04.352 BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-268-0	01	1	9811-				●
115	04.352 BEARING; NEEDLE,6TH,COUNTER KOYO	1-09811-269-0	01	1	9811-				●
118	04.421 GEAR; 6TH,COUNTER Z=47	8-97241-246-0	01	1	0208-	●
118	04.421 GEAR; 6TH,COUNTER Z=41	1-33338-273-0	01	1	9811-				●
119	04.383 RING; BLOCK,6TH SYN Z=39	1-33265-408-0	01	1	9811-				●
120	04.383 SLEEVE	1-33262-095-0	01	1	9811-				●
121	04.384 HUB; CLU,6TH	8-97241-301-2	01	1	0208-	●
121	04.384 HUB; CLU,6TH	1-33261-143-1	01	1	9811-				●
122	04.384 PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9811-				●
123	04.383 BLOCK; INDEX,SYN	1-33269-035-1	03	1	9811-				●
126	04.422 RING; SNAP,CLU HUB (A) OD=100 T=2	1-09587-032-0	01	1	9811-				●
126	04.422 RING; SNAP,CLU HUB 04.384 (B) ID=46.3 T=1.75	1-09588-121-1	01	1	9811-				●
127	04.431 COLLAR; THRUST,REV SHAFT	1-33363-029-0	01	1	9811-				●
128	04.437 WASHER; THRUST,REV SHAFT D=62 T=6.0	1-33363-028-0	01	1	9811-				●
129	04.431 BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	9811-				●
129	04.431 BEARING; NEEDLE,IDLER KOYO	1-09811-017-0	02	1	9811-				●
130	04.353 COLLAR; DIST,NEEDLE BRG	1-33363-031-0	01	1	9811-				●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0208-	●
132	04.433 SHAFT; REV	8-94415-162-1	01	1	9811-0105		●	●
132	04.433 SHAFT; REV	8-94415-162-1	01	1	0106-		●
132	04.433 SHAFT; REV	1-33351-023-1	01	1	9811-				●
135	04.430 GEAR; REV IDLER Z=26	8-97241-292-1	01	1	0208-	●
135	04.430 GEAR; REV IDLER Z=27	5-33361-042-2	01	1	9811-0105		●	●
135	04.430 GEAR; REV IDLER Z=27	5-33361-042-2	01	1	0106-		●
135	04.430 GEAR; REV IDLER Z=27	1-33361-073-0	01	1	9811-				●
138	04.435 PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9811-				●
140	04.435 BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9811-				●

517 24 516 77 502 288 393 335 503 504 59 20 515 80 298 260 396 82 505 396 501 70 500 504 503 41 502 20 517 24 516 41 396 500 18 501 517 24 516 50 515 396 19 19 30 432 28 505 396 36 20 21 1 266 3 273 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97252-922-1	01	1	0208-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=29	8-97183-680-0	01	1	9811-0105		●	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=29	8-97183-680-0	01	1	0106-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) Z=29	8-97168-980-0	01	1	9811-9903		●	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) Z=29	8-97168-980-0	01	1	9904-0012		●
1	04.351 SHAFT; TOP GEAR,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> Z=29	8-97168-980-0	01	1	9904-0012			●
1	04.351 SHAFT; TOP GEAR,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) Z=29	8-97168-980-0	01	1	0101-0105		●	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) Z=29	8-97168-980-0	01	1	0106-		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=20	1-33211-916-0	01	1	9811-				●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	0208-	●
3	04.403 BEARING; TOP GEAR SHAFT	8-97035-047-0	01	1	9811-0105		●	●
3	04.403 BEARING; TOP GEAR SHAFT	8-97035-047-0	01	1	0106-		●
3	04.403 BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9811-9909				●
3	04.403 BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	9910-0109				●
3	04.403 BEARING; TOP GEAR SHAFT	1-09810-280-0	01	1	0110-				●
18	04.384 RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	0208-	●
18	04.384 RING; SNAP,CLU HUB T=1.75	1-09588-196-0	01	1	9811-				●
19	04.383 RING; BLOCK,4TH & 5TH Z=45	8-97241-306-1	02	1	0208-	●
19	04.383 RING; BLOCK,4TH & 5TH Z=45	1-33265-414-0	02	1	9811-				●
20	04.383 SLEEVE (B) Z=54	8-97241-295-1	02	1	0208-	●
20	04.383 SLEEVE (A) Z=45	8-97241-296-0	02	1	0208-	●
20	04.383 SLEEVE	1-33262-167-0	01	1	9811-				●
21	04.384 HUB; CLU,4TH & 5TH	8-97241-299-2	01	1	0208-	●
21	04.384 HUB; CLU,4TH & 5TH	1-33261-210-0	01	1	9811-9811				●
21	04.384 HUB; CLU,4TH & 5TH	1-33261-258-0	01	1	9812-				●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	12	1	0208-	●
24	04.383 BLOCK; INDEX,SYN	1-33269-035-1	03	1	9811-				●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0208-	●
28	04.416 RING; SNAP,3RD GEAR	1-09588-195-0	01	1	9811-				●
30	04.415 GEAR; 4TH,MAINSHAFT Z=29	8-97241-228-0	01	1	0208-	●
30	04.415 GEAR; 4TH,MAINSHAFT Z=26	1-33253-555-0	01	1	9811-				●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-233-1	01	1	0208-	●
36	04.415 GEAR; 3RD,MAINSHAFT 4HG1 ENG(RJH),4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) Z=37	8-97034-854-1	01	1	0202-		●
36	04.415 GEAR; 3RD,MAINSHAFT DUAL RR TIRE&SGL CAB&SHORT(NPC5SC) DUAL RR TIRE&SGL CAB&MIDDLE(NPC5SF) DUAL RR TIRE&SGL CAB&LONG(NPC5SK) DUAL RR TIRE&DBL CAB&MIDDLE(NPC5WF) 4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3) ENGINE POWER N-SPEC(7QV) Z=37	8-97209-518-0	01	1	0202-		●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=37	8-97205-048-0	01	1	9811-0201		●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) EXC. AUSTRALIA EQUIPMENT(RR3) Z=37	8-97205-048-0	01	1	0202-		●
36	04.415 GEAR; 3RD,MAINSHAFT 4HG1 ENG(RJH),4HF1 ENG(RLS) Z=37	8-97091-430-1	01	1	9811-0201		●
36	04.415 GEAR; 3RD,MAINSHAFT 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3) Z=37	8-97091-430-1	01	1	0202-		●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=38	8-97183-678-0	01	1	9811-0105			●
36	04.415 GEAR; 3RD,MAINSHAFT 4HG1 ENG(RJH),4HF1 ENG(RLS) Z=38	8-97208-021-0	01	1	9811-0105			●
36	04.415 GEAR; 3RD,MAINSHAFT Z=33	1-33252-415-0	01	1	9811-				●
41	04.383 RING; BLOCK,2ND & 3RD Z=54	8-97241-305-2	02	1	0208-	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	0208-	●
50	04.395 GEAR; 2ND,MAINSHAFT AUSTRALIA EQUIPMENT(RR3) Z=37	8-97262-951-0	01	1	0202-		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=37	8-94178-506-4	01	1	9811-0105		●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=37	8-97315-471-0	01	1	0106-0201		●
50	04.395 GEAR; 2ND,MAINSHAFT EXC. AUSTRALIA EQUIPMENT(RR3) Z=37	8-97315-471-0	01	1	0202-		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=42	1-33251-345-0	01	1	9811-				●
59	04.417 GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	0208-	●
59	04.417 GEAR; REV MAINSHAFT AUSTRALIA EQUIPMENT(RR3) Z=40	8-97094-821-1	01	1	0202-		●
59	04.417 GEAR; REV MAINSHAFT Z=40	8-94317-146-2	01	1	9811-0105		●	●
59	04.417 GEAR; REV MAINSHAFT Z=40	8-94317-146-2	01	1	0106-0201		●
59	04.417 GEAR; REV MAINSHAFT EXC. AUSTRALIA EQUIPMENT(RR3) Z=40	8-94317-146-2	01	1	0202-		●
59	04.417 GEAR; REV MAINSHAFT Z=45	1-33257-072-0	01	1	9811-				●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	0208-	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97084-377-1	01	1	9811-0105		●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97084-377-1	01	1	0106-		●
70	04.417 GEAR; 1ST,MAINSHAFT Z=47	1-33255-069-0	01	1	9811-				●
77	04.421 GEAR; 6TH,MAINSHAFT Z=20	8-97252-634-0	01	1	0208-	●
77	04.421 GEAR; 6TH,MAINSHAFT Z=17	1-33253-543-0	01	1	9811-				●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	0208-	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97011-348-0	01	1	9811-0105		●	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97011-348-0	01	1	0106-		●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 39/7(GV1) Z=4	1-33371-054-1	01	1	9811-				●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/8(RU1) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127(AUH),FRT&RR TIRE 215-75R17.5 DISC17.5-6J-127WHITE(AUJ),FRT&RR TIRE 21 5-75R17.5 DISC 17.5-6J-127(AUS), FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WH ITE(AVK) Z=4	1-33371-054-1	01	1	9811-				●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 43/9(S2J),FINAL GEARRATIO 43/10(S7C) Z=6	1-33371-053-1	01	1	9811-9903				●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/8(RU1) FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP) EXC. TIRE SIZE 8.25-16<7QP> Z=6	1-33371-053-1	01	1	9811-9903				●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/8(RU1) TIRE SIZE 8.25-16<7QP> Z=6	1-33371-053-1	01	1	9811-9903				●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 43/9(S2J),FINAL GEARRATIO 43/10(S7C) Z=6	1-33371-053-1	01	1	9904-0105				●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/8(RU1) FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-12 7(ASH),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) EXC. TIRE SIZE 8.25-16<7QP>,ENGINE POWER N-SPEC(7QV) Z=6	1-33371-053-1	01	1	9904-0105				●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/8(RU1) TIRE SIZE 8.25-16<7QP> Z=6	1-33371-053-1	01	1	9904-0105				●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 43/9(S2J),FINAL GEARRATIO 43/10(S7C) Z=6	1-33371-053-1	01	1	0106-				●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/8(RU1) FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7.5-16-12 6GSX16-12 7 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5-16 -6 6GSX16-127(09H),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16 -127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FR T&RR 7.5-16-10L 6GSX16-127(15H), FRT&RR 7.5-16-12L 6GSX16-127(16H),FRT&RR 7 .5-16-10 6GSX16-127 H/D(52C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N UT(9BP),FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8. 25-16-14L 16X6.00GS-135 6-WHL/NUT(9ZQ),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX 16-127 6-WHL/NUT DYNAMIC(97V) Z=6	1-33371-053-1	01	1	0106-				●
82	04.403 SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	0208-	●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-40-28	8-97034-847-2	01	1	9811-0105		●	●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-40-28	8-97034-847-2	01	1	0106-		●
82	04.403 SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-263-0	01	1	9811-9909				●
82	04.403 SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-312-0	01	1	9910-				●
260	04.412 NUT; MAINSHAFT END M27 H=25	8-97253-126-0	01	1	0208-	●
266	04.525 RING; SNAP,BRG INNER	8-97286-915-0	01	1	0208-	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-609-0	01	1	0208-	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-941-0	01	1	0208-	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0208-	●
335	04.383 RING; SNAP,BEARING	8-97254-720-0	01	1	0208-	●
393	04.352 BEARING; MAINSHAFT END	8-97253-104-0	01	1	0208-	●
393	04.352 BEARING; MAINSHAFT END 04.355	8-94178-731-0	01	1	9811-0105		●	●
393	04.352 BEARING; MAINSHAFT END 04.355	8-94178-731-0	01	1	0106-		●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-099-1	01	1	0208-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0208-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT	8-97035-050-0	01	1	9811-9904		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT	8-97228-274-0	01	1	9905-0105		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT	8-97228-274-0	01	1	0106-		●
432	04.419 BEARING; NEEDLE,4TH NSK	8-97253-111-0	01	1	0208-	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-307-1	02	1	0208-	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-311-1	02	1	0208-	●
502	04.383 RING; BLOCK,LOW & REV Z=54	8-97241-305-2	02	1	0208-	●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-307-1	02	1	0208-	●
504	04.383 RING; INSIDE,LOW & REV	8-97241-311-1	02	1	0208-	●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	0208-	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	02	1	0208-	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97305-803-1	12	1	0208-	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	12	1	0208-	●

118 115 506 508 517 24 516 20 121 300 268 408 510 93 507 511 507 325 509 108 480 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
20	04.383 SLEEVE (B) Z=54	8-97241-295-1	02	1	0208-	●
20	04.383 SLEEVE (A) Z=45	8-97241-296-0	02	1	0208-	●
20	04.383 SLEEVE	1-33262-167-0	01	1	9811-				●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	12	1	0208-	●
24	04.383 BLOCK; INDEX,SYN	1-33269-035-1	03	1	9811-				●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	0208-	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	0208-	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	0208-	●
93	04.422 RING; SNAP,COUNTER FRT BRG	1-09588-091-0	01	1	9811-				●
108	04.428 SHAFT; COUNTER Z=46-37-28-21	8-97252-636-0	01	1	0208-	●
108	04.428 SHAFT; COUNTER Z=28-22-14	1-33311-287-0	01	1	9811-				●
115	04.352 BEARING; NEEDLE,6TH,COUNTER	8-97253-113-0	01	1	0208-	●
115	04.352 BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-267-0	01	1	9811-				●
115	04.352 BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-268-0	01	1	9811-				●
115	04.352 BEARING; NEEDLE,6TH,COUNTER KOYO	1-09811-269-0	01	1	9811-				●
118	04.421 GEAR; 6TH,COUNTER Z=47	8-97241-246-0	01	1	0208-	●
118	04.421 GEAR; 6TH,COUNTER Z=41	1-33338-273-0	01	1	9811-				●
121	04.384 HUB; CLU,6TH	8-97241-301-2	01	1	0208-	●
121	04.384 HUB; CLU,6TH	1-33261-143-1	01	1	9811-				●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0208-	●
132	04.433 SHAFT; REV	8-94415-162-1	01	1	9811-0105		●	●
132	04.433 SHAFT; REV	8-94415-162-1	01	1	0106-		●
132	04.433 SHAFT; REV	1-33351-023-1	01	1	9811-				●
135	04.430 GEAR; REV IDLER Z=26	8-97241-292-1	01	1	0208-	●
135	04.430 GEAR; REV IDLER Z=27	5-33361-042-2	01	1	9811-0105		●	●
135	04.430 GEAR; REV IDLER Z=27	5-33361-042-2	01	1	0106-		●
135	04.430 GEAR; REV IDLER Z=27	1-33361-073-0	01	1	9811-				●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97252-683-1	01	1	0208-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.7	8-97288-618-0	01	1	0208-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.8	8-97288-619-0	01	1	0208-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.9	8-97288-620-0	01	1	0208-	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0208-	●
314	04.419 BEARING; NEEDLE,REV GEAR NTN	8-97201-005-0	01	1	9811-0105		●	●
314	04.419 BEARING; NEEDLE,REV GEAR NTN	8-97201-005-0	01	1	0106-		●
314	04.419 BEARING; NEEDLE,REV GEAR 04.352 NSK	9-00096-638-0	01	1	9811-0105		●	●
314	04.419 BEARING; NEEDLE,REV GEAR 04.352 NSK	9-00096-638-0	01	1	0106-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	0208-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	0208-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	0208-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	0208-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	0208-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	0208-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	0208-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	0208-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	0208-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	0208-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	0208-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	0208-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	0208-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	0208-	●
408	04.384 SPRING 04.422	8-94148-196-0	03	1	0208-	●
480	04.419 WASHER; THRUST,6TH	8-97253-122-0	01	1	0208-	●
506	04.419 COLLAR; 6TH,COUNTER	8-97253-120-1	01	1	0208-	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-106-0	02	1	0208-	●
508	04.383 RING; BLOCK,6TH Z=45	8-97241-306-1	01	1	0208-	●
509	04.417 SLINGER; OIL,REV IDLE	8-97252-682-0	01	1	0208-	●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	0208-	●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	0208-	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97305-803-1	12	1	0208-	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	12	1	0208-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
