◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50817 - NPR/NQR-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-10 - REPAIR KIT; TRANSMISSION OVERHAUL ▶
2-10 — REPAIR KIT; TRANSMISSION OVERHAUL (#22133) — 15 parça

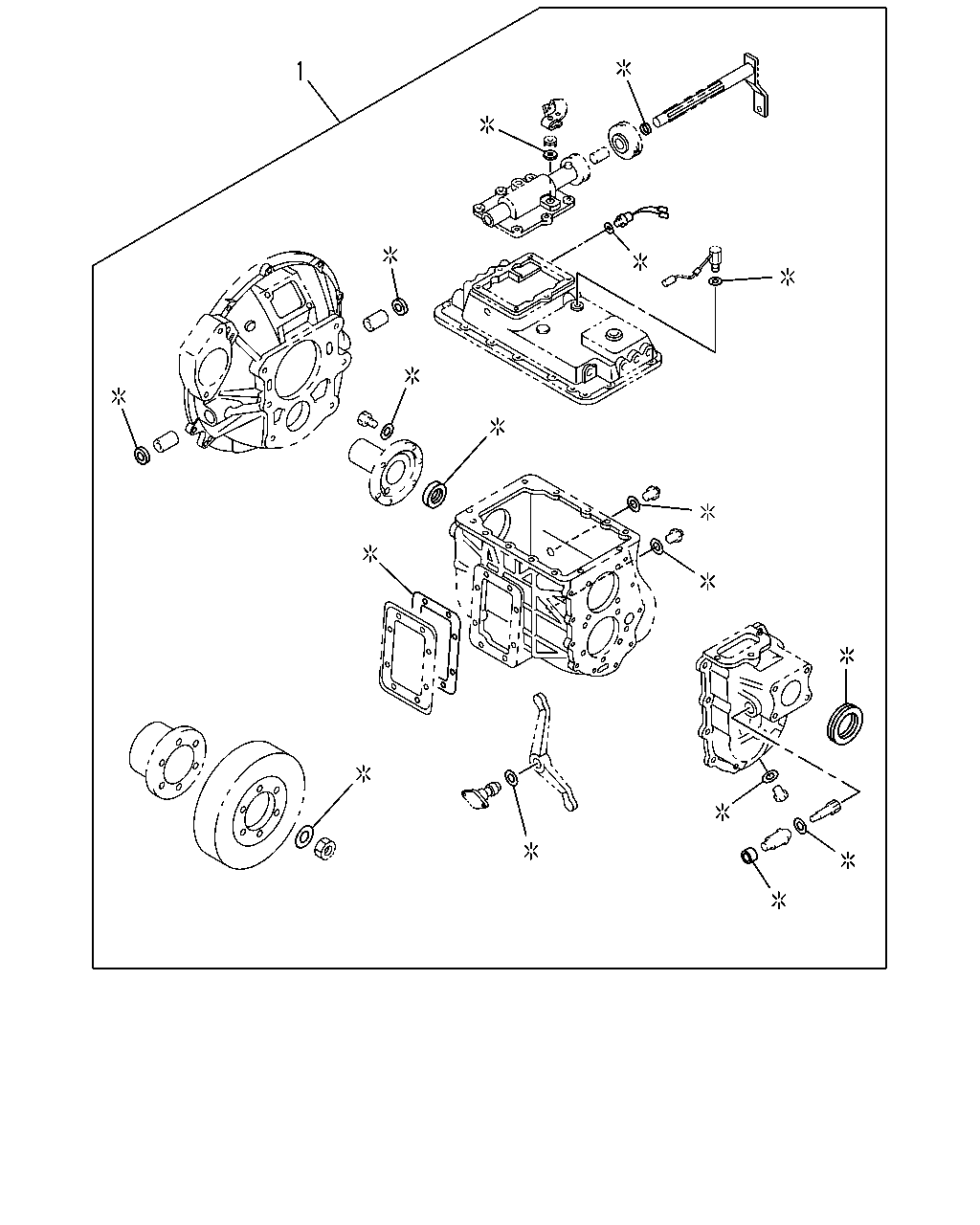

çizim 8483
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.005 GASKET SET; TRANS OVERHAUL 5-87832-028-0 01 1 0208- ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87831-157-3 01 1 9811-0011 ● ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87831-973-0 01 1 0012-0105 ● ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87831-973-0 01 1 0106- ●
1 04.005 GASKET SET; TRANS OVERHAUL 1-87830-769-1 01 1 9811- ●
çizim 8484
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.005 GASKET SET; TRANS OVERHAUL 5-87832-028-0 01 1 0208- ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87831-157-3 01 1 9811-0011 ● ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87831-973-0 01 1 0012-0105 ● ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87831-973-0 01 1 0106- ●
1 04.005 GASKET SET; TRANS OVERHAUL 1-87830-769-1 01 1 9811- ●

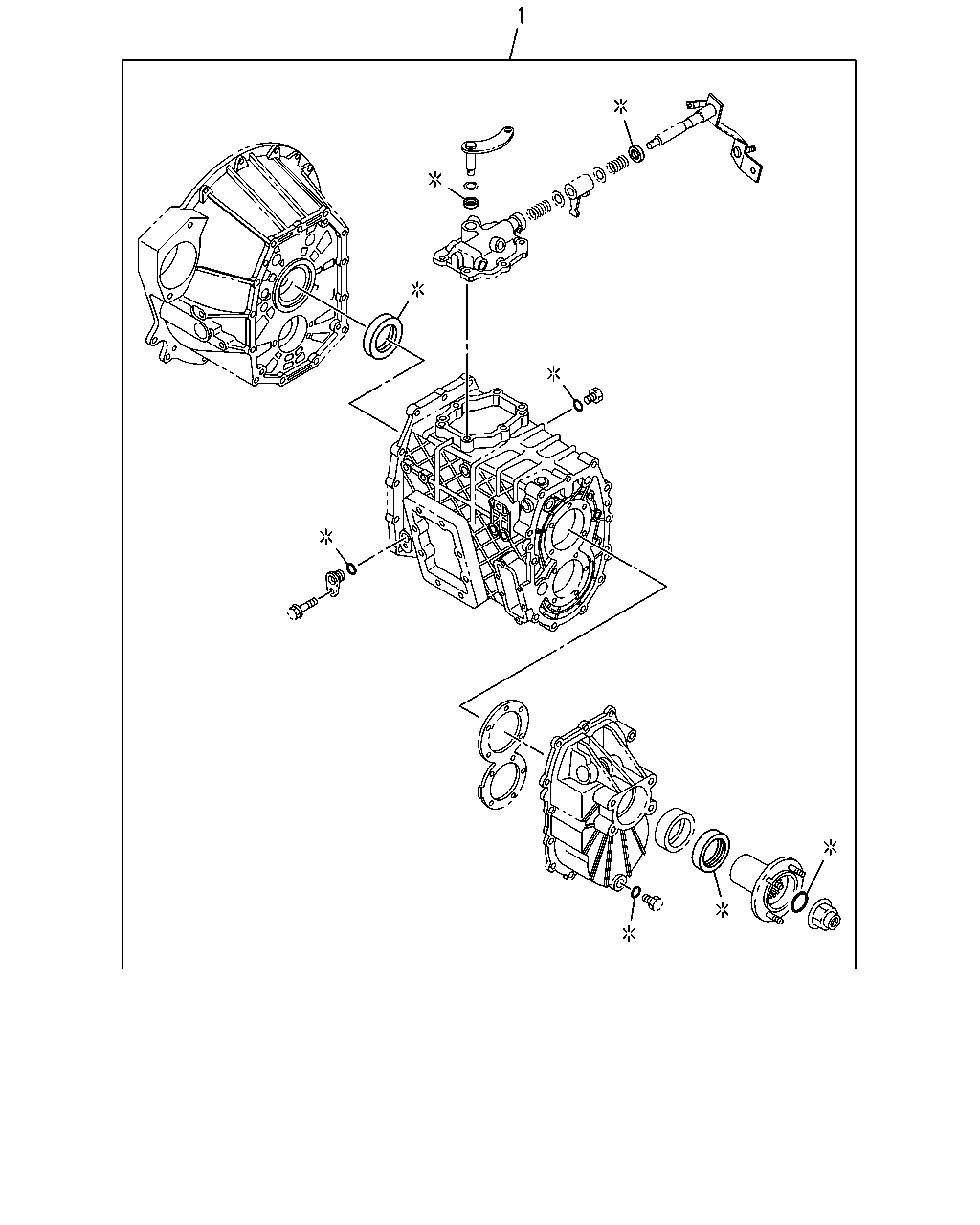

çizim 10725
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.005 GASKET SET; TRANS OVERHAUL 5-87832-028-0 01 1 0208- ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87831-157-3 01 1 9811-0011 ● ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87831-973-0 01 1 0012-0105 ● ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87831-973-0 01 1 0106- ●
1 04.005 GASKET SET; TRANS OVERHAUL 1-87830-769-1 01 1 9811- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
