◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50817 - NPR/NQR-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07 - CLUTCH BOOSTER; MINIPACK ▶
2-07 — CLUTCH BOOSTER; MINIPACK (#22131) — 10 parça

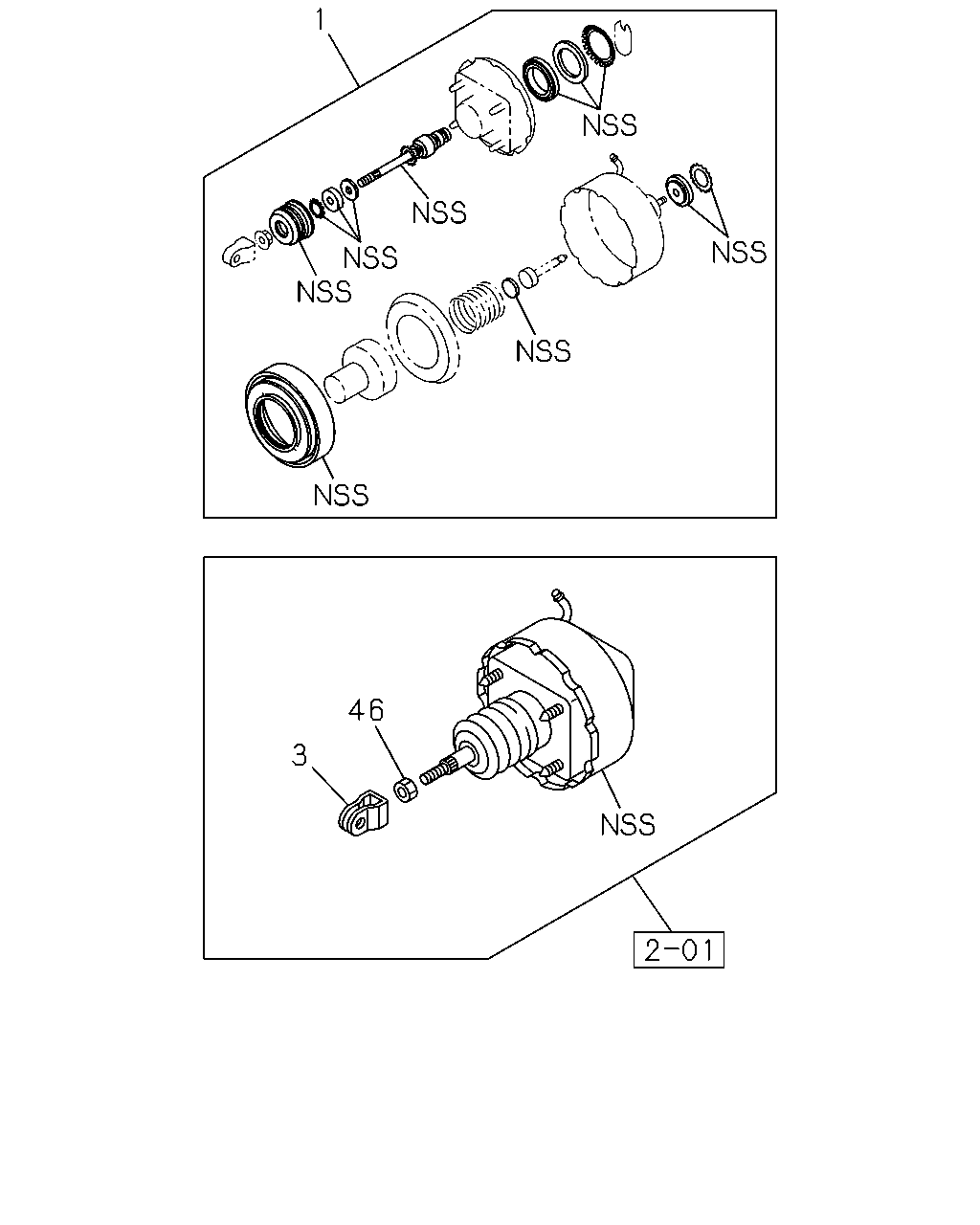

çizim 51764
1 46 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.775 REPAIR KIT; CLU BOOSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T) EXC. TURBOCHARGER(K51) 		8-97174-145-0 01 1 9811-0105 ● ●
1 00.775 REPAIR KIT; CLU BOOSTER
4HG1 ENG(RJH),4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T) EXC. TURBOCHARGER(K51) 		8-97174-145-0 01 1 0106- ●
1 00.775 REPAIR KIT; CLU BOOSTER
4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) 		8-97174-151-0 01 1 9811-0105 ● ● ●
1 00.775 REPAIR KIT; CLU BOOSTER
4HG1 ENG(RJH) TURBOCHARGER(K51) POWER ASSIST CLUTCH(S2T) 		8-97174-151-0 01 1 9811-0105 ● ●
1 00.775 REPAIR KIT; CLU BOOSTER
4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) 		8-97174-151-0 01 1 0106- ● ● ●
1 00.775 REPAIR KIT; CLU BOOSTER
4HG1 ENG(RJH) TURBOCHARGER(K51) POWER ASSIST CLUTCH(S2T) 		8-97174-151-0 01 1 0106- ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97174-147-0 01 1 9811-0105 ● ● ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97174-147-0 01 1 0106- ● ● ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97174-148-0 01 1 9811-0105 ● ● ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97174-148-0 01 1 0106- ● ● ●
