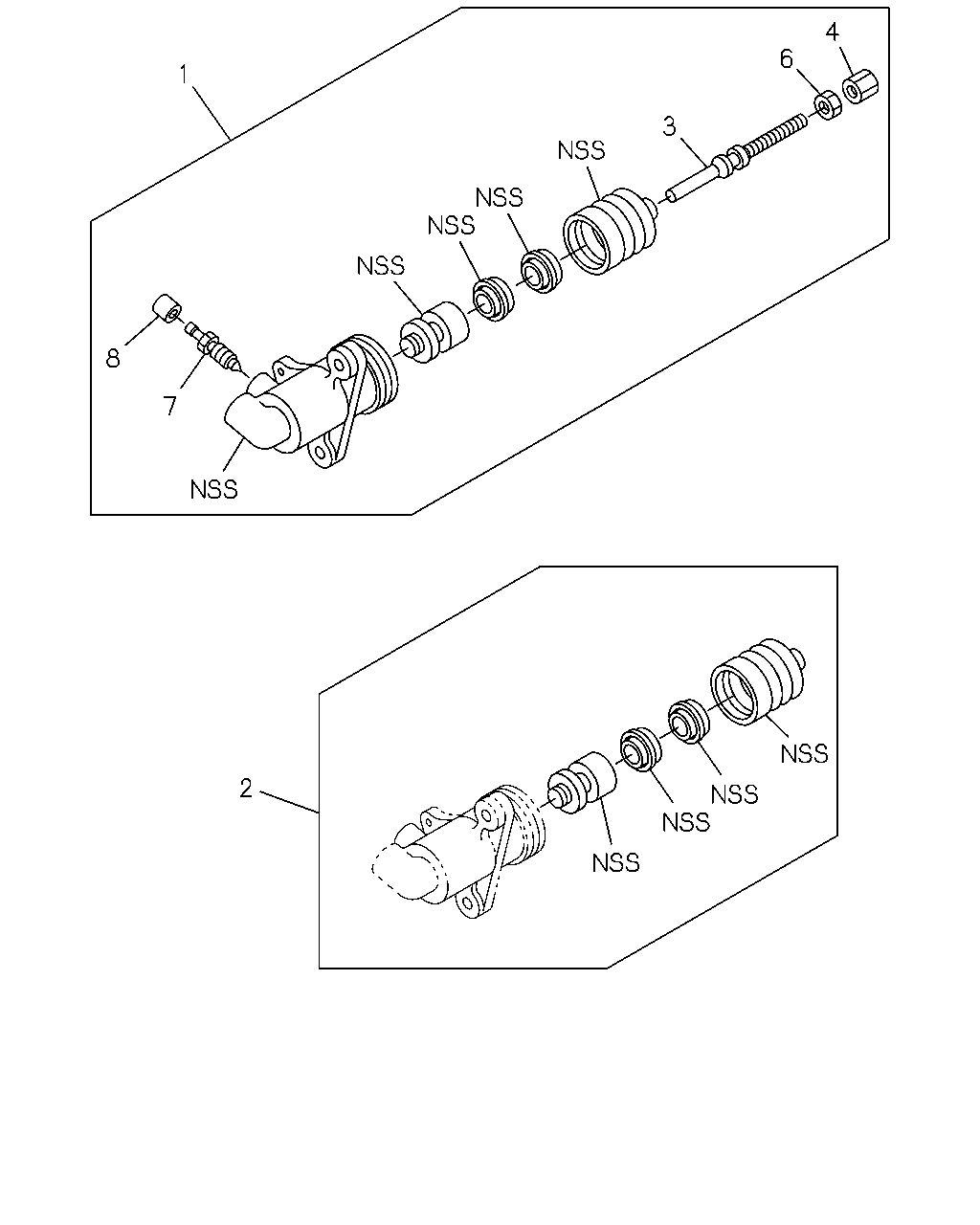

2-06 — CLUTCH SLAVE CYLINDER (#22130) — 57 parça

4 6 1 3 8 7 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.780 CYLINDER; SLAVE,CLU CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-97148-625-1	01	1	0106-	●
1	00.780 CYLINDER; SLAVE,CLU	8-97032-847-1	01	1	9811-0105	●	●
1	00.780 CYLINDER; SLAVE,CLU EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-97032-847-1	01	1	0106-	●
1	00.780 CYLINDER; SLAVE,CLU	8-97039-709-0	01	1	9811-0105			●
1	00.780 CYLINDER; SLAVE,CLU EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-97039-709-0	01	1	0106-0207			●
1	00.780 CYLINDER; SLAVE,CLU 4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-97039-709-0	01	1	0208-			●	●
1	00.780 CYLINDER; SLAVE,CLU CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-97148-628-1	01	1	0106-0207			●
1	00.780 CYLINDER; SLAVE,CLU 4HE1 ENG(RLY) CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-97148-628-1	01	1	0208-			●	●
2	00.780 REPAIR KIT; CLU SLAVE CYL	5-87831-204-0	01	1	9811-0105	●	●	●
2	00.780 REPAIR KIT; CLU SLAVE CYL EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>	5-87831-204-0	01	1	0106-	●		●	●
2	00.780 REPAIR KIT; CLU SLAVE CYL CLUTCH SYSTEM AUTO ADJUSTER<8BG>	5-87831-364-0	01	1	0106-	●		●	●
3	00.780 ROD; PUSH,SLAVE CYL CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-97185-369-0	01	1	0106-	●
3	00.780 ROD; PUSH,SLAVE CYL	8-94457-860-0	01	1	9811-0105	●	●
3	00.780 ROD; PUSH,SLAVE CYL EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-94457-860-0	01	1	0106-	●
3	00.780 ROD; PUSH,SLAVE CYL	8-97065-442-0	01	1	9811-0105			●
3	00.780 ROD; PUSH,SLAVE CYL EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-97065-442-0	01	1	0106-0207			●
3	00.780 ROD; PUSH,SLAVE CYL 4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-97065-442-0	01	1	0208-			●	●
3	00.780 ROD; PUSH,SLAVE CYL CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-97160-571-1	01	1	0106-0207			●
3	00.780 ROD; PUSH,SLAVE CYL 4HE1 ENG(RLY) CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-97160-571-1	01	1	0208-			●	●
4	00.780 NUT; ADJ,SLAVE CYL PUSH ROD	8-97032-299-0	01	1	9811-0105	●	●
4	00.780 NUT; ADJ,SLAVE CYL PUSH ROD EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-97032-299-0	01	1	0106-	●
4	00.780 NUT; ADJ,SLAVE CYL PUSH ROD	8-97065-441-0	01	1	9811-0105			●
4	00.780 NUT; ADJ,SLAVE CYL PUSH ROD EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-97065-441-0	01	1	0106-0207			●
4	00.780 NUT; ADJ,SLAVE CYL PUSH ROD 4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-97065-441-0	01	1	0208-			●	●
6	00.787 NUT; LK,ROD END M8	9-09111-408-0	01	1	9811-0105	●	●
6	00.787 NUT; LK,ROD END EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> M8	9-09111-408-0	01	1	0106-	●
6	00.787 NUT; LK,ROD END 06.822 M10	9-09111-410-0	01	1	9811-0105			●
6	00.787 NUT; LK,ROD END EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 06.822 M10	9-09111-410-0	01	1	0106-0207			●
6	00.787 NUT; LK,ROD END 4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 06.822 M10	9-09111-410-0	01	1	0208-			●	●
7	00.780 SCREW; BLEEDER,SLAVE CYL M8X16.5	8-94115-113-0	01	1	9811-0105	●	●	●
7	00.780 SCREW; BLEEDER,SLAVE CYL M8X16.5	8-94115-113-0	01	1	0106-	●		●	●
8	00.780 CAP; BLEEDER,SLAVE CYL OD=9.5	9-47619-005-0	01	1	9811-0105	●	●	●
8	00.780 CAP; BLEEDER,SLAVE CYL OD=9.5	9-47619-005-0	01	1	0106-	●		●	●

1 3 8 7 5 2 8 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.780 CYLINDER; SLAVE,CLU CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-97148-625-1	01	1	0106-	●
1	00.780 CYLINDER; SLAVE,CLU	8-97032-847-1	01	1	9811-0105	●	●
1	00.780 CYLINDER; SLAVE,CLU EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-97032-847-1	01	1	0106-	●
1	00.780 CYLINDER; SLAVE,CLU	8-97039-709-0	01	1	9811-0105			●
1	00.780 CYLINDER; SLAVE,CLU EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-97039-709-0	01	1	0106-0207			●
1	00.780 CYLINDER; SLAVE,CLU 4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-97039-709-0	01	1	0208-			●	●
1	00.780 CYLINDER; SLAVE,CLU CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-97148-628-1	01	1	0106-0207			●
1	00.780 CYLINDER; SLAVE,CLU 4HE1 ENG(RLY) CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-97148-628-1	01	1	0208-			●	●
2	00.780 REPAIR KIT; CLU SLAVE CYL	5-87831-204-0	01	1	9811-0105	●	●	●
2	00.780 REPAIR KIT; CLU SLAVE CYL EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>	5-87831-204-0	01	1	0106-	●		●	●
2	00.780 REPAIR KIT; CLU SLAVE CYL CLUTCH SYSTEM AUTO ADJUSTER<8BG>	5-87831-364-0	01	1	0106-	●		●	●
3	00.780 ROD; PUSH,SLAVE CYL CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-97185-369-0	01	1	0106-	●
3	00.780 ROD; PUSH,SLAVE CYL	8-94457-860-0	01	1	9811-0105	●	●
3	00.780 ROD; PUSH,SLAVE CYL EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-94457-860-0	01	1	0106-	●
3	00.780 ROD; PUSH,SLAVE CYL	8-97065-442-0	01	1	9811-0105			●
3	00.780 ROD; PUSH,SLAVE CYL EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-97065-442-0	01	1	0106-0207			●
3	00.780 ROD; PUSH,SLAVE CYL 4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-97065-442-0	01	1	0208-			●	●
3	00.780 ROD; PUSH,SLAVE CYL CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-97160-571-1	01	1	0106-0207			●
3	00.780 ROD; PUSH,SLAVE CYL 4HE1 ENG(RLY) CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-97160-571-1	01	1	0208-			●	●
5	00.780 SPRING ASM; PISTON,SLAVE CYL CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-97160-570-0	01	1	0106-	●		●	●
7	00.780 SCREW; BLEEDER,SLAVE CYL M8X16.5	8-94115-113-0	01	1	9811-0105	●	●	●
7	00.780 SCREW; BLEEDER,SLAVE CYL M8X16.5	8-94115-113-0	01	1	0106-	●		●	●
8	00.780 CAP; BLEEDER,SLAVE CYL OD=9.5	9-47619-005-0	01	1	9811-0105	●	●	●
8	00.780 CAP; BLEEDER,SLAVE CYL OD=9.5	9-47619-005-0	01	1	0106-	●		●	●
