3-11 — PARKING BRAKE CONTROL (#2213) — 138 parça

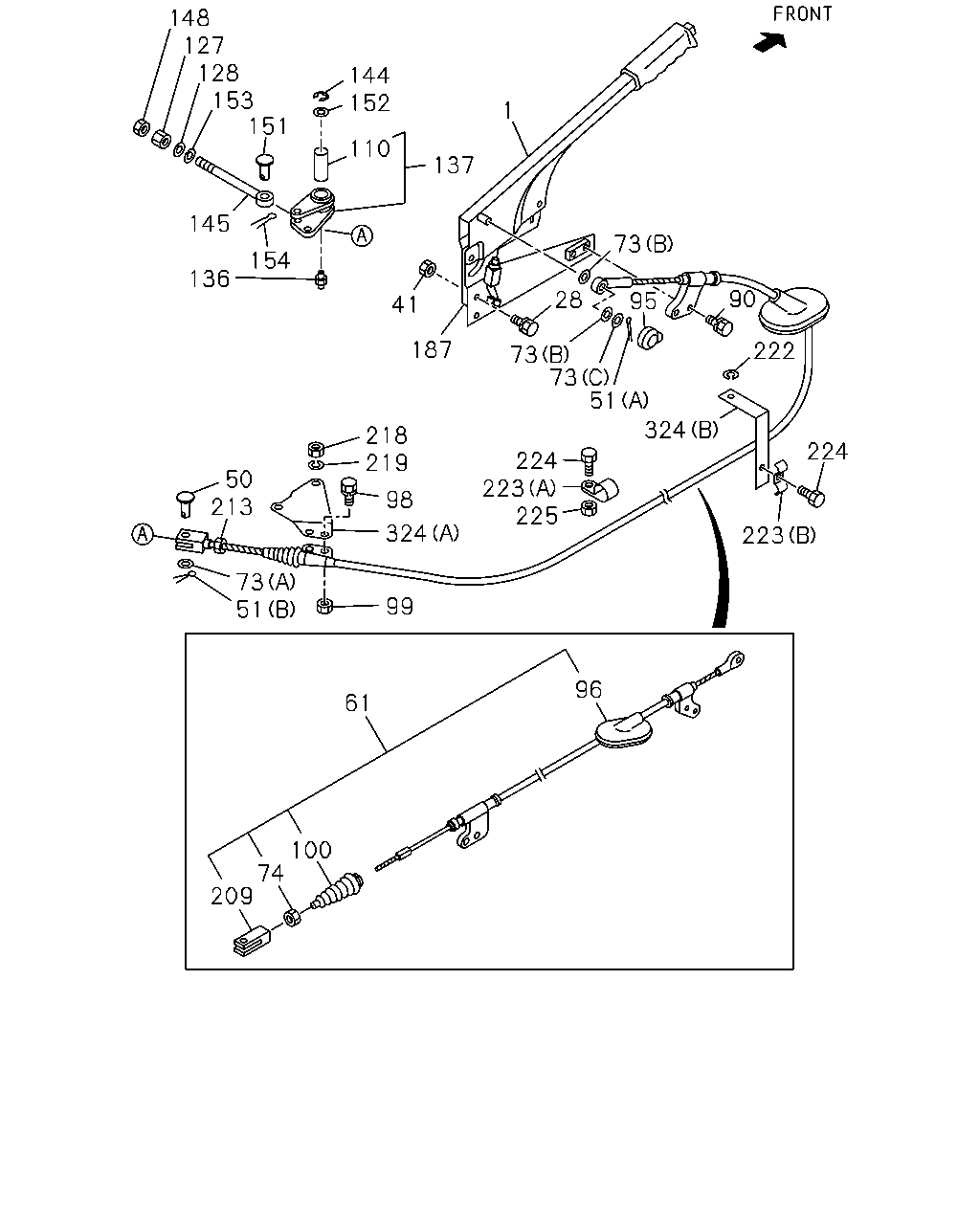

çizim 29239
148 127 128 153 151 144 152 1 110 137 145 73 154 136 28 95 90 41 187 222 73 73 51 324 218 219 224 224 223 225 50 213 98 324 223 73 51 99 96 61 100 74 209
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 STEM ASM; PARKING BRK
RIGHT HAND DRIVE(MTR5FB) 		1-46120-079-2 01 1 9101- ● ● ● ● ● ●
1 STEM ASM; PARKING BRK 1-46120-079-2 01 1 9101- ●
1 STEM ASM; PARKING BRK
LEFT HAND DRIVE(MTR6FB) 		1-46120-080-2 01 1 9101- ● ● ● ● ● ●
28 BOLT; HAND BRK LEVER
M8X30 W/LK WASHER 		0-50040-830-0 04 1 9101-9412 ● ● ● ● ● ● ●
28 BOLT; HAND BRK LEVER
M8X30 FLANGE 		0-28080-830-0 04 1 9501- ● ● ● ● ● ● ●
41 NUT; HAND BRK STEM
M8 		9-09110-408-0 04 1 9101-9412 ● ● ● ● ● ● ●
41 NUT; HAND BRK STEM
M8 FLANGE 		0-91150-208-0 04 1 9501-9501 ● ● ● ● ● ● ●
41 NUT; HAND BRK STEM
M8 FLANGE 		1-09440-049-0 04 1 9502- ● ● ● ● ● ● ●
50 PIN; CABLE TO LEVER
OD=10 L=28 		9-08224-028-0 01 1 9101- ●
51 PIN; JOINT,RELAY LEVER
(A) OD=3.7 L=28 		9-08114-028-0 01 1 9101- ● ● ● ● ● ● ●
51 PIN; JOINT,RELAY LEVER
(B) OD=2.8 L=18 		9-08113-018-0 01 1 9101- ●
61 CABLE; PARKING BRK
RIGHT HAND DRIVE(MTR5FB) L=1700 		1-46151-317-1 01 1 9101-9910 ● ● ● ●
61 CABLE; PARKING BRK
RIGHT HAND DRIVE(MTR5FB) L=2025 		1-46151-870-0 01 1 9911-0203 ● ● ● ●
61 CABLE; PARKING BRK
RIGHT HAND DRIVE(MTR5FB) L=2025 		1-46151-870-0 01 1 0204- ● ●
61 CABLE; PARKING BRK
LEFT HAND DRIVE(MTR6FB) L=4275 		1-46151-276-2 01 1 9101- ● ● ● ● ● ●
61 CABLE; PARKING BRK
RIGHT HAND DRIVE(MTR5FB) L=1800 		1-46151-359-0 01 1 9101-9910 ● ●
61 CABLE; PARKING BRK
RIGHT HAND DRIVE(MTR5FB) L=2125 		1-46151-869-0 01 1 9911-0203 ● ●
61 CABLE; PARKING BRK
RIGHT HAND DRIVE(MTR5FB) L=2125 		1-46151-869-0 01 1 0204- ●
61 CABLE; PARKING BRK
L=1450 		1-46151-360-0 01 1 9101-9910 ●
61 CABLE; PARKING BRK
L=1775 		1-46151-868-0 01 1 9911- ●
73 WASHER; PL,CABLE
(B) ID=19 		8-94206-429-1 01 1 9101- ● ● ● ● ● ● ●
73 WASHER; PL,CABLE
(A) ID=17 		9-09160-516-0 01 1 9101- ● ● ● ● ● ● ●
73 WASHER; PL,CABLE
(C) ID=10.5 OD=18 		9-09160-510-0 01 1 9101- ●
74 NUT; CONT WIRE
M8 		9-09110-408-0 01 1 9101- ●
90 BOLT; CABLE TO BRKT
M8X30 W/LK WASHER 		0-50040-830-0 02 1 9101- ● ● ● ● ● ● ●
95 CAP; CABLE,PARKING BRK 1-79997-140-2 01 1 9101- ● ● ● ● ● ● ●
96 GROMMET; CONT WIRE 1-79997-150-0 01 1 9101- ● ● ● ● ● ● ●
98 BOLT; RR COVER
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9101- ● ● ● ● ● ● ●
99 NUT; CONT CABLE
M10 		9-09110-410-0 02 1 9101-9307 ● ● ● ● ● ● ●
99 NUT; CONT CABLE
M10 		9-09110-510-0 02 1 9308- ● ● ● ● ● ● ●
100 BELLOWS; CONT WIRE 1-46159-004-0 01 1 9101-9910 ● ● ● ● ● ● ●
100 BELLOWS; CONT WIRE
LEFT HAND DRIVE(MTR6FB) 		1-46159-004-0 01 1 9911- ● ● ● ● ● ●
110 BUSHING; CONT LEVER 9-46279-021-0 01 1 9101- ●
127 NUT; LINK 1-09445-001-0 01 1 9101- ●
128 WASHER; PL,LINK
ID=10.5 		9-09164-510-0 01 1 9101- ●
136 NIPPLE; GREASE
M6 STRAIGHT 		9-09031-006-0 01 1 9101- ●
137 LEVER ASM; W/BUSHING 1-46252-025-0 01 1 9101- ●
144 RING; SNAP,E TYPE,BRKT
ID=12 		9-09185-412-0 01 1 9101- ●
145 LINK; PARKING BRK CONT 1-46142-046-0 01 1 9101- ●
148 NUT; LK,LINK
M10 		9-09110-410-0 01 1 9101-9307 ●
148 NUT; LK,LINK
M10 		9-09110-510-0 01 1 9308- ●
151 PIN; LINK TO LEVER 9-08234-035-0 01 1 9101- ●
152 WASHER; PL,CONT LEVER
ID=14.5 OD=30 		9-09851-946-0 01 1 9101- ●
153 WASHER; WAVE,LINK 9-09855-192-0 01 1 9101- ●
154 PIN; SPLIT,LINK
OD=2.8 L=18 		9-08113-018-0 01 1 9101- ●
187 BRACKET; HAND BRK
RIGHT HAND DRIVE(MTR5FB) 		1-46147-100-2 01 1 9101- ● ● ● ● ● ●
187 BRACKET; HAND BRK 1-46147-100-2 01 1 9101- ●
187 BRACKET; HAND BRK
LEFT HAND DRIVE(MTR6FB) 		1-46147-102-2 01 1 9101- ● ● ● ● ● ●
209 JOINT; JAW,CONT WIRE 1-09768-058-0 01 1 9101- ●
213 NUT; WIRE,RR COVER
M8 		9-09110-408-0 01 1 9101- ● ● ● ● ● ● ●
213 NUT; WIRE,RR COVER
M8 FLANGE 		9-46259-016-0 02 1 9101-9310 ● ● ● ● ● ● ●
213 NUT; WIRE,RR COVER
M8 FLANGE 		9-46259-016-0 01 1 9311- ● ● ● ● ● ● ●
218 NUT; BRKT,PARKING BRK CABLE
M10 		9-09110-410-0 02 1 9101-9307 ●
218 NUT; BRKT,PARKING BRK CABLE
M10 		9-09110-510-0 02 1 9308- ●
219 WASHER; LK,BRKT,PARKING BRK CABLE
ID=10.2 		9-09150-510-0 02 1 9101- ●
222 WASHER; LK,BRKT
RIGHT HAND DRIVE(MTR5FB) ID=10.2 		9-09150-510-0 01 1 9101- ● ● ● ● ● ●
222 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 9101- ●
223 CLIP; PARKING BRK CABLE
RIGHT HAND DRIVE(MTR5FB) (B) ID=16 & 11 L=18 & 17 		1-09700-657-0 01 1 9101- ● ● ● ● ● ●
223 CLIP; PARKING BRK CABLE
(B) ID=16 & 11 L=18 & 17 		1-09700-657-0 01 1 9101- ●
223 CLIP; PARKING BRK CABLE
LEFT HAND DRIVE(MTR6FB) (A) ID=14 L=32 		1-09700-095-0 01 1 9101- ● ● ● ● ● ●
223 CLIP; PARKING BRK CABLE
LEFT HAND DRIVE(MTR6FB) (C) D=24 L=21 		1-09700-380-0 01 1 9101- ● ● ● ● ● ●
223 CLIP; PARKING BRK CABLE
(A) L=20 ID=14 		1-09700-094-2 01 1 9101- ● ● ● ● ● ● ●
224 BOLT; CABLE CLIP
RIGHT HAND DRIVE(MTR5FB) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9101-9204 ● ● ● ● ● ●
224 BOLT; CABLE CLIP
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9101-9204 ●
224 BOLT; CABLE CLIP
RIGHT HAND DRIVE(MTR5FB) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205- ● ● ● ● ● ●
224 BOLT; CABLE CLIP
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205- ●
224 BOLT; CABLE CLIP
LEFT HAND DRIVE(MTR6FB) M8X20 W/LK WASHER 		9-01900-820-0 03 1 9101-9204 ● ● ● ● ● ●
224 BOLT; CABLE CLIP
LEFT HAND DRIVE(MTR6FB) M8X20 W/LK WASHER 		0-50040-820-0 03 1 9205- ● ● ● ● ● ●
225 NUT; CABLE CLIP
RIGHT HAND DRIVE(MTR5FB) M8 		9-09110-408-0 01 1 9101- ● ● ● ● ● ●
225 NUT; CABLE CLIP
M8 		9-09110-408-0 01 1 9101- ●
225 NUT; CABLE CLIP
LEFT HAND DRIVE(MTR6FB) M8 		9-09110-408-0 03 1 9101- ● ● ● ● ● ●
324 BRACKET
RIGHT HAND DRIVE(MTR5FB) (B) 		1-46147-123-0 01 1 9101- ● ● ● ● ● ●
324 BRACKET
(B) 		1-46147-123-0 01 1 9101- ●
324 BRACKET
LEFT HAND DRIVE(MTR6FB) (C) 		1-47475-455-0 01 1 9101- ● ● ● ● ● ●
324 BRACKET
(A) 		1-46147-115-0 01 1 9101- ●

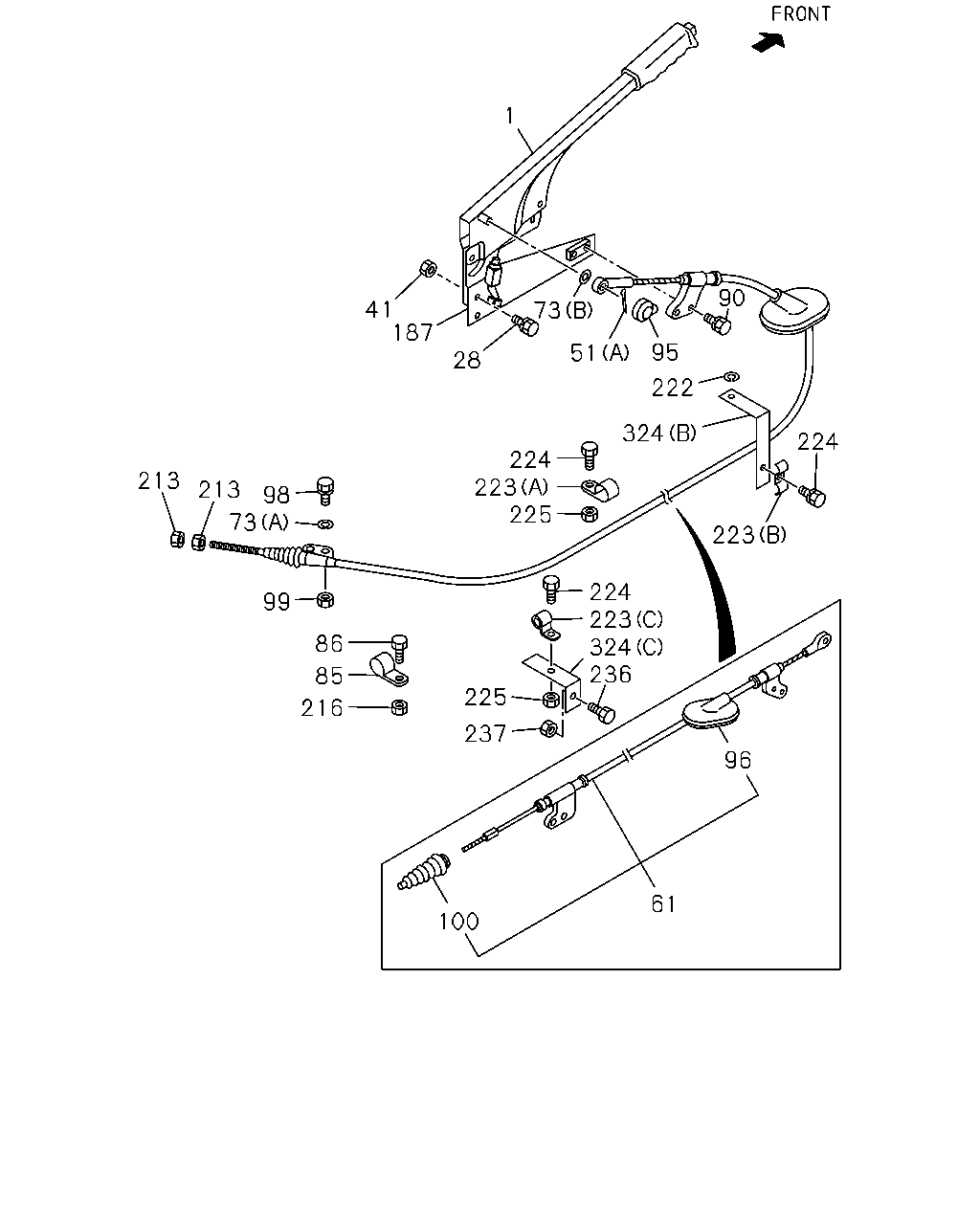

çizim 94442
1 73 90 41 187 95 51 28 222 324 224 224 223 225 213 213 98 73 223 224 223 324 236 99 86 85 225 216 237 96 61 100
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 STEM ASM; PARKING BRK
RIGHT HAND DRIVE(MTR5FB) 		1-46120-079-2 01 1 9101- ● ● ● ● ● ●
1 STEM ASM; PARKING BRK 1-46120-079-2 01 1 9101- ●
1 STEM ASM; PARKING BRK
LEFT HAND DRIVE(MTR6FB) 		1-46120-080-2 01 1 9101- ● ● ● ● ● ●
28 BOLT; HAND BRK LEVER
M8X30 W/LK WASHER 		0-50040-830-0 04 1 9101-9412 ● ● ● ● ● ● ●
28 BOLT; HAND BRK LEVER
M8X30 FLANGE 		0-28080-830-0 04 1 9501- ● ● ● ● ● ● ●
41 NUT; HAND BRK STEM
M8 		9-09110-408-0 04 1 9101-9412 ● ● ● ● ● ● ●
41 NUT; HAND BRK STEM
M8 FLANGE 		0-91150-208-0 04 1 9501-9501 ● ● ● ● ● ● ●
41 NUT; HAND BRK STEM
M8 FLANGE 		1-09440-049-0 04 1 9502- ● ● ● ● ● ● ●
51 PIN; JOINT,RELAY LEVER
(A) OD=3.7 L=28 		9-08114-028-0 01 1 9101- ● ● ● ● ● ● ●
51 PIN; JOINT,RELAY LEVER
(B) OD=2.8 L=18 		9-08113-018-0 01 1 9101- ●
61 CABLE; PARKING BRK
RIGHT HAND DRIVE(MTR5FB) L=1700 		1-46151-317-1 01 1 9101-9910 ● ● ● ●
61 CABLE; PARKING BRK
RIGHT HAND DRIVE(MTR5FB) L=2025 		1-46151-870-0 01 1 9911-0203 ● ● ● ●
61 CABLE; PARKING BRK
RIGHT HAND DRIVE(MTR5FB) L=2025 		1-46151-870-0 01 1 0204- ● ●
61 CABLE; PARKING BRK
LEFT HAND DRIVE(MTR6FB) L=4275 		1-46151-276-2 01 1 9101- ● ● ● ● ● ●
61 CABLE; PARKING BRK
RIGHT HAND DRIVE(MTR5FB) L=1800 		1-46151-359-0 01 1 9101-9910 ● ●
61 CABLE; PARKING BRK
RIGHT HAND DRIVE(MTR5FB) L=2125 		1-46151-869-0 01 1 9911-0203 ● ●
61 CABLE; PARKING BRK
RIGHT HAND DRIVE(MTR5FB) L=2125 		1-46151-869-0 01 1 0204- ●
61 CABLE; PARKING BRK
L=1450 		1-46151-360-0 01 1 9101-9910 ●
61 CABLE; PARKING BRK
L=1775 		1-46151-868-0 01 1 9911- ●
73 WASHER; PL,CABLE
(B) ID=19 		8-94206-429-1 01 1 9101- ● ● ● ● ● ● ●
73 WASHER; PL,CABLE
(A) ID=17 		9-09160-516-0 01 1 9101- ● ● ● ● ● ● ●
73 WASHER; PL,CABLE
(C) ID=10.5 OD=18 		9-09160-510-0 01 1 9101- ●
85 CLIP; BRKT
LEFT HAND DRIVE(MTR6FB) ID=14 L=32 		1-09700-095-0 02 1 9101- ● ● ● ● ● ●
86 BOLT
LEFT HAND DRIVE(MTR6FB) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9101-9204 ● ● ● ● ● ●
86 BOLT
LEFT HAND DRIVE(MTR6FB) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205- ● ● ● ● ● ●
90 BOLT; CABLE TO BRKT
M8X30 W/LK WASHER 		0-50040-830-0 02 1 9101- ● ● ● ● ● ● ●
95 CAP; CABLE,PARKING BRK 1-79997-140-2 01 1 9101- ● ● ● ● ● ● ●
96 GROMMET; CONT WIRE 1-79997-150-0 01 1 9101- ● ● ● ● ● ● ●
98 BOLT; RR COVER
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9101- ● ● ● ● ● ● ●
99 NUT; CONT CABLE
M10 		9-09110-410-0 02 1 9101-9307 ● ● ● ● ● ● ●
99 NUT; CONT CABLE
M10 		9-09110-510-0 02 1 9308- ● ● ● ● ● ● ●
100 BELLOWS; CONT WIRE 1-46159-004-0 01 1 9101-9910 ● ● ● ● ● ● ●
100 BELLOWS; CONT WIRE
LEFT HAND DRIVE(MTR6FB) 		1-46159-004-0 01 1 9911- ● ● ● ● ● ●
187 BRACKET; HAND BRK
RIGHT HAND DRIVE(MTR5FB) 		1-46147-100-2 01 1 9101- ● ● ● ● ● ●
187 BRACKET; HAND BRK 1-46147-100-2 01 1 9101- ●
187 BRACKET; HAND BRK
LEFT HAND DRIVE(MTR6FB) 		1-46147-102-2 01 1 9101- ● ● ● ● ● ●
213 NUT; WIRE,RR COVER
M8 		9-09110-408-0 01 1 9101- ● ● ● ● ● ● ●
213 NUT; WIRE,RR COVER
M8 FLANGE 		9-46259-016-0 02 1 9101-9310 ● ● ● ● ● ● ●
213 NUT; WIRE,RR COVER
M8 FLANGE 		9-46259-016-0 01 1 9311- ● ● ● ● ● ● ●
216 NUT; CLIP,1ST C/MBR
LEFT HAND DRIVE(MTR6FB) M8 		9-09110-408-0 02 1 9101- ● ● ● ● ● ●
222 WASHER; LK,BRKT
RIGHT HAND DRIVE(MTR5FB) ID=10.2 		9-09150-510-0 01 1 9101- ● ● ● ● ● ●
222 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 9101- ●
223 CLIP; PARKING BRK CABLE
RIGHT HAND DRIVE(MTR5FB) (B) ID=16 & 11 L=18 & 17 		1-09700-657-0 01 1 9101- ● ● ● ● ● ●
223 CLIP; PARKING BRK CABLE
(B) ID=16 & 11 L=18 & 17 		1-09700-657-0 01 1 9101- ●
223 CLIP; PARKING BRK CABLE
LEFT HAND DRIVE(MTR6FB) (A) ID=14 L=32 		1-09700-095-0 01 1 9101- ● ● ● ● ● ●
223 CLIP; PARKING BRK CABLE
LEFT HAND DRIVE(MTR6FB) (C) D=24 L=21 		1-09700-380-0 01 1 9101- ● ● ● ● ● ●
223 CLIP; PARKING BRK CABLE
(A) L=20 ID=14 		1-09700-094-2 01 1 9101- ● ● ● ● ● ● ●
224 BOLT; CABLE CLIP
RIGHT HAND DRIVE(MTR5FB) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9101-9204 ● ● ● ● ● ●
224 BOLT; CABLE CLIP
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9101-9204 ●
224 BOLT; CABLE CLIP
RIGHT HAND DRIVE(MTR5FB) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205- ● ● ● ● ● ●
224 BOLT; CABLE CLIP
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205- ●
224 BOLT; CABLE CLIP
LEFT HAND DRIVE(MTR6FB) M8X20 W/LK WASHER 		9-01900-820-0 03 1 9101-9204 ● ● ● ● ● ●
224 BOLT; CABLE CLIP
LEFT HAND DRIVE(MTR6FB) M8X20 W/LK WASHER 		0-50040-820-0 03 1 9205- ● ● ● ● ● ●
225 NUT; CABLE CLIP
RIGHT HAND DRIVE(MTR5FB) M8 		9-09110-408-0 01 1 9101- ● ● ● ● ● ●
225 NUT; CABLE CLIP
M8 		9-09110-408-0 01 1 9101- ●
225 NUT; CABLE CLIP
LEFT HAND DRIVE(MTR6FB) M8 		9-09110-408-0 03 1 9101- ● ● ● ● ● ●
236 BOLT; BRKT TO FRAME
LEFT HAND DRIVE(MTR6FB) M8X20 W/LK WASHER 		9-01900-820-0 01 1 9101-9204 ● ● ● ● ● ●
236 BOLT; BRKT TO FRAME
LEFT HAND DRIVE(MTR6FB) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205- ● ● ● ● ● ●
237 NUT; BRKT TO FRAME
LEFT HAND DRIVE(MTR6FB) M8 		9-09110-408-0 01 1 9101- ● ● ● ● ● ●
324 BRACKET
RIGHT HAND DRIVE(MTR5FB) (B) 		1-46147-123-0 01 1 9101- ● ● ● ● ● ●
324 BRACKET
(B) 		1-46147-123-0 01 1 9101- ●
324 BRACKET
LEFT HAND DRIVE(MTR6FB) (C) 		1-47475-455-0 01 1 9101- ● ● ● ● ● ●
324 BRACKET
(A) 		1-46147-115-0 01 1 9101- ●
