2-05 — CLUTCH PIPING (#22129) — 116 parça

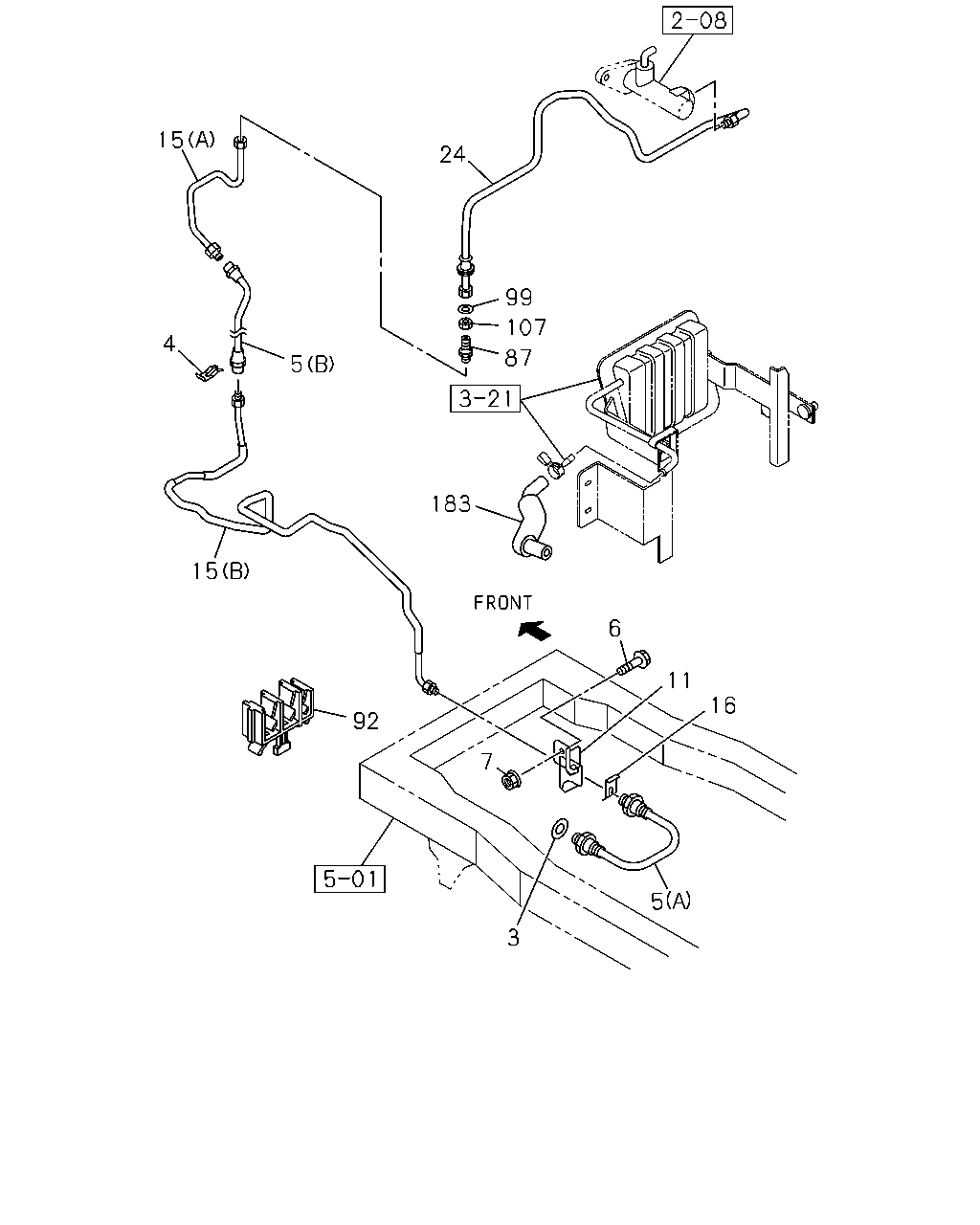

çizim 47388
15 24 99 107 4 87 5 183 15 6 11 16 92 7 5 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 9811-0105 ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 0106- ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 9811-0105 ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0106- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97047-058-1 01 1 0106- ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94248-703-2 01 1 0106- ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97064-108-1 01 1 9811-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97064-108-1 01 1 0106- ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 9811-0105 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0106- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-94108-360-2 01 1 9811-0105 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-94108-360-2 01 1 0106- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A) 		8-97148-640-0 01 1 9811-0105 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 0106-0207 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 0106-0207 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 0208- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 0208- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-94377-793-1 01 1 9811-0105 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94377-793-1 01 1 0106-0207 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV),CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94377-793-1 01 1 0208- ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-94366-288-0 01 1 0012-0101 ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 9811-0011 ● ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0012-0101 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0102-0105 ● ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0106- ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
HYDRO MASTER<7LT> (A) 		8-97129-537-0 01 1 9811- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 9811-0105 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 0106- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97065-312-5 01 1 9811-0105 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97065-312-5 01 1 0106- ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. HYDRO MASTER<7LT> (A) 		8-97177-305-0 01 1 9811-0105 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. HYDRO MASTER<7LT> (A) 		8-97177-305-0 01 1 0106- ● ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 9811-0105 ● ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 0106- ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
HYDRO MASTER<7LT> EXC. POWER ASSIST CLUTCH(S2T) 		8-97129-535-0 01 1 9811-0105 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
HYDRO MASTER<7LT> EXC. POWER ASSIST CLUTCH(S2T) 		8-97129-535-0 01 1 0106- ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) HYDRO MASTER<7LT> 		8-97217-336-0 01 1 9811-0105 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
HYDRO MASTER<7LT> POWER ASSIST CLUTCH(S2T) 		8-97217-336-0 01 1 0106- ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT> 		8-97177-034-0 01 1 9811-0105 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT> 		8-97177-034-0 01 1 0106- ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT> 		8-97149-835-0 01 1 9811-0105 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT> 		8-97149-835-0 01 1 0106- ● ● ●
87 00.785 UNION; OIL PIPE
HYDRO MASTER<7LT> M12 2WAY 		1-09654-257-1 01 1 9811-0105 ● ● ●
87 00.785 UNION; OIL PIPE
HYDRO MASTER<7LT> M12 2WAY 		1-09654-257-1 01 1 0106- ●
87 00.785 UNION; OIL PIPE
EXC. HYDRO MASTER<7LT> M12 STRAIGHT 		9-99227-006-0 01 1 9811-0105 ● ● ●
87 00.785 UNION; OIL PIPE
EXC. HYDRO MASTER<7LT> M12 STRAIGHT 		9-99227-006-0 01 1 0106- ● ● ●
92 00.785 CLIP; OIL PIPE
FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 02 1 9811-0105 ● ● ●
92 00.785 CLIP; OIL PIPE
FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 02 1 0106- ● ● ●
99 00.785 WASHER; LK,UNION,OIL PIPE
HYDRO MASTER<7LT> 04.634 ID=12.2 		9-09150-512-0 01 1 9811-0105 ● ● ●
99 00.785 WASHER; LK,UNION,OIL PIPE
HYDRO MASTER<7LT> 04.634 ID=12.2 		9-09150-512-0 01 1 0106- ●
107 00.785 NUT; UNION,OIL PIPE
HYDRO MASTER<7LT> 04.686 M12 		9-09840-280-0 01 1 9811-0105 ● ● ●
107 00.785 NUT; UNION,OIL PIPE
HYDRO MASTER<7LT> 04.686 M12 		9-09840-280-0 01 1 0106- ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97129-874-0 01 1 9811-0105 ● ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97129-874-0 01 1 0106- ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97129-873-0 01 1 9811-0105 ● ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97129-873-0 01 1 0106- ● ● ●

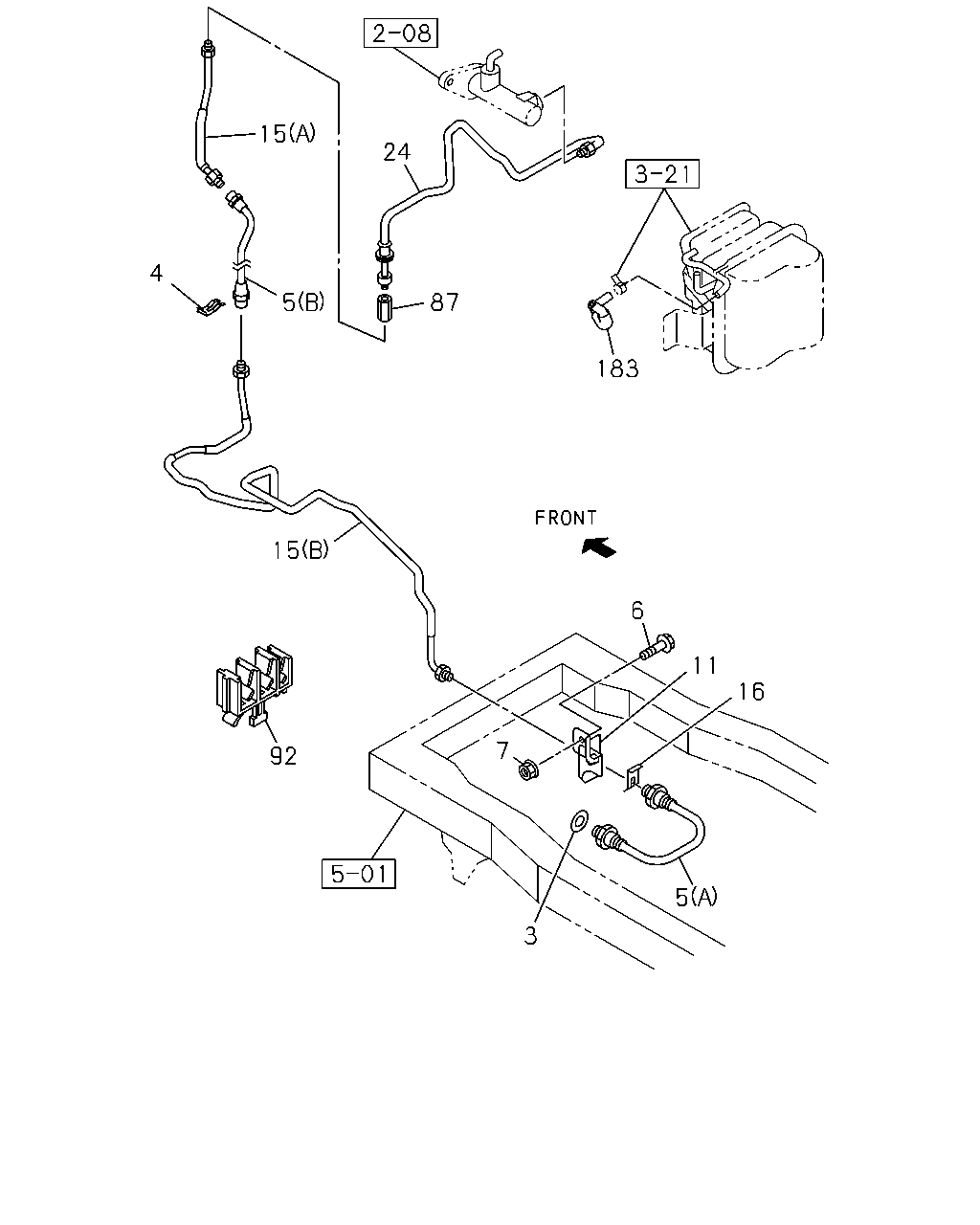

çizim 49037
15 24 4 87 5 183 15 6 11 16 7 92 5 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 9811-0105 ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 0106- ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 9811-0105 ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0106- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97047-058-1 01 1 0106- ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94248-703-2 01 1 0106- ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97064-108-1 01 1 9811-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97064-108-1 01 1 0106- ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 9811-0105 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0106- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-94108-360-2 01 1 9811-0105 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-94108-360-2 01 1 0106- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A) 		8-97148-640-0 01 1 9811-0105 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 0106-0207 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 0106-0207 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 0208- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 0208- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-94377-793-1 01 1 9811-0105 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94377-793-1 01 1 0106-0207 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV),CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94377-793-1 01 1 0208- ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-94366-288-0 01 1 0012-0101 ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 9811-0011 ● ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0012-0101 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0102-0105 ● ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0106- ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
HYDRO MASTER<7LT> (A) 		8-97129-537-0 01 1 9811- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 9811-0105 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 0106- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97065-312-5 01 1 9811-0105 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97065-312-5 01 1 0106- ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. HYDRO MASTER<7LT> (A) 		8-97177-305-0 01 1 9811-0105 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. HYDRO MASTER<7LT> (A) 		8-97177-305-0 01 1 0106- ● ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 9811-0105 ● ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 0106- ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
HYDRO MASTER<7LT> EXC. POWER ASSIST CLUTCH(S2T) 		8-97129-535-0 01 1 9811-0105 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
HYDRO MASTER<7LT> EXC. POWER ASSIST CLUTCH(S2T) 		8-97129-535-0 01 1 0106- ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) HYDRO MASTER<7LT> 		8-97217-336-0 01 1 9811-0105 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
HYDRO MASTER<7LT> POWER ASSIST CLUTCH(S2T) 		8-97217-336-0 01 1 0106- ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT> 		8-97177-034-0 01 1 9811-0105 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT> 		8-97177-034-0 01 1 0106- ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT> 		8-97149-835-0 01 1 9811-0105 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT> 		8-97149-835-0 01 1 0106- ● ● ●
87 00.785 UNION; OIL PIPE
HYDRO MASTER<7LT> M12 2WAY 		1-09654-257-1 01 1 9811-0105 ● ● ●
87 00.785 UNION; OIL PIPE
HYDRO MASTER<7LT> M12 2WAY 		1-09654-257-1 01 1 0106- ●
87 00.785 UNION; OIL PIPE
EXC. HYDRO MASTER<7LT> M12 STRAIGHT 		9-99227-006-0 01 1 9811-0105 ● ● ●
87 00.785 UNION; OIL PIPE
EXC. HYDRO MASTER<7LT> M12 STRAIGHT 		9-99227-006-0 01 1 0106- ● ● ●
92 00.785 CLIP; OIL PIPE
FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 02 1 9811-0105 ● ● ●
92 00.785 CLIP; OIL PIPE
FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 02 1 0106- ● ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97129-874-0 01 1 9811-0105 ● ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97129-874-0 01 1 0106- ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97129-873-0 01 1 9811-0105 ● ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97129-873-0 01 1 0106- ● ● ●
