2-03 — CLUTCH PEDAL AND CONTROL (#22128) — 72 parça

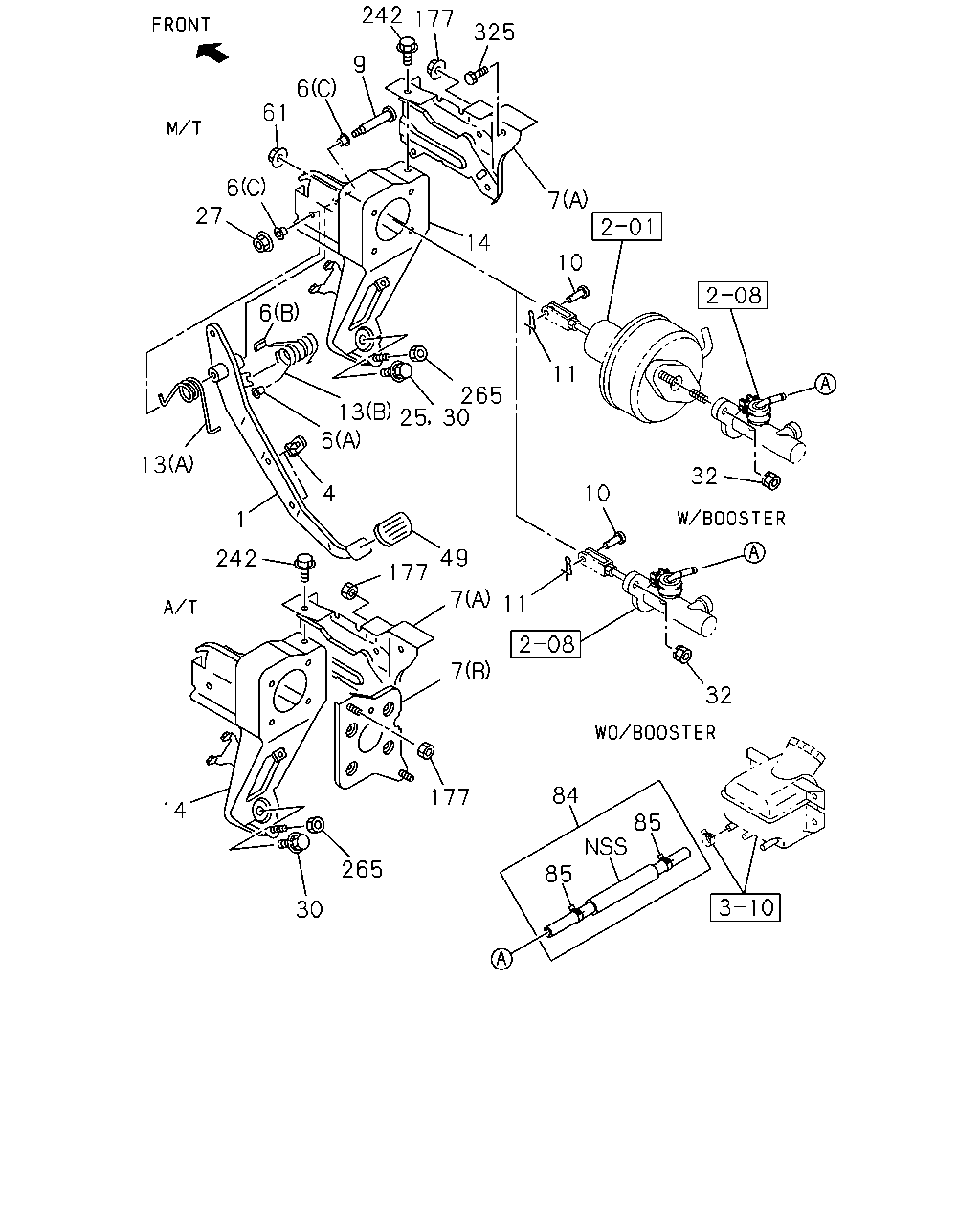

çizim 9499
242 177 325 6 61 6 27 7 14 10 6 11 265 30 13 25 6 13 32 10 4 1 49 242 177 7 11 7 32 84 177 14 85 265 85 30 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.830 PEDAL; CLU
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97853-220-2 01 1 9811- ● ● ● ● ● ● ●
1 00.830 PEDAL; CLU
FLOOR REMOTE SHIFT<M11> EXC. THAILAND EQUIPMENT(PM9),POWER ASSIST CLUTCH(S2T) 		8-97857-984-1 01 1 9811-0105 ● ● ● ● ● ● ●
1 00.830 PEDAL; CLU
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97857-984-2 01 1 0106- ● ● ● ● ● ● ●
4 00.829 STOPPER; CLU PEDAL
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97853-534-0 02 1 9811-9903 ● ● ● ● ● ●
4 00.829 STOPPER; CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. THAILAND EQUIPMENT(PM9),POWER ASSIST CLUTCH(S2T) 		8-97853-534-0 02 1 9811-9903 ● ● ● ● ● ●
4 00.829 STOPPER; CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. THAILAND EQUIPMENT(PM9) 		8-97853-534-0 02 1 9904-0012 ● ● ● ● ● ●
4 00.829 STOPPER; CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. THAILAND EQUIPMENT(PM9) 		8-97853-534-0 02 1 0101-0105 ● ● ● ● ● ● ●
4 00.829 STOPPER; CLU PEDAL
FLOOR REMOTE SHIFT<M11> 		8-97853-534-1 02 1 0106- ● ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 04.792 (C) 		8-94238-596-0 02 1 9811-9903 ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. THAILAND EQUIPMENT(PM9),POWER ASSIST CLUTCH(S2T) 04.792 (C) 		8-94238-596-0 02 1 9811-9903 ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. THAILAND EQUIPMENT(PM9) 04.792 (C) 		8-94238-596-0 02 1 9904-0105 ● ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
FLOOR REMOTE SHIFT<M11> 04.792 (C) 		8-94238-596-0 02 1 0106- ● ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. THAILAND EQUIPMENT(PM9),POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 9811-0105 ● ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 0106- ● ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. THAILAND EQUIPMENT(PM9),POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 9811-0105 ● ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 0106- ● ● ● ● ● ● ●
7 00.829 BRACKET; CLU PEDAL
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (A) 		8-97853-522-4 01 1 9811-9903 ● ● ● ● ● ●
7 00.829 BRACKET; CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. THAILAND EQUIPMENT(PM9),POWER ASSIST CLUTCH(S2T) (A) 		8-97853-522-4 01 1 9811-9903 ● ● ● ● ● ●
7 00.829 BRACKET; CLU PEDAL
A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ) (A) 		8-97853-522-4 01 1 9811-9903 ● ● ●
7 00.829 BRACKET; CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. THAILAND EQUIPMENT(PM9) (A) 		8-97853-522-4 01 1 9904-0105 ● ● ● ● ● ● ●
7 00.829 BRACKET; CLU PEDAL
A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ) (A) 		8-97853-522-4 01 1 9904-0105 ● ● ●
7 00.829 BRACKET; CLU PEDAL
(A) 		8-97853-522-4 01 1 0106- ● ● ● ● ● ● ●
7 00.829 BRACKET; CLU PEDAL
A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97853-790-4 01 1 9811- ●
9 00.833 PIN; CLU PEDAL
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 04.634 		8-97866-667-0 01 1 9811-9903 ● ● ● ● ● ●
9 00.833 PIN; CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. THAILAND EQUIPMENT(PM9),POWER ASSIST CLUTCH(S2T) 04.634 		8-97866-667-0 01 1 9811-9903 ● ● ● ● ● ●
9 00.833 PIN; CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. THAILAND EQUIPMENT(PM9) 04.634 		8-97866-667-0 01 1 9904-0105 ● ● ● ● ● ● ●
9 00.833 PIN; CLU PEDAL
FLOOR REMOTE SHIFT<M11> 04.634 		8-97866-667-0 01 1 0106- ● ● ● ● ● ● ●
10 00.833 PIN; CLU PEDAL
FLOOR REMOTE SHIFT<M11> 04.634 		8-94410-276-0 01 1 9811- ● ● ● ● ●
10 00.833 PIN; CLU PEDAL
04.634 		8-94410-276-0 01 1 9811- ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
FLOOR REMOTE SHIFT<M11> 04.634 		8-94279-912-0 01 1 9811- ● ● ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
04.634 		8-94279-912-0 01 1 9811- ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (A) 		8-97853-535-1 01 1 9811- ● ● ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. THAILAND EQUIPMENT(PM9),POWER ASSIST CLUTCH(S2T) (B) 		8-97853-221-1 01 1 9811-0105 ● ● ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-221-1 01 1 0106- ● ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
A/T 4 SPEED-AISIN(RNJ) 		8-97890-498-0 01 1 9811-9903 ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
A/T 4 SPEED-AISIN(RNJ) 		8-97892-858-0 01 1 9904-9905 ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
A/T 4 SPEED-AISIN(RNJ) 		8-97898-055-0 01 1 9906- ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97867-997-1 01 1 9811-9903 ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97892-849-2 01 1 9904- ● ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
FLOOR REMOTE SHIFT<M11> EXC. THAILAND EQUIPMENT(PM9),POWER ASSIST CLUTCH(S2T) 		8-97867-998-1 01 1 9811-9903 ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
FLOOR REMOTE SHIFT<M11> EXC. THAILAND EQUIPMENT(PM9),POWER ASSIST CLUTCH(S2T) 		8-97892-848-2 01 1 9904-0105 ● ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97892-848-2 01 1 0106- ● ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) 		8-97867-999-1 01 1 9811-9903 ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) 		8-97892-856-0 01 1 9904-9905 ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) 		8-97898-053-0 01 1 9906- ●
25 00.833 BOLT; PEDAL
04.634 M10X22 W/WASHER 		8-94279-099-0 01 1 9811-0110 ● ● ● ● ● ● ●
25 00.833 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 01 1 0111- ● ● ● ● ● ● ●
27 00.833 NUT; FULCRUM PIN
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) M10 FLANGE 		1-09440-022-0 01 1 9811-9903 ● ● ● ● ● ●
27 00.833 NUT; FULCRUM PIN
FLOOR REMOTE SHIFT<M11> EXC. THAILAND EQUIPMENT(PM9),POWER ASSIST CLUTCH(S2T) M10 FLANGE 		1-09440-022-0 01 1 9811-9903 ● ● ● ● ● ●
27 00.833 NUT; FULCRUM PIN
FLOOR REMOTE SHIFT<M11> EXC. THAILAND EQUIPMENT(PM9) M10 FLANGE 		1-09440-022-0 01 1 9904-0105 ● ● ● ● ● ● ●
27 00.833 NUT; FULCRUM PIN
FLOOR REMOTE SHIFT<M11> M10 FLANGE 		1-09440-022-0 01 1 0106- ● ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
09.003 M10X25 FLANGE 		0-28691-025-0 01 1 9811- ● ● ● ● ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
FLOOR REMOTE SHIFT<M11> M8 W/LK WASHER 		8-94279-050-0 02 1 9811- ● ● ● ● ● ● ●
49 00.829 RUBBER; PAD,CLU PEDAL
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97853-413-1 01 1 9811-9903 ● ● ● ● ● ●
49 00.829 RUBBER; PAD,CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. THAILAND EQUIPMENT(PM9),POWER ASSIST CLUTCH(S2T) 		8-97853-413-1 01 1 9811-9903 ● ● ● ● ● ●
49 00.829 RUBBER; PAD,CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. THAILAND EQUIPMENT(PM9) 		8-97853-413-1 01 1 9904-0105 ● ● ● ● ● ● ●
49 00.829 RUBBER; PAD,CLU PEDAL
FLOOR REMOTE SHIFT<M11> 		8-97853-413-2 01 1 0106- ● ● ● ● ● ● ●
61 00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER 		8-94279-050-0 04 1 9811- ● ● ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
FLOOR REMOTE SHIFT<M11> 		8-97135-025-0 01 1 9811- ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE 8-97135-025-0 01 1 9811- ● ●
85 00.785 CLIP; HOSE TO M/CYL
FLOOR REMOTE SHIFT<M11> 04.681 		8-97130-480-0 02 1 9811- ● ● ● ● ●
85 00.785 CLIP; HOSE TO M/CYL
04.681 		8-97130-480-0 02 1 9811- ● ●
177 00.785 NUT; BRKT
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 9811- ● ● ● ● ● ● ●
177 00.785 NUT; BRKT
A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 9811- ●
242 00.785 BOLT; BRKT,CLUTCH
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 08.155 M8X16 FLANGE 		0-28480-816-0 02 1 9811-9903 ● ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
FLOOR REMOTE SHIFT<M11> EXC. THAILAND EQUIPMENT(PM9),POWER ASSIST CLUTCH(S2T) 08.155 M8X16 FLANGE 		0-28480-816-0 02 1 9811-9903 ● ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ) 08.155 M8X16 FLANGE 		0-28480-816-0 02 1 9811-9903 ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
FLOOR REMOTE SHIFT<M11> EXC. THAILAND EQUIPMENT(PM9) 08.155 M8X16 FLANGE 		0-28480-816-0 02 1 9904-0105 ● ● ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ) 08.155 M8X16 FLANGE 		0-28480-816-0 02 1 9904-0105 ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
08.155 M8X16 FLANGE 		0-28480-816-0 02 1 0106- ● ● ● ● ● ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
04.010 M8 FLANGE 		8-97046-127-0 01 1 9811- ● ● ● ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9811- ● ● ● ● ● ● ●
