2-01 — CLUTCH (#22127) — 167 parça

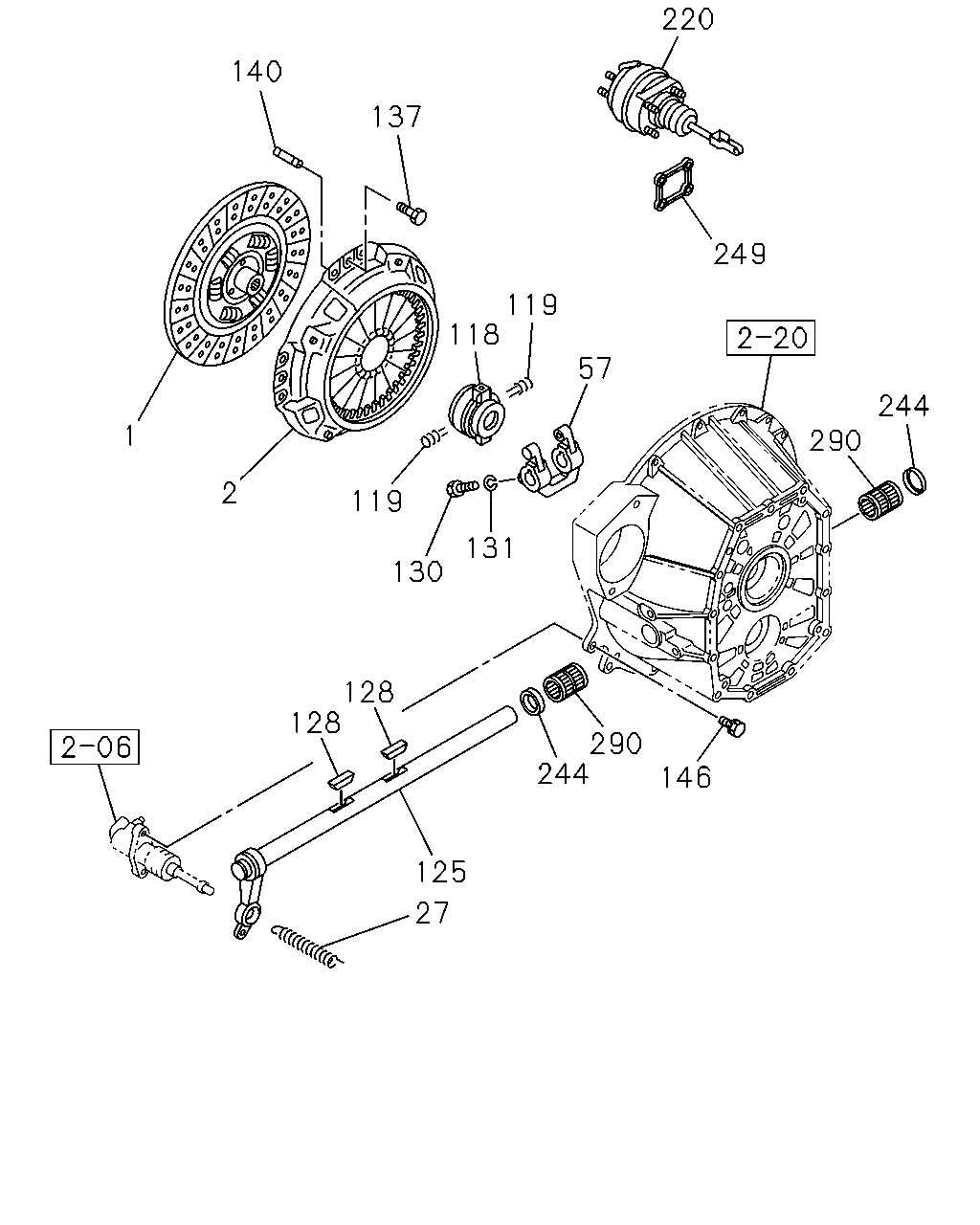

çizim 48408
220 140 137 249 119 118 57 244 1 290 2 119 131 130 128 128 290 244 146 125 27
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 		8-97259-940-0 01 1 0208- ●
1 00.886 DISC; CLUTCH
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97162-966-1 01 1 9811-0105 ● ●
1 00.886 DISC; CLUTCH
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97162-966-1 01 1 0106- ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97166-390-1 01 1 9811-0105 ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97166-390-1 01 1 0106- ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97173-595-1 01 1 9811-9905 ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 		8-97173-595-1 01 1 9811-9905 ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97229-241-0 01 1 9906-0105 ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 		8-97229-241-0 01 1 9906-0105 ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97229-241-0 01 1 0106- ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 		8-97229-241-0 01 1 0106- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) 		8-97031-757-2 01 1 9811-0103 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) 		8-97310-796-0 01 1 0104-0105 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) 		8-97310-796-0 01 1 0106- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97169-534-0 01 1 9811-0105 ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97169-534-0 01 1 9811-0105 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97169-534-0 01 1 0106- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97169-534-0 01 1 0106- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97038-831-2 01 1 9811-0105 ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 		8-97038-831-2 01 1 9811-0105 ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97038-831-2 01 1 0106- ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 		8-97038-831-2 01 1 0106- ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-97184-359-0 01 1 9811-0105 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97184-359-0 01 1 0106- ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-359-0 01 1 0106- ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-97184-358-0 01 1 9811-0105 ●
27 00.837 SPRING; RETURN,SHIFT FORK
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-358-0 01 1 0106-0207 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-358-0 01 1 0208- ● ●
57 00.795 FORK; SHIFT,CLU 8-97310-456-1 01 1 0208- ●
57 00.795 FORK; SHIFT,CLU 8-97187-936-0 01 1 9811-0105 ● ●
57 00.795 FORK; SHIFT,CLU 8-97187-936-0 01 1 0106- ●
57 00.795 FORK; SHIFT,CLU 1-31341-028-0 01 1 9811- ●
118 00.799 BEARING; CLU RELEASE 1-31310-012-0 01 1 0208- ●
118 00.799 BEARING; CLU RELEASE 1-09820-078-0 01 1 9811-0111 ●
118 00.799 BEARING; CLU RELEASE 1-09820-115-0 01 1 0112- ●
119 00.797 SPRING; SHIFT FORK 1-31329-024-0 02 1 0208- ●
119 00.797 SPRING; SHIFT FORK
00.844 		1-31329-015-0 01 1 9811- ●
119 00.797 SPRING; SHIFT FORK
00.844 		1-31329-014-0 01 1 9811- ●
125 00.805 SHAFT; CLU 8-97310-435-0 01 1 0208- ●
125 00.805 SHAFT; CLU 8-97038-833-1 01 1 9811- ●
128 00.833 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 9811- ● ●
130 00.833 SCREW; SHIFT FORK
08.977 M8X14 		9-06120-814-0 01 1 9811- ● ●
131 00.833 WASHER; LK,SHIFT FORK
00.002 ID=8.2 		9-09150-508-0 01 1 9811- ● ●
137 00.862 BOLT; CLU COVER
02.559 M10X16 FLANGE 		0-28081-016-0 10 1 9811-0105 ● ● ●
137 00.862 BOLT; CLU COVER
02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0106- ● ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 9811-0105 ● ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 0106- ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9811-0105 ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0106- ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T) EXC. TURBOCHARGER(K51) 		8-97162-962-1 01 1 9811-0105 ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T) EXC. TURBOCHARGER(K51) 		8-97162-962-1 01 1 0106- ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 9811-0105 ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HG1 ENG(RJH) TURBOCHARGER(K51) POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 9811-0105 ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 0106- ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HG1 ENG(RJH) TURBOCHARGER(K51) POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 0106- ●
244 00.805 SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T). 00.797 		1-09625-002-0 02 1 0208- ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97167-489-0 01 1 9811- ● ● ●
290 00.862 BEARING; NEEDLE
00.683 NTN 		1-09811-002-1 02 1 0208- ●
çizim 48975
220 249 146 137 140 1 2 27 57 116
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 		8-97259-940-0 01 1 0208- ●
1 00.886 DISC; CLUTCH
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97162-966-1 01 1 9811-0105 ● ●
1 00.886 DISC; CLUTCH
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97162-966-1 01 1 0106- ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97166-390-1 01 1 9811-0105 ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97166-390-1 01 1 0106- ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97173-595-1 01 1 9811-9905 ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 		8-97173-595-1 01 1 9811-9905 ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97229-241-0 01 1 9906-0105 ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 		8-97229-241-0 01 1 9906-0105 ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97229-241-0 01 1 0106- ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 		8-97229-241-0 01 1 0106- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) 		8-97031-757-2 01 1 9811-0103 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) 		8-97310-796-0 01 1 0104-0105 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) 		8-97310-796-0 01 1 0106- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97169-534-0 01 1 9811-0105 ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97169-534-0 01 1 9811-0105 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97169-534-0 01 1 0106- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97169-534-0 01 1 0106- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97038-831-2 01 1 9811-0105 ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 		8-97038-831-2 01 1 9811-0105 ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97038-831-2 01 1 0106- ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 		8-97038-831-2 01 1 0106- ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-97184-359-0 01 1 9811-0105 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97184-359-0 01 1 0106- ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-359-0 01 1 0106- ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-97184-358-0 01 1 9811-0105 ●
27 00.837 SPRING; RETURN,SHIFT FORK
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-358-0 01 1 0106-0207 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-358-0 01 1 0208- ● ●
57 00.795 FORK; SHIFT,CLU 8-97310-456-1 01 1 0208- ●
57 00.795 FORK; SHIFT,CLU 8-97187-936-0 01 1 9811-0105 ● ●
57 00.795 FORK; SHIFT,CLU 8-97187-936-0 01 1 0106- ●
57 00.795 FORK; SHIFT,CLU 1-31341-028-0 01 1 9811- ●
116 00.799 BLOCK; SHIFT,CLU 8-97089-652-0 01 1 9811-0105 ● ●
116 00.799 BLOCK; SHIFT,CLU 8-97089-652-0 01 1 0106- ●
116 00.799 BLOCK; SHIFT,CLU 1-31320-034-0 01 1 9811- ●
137 00.862 BOLT; CLU COVER
02.559 M10X16 FLANGE 		0-28081-016-0 10 1 9811-0105 ● ● ●
137 00.862 BOLT; CLU COVER
02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0106- ● ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 9811-0105 ● ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 0106- ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9811-0105 ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0106- ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T) EXC. TURBOCHARGER(K51) 		8-97162-962-1 01 1 9811-0105 ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T) EXC. TURBOCHARGER(K51) 		8-97162-962-1 01 1 0106- ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 9811-0105 ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HG1 ENG(RJH) TURBOCHARGER(K51) POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 9811-0105 ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 0106- ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HG1 ENG(RJH) TURBOCHARGER(K51) POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 0106- ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97167-489-0 01 1 9811- ● ● ●

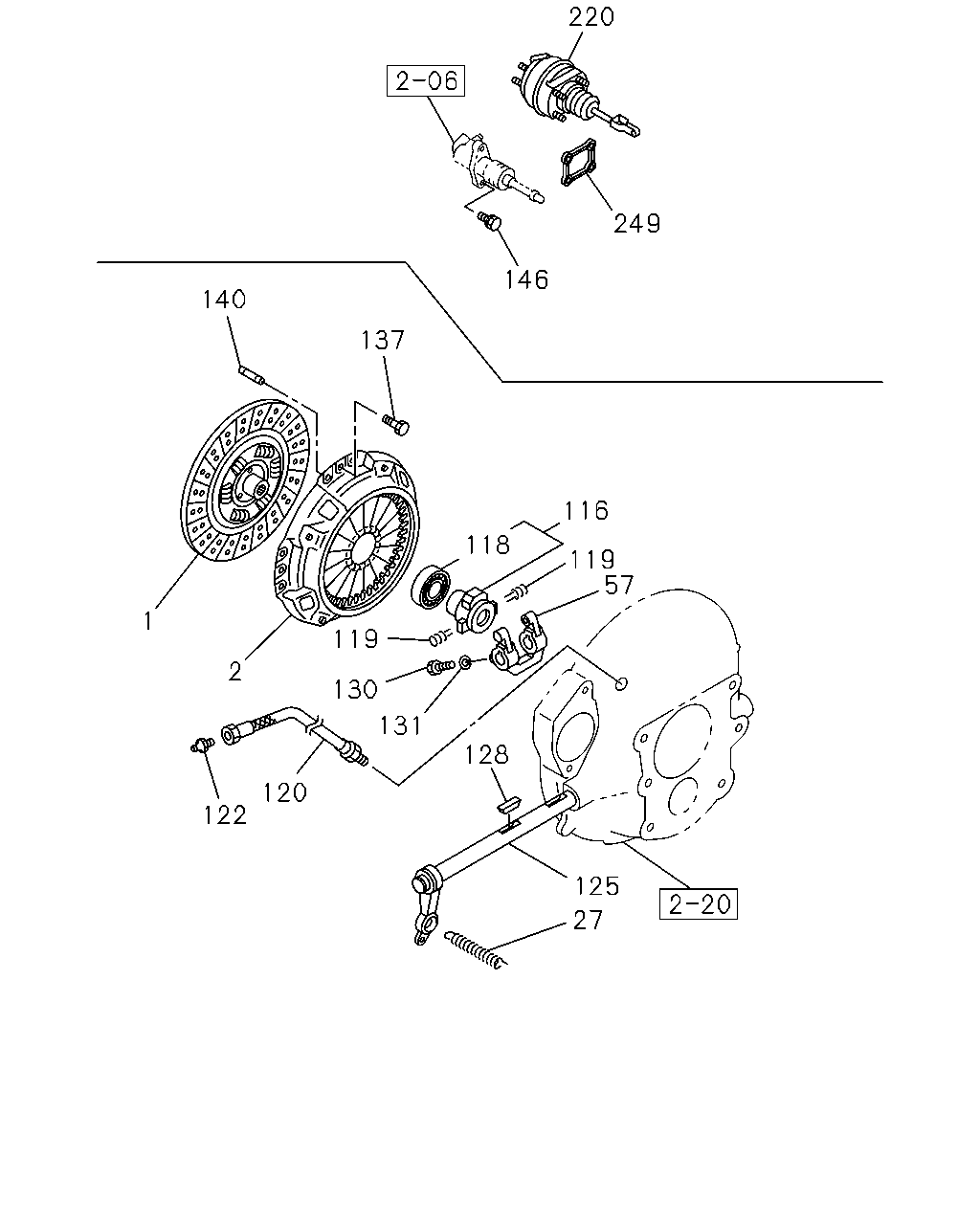

çizim 51178
220 249 146 140 137 116 118 119 57 1 119 2 130 131 128 120 122 125 27
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 		8-97259-940-0 01 1 0208- ●
1 00.886 DISC; CLUTCH
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97162-966-1 01 1 9811-0105 ● ●
1 00.886 DISC; CLUTCH
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97162-966-1 01 1 0106- ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97166-390-1 01 1 9811-0105 ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97166-390-1 01 1 0106- ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97173-595-1 01 1 9811-9905 ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 		8-97173-595-1 01 1 9811-9905 ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97229-241-0 01 1 9906-0105 ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 		8-97229-241-0 01 1 9906-0105 ● ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97229-241-0 01 1 0106- ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 		8-97229-241-0 01 1 0106- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) 		8-97031-757-2 01 1 9811-0103 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) 		8-97310-796-0 01 1 0104-0105 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) 		8-97310-796-0 01 1 0106- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97169-534-0 01 1 9811-0105 ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97169-534-0 01 1 9811-0105 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97169-534-0 01 1 0106- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97169-534-0 01 1 0106- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97038-831-2 01 1 9811-0105 ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 		8-97038-831-2 01 1 9811-0105 ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97038-831-2 01 1 0106- ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 		8-97038-831-2 01 1 0106- ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-97184-359-0 01 1 9811-0105 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97184-359-0 01 1 0106- ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-359-0 01 1 0106- ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-97184-358-0 01 1 9811-0105 ●
27 00.837 SPRING; RETURN,SHIFT FORK
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-358-0 01 1 0106-0207 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-358-0 01 1 0208- ● ●
57 00.795 FORK; SHIFT,CLU 8-97310-456-1 01 1 0208- ●
57 00.795 FORK; SHIFT,CLU 8-97187-936-0 01 1 9811-0105 ● ●
57 00.795 FORK; SHIFT,CLU 8-97187-936-0 01 1 0106- ●
57 00.795 FORK; SHIFT,CLU 1-31341-028-0 01 1 9811- ●
116 00.799 BLOCK; SHIFT,CLU 8-97089-652-0 01 1 9811-0105 ● ●
116 00.799 BLOCK; SHIFT,CLU 8-97089-652-0 01 1 0106- ●
116 00.799 BLOCK; SHIFT,CLU 1-31320-034-0 01 1 9811- ●
118 00.799 BEARING; CLU RELEASE 1-31310-012-0 01 1 0208- ●
118 00.799 BEARING; CLU RELEASE 1-09820-078-0 01 1 9811-0111 ●
118 00.799 BEARING; CLU RELEASE 1-09820-115-0 01 1 0112- ●
119 00.797 SPRING; SHIFT FORK 1-31329-024-0 02 1 0208- ●
119 00.797 SPRING; SHIFT FORK
00.844 		1-31329-015-0 01 1 9811- ●
119 00.797 SPRING; SHIFT FORK
00.844 		1-31329-014-0 01 1 9811- ●
120 00.799 HOSE; FLEX,SHIFT BLOCK,CLU
L=705 		1-09364-850-0 01 1 9811- ●
122 00.799 NIPPLE; GREASE,FLEX HOSE,SHIFT B
08.984 PT1/8 STRAIGHT 		9-09031-010-0 01 1 9811- ●
125 00.805 SHAFT; CLU 8-97310-435-0 01 1 0208- ●
125 00.805 SHAFT; CLU 8-97038-833-1 01 1 9811- ●
128 00.833 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 9811- ● ●
130 00.833 SCREW; SHIFT FORK
08.977 M8X14 		9-06120-814-0 01 1 9811- ● ●
131 00.833 WASHER; LK,SHIFT FORK
00.002 ID=8.2 		9-09150-508-0 01 1 9811- ● ●
137 00.862 BOLT; CLU COVER
02.559 M10X16 FLANGE 		0-28081-016-0 10 1 9811-0105 ● ● ●
137 00.862 BOLT; CLU COVER
02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0106- ● ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 9811-0105 ● ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 0106- ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9811-0105 ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0106- ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T) EXC. TURBOCHARGER(K51) 		8-97162-962-1 01 1 9811-0105 ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T) EXC. TURBOCHARGER(K51) 		8-97162-962-1 01 1 0106- ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 9811-0105 ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HG1 ENG(RJH) TURBOCHARGER(K51) POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 9811-0105 ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 0106- ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HG1 ENG(RJH) TURBOCHARGER(K51) POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 0106- ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97167-489-0 01 1 9811- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
