◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50817 - NPR/NQR-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-45 - WATER SEDIMENTER; FUEL ▶
1-45 — WATER SEDIMENTER; FUEL (#22124) — 773 parça

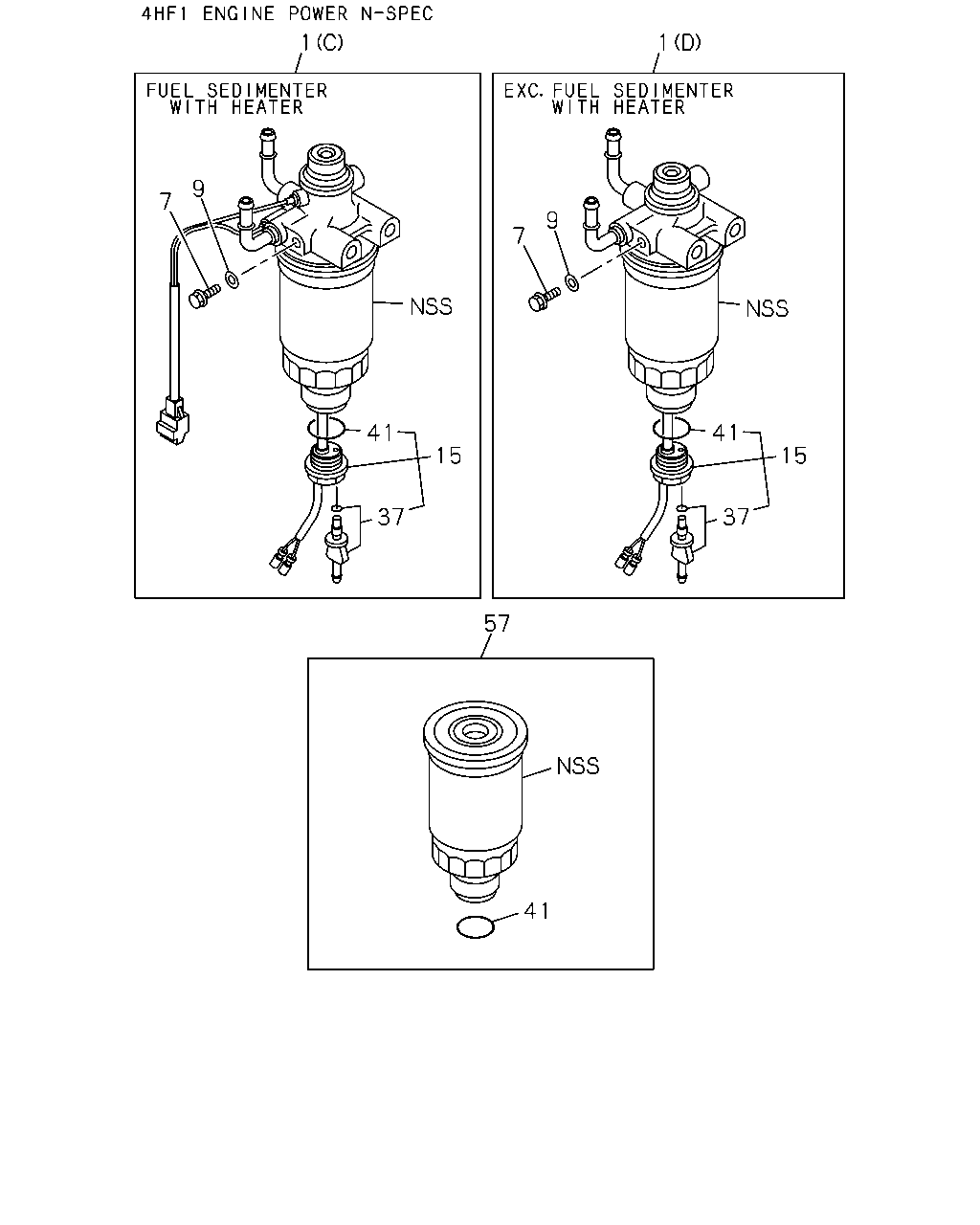

çizim 10234
1 1 9 7 9 7 41 41 15 15 37 37 57 41
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (G) 		8-97188-042-0 01 1 9811- ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> (E) 		8-94311-522-2 01 1 9811-0105 ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (E) 		8-94311-522-2 01 1 9811-0105 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (E) 		8-94311-522-2 01 1 0106- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> (E) 		8-94311-522-2 01 1 0106- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> (F) 		8-94144-933-3 01 1 9811-0105 ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) (F) 		8-94144-933-3 01 1 9811-0105 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) (F) 		8-94144-933-3 01 1 0106- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> (F) 		8-94144-933-3 01 1 0106- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D) 		8-97207-734-0 01 1 9811-0105 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D) 		8-97207-734-0 01 1 0106- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV) (C) 		8-97207-735-0 01 1 9811-0105 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV) (C) 		8-97207-735-0 01 1 0106- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-97081-815-1 01 1 9811-9903 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-97081-815-1 01 1 9904- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-1 01 1 9811-9903 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-1 01 1 9904- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
(B) 		8-97081-814-1 01 1 9904- ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		9-13219-070-0 01 1 9811- ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-94132-674-0 01 1 9811-0012 ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94132-674-0 01 1 9811-0012 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-94132-674-0 01 1 0101-0105 ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-674-0 01 1 0101-0105 ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) 		8-94132-674-0 01 1 0101-0105 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-674-0 01 1 0106- ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-674-0 01 1 0106- ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-94132-674-0 01 1 0106- ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-674-0 01 1 0106- ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 9811- ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94132-675-0 01 1 9811-9903 ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 9811-9903 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 9811-9903 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-675-0 01 1 9811-9903 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94132-675-0 01 1 9904-0012 ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 9904-0012 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 9904-0012 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-675-0 01 1 9904-0012 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94132-675-0 01 1 0101-0105 ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-675-0 01 1 0101-0105 ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 0101-0105 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 0101-0105 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-675-0 01 1 0106- ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 0106- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94132-675-0 01 1 0106- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 0106- ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 03.895 		9-09571-406-0 01 1 9811-0105 ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 03.895 		9-09571-406-0 01 1 9811-0105 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 03.895 		9-09571-406-0 01 1 0106- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 03.895 		9-09571-406-0 01 1 0106- ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94153-430-0 01 1 9811-0105 ● ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94153-430-0 01 1 9811-0105 ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94153-430-0 01 1 0106- ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94153-430-0 01 1 0106- ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97079-821-0 01 1 9811-0105 ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97079-821-0 01 1 0106- ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97103-765-0 01 1 9811-9812 ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94416-376-0 01 1 9811-0105 ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94416-376-0 01 1 9811-0105 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94416-376-0 01 1 0106- ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94416-376-0 01 1 0106- ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94453-746-0 01 1 9811-9812 ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-SPEC(7QV) 		8-94453-746-0 01 1 9811-9812 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94453-746-0 01 1 9901-9903 ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-94453-746-0 01 1 9901-9903 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94453-746-0 01 1 9901-9903 ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94453-746-0 01 1 9904-0012 ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94453-746-0 01 1 9904-0012 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-94453-746-0 01 1 9904-0012 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94453-746-0 01 1 0101-0105 ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94453-746-0 01 1 0101-0105 ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-94453-746-0 01 1 0101-0105 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94453-746-0 01 1 0106- ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-94453-746-0 01 1 0106- ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94453-746-0 01 1 0106- ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97123-549-0 01 1 9811-0105 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97123-549-0 01 1 0106- ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94450-148-0 01 1 9811-9812 ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 9811-9812 ● ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 08.927 		9-09563-334-0 01 1 9811-9812 ● ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 08.927 		9-09563-334-0 01 1 9901-0105 ● ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 08.927 		9-09563-334-0 01 1 9901-0105 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 08.927 		9-09563-334-0 01 1 9901-0105 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 08.927 		9-09563-334-0 01 1 0106- ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 08.927 		9-09563-334-0 01 1 0106- ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 08.927 		9-09563-334-0 01 1 0106- ● ● ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94369-299-3 01 1 9811-0105 ● ● ● ● ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94369-299-3 01 1 0106- ● ● ●

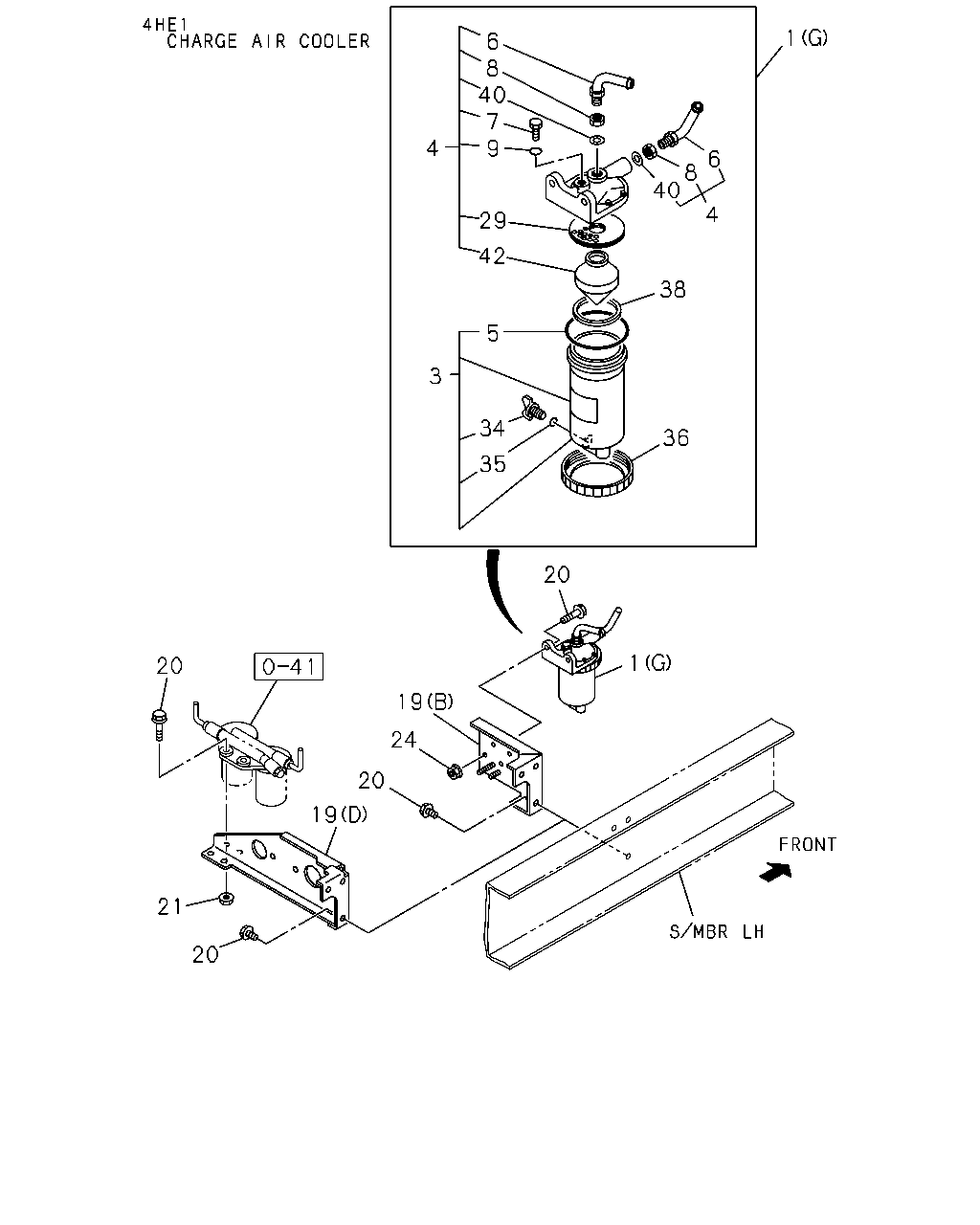

çizim 47697
1 6 8 40 7 9 4 6 8 40 4 29 42 38 5 3 34 36 35 20 1 20 19 24 20 19 21 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (G) 		8-97188-042-0 01 1 9811- ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> (E) 		8-94311-522-2 01 1 9811-0105 ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (E) 		8-94311-522-2 01 1 9811-0105 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (E) 		8-94311-522-2 01 1 0106- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> (E) 		8-94311-522-2 01 1 0106- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> (F) 		8-94144-933-3 01 1 9811-0105 ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) (F) 		8-94144-933-3 01 1 9811-0105 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) (F) 		8-94144-933-3 01 1 0106- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> (F) 		8-94144-933-3 01 1 0106- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D) 		8-97207-734-0 01 1 9811-0105 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D) 		8-97207-734-0 01 1 0106- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV) (C) 		8-97207-735-0 01 1 9811-0105 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV) (C) 		8-97207-735-0 01 1 0106- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-97081-815-1 01 1 9811-9903 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-97081-815-1 01 1 9904- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-1 01 1 9811-9903 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-1 01 1 9904- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
(B) 		8-97081-814-1 01 1 9904- ●
3 03.890 BODY ASM; SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13211-192-0 01 1 9811- ● ● ● ● ● ●
4 03.890 COVER; UPR,SEDIMENTER ASM
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13212-146-0 01 1 9811- ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-09623-491-0 01 1 9811- ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-09623-075-0 01 1 9811-9903 ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-09623-075-0 01 1 9811-9903 ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER

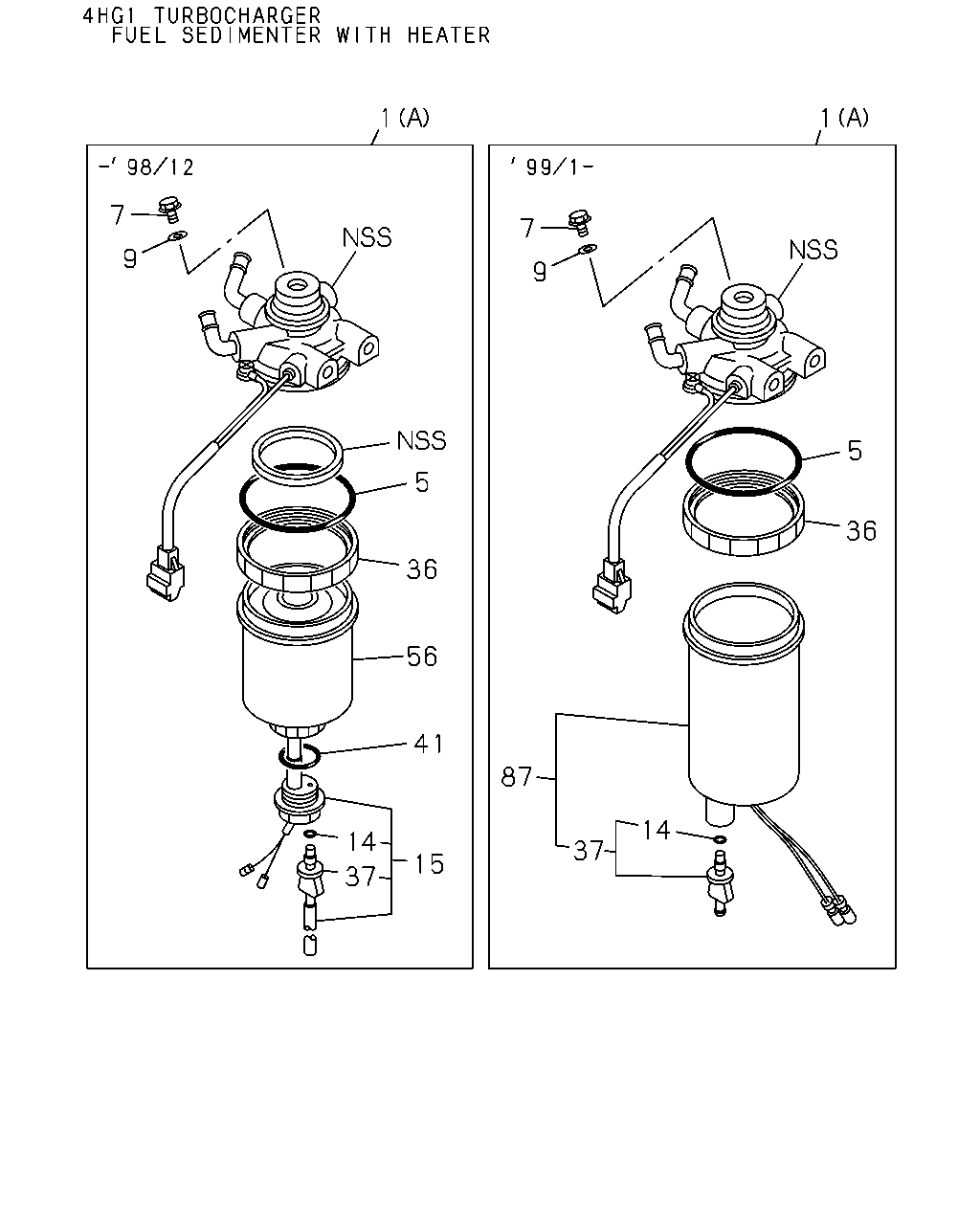

4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-09623-075-0 01 1 9811-9903 ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-09623-075-0 01 1 9904-0012 ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 		5-09623-075-0 01 1 9904-0012 ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-09623-075-0 01 1 0101-0105 ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-09623-075-0 01 1 0101-0105 ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-09623-075-0 01 1 0101-0105 ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-09623-075-0 01 1 0106- ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-09623-075-0 01 1 0106- ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-09623-075-0 01 1 0106- ● ● ● ● ●
6 03.890 CONNECTOR ASM; SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13229-002-0 02 1 9811- ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		9-13219-070-0 01 1 9811- ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-94132-674-0 01 1 9811-0012 ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94132-674-0 01 1 9811-0012 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-94132-674-0 01 1 0101-0105 ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-674-0 01 1 0101-0105 ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) 		8-94132-674-0 01 1 0101-0105 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-674-0 01 1 0106- ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-674-0 01 1 0106- ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-94132-674-0 01 1 0106- ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-674-0 01 1 0106- ● ● ●
8 03.890 STOPPER; CONN,SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13229-001-0 02 1 9811- ● ● ● ● ● ●

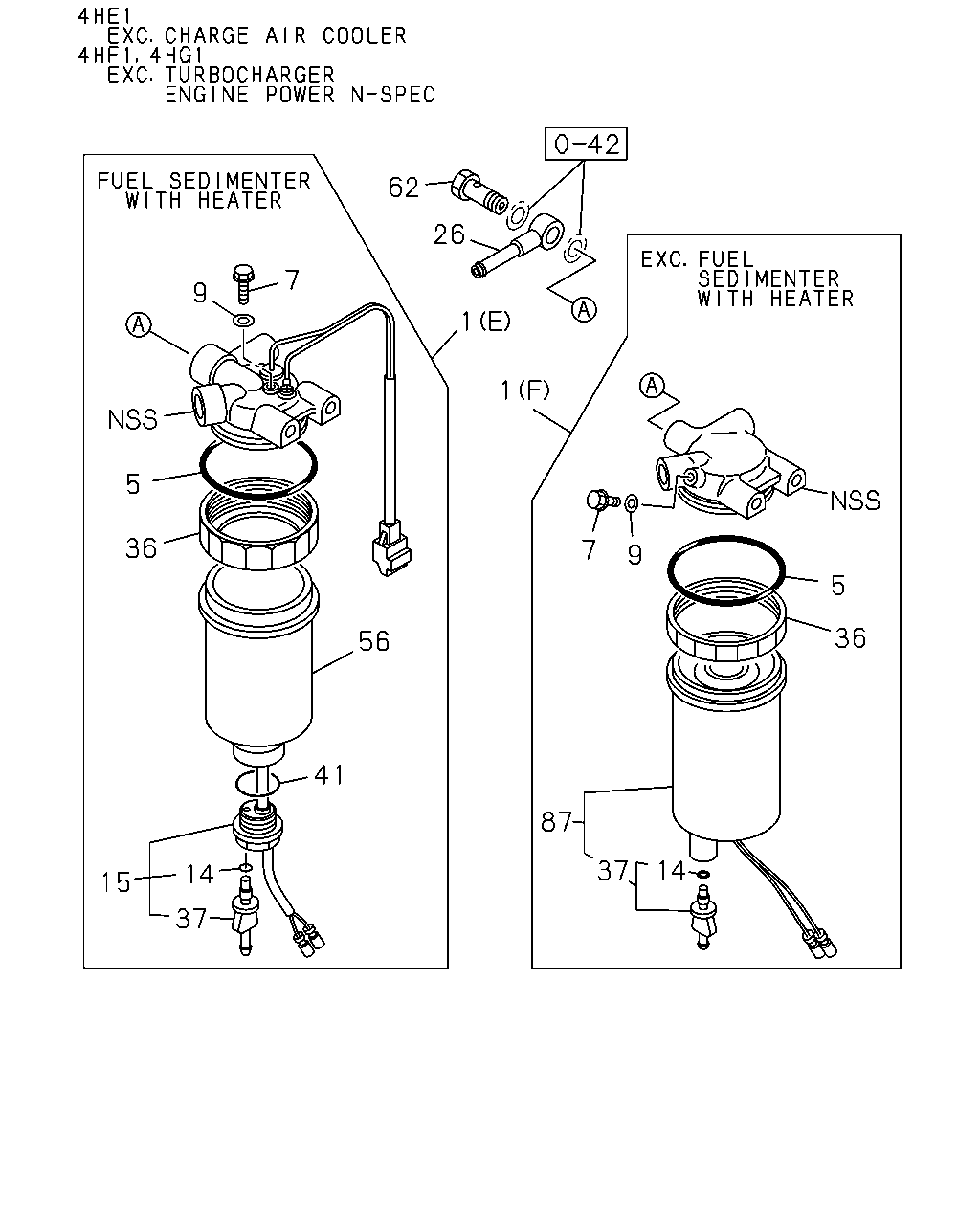

9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 9811- ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94132-675-0 01 1 9811-9903 ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 9811-9903 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 9811-9903 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-675-0 01 1 9811-9903 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94132-675-0 01 1 9904-0012 ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 9904-0012 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 9904-0012 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-675-0 01 1 9904-0012 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94132-675-0 01 1 0101-0105 ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-675-0 01 1 0101-0105 ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 0101-0105 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 0101-0105 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-675-0 01 1 0106- ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 0106- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94132-675-0 01 1 0106- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 0106- ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 03.895 		9-09571-406-0 01 1 9811-0105 ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 03.895 		9-09571-406-0 01 1 9811-0105 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 03.895 		9-09571-406-0 01 1 0106- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 03.895 		9-09571-406-0 01 1 0106- ● ● ● ● ●

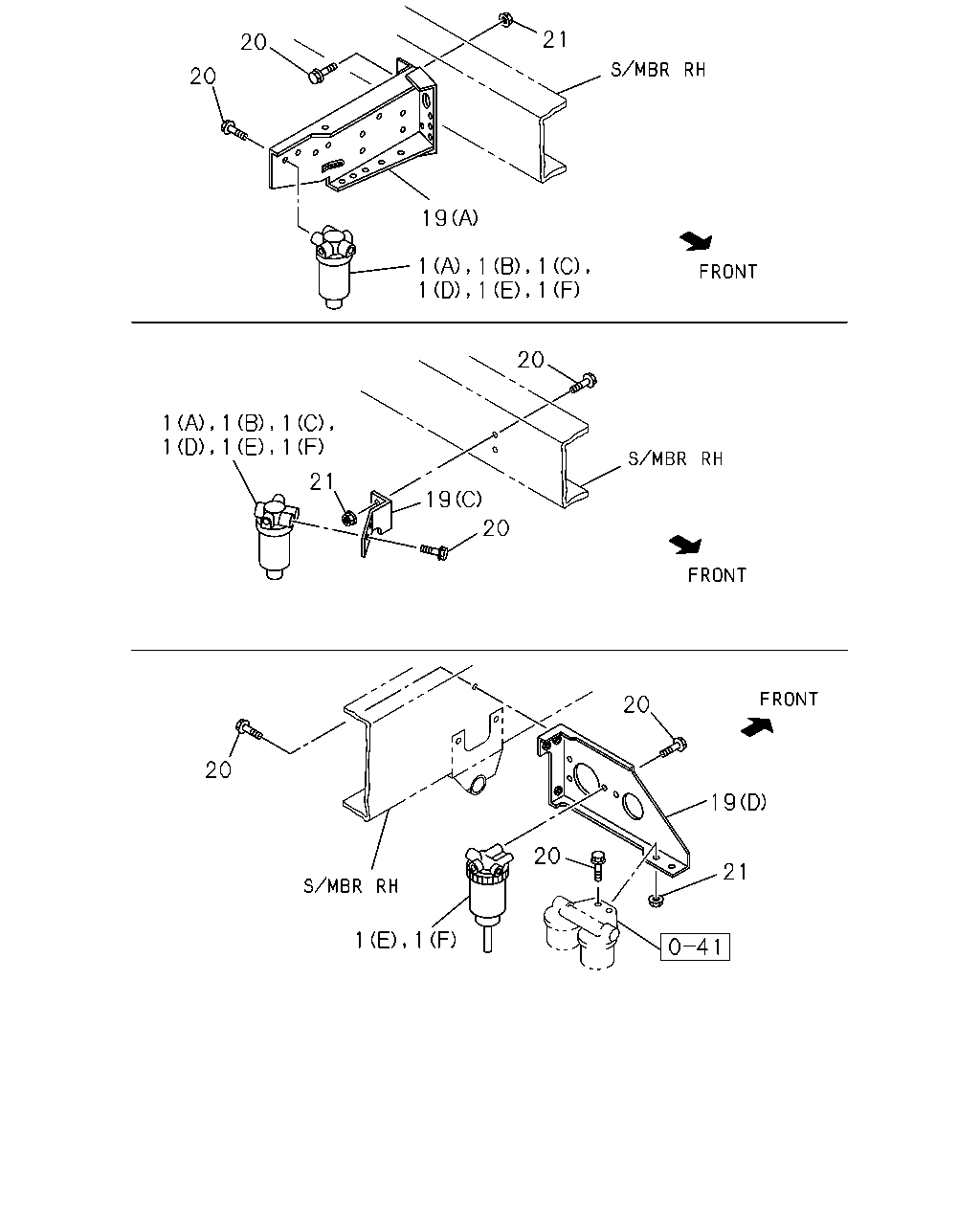

19 03.890 BRACKET; FUEL SEDIMENTER
FUEL FILTER DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-298-2 01 1 9811-0012 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
FUEL FILTER DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-298-2 01 1 0101-0101 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
FUEL FILTER DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-298-2 01 1 0101-0105 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-298-2 01 1 0106- ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (D) 		8-97148-721-1 01 1 9811-0105 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (D) 		8-97148-721-1 01 1 9811-0105 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (D) 		8-97148-721-1 01 1 0106-0212 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
FUEL FILTER DUAL<S6B> (D) 		8-97148-721-1 01 1 0106-0212 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (D) 		8-97363-088-0 01 1 0301- ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
FUEL FILTER DUAL<S6B> (D) 		8-97363-088-0 01 1 0301- ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL<S6B> (B) 		8-97182-048-2 01 1 9811- ● ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (D) 		8-97189-165-0 01 1 9811-9902 ● ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> (D) 		8-97189-165-0 01 1 9811-9902 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (D) 		8-97189-165-0 01 1 9903-0105 ● ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D) 		8-97189-165-0 01 1 9903-0105 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D) 		8-97189-165-0 01 1 0106-0212 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (D) 		8-97189-165-0 01 1 0106-0212 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D) 		8-97363-089-0 01 1 0301- ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (D) 		8-97363-089-0 01 1 0301- ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> (C) 		8-94366-685-0 01 1 9811-0012 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> (C) 		8-94366-685-0 01 1 0101-0105 ● ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (C) 		8-94366-685-0 01 1 0106- ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> (A) 		8-97090-295-0 01 1 9811-9902 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-295-0 01 1 9903-0011 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-295-0 01 1 0012-0105 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9811-9903 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
FUEL FILTER DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9811-9903 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
FUEL FILTER DUAL<S6B> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9811-9903 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9904-0012 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
FUEL FILTER DUAL<S6B> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9904-0012 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
FUEL FILTER DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9904-0012 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0101-0101 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
FUEL FILTER DUAL<S6B> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0101-0101 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
FUEL FILTER DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0101-0101 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0101-0105 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
FUEL FILTER DUAL<S6B> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0101-0105 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
FUEL FILTER DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0101-0105 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
FUEL FILTER DUAL<S6B> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0106- ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 9811- ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 9811-9901 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 9811-9901 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 9902-9902 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 9902-9902 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 9903-0105 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 9903-0105 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 0106- ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 0106- ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9811-0012 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9811-0012 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0101-0105 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0101-0105 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0106- ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0106- ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 9811-0012 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0101-0105 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0106- ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 9811-9902 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 9903-0011 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0012-0105 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0106- ● ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
FUEL FILTER DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 02 1 9811-0012 ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
FUEL FILTER DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0101-0101 ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
FUEL FILTER DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0101-0105 ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
FUEL FILTER DUAL<S6B> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0106- ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 01 1 9811-9908 ● ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 04.785 M10 FLANGE 		0-91150-110-0 01 1 9811-9908 ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 01 1 9909-0105 ● ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.785 M10 FLANGE 		0-91150-110-0 01 1 9909-0105 ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-0012 ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0101-0105 ● ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106- ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0011-0011 ● ●
21 03.890 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0011-0011 ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0012-0105 ●
21 03.890 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0012-0105 ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0106- ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0106- ●
21 03.890 NUT; BRKT TO FRAME
4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> 04.785 M10 FLANGE 		0-91150-110-0 04 1 9811-0011 ● ●
21 03.890 NUT; BRKT TO FRAME
4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> 04.785 M10 FLANGE 		0-91150-110-0 04 1 0012-0105 ● ● ●
24 03.890 NUT; SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 08.917 M10 FLANGE 		0-91150-210-0 02 1 9811- ● ● ● ● ● ●
29 03.890 SCREEN ASM; SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13219-228-0 01 1 9811- ● ● ● ● ● ●
34 03.890 PLUG; DRAIN,FUEL FILTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13219-225-0 01 1 9811- ● ● ● ● ● ●
35 03.890 GASKET; DRAIN PLUG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-09623-490-0 01 1 9811- ● ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13219-226-0 01 1 9811- ● ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-13234-001-0 01 1 9811-9903 ● ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-13234-001-0 01 1 9811-9903 ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-13234-001-0 01 1 9811-9903 ● ● ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-13234-001-0 01 1 9904-0012 ● ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 		5-13234-001-0 01 1 9904-0012 ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-13234-001-0 01 1 0101-0105 ● ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-13234-001-0 01 1 0101-0105 ● ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-13234-001-0 01 1 0101-0105 ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-13234-001-0 01 1 0106- ● ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-13234-001-0 01 1 0106- ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-13234-001-0 01 1 0106- ● ● ● ● ●
38 03.890 FLOAT; SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13219-227-0 01 1 9811- ● ● ● ● ● ●
40 03.890 GASKET; CONNECTOR TO COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 9811- ● ● ● ● ● ●
42 03.890 PLATE; BAFFLE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13219-229-0 01 1 9811- ● ● ● ● ● ●
çizim 48371
62 26 7 9 1 1 5 36 7 9 5 36 56 41 87 37 14 14 15 37
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (G) 		8-97188-042-0 01 1 9811- ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> (E) 		8-94311-522-2 01 1 9811-0105 ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (E) 		8-94311-522-2 01 1 9811-0105 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (E) 		8-94311-522-2 01 1 0106- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> (E) 		8-94311-522-2 01 1 0106- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> (F) 		8-94144-933-3 01 1 9811-0105 ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) (F) 		8-94144-933-3 01 1 9811-0105 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) (F) 		8-94144-933-3 01 1 0106- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> (F) 		8-94144-933-3 01 1 0106- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D) 		8-97207-734-0 01 1 9811-0105 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D) 		8-97207-734-0 01 1 0106- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV) (C) 		8-97207-735-0 01 1 9811-0105 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV) (C) 		8-97207-735-0 01 1 0106- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-97081-815-1 01 1 9811-9903 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-97081-815-1 01 1 9904- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-1 01 1 9811-9903 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-1 01 1 9904- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
(B) 		8-97081-814-1 01 1 9904- ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-09623-491-0 01 1 9811- ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-09623-075-0 01 1 9811-9903 ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-09623-075-0 01 1 9811-9903 ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-09623-075-0 01 1 9811-9903 ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-09623-075-0 01 1 9904-0012 ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 		5-09623-075-0 01 1 9904-0012 ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-09623-075-0 01 1 0101-0105 ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-09623-075-0 01 1 0101-0105 ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-09623-075-0 01 1 0101-0105 ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-09623-075-0 01 1 0106- ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-09623-075-0 01 1 0106- ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-09623-075-0 01 1 0106- ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		9-13219-070-0 01 1 9811- ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-94132-674-0 01 1 9811-0012 ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94132-674-0 01 1 9811-0012 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-94132-674-0 01 1 0101-0105 ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-674-0 01 1 0101-0105 ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) 		8-94132-674-0 01 1 0101-0105 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-674-0 01 1 0106- ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-674-0 01 1 0106- ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-94132-674-0 01 1 0106- ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-674-0 01 1 0106- ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 9811- ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94132-675-0 01 1 9811-9903 ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 9811-9903 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 9811-9903 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-675-0 01 1 9811-9903 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94132-675-0 01 1 9904-0012 ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 9904-0012 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 9904-0012 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-675-0 01 1 9904-0012 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94132-675-0 01 1 0101-0105 ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-675-0 01 1 0101-0105 ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 0101-0105 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 0101-0105 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-675-0 01 1 0106- ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 0106- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94132-675-0 01 1 0106- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 0106- ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 03.895 		9-09571-406-0 01 1 9811-0105 ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 03.895 		9-09571-406-0 01 1 9811-0105 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 03.895 		9-09571-406-0 01 1 0106- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 03.895 		9-09571-406-0 01 1 0106- ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94416-377-0 01 1 9811-0105 ● ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94416-377-0 01 1 9811-0105 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94416-377-0 01 1 0106- ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94416-377-0 01 1 0106- ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94447-156-0 01 1 9811-9903 ● ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-94447-156-0 01 1 9811-9903 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94447-156-0 01 1 9811-9903 ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94447-156-0 01 1 9904-0012 ● ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94447-156-0 01 1 9904-0012 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-94447-156-0 01 1 9904-0012 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94447-156-0 01 1 0101-0105 ● ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94447-156-0 01 1 0101-0105 ● ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-94447-156-0 01 1 0101-0105 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94447-156-0 01 1 0106- ● ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-94447-156-0 01 1 0106- ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94447-156-0 01 1 0106- ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94153-430-0 01 1 9811-0105 ● ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94153-430-0 01 1 9811-0105 ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94153-430-0 01 1 0106- ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94153-430-0 01 1 0106- ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97079-821-0 01 1 9811-0105 ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97079-821-0 01 1 0106- ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97103-765-0 01 1 9811-9812 ● ● ● ●
26 03.163 PIPE; FUEL,IN & OUT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-15411-223-1 02 1 9811-0105 ● ● ● ● ● ●
26 03.163 PIPE; FUEL,IN & OUT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-15411-223-1 02 1 9811-0105 ● ● ● ● ●
26 03.163 PIPE; FUEL,IN & OUT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-15411-223-1 02 1 0106- ● ● ● ● ●
26 03.163 PIPE; FUEL,IN & OUT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-15411-223-1 02 1 0106- ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13219-226-0 01 1 9811- ● ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-13234-001-0 01 1 9811-9903 ● ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-13234-001-0 01 1 9811-9903 ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-13234-001-0 01 1 9811-9903 ● ● ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-13234-001-0 01 1 9904-0012 ● ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 		5-13234-001-0 01 1 9904-0012 ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-13234-001-0 01 1 0101-0105 ● ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-13234-001-0 01 1 0101-0105 ● ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-13234-001-0 01 1 0101-0105 ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-13234-001-0 01 1 0106- ● ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-13234-001-0 01 1 0106- ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-13234-001-0 01 1 0106- ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94416-376-0 01 1 9811-0105 ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94416-376-0 01 1 9811-0105 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94416-376-0 01 1 0106- ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94416-376-0 01 1 0106- ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94453-746-0 01 1 9811-9812 ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-SPEC(7QV) 		8-94453-746-0 01 1 9811-9812 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94453-746-0 01 1 9901-9903 ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-94453-746-0 01 1 9901-9903 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94453-746-0 01 1 9901-9903 ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94453-746-0 01 1 9904-0012 ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94453-746-0 01 1 9904-0012 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-94453-746-0 01 1 9904-0012 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94453-746-0 01 1 0101-0105 ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94453-746-0 01 1 0101-0105 ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-94453-746-0 01 1 0101-0105 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94453-746-0 01 1 0106- ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-94453-746-0 01 1 0106- ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94453-746-0 01 1 0106- ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97123-549-0 01 1 9811-0105 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97123-549-0 01 1 0106- ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94450-148-0 01 1 9811-9812 ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 9811-9812 ● ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 08.927 		9-09563-334-0 01 1 9811-9812 ● ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 08.927 		9-09563-334-0 01 1 9901-0105 ● ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 08.927 		9-09563-334-0 01 1 9901-0105 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 08.927 		9-09563-334-0 01 1 9901-0105 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 08.927 		9-09563-334-0 01 1 0106- ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 08.927 		9-09563-334-0 01 1 0106- ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 08.927 		9-09563-334-0 01 1 0106- ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. ENGINE POWER N-SPEC(7QV) 		5-13211-030-0 01 1 9811-9812 ● ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		5-13211-030-0 01 1 9811-9812 ● ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		5-13211-030-1 01 1 9901-0105 ● ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-13211-030-1 01 1 9901-0105 ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-13211-030-1 01 1 0106- ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		5-13211-030-1 01 1 0106- ● ● ● ● ●
62 03.162 BOLT; EYE,FUEL FILTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> M14X29 EYE-BOLT 		9-09906-325-1 02 1 9811-0105 ● ● ● ● ● ●
62 03.162 BOLT; EYE,FUEL FILTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) M14X29 EYE-BOLT 		9-09906-325-1 02 1 9811-0105 ● ● ● ● ●
62 03.162 BOLT; EYE,FUEL FILTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) M14X29 EYE-BOLT 		9-09906-325-1 02 1 0106- ● ● ● ● ●
62 03.162 BOLT; EYE,FUEL FILTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> M14X29 EYE-BOLT 		9-09906-325-1 02 1 0106- ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-97219-363-0 01 1 9811-9812 ● ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-SPEC(7QV) 		8-97219-363-0 01 1 9811-9812 ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-97219-363-0 01 1 9901-9903 ● ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-97219-363-0 01 1 9901-9903 ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97219-363-0 01 1 9901-9903 ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-97219-363-0 01 1 9904-0012 ● ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97219-363-0 01 1 9904-0012 ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-97219-363-0 01 1 9904-0012 ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-97219-363-0 01 1 0101-0105 ● ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97219-363-0 01 1 0101-0105 ● ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-97219-363-0 01 1 0101-0105 ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97219-363-0 01 1 0106- ● ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-97219-363-0 01 1 0106- ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-97219-363-0 01 1 0106- ● ● ● ● ●
çizim 50190
1 9 7 5 36 87 14 37
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (G) 		8-97188-042-0 01 1 9811- ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> (E) 		8-94311-522-2 01 1 9811-0105 ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (E) 		8-94311-522-2 01 1 9811-0105 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (E) 		8-94311-522-2 01 1 0106- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> (E) 		8-94311-522-2 01 1 0106- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> (F) 		8-94144-933-3 01 1 9811-0105 ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) (F) 		8-94144-933-3 01 1 9811-0105 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) (F) 		8-94144-933-3 01 1 0106- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> (F) 		8-94144-933-3 01 1 0106- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D) 		8-97207-734-0 01 1 9811-0105 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D) 		8-97207-734-0 01 1 0106- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV) (C) 		8-97207-735-0 01 1 9811-0105 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV) (C) 		8-97207-735-0 01 1 0106- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-97081-815-1 01 1 9811-9903 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-97081-815-1 01 1 9904- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-1 01 1 9811-9903 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-1 01 1 9904- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
(B) 		8-97081-814-1 01 1 9904- ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-09623-491-0 01 1 9811- ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-09623-075-0 01 1 9811-9903 ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-09623-075-0 01 1 9811-9903 ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-09623-075-0 01 1 9811-9903 ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-09623-075-0 01 1 9904-0012 ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 		5-09623-075-0 01 1 9904-0012 ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-09623-075-0 01 1 0101-0105 ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-09623-075-0 01 1 0101-0105 ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-09623-075-0 01 1 0101-0105 ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-09623-075-0 01 1 0106- ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-09623-075-0 01 1 0106- ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-09623-075-0 01 1 0106- ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		9-13219-070-0 01 1 9811- ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-94132-674-0 01 1 9811-0012 ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94132-674-0 01 1 9811-0012 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-94132-674-0 01 1 0101-0105 ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-674-0 01 1 0101-0105 ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) 		8-94132-674-0 01 1 0101-0105 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-674-0 01 1 0106- ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-674-0 01 1 0106- ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-94132-674-0 01 1 0106- ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-674-0 01 1 0106- ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 9811- ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94132-675-0 01 1 9811-9903 ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 9811-9903 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 9811-9903 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-675-0 01 1 9811-9903 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94132-675-0 01 1 9904-0012 ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 9904-0012 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 9904-0012 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-675-0 01 1 9904-0012 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94132-675-0 01 1 0101-0105 ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-675-0 01 1 0101-0105 ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 0101-0105 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 0101-0105 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-675-0 01 1 0106- ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 0106- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94132-675-0 01 1 0106- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 0106- ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 03.895 		9-09571-406-0 01 1 9811-0105 ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 03.895 		9-09571-406-0 01 1 9811-0105 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 03.895 		9-09571-406-0 01 1 0106- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 03.895 		9-09571-406-0 01 1 0106- ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94416-377-0 01 1 9811-0105 ● ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94416-377-0 01 1 9811-0105 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94416-377-0 01 1 0106- ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94416-377-0 01 1 0106- ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94447-156-0 01 1 9811-9903 ● ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-94447-156-0 01 1 9811-9903 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94447-156-0 01 1 9811-9903 ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94447-156-0 01 1 9904-0012 ● ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94447-156-0 01 1 9904-0012 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-94447-156-0 01 1 9904-0012 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94447-156-0 01 1 0101-0105 ● ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94447-156-0 01 1 0101-0105 ● ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-94447-156-0 01 1 0101-0105 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94447-156-0 01 1 0106- ● ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-94447-156-0 01 1 0106- ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94447-156-0 01 1 0106- ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13219-226-0 01 1 9811- ● ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-13234-001-0 01 1 9811-9903 ● ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-13234-001-0 01 1 9811-9903 ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-13234-001-0 01 1 9811-9903 ● ● ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-13234-001-0 01 1 9904-0012 ● ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 		5-13234-001-0 01 1 9904-0012 ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-13234-001-0 01 1 0101-0105 ● ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-13234-001-0 01 1 0101-0105 ● ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-13234-001-0 01 1 0101-0105 ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-13234-001-0 01 1 0106- ● ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-13234-001-0 01 1 0106- ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-13234-001-0 01 1 0106- ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94416-376-0 01 1 9811-0105 ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94416-376-0 01 1 9811-0105 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94416-376-0 01 1 0106- ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94416-376-0 01 1 0106- ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94453-746-0 01 1 9811-9812 ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-SPEC(7QV) 		8-94453-746-0 01 1 9811-9812 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94453-746-0 01 1 9901-9903 ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-94453-746-0 01 1 9901-9903 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94453-746-0 01 1 9901-9903 ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94453-746-0 01 1 9904-0012 ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94453-746-0 01 1 9904-0012 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-94453-746-0 01 1 9904-0012 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94453-746-0 01 1 0101-0105 ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94453-746-0 01 1 0101-0105 ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-94453-746-0 01 1 0101-0105 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94453-746-0 01 1 0106- ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-94453-746-0 01 1 0106- ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94453-746-0 01 1 0106- ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97123-549-0 01 1 9811-0105 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97123-549-0 01 1 0106- ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94450-148-0 01 1 9811-9812 ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-97219-363-0 01 1 9811-9812 ● ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-SPEC(7QV) 		8-97219-363-0 01 1 9811-9812 ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-97219-363-0 01 1 9901-9903 ● ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-97219-363-0 01 1 9901-9903 ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97219-363-0 01 1 9901-9903 ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-97219-363-0 01 1 9904-0012 ● ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97219-363-0 01 1 9904-0012 ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-97219-363-0 01 1 9904-0012 ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-97219-363-0 01 1 0101-0105 ● ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97219-363-0 01 1 0101-0105 ● ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-97219-363-0 01 1 0101-0105 ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97219-363-0 01 1 0106- ● ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-97219-363-0 01 1 0106- ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-97219-363-0 01 1 0106- ● ● ● ● ●
çizim 50233
1 1 7 7 9 9 5 5 36 36 56 41 87 14 14 37 15 37
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (G) 		8-97188-042-0 01 1 9811- ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> (E) 		8-94311-522-2 01 1 9811-0105 ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (E) 		8-94311-522-2 01 1 9811-0105 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (E) 		8-94311-522-2 01 1 0106- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> (E) 		8-94311-522-2 01 1 0106- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> (F) 		8-94144-933-3 01 1 9811-0105 ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) (F) 		8-94144-933-3 01 1 9811-0105 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) (F) 		8-94144-933-3 01 1 0106- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> (F) 		8-94144-933-3 01 1 0106- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D) 		8-97207-734-0 01 1 9811-0105 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D) 		8-97207-734-0 01 1 0106- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV) (C) 		8-97207-735-0 01 1 9811-0105 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV) (C) 		8-97207-735-0 01 1 0106- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-97081-815-1 01 1 9811-9903 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-97081-815-1 01 1 9904- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-1 01 1 9811-9903 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-1 01 1 9904- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
(B) 		8-97081-814-1 01 1 9904- ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-09623-491-0 01 1 9811- ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-09623-075-0 01 1 9811-9903 ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-09623-075-0 01 1 9811-9903 ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-09623-075-0 01 1 9811-9903 ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-09623-075-0 01 1 9904-0012 ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 		5-09623-075-0 01 1 9904-0012 ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-09623-075-0 01 1 0101-0105 ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-09623-075-0 01 1 0101-0105 ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-09623-075-0 01 1 0101-0105 ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-09623-075-0 01 1 0106- ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-09623-075-0 01 1 0106- ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-09623-075-0 01 1 0106- ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		9-13219-070-0 01 1 9811- ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-94132-674-0 01 1 9811-0012 ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94132-674-0 01 1 9811-0012 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-94132-674-0 01 1 0101-0105 ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-674-0 01 1 0101-0105 ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) 		8-94132-674-0 01 1 0101-0105 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-674-0 01 1 0106- ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-674-0 01 1 0106- ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-94132-674-0 01 1 0106- ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-674-0 01 1 0106- ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 9811- ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94132-675-0 01 1 9811-9903 ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 9811-9903 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 9811-9903 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-675-0 01 1 9811-9903 ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94132-675-0 01 1 9904-0012 ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 9904-0012 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 9904-0012 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-675-0 01 1 9904-0012 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94132-675-0 01 1 0101-0105 ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-675-0 01 1 0101-0105 ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 0101-0105 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 0101-0105 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-675-0 01 1 0106- ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 0106- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94132-675-0 01 1 0106- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 0106- ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 03.895 		9-09571-406-0 01 1 9811-0105 ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 03.895 		9-09571-406-0 01 1 9811-0105 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 03.895 		9-09571-406-0 01 1 0106- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 03.895 		9-09571-406-0 01 1 0106- ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94416-377-0 01 1 9811-0105 ● ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94416-377-0 01 1 9811-0105 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94416-377-0 01 1 0106- ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94416-377-0 01 1 0106- ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94447-156-0 01 1 9811-9903 ● ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-94447-156-0 01 1 9811-9903 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94447-156-0 01 1 9811-9903 ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94447-156-0 01 1 9904-0012 ● ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94447-156-0 01 1 9904-0012 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-94447-156-0 01 1 9904-0012 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94447-156-0 01 1 0101-0105 ● ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94447-156-0 01 1 0101-0105 ● ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-94447-156-0 01 1 0101-0105 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94447-156-0 01 1 0106- ● ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-94447-156-0 01 1 0106- ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94447-156-0 01 1 0106- ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94153-430-0 01 1 9811-0105 ● ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94153-430-0 01 1 9811-0105 ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94153-430-0 01 1 0106- ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94153-430-0 01 1 0106- ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97079-821-0 01 1 9811-0105 ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97079-821-0 01 1 0106- ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97103-765-0 01 1 9811-9812 ● ● ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13219-226-0 01 1 9811- ● ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-13234-001-0 01 1 9811-9903 ● ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-13234-001-0 01 1 9811-9903 ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-13234-001-0 01 1 9811-9903 ● ● ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-13234-001-0 01 1 9904-0012 ● ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 		5-13234-001-0 01 1 9904-0012 ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-13234-001-0 01 1 0101-0105 ● ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-13234-001-0 01 1 0101-0105 ● ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-13234-001-0 01 1 0101-0105 ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-13234-001-0 01 1 0106- ● ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-13234-001-0 01 1 0106- ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-13234-001-0 01 1 0106- ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94416-376-0 01 1 9811-0105 ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94416-376-0 01 1 9811-0105 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94416-376-0 01 1 0106- ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94416-376-0 01 1 0106- ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94453-746-0 01 1 9811-9812 ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-SPEC(7QV) 		8-94453-746-0 01 1 9811-9812 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94453-746-0 01 1 9901-9903 ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-94453-746-0 01 1 9901-9903 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94453-746-0 01 1 9901-9903 ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94453-746-0 01 1 9904-0012 ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94453-746-0 01 1 9904-0012 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-94453-746-0 01 1 9904-0012 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94453-746-0 01 1 0101-0105 ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94453-746-0 01 1 0101-0105 ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-94453-746-0 01 1 0101-0105 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94453-746-0 01 1 0106- ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-94453-746-0 01 1 0106- ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-94453-746-0 01 1 0106- ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97123-549-0 01 1 9811-0105 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97123-549-0 01 1 0106- ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94450-148-0 01 1 9811-9812 ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 9811-9812 ● ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 08.927 		9-09563-334-0 01 1 9811-9812 ● ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 08.927 		9-09563-334-0 01 1 9901-0105 ● ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 08.927 		9-09563-334-0 01 1 9901-0105 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 08.927 		9-09563-334-0 01 1 9901-0105 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 08.927 		9-09563-334-0 01 1 0106- ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 08.927 		9-09563-334-0 01 1 0106- ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 08.927 		9-09563-334-0 01 1 0106- ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. ENGINE POWER N-SPEC(7QV) 		5-13211-030-0 01 1 9811-9812 ● ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		5-13211-030-0 01 1 9811-9812 ● ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		5-13211-030-1 01 1 9901-0105 ● ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-13211-030-1 01 1 9901-0105 ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-13211-030-1 01 1 0106- ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		5-13211-030-1 01 1 0106- ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-97219-363-0 01 1 9811-9812 ● ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-SPEC(7QV) 		8-97219-363-0 01 1 9811-9812 ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-97219-363-0 01 1 9901-9903 ● ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-97219-363-0 01 1 9901-9903 ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97219-363-0 01 1 9901-9903 ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-97219-363-0 01 1 9904-0012 ● ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97219-363-0 01 1 9904-0012 ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-97219-363-0 01 1 9904-0012 ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-97219-363-0 01 1 0101-0105 ● ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97219-363-0 01 1 0101-0105 ● ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-97219-363-0 01 1 0101-0105 ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97219-363-0 01 1 0106- ● ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) 		8-97219-363-0 01 1 0106- ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 		8-97219-363-0 01 1 0106- ● ● ● ● ●
çizim 51500
21 20 20 19 1 1 1 1 1 1 20 1 1 1 1 1 1 21 19 20 20 20 19 20 21 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (G) 		8-97188-042-0 01 1 9811- ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> (E) 		8-94311-522-2 01 1 9811-0105 ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (E) 		8-94311-522-2 01 1 9811-0105 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (E) 		8-94311-522-2 01 1 0106- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> (E) 		8-94311-522-2 01 1 0106- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> (F) 		8-94144-933-3 01 1 9811-0105 ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) (F) 		8-94144-933-3 01 1 9811-0105 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-S PEC(7QV) (F) 		8-94144-933-3 01 1 0106- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> (F) 		8-94144-933-3 01 1 0106- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D) 		8-97207-734-0 01 1 9811-0105 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D) 		8-97207-734-0 01 1 0106- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV) (C) 		8-97207-735-0 01 1 9811-0105 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV) (C) 		8-97207-735-0 01 1 0106- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-97081-815-1 01 1 9811-9903 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-97081-815-1 01 1 9904- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-1 01 1 9811-9903 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-1 01 1 9904- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
(B) 		8-97081-814-1 01 1 9904- ●
19 03.890 BRACKET; FUEL SEDIMENTER
FUEL FILTER DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-298-2 01 1 9811-0012 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
FUEL FILTER DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-298-2 01 1 0101-0101 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
FUEL FILTER DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-298-2 01 1 0101-0105 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-298-2 01 1 0106- ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (D) 		8-97148-721-1 01 1 9811-0105 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (D) 		8-97148-721-1 01 1 9811-0105 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (D) 		8-97148-721-1 01 1 0106-0212 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
FUEL FILTER DUAL<S6B> (D) 		8-97148-721-1 01 1 0106-0212 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (D) 		8-97363-088-0 01 1 0301- ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
FUEL FILTER DUAL<S6B> (D) 		8-97363-088-0 01 1 0301- ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL<S6B> (B) 		8-97182-048-2 01 1 9811- ● ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (D) 		8-97189-165-0 01 1 9811-9902 ● ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> (D) 		8-97189-165-0 01 1 9811-9902 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (D) 		8-97189-165-0 01 1 9903-0105 ● ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D) 		8-97189-165-0 01 1 9903-0105 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D) 		8-97189-165-0 01 1 0106-0212 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (D) 		8-97189-165-0 01 1 0106-0212 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D) 		8-97363-089-0 01 1 0301- ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (D) 		8-97363-089-0 01 1 0301- ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> (C) 		8-94366-685-0 01 1 9811-0012 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> (C) 		8-94366-685-0 01 1 0101-0105 ● ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (C) 		8-94366-685-0 01 1 0106- ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> (A) 		8-97090-295-0 01 1 9811-9902 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-295-0 01 1 9903-0011 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-295-0 01 1 0012-0105 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9811-9903 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
FUEL FILTER DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9811-9903 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
FUEL FILTER DUAL<S6B> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9811-9903 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9904-0012 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
FUEL FILTER DUAL<S6B> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9904-0012 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
FUEL FILTER DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9904-0012 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0101-0101 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
FUEL FILTER DUAL<S6B> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0101-0101 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
FUEL FILTER DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0101-0101 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0101-0105 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
FUEL FILTER DUAL<S6B> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0101-0105 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
FUEL FILTER DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0101-0105 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
FUEL FILTER DUAL<S6B> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0106- ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 9811- ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 9811-9901 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 9811-9901 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 9902-9902 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 9902-9902 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 9903-0105 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 9903-0105 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 0106- ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 0106- ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9811-0012 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9811-0012 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0101-0105 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0101-0105 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0106- ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0106- ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 9811-0012 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0101-0105 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0106- ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 9811-9902 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 9903-0011 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0012-0105 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0106- ● ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
FUEL FILTER DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 02 1 9811-0012 ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
FUEL FILTER DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0101-0101 ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
FUEL FILTER DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0101-0105 ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
FUEL FILTER DUAL<S6B> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0106- ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 01 1 9811-9908 ● ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 04.785 M10 FLANGE 		0-91150-110-0 01 1 9811-9908 ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 01 1 9909-0105 ● ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.785 M10 FLANGE 		0-91150-110-0 01 1 9909-0105 ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-0012 ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0101-0105 ● ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106- ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0011-0011 ● ●
21 03.890 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0011-0011 ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0012-0105 ●
21 03.890 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0012-0105 ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0106- ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0106- ●
21 03.890 NUT; BRKT TO FRAME
4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> 04.785 M10 FLANGE 		0-91150-110-0 04 1 9811-0011 ● ●
21 03.890 NUT; BRKT TO FRAME
4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> 04.785 M10 FLANGE 		0-91150-110-0 04 1 0012-0105 ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
