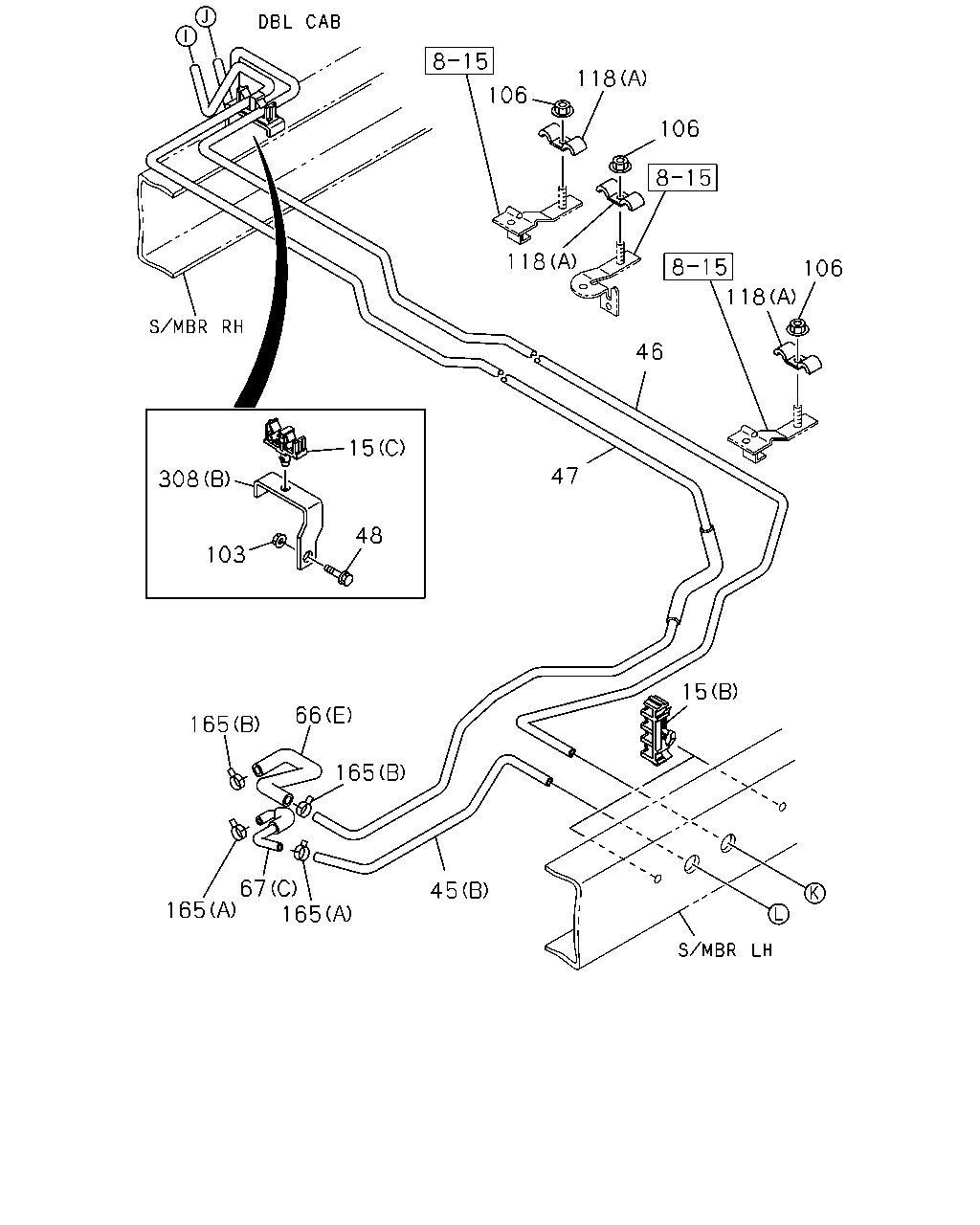

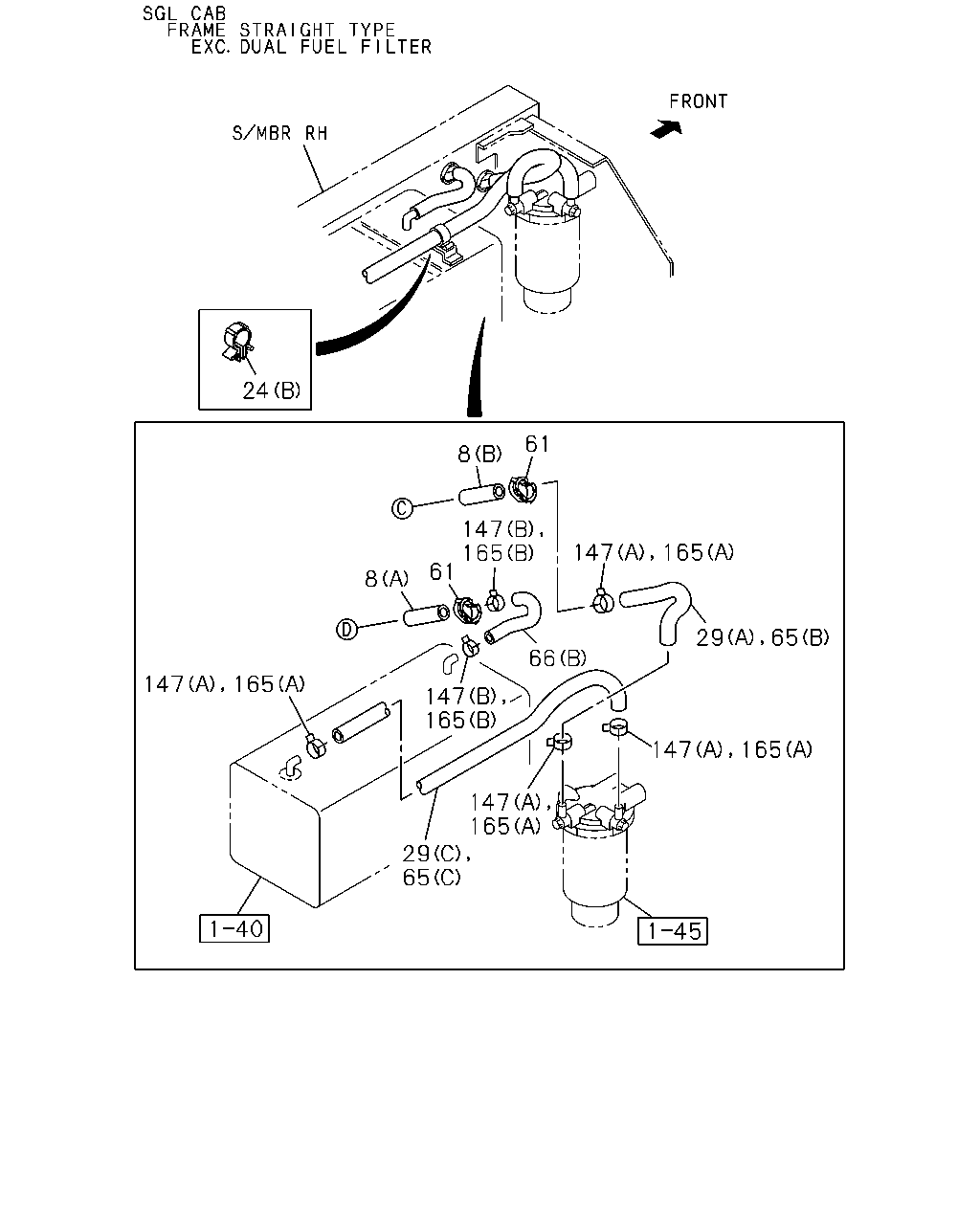

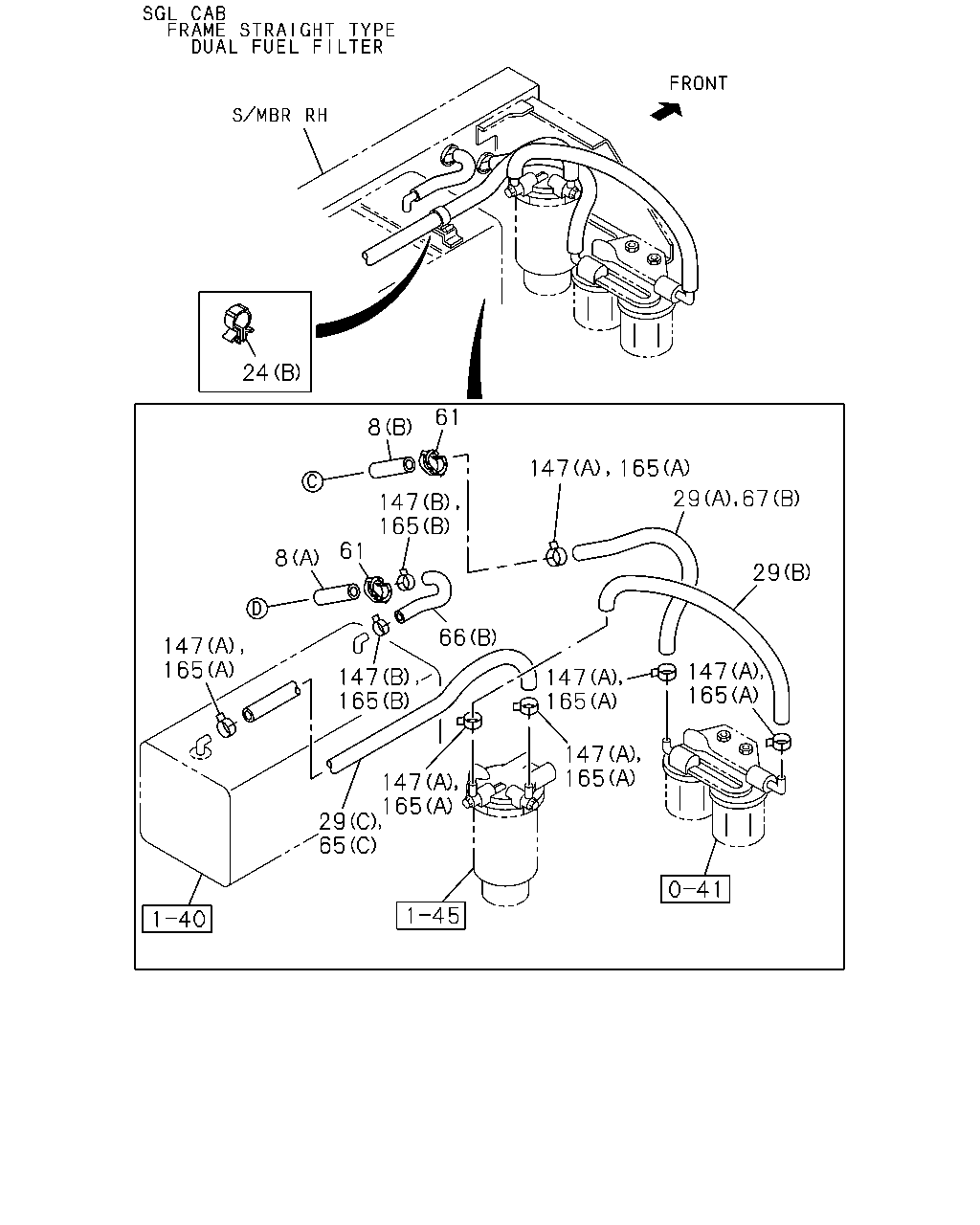

1-41 — FUEL PIPING; CHASSIS (#22123) — 2362 parça

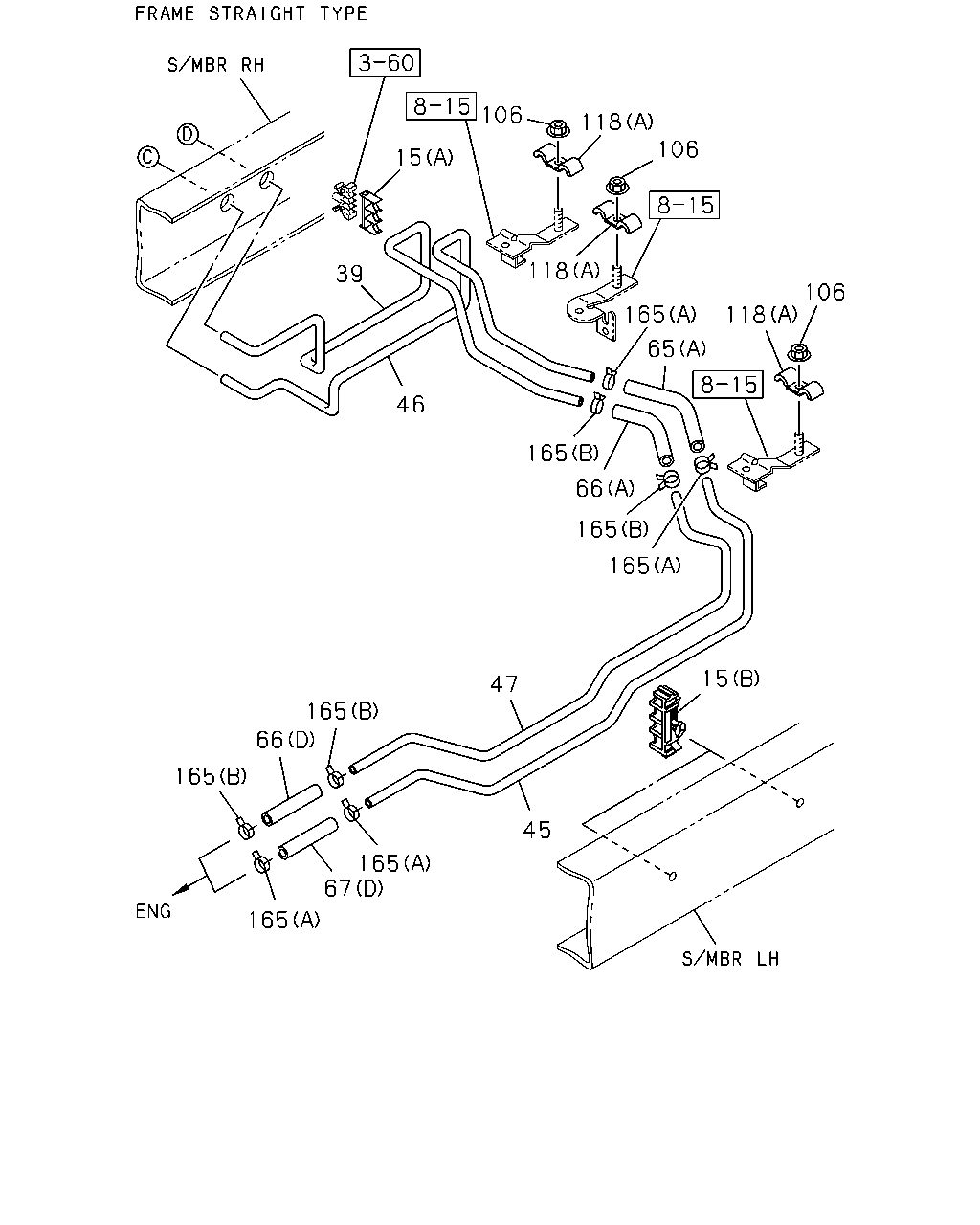

çizim 46765
106 118 106 15 118 39 106 165 118 65 46 165 66 165 165 15 47 165 66 165 45 165 67 165
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
15 03.162 CLIP; FUEL PIPE
4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.128 (A) ID=10X2 & 6.4 		8-97103-601-0 01 1 9811-9903 ●
15 03.162 CLIP; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.128 (A) ID=10X2 & 6.4 		8-97103-601-0 01 1 9811-9903 ● ● ●
15 03.162 CLIP; FUEL PIPE
04.128 (A) ID=10X2 & 6.4 		8-97103-601-0 01 1 9811-9903 ●
15 03.162 CLIP; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.128 (A) ID=10X2 & 6.4 		8-97103-601-0 01 1 9904- ● ● ● ● ●
15 03.162 CLIP; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 04.930 (B) ID=10 & 6.4 & 4.8 		8-97074-831-0 02 1 9811-0105 ● ● ● ● ●
15 03.162 CLIP; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 04.930 (B) ID=10 & 6.4 & 4.8 		8-97074-831-0 02 1 0106- ● ● ● ●
15 03.162 CLIP; FUEL PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 6.4 & 4.8 		8-97074-831-0 03 1 9811- ● ● ● ● ● ●
15 03.162 CLIP; FUEL PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 6.4 & 4.8 		8-97074-831-0 01 1 0004-0005 ● ● ●
15 03.162 CLIP; FUEL PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.686 (C) ID=10 & 6.4 		8-97074-832-0 01 1 9811- ●
39 03.163 PIPE; FUEL
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97171-014-1 01 1 9811- ● ● ● ●
39 03.163 PIPE; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97145-501-0 01 1 9811- ● ● ● ●
39 03.163 PIPE; FUEL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97149-842-0 01 1 9811-0105 ● ● ● ● ●
39 03.163 PIPE; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97149-842-0 01 1 9811-0105 ●
39 03.163 PIPE; FUEL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97149-842-0 01 1 0106- ● ● ● ●
39 03.163 PIPE; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97149-842-0 01 1 0106- ●
39 03.163 PIPE; FUEL
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97171-015-1 01 1 9811-0207 ● ● ● ● ●
39 03.163 PIPE; FUEL
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97171-015-1 01 1 0208- ● ● ● ● ●
39 03.163 PIPE; FUEL
FLOOR REMOTE SHIFT<M11> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97065-309-2 01 1 9811-0012 ● ● ● ● ●
39 03.163 PIPE; FUEL
FLOOR REMOTE SHIFT<M11> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97065-309-2 01 1 0101-0105 ● ● ● ● ● ●
39 03.163 PIPE; FUEL
FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97065-309-2 01 1 0106- ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (A) 		8-97171-008-1 01 1 9811-0003 ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,MINI BUS CHASSIS<V4B> (A) 		8-97171-008-1 01 1 0004-0105 ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4> (A) 		8-97171-008-1 01 1 0106- ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> EXC. MINI BUS CHASSIS<V4B> (A) 		8-97254-116-1 01 1 0004-0011 ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MXA5R(RMT) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (A) 		8-97254-116-1 01 1 0012-0105 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MXA5R(RMT) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97254-116-1 01 1 0106- ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97145-500-1 01 1 9811- ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97103-855-5 01 1 9811-0105 ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97103-855-5 01 1 9811-0105 ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97103-855-5 01 1 0106- ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97103-855-5 01 1 0106- ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (A) 		8-97171-009-3 01 1 9811-0003 ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,MINI BUS CHASSIS<V4B> (A) 		8-97171-009-3 01 1 0004-0105 ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
CHARGE AIR COOLER<6PL> (A) 		8-97171-009-3 01 1 0004-0105 ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4> (A) 		8-97171-009-3 01 1 0106-0207 ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4> (A) 		8-97171-009-3 01 1 0208- ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (B) 		8-97148-811-0 01 1 9811-0003 ● ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,MINI BUS CHASSIS<V4B> (B) 		8-97148-811-0 01 1 0004-0105 ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
CHARGE AIR COOLER<6PL> (B) 		8-97148-811-0 01 1 0004-0105 ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4> (B) 		8-97148-811-0 01 1 0106- ● ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97217-338-0 01 1 9811-9812 ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97222-993-0 01 1 9901-0105 ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97222-993-0 01 1 0106- ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97092-301-1 01 1 9811-0105 ● ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 		8-97092-301-1 01 1 0106- ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (B) 		8-97254-115-0 01 1 0004-0011 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (B) 		8-97254-115-0 01 1 0012-0105 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97254-115-0 01 1 0106- ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC) CHARGE AIR COOLER<6PL> EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (A) 		8-97254-117-1 01 1 0004-0011 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (A) 		8-97254-117-1 01 1 0012-0105 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97254-117-1 01 1 0106-0207 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MZZ6U(RSF) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97254-117-1 01 1 0208- ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97129-540-1 01 1 9811-0105 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97129-540-1 01 1 0106- ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97171-010-1 01 1 9811- ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97145-499-0 01 1 9811- ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97149-841-0 01 1 9811-0105 ● ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97149-841-0 01 1 9811-0105 ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97149-841-0 01 1 0106- ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97149-841-0 01 1 0106- ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97171-011-1 01 1 9811-0207 ● ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97171-011-1 01 1 0208- ● ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
FLOOR REMOTE SHIFT<M11> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97065-306-2 01 1 9811-0105 ● ● ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97065-306-2 01 1 0106- ● ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) M/T MBP6P(RNC) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97229-732-0 01 1 0106-0207 ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97229-732-0 01 1 0208- ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97211-064-2 01 1 9811-0105 ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97211-064-2 01 1 0106- ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97171-012-1 01 1 9811- ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97145-502-1 01 1 9811- ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97103-856-5 01 1 9811-0105 ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97103-856-5 01 1 9811-0105 ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97103-856-5 01 1 0106- ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97103-856-5 01 1 0106- ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97171-013-1 01 1 9811-0207 ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97171-013-1 01 1 0208- ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97217-339-0 01 1 9811-9812 ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97222-995-0 01 1 9901-0105 ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97222-995-0 01 1 0106- ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97092-304-0 01 1 9811-0105 ● ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 		8-97092-304-0 01 1 0106- ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97129-541-1 01 1 9811- ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MBP6P(RNC) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97229-735-0 01 1 0106-0207 ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97229-735-0 01 1 0208- ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97211-066-1 01 1 9811-0105 ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97211-066-1 01 1 0106- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.003 (C) L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9902 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 9903- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9903 ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9903 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9904-0012 ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0003 ● ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,MINI BUS CHASSIS<V4B> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
CHARGE AIR COOLER<6PL> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. HYDRO MASTER<7LT> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. HYDRO MASTER<7LT> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. HYDRO MASTER<7LT> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0002 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0002 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 0003- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 0003- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=240 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0011 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=240 SERVICED BY L=3000 		0-01259-300-0 01 1 0012-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=240 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FUEL TANK 125L,33GAL<NL7> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=860 		8-97182-159-0 01 1 0007-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FUEL TANK 125L,33GAL<NL7> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=860 		8-97182-159-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> 03.003 (C) L=840 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9902 ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> 03.003 (C) L=840 SERVICED BY L=3000 		0-01259-300-0 01 1 9903-0105 ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> 03.003 (C) L=840 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> 03.003 (C) L=760 SERVICED BY L=3000 		0-01259-300-0 01 1 9903- ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9903 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9903 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-0012 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-0012 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0101 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0101 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0101 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
AUSTRALIA EQUIPMENT(RR3) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
AUSTRALIA EQUIPMENT(RR3) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) L=440 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9902 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9902 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9903-9903 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HF1 ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9903-9903 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-9906 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-9906 ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0012 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0012 ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0012 ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) L=250 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) L=250 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (D) L=290 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (D) L=290 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E) 		8-97174-761-1 01 1 9811-9908 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
CHARGE AIR COOLER<6PL> (E) 		8-97174-761-1 01 1 9811-9908 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E) 		8-97174-761-1 01 1 9909- ● ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(A) L=140 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. HYDRO MASTER<7LT> (A) L=140 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9906 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9902 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 9903-0105 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> (B) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=300 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9906 ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0105 ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. AUSTRALIA EQUIPMENT(RR3),FRAME STRAIGHT TYPE<7KJ> (B) L=1100 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=560 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HE1 ENG(RLY) FUEL TANK 125L,33GAL<NL7> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=560 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9812 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.003 (A) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 9901-0012 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> 03.003 (A) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 9901-0012 ●
67 03.163 HOSE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.003 (A) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.003 (A) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=450 SERVICED BY L=3000 		0-01259-300-0 01 1 9901-9901 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
4HF1 ENG(RLS) FUEL FILTER DUAL<S6B> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=450 SERVICED BY L=3000 		0-01259-300-0 01 1 9902-0105 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
4HF1 ENG(RLS) FUEL FILTER DUAL<S6B> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=450 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (D) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0105 ● ● ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (D) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97174-760-2 01 1 9811-9908 ● ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
CHARGE AIR COOLER<6PL> (C) 		8-97174-760-2 01 1 9811-9908 ●
67 03.163 HOSE; FUEL,DELIVERY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97174-760-2 01 1 9909- ● ● ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 03.003 (B) L=400 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0105 ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 03.003 (B) L=400 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
106 03.162 NUT; FUEL PIPE
04.594 M6 FLANGE 		0-91150-106-0 03 1 9811-0008 ● ● ● ●
106 03.162 NUT; FUEL PIPE
EXC. MINI BUS CHASSIS<V4B> 04.594 M6 FLANGE 		0-91150-106-0 03 1 9811-0008 ● ●
106 03.162 NUT; FUEL PIPE
04.594 M6 FLANGE 		0-91150-106-0 03 1 0101- ● ● ● ● ● ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 9811-9903 ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 9811-9903 ● ● ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 9904-0105 ● ● ● ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
(B) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 9904-0105 ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 0106- ● ● ● ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9811-9903 ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9811-9903 ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9811-9903 ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9904-0012 ● ● ● ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0101- ● ● ● ● ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
00.785 (A) ID=11 & 7 L=15 & 15 		1-09700-071-0 03 1 9811- ● ● ● ● ● ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) ID=6 L=22 		1-09700-139-0 01 1 0006- ● ● ●
165 03.162 CLIP; FUEL HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ● ● ●
165 03.162 CLIP; FUEL HOSE
01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 06 1 9904- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ● ● ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 9904-0012 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 9904-0012 ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0101-0105 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0101-0105 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0106- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0106- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 12 1 9811- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 9811-0012 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 9811-0012 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 0101- ● ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 0101- ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) L=140 		5-09707-031-0 01 1 9811-9902 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140 		5-09707-031-1 01 1 9903- ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140 		5-09707-031-1 01 1 9903- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> FUEL FILTER DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 09 1 9811-0105 ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 09 1 0106- ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> 01.166 (A) ID=14 		8-94238-572-0 01 1 9811- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>, HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 07 1 9811-0105 ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 07 1 0106- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 04 1 9811- ●

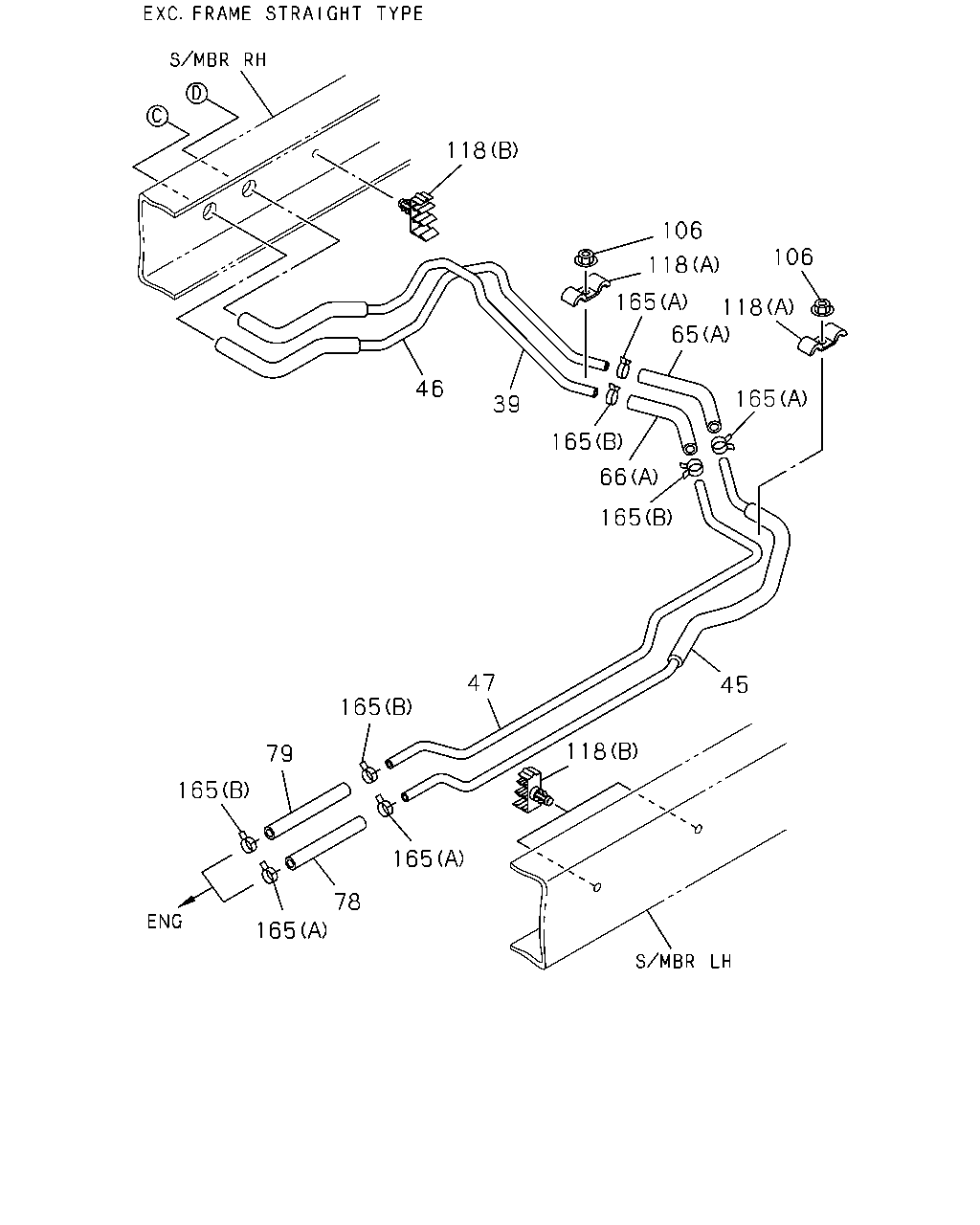

çizim 46806
118 106 106 118 165 118 65 46 165 39 165 66 165 47 45 165 118 79 165 165 78 165
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
39 03.163 PIPE; FUEL
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97171-014-1 01 1 9811- ● ● ● ●
39 03.163 PIPE; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97145-501-0 01 1 9811- ● ● ● ●
39 03.163 PIPE; FUEL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97149-842-0 01 1 9811-0105 ● ● ● ● ●
39 03.163 PIPE; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97149-842-0 01 1 9811-0105 ●
39 03.163 PIPE; FUEL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97149-842-0 01 1 0106- ● ● ● ●
39 03.163 PIPE; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97149-842-0 01 1 0106- ●
39 03.163 PIPE; FUEL
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97171-015-1 01 1 9811-0207 ● ● ● ● ●
39 03.163 PIPE; FUEL
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97171-015-1 01 1 0208- ● ● ● ● ●
39 03.163 PIPE; FUEL
FLOOR REMOTE SHIFT<M11> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97065-309-2 01 1 9811-0012 ● ● ● ● ●
39 03.163 PIPE; FUEL
FLOOR REMOTE SHIFT<M11> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97065-309-2 01 1 0101-0105 ● ● ● ● ● ●
39 03.163 PIPE; FUEL
FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97065-309-2 01 1 0106- ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (A) 		8-97171-008-1 01 1 9811-0003 ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,MINI BUS CHASSIS<V4B> (A) 		8-97171-008-1 01 1 0004-0105 ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4> (A) 		8-97171-008-1 01 1 0106- ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> EXC. MINI BUS CHASSIS<V4B> (A) 		8-97254-116-1 01 1 0004-0011 ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MXA5R(RMT) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (A) 		8-97254-116-1 01 1 0012-0105 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MXA5R(RMT) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97254-116-1 01 1 0106- ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97145-500-1 01 1 9811- ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97103-855-5 01 1 9811-0105 ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97103-855-5 01 1 9811-0105 ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97103-855-5 01 1 0106- ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97103-855-5 01 1 0106- ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (A) 		8-97171-009-3 01 1 9811-0003 ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,MINI BUS CHASSIS<V4B> (A) 		8-97171-009-3 01 1 0004-0105 ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
CHARGE AIR COOLER<6PL> (A) 		8-97171-009-3 01 1 0004-0105 ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4> (A) 		8-97171-009-3 01 1 0106-0207 ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4> (A) 		8-97171-009-3 01 1 0208- ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (B) 		8-97148-811-0 01 1 9811-0003 ● ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,MINI BUS CHASSIS<V4B> (B) 		8-97148-811-0 01 1 0004-0105 ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
CHARGE AIR COOLER<6PL> (B) 		8-97148-811-0 01 1 0004-0105 ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4> (B) 		8-97148-811-0 01 1 0106- ● ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97217-338-0 01 1 9811-9812 ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97222-993-0 01 1 9901-0105 ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97222-993-0 01 1 0106- ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97092-301-1 01 1 9811-0105 ● ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 		8-97092-301-1 01 1 0106- ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (B) 		8-97254-115-0 01 1 0004-0011 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (B) 		8-97254-115-0 01 1 0012-0105 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97254-115-0 01 1 0106- ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC) CHARGE AIR COOLER<6PL> EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (A) 		8-97254-117-1 01 1 0004-0011 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (A) 		8-97254-117-1 01 1 0012-0105 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97254-117-1 01 1 0106-0207 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MZZ6U(RSF) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97254-117-1 01 1 0208- ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97129-540-1 01 1 9811-0105 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97129-540-1 01 1 0106- ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97171-010-1 01 1 9811- ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97145-499-0 01 1 9811- ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97149-841-0 01 1 9811-0105 ● ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97149-841-0 01 1 9811-0105 ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97149-841-0 01 1 0106- ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97149-841-0 01 1 0106- ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97171-011-1 01 1 9811-0207 ● ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97171-011-1 01 1 0208- ● ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
FLOOR REMOTE SHIFT<M11> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97065-306-2 01 1 9811-0105 ● ● ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97065-306-2 01 1 0106- ● ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) M/T MBP6P(RNC) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97229-732-0 01 1 0106-0207 ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97229-732-0 01 1 0208- ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97211-064-2 01 1 9811-0105 ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97211-064-2 01 1 0106- ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97171-012-1 01 1 9811- ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97145-502-1 01 1 9811- ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97103-856-5 01 1 9811-0105 ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97103-856-5 01 1 9811-0105 ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97103-856-5 01 1 0106- ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97103-856-5 01 1 0106- ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97171-013-1 01 1 9811-0207 ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97171-013-1 01 1 0208- ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97217-339-0 01 1 9811-9812 ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97222-995-0 01 1 9901-0105 ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97222-995-0 01 1 0106- ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97092-304-0 01 1 9811-0105 ● ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 		8-97092-304-0 01 1 0106- ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97129-541-1 01 1 9811- ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MBP6P(RNC) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97229-735-0 01 1 0106-0207 ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97229-735-0 01 1 0208- ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97211-066-1 01 1 9811-0105 ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97211-066-1 01 1 0106- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.003 (C) L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9902 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 9903- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9903 ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9903 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9904-0012 ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0003 ● ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,MINI BUS CHASSIS<V4B> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
CHARGE AIR COOLER<6PL> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. HYDRO MASTER<7LT> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. HYDRO MASTER<7LT> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. HYDRO MASTER<7LT> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0002 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0002 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 0003- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 0003- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=240 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0011 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=240 SERVICED BY L=3000 		0-01259-300-0 01 1 0012-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=240 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FUEL TANK 125L,33GAL<NL7> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=860 		8-97182-159-0 01 1 0007-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FUEL TANK 125L,33GAL<NL7> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=860 		8-97182-159-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> 03.003 (C) L=840 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9902 ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> 03.003 (C) L=840 SERVICED BY L=3000 		0-01259-300-0 01 1 9903-0105 ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> 03.003 (C) L=840 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> 03.003 (C) L=760 SERVICED BY L=3000 		0-01259-300-0 01 1 9903- ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9903 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9903 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-0012 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-0012 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0101 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0101 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0101 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
AUSTRALIA EQUIPMENT(RR3) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
AUSTRALIA EQUIPMENT(RR3) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) L=440 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9902 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9902 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9903-9903 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HF1 ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9903-9903 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-9906 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-9906 ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0012 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0012 ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0012 ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) L=250 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) L=250 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (D) L=290 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (D) L=290 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E) 		8-97174-761-1 01 1 9811-9908 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
CHARGE AIR COOLER<6PL> (E) 		8-97174-761-1 01 1 9811-9908 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E) 		8-97174-761-1 01 1 9909- ● ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(A) L=140 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. HYDRO MASTER<7LT> (A) L=140 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9906 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9902 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 9903-0105 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> (B) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=300 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9906 ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0105 ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. AUSTRALIA EQUIPMENT(RR3),FRAME STRAIGHT TYPE<7KJ> (B) L=1100 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=560 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HE1 ENG(RLY) FUEL TANK 125L,33GAL<NL7> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=560 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
78 03.163 HOSE; FUEL,PUMP TO PIPE
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 L=200 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9906 ● ● ● ● ●
78 03.163 HOSE; FUEL,PUMP TO PIPE
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 L=180 SERVICED BY L=3000 		0-01259-300-0 01 1 9907-0105 ● ● ● ● ●
78 03.163 HOSE; FUEL,PUMP TO PIPE
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 L=180 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
78 03.163 HOSE; FUEL,PUMP TO PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.003 L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0105 ● ● ● ● ●
78 03.163 HOSE; FUEL,PUMP TO PIPE
03.003 L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0105 ●
78 03.163 HOSE; FUEL,PUMP TO PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.003 L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ● ●
79 03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> L=280 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9812 ● ● ● ● ●
79 03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4HF1 ENG(RLS) HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> L=290 SERVICED BY L=3000 		0-01256-300-0 01 1 9901-0105 ● ● ● ● ●
79 03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4HF1 ENG(RLS) HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> L=290 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ●
79 03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2), FRAME STRAIGHT TYPE<7KJ> L=250 SERVICED BY L=3000 		0-01256-300-0 01 1 9901-0105 ● ● ● ● ●
79 03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2), FRAME STRAIGHT TYPE<7KJ> L=250 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ●
79 03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) L=270 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ● ● ●
79 03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
L=270 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ●
79 03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) L=270 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ● ● ●

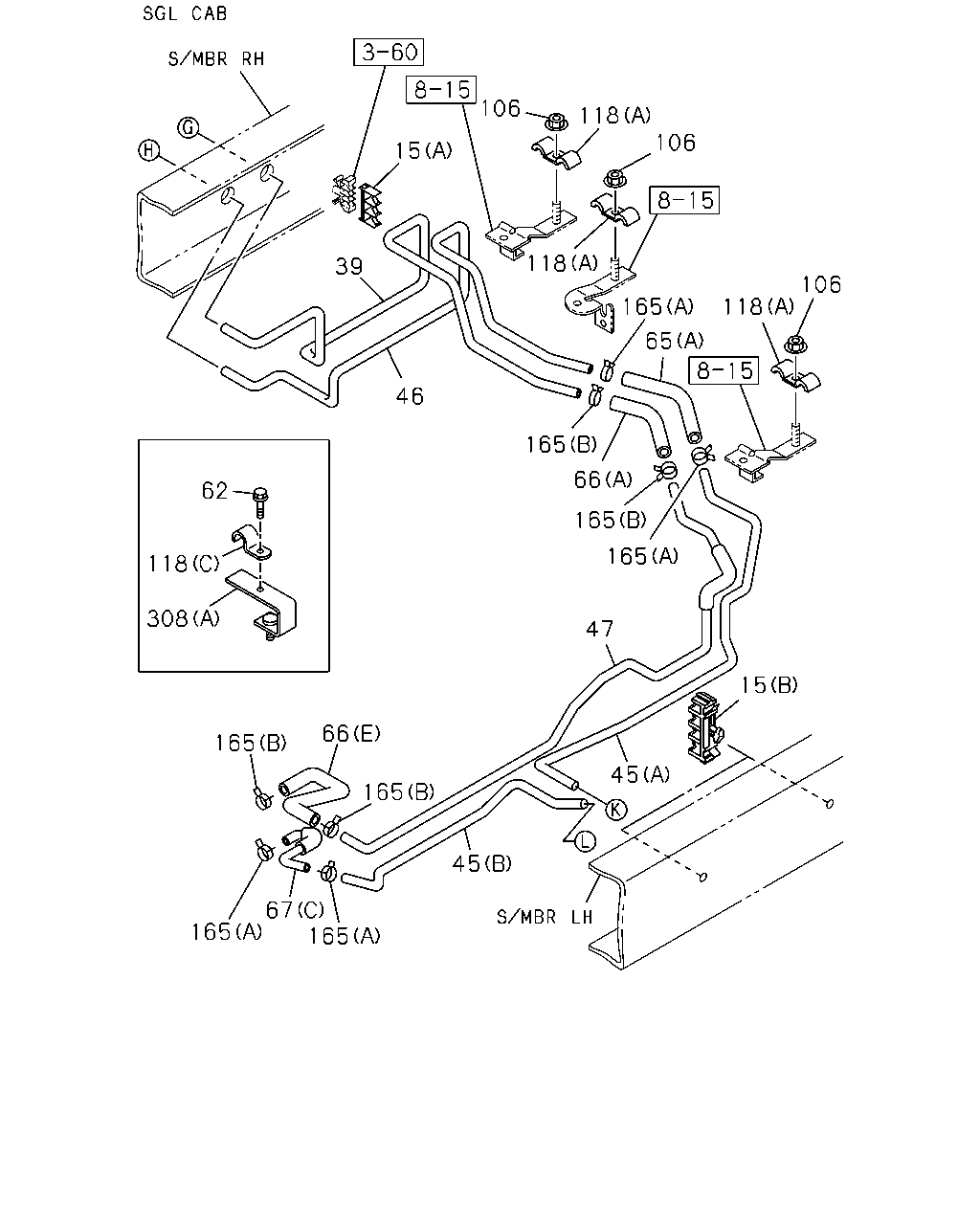

106 03.162 NUT; FUEL PIPE
04.594 M6 FLANGE 		0-91150-106-0 03 1 9811-0008 ● ● ● ●
106 03.162 NUT; FUEL PIPE
EXC. MINI BUS CHASSIS<V4B> 04.594 M6 FLANGE 		0-91150-106-0 03 1 9811-0008 ● ●
106 03.162 NUT; FUEL PIPE
04.594 M6 FLANGE 		0-91150-106-0 03 1 0101- ● ● ● ● ● ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 9811-9903 ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 9811-9903 ● ● ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 9904-0105 ● ● ● ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
(B) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 9904-0105 ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 0106- ● ● ● ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9811-9903 ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9811-9903 ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9811-9903 ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9904-0012 ● ● ● ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0101- ● ● ● ● ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
00.785 (A) ID=11 & 7 L=15 & 15 		1-09700-071-0 03 1 9811- ● ● ● ● ● ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) ID=6 L=22 		1-09700-139-0 01 1 0006- ● ● ●
165 03.162 CLIP; FUEL HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ● ● ●
165 03.162 CLIP; FUEL HOSE
01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 06 1 9904- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ● ● ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 9904-0012 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 9904-0012 ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0101-0105 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0101-0105 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0106- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0106- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 12 1 9811- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 9811-0012 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 9811-0012 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 0101- ● ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 0101- ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) L=140 		5-09707-031-0 01 1 9811-9902 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140 		5-09707-031-1 01 1 9903- ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140 		5-09707-031-1 01 1 9903- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> FUEL FILTER DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 09 1 9811-0105 ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 09 1 0106- ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> 01.166 (A) ID=14 		8-94238-572-0 01 1 9811- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>, HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 07 1 9811-0105 ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 07 1 0106- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 04 1 9811- ●
çizim 46913
24 61 8 147 165 147 165 61 8 29 65 66 165 47 147 165 147 165 147 165 29 65
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
8 03.162 RUBBER; MTG
4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50 		8-94157-054-1 01 1 9811-9903 ●
8 03.162 RUBBER; MTG
FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50 		8-94157-054-1 01 1 9811-9903 ● ● ●
8 03.162 RUBBER; MTG
(A) OD=17 L=50 		8-94157-054-1 01 1 9811-9903 ●
8 03.162 RUBBER; MTG
FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50 		8-94157-054-1 01 1 9904-0105 ● ● ● ●
8 03.162 RUBBER; MTG
(A) OD=17 L=50 		8-94157-054-1 01 1 9904-0105 ●
8 03.162 RUBBER; MTG
(A) OD=17 L=50 		8-94157-054-1 01 1 0106- ● ● ● ● ● ●
8 03.162 RUBBER; MTG
EXC. FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50 		8-94157-054-1 01 1 0106- ●
8 03.162 RUBBER; MTG
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) OD=15 L=50 		8-97077-629-0 01 1 9811-0105 ● ● ● ● ●
8 03.162 RUBBER; MTG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (B) OD=15 L=50 		8-97077-629-0 03 1 0106- ● ● ● ● ●
8 03.162 RUBBER; MTG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (B) OD=15 L=50 		8-97077-629-0 03 1 9811-0105 ● ● ● ● ●
8 03.162 RUBBER; MTG
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) OD=15 L=50 		8-97077-629-0 01 1 0106- ● ● ● ●
8 03.162 RUBBER; MTG
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50 		8-97077-629-0 01 1 0106- ● ● ● ● ●
8 03.162 RUBBER; MTG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50 		8-97077-629-0 02 1 9811- ●
24 03.162 CLIP; FUEL HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250 		5-09707-030-1 01 1 9811-9903 ●
24 03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250 		5-09707-030-1 01 1 9811-9903 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250 		5-09707-030-1 01 1 9904-0105 ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
02.559 (A) L=250 		5-09707-030-1 01 1 9904-0105 ●
24 03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250 		5-09707-030-1 01 1 0106- ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9811-9906 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 9811-9906 ● ● ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9811-9906 ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9907-9908 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 9907-9908 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 9907-9908 ● ● ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9907-9908 ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9909-0012 ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9909-0012 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 9909-0012 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 9909-0012 ● ● ●
24 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> (A) L=140 		5-09707-031-1 01 1 9909-0012 ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0101-0101 ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0101-0101 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0101-0101 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0101-0101 ● ● ●
24 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> (A) L=140 		5-09707-031-1 01 1 0101-0101 ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> (A) L=140 		5-09707-031-1 01 1 0101-0101 ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0101-0105 ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0101-0105 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0101-0105 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0101-0105 ● ● ●
24 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> (A) L=140 		5-09707-031-1 01 1 0101-0105 ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0106- ● ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0106- ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0106- ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0106- ● ● ●
24 03.162 CLIP; FUEL HOSE
(B) 		8-97089-536-0 01 1 9811-0105 ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) 		8-97089-536-0 01 1 9811-0105 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97089-536-0 01 1 9811-0105 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97089-536-0 01 1 0106- ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) 		8-97089-536-0 01 1 0106- ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 02 1 9811- ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=28 L=60 		1-09700-585-1 01 1 9811- ●
29 03.163 HOSE; FUEL
EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (C) L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 9811- ● ● ● ●
29 03.163 HOSE; FUEL
EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (A) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 9902- ● ● ● ●
29 03.163 HOSE; FUEL
AUSTRALIA EQUIPMENT(RR3) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (C) L=540 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0105 ● ● ● ● ●
29 03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,AUSTRALIA EQUIPMENT(RR3),CHA RGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (C) L=540 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0105 ● ● ● ● ●
29 03.163 HOSE; FUEL
AUSTRALIA EQUIPMENT(RR3) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (C) L=540 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ●
29 03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,AUSTRALIA EQUIPMENT(RR3),CHA RGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (C) L=540 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ●
29 03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (A) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9901 ● ● ● ● ●
29 03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (A) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9902-0105 ● ● ● ● ●
29 03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (A) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ●
29 03.163 HOSE; FUEL
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (B) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0003 ● ● ● ● ●
29 03.163 HOSE; FUEL
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (B) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ● ● ● ● ●
29 03.163 HOSE; FUEL
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ● ● ●
29 03.163 HOSE; FUEL
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (B) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ●
29 03.163 HOSE; FUEL
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
29 03.163 HOSE; FUEL
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (A) L=420 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0003 ● ● ● ● ●
29 03.163 HOSE; FUEL
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=420 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0003 ● ● ● ●
29 03.163 HOSE; FUEL
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (A) L=420 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ● ● ● ● ●
29 03.163 HOSE; FUEL
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4> 03.003 (A) L=420 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ● ● ● ●
29 03.163 HOSE; FUEL
FUEL FILTER DUAL<S6B> 03.003 (A) L=420 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ●
29 03.163 HOSE; FUEL
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4> 03.003 (A) L=420 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ● ●
29 03.163 HOSE; FUEL
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (A) L=420 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ●
29 03.163 HOSE; FUEL
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=640 SERVICED BY L=3000 		0-01259-300-0 01 1 9811- ● ● ● ● ●
29 03.163 HOSE; FUEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 03.003 (A) L=180 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0003 ● ● ● ● ● ●
29 03.163 HOSE; FUEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL FILTER DUAL<S6B> 03.003 (A) L=180 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ● ● ● ● ●
29 03.163 HOSE; FUEL
CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL<S6B> 03.003 (A) L=180 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ●
29 03.163 HOSE; FUEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL FILTER DUAL<S6B> 03.003 (A) L=180 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ● ● ●
29 03.163 HOSE; FUEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> EXC. FUEL FILTER DUAL<S6B> 03.003 (A) L=260 SERVICED BY L=3000 		0-01259-300-0 01 1 0004- ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97171-012-1 01 1 9811- ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97145-502-1 01 1 9811- ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97103-856-5 01 1 9811-0105 ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97103-856-5 01 1 9811-0105 ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97103-856-5 01 1 0106- ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97103-856-5 01 1 0106- ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97171-013-1 01 1 9811-0207 ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97171-013-1 01 1 0208- ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97217-339-0 01 1 9811-9812 ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97222-995-0 01 1 9901-0105 ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97222-995-0 01 1 0106- ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97092-304-0 01 1 9811-0105 ● ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 		8-97092-304-0 01 1 0106- ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97129-541-1 01 1 9811- ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MBP6P(RNC) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97229-735-0 01 1 0106-0207 ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97229-735-0 01 1 0208- ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97211-066-1 01 1 9811-0105 ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97211-066-1 01 1 0106- ●
61 03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 02.343 ID=17 		8-94128-319-2 04 1 9811- ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 9811-9903 ● ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17 		8-94128-319-2 02 1 9811-9903 ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 9811-9903 ●
61 03.162 GROMMET; PIPE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ●
61 03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ●
61 03.162 GROMMET; PIPE TO FRAME
02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ●
61 03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17 		8-94128-319-2 02 1 0106- ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 0106- ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 0106- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.003 (C) L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9902 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 9903- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9903 ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9903 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9904-0012 ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0003 ● ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,MINI BUS CHASSIS<V4B> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
CHARGE AIR COOLER<6PL> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. HYDRO MASTER<7LT> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. HYDRO MASTER<7LT> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. HYDRO MASTER<7LT> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0002 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0002 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 0003- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 0003- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=240 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0011 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=240 SERVICED BY L=3000 		0-01259-300-0 01 1 0012-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=240 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FUEL TANK 125L,33GAL<NL7> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=860 		8-97182-159-0 01 1 0007-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FUEL TANK 125L,33GAL<NL7> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=860 		8-97182-159-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> 03.003 (C) L=840 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9902 ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> 03.003 (C) L=840 SERVICED BY L=3000 		0-01259-300-0 01 1 9903-0105 ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> 03.003 (C) L=840 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> 03.003 (C) L=760 SERVICED BY L=3000 		0-01259-300-0 01 1 9903- ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9903 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9903 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-0012 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-0012 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0101 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0101 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0101 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
AUSTRALIA EQUIPMENT(RR3) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
AUSTRALIA EQUIPMENT(RR3) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) L=440 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9902 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9902 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9903-9903 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HF1 ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9903-9903 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-9906 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-9906 ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0012 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0012 ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0012 ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) L=250 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) L=250 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (D) L=290 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (D) L=290 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E) 		8-97174-761-1 01 1 9811-9908 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
CHARGE AIR COOLER<6PL> (E) 		8-97174-761-1 01 1 9811-9908 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E) 		8-97174-761-1 01 1 9909- ● ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(A) L=140 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. HYDRO MASTER<7LT> (A) L=140 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9906 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9902 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 9903-0105 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> (B) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=300 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9906 ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0105 ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. AUSTRALIA EQUIPMENT(RR3),FRAME STRAIGHT TYPE<7KJ> (B) L=1100 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=560 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HE1 ENG(RLY) FUEL TANK 125L,33GAL<NL7> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=560 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9908 ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9908 ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 06 1 9909-0105 ● ● ● ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 06 1 0106- ● ● ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 04 1 9811-0011 ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 04 1 9811-0011 ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 04 1 0012-0105 ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 04 1 0012-0105 ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 04 1 0106- ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B> 04.930 (A) ID=16 		8-94238-568-0 06 1 9811- ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811- ● ● ●
165 03.162 CLIP; FUEL HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ● ● ●
165 03.162 CLIP; FUEL HOSE
01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 06 1 9904- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ● ● ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 9904-0012 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 9904-0012 ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0101-0105 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0101-0105 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0106- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0106- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 12 1 9811- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 9811-0012 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 9811-0012 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 0101- ● ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 0101- ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) L=140 		5-09707-031-0 01 1 9811-9902 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140 		5-09707-031-1 01 1 9903- ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140 		5-09707-031-1 01 1 9903- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> FUEL FILTER DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 09 1 9811-0105 ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 09 1 0106- ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> 01.166 (A) ID=14 		8-94238-572-0 01 1 9811- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>, HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 07 1 9811-0105 ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 07 1 0106- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 04 1 9811- ●
çizim 47421
106 118 106 15 118 39 106 165 118 65 46 165 66 62 165 165 118 308 47 15 66 165 45 165 45 67 165 165
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
15 03.162 CLIP; FUEL PIPE
4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.128 (A) ID=10X2 & 6.4 		8-97103-601-0 01 1 9811-9903 ●
15 03.162 CLIP; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.128 (A) ID=10X2 & 6.4 		8-97103-601-0 01 1 9811-9903 ● ● ●
15 03.162 CLIP; FUEL PIPE
04.128 (A) ID=10X2 & 6.4 		8-97103-601-0 01 1 9811-9903 ●
15 03.162 CLIP; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.128 (A) ID=10X2 & 6.4 		8-97103-601-0 01 1 9904- ● ● ● ● ●
15 03.162 CLIP; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 04.930 (B) ID=10 & 6.4 & 4.8 		8-97074-831-0 02 1 9811-0105 ● ● ● ● ●
15 03.162 CLIP; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 04.930 (B) ID=10 & 6.4 & 4.8 		8-97074-831-0 02 1 0106- ● ● ● ●
15 03.162 CLIP; FUEL PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 6.4 & 4.8 		8-97074-831-0 03 1 9811- ● ● ● ● ● ●
15 03.162 CLIP; FUEL PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 6.4 & 4.8 		8-97074-831-0 01 1 0004-0005 ● ● ●
15 03.162 CLIP; FUEL PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.686 (C) ID=10 & 6.4 		8-97074-832-0 01 1 9811- ●
39 03.163 PIPE; FUEL
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97171-014-1 01 1 9811- ● ● ● ●
39 03.163 PIPE; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97145-501-0 01 1 9811- ● ● ● ●
39 03.163 PIPE; FUEL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97149-842-0 01 1 9811-0105 ● ● ● ● ●
39 03.163 PIPE; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97149-842-0 01 1 9811-0105 ●
39 03.163 PIPE; FUEL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97149-842-0 01 1 0106- ● ● ● ●
39 03.163 PIPE; FUEL
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97149-842-0 01 1 0106- ●
39 03.163 PIPE; FUEL
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97171-015-1 01 1 9811-0207 ● ● ● ● ●
39 03.163 PIPE; FUEL
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97171-015-1 01 1 0208- ● ● ● ● ●
39 03.163 PIPE; FUEL
FLOOR REMOTE SHIFT<M11> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97065-309-2 01 1 9811-0012 ● ● ● ● ●
39 03.163 PIPE; FUEL
FLOOR REMOTE SHIFT<M11> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97065-309-2 01 1 0101-0105 ● ● ● ● ● ●
39 03.163 PIPE; FUEL
FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97065-309-2 01 1 0106- ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (A) 		8-97171-008-1 01 1 9811-0003 ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,MINI BUS CHASSIS<V4B> (A) 		8-97171-008-1 01 1 0004-0105 ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4> (A) 		8-97171-008-1 01 1 0106- ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> EXC. MINI BUS CHASSIS<V4B> (A) 		8-97254-116-1 01 1 0004-0011 ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MXA5R(RMT) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (A) 		8-97254-116-1 01 1 0012-0105 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MXA5R(RMT) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97254-116-1 01 1 0106- ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97145-500-1 01 1 9811- ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97103-855-5 01 1 9811-0105 ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97103-855-5 01 1 9811-0105 ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97103-855-5 01 1 0106- ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97103-855-5 01 1 0106- ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (A) 		8-97171-009-3 01 1 9811-0003 ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,MINI BUS CHASSIS<V4B> (A) 		8-97171-009-3 01 1 0004-0105 ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
CHARGE AIR COOLER<6PL> (A) 		8-97171-009-3 01 1 0004-0105 ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4> (A) 		8-97171-009-3 01 1 0106-0207 ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4> (A) 		8-97171-009-3 01 1 0208- ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (B) 		8-97148-811-0 01 1 9811-0003 ● ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,MINI BUS CHASSIS<V4B> (B) 		8-97148-811-0 01 1 0004-0105 ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
CHARGE AIR COOLER<6PL> (B) 		8-97148-811-0 01 1 0004-0105 ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4> (B) 		8-97148-811-0 01 1 0106- ● ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97217-338-0 01 1 9811-9812 ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97222-993-0 01 1 9901-0105 ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97222-993-0 01 1 0106- ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97092-301-1 01 1 9811-0105 ● ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 		8-97092-301-1 01 1 0106- ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (B) 		8-97254-115-0 01 1 0004-0011 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (B) 		8-97254-115-0 01 1 0012-0105 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97254-115-0 01 1 0106- ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC) CHARGE AIR COOLER<6PL> EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (A) 		8-97254-117-1 01 1 0004-0011 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (A) 		8-97254-117-1 01 1 0012-0105 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97254-117-1 01 1 0106-0207 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MZZ6U(RSF) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97254-117-1 01 1 0208- ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97129-540-1 01 1 9811-0105 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97129-540-1 01 1 0106- ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97171-010-1 01 1 9811- ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97145-499-0 01 1 9811- ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97149-841-0 01 1 9811-0105 ● ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97149-841-0 01 1 9811-0105 ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97149-841-0 01 1 0106- ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97149-841-0 01 1 0106- ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97171-011-1 01 1 9811-0207 ● ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97171-011-1 01 1 0208- ● ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
FLOOR REMOTE SHIFT<M11> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97065-306-2 01 1 9811-0105 ● ● ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97065-306-2 01 1 0106- ● ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) M/T MBP6P(RNC) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97229-732-0 01 1 0106-0207 ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97229-732-0 01 1 0208- ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97211-064-2 01 1 9811-0105 ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97211-064-2 01 1 0106- ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97171-012-1 01 1 9811- ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97145-502-1 01 1 9811- ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97103-856-5 01 1 9811-0105 ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97103-856-5 01 1 9811-0105 ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97103-856-5 01 1 0106- ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97103-856-5 01 1 0106- ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97171-013-1 01 1 9811-0207 ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97171-013-1 01 1 0208- ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97217-339-0 01 1 9811-9812 ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97222-995-0 01 1 9901-0105 ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97222-995-0 01 1 0106- ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97092-304-0 01 1 9811-0105 ● ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 		8-97092-304-0 01 1 0106- ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97129-541-1 01 1 9811- ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MBP6P(RNC) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97229-735-0 01 1 0106-0207 ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97229-735-0 01 1 0208- ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97211-066-1 01 1 9811-0105 ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97211-066-1 01 1 0106- ●
62 03.162 BOLT; CLIP FIX
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0006-0006 ● ● ●
62 03.162 BOLT; CLIP FIX
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0007- ● ● ●
62 03.162 BOLT; CLIP FIX
EXC. FRAME STRAIGHT TYPE<7KJ> 01.531 M8X25 FLANGE 		0-28080-825-0 01 1 9811- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.003 (C) L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9902 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 9903- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9903 ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9903 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9904-0012 ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0003 ● ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,MINI BUS CHASSIS<V4B> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
CHARGE AIR COOLER<6PL> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. HYDRO MASTER<7LT> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. HYDRO MASTER<7LT> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. HYDRO MASTER<7LT> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0002 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0002 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 0003- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 0003- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=240 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0011 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=240 SERVICED BY L=3000 		0-01259-300-0 01 1 0012-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=240 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FUEL TANK 125L,33GAL<NL7> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=860 		8-97182-159-0 01 1 0007-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FUEL TANK 125L,33GAL<NL7> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=860 		8-97182-159-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> 03.003 (C) L=840 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9902 ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> 03.003 (C) L=840 SERVICED BY L=3000 		0-01259-300-0 01 1 9903-0105 ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> 03.003 (C) L=840 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> 03.003 (C) L=760 SERVICED BY L=3000 		0-01259-300-0 01 1 9903- ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9903 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9903 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-0012 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-0012 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0101 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0101 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0101 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
AUSTRALIA EQUIPMENT(RR3) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
AUSTRALIA EQUIPMENT(RR3) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) L=440 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9902 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9902 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9903-9903 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HF1 ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9903-9903 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-9906 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-9906 ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0012 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0012 ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0012 ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) L=250 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) L=250 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (D) L=290 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (D) L=290 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E) 		8-97174-761-1 01 1 9811-9908 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
CHARGE AIR COOLER<6PL> (E) 		8-97174-761-1 01 1 9811-9908 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E) 		8-97174-761-1 01 1 9909- ● ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(A) L=140 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. HYDRO MASTER<7LT> (A) L=140 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9906 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9902 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 9903-0105 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> (B) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=300 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9906 ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0105 ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. AUSTRALIA EQUIPMENT(RR3),FRAME STRAIGHT TYPE<7KJ> (B) L=1100 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=560 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HE1 ENG(RLY) FUEL TANK 125L,33GAL<NL7> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=560 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9812 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.003 (A) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 9901-0012 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> 03.003 (A) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 9901-0012 ●
67 03.163 HOSE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.003 (A) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.003 (A) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=450 SERVICED BY L=3000 		0-01259-300-0 01 1 9901-9901 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
4HF1 ENG(RLS) FUEL FILTER DUAL<S6B> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=450 SERVICED BY L=3000 		0-01259-300-0 01 1 9902-0105 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
4HF1 ENG(RLS) FUEL FILTER DUAL<S6B> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=450 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (D) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0105 ● ● ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (D) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97174-760-2 01 1 9811-9908 ● ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
CHARGE AIR COOLER<6PL> (C) 		8-97174-760-2 01 1 9811-9908 ●
67 03.163 HOSE; FUEL,DELIVERY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97174-760-2 01 1 9909- ● ● ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 03.003 (B) L=400 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0105 ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 03.003 (B) L=400 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
106 03.162 NUT; FUEL PIPE
04.594 M6 FLANGE 		0-91150-106-0 03 1 9811-0008 ● ● ● ●
106 03.162 NUT; FUEL PIPE
EXC. MINI BUS CHASSIS<V4B> 04.594 M6 FLANGE 		0-91150-106-0 03 1 9811-0008 ● ●
106 03.162 NUT; FUEL PIPE
04.594 M6 FLANGE 		0-91150-106-0 03 1 0101- ● ● ● ● ● ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 9811-9903 ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 9811-9903 ● ● ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 9904-0105 ● ● ● ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
(B) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 9904-0105 ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 0106- ● ● ● ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9811-9903 ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9811-9903 ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9811-9903 ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9904-0012 ● ● ● ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0101- ● ● ● ● ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
00.785 (A) ID=11 & 7 L=15 & 15 		1-09700-071-0 03 1 9811- ● ● ● ● ● ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) ID=6 L=22 		1-09700-139-0 01 1 0006- ● ● ●
165 03.162 CLIP; FUEL HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ● ● ●
165 03.162 CLIP; FUEL HOSE
01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 06 1 9904- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ● ● ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 9904-0012 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 9904-0012 ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0101-0105 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0101-0105 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0106- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0106- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 12 1 9811- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 9811-0012 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 9811-0012 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 0101- ● ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 0101- ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) L=140 		5-09707-031-0 01 1 9811-9902 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140 		5-09707-031-1 01 1 9903- ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140 		5-09707-031-1 01 1 9903- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> FUEL FILTER DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 09 1 9811-0105 ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 09 1 0106- ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> 01.166 (A) ID=14 		8-94238-572-0 01 1 9811- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>, HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 07 1 9811-0105 ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 07 1 0106- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 04 1 9811- ●
308 03.162 BRACKET; FUEL PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.128 (A) 		8-97174-637-0 01 1 0006- ● ● ●
308 03.162 BRACKET; FUEL PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97211-068-1 01 1 9811-9905 ●
308 03.162 BRACKET; FUEL PIPE
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97211-068-1 01 1 9906-0105 ●
308 03.162 BRACKET; FUEL PIPE
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97211-068-1 01 1 0106- ●
308 03.162 BRACKET; FUEL PIPE
4HE1 ENG(RLY) M/T MBP6P(RNC) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97229-736-0 01 1 0106-0207 ●
308 03.162 BRACKET; FUEL PIPE
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97229-736-0 01 1 0208- ●
çizim 48332
24 165 8 165 61 165 66 8 61 65 165 165 165 165 65 66 165 165 165 85 304 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
8 03.162 RUBBER; MTG
4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50 		8-94157-054-1 01 1 9811-9903 ●
8 03.162 RUBBER; MTG
FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50 		8-94157-054-1 01 1 9811-9903 ● ● ●
8 03.162 RUBBER; MTG
(A) OD=17 L=50 		8-94157-054-1 01 1 9811-9903 ●
8 03.162 RUBBER; MTG
FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50 		8-94157-054-1 01 1 9904-0105 ● ● ● ●
8 03.162 RUBBER; MTG
(A) OD=17 L=50 		8-94157-054-1 01 1 9904-0105 ●
8 03.162 RUBBER; MTG
(A) OD=17 L=50 		8-94157-054-1 01 1 0106- ● ● ● ● ● ●
8 03.162 RUBBER; MTG
EXC. FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50 		8-94157-054-1 01 1 0106- ●
8 03.162 RUBBER; MTG
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) OD=15 L=50 		8-97077-629-0 01 1 9811-0105 ● ● ● ● ●
8 03.162 RUBBER; MTG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (B) OD=15 L=50 		8-97077-629-0 03 1 0106- ● ● ● ● ●
8 03.162 RUBBER; MTG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (B) OD=15 L=50 		8-97077-629-0 03 1 9811-0105 ● ● ● ● ●
8 03.162 RUBBER; MTG
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) OD=15 L=50 		8-97077-629-0 01 1 0106- ● ● ● ●
8 03.162 RUBBER; MTG
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50 		8-97077-629-0 01 1 0106- ● ● ● ● ●
8 03.162 RUBBER; MTG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50 		8-97077-629-0 02 1 9811- ●
24 03.162 CLIP; FUEL HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250 		5-09707-030-1 01 1 9811-9903 ●
24 03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250 		5-09707-030-1 01 1 9811-9903 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250 		5-09707-030-1 01 1 9904-0105 ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
02.559 (A) L=250 		5-09707-030-1 01 1 9904-0105 ●
24 03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250 		5-09707-030-1 01 1 0106- ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9811-9906 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 9811-9906 ● ● ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9811-9906 ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9907-9908 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 9907-9908 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 9907-9908 ● ● ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9907-9908 ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9909-0012 ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9909-0012 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 9909-0012 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 9909-0012 ● ● ●
24 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> (A) L=140 		5-09707-031-1 01 1 9909-0012 ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0101-0101 ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0101-0101 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0101-0101 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0101-0101 ● ● ●
24 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> (A) L=140 		5-09707-031-1 01 1 0101-0101 ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> (A) L=140 		5-09707-031-1 01 1 0101-0101 ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0101-0105 ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0101-0105 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0101-0105 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0101-0105 ● ● ●
24 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> (A) L=140 		5-09707-031-1 01 1 0101-0105 ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0106- ● ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0106- ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0106- ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0106- ● ● ●
24 03.162 CLIP; FUEL HOSE
(B) 		8-97089-536-0 01 1 9811-0105 ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) 		8-97089-536-0 01 1 9811-0105 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97089-536-0 01 1 9811-0105 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97089-536-0 01 1 0106- ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) 		8-97089-536-0 01 1 0106- ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 02 1 9811- ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=28 L=60 		1-09700-585-1 01 1 9811- ●
61 03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 02.343 ID=17 		8-94128-319-2 04 1 9811- ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 9811-9903 ● ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17 		8-94128-319-2 02 1 9811-9903 ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 9811-9903 ●
61 03.162 GROMMET; PIPE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ●
61 03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ●
61 03.162 GROMMET; PIPE TO FRAME
02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ●
61 03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17 		8-94128-319-2 02 1 0106- ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 0106- ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 0106- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.003 (C) L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9902 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 9903- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9903 ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9903 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9904-0012 ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0003 ● ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,MINI BUS CHASSIS<V4B> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
CHARGE AIR COOLER<6PL> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. HYDRO MASTER<7LT> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. HYDRO MASTER<7LT> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. HYDRO MASTER<7LT> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0002 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0002 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 0003- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 0003- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=240 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0011 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=240 SERVICED BY L=3000 		0-01259-300-0 01 1 0012-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=240 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FUEL TANK 125L,33GAL<NL7> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=860 		8-97182-159-0 01 1 0007-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FUEL TANK 125L,33GAL<NL7> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=860 		8-97182-159-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> 03.003 (C) L=840 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9902 ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> 03.003 (C) L=840 SERVICED BY L=3000 		0-01259-300-0 01 1 9903-0105 ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> 03.003 (C) L=840 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> 03.003 (C) L=760 SERVICED BY L=3000 		0-01259-300-0 01 1 9903- ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9903 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9903 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-0012 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-0012 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0101 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0101 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0101 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
AUSTRALIA EQUIPMENT(RR3) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
AUSTRALIA EQUIPMENT(RR3) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) L=440 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9902 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9902 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9903-9903 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HF1 ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9903-9903 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-9906 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-9906 ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0012 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0012 ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0012 ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) L=250 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) L=250 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (D) L=290 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (D) L=290 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E) 		8-97174-761-1 01 1 9811-9908 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
CHARGE AIR COOLER<6PL> (E) 		8-97174-761-1 01 1 9811-9908 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E) 		8-97174-761-1 01 1 9909- ● ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(A) L=140 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. HYDRO MASTER<7LT> (A) L=140 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9906 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9902 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 9903-0105 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> (B) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=300 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9906 ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0105 ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. AUSTRALIA EQUIPMENT(RR3),FRAME STRAIGHT TYPE<7KJ> (B) L=1100 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=560 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HE1 ENG(RLY) FUEL TANK 125L,33GAL<NL7> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=560 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
85 03.162 BOLT; CLIP,FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811- ●
165 03.162 CLIP; FUEL HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ● ● ●
165 03.162 CLIP; FUEL HOSE
01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 06 1 9904- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ● ● ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 9904-0012 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 9904-0012 ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0101-0105 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0101-0105 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0106- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0106- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 12 1 9811- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 9811-0012 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 9811-0012 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 0101- ● ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 0101- ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) L=140 		5-09707-031-0 01 1 9811-9902 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140 		5-09707-031-1 01 1 9903- ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140 		5-09707-031-1 01 1 9903- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> FUEL FILTER DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 09 1 9811-0105 ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 09 1 0106- ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> 01.166 (A) ID=14 		8-94238-572-0 01 1 9811- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>, HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 07 1 9811-0105 ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 07 1 0106- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 04 1 9811- ●
304 03.130 NUT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811- ●
çizim 49604
61 8 165 8 61 165 165 65 29 165 29 165 165 165 61 8 165 29 165 8 165 61 65 165
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
8 03.162 RUBBER; MTG
4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50 		8-94157-054-1 01 1 9811-9903 ●
8 03.162 RUBBER; MTG
FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50 		8-94157-054-1 01 1 9811-9903 ● ● ●
8 03.162 RUBBER; MTG
(A) OD=17 L=50 		8-94157-054-1 01 1 9811-9903 ●
8 03.162 RUBBER; MTG
FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50 		8-94157-054-1 01 1 9904-0105 ● ● ● ●
8 03.162 RUBBER; MTG
(A) OD=17 L=50 		8-94157-054-1 01 1 9904-0105 ●
8 03.162 RUBBER; MTG
(A) OD=17 L=50 		8-94157-054-1 01 1 0106- ● ● ● ● ● ●
8 03.162 RUBBER; MTG
EXC. FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50 		8-94157-054-1 01 1 0106- ●
8 03.162 RUBBER; MTG
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) OD=15 L=50 		8-97077-629-0 01 1 9811-0105 ● ● ● ● ●
8 03.162 RUBBER; MTG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (B) OD=15 L=50 		8-97077-629-0 03 1 0106- ● ● ● ● ●
8 03.162 RUBBER; MTG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (B) OD=15 L=50 		8-97077-629-0 03 1 9811-0105 ● ● ● ● ●
8 03.162 RUBBER; MTG
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) OD=15 L=50 		8-97077-629-0 01 1 0106- ● ● ● ●
8 03.162 RUBBER; MTG
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50 		8-97077-629-0 01 1 0106- ● ● ● ● ●
8 03.162 RUBBER; MTG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50 		8-97077-629-0 02 1 9811- ●
29 03.163 HOSE; FUEL
EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (C) L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 9811- ● ● ● ●
29 03.163 HOSE; FUEL
EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (A) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 9902- ● ● ● ●
29 03.163 HOSE; FUEL
AUSTRALIA EQUIPMENT(RR3) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (C) L=540 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0105 ● ● ● ● ●
29 03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,AUSTRALIA EQUIPMENT(RR3),CHA RGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (C) L=540 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0105 ● ● ● ● ●
29 03.163 HOSE; FUEL
AUSTRALIA EQUIPMENT(RR3) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (C) L=540 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ●
29 03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,AUSTRALIA EQUIPMENT(RR3),CHA RGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (C) L=540 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ●
29 03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (A) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9901 ● ● ● ● ●
29 03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (A) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9902-0105 ● ● ● ● ●
29 03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (A) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ●
29 03.163 HOSE; FUEL
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (B) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0003 ● ● ● ● ●
29 03.163 HOSE; FUEL
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (B) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ● ● ● ● ●
29 03.163 HOSE; FUEL
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ● ● ●
29 03.163 HOSE; FUEL
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (B) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ●
29 03.163 HOSE; FUEL
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
29 03.163 HOSE; FUEL
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (A) L=420 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0003 ● ● ● ● ●
29 03.163 HOSE; FUEL
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=420 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0003 ● ● ● ●
29 03.163 HOSE; FUEL
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (A) L=420 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ● ● ● ● ●
29 03.163 HOSE; FUEL
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4> 03.003 (A) L=420 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ● ● ● ●
29 03.163 HOSE; FUEL
FUEL FILTER DUAL<S6B> 03.003 (A) L=420 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ●
29 03.163 HOSE; FUEL
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4> 03.003 (A) L=420 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ● ●
29 03.163 HOSE; FUEL
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (A) L=420 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ●
29 03.163 HOSE; FUEL
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=640 SERVICED BY L=3000 		0-01259-300-0 01 1 9811- ● ● ● ● ●
29 03.163 HOSE; FUEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 03.003 (A) L=180 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0003 ● ● ● ● ● ●
29 03.163 HOSE; FUEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL FILTER DUAL<S6B> 03.003 (A) L=180 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ● ● ● ● ●
29 03.163 HOSE; FUEL
CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL<S6B> 03.003 (A) L=180 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ●
29 03.163 HOSE; FUEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL FILTER DUAL<S6B> 03.003 (A) L=180 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ● ● ●
29 03.163 HOSE; FUEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> EXC. FUEL FILTER DUAL<S6B> 03.003 (A) L=260 SERVICED BY L=3000 		0-01259-300-0 01 1 0004- ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 02.343 ID=17 		8-94128-319-2 04 1 9811- ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 9811-9903 ● ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17 		8-94128-319-2 02 1 9811-9903 ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 9811-9903 ●
61 03.162 GROMMET; PIPE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ●
61 03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ●
61 03.162 GROMMET; PIPE TO FRAME
02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ●
61 03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17 		8-94128-319-2 02 1 0106- ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 0106- ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 0106- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.003 (C) L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9902 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 9903- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9903 ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9903 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9904-0012 ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0003 ● ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,MINI BUS CHASSIS<V4B> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
CHARGE AIR COOLER<6PL> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. HYDRO MASTER<7LT> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. HYDRO MASTER<7LT> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. HYDRO MASTER<7LT> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0002 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0002 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 0003- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 0003- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=240 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0011 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=240 SERVICED BY L=3000 		0-01259-300-0 01 1 0012-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=240 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FUEL TANK 125L,33GAL<NL7> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=860 		8-97182-159-0 01 1 0007-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FUEL TANK 125L,33GAL<NL7> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=860 		8-97182-159-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> 03.003 (C) L=840 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9902 ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> 03.003 (C) L=840 SERVICED BY L=3000 		0-01259-300-0 01 1 9903-0105 ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> 03.003 (C) L=840 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> 03.003 (C) L=760 SERVICED BY L=3000 		0-01259-300-0 01 1 9903- ●
165 03.162 CLIP; FUEL HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ● ● ●
165 03.162 CLIP; FUEL HOSE
01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 06 1 9904- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ● ● ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 9904-0012 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 9904-0012 ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0101-0105 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0101-0105 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0106- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0106- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 12 1 9811- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 9811-0012 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 9811-0012 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 0101- ● ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 0101- ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) L=140 		5-09707-031-0 01 1 9811-9902 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140 		5-09707-031-1 01 1 9903- ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140 		5-09707-031-1 01 1 9903- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> FUEL FILTER DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 09 1 9811-0105 ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 09 1 0106- ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> 01.166 (A) ID=14 		8-94238-572-0 01 1 9811- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>, HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 07 1 9811-0105 ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 07 1 0106- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 04 1 9811- ●
çizim 49681
118 106 106 118 106 118 46 15 47 308 48 103 15 66 165 165 67 165 45 165
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
15 03.162 CLIP; FUEL PIPE
4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.128 (A) ID=10X2 & 6.4 		8-97103-601-0 01 1 9811-9903 ●
15 03.162 CLIP; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.128 (A) ID=10X2 & 6.4 		8-97103-601-0 01 1 9811-9903 ● ● ●
15 03.162 CLIP; FUEL PIPE
04.128 (A) ID=10X2 & 6.4 		8-97103-601-0 01 1 9811-9903 ●
15 03.162 CLIP; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.128 (A) ID=10X2 & 6.4 		8-97103-601-0 01 1 9904- ● ● ● ● ●
15 03.162 CLIP; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 04.930 (B) ID=10 & 6.4 & 4.8 		8-97074-831-0 02 1 9811-0105 ● ● ● ● ●
15 03.162 CLIP; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 04.930 (B) ID=10 & 6.4 & 4.8 		8-97074-831-0 02 1 0106- ● ● ● ●
15 03.162 CLIP; FUEL PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 6.4 & 4.8 		8-97074-831-0 03 1 9811- ● ● ● ● ● ●
15 03.162 CLIP; FUEL PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 6.4 & 4.8 		8-97074-831-0 01 1 0004-0005 ● ● ●
15 03.162 CLIP; FUEL PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.686 (C) ID=10 & 6.4 		8-97074-832-0 01 1 9811- ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (A) 		8-97171-008-1 01 1 9811-0003 ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,MINI BUS CHASSIS<V4B> (A) 		8-97171-008-1 01 1 0004-0105 ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4> (A) 		8-97171-008-1 01 1 0106- ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> EXC. MINI BUS CHASSIS<V4B> (A) 		8-97254-116-1 01 1 0004-0011 ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MXA5R(RMT) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (A) 		8-97254-116-1 01 1 0012-0105 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MXA5R(RMT) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97254-116-1 01 1 0106- ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97145-500-1 01 1 9811- ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97103-855-5 01 1 9811-0105 ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97103-855-5 01 1 9811-0105 ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97103-855-5 01 1 0106- ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97103-855-5 01 1 0106- ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (A) 		8-97171-009-3 01 1 9811-0003 ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,MINI BUS CHASSIS<V4B> (A) 		8-97171-009-3 01 1 0004-0105 ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
CHARGE AIR COOLER<6PL> (A) 		8-97171-009-3 01 1 0004-0105 ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4> (A) 		8-97171-009-3 01 1 0106-0207 ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4> (A) 		8-97171-009-3 01 1 0208- ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (B) 		8-97148-811-0 01 1 9811-0003 ● ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,MINI BUS CHASSIS<V4B> (B) 		8-97148-811-0 01 1 0004-0105 ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
CHARGE AIR COOLER<6PL> (B) 		8-97148-811-0 01 1 0004-0105 ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4> (B) 		8-97148-811-0 01 1 0106- ● ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97217-338-0 01 1 9811-9812 ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97222-993-0 01 1 9901-0105 ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97222-993-0 01 1 0106- ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97092-301-1 01 1 9811-0105 ● ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 		8-97092-301-1 01 1 0106- ● ● ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (B) 		8-97254-115-0 01 1 0004-0011 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (B) 		8-97254-115-0 01 1 0012-0105 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97254-115-0 01 1 0106- ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC) CHARGE AIR COOLER<6PL> EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (A) 		8-97254-117-1 01 1 0004-0011 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (A) 		8-97254-117-1 01 1 0012-0105 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97254-117-1 01 1 0106-0207 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MZZ6U(RSF) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97254-117-1 01 1 0208- ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97129-540-1 01 1 9811-0105 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97129-540-1 01 1 0106- ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97171-010-1 01 1 9811- ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97145-499-0 01 1 9811- ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97149-841-0 01 1 9811-0105 ● ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97149-841-0 01 1 9811-0105 ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97149-841-0 01 1 0106- ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97149-841-0 01 1 0106- ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97171-011-1 01 1 9811-0207 ● ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97171-011-1 01 1 0208- ● ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
FLOOR REMOTE SHIFT<M11> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97065-306-2 01 1 9811-0105 ● ● ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97065-306-2 01 1 0106- ● ● ● ● ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) M/T MBP6P(RNC) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97229-732-0 01 1 0106-0207 ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97229-732-0 01 1 0208- ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97211-064-2 01 1 9811-0105 ●
46 03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97211-064-2 01 1 0106- ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97171-012-1 01 1 9811- ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97145-502-1 01 1 9811- ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97103-856-5 01 1 9811-0105 ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97103-856-5 01 1 9811-0105 ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97103-856-5 01 1 0106- ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97103-856-5 01 1 0106- ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97171-013-1 01 1 9811-0207 ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97171-013-1 01 1 0208- ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97217-339-0 01 1 9811-9812 ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97222-995-0 01 1 9901-0105 ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97222-995-0 01 1 0106- ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97092-304-0 01 1 9811-0105 ● ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 		8-97092-304-0 01 1 0106- ● ● ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97129-541-1 01 1 9811- ● ● ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MBP6P(RNC) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97229-735-0 01 1 0106-0207 ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97229-735-0 01 1 0208- ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97211-066-1 01 1 9811-0105 ●
47 03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97211-066-1 01 1 0106- ●
48 03.162 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9811-0101 ●
48 03.162 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 0102- ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9903 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9903 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-0012 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-0012 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0101 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0101 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0101 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
AUSTRALIA EQUIPMENT(RR3) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
AUSTRALIA EQUIPMENT(RR3) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) L=440 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9902 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9902 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9903-9903 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HF1 ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9903-9903 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-9906 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-9906 ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0012 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0012 ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0012 ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) L=250 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) L=250 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (D) L=290 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (D) L=290 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E) 		8-97174-761-1 01 1 9811-9908 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
CHARGE AIR COOLER<6PL> (E) 		8-97174-761-1 01 1 9811-9908 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E) 		8-97174-761-1 01 1 9909- ● ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(A) L=140 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. HYDRO MASTER<7LT> (A) L=140 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9906 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9902 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 9903-0105 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> (B) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=300 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9906 ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0105 ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. AUSTRALIA EQUIPMENT(RR3),FRAME STRAIGHT TYPE<7KJ> (B) L=1100 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=560 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HE1 ENG(RLY) FUEL TANK 125L,33GAL<NL7> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=560 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9812 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.003 (A) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 9901-0012 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> 03.003 (A) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 9901-0012 ●
67 03.163 HOSE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.003 (A) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.003 (A) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=450 SERVICED BY L=3000 		0-01259-300-0 01 1 9901-9901 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
4HF1 ENG(RLS) FUEL FILTER DUAL<S6B> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=450 SERVICED BY L=3000 		0-01259-300-0 01 1 9902-0105 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
4HF1 ENG(RLS) FUEL FILTER DUAL<S6B> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=450 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (D) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0105 ● ● ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (D) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97174-760-2 01 1 9811-9908 ● ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
CHARGE AIR COOLER<6PL> (C) 		8-97174-760-2 01 1 9811-9908 ●
67 03.163 HOSE; FUEL,DELIVERY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97174-760-2 01 1 9909- ● ● ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 03.003 (B) L=400 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0105 ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 03.003 (B) L=400 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
103 03.130 NUT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 9811-0005 ●
103 03.130 NUT; BRKT
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0006-0105 ● ● ●
103 03.130 NUT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0006-0105 ●
103 03.130 NUT; BRKT
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ●
103 03.130 NUT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0106- ●
106 03.162 NUT; FUEL PIPE
04.594 M6 FLANGE 		0-91150-106-0 03 1 9811-0008 ● ● ● ●
106 03.162 NUT; FUEL PIPE
EXC. MINI BUS CHASSIS<V4B> 04.594 M6 FLANGE 		0-91150-106-0 03 1 9811-0008 ● ●
106 03.162 NUT; FUEL PIPE
04.594 M6 FLANGE 		0-91150-106-0 03 1 0101- ● ● ● ● ● ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 9811-9903 ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 9811-9903 ● ● ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 9904-0105 ● ● ● ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
(B) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 9904-0105 ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 0106- ● ● ● ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9811-9903 ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9811-9903 ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9811-9903 ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9904-0012 ● ● ● ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0101- ● ● ● ● ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
00.785 (A) ID=11 & 7 L=15 & 15 		1-09700-071-0 03 1 9811- ● ● ● ● ● ● ●
118 03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) ID=6 L=22 		1-09700-139-0 01 1 0006- ● ● ●
165 03.162 CLIP; FUEL HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ● ● ●
165 03.162 CLIP; FUEL HOSE
01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 06 1 9904- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ● ● ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 9904-0012 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 9904-0012 ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0101-0105 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0101-0105 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0106- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0106- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 12 1 9811- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 9811-0012 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 9811-0012 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 0101- ● ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 0101- ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) L=140 		5-09707-031-0 01 1 9811-9902 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140 		5-09707-031-1 01 1 9903- ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140 		5-09707-031-1 01 1 9903- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> FUEL FILTER DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 09 1 9811-0105 ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 09 1 0106- ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> 01.166 (A) ID=14 		8-94238-572-0 01 1 9811- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>, HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 07 1 9811-0105 ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 07 1 0106- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 04 1 9811- ●
308 03.162 BRACKET; FUEL PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.128 (A) 		8-97174-637-0 01 1 0006- ● ● ●
308 03.162 BRACKET; FUEL PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97211-068-1 01 1 9811-9905 ●
308 03.162 BRACKET; FUEL PIPE
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97211-068-1 01 1 9906-0105 ●
308 03.162 BRACKET; FUEL PIPE
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97211-068-1 01 1 0106- ●
308 03.162 BRACKET; FUEL PIPE
4HE1 ENG(RLY) M/T MBP6P(RNC) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97229-736-0 01 1 0106-0207 ●
308 03.162 BRACKET; FUEL PIPE
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97229-736-0 01 1 0208- ●
çizim 49814
64 62 148 24 165 24 165 165 66 61 165 61 8 231 65 165 165 165 65 76 8 231
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
8 03.162 RUBBER; MTG
4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50 		8-94157-054-1 01 1 9811-9903 ●
8 03.162 RUBBER; MTG
FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50 		8-94157-054-1 01 1 9811-9903 ● ● ●
8 03.162 RUBBER; MTG
(A) OD=17 L=50 		8-94157-054-1 01 1 9811-9903 ●
8 03.162 RUBBER; MTG
FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50 		8-94157-054-1 01 1 9904-0105 ● ● ● ●
8 03.162 RUBBER; MTG
(A) OD=17 L=50 		8-94157-054-1 01 1 9904-0105 ●
8 03.162 RUBBER; MTG
(A) OD=17 L=50 		8-94157-054-1 01 1 0106- ● ● ● ● ● ●
8 03.162 RUBBER; MTG
EXC. FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50 		8-94157-054-1 01 1 0106- ●
8 03.162 RUBBER; MTG
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) OD=15 L=50 		8-97077-629-0 01 1 9811-0105 ● ● ● ● ●
8 03.162 RUBBER; MTG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (B) OD=15 L=50 		8-97077-629-0 03 1 0106- ● ● ● ● ●
8 03.162 RUBBER; MTG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (B) OD=15 L=50 		8-97077-629-0 03 1 9811-0105 ● ● ● ● ●
8 03.162 RUBBER; MTG
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) OD=15 L=50 		8-97077-629-0 01 1 0106- ● ● ● ●
8 03.162 RUBBER; MTG
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50 		8-97077-629-0 01 1 0106- ● ● ● ● ●
8 03.162 RUBBER; MTG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50 		8-97077-629-0 02 1 9811- ●
24 03.162 CLIP; FUEL HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250 		5-09707-030-1 01 1 9811-9903 ●
24 03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250 		5-09707-030-1 01 1 9811-9903 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250 		5-09707-030-1 01 1 9904-0105 ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
02.559 (A) L=250 		5-09707-030-1 01 1 9904-0105 ●
24 03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250 		5-09707-030-1 01 1 0106- ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9811-9906 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 9811-9906 ● ● ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9811-9906 ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9907-9908 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 9907-9908 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 9907-9908 ● ● ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9907-9908 ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9909-0012 ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9909-0012 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 9909-0012 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 9909-0012 ● ● ●
24 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> (A) L=140 		5-09707-031-1 01 1 9909-0012 ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0101-0101 ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0101-0101 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0101-0101 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0101-0101 ● ● ●
24 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> (A) L=140 		5-09707-031-1 01 1 0101-0101 ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> (A) L=140 		5-09707-031-1 01 1 0101-0101 ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0101-0105 ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0101-0105 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0101-0105 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0101-0105 ● ● ●
24 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> (A) L=140 		5-09707-031-1 01 1 0101-0105 ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0106- ● ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0106- ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0106- ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0106- ● ● ●
24 03.162 CLIP; FUEL HOSE
(B) 		8-97089-536-0 01 1 9811-0105 ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) 		8-97089-536-0 01 1 9811-0105 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97089-536-0 01 1 9811-0105 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97089-536-0 01 1 0106- ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) 		8-97089-536-0 01 1 0106- ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 02 1 9811- ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=28 L=60 		1-09700-585-1 01 1 9811- ●
61 03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 02.343 ID=17 		8-94128-319-2 04 1 9811- ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 9811-9903 ● ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17 		8-94128-319-2 02 1 9811-9903 ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 9811-9903 ●
61 03.162 GROMMET; PIPE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ●
61 03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ●
61 03.162 GROMMET; PIPE TO FRAME
02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ●
61 03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17 		8-94128-319-2 02 1 0106- ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 0106- ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 0106- ●
62 03.162 BOLT; CLIP FIX
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0006-0006 ● ● ●
62 03.162 BOLT; CLIP FIX
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0007- ● ● ●
62 03.162 BOLT; CLIP FIX
EXC. FRAME STRAIGHT TYPE<7KJ> 01.531 M8X25 FLANGE 		0-28080-825-0 01 1 9811- ●
64 03.162 NUT; CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.003 (C) L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9902 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 9903- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9903 ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9903 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9904-0012 ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0003 ● ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,MINI BUS CHASSIS<V4B> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
CHARGE AIR COOLER<6PL> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. HYDRO MASTER<7LT> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. HYDRO MASTER<7LT> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. HYDRO MASTER<7LT> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0002 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0002 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 0003- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 0003- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=240 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0011 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=240 SERVICED BY L=3000 		0-01259-300-0 01 1 0012-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=240 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FUEL TANK 125L,33GAL<NL7> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=860 		8-97182-159-0 01 1 0007-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FUEL TANK 125L,33GAL<NL7> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=860 		8-97182-159-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> 03.003 (C) L=840 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9902 ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> 03.003 (C) L=840 SERVICED BY L=3000 		0-01259-300-0 01 1 9903-0105 ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> 03.003 (C) L=840 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> 03.003 (C) L=760 SERVICED BY L=3000 		0-01259-300-0 01 1 9903- ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9903 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9903 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-0012 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-0012 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0101 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0101 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0101 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
AUSTRALIA EQUIPMENT(RR3) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
AUSTRALIA EQUIPMENT(RR3) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) L=440 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9902 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9902 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9903-9903 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HF1 ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9903-9903 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-9906 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-9906 ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0012 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0012 ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0012 ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) L=250 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) L=250 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (D) L=290 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (D) L=290 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E) 		8-97174-761-1 01 1 9811-9908 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
CHARGE AIR COOLER<6PL> (E) 		8-97174-761-1 01 1 9811-9908 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E) 		8-97174-761-1 01 1 9909- ● ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(A) L=140 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. HYDRO MASTER<7LT> (A) L=140 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9906 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9902 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 9903-0105 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> (B) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=300 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9906 ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0105 ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. AUSTRALIA EQUIPMENT(RR3),FRAME STRAIGHT TYPE<7KJ> (B) L=1100 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=560 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HE1 ENG(RLY) FUEL TANK 125L,33GAL<NL7> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=560 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
76 03.163 HOSE; FUEL,TANK
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9812 ●
76 03.163 HOSE; FUEL,TANK
EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> 03.003 L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9812 ● ● ●
76 03.163 HOSE; FUEL,TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ>,ENGINE POWER N-S PEC(7QV) 03.003 L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 9901-9903 ● ● ● ●
76 03.163 HOSE; FUEL,TANK
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 9901-9903 ● ● ● ●
76 03.163 HOSE; FUEL,TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL TANK 125L,33GAL<NL7>,FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 03.003 L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 9904-0105 ● ● ● ●
76 03.163 HOSE; FUEL,TANK
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 03.003 L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 9904-0105 ● ● ● ●
76 03.163 HOSE; FUEL,TANK
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 9904-0105 ● ● ● ●
76 03.163 HOSE; FUEL,TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL TANK 125L,33GAL<NL7>,FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 03.003 L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
76 03.163 HOSE; FUEL,TANK
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 03.003 L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
76 03.163 HOSE; FUEL,TANK
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
76 03.163 HOSE; FUEL,TANK
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> L=720 		8-97092-062-1 01 1 9811-0006 ● ● ●
76 03.163 HOSE; FUEL,TANK
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> L=720 		8-97092-062-1 01 1 9811-0006 ● ● ●
76 03.163 HOSE; FUEL,TANK
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> L=720 		8-97092-062-1 01 1 0007-0105 ● ● ●
76 03.163 HOSE; FUEL,TANK
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=720 		8-97092-062-1 01 1 0007-0105 ● ● ●
76 03.163 HOSE; FUEL,TANK
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> L=720 		8-97092-062-1 01 1 0106- ● ● ●
76 03.163 HOSE; FUEL,TANK
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=720 		8-97092-062-1 01 1 0106- ● ● ●
76 03.163 HOSE; FUEL,TANK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 03.003 L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9903 ●
76 03.163 HOSE; FUEL,TANK
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 03.003 L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 9904-0012 ● ● ● ●
76 03.163 HOSE; FUEL,TANK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 03.003 L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 9904-0012 ●
76 03.163 HOSE; FUEL,TANK
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 03.003 L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ● ● ●
76 03.163 HOSE; FUEL,TANK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 03.003 L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ●
76 03.163 HOSE; FUEL,TANK
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ>,ENGINE POWER N-S PEC(7QV) 03.003 L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
76 03.163 HOSE; FUEL,TANK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 03.003 L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ●
76 03.163 HOSE; FUEL,TANK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 03.003 L=640 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9812 ● ●
76 03.163 HOSE; FUEL,TANK
4HF1 ENG(RLS) FUEL FILTER DUAL<S6B> ENGINE POWER N-SPEC(7QV) EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.003 L=640 SERVICED BY L=3000 		0-01259-300-0 01 1 9901-0105 ● ● ● ●
76 03.163 HOSE; FUEL,TANK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 03.003 L=640 SERVICED BY L=3000 		0-01259-300-0 01 1 9901-0105 ● ●
76 03.163 HOSE; FUEL,TANK
4HF1 ENG(RLS) FUEL FILTER DUAL<S6B> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 L=640 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
76 03.163 HOSE; FUEL,TANK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 03.003 L=640 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ●
76 03.163 HOSE; FUEL,TANK
AUSTRALIA EQUIPMENT(RR3) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> 03.003 L=840 SERVICED BY L=3000 		0-01259-300-0 01 1 9811- ●
76 03.163 HOSE; FUEL,TANK
EXC. AUSTRALIA EQUIPMENT(RR3),FRAME STRAIGHT TYPE<7KJ> 03.003 L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0105 ●
76 03.163 HOSE; FUEL,TANK
4HG1 ENG(RJH) EXC. AUSTRALIA EQUIPMENT(RR3),FRAME STRAIGHT TYPE<7KJ> 03.003 L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ●
76 03.163 HOSE; FUEL,TANK
FUEL TANK 125L,33GAL<NL7> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97106-962-0 01 1 9811-0105 ●
76 03.163 HOSE; FUEL,TANK
4HG1 ENG(RJH),4HE1 ENG(RLY) FUEL TANK 125L,33GAL<NL7> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97106-962-0 01 1 0106- ●
76 03.163 HOSE; FUEL,TANK
EXC. FUEL FILTER DUAL<S6B> 03.003 L=550 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0101 ●
76 03.163 HOSE; FUEL,TANK
03.003 L=550 SERVICED BY L=3000 		0-01259-300-0 01 1 0101- ●
148 03.162 CLIP; HOSE,FUEL
FUEL TANK 125L,33GAL<NL7> AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 ID=14X2 H=30 L=25 		1-09701-101-0 01 1 9811- ●
148 03.162 CLIP; HOSE,FUEL
EXC. FUEL TANK 125L,33GAL<NL7>, AUSTRALIA EQUIPMENT(RR3),FRAME STRAIGHT TYPE<7KJ> 06.672 		8-94366-843-0 01 1 9811- ●
165 03.162 CLIP; FUEL HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ● ● ●
165 03.162 CLIP; FUEL HOSE
01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 06 1 9904- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ● ● ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 9904-0012 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 9904-0012 ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0101-0105 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0101-0105 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0106- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0106- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 12 1 9811- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 9811-0012 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 9811-0012 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 0101- ● ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 0101- ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) L=140 		5-09707-031-0 01 1 9811-9902 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140 		5-09707-031-1 01 1 9903- ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140 		5-09707-031-1 01 1 9903- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> FUEL FILTER DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 09 1 9811-0105 ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 09 1 0106- ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> 01.166 (A) ID=14 		8-94238-572-0 01 1 9811- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>, HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 07 1 9811-0105 ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 07 1 0106- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 04 1 9811- ●
231 03.162 RUBBER; SUPPORT,FUEL PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50 		8-94157-054-1 01 1 9811-0105 ● ● ● ● ●
231 03.162 RUBBER; SUPPORT,FUEL PIPE
(A) OD=17 L=50 		8-94157-054-1 01 1 9811-0105 ●
231 03.162 RUBBER; SUPPORT,FUEL PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50 		8-97077-629-0 01 1 9811-0105 ● ● ● ● ●
231 03.162 RUBBER; SUPPORT,FUEL PIPE
(B) OD=15 L=50 		8-97077-629-0 01 1 9811-0105 ●
çizim 50113
24 61 8 147 165 29 67 147 165 61 8 29 66 147 165 147 165 147 165 147 165 147 165 147 165 29 65
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
8 03.162 RUBBER; MTG
4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50 		8-94157-054-1 01 1 9811-9903 ●
8 03.162 RUBBER; MTG
FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50 		8-94157-054-1 01 1 9811-9903 ● ● ●
8 03.162 RUBBER; MTG
(A) OD=17 L=50 		8-94157-054-1 01 1 9811-9903 ●
8 03.162 RUBBER; MTG
FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50 		8-94157-054-1 01 1 9904-0105 ● ● ● ●
8 03.162 RUBBER; MTG
(A) OD=17 L=50 		8-94157-054-1 01 1 9904-0105 ●
8 03.162 RUBBER; MTG
(A) OD=17 L=50 		8-94157-054-1 01 1 0106- ● ● ● ● ● ●
8 03.162 RUBBER; MTG
EXC. FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50 		8-94157-054-1 01 1 0106- ●
8 03.162 RUBBER; MTG
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) OD=15 L=50 		8-97077-629-0 01 1 9811-0105 ● ● ● ● ●
8 03.162 RUBBER; MTG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (B) OD=15 L=50 		8-97077-629-0 03 1 0106- ● ● ● ● ●
8 03.162 RUBBER; MTG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (B) OD=15 L=50 		8-97077-629-0 03 1 9811-0105 ● ● ● ● ●
8 03.162 RUBBER; MTG
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) OD=15 L=50 		8-97077-629-0 01 1 0106- ● ● ● ●
8 03.162 RUBBER; MTG
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50 		8-97077-629-0 01 1 0106- ● ● ● ● ●
8 03.162 RUBBER; MTG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50 		8-97077-629-0 02 1 9811- ●
24 03.162 CLIP; FUEL HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250 		5-09707-030-1 01 1 9811-9903 ●
24 03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250 		5-09707-030-1 01 1 9811-9903 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250 		5-09707-030-1 01 1 9904-0105 ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
02.559 (A) L=250 		5-09707-030-1 01 1 9904-0105 ●
24 03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250 		5-09707-030-1 01 1 0106- ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9811-9906 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 9811-9906 ● ● ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9811-9906 ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9907-9908 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 9907-9908 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 9907-9908 ● ● ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9907-9908 ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9909-0012 ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9909-0012 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 9909-0012 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 9909-0012 ● ● ●
24 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> (A) L=140 		5-09707-031-1 01 1 9909-0012 ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0101-0101 ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0101-0101 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0101-0101 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0101-0101 ● ● ●
24 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> (A) L=140 		5-09707-031-1 01 1 0101-0101 ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> (A) L=140 		5-09707-031-1 01 1 0101-0101 ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0101-0105 ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0101-0105 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0101-0105 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0101-0105 ● ● ●
24 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> (A) L=140 		5-09707-031-1 01 1 0101-0105 ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0106- ● ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0106- ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0106- ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0106- ● ● ●
24 03.162 CLIP; FUEL HOSE
(B) 		8-97089-536-0 01 1 9811-0105 ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) 		8-97089-536-0 01 1 9811-0105 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97089-536-0 01 1 9811-0105 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97089-536-0 01 1 0106- ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) 		8-97089-536-0 01 1 0106- ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 02 1 9811- ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=28 L=60 		1-09700-585-1 01 1 9811- ●
29 03.163 HOSE; FUEL
EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (C) L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 9811- ● ● ● ●
29 03.163 HOSE; FUEL
EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (A) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 9902- ● ● ● ●
29 03.163 HOSE; FUEL
AUSTRALIA EQUIPMENT(RR3) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (C) L=540 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0105 ● ● ● ● ●
29 03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,AUSTRALIA EQUIPMENT(RR3),CHA RGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (C) L=540 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0105 ● ● ● ● ●
29 03.163 HOSE; FUEL
AUSTRALIA EQUIPMENT(RR3) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (C) L=540 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ●
29 03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,AUSTRALIA EQUIPMENT(RR3),CHA RGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (C) L=540 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ●
29 03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (A) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9901 ● ● ● ● ●
29 03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (A) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9902-0105 ● ● ● ● ●
29 03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (A) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ●
29 03.163 HOSE; FUEL
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (B) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0003 ● ● ● ● ●
29 03.163 HOSE; FUEL
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (B) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ● ● ● ● ●
29 03.163 HOSE; FUEL
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ● ● ●
29 03.163 HOSE; FUEL
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (B) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ●
29 03.163 HOSE; FUEL
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
29 03.163 HOSE; FUEL
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (A) L=420 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0003 ● ● ● ● ●
29 03.163 HOSE; FUEL
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=420 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0003 ● ● ● ●
29 03.163 HOSE; FUEL
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (A) L=420 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ● ● ● ● ●
29 03.163 HOSE; FUEL
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4> 03.003 (A) L=420 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ● ● ● ●
29 03.163 HOSE; FUEL
FUEL FILTER DUAL<S6B> 03.003 (A) L=420 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ●
29 03.163 HOSE; FUEL
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4> 03.003 (A) L=420 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ● ●
29 03.163 HOSE; FUEL
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 03.003 (A) L=420 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ●
29 03.163 HOSE; FUEL
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=640 SERVICED BY L=3000 		0-01259-300-0 01 1 9811- ● ● ● ● ●
29 03.163 HOSE; FUEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 03.003 (A) L=180 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0003 ● ● ● ● ● ●
29 03.163 HOSE; FUEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL FILTER DUAL<S6B> 03.003 (A) L=180 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ● ● ● ● ●
29 03.163 HOSE; FUEL
CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL<S6B> 03.003 (A) L=180 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ●
29 03.163 HOSE; FUEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL FILTER DUAL<S6B> 03.003 (A) L=180 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ● ● ●
29 03.163 HOSE; FUEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> EXC. FUEL FILTER DUAL<S6B> 03.003 (A) L=260 SERVICED BY L=3000 		0-01259-300-0 01 1 0004- ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 02.343 ID=17 		8-94128-319-2 04 1 9811- ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 9811-9903 ● ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17 		8-94128-319-2 02 1 9811-9903 ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 9811-9903 ●
61 03.162 GROMMET; PIPE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ●
61 03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ●
61 03.162 GROMMET; PIPE TO FRAME
02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ●
61 03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17 		8-94128-319-2 02 1 0106- ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 0106- ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 0106- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.003 (C) L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9902 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 9903- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9903 ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9903 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9904-0012 ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0003 ● ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,MINI BUS CHASSIS<V4B> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
CHARGE AIR COOLER<6PL> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. HYDRO MASTER<7LT> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. HYDRO MASTER<7LT> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. HYDRO MASTER<7LT> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0002 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0002 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 0003- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 0003- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=240 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0011 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=240 SERVICED BY L=3000 		0-01259-300-0 01 1 0012-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=240 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FUEL TANK 125L,33GAL<NL7> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=860 		8-97182-159-0 01 1 0007-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FUEL TANK 125L,33GAL<NL7> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=860 		8-97182-159-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> 03.003 (C) L=840 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9902 ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> 03.003 (C) L=840 SERVICED BY L=3000 		0-01259-300-0 01 1 9903-0105 ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> 03.003 (C) L=840 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> 03.003 (C) L=760 SERVICED BY L=3000 		0-01259-300-0 01 1 9903- ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9903 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9903 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-0012 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-0012 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0101 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0101 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0101 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
AUSTRALIA EQUIPMENT(RR3) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
AUSTRALIA EQUIPMENT(RR3) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) L=440 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9902 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9902 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9903-9903 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HF1 ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9903-9903 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-9906 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-9906 ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0012 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0012 ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0012 ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) L=250 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) L=250 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (D) L=290 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (D) L=290 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E) 		8-97174-761-1 01 1 9811-9908 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
CHARGE AIR COOLER<6PL> (E) 		8-97174-761-1 01 1 9811-9908 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E) 		8-97174-761-1 01 1 9909- ● ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(A) L=140 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. HYDRO MASTER<7LT> (A) L=140 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9906 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9902 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 9903-0105 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> (B) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=300 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9906 ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0105 ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. AUSTRALIA EQUIPMENT(RR3),FRAME STRAIGHT TYPE<7KJ> (B) L=1100 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=560 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HE1 ENG(RLY) FUEL TANK 125L,33GAL<NL7> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=560 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9812 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.003 (A) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 9901-0012 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> 03.003 (A) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 9901-0012 ●
67 03.163 HOSE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.003 (A) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.003 (A) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=450 SERVICED BY L=3000 		0-01259-300-0 01 1 9901-9901 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
4HF1 ENG(RLS) FUEL FILTER DUAL<S6B> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=450 SERVICED BY L=3000 		0-01259-300-0 01 1 9902-0105 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
4HF1 ENG(RLS) FUEL FILTER DUAL<S6B> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=450 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (D) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0105 ● ● ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (D) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97174-760-2 01 1 9811-9908 ● ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
CHARGE AIR COOLER<6PL> (C) 		8-97174-760-2 01 1 9811-9908 ●
67 03.163 HOSE; FUEL,DELIVERY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97174-760-2 01 1 9909- ● ● ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 03.003 (B) L=400 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0105 ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 03.003 (B) L=400 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9908 ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9908 ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 06 1 9909-0105 ● ● ● ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 06 1 0106- ● ● ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 04 1 9811-0011 ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 04 1 9811-0011 ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 04 1 0012-0105 ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 04 1 0012-0105 ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 04 1 0106- ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B> 04.930 (A) ID=16 		8-94238-568-0 06 1 9811- ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811- ● ● ●
165 03.162 CLIP; FUEL HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ● ● ●
165 03.162 CLIP; FUEL HOSE
01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 06 1 9904- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ● ● ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 9904-0012 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 9904-0012 ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0101-0105 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0101-0105 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0106- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0106- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 12 1 9811- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 9811-0012 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 9811-0012 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 0101- ● ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 0101- ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) L=140 		5-09707-031-0 01 1 9811-9902 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140 		5-09707-031-1 01 1 9903- ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140 		5-09707-031-1 01 1 9903- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> FUEL FILTER DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 09 1 9811-0105 ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 09 1 0106- ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> 01.166 (A) ID=14 		8-94238-572-0 01 1 9811- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>, HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 07 1 9811-0105 ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 07 1 0106- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 04 1 9811- ●
çizim 50116
24 165 24 147 231 147 66 147 61 67 231 61 147 76 147 67 147 147 147
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
24 03.162 CLIP; FUEL HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250 		5-09707-030-1 01 1 9811-9903 ●
24 03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250 		5-09707-030-1 01 1 9811-9903 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250 		5-09707-030-1 01 1 9904-0105 ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
02.559 (A) L=250 		5-09707-030-1 01 1 9904-0105 ●
24 03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250 		5-09707-030-1 01 1 0106- ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9811-9906 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 9811-9906 ● ● ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9811-9906 ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9907-9908 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 9907-9908 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 9907-9908 ● ● ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9907-9908 ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9909-0012 ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9909-0012 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 9909-0012 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 9909-0012 ● ● ●
24 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> (A) L=140 		5-09707-031-1 01 1 9909-0012 ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0101-0101 ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0101-0101 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0101-0101 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0101-0101 ● ● ●
24 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> (A) L=140 		5-09707-031-1 01 1 0101-0101 ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> (A) L=140 		5-09707-031-1 01 1 0101-0101 ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0101-0105 ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0101-0105 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0101-0105 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0101-0105 ● ● ●
24 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> (A) L=140 		5-09707-031-1 01 1 0101-0105 ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0106- ● ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0106- ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0106- ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0106- ● ● ●
24 03.162 CLIP; FUEL HOSE
(B) 		8-97089-536-0 01 1 9811-0105 ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) 		8-97089-536-0 01 1 9811-0105 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97089-536-0 01 1 9811-0105 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97089-536-0 01 1 0106- ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) 		8-97089-536-0 01 1 0106- ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 02 1 9811- ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=28 L=60 		1-09700-585-1 01 1 9811- ●
61 03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 02.343 ID=17 		8-94128-319-2 04 1 9811- ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 9811-9903 ● ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17 		8-94128-319-2 02 1 9811-9903 ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 9811-9903 ●
61 03.162 GROMMET; PIPE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ●
61 03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ●
61 03.162 GROMMET; PIPE TO FRAME
02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ●
61 03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17 		8-94128-319-2 02 1 0106- ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 0106- ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9903 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9903 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-0012 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-0012 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0101 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0101 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0101 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
AUSTRALIA EQUIPMENT(RR3) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
AUSTRALIA EQUIPMENT(RR3) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) L=440 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9902 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9902 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9903-9903 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HF1 ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9903-9903 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-9906 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-9906 ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0012 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0012 ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0012 ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) L=250 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) L=250 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (D) L=290 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (D) L=290 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E) 		8-97174-761-1 01 1 9811-9908 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
CHARGE AIR COOLER<6PL> (E) 		8-97174-761-1 01 1 9811-9908 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E) 		8-97174-761-1 01 1 9909- ● ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(A) L=140 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. HYDRO MASTER<7LT> (A) L=140 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9906 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9902 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 9903-0105 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> (B) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=300 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9906 ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0105 ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. AUSTRALIA EQUIPMENT(RR3),FRAME STRAIGHT TYPE<7KJ> (B) L=1100 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=560 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HE1 ENG(RLY) FUEL TANK 125L,33GAL<NL7> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=560 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9812 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.003 (A) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 9901-0012 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> 03.003 (A) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 9901-0012 ●
67 03.163 HOSE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.003 (A) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.003 (A) L=500 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=450 SERVICED BY L=3000 		0-01259-300-0 01 1 9901-9901 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
4HF1 ENG(RLS) FUEL FILTER DUAL<S6B> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=450 SERVICED BY L=3000 		0-01259-300-0 01 1 9902-0105 ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
4HF1 ENG(RLS) FUEL FILTER DUAL<S6B> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=450 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (D) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0105 ● ● ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.003 (D) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97174-760-2 01 1 9811-9908 ● ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
CHARGE AIR COOLER<6PL> (C) 		8-97174-760-2 01 1 9811-9908 ●
67 03.163 HOSE; FUEL,DELIVERY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97174-760-2 01 1 9909- ● ● ● ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 03.003 (B) L=400 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0105 ● ● ●
67 03.163 HOSE; FUEL,DELIVERY
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 03.003 (B) L=400 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
76 03.163 HOSE; FUEL,TANK
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9812 ●
76 03.163 HOSE; FUEL,TANK
EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> 03.003 L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9812 ● ● ●
76 03.163 HOSE; FUEL,TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ>,ENGINE POWER N-S PEC(7QV) 03.003 L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 9901-9903 ● ● ● ●
76 03.163 HOSE; FUEL,TANK
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 9901-9903 ● ● ● ●
76 03.163 HOSE; FUEL,TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL TANK 125L,33GAL<NL7>,FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 03.003 L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 9904-0105 ● ● ● ●
76 03.163 HOSE; FUEL,TANK
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 03.003 L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 9904-0105 ● ● ● ●
76 03.163 HOSE; FUEL,TANK
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 9904-0105 ● ● ● ●
76 03.163 HOSE; FUEL,TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL TANK 125L,33GAL<NL7>,FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 03.003 L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
76 03.163 HOSE; FUEL,TANK
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 03.003 L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
76 03.163 HOSE; FUEL,TANK
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
76 03.163 HOSE; FUEL,TANK
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> L=720 		8-97092-062-1 01 1 9811-0006 ● ● ●
76 03.163 HOSE; FUEL,TANK
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> L=720 		8-97092-062-1 01 1 9811-0006 ● ● ●
76 03.163 HOSE; FUEL,TANK
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> L=720 		8-97092-062-1 01 1 0007-0105 ● ● ●
76 03.163 HOSE; FUEL,TANK
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=720 		8-97092-062-1 01 1 0007-0105 ● ● ●
76 03.163 HOSE; FUEL,TANK
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> L=720 		8-97092-062-1 01 1 0106- ● ● ●
76 03.163 HOSE; FUEL,TANK
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=720 		8-97092-062-1 01 1 0106- ● ● ●
76 03.163 HOSE; FUEL,TANK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 03.003 L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9903 ●
76 03.163 HOSE; FUEL,TANK
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 03.003 L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 9904-0012 ● ● ● ●
76 03.163 HOSE; FUEL,TANK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 03.003 L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 9904-0012 ●
76 03.163 HOSE; FUEL,TANK
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 03.003 L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ● ● ●
76 03.163 HOSE; FUEL,TANK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 03.003 L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ●
76 03.163 HOSE; FUEL,TANK
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ>,ENGINE POWER N-S PEC(7QV) 03.003 L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
76 03.163 HOSE; FUEL,TANK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 03.003 L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ●
76 03.163 HOSE; FUEL,TANK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 03.003 L=640 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9812 ● ●
76 03.163 HOSE; FUEL,TANK
4HF1 ENG(RLS) FUEL FILTER DUAL<S6B> ENGINE POWER N-SPEC(7QV) EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.003 L=640 SERVICED BY L=3000 		0-01259-300-0 01 1 9901-0105 ● ● ● ●
76 03.163 HOSE; FUEL,TANK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 03.003 L=640 SERVICED BY L=3000 		0-01259-300-0 01 1 9901-0105 ● ●
76 03.163 HOSE; FUEL,TANK
4HF1 ENG(RLS) FUEL FILTER DUAL<S6B> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 L=640 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
76 03.163 HOSE; FUEL,TANK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 03.003 L=640 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ●
76 03.163 HOSE; FUEL,TANK
AUSTRALIA EQUIPMENT(RR3) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> 03.003 L=840 SERVICED BY L=3000 		0-01259-300-0 01 1 9811- ●
76 03.163 HOSE; FUEL,TANK
EXC. AUSTRALIA EQUIPMENT(RR3),FRAME STRAIGHT TYPE<7KJ> 03.003 L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0105 ●
76 03.163 HOSE; FUEL,TANK
4HG1 ENG(RJH) EXC. AUSTRALIA EQUIPMENT(RR3),FRAME STRAIGHT TYPE<7KJ> 03.003 L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ●
76 03.163 HOSE; FUEL,TANK
FUEL TANK 125L,33GAL<NL7> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97106-962-0 01 1 9811-0105 ●
76 03.163 HOSE; FUEL,TANK
4HG1 ENG(RJH),4HE1 ENG(RLY) FUEL TANK 125L,33GAL<NL7> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97106-962-0 01 1 0106- ●
76 03.163 HOSE; FUEL,TANK
EXC. FUEL FILTER DUAL<S6B> 03.003 L=550 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0101 ●
76 03.163 HOSE; FUEL,TANK
03.003 L=550 SERVICED BY L=3000 		0-01259-300-0 01 1 0101- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9908 ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9908 ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 06 1 9909-0105 ● ● ● ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 06 1 0106- ● ● ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 04 1 9811-0011 ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 04 1 9811-0011 ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 04 1 0012-0105 ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 04 1 0012-0105 ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 04 1 0106- ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B> 04.930 (A) ID=16 		8-94238-568-0 06 1 9811- ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811- ● ● ●
165 03.162 CLIP; FUEL HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ● ● ●
165 03.162 CLIP; FUEL HOSE
01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 06 1 9904- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ● ● ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 9904-0012 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 9904-0012 ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0101-0105 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0101-0105 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0106- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0106- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 12 1 9811- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 9811-0012 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 9811-0012 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 0101- ● ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 0101- ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) L=140 		5-09707-031-0 01 1 9811-9902 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140 		5-09707-031-1 01 1 9903- ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140 		5-09707-031-1 01 1 9903- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> FUEL FILTER DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 09 1 9811-0105 ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 09 1 0106- ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> 01.166 (A) ID=14 		8-94238-572-0 01 1 9811- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>, HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 07 1 9811-0105 ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 07 1 0106- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 04 1 9811- ●
231 03.162 RUBBER; SUPPORT,FUEL PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50 		8-94157-054-1 01 1 9811-0105 ● ● ● ● ●
231 03.162 RUBBER; SUPPORT,FUEL PIPE
(A) OD=17 L=50 		8-94157-054-1 01 1 9811-0105 ●
231 03.162 RUBBER; SUPPORT,FUEL PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50 		8-97077-629-0 01 1 9811-0105 ● ● ● ● ●
231 03.162 RUBBER; SUPPORT,FUEL PIPE
(B) OD=15 L=50 		8-97077-629-0 01 1 9811-0105 ●
çizim 50971
24 165 24 147 231 147 66 147 61 231 61 147 76 65 147 147
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
24 03.162 CLIP; FUEL HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250 		5-09707-030-1 01 1 9811-9903 ●
24 03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250 		5-09707-030-1 01 1 9811-9903 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250 		5-09707-030-1 01 1 9904-0105 ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
02.559 (A) L=250 		5-09707-030-1 01 1 9904-0105 ●
24 03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250 		5-09707-030-1 01 1 0106- ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9811-9906 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 9811-9906 ● ● ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9811-9906 ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9907-9908 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 9907-9908 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 9907-9908 ● ● ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9907-9908 ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9909-0012 ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 9909-0012 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 9909-0012 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 9909-0012 ● ● ●
24 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> (A) L=140 		5-09707-031-1 01 1 9909-0012 ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0101-0101 ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0101-0101 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0101-0101 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0101-0101 ● ● ●
24 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> (A) L=140 		5-09707-031-1 01 1 0101-0101 ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> (A) L=140 		5-09707-031-1 01 1 0101-0101 ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0101-0105 ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0101-0105 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0101-0105 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0101-0105 ● ● ●
24 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> (A) L=140 		5-09707-031-1 01 1 0101-0105 ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0106- ● ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 01 1 0106- ● ● ●
24 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0106- ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140 		5-09707-031-1 01 1 0106- ● ● ●
24 03.162 CLIP; FUEL HOSE
(B) 		8-97089-536-0 01 1 9811-0105 ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) 		8-97089-536-0 01 1 9811-0105 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97089-536-0 01 1 9811-0105 ● ● ●
24 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97089-536-0 01 1 0106- ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) 		8-97089-536-0 01 1 0106- ● ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 		5-09707-031-1 02 1 9811- ●
24 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=28 L=60 		1-09700-585-1 01 1 9811- ●
61 03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 02.343 ID=17 		8-94128-319-2 04 1 9811- ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 9811-9903 ● ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17 		8-94128-319-2 02 1 9811-9903 ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 9811-9903 ●
61 03.162 GROMMET; PIPE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ●
61 03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ●
61 03.162 GROMMET; PIPE TO FRAME
02.343 ID=17 		8-94128-319-2 02 1 9904-0105 ●
61 03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.343 ID=17 		8-94128-319-2 02 1 0106- ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 0106- ● ● ● ● ●
61 03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 02 1 0106- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.003 (C) L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9902 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 9903- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9903 ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9903 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 9904-0012 ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=300 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0003 ● ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,MINI BUS CHASSIS<V4B> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
CHARGE AIR COOLER<6PL> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0105 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4> 03.003 (B) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. HYDRO MASTER<7LT> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0012 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. HYDRO MASTER<7LT> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
EXC. HYDRO MASTER<7LT> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (A) L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0002 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0002 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 0003- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 03.003 (B) L=340 SERVICED BY L=3000 		0-01259-300-0 01 1 0003- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=240 SERVICED BY L=3000 		0-01259-300-0 01 1 0004-0011 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=240 SERVICED BY L=3000 		0-01259-300-0 01 1 0012-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=240 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FUEL TANK 125L,33GAL<NL7> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=860 		8-97182-159-0 01 1 0007-0105 ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FUEL TANK 125L,33GAL<NL7> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=860 		8-97182-159-0 01 1 0106- ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> 03.003 (C) L=840 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9902 ● ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> 03.003 (C) L=840 SERVICED BY L=3000 		0-01259-300-0 01 1 9903-0105 ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> 03.003 (C) L=840 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ● ●
65 03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> 03.003 (C) L=760 SERVICED BY L=3000 		0-01259-300-0 01 1 9903- ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9903 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9903 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-0012 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-0012 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0101 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0101 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0101 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(B) L=320 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
AUSTRALIA EQUIPMENT(RR3) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
AUSTRALIA EQUIPMENT(RR3) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=940 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) L=440 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9902 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9902 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9903-9903 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HF1 ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9903-9903 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-9906 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9904-9906 ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0012 ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0012 ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0012 ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0101-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) L=250 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTIC AL TAIL PIPE<NC4>,FUEL TANK 125L, 33GAL<NL7>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) L=250 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (D) L=290 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ● ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (D) L=290 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E) 		8-97174-761-1 01 1 9811-9908 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
CHARGE AIR COOLER<6PL> (E) 		8-97174-761-1 01 1 9811-9908 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E) 		8-97174-761-1 01 1 9909- ● ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
(A) L=140 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. HYDRO MASTER<7LT> (A) L=140 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9906 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9902 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B> (B) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 9903-0105 ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> (B) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ● ● ● ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=300 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-9906 ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 9907-0105 ● ●
66 03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
66 03.163 HOSE; FUEL,RETURN PIPE
EXC. AUSTRALIA EQUIPMENT(RR3),FRAME STRAIGHT TYPE<7KJ> (B) L=1100 SERVICED BY L=3000 		0-01256-300-0 01 1 9811- ●
66 03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=560 SERVICED BY L=3000 		0-01256-300-0 01 1 9811-0105 ●
66 03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HE1 ENG(RLY) FUEL TANK 125L,33GAL<NL7> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=560 SERVICED BY L=3000 		0-01256-300-0 01 1 0106- ●
76 03.163 HOSE; FUEL,TANK
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9812 ●
76 03.163 HOSE; FUEL,TANK
EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> 03.003 L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9812 ● ● ●
76 03.163 HOSE; FUEL,TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ>,ENGINE POWER N-S PEC(7QV) 03.003 L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 9901-9903 ● ● ● ●
76 03.163 HOSE; FUEL,TANK
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 9901-9903 ● ● ● ●
76 03.163 HOSE; FUEL,TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL TANK 125L,33GAL<NL7>,FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 03.003 L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 9904-0105 ● ● ● ●
76 03.163 HOSE; FUEL,TANK
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 03.003 L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 9904-0105 ● ● ● ●
76 03.163 HOSE; FUEL,TANK
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 9904-0105 ● ● ● ●
76 03.163 HOSE; FUEL,TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL TANK 125L,33GAL<NL7>,FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 03.003 L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
76 03.163 HOSE; FUEL,TANK
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 03.003 L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
76 03.163 HOSE; FUEL,TANK
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 03.003 L=600 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
76 03.163 HOSE; FUEL,TANK
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> L=720 		8-97092-062-1 01 1 9811-0006 ● ● ●
76 03.163 HOSE; FUEL,TANK
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> L=720 		8-97092-062-1 01 1 9811-0006 ● ● ●
76 03.163 HOSE; FUEL,TANK
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> L=720 		8-97092-062-1 01 1 0007-0105 ● ● ●
76 03.163 HOSE; FUEL,TANK
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=720 		8-97092-062-1 01 1 0007-0105 ● ● ●
76 03.163 HOSE; FUEL,TANK
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> L=720 		8-97092-062-1 01 1 0106- ● ● ●
76 03.163 HOSE; FUEL,TANK
FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=720 		8-97092-062-1 01 1 0106- ● ● ●
76 03.163 HOSE; FUEL,TANK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 03.003 L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9903 ●
76 03.163 HOSE; FUEL,TANK
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 03.003 L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 9904-0012 ● ● ● ●
76 03.163 HOSE; FUEL,TANK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 03.003 L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 9904-0012 ●
76 03.163 HOSE; FUEL,TANK
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>,MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 03.003 L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ● ● ● ● ●
76 03.163 HOSE; FUEL,TANK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 03.003 L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0105 ●
76 03.163 HOSE; FUEL,TANK
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ>,ENGINE POWER N-S PEC(7QV) 03.003 L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
76 03.163 HOSE; FUEL,TANK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 03.003 L=700 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ●
76 03.163 HOSE; FUEL,TANK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 03.003 L=640 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-9812 ● ●
76 03.163 HOSE; FUEL,TANK
4HF1 ENG(RLS) FUEL FILTER DUAL<S6B> ENGINE POWER N-SPEC(7QV) EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 03.003 L=640 SERVICED BY L=3000 		0-01259-300-0 01 1 9901-0105 ● ● ● ●
76 03.163 HOSE; FUEL,TANK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 03.003 L=640 SERVICED BY L=3000 		0-01259-300-0 01 1 9901-0105 ● ●
76 03.163 HOSE; FUEL,TANK
4HF1 ENG(RLS) FUEL FILTER DUAL<S6B> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 L=640 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ● ●
76 03.163 HOSE; FUEL,TANK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 03.003 L=640 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ● ●
76 03.163 HOSE; FUEL,TANK
AUSTRALIA EQUIPMENT(RR3) EXC. FUEL TANK 125L,33GAL<NL7>, FRAMESTRAIGHT TYPE<7KJ> 03.003 L=840 SERVICED BY L=3000 		0-01259-300-0 01 1 9811- ●
76 03.163 HOSE; FUEL,TANK
EXC. AUSTRALIA EQUIPMENT(RR3),FRAME STRAIGHT TYPE<7KJ> 03.003 L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 9811-0105 ●
76 03.163 HOSE; FUEL,TANK
4HG1 ENG(RJH) EXC. AUSTRALIA EQUIPMENT(RR3),FRAME STRAIGHT TYPE<7KJ> 03.003 L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 0106- ●
76 03.163 HOSE; FUEL,TANK
FUEL TANK 125L,33GAL<NL7> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97106-962-0 01 1 9811-0105 ●
76 03.163 HOSE; FUEL,TANK
4HG1 ENG(RJH),4HE1 ENG(RLY) FUEL TANK 125L,33GAL<NL7> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97106-962-0 01 1 0106- ●
76 03.163 HOSE; FUEL,TANK
EXC. FUEL FILTER DUAL<S6B> 03.003 L=550 SERVICED BY L=3000 		0-01259-300-0 01 1 0101-0101 ●
76 03.163 HOSE; FUEL,TANK
03.003 L=550 SERVICED BY L=3000 		0-01259-300-0 01 1 0101- ●
147 03.162 CLIP; FUEL PIPE TO HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9908 ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9908 ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 06 1 9909-0105 ● ● ● ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 06 1 0106- ● ● ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 04 1 9811-0011 ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 04 1 9811-0011 ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 04 1 0012-0105 ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 04 1 0012-0105 ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 04 1 0106- ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B> 04.930 (A) ID=16 		8-94238-568-0 06 1 9811- ● ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811- ● ● ●
165 03.162 CLIP; FUEL HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ● ● ●
165 03.162 CLIP; FUEL HOSE
01.219 (B) ID=13 		8-94238-571-0 06 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 01.219 (B) ID=13 		8-94238-571-0 06 1 9904- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ● ● ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 9811-9903 ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 9904-0012 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 9904-0012 ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0101-0105 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0101-0105 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0106- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 0106- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 12 1 9811- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL FILTER DUAL<S6B> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 9811-0012 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 10 1 9811-0012 ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 08 1 0101- ● ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16 		8-94238-568-0 08 1 0101- ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) L=140 		5-09707-031-0 01 1 9811-9902 ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140 		5-09707-031-1 01 1 9903- ● ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=140 		5-09707-031-1 01 1 9903- ● ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> FUEL FILTER DUAL<S6B> EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 09 1 9811-0105 ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 09 1 0106- ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> 01.166 (A) ID=14 		8-94238-572-0 01 1 9811- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> EXC. FUEL FILTER DUAL<S6B>,MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>, HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 07 1 9811-0105 ● ● ● ●
165 03.162 CLIP; FUEL HOSE
FUEL TANK 125L,33GAL<NL7> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (A) ID=16 		8-94238-568-0 07 1 0106- ● ● ● ●
165 03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=13 		8-94238-571-0 04 1 9811- ●
231 03.162 RUBBER; SUPPORT,FUEL PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) OD=17 L=50 		8-94157-054-1 01 1 9811-0105 ● ● ● ● ●
231 03.162 RUBBER; SUPPORT,FUEL PIPE
(A) OD=17 L=50 		8-94157-054-1 01 1 9811-0105 ●
231 03.162 RUBBER; SUPPORT,FUEL PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50 		8-97077-629-0 01 1 9811-0105 ● ● ● ● ●
231 03.162 RUBBER; SUPPORT,FUEL PIPE
(B) OD=15 L=50 		8-97077-629-0 01 1 9811-0105 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
