Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#22122) — 204 parça

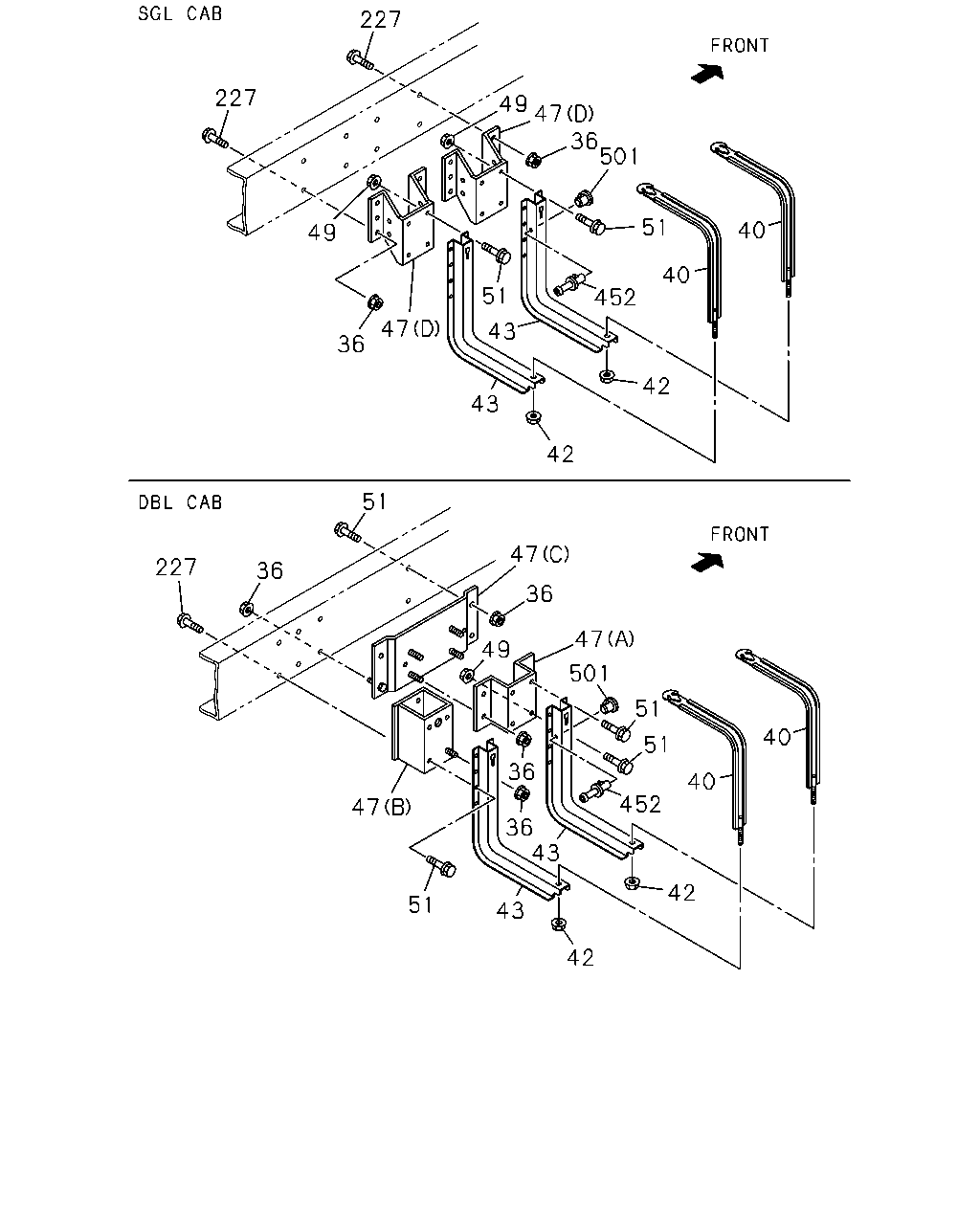

227 227 49 47 36 501 51 40 49 40 51 452 47 43 36 42 43 42 51 47 227 36 36 47 49 501 51 40 51 36 40 452 47 36 43 42 51 43 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
36	03.015 NUT; SPACER,FUEL TANK M/T MBP6P(RNC) FUEL TANK 125L,33GAL<NL7> 04.785 M10 FLANGE	0-91150-110-0	06	1	0209-	●	●	●	●
36	03.015 NUT; SPACER,FUEL TANK EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> 04.785 M10 FLANGE	0-91150-110-0	08	1	9811-0208					●
36	03.015 NUT; SPACER,FUEL TANK EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> EXC. FUEL TANK 125L,33GAL<NL7> 04.785 M10 FLANGE	0-91150-110-0	08	1	9811-0208	●	●	●	●
36	03.015 NUT; SPACER,FUEL TANK FUEL TANK 125L,33GAL<NL7> 04.785 M10 FLANGE	0-91150-110-0	08	1	9811-0208	●	●	●	●
36	03.015 NUT; SPACER,FUEL TANK EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> 04.785 M10 FLANGE	0-91150-110-0	08	1	0209-					●
36	03.015 NUT; SPACER,FUEL TANK EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> EXC. FUEL TANK 125L,33GAL<NL7> 04.785 M10 FLANGE	0-91150-110-0	08	1	0209-	●	●	●	●
36	03.015 NUT; SPACER,FUEL TANK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) FUEL TANK 125L,33GAL<NL7> 04.785 M10 FLANGE	0-91150-110-0	08	1	0209-	●
36	03.015 NUT; SPACER,FUEL TANK M/T MXA5R(RMT) FUEL TANK 125L,33GAL<NL7> 04.785 M10 FLANGE	0-91150-110-0	08	1	0209-		●	●	●
36	03.015 NUT; SPACER,FUEL TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	09	1	9811-				●
40	03.022 BELT; SUPPORT,FUEL TANK	8-94438-385-4	02	1	9811-					●	●	●
40	03.022 BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>	8-94438-385-4	02	1	9811-	●	●	●	●
40	03.022 BELT; SUPPORT,FUEL TANK FUEL TANK 125L,33GAL<NL7> 03.023	8-94418-159-0	02	1	9811-	●	●	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	9811-					●	●	●
42	03.023 NUT; SUPPORT BELT EXC. FUEL TANK 125L,33GAL<NL7> M8 FLANGE	9-09130-408-0	02	1	9811-	●	●	●	●
42	03.023 NUT; SUPPORT BELT FUEL TANK 125L,33GAL<NL7> 09.011 M10	9-09110-410-0	04	1	9811-	●	●	●	●
43	03.015 BRACKET; FUEL TANK	8-97035-517-0	02	1	9811-					●	●	●
43	03.015 BRACKET; FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>	8-97035-517-0	02	1	9811-	●	●	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 125L,33GAL<NL7>	5-53461-044-2	02	1	9811-	●	●	●	●
47	03.023 SPACER; FUEL TANK EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> (D)	8-97104-375-0	02	1	9811-0105					●
47	03.023 SPACER; FUEL TANK EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> (D)	8-97104-375-0	02	1	9811-0105	●	●	●
47	03.023 SPACER; FUEL TANK FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> (D)	8-97104-375-0	02	1	9811-0105	●	●	●
47	03.023 SPACER; FUEL TANK EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> (D)	8-97104-375-0	02	1	0106-	●	●	●		●
47	03.023 SPACER; FUEL TANK FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> (D)	8-97104-375-0	02	1	0106-	●	●	●
47	03.023 SPACER; FUEL TANK FUEL TANK 125L,33GAL<NL7> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97063-749-1	02	1	9811-0105	●	●	●
47	03.023 SPACER; FUEL TANK FUEL TANK 125L,33GAL<NL7> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97063-749-1	02	1	0106-	●	●
47	03.023 SPACER; FUEL TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-94190-522-2	01	1	9811-9812				●
47	03.023 SPACER; FUEL TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97223-013-0	01	1	9901-				●
47	03.023 SPACER; FUEL TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97043-960-0	01	1	9811-				●
47	03.023 SPACER; FUEL TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C)	8-97219-252-2	01	1	9811-				●
49	03.023 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	08	1	9811-0105	●	●	●		●	●	●
49	03.023 NUT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) 08.917 M10 FLANGE	0-91150-210-0	08	1	9811-0105				●
49	03.023 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	08	1	0106-	●	●	●		●	●	●
49	03.023 NUT; BRKT 4HG1 ENG(RJH) 08.917 M10 FLANGE	0-91150-210-0	08	1	0106-				●
49	03.023 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 08.917 M10 FLANGE	0-91150-210-0	02	1	9811-				●
51	03.023 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	08	1	9811-9901	●	●	●	●	●
51	03.023 BOLT; BRKT TO FRAME EXC. CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	08	1	9811-9901					●
51	03.023 BOLT; BRKT TO FRAME EXC. CHARGE AIR COOLER<6PL>,EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9811-9901	●	●	●	●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	9811-9901						●
51	03.023 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	08	1	9902-9907					●
51	03.023 BOLT; BRKT TO FRAME EXC. CHARGE AIR COOLER<6PL>,EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9902-9907	●	●	●	●		●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	9908-0012					●
51	03.023 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1 ENG(RLS) M10X30 FLANGE	0-28691-030-0	08	1	9908-0012	●	●	●	●
51	03.023 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	08	1	9908-0012	●	●	●	●
51	03.023 BOLT; BRKT TO FRAME EXC. CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	08	1	9908-0012						●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	0101-0105					●		●
51	03.023 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1 ENG(RLS) M10X30 FLANGE	0-28691-030-0	08	1	0101-0105	●	●	●	●
51	03.023 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	08	1	0101-0105	●	●	●	●
51	03.023 BOLT; BRKT TO FRAME EXC. CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	08	1	0101-0105						●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	0106-					●
51	03.023 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1 ENG(RLS) M10X30 FLANGE	0-28691-030-0	08	1	0106-	●	●	●	●			●
51	03.023 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	08	1	0106-	●	●	●	●
51	03.023 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	07	1	9902-	●	●	●	●		●
227	03.015 BOLT; SPACER,FUEL TANK EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> 03.162 M10X35 FLANGE	0-28681-035-0	08	1	9811-					●
227	03.015 BOLT; SPACER,FUEL TANK EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> EXC. FUEL TANK 125L,33GAL<NL7> 03.162 M10X35 FLANGE	0-28681-035-0	08	1	9811-	●	●	●	●
227	03.015 BOLT; SPACER,FUEL TANK FUEL TANK 125L,33GAL<NL7> 03.162 M10X35 FLANGE	0-28681-035-0	08	1	9811-	●	●	●	●
227	03.015 BOLT; SPACER,FUEL TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	9811-				●
452	03.028 BREATHER; FUEL TANK	8-97062-954-1	01	1	9811-0207	●	●	●	●	●	●	●
452	03.028 BREATHER; FUEL TANK	8-97062-954-1	01	1	0208-					●	●	●
452	03.028 BREATHER; FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>	8-97062-954-1	01	1	0208-	●	●	●	●
501	03.028 GROMMET; BRKT	8-97096-990-0	01	1	9811-					●	●	●
501	03.028 GROMMET; BRKT EXC. FUEL TANK 125L,33GAL<NL7>	8-97096-990-0	01	1	9811-	●	●	●	●

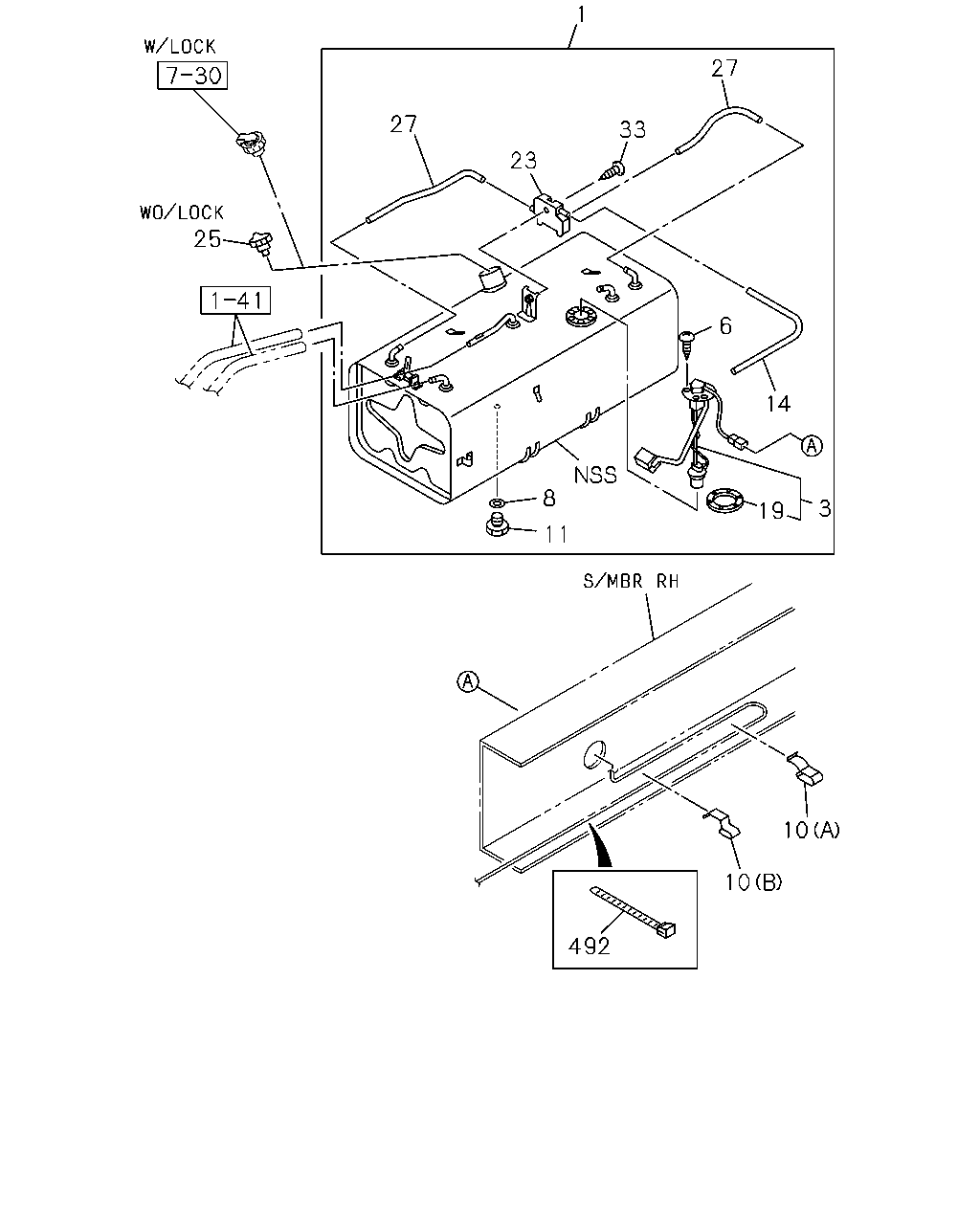

1 130 6 3 135 129 158 19 131 25 422 8 11 40 42 49 227 10 10 43 36 411 47 51 492

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.001 TANK; FUEL 1000X340X327 100L	8-97188-865-0	01	1	9811-0012					●	●
1	03.001 TANK; FUEL EXC. FUEL TANK 125L,33GAL<NL7> 1000X340X327 100L	8-97188-865-0	01	1	9811-0012	●	●	●	●
1	03.001 TANK; FUEL 1000X340X327 100L	8-97188-865-0	01	1	0101-0105					●	●	●
1	03.001 TANK; FUEL EXC. FUEL TANK 125L,33GAL<NL7> 1000X340X327 100L	8-97188-865-0	01	1	0101-0105	●	●	●	●
1	03.001 TANK; FUEL EXC. FUEL TANK 125L,33GAL<NL7> 1000X340X327 100L	8-97188-865-0	01	1	0106-	●	●	●	●	●	●	●
1	03.001 TANK; FUEL FUEL TANK 125L,33GAL<NL7> OD=400 L=1130 124.5L	8-97047-401-3	01	1	9811-	●	●	●	●
3	03.107 UNIT; FUEL TANK,SUB 03.001	8-94316-190-0	01	1	9811-0012					●	●
3	03.107 UNIT; FUEL TANK,SUB EXC. FUEL TANK 125L,33GAL<NL7> 03.001	8-94316-190-0	01	1	9811-0012	●	●	●	●
3	03.107 UNIT; FUEL TANK,SUB 03.001	8-94316-190-0	01	1	0101-0105					●	●	●
3	03.107 UNIT; FUEL TANK,SUB EXC. FUEL TANK 125L,33GAL<NL7> 03.001	8-94316-190-0	01	1	0101-0105	●	●	●	●
3	03.107 UNIT; FUEL TANK,SUB EXC. FUEL TANK 125L,33GAL<NL7> 03.001	8-94316-190-0	01	1	0106-	●	●	●	●	●	●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 125L,33GAL<NL7>	8-97103-484-0	01	1	9811-0105	●	●	●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 125L,33GAL<NL7>	8-97314-827-0	01	1	0106-	●	●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	9811-	●	●	●	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 01.550	1-21729-043-0	01	1	9811-0105					●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 01.550	1-21729-043-0	01	1	9811-0105	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 01.550	1-21729-043-0	01	1	0106-	●	●	●	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 125L,33GAL<NL7> 03.001 ID=20	9-09720-558-0	01	1	9811-	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.483 (A) T=10.5	5-09709-014-0	AR	1	9811-	●	●	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.559 (B) T=6.0	5-09709-024-0	AR	1	9811-	●	●	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.525 (A) T=8.7	5-09709-048-0	AR	1	9811-0207	●	●	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL (B) T=9 & 10.5	8-97041-091-0	AR	1	9811-	●	●	●	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9811-0105					●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9811-0105	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-	●	●	●	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 125L,33GAL<NL7> 03.001 M20X1.5	9-09662-002-0	01	1	9811-	●	●	●	●
19	03.112 GASKET; FUEL TANK UNIT	5-83148-001-0	01	1	9811-	●	●	●	●	●	●	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	9811-					●	●	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	9811-	●	●	●	●
25	03.028 CAP; FILLER,FUEL TANK FUEL TANK 125L,33GAL<NL7>	1-22440-038-0	01	1	9811-9912	●	●	●	●
25	03.028 CAP; FILLER,FUEL TANK FUEL TANK 125L,33GAL<NL7>	8-97233-810-0	01	1	0001-	●	●	●	●
36	03.015 NUT; SPACER,FUEL TANK M/T MBP6P(RNC) FUEL TANK 125L,33GAL<NL7> 04.785 M10 FLANGE	0-91150-110-0	06	1	0209-	●	●	●	●
36	03.015 NUT; SPACER,FUEL TANK EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> 04.785 M10 FLANGE	0-91150-110-0	08	1	9811-0208					●
36	03.015 NUT; SPACER,FUEL TANK EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> EXC. FUEL TANK 125L,33GAL<NL7> 04.785 M10 FLANGE	0-91150-110-0	08	1	9811-0208	●	●	●	●
36	03.015 NUT; SPACER,FUEL TANK FUEL TANK 125L,33GAL<NL7> 04.785 M10 FLANGE	0-91150-110-0	08	1	9811-0208	●	●	●	●
36	03.015 NUT; SPACER,FUEL TANK EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> 04.785 M10 FLANGE	0-91150-110-0	08	1	0209-					●
36	03.015 NUT; SPACER,FUEL TANK EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> EXC. FUEL TANK 125L,33GAL<NL7> 04.785 M10 FLANGE	0-91150-110-0	08	1	0209-	●	●	●	●
36	03.015 NUT; SPACER,FUEL TANK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) FUEL TANK 125L,33GAL<NL7> 04.785 M10 FLANGE	0-91150-110-0	08	1	0209-	●
36	03.015 NUT; SPACER,FUEL TANK M/T MXA5R(RMT) FUEL TANK 125L,33GAL<NL7> 04.785 M10 FLANGE	0-91150-110-0	08	1	0209-		●	●	●
36	03.015 NUT; SPACER,FUEL TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	09	1	9811-				●
40	03.022 BELT; SUPPORT,FUEL TANK	8-94438-385-4	02	1	9811-					●	●	●
40	03.022 BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>	8-94438-385-4	02	1	9811-	●	●	●	●
40	03.022 BELT; SUPPORT,FUEL TANK FUEL TANK 125L,33GAL<NL7> 03.023	8-94418-159-0	02	1	9811-	●	●	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	9811-					●	●	●
42	03.023 NUT; SUPPORT BELT EXC. FUEL TANK 125L,33GAL<NL7> M8 FLANGE	9-09130-408-0	02	1	9811-	●	●	●	●
42	03.023 NUT; SUPPORT BELT FUEL TANK 125L,33GAL<NL7> 09.011 M10	9-09110-410-0	04	1	9811-	●	●	●	●
43	03.015 BRACKET; FUEL TANK	8-97035-517-0	02	1	9811-					●	●	●
43	03.015 BRACKET; FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>	8-97035-517-0	02	1	9811-	●	●	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 125L,33GAL<NL7>	5-53461-044-2	02	1	9811-	●	●	●	●
47	03.023 SPACER; FUEL TANK EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> (D)	8-97104-375-0	02	1	9811-0105					●
47	03.023 SPACER; FUEL TANK EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> (D)	8-97104-375-0	02	1	9811-0105	●	●	●
47	03.023 SPACER; FUEL TANK FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> (D)	8-97104-375-0	02	1	9811-0105	●	●	●
47	03.023 SPACER; FUEL TANK EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL TANK 125L,33GAL<NL7> (D)	8-97104-375-0	02	1	0106-	●	●	●		●
47	03.023 SPACER; FUEL TANK FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ> (D)	8-97104-375-0	02	1	0106-	●	●	●
47	03.023 SPACER; FUEL TANK FUEL TANK 125L,33GAL<NL7> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97063-749-1	02	1	9811-0105	●	●	●
47	03.023 SPACER; FUEL TANK FUEL TANK 125L,33GAL<NL7> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97063-749-1	02	1	0106-	●	●
47	03.023 SPACER; FUEL TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-94190-522-2	01	1	9811-9812				●
47	03.023 SPACER; FUEL TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97223-013-0	01	1	9901-				●
47	03.023 SPACER; FUEL TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97043-960-0	01	1	9811-				●
47	03.023 SPACER; FUEL TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C)	8-97219-252-2	01	1	9811-				●
49	03.023 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	08	1	9811-0105	●	●	●		●	●	●
49	03.023 NUT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) 08.917 M10 FLANGE	0-91150-210-0	08	1	9811-0105				●
49	03.023 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	08	1	0106-	●	●	●		●	●	●
49	03.023 NUT; BRKT 4HG1 ENG(RJH) 08.917 M10 FLANGE	0-91150-210-0	08	1	0106-				●
49	03.023 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 08.917 M10 FLANGE	0-91150-210-0	02	1	9811-				●
51	03.023 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	08	1	9811-9901	●	●	●	●	●
51	03.023 BOLT; BRKT TO FRAME EXC. CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	08	1	9811-9901					●
51	03.023 BOLT; BRKT TO FRAME EXC. CHARGE AIR COOLER<6PL>,EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9811-9901	●	●	●	●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	9811-9901						●
51	03.023 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	08	1	9902-9907					●
51	03.023 BOLT; BRKT TO FRAME EXC. CHARGE AIR COOLER<6PL>,EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9902-9907	●	●	●	●		●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	9908-0012					●
51	03.023 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1 ENG(RLS) M10X30 FLANGE	0-28691-030-0	08	1	9908-0012	●	●	●	●
51	03.023 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	08	1	9908-0012	●	●	●	●
51	03.023 BOLT; BRKT TO FRAME EXC. CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	08	1	9908-0012						●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	0101-0105					●		●
51	03.023 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1 ENG(RLS) M10X30 FLANGE	0-28691-030-0	08	1	0101-0105	●	●	●	●
51	03.023 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	08	1	0101-0105	●	●	●	●
51	03.023 BOLT; BRKT TO FRAME EXC. CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	08	1	0101-0105						●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	0106-					●
51	03.023 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1 ENG(RLS) M10X30 FLANGE	0-28691-030-0	08	1	0106-	●	●	●	●			●
51	03.023 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	08	1	0106-	●	●	●	●
51	03.023 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	07	1	9902-	●	●	●	●		●
129	03.164 VENTILATOR; SAFETY,FUEL TANK FUEL TANK 125L,33GAL<NL7>	1-22451-012-0	01	1	9811-	●	●	●	●
130	03.164 SCREW; SAFETY VENT FUEL TANK 125L,33GAL<NL7> 06.512 M5X14 W/LK WASHER	9-03910-514-0	05	1	9811-	●	●	●	●
131	03.164 GASKET; SAFETY VENT FUEL TANK 125L,33GAL<NL7>	1-22459-001-1	01	1	9811-	●	●	●	●
135	03.163 COVER; SAFETY VENT FUEL TANK 125L,33GAL<NL7>	5-22458-005-0	01	1	9811-	●	●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT FUEL TANK 125L,33GAL<NL7>	1-22453-003-0	01	1	9811-	●	●	●	●
227	03.015 BOLT; SPACER,FUEL TANK EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> 03.162 M10X35 FLANGE	0-28681-035-0	08	1	9811-					●
227	03.015 BOLT; SPACER,FUEL TANK EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4> EXC. FUEL TANK 125L,33GAL<NL7> 03.162 M10X35 FLANGE	0-28681-035-0	08	1	9811-	●	●	●	●
227	03.015 BOLT; SPACER,FUEL TANK FUEL TANK 125L,33GAL<NL7> 03.162 M10X35 FLANGE	0-28681-035-0	08	1	9811-	●	●	●	●
227	03.015 BOLT; SPACER,FUEL TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	9811-				●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FUEL TANK 125L,33GAL<NL7> ID=6.5	8-94257-639-0	01	1	9811-	●	●	●	●
422	03.023 PLUG; FUEL TANK FUEL TANK 125L,33GAL<NL7> 03.162	8-94421-626-0	01	1	9811-	●	●	●	●
492	03.028 CLIP; HARNESS TO VAC HOSE 4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 L=250	5-09707-030-1	01	1	9811-9903					●
492	03.028 CLIP; HARNESS TO VAC HOSE 02.559 L=250	5-09707-030-1	01	1	9811-9903	●	●	●	●		●
492	03.028 CLIP; HARNESS TO VAC HOSE 02.559 L=250	5-09707-030-1	01	1	9904-	●	●	●	●	●	●	●

1 27 27 33 23 25 6 14 8 3 19 11 10 10 492

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.001 TANK; FUEL 1000X340X327 100L	8-97188-865-0	01	1	9811-0012					●	●
1	03.001 TANK; FUEL EXC. FUEL TANK 125L,33GAL<NL7> 1000X340X327 100L	8-97188-865-0	01	1	9811-0012	●	●	●	●
1	03.001 TANK; FUEL 1000X340X327 100L	8-97188-865-0	01	1	0101-0105					●	●	●
1	03.001 TANK; FUEL EXC. FUEL TANK 125L,33GAL<NL7> 1000X340X327 100L	8-97188-865-0	01	1	0101-0105	●	●	●	●
1	03.001 TANK; FUEL EXC. FUEL TANK 125L,33GAL<NL7> 1000X340X327 100L	8-97188-865-0	01	1	0106-	●	●	●	●	●	●	●
1	03.001 TANK; FUEL FUEL TANK 125L,33GAL<NL7> OD=400 L=1130 124.5L	8-97047-401-3	01	1	9811-	●	●	●	●
3	03.107 UNIT; FUEL TANK,SUB 03.001	8-94316-190-0	01	1	9811-0012					●	●
3	03.107 UNIT; FUEL TANK,SUB EXC. FUEL TANK 125L,33GAL<NL7> 03.001	8-94316-190-0	01	1	9811-0012	●	●	●	●
3	03.107 UNIT; FUEL TANK,SUB 03.001	8-94316-190-0	01	1	0101-0105					●	●	●
3	03.107 UNIT; FUEL TANK,SUB EXC. FUEL TANK 125L,33GAL<NL7> 03.001	8-94316-190-0	01	1	0101-0105	●	●	●	●
3	03.107 UNIT; FUEL TANK,SUB EXC. FUEL TANK 125L,33GAL<NL7> 03.001	8-94316-190-0	01	1	0106-	●	●	●	●	●	●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 125L,33GAL<NL7>	8-97103-484-0	01	1	9811-0105	●	●	●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 125L,33GAL<NL7>	8-97314-827-0	01	1	0106-	●	●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	9811-	●	●	●	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 01.550	1-21729-043-0	01	1	9811-0105					●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 01.550	1-21729-043-0	01	1	9811-0105	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 01.550	1-21729-043-0	01	1	0106-	●	●	●	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 125L,33GAL<NL7> 03.001 ID=20	9-09720-558-0	01	1	9811-	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.483 (A) T=10.5	5-09709-014-0	AR	1	9811-	●	●	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.559 (B) T=6.0	5-09709-024-0	AR	1	9811-	●	●	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.525 (A) T=8.7	5-09709-048-0	AR	1	9811-0207	●	●	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL (B) T=9 & 10.5	8-97041-091-0	AR	1	9811-	●	●	●	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9811-0105					●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9811-0105	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-	●	●	●	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 125L,33GAL<NL7> 03.001 M20X1.5	9-09662-002-0	01	1	9811-	●	●	●	●
14	03.163 HOSE; BREATHER,OUTLET 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	9811-0105					●	●	●
14	03.163 HOSE; BREATHER,OUTLET EXC. FUEL TANK 125L,33GAL<NL7> 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	9811-0105	●	●	●	●
14	03.163 HOSE; BREATHER,OUTLET EXC. FUEL TANK 125L,33GAL<NL7> 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	0106-	●	●	●	●	●	●	●
19	03.112 GASKET; FUEL TANK UNIT	5-83148-001-0	01	1	9811-	●	●	●	●	●	●	●
23	03.162 JOINT; BREATHER HOSE	8-97077-713-1	01	1	9811-0105					●	●	●
23	03.162 JOINT; BREATHER HOSE EXC. FUEL TANK 125L,33GAL<NL7>	8-97077-713-1	01	1	9811-0105	●	●	●	●
23	03.162 JOINT; BREATHER HOSE EXC. FUEL TANK 125L,33GAL<NL7>	8-97077-713-1	01	1	0106-	●	●	●	●	●	●	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	9811-					●	●	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	9811-	●	●	●	●
25	03.028 CAP; FILLER,FUEL TANK FUEL TANK 125L,33GAL<NL7>	1-22440-038-0	01	1	9811-9912	●	●	●	●
25	03.028 CAP; FILLER,FUEL TANK FUEL TANK 125L,33GAL<NL7>	8-97233-810-0	01	1	0001-	●	●	●	●
27	03.163 HOSE; BREATHER L=470 SERVICED BY L=3000	8-94128-826-0	02	1	9811-0105					●	●	●
27	03.163 HOSE; BREATHER EXC. FUEL TANK 125L,33GAL<NL7> L=470 SERVICED BY L=3000	8-94128-826-0	02	1	9811-0105	●	●	●	●
27	03.163 HOSE; BREATHER EXC. FUEL TANK 125L,33GAL<NL7> L=470 SERVICED BY L=3000	8-94128-826-0	02	1	0106-	●	●	●	●	●	●	●
33	03.162 SCREW; JOINT TO FUEL TANK 02.334 M6X20 W/LK&PL WASHER	9-03920-620-0	01	1	9811-0105					●	●	●
33	03.162 SCREW; JOINT TO FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 02.334 M6X20 W/LK&PL WASHER	9-03920-620-0	01	1	9811-0105	●	●	●	●
33	03.162 SCREW; JOINT TO FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 02.334 M6X20 W/LK&PL WASHER	9-03920-620-0	01	1	0106-	●	●	●	●	●	●	●
492	03.028 CLIP; HARNESS TO VAC HOSE 4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 L=250	5-09707-030-1	01	1	9811-9903					●
492	03.028 CLIP; HARNESS TO VAC HOSE 02.559 L=250	5-09707-030-1	01	1	9811-9903	●	●	●	●		●
492	03.028 CLIP; HARNESS TO VAC HOSE 02.559 L=250	5-09707-030-1	01	1	9904-	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
