◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50817 - NPR/NQR-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#22120) — 900 parça

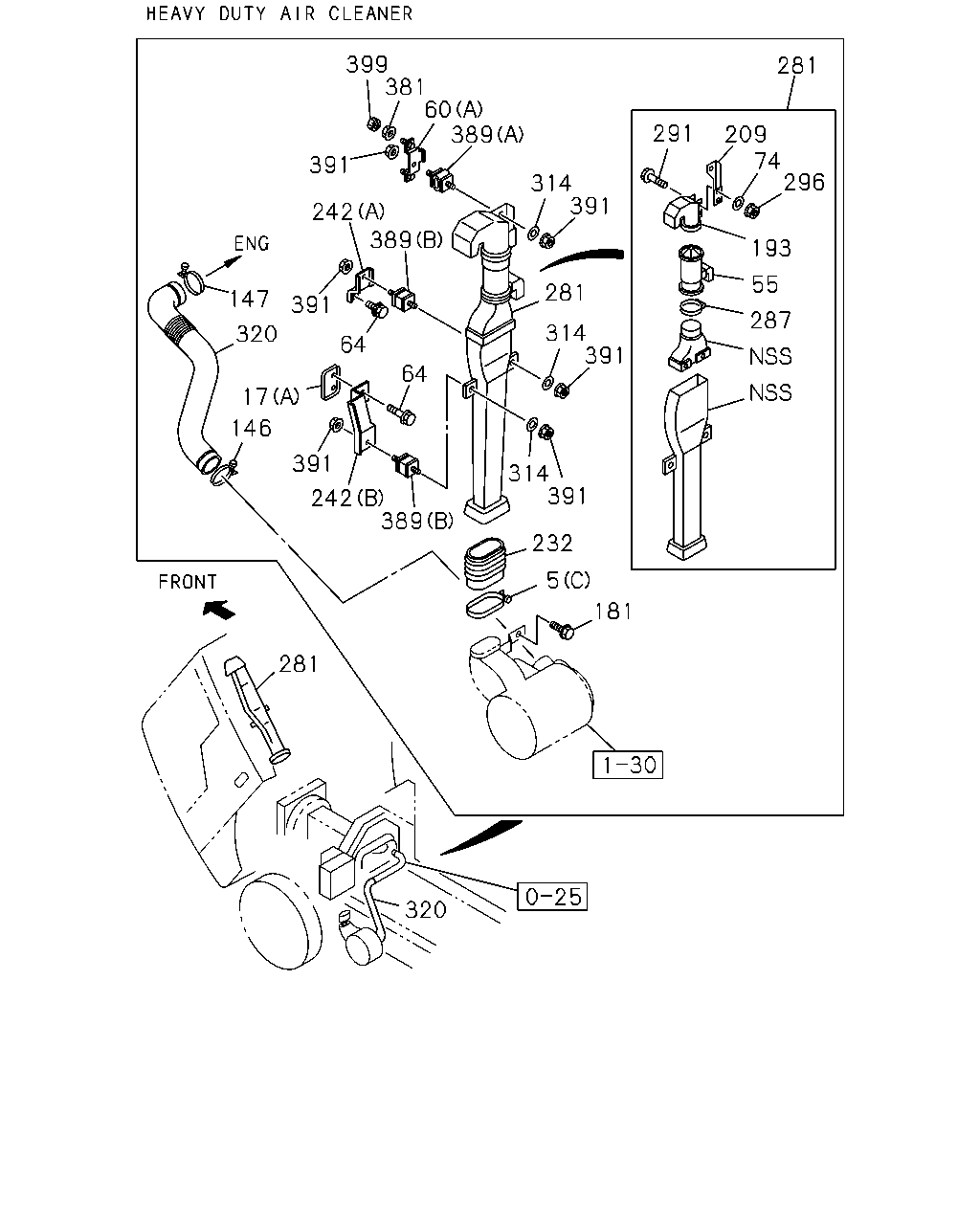

çizim 6238
399 381 60 389 281 291 209 74 296 391 314 391 242 389 193 55 281 147 391 287 314 391 320 64 64 17 146 391 314 391 242 389 232 5 181 281 320
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) D=101.6 		9-09915-502-1 01 1 9811-0012 ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C) D=101.6 		9-09915-502-1 01 1 9811-0012 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) D=101.6 		9-09915-502-1 01 1 0101-0105 ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C) D=101.6 		9-09915-502-1 01 1 0101-0105 ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C) D=101.6 		9-09915-502-1 01 1 0106- ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) D=101.6 		9-09915-502-1 01 1 0106- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> ID=58-79 		1-09707-136-0 01 1 9811- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9811-9903 ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82 		9-09915-511-1 01 1 9904-0011 ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82 		9-09915-511-1 01 1 0012-0105 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82 		9-09915-511-1 01 1 0106- ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92 		9-09915-072-1 01 1 9811-0011 ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92 		9-09915-072-1 01 1 0012-0105 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92 		9-09915-072-1 01 1 0106- ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-699-2 01 1 9811-0105 ● ● ● ● ●
17 03.403 GASKET; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97853-699-2 01 1 9811-0105 ● ● ● ● ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97853-699-2 01 1 9811-0105 ●
17 03.403 GASKET; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97853-699-2 01 1 0106- ● ● ● ● ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-699-2 01 1 0106- ● ● ● ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97853-699-2 01 1 0106- ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97892-723-0 01 1 9811-9901 ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97892-723-0 02 1 9902- ●
55 03.402 CLEANER ASM; AIR,PRE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 		8-97126-267-0 01 1 9811-9903 ● ● ● ●
55 03.402 CLEANER ASM; AIR,PRE
AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97126-267-0 01 1 9904-0105 ● ● ● ● ● ●
55 03.402 CLEANER ASM; AIR,PRE
HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97126-267-0 01 1 0106- ● ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97856-957-0 01 1 9811-0012 ● ● ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97856-957-0 01 1 0101-0105 ● ● ● ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97856-957-0 01 1 0106- ● ● ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97892-525-4 01 1 9811- ●
64 03.417 BOLT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9811-0105 ● ● ● ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9811-0105 ● ● ● ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0106- ● ● ● ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0106- ● ● ● ●
74 03.417 WASHER; PL,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 9811-9903 ● ● ● ●
74 03.417 WASHER; PL,ACL
AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 9904-0105 ● ● ● ● ● ●
74 03.417 WASHER; PL,ACL
HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 0106- ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95 		9-09915-733-1 01 1 9811-9903 ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 03.008 ID=95 		9-09915-733-1 01 1 9904-0105 ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) 03.008 ID=95 		9-09915-733-1 01 1 0106- ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117 		9-09915-075-1 01 1 9811-9903 ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 ID=117 		9-09915-075-1 01 1 9811-9903 ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117 		9-09915-075-1 01 1 9904-0012 ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 ID=117 		9-09915-075-1 01 1 9904-0012 ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117 		9-09915-075-1 01 1 0101-0105 ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 ID=117 		9-09915-075-1 01 1 0101-0105 ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 ID=117 		9-09915-075-1 01 1 0106- ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117 		9-09915-075-1 01 1 0106- ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=112 		9-09915-074-1 01 1 9811- ● ● ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95 		9-09915-733-1 01 1 9811- ● ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9811-0105 ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 0106- ●
181 03.407 BOLT; AIR DUCT TO RAD
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-9903 ●
181 03.407 BOLT; AIR DUCT TO RAD
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-9903 ● ● ●
181 03.407 BOLT; AIR DUCT TO RAD
EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-9903 ● ●
181 03.407 BOLT; AIR DUCT TO RAD
EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9904-0011 ● ● ●
181 03.407 BOLT; AIR DUCT TO RAD
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9904-0011 ● ● ●
181 03.407 BOLT; AIR DUCT TO RAD
EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0012-0012 ● ●
181 03.407 BOLT; AIR DUCT TO RAD
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0012-0012 ● ● ● ●
181 03.407 BOLT; AIR DUCT TO RAD
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ● ● ● ● ● ●
181 03.407 BOLT; AIR DUCT TO RAD
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97231-057-0 01 1 9906-0105 ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97231-057-0 01 1 0106- ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 		8-97120-078-1 01 1 9811-9903 ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97120-078-1 01 1 9904-0012 ● ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97120-078-1 01 1 0101-0105 ● ● ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97120-078-1 01 1 0106- ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) 		8-97138-604-0 01 1 9811-0105 ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) 		8-97138-604-0 01 1 0106- ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97044-953-0 01 1 9811-9903 ● ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) 		8-97044-953-0 01 1 9811-9903 ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97044-953-0 01 1 9904-9905 ● ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97044-953-0 01 1 9906-0012 ● ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 		8-97044-953-0 01 1 9906-0012 ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97044-953-0 01 1 0101-0105 ● ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 		8-97044-953-0 01 1 0101-0105 ● ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 		8-97044-953-0 01 1 0106- ● ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97044-953-0 01 1 0106- ● ● ● ●
209 03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 		8-97120-080-1 01 1 9811-9903 ● ● ● ●
209 03.405 BRACKET; ACL
AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97120-080-1 01 1 9904-0105 ● ● ● ● ● ●
209 03.405 BRACKET; ACL
HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97120-080-1 01 1 0106- ● ● ● ●
232 03.417 HOSE; CONN
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97109-423-0 01 1 9811-0105 ● ● ● ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97109-423-0 01 1 9811-0105 ● ● ● ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97109-423-0 01 1 0106- ● ● ● ● ●
232 03.417 HOSE; CONN
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97109-423-0 01 1 0106- ● ● ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97102-361-0 01 1 9811-0105 ● ● ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97102-361-0 01 1 0106- ●
242 03.417 BRACKET; AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-633-1 01 1 9811-0105 ● ● ● ● ● ●
242 03.417 BRACKET; AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-633-1 01 1 0106- ● ● ● ● ●
242 03.417 BRACKET; AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97857-844-0 01 1 9811-0105 ● ● ● ● ● ●
242 03.417 BRACKET; AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97857-844-0 01 1 0106- ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97231-058-0 01 1 9906-0105 ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97231-058-1 01 1 0106- ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-0 01 1 9811-9903 ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97120-084-0 01 1 9904-0012 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97120-084-0 01 1 0101-0105 ● ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97120-084-1 01 1 0106- ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) 		8-97161-847-0 01 1 9811-0105 ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) 		8-97161-847-1 01 1 0106- ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97125-174-0 01 1 9811-9903 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) 		8-97125-174-0 01 1 9811-9903 ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97125-174-0 01 1 9904-9905 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97125-174-0 01 1 9906-0012 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 		8-97125-174-0 01 1 9906-0012 ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97125-174-0 01 1 0101-0105 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 		8-97125-174-0 01 1 0101-0105 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 		8-97125-174-1 01 1 0106- ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97125-174-1 01 1 0106- ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97180-995-0 01 1 9811- ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A) 		8-97213-911-2 01 1 9811- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B) 		8-97213-912-2 01 1 9811- ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 03.407 ID=87 		9-09915-071-1 01 1 9811-9903 ● ● ● ●
287 03.417 CLIP; AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 03.407 ID=87 		9-09915-071-1 01 1 9904-0105 ● ● ● ● ● ●
287 03.417 CLIP; AIR DUCT
HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 03.407 ID=87 		9-09915-071-1 01 1 0106- ● ● ● ●
291 03.405 BOLT; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9811-9903 ● ● ● ●
291 03.405 BOLT; ACL
AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9904-0105 ● ● ● ● ● ●
291 03.405 BOLT; ACL
HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0106- ● ● ● ●
296 03.405 NUT; ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-9903 ● ● ● ●
296 03.405 NUT; ACL
AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9904-0105 ● ● ● ● ● ●
296 03.405 NUT; ACL
HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106- ● ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 9811-0105 ● ● ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 9811-0105 ● ● ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 0106- ● ● ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 0106- ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-97103-346-2 01 1 9811-0105 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) 		8-97103-346-2 01 1 0106- ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 9811-9812 ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97104-782-2 01 1 9811-9812 ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 9901-0105 ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 0106- ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97209-707-0 01 1 9811- ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97038-293-0 01 1 9811-9812 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97222-894-0 01 1 9901-9903 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97222-894-0 01 1 9901-9903 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97222-894-0 01 1 9904-9904 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97222-894-0 01 1 9904-9904 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 9905-0011 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 9905-0011 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97223-572-0 01 1 0012-0012 ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 0012-0012 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 0012-0012 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97223-572-0 01 1 0101-0105 ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 0101-0105 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 0101-0105 ● ● ●
320 03.417 HOSE; CONN,ACL 8-97223-572-0 01 1 0101-0105 ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97223-572-0 01 1 0106- ● ● ● ●
320 03.417 HOSE; CONN,ACL 8-97223-572-0 01 1 0106- ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97211-578-0 01 1 9811- ●
381 03.417 NUT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE 		1-09984-018-0 02 1 9811-0105 ● ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE 		1-09984-018-0 02 1 9811-0105 ● ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE 		1-09984-018-0 02 1 0106- ● ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE 		1-09984-018-0 02 1 0106- ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.570 M8 POP NUT 		8-94279-538-0 03 1 9811- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A) 		8-97080-149-0 01 1 9811-0105 ● ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A) 		8-97080-149-0 01 1 0106- ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B) 		8-97081-886-0 02 1 9811-0105 ● ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B) 		8-97081-886-0 02 1 0106- ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 		8-97080-149-0 03 1 9811- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 06 1 9811-0105 ● ● ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE 		8-94279-517-0 06 1 9811-0105 ● ● ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE 		8-94279-517-0 06 1 0106- ● ● ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 06 1 0106- ● ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 03 1 9811- ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94273-605-0 02 1 9811-0103 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-94273-605-0 02 1 9811-0103 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8>,CHARGE AIR COOLER<6PL> 		8-94273-605-0 02 1 0104-0104 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 		8-94273-605-0 02 1 0104-0104 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,AUSTRALIA EQUIPMENT(RR3),CUSTOM PACKAGE<YM8>, CHARGE AIR COOLER<6PL> 		8-94273-605-0 02 1 0104-0104 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,AUSTRALIA EQUIPMENT(RR3),CUSTOM PACKAGE<YM8> 		8-94273-605-0 02 1 0104-0104 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3), CUSTOMPACKAGE<YM8>,CHARGE AIR COOLER<6PL> 		8-94273-605-0 02 1 0105-0105 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3), CUSTOMPACKAGE<YM8> 		8-94273-605-0 02 1 0105-0105 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3), CUSTOMPACKAGE<YM8> 		8-94273-605-0 02 1 0106- ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3), CUSTOMPACKAGE<YM8>,CHARGE AIR COOLER<6PL> 		8-94273-605-0 02 1 0106- ● ● ● ●

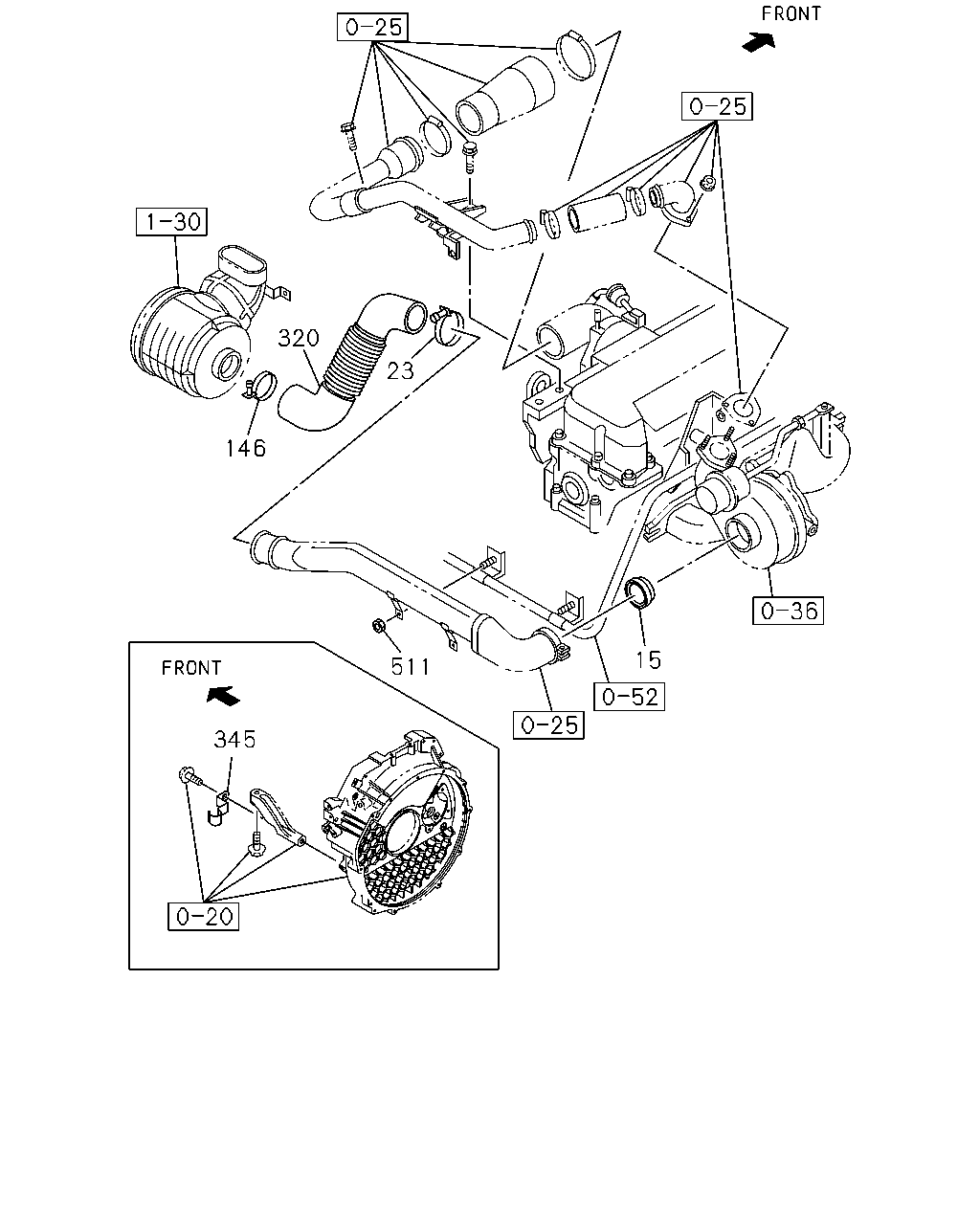

çizim 9356
320 23 146 15 511 345
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
15 03.417 INSULATOR
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) 03.407 		8-94454-802-0 01 1 9811-9903 ● ●
15 03.417 INSULATOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 		8-94454-802-0 01 1 9811-9903 ●
15 03.417 INSULATOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 		8-94454-802-0 01 1 9904-0011 ● ●
15 03.417 INSULATOR
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) 03.407 		8-94454-802-0 01 1 9904-0011 ● ●
15 03.417 INSULATOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 		8-94454-802-0 01 1 0012-0012 ●
15 03.417 INSULATOR
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) 03.407 		8-94454-802-0 01 1 0012-0012 ● ● ●
15 03.417 INSULATOR
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) 03.407 		8-94454-802-0 01 1 0101- ● ● ● ● ●
23 03.417 CLIP; HOSE
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) 03.407 ID=87 		8-97087-432-0 01 1 9811-9903 ● ●
23 03.417 CLIP; HOSE
4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 ID=87 		8-97087-432-0 01 1 9811-9903 ●
23 03.417 CLIP; HOSE
4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 ID=87 		8-97087-432-0 01 1 9904-0011 ● ●
23 03.417 CLIP; HOSE
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) 03.407 ID=87 		8-97087-432-0 01 1 9904-0011 ● ●
23 03.417 CLIP; HOSE
4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 ID=87 		8-97087-432-0 01 1 0012-0012 ●
23 03.417 CLIP; HOSE
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) 03.407 ID=87 		8-97087-432-0 01 1 0012-0012 ● ● ●
23 03.417 CLIP; HOSE
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) 03.407 ID=87 		8-97087-432-0 01 1 0101- ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95 		9-09915-733-1 01 1 9811-9903 ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 03.008 ID=95 		9-09915-733-1 01 1 9904-0105 ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) 03.008 ID=95 		9-09915-733-1 01 1 0106- ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117 		9-09915-075-1 01 1 9811-9903 ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 ID=117 		9-09915-075-1 01 1 9811-9903 ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117 		9-09915-075-1 01 1 9904-0012 ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 ID=117 		9-09915-075-1 01 1 9904-0012 ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117 		9-09915-075-1 01 1 0101-0105 ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 ID=117 		9-09915-075-1 01 1 0101-0105 ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 ID=117 		9-09915-075-1 01 1 0106- ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117 		9-09915-075-1 01 1 0106- ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=112 		9-09915-074-1 01 1 9811- ● ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-97103-346-2 01 1 9811-0105 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) 		8-97103-346-2 01 1 0106- ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 9811-9812 ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97104-782-2 01 1 9811-9812 ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 9901-0105 ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 0106- ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97209-707-0 01 1 9811- ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97038-293-0 01 1 9811-9812 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97222-894-0 01 1 9901-9903 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97222-894-0 01 1 9901-9903 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97222-894-0 01 1 9904-9904 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97222-894-0 01 1 9904-9904 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 9905-0011 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 9905-0011 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97223-572-0 01 1 0012-0012 ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 0012-0012 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 0012-0012 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97223-572-0 01 1 0101-0105 ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 0101-0105 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 0101-0105 ● ● ●
320 03.417 HOSE; CONN,ACL 8-97223-572-0 01 1 0101-0105 ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97223-572-0 01 1 0106- ● ● ● ●
320 03.417 HOSE; CONN,ACL 8-97223-572-0 01 1 0106- ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97211-578-0 01 1 9811- ●
345 03.417 CLIP; PCV HOSE
4HE1 ENG(RLY) 		8-97066-710-0 01 1 9811-9903 ● ● ● ● ●
345 03.417 CLIP; PCV HOSE
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97066-710-0 01 1 9811-9903 ● ● ● ●
345 03.417 CLIP; PCV HOSE 8-97066-710-0 01 1 9811-9903 ●
345 03.417 CLIP; PCV HOSE
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97066-710-0 01 1 9904-0012 ● ● ● ● ●
345 03.417 CLIP; PCV HOSE
4HE1 ENG(RLY) 		8-97066-710-0 01 1 9904-0012 ● ● ● ● ●
345 03.417 CLIP; PCV HOSE 8-97066-710-0 01 1 9904-0012 ●
345 03.417 CLIP; PCV HOSE
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97066-710-1 01 1 0101- ● ● ● ● ●
345 03.417 CLIP; PCV HOSE
4HE1 ENG(RLY) 		8-97066-710-1 01 1 0101- ● ● ● ● ●
345 03.417 CLIP; PCV HOSE 8-97066-710-1 01 1 0101- ● ●
511 03.417 NUT; PIPE
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-9903 ● ●
511 03.417 NUT; PIPE
4HG1 ENG(RJH) TURBOCHARGER(K51) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-9903 ●
511 03.417 NUT; PIPE
4HG1 ENG(RJH) TURBOCHARGER(K51) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9904-0011 ● ●
511 03.417 NUT; PIPE
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9904-0011 ● ●
511 03.417 NUT; PIPE
4HG1 ENG(RJH) TURBOCHARGER(K51) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0012-0012 ●
511 03.417 NUT; PIPE
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0012-0012 ● ● ●
511 03.417 NUT; PIPE
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0101- ● ● ● ● ●

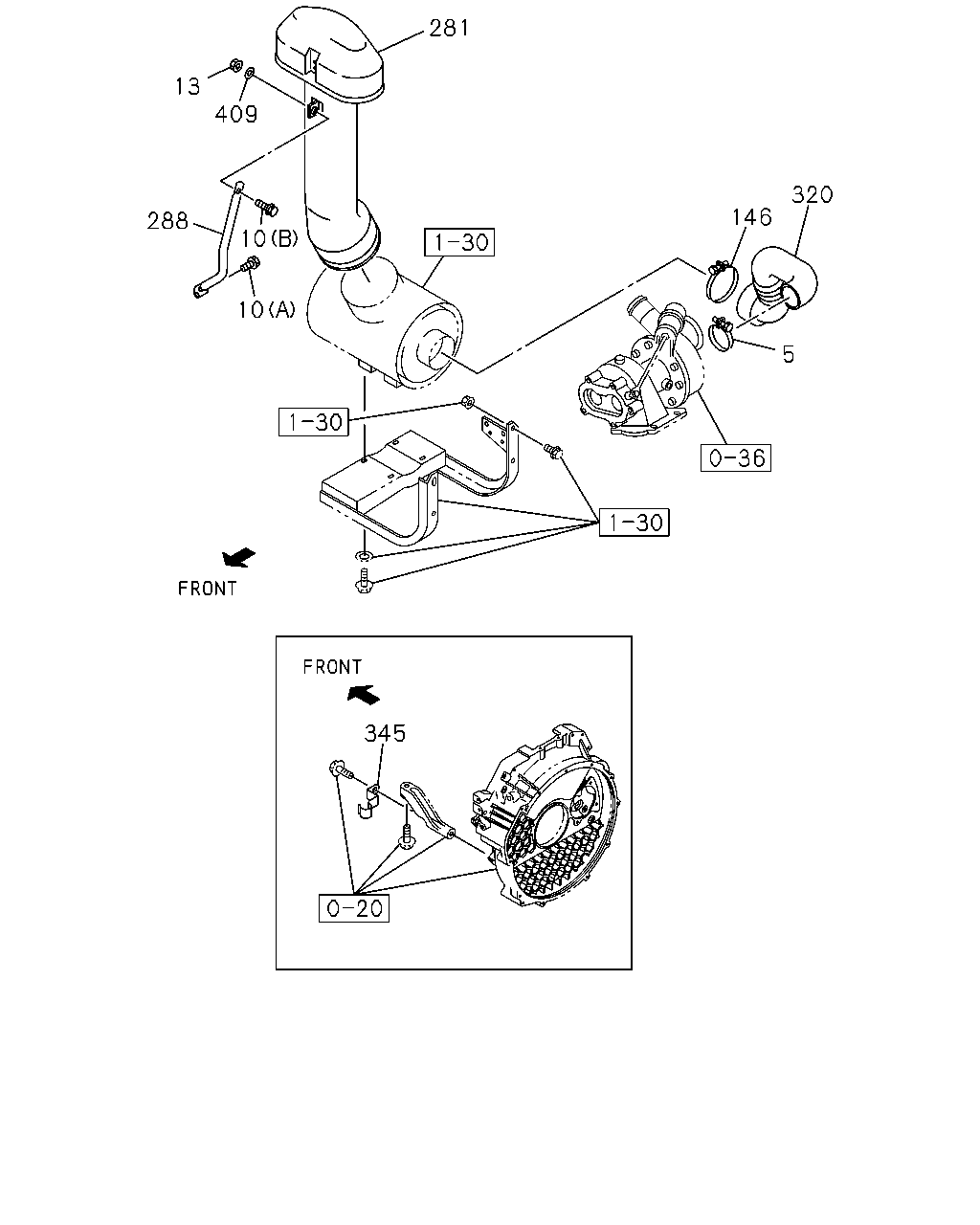

çizim 47318
281 13 409 320 146 288 10 10 5 345
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) D=101.6 		9-09915-502-1 01 1 9811-0012 ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C) D=101.6 		9-09915-502-1 01 1 9811-0012 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) D=101.6 		9-09915-502-1 01 1 0101-0105 ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C) D=101.6 		9-09915-502-1 01 1 0101-0105 ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C) D=101.6 		9-09915-502-1 01 1 0106- ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) D=101.6 		9-09915-502-1 01 1 0106- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> ID=58-79 		1-09707-136-0 01 1 9811- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9811-9903 ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82 		9-09915-511-1 01 1 9904-0011 ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82 		9-09915-511-1 01 1 0012-0105 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82 		9-09915-511-1 01 1 0106- ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92 		9-09915-072-1 01 1 9811-0011 ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92 		9-09915-072-1 01 1 0012-0105 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92 		9-09915-072-1 01 1 0106- ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 9811- ● ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.183 (B) M8X35 FLANGE 		0-28680-835-0 01 1 9811- ● ● ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 9811- ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.405 (D) M10X30 FLANGE 		0-28681-030-0 02 1 9811- ●
13 03.417 NUT; BRKT FIX
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811- ● ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95 		9-09915-733-1 01 1 9811-9903 ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 03.008 ID=95 		9-09915-733-1 01 1 9904-0105 ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) 03.008 ID=95 		9-09915-733-1 01 1 0106- ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117 		9-09915-075-1 01 1 9811-9903 ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 ID=117 		9-09915-075-1 01 1 9811-9903 ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117 		9-09915-075-1 01 1 9904-0012 ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 ID=117 		9-09915-075-1 01 1 9904-0012 ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117 		9-09915-075-1 01 1 0101-0105 ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 ID=117 		9-09915-075-1 01 1 0101-0105 ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 ID=117 		9-09915-075-1 01 1 0106- ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117 		9-09915-075-1 01 1 0106- ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=112 		9-09915-074-1 01 1 9811- ● ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97231-058-0 01 1 9906-0105 ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97231-058-1 01 1 0106- ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-0 01 1 9811-9903 ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97120-084-0 01 1 9904-0012 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97120-084-0 01 1 0101-0105 ● ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97120-084-1 01 1 0106- ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) 		8-97161-847-0 01 1 9811-0105 ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) 		8-97161-847-1 01 1 0106- ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97125-174-0 01 1 9811-9903 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) 		8-97125-174-0 01 1 9811-9903 ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97125-174-0 01 1 9904-9905 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97125-174-0 01 1 9906-0012 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 		8-97125-174-0 01 1 9906-0012 ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97125-174-0 01 1 0101-0105 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 		8-97125-174-0 01 1 0101-0105 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 		8-97125-174-1 01 1 0106- ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97125-174-1 01 1 0106- ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97180-995-0 01 1 9811- ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A) 		8-97213-911-2 01 1 9811- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B) 		8-97213-912-2 01 1 9811- ●
288 03.417 BRACKET; DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97183-041-2 01 1 9811- ● ● ● ● ●
288 03.417 BRACKET; DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A) 		8-97214-827-1 01 1 9811- ●
288 03.417 BRACKET; DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.405 (B) 		8-97214-828-0 01 1 9811- ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-97103-346-2 01 1 9811-0105 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) 		8-97103-346-2 01 1 0106- ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 9811-9812 ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97104-782-2 01 1 9811-9812 ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 9901-0105 ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 0106- ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97209-707-0 01 1 9811- ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97038-293-0 01 1 9811-9812 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97222-894-0 01 1 9901-9903 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97222-894-0 01 1 9901-9903 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97222-894-0 01 1 9904-9904 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97222-894-0 01 1 9904-9904 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 9905-0011 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 9905-0011 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97223-572-0 01 1 0012-0012 ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 0012-0012 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 0012-0012 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97223-572-0 01 1 0101-0105 ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 0101-0105 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 0101-0105 ● ● ●
320 03.417 HOSE; CONN,ACL 8-97223-572-0 01 1 0101-0105 ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97223-572-0 01 1 0106- ● ● ● ●
320 03.417 HOSE; CONN,ACL 8-97223-572-0 01 1 0106- ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97211-578-0 01 1 9811- ●
345 03.417 CLIP; PCV HOSE
4HE1 ENG(RLY) 		8-97066-710-0 01 1 9811-9903 ● ● ● ● ●
345 03.417 CLIP; PCV HOSE
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97066-710-0 01 1 9811-9903 ● ● ● ●
345 03.417 CLIP; PCV HOSE 8-97066-710-0 01 1 9811-9903 ●
345 03.417 CLIP; PCV HOSE
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97066-710-0 01 1 9904-0012 ● ● ● ● ●
345 03.417 CLIP; PCV HOSE
4HE1 ENG(RLY) 		8-97066-710-0 01 1 9904-0012 ● ● ● ● ●
345 03.417 CLIP; PCV HOSE 8-97066-710-0 01 1 9904-0012 ●
345 03.417 CLIP; PCV HOSE
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97066-710-1 01 1 0101- ● ● ● ● ●
345 03.417 CLIP; PCV HOSE
4HE1 ENG(RLY) 		8-97066-710-1 01 1 0101- ● ● ● ● ●
345 03.417 CLIP; PCV HOSE 8-97066-710-1 01 1 0101- ● ●
409 03.417 WASHER; PL,BRKT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 9811- ● ● ● ● ● ●

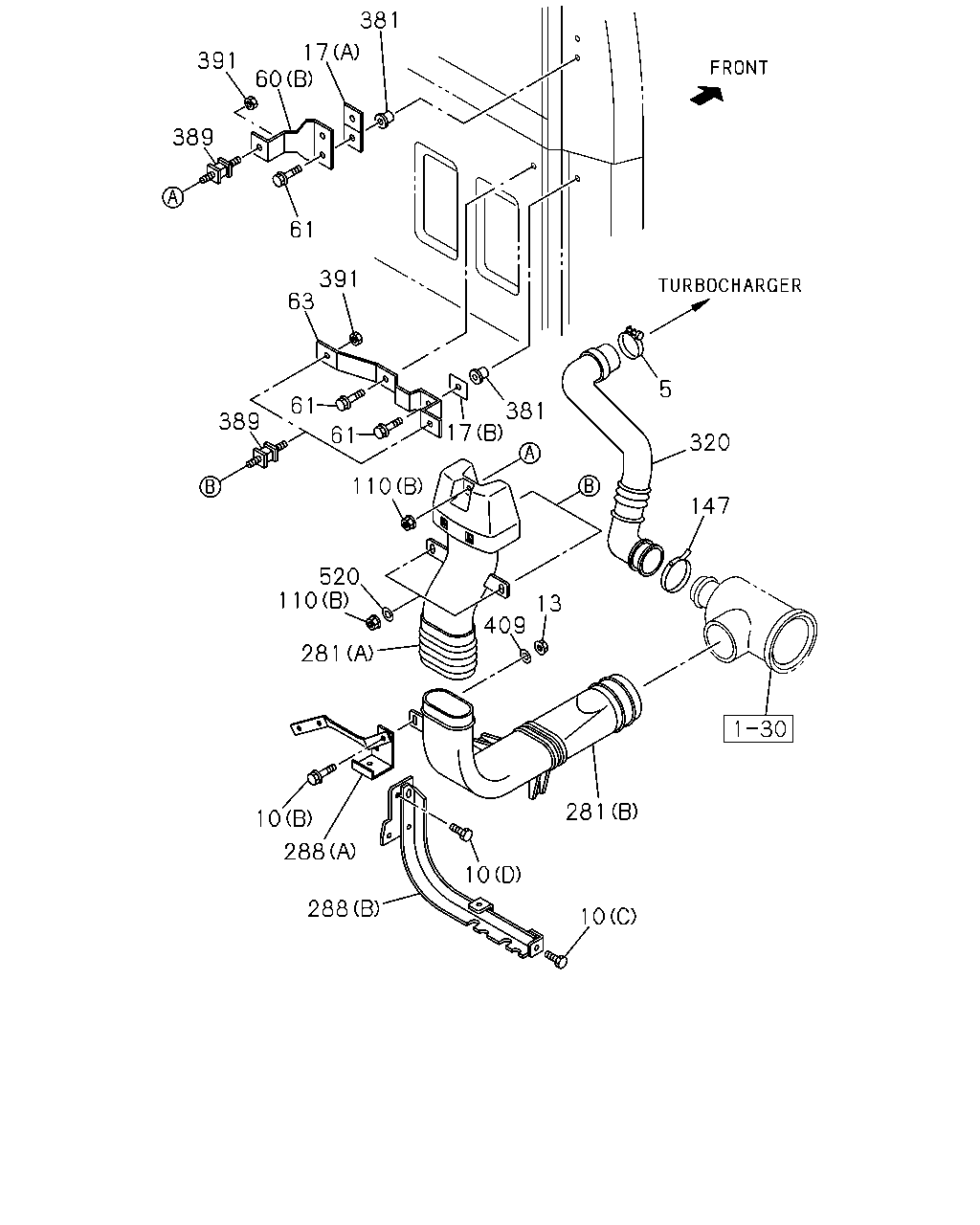

çizim 47351
381 17 60 391 389 61 391 63 5 61 381 17 389 61 320 110 147 520 10 13 409 281 281 10 288 10 288 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) D=101.6 		9-09915-502-1 01 1 9811-0012 ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C) D=101.6 		9-09915-502-1 01 1 9811-0012 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) D=101.6 		9-09915-502-1 01 1 0101-0105 ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C) D=101.6 		9-09915-502-1 01 1 0101-0105 ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C) D=101.6 		9-09915-502-1 01 1 0106- ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) D=101.6 		9-09915-502-1 01 1 0106- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> ID=58-79 		1-09707-136-0 01 1 9811- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9811-9903 ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82 		9-09915-511-1 01 1 9904-0011 ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82 		9-09915-511-1 01 1 0012-0105 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82 		9-09915-511-1 01 1 0106- ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92 		9-09915-072-1 01 1 9811-0011 ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92 		9-09915-072-1 01 1 0012-0105 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92 		9-09915-072-1 01 1 0106- ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 9811- ● ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.183 (B) M8X35 FLANGE 		0-28680-835-0 01 1 9811- ● ● ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 9811- ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.405 (D) M10X30 FLANGE 		0-28681-030-0 02 1 9811- ●
13 03.417 NUT; BRKT FIX
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811- ● ● ● ● ● ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-699-2 01 1 9811-0105 ● ● ● ● ●
17 03.403 GASKET; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97853-699-2 01 1 9811-0105 ● ● ● ● ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97853-699-2 01 1 9811-0105 ●
17 03.403 GASKET; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97853-699-2 01 1 0106- ● ● ● ● ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-699-2 01 1 0106- ● ● ● ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97853-699-2 01 1 0106- ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97892-723-0 01 1 9811-9901 ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97892-723-0 02 1 9902- ●
60 03.417 BRACKET; AIR DUCT,UPR
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97856-957-0 01 1 9811-0012 ● ● ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97856-957-0 01 1 0101-0105 ● ● ● ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97856-957-0 01 1 0106- ● ● ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97892-525-4 01 1 9811- ●
61 03.417 BOLT; BRKT,AIR DUCT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 09.003 M8X20 W/LK&PL WASHER 		8-94279-216-0 04 1 9811- ●
63 03.417 BRACKET; AIR DUCT,LWR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97892-526-3 01 1 9811- ●
110 03.403 NUT; RUBBER MTG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9811- ● ● ● ● ● ●
110 03.403 NUT; RUBBER MTG
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (B) M8 FLANGE 		8-94279-517-0 03 1 9811- ●
147 03.417 CLIP; HOSE TO ENG
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95 		9-09915-733-1 01 1 9811- ● ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9811-0105 ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97231-058-0 01 1 9906-0105 ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97231-058-1 01 1 0106- ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-0 01 1 9811-9903 ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97120-084-0 01 1 9904-0012 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97120-084-0 01 1 0101-0105 ● ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97120-084-1 01 1 0106- ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) 		8-97161-847-0 01 1 9811-0105 ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) 		8-97161-847-1 01 1 0106- ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97125-174-0 01 1 9811-9903 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) 		8-97125-174-0 01 1 9811-9903 ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97125-174-0 01 1 9904-9905 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97125-174-0 01 1 9906-0012 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 		8-97125-174-0 01 1 9906-0012 ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97125-174-0 01 1 0101-0105 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 		8-97125-174-0 01 1 0101-0105 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 		8-97125-174-1 01 1 0106- ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97125-174-1 01 1 0106- ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97180-995-0 01 1 9811- ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A) 		8-97213-911-2 01 1 9811- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B) 		8-97213-912-2 01 1 9811- ●
288 03.417 BRACKET; DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97183-041-2 01 1 9811- ● ● ● ● ●
288 03.417 BRACKET; DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A) 		8-97214-827-1 01 1 9811- ●
288 03.417 BRACKET; DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.405 (B) 		8-97214-828-0 01 1 9811- ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-97103-346-2 01 1 9811-0105 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) 		8-97103-346-2 01 1 0106- ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 9811-9812 ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97104-782-2 01 1 9811-9812 ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 9901-0105 ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 0106- ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97209-707-0 01 1 9811- ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97038-293-0 01 1 9811-9812 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97222-894-0 01 1 9901-9903 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97222-894-0 01 1 9901-9903 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97222-894-0 01 1 9904-9904 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97222-894-0 01 1 9904-9904 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 9905-0011 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 9905-0011 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97223-572-0 01 1 0012-0012 ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 0012-0012 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 0012-0012 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97223-572-0 01 1 0101-0105 ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 0101-0105 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 0101-0105 ● ● ●
320 03.417 HOSE; CONN,ACL 8-97223-572-0 01 1 0101-0105 ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97223-572-0 01 1 0106- ● ● ● ●
320 03.417 HOSE; CONN,ACL 8-97223-572-0 01 1 0106- ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97211-578-0 01 1 9811- ●
381 03.417 NUT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE 		1-09984-018-0 02 1 9811-0105 ● ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE 		1-09984-018-0 02 1 9811-0105 ● ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE 		1-09984-018-0 02 1 0106- ● ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE 		1-09984-018-0 02 1 0106- ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.570 M8 POP NUT 		8-94279-538-0 03 1 9811- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A) 		8-97080-149-0 01 1 9811-0105 ● ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A) 		8-97080-149-0 01 1 0106- ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B) 		8-97081-886-0 02 1 9811-0105 ● ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B) 		8-97081-886-0 02 1 0106- ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 		8-97080-149-0 03 1 9811- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 06 1 9811-0105 ● ● ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE 		8-94279-517-0 06 1 9811-0105 ● ● ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE 		8-94279-517-0 06 1 0106- ● ● ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 06 1 0106- ● ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 03 1 9811- ●
409 03.417 WASHER; PL,BRKT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 9811- ● ● ● ● ● ●
520 03.403 WASHER; RUBBER MTG
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 9902- ●

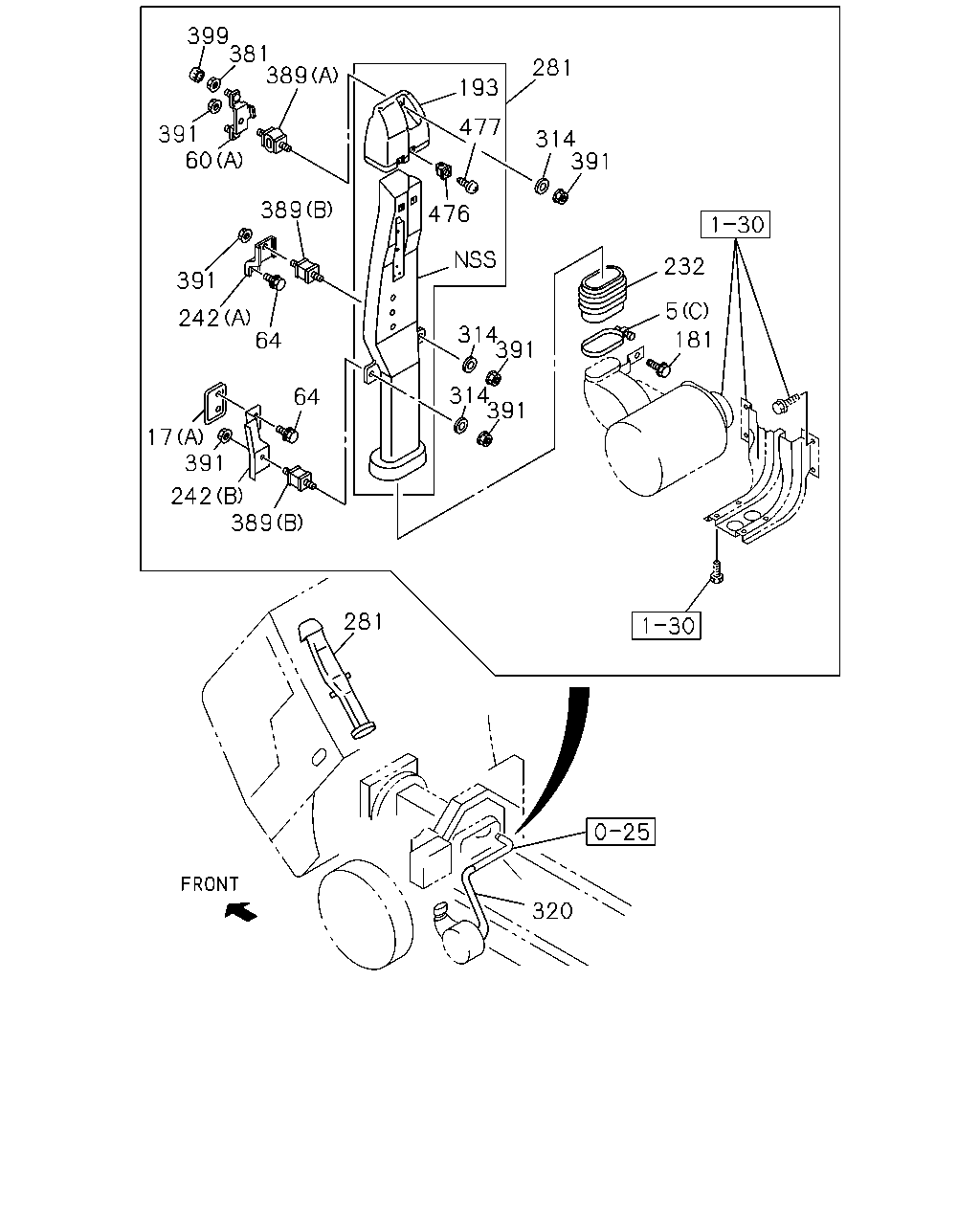

çizim 48210
399 381 389 281 193 477 391 60 314 391 389 476 232 391 5 242 64 314 391 181 314 391 64 17 391 242 389 281 320
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) D=101.6 		9-09915-502-1 01 1 9811-0012 ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C) D=101.6 		9-09915-502-1 01 1 9811-0012 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) D=101.6 		9-09915-502-1 01 1 0101-0105 ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C) D=101.6 		9-09915-502-1 01 1 0101-0105 ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C) D=101.6 		9-09915-502-1 01 1 0106- ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) D=101.6 		9-09915-502-1 01 1 0106- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> ID=58-79 		1-09707-136-0 01 1 9811- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9811-9903 ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82 		9-09915-511-1 01 1 9904-0011 ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82 		9-09915-511-1 01 1 0012-0105 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82 		9-09915-511-1 01 1 0106- ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92 		9-09915-072-1 01 1 9811-0011 ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92 		9-09915-072-1 01 1 0012-0105 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92 		9-09915-072-1 01 1 0106- ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-699-2 01 1 9811-0105 ● ● ● ● ●
17 03.403 GASKET; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97853-699-2 01 1 9811-0105 ● ● ● ● ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97853-699-2 01 1 9811-0105 ●
17 03.403 GASKET; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97853-699-2 01 1 0106- ● ● ● ● ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-699-2 01 1 0106- ● ● ● ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97853-699-2 01 1 0106- ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97892-723-0 01 1 9811-9901 ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97892-723-0 02 1 9902- ●
60 03.417 BRACKET; AIR DUCT,UPR
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97856-957-0 01 1 9811-0012 ● ● ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97856-957-0 01 1 0101-0105 ● ● ● ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97856-957-0 01 1 0106- ● ● ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97892-525-4 01 1 9811- ●
64 03.417 BOLT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9811-0105 ● ● ● ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9811-0105 ● ● ● ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0106- ● ● ● ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0106- ● ● ● ●
181 03.407 BOLT; AIR DUCT TO RAD
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-9903 ●
181 03.407 BOLT; AIR DUCT TO RAD
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-9903 ● ● ●
181 03.407 BOLT; AIR DUCT TO RAD
EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-9903 ● ●
181 03.407 BOLT; AIR DUCT TO RAD
EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9904-0011 ● ● ●
181 03.407 BOLT; AIR DUCT TO RAD
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9904-0011 ● ● ●
181 03.407 BOLT; AIR DUCT TO RAD
EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0012-0012 ● ●
181 03.407 BOLT; AIR DUCT TO RAD
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0012-0012 ● ● ● ●
181 03.407 BOLT; AIR DUCT TO RAD
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ● ● ● ● ● ●
181 03.407 BOLT; AIR DUCT TO RAD
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97231-057-0 01 1 9906-0105 ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97231-057-0 01 1 0106- ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 		8-97120-078-1 01 1 9811-9903 ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97120-078-1 01 1 9904-0012 ● ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97120-078-1 01 1 0101-0105 ● ● ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97120-078-1 01 1 0106- ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) 		8-97138-604-0 01 1 9811-0105 ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) 		8-97138-604-0 01 1 0106- ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97044-953-0 01 1 9811-9903 ● ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) 		8-97044-953-0 01 1 9811-9903 ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97044-953-0 01 1 9904-9905 ● ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97044-953-0 01 1 9906-0012 ● ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 		8-97044-953-0 01 1 9906-0012 ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97044-953-0 01 1 0101-0105 ● ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 		8-97044-953-0 01 1 0101-0105 ● ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 		8-97044-953-0 01 1 0106- ● ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97044-953-0 01 1 0106- ● ● ● ●
232 03.417 HOSE; CONN
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97109-423-0 01 1 9811-0105 ● ● ● ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97109-423-0 01 1 9811-0105 ● ● ● ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97109-423-0 01 1 0106- ● ● ● ● ●
232 03.417 HOSE; CONN
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97109-423-0 01 1 0106- ● ● ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97102-361-0 01 1 9811-0105 ● ● ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97102-361-0 01 1 0106- ●
242 03.417 BRACKET; AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-633-1 01 1 9811-0105 ● ● ● ● ● ●
242 03.417 BRACKET; AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-633-1 01 1 0106- ● ● ● ● ●
242 03.417 BRACKET; AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97857-844-0 01 1 9811-0105 ● ● ● ● ● ●
242 03.417 BRACKET; AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97857-844-0 01 1 0106- ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97231-058-0 01 1 9906-0105 ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97231-058-1 01 1 0106- ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-0 01 1 9811-9903 ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97120-084-0 01 1 9904-0012 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97120-084-0 01 1 0101-0105 ● ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97120-084-1 01 1 0106- ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) 		8-97161-847-0 01 1 9811-0105 ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) 		8-97161-847-1 01 1 0106- ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97125-174-0 01 1 9811-9903 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) 		8-97125-174-0 01 1 9811-9903 ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97125-174-0 01 1 9904-9905 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97125-174-0 01 1 9906-0012 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 		8-97125-174-0 01 1 9906-0012 ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97125-174-0 01 1 0101-0105 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 		8-97125-174-0 01 1 0101-0105 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 		8-97125-174-1 01 1 0106- ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97125-174-1 01 1 0106- ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97180-995-0 01 1 9811- ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A) 		8-97213-911-2 01 1 9811- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B) 		8-97213-912-2 01 1 9811- ●
314 03.417 WASHER; PL,AIR INT DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 9811-0105 ● ● ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 9811-0105 ● ● ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 0106- ● ● ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 0106- ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-97103-346-2 01 1 9811-0105 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) 		8-97103-346-2 01 1 0106- ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 9811-9812 ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97104-782-2 01 1 9811-9812 ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 9901-0105 ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 0106- ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97209-707-0 01 1 9811- ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97038-293-0 01 1 9811-9812 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97222-894-0 01 1 9901-9903 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97222-894-0 01 1 9901-9903 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97222-894-0 01 1 9904-9904 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97222-894-0 01 1 9904-9904 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 9905-0011 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 9905-0011 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97223-572-0 01 1 0012-0012 ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 0012-0012 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 0012-0012 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97223-572-0 01 1 0101-0105 ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 0101-0105 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 0101-0105 ● ● ●
320 03.417 HOSE; CONN,ACL 8-97223-572-0 01 1 0101-0105 ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97223-572-0 01 1 0106- ● ● ● ●
320 03.417 HOSE; CONN,ACL 8-97223-572-0 01 1 0106- ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97211-578-0 01 1 9811- ●
381 03.417 NUT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE 		1-09984-018-0 02 1 9811-0105 ● ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE 		1-09984-018-0 02 1 9811-0105 ● ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE 		1-09984-018-0 02 1 0106- ● ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE 		1-09984-018-0 02 1 0106- ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.570 M8 POP NUT 		8-94279-538-0 03 1 9811- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A) 		8-97080-149-0 01 1 9811-0105 ● ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A) 		8-97080-149-0 01 1 0106- ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B) 		8-97081-886-0 02 1 9811-0105 ● ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B) 		8-97081-886-0 02 1 0106- ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 		8-97080-149-0 03 1 9811- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 06 1 9811-0105 ● ● ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE 		8-94279-517-0 06 1 9811-0105 ● ● ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE 		8-94279-517-0 06 1 0106- ● ● ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 06 1 0106- ● ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 03 1 9811- ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94273-605-0 02 1 9811-0103 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-94273-605-0 02 1 9811-0103 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8>,CHARGE AIR COOLER<6PL> 		8-94273-605-0 02 1 0104-0104 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 		8-94273-605-0 02 1 0104-0104 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,AUSTRALIA EQUIPMENT(RR3),CUSTOM PACKAGE<YM8>, CHARGE AIR COOLER<6PL> 		8-94273-605-0 02 1 0104-0104 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,AUSTRALIA EQUIPMENT(RR3),CUSTOM PACKAGE<YM8> 		8-94273-605-0 02 1 0104-0104 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3), CUSTOMPACKAGE<YM8>,CHARGE AIR COOLER<6PL> 		8-94273-605-0 02 1 0105-0105 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3), CUSTOMPACKAGE<YM8> 		8-94273-605-0 02 1 0105-0105 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3), CUSTOMPACKAGE<YM8> 		8-94273-605-0 02 1 0106- ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3), CUSTOMPACKAGE<YM8>,CHARGE AIR COOLER<6PL> 		8-94273-605-0 02 1 0106- ● ● ● ●
476 03.417 GROMMET; SCREW,COVER
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.445 		1-09983-081-0 04 1 9811-9903 ● ● ● ● ●
476 03.417 GROMMET; SCREW,COVER
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) 16.445 		1-09983-081-0 04 1 9811-9903 ● ● ●
476 03.417 GROMMET; SCREW,COVER
4HG1 ENG(RJH),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 16.445 		1-09983-081-0 04 1 9904-9905 ● ● ● ● ●
476 03.417 GROMMET; SCREW,COVER
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 16.445 		1-09983-081-0 04 1 9906-0105 ● ● ● ● ●
476 03.417 GROMMET; SCREW,COVER
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 16.445 		1-09983-081-0 04 1 9906-0105 ● ● ● ● ●
476 03.417 GROMMET; SCREW,COVER
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 16.445 		1-09983-081-0 04 1 0106- ● ● ● ● ●
476 03.417 GROMMET; SCREW,COVER
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 16.445 		1-09983-081-0 04 1 0106- ● ● ● ●
477 03.417 SCREW; COVER
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 9811-9903 ● ● ● ● ●
477 03.417 SCREW; COVER
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 9811-9903 ● ● ● ●
477 03.417 SCREW; COVER
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 9811-9903 ● ● ●
477 03.417 SCREW; COVER
4HG1 ENG(RJH),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 9904-0012 ● ● ● ● ●
477 03.417 SCREW; COVER
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 9904-0012 ● ● ● ●
477 03.417 SCREW; COVER
4HG1 ENG(RJH),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 0101-0105 ● ● ● ● ● ●
477 03.417 SCREW; COVER
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 0101-0105 ● ● ● ●
477 03.417 SCREW; COVER
4HG1 ENG(RJH),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 0106- ● ● ● ● ●
477 03.417 SCREW; COVER
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 0106- ● ● ● ●
çizim 48243
147 232 5 258 26 32 155 26 258 393 18 156 290 40 9 5 297 156 155 102 105 105 107 119 107 103 104 102 116 103
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) D=101.6 		9-09915-502-1 01 1 9811-0012 ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C) D=101.6 		9-09915-502-1 01 1 9811-0012 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) D=101.6 		9-09915-502-1 01 1 0101-0105 ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C) D=101.6 		9-09915-502-1 01 1 0101-0105 ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C) D=101.6 		9-09915-502-1 01 1 0106- ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) D=101.6 		9-09915-502-1 01 1 0106- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> ID=58-79 		1-09707-136-0 01 1 9811- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9811-9903 ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82 		9-09915-511-1 01 1 9904-0011 ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82 		9-09915-511-1 01 1 0012-0105 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82 		9-09915-511-1 01 1 0106- ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92 		9-09915-072-1 01 1 9811-0011 ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92 		9-09915-072-1 01 1 0012-0105 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92 		9-09915-072-1 01 1 0106- ●
9 03.417 BRACKET; INT PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97038-294-0 01 1 9811-9911 ● ● ●
9 03.417 BRACKET; INT PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97038-294-0 01 1 9912-0105 ● ● ● ●
9 03.417 BRACKET; INT PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) MINI BUS CHASSIS<V4B> AIR INTAKE SYSTEM FRONT<6PC> 		8-97038-294-0 01 1 9912-0105 ● ● ●
9 03.417 BRACKET; INT PIPE
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97038-294-0 01 1 0106- ●
18 03.417 WASHER; PL,PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 9811-0105 ● ● ● ●
18 03.417 WASHER; PL,PIPE
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 0106- ●
26 03.417 DUCT; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97089-950-2 01 1 9811-0011 ● ●
26 03.417 DUCT; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97089-950-2 01 1 0012-0105 ● ●
26 03.417 DUCT; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97089-950-2 01 1 0012-0105 ●
26 03.417 DUCT; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97173-698-0 01 1 9811-0011 ● ● ●
26 03.417 DUCT; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97173-698-0 01 1 0012-0105 ● ● ● ●
26 03.417 DUCT; AIR INT
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97173-698-0 01 1 0106- ●
26 03.417 DUCT; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. MANUAL TILT CAB<RWZ>,HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97089-951-2 01 1 9811-0011 ● ● ●
26 03.417 DUCT; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. MANUAL TILT CAB<RWZ>,HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97089-951-2 01 1 0012-0105 ● ● ● ●
26 03.417 DUCT; AIR INT
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97089-951-2 01 1 0106- ●
26 03.417 DUCT; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RLS) HALOGEN HEAD LAMP RECTANGULAR<TR4> AIR INTAKE SYSTEM FRONT<6PC> EXC. MANUAL TILT CAB<RWZ> (B) 		8-97089-949-1 01 1 9811-0105 ● ● ●
26 03.417 DUCT; AIR INT
4HG1 ENG(RJH) HALOGEN HEAD LAMP RECTANGULAR<TR4> AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97089-949-1 01 1 0106- ●
32 03.417 RUBBER; AIR DUCT MTG
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.405 		8-94158-155-1 01 1 9811-0105 ● ● ● ●
32 03.417 RUBBER; AIR DUCT MTG
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 03.405 		8-94158-155-1 01 1 0106- ●
40 03.417 NUT; AIR INT DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) HALOGEN HEAD LAMP RECTANGULAR<TR4> AIR INTAKE SYSTEM FRONT<6PC> 09.005 M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 9811-0105 ● ● ●
40 03.417 NUT; AIR INT DUCT
4HG1 ENG(RJH) HALOGEN HEAD LAMP RECTANGULAR<TR4> AIR INTAKE SYSTEM FRONT<6PC> 09.005 M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 0106- ●
102 03.402 RESONATOR; AIR INT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97103-542-0 01 1 9811-0105 ● ● ● ●
102 03.402 RESONATOR; AIR INT
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97103-542-0 01 1 0106- ●
103 03.402 NUT; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-0105 ● ● ● ●
103 03.402 NUT; RESONATOR
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106- ●
104 03.417 RUBBER; MOUNTING,RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97095-600-0 02 1 9811-0105 ● ● ● ●
104 03.417 RUBBER; MOUNTING,RESONATOR
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97095-600-0 02 1 0106- ●
105 03.403 BRACKET; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97092-039-1 01 1 9811-0105 ● ● ● ●
105 03.403 BRACKET; RESONATOR
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97092-039-1 01 1 0106- ●
105 03.403 BRACKET; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97174-754-0 01 1 9811-0105 ● ● ● ●
105 03.403 BRACKET; RESONATOR
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97174-754-0 01 1 0106- ●
107 03.417 CLIP; PROTECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97095-785-0 02 1 9811-0105 ● ● ● ●
107 03.417 CLIP; PROTECTOR
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97095-785-0 02 1 0106- ●
116 01.745 RETAINER; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97095-597-0 02 1 9811-0105 ● ● ● ●
116 01.745 RETAINER; RESONATOR
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97095-597-0 02 1 0106- ●
119 03.403 HOSE; RESONATOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97105-844-0 01 1 9811-0105 ● ● ● ●
119 03.403 HOSE; RESONATOR
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97105-844-0 01 1 0106- ●
147 03.417 CLIP; HOSE TO ENG
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95 		9-09915-733-1 01 1 9811- ● ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9811-0105 ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 0106- ●
155 03.417 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ● ●
155 03.417 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ● ●
155 03.417 BOLT; BRKT
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ●
155 03.417 BOLT; BRKT
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ●
156 03.417 NUT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ● ●
156 03.417 NUT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ● ●
156 03.417 NUT; BRKT
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
156 03.417 NUT; BRKT
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
232 03.417 HOSE; CONN
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97109-423-0 01 1 9811-0105 ● ● ● ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97109-423-0 01 1 9811-0105 ● ● ● ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97109-423-0 01 1 0106- ● ● ● ● ●
232 03.417 HOSE; CONN
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97109-423-0 01 1 0106- ● ● ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97102-361-0 01 1 9811-0105 ● ● ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97102-361-0 01 1 0106- ●
258 03.417 NUT; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-0105 ● ● ● ●
258 03.417 NUT; AIR DUCT
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106- ●
290 03.374 CLIP; ACL TO AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9811-0105 ● ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 0106- ●
297 03.417 BOLT; DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 9811-0011 ● ● ●
297 03.417 BOLT; DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 0012-0105 ● ● ● ●
297 03.417 BOLT; DUCT
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 0106- ●
297 03.417 BOLT; DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9811-0011 ● ● ●
297 03.417 BOLT; DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 0012-0105 ● ● ●
297 03.417 BOLT; DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 0012-0105 ●
297 03.417 BOLT; DUCT
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 0106- ●
393 03.417 WASHER; LK,AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 01.270 ID=10.5 OD=36 		8-97031-437-0 01 1 9811-0105 ● ● ●
393 03.417 WASHER; LK,AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 01.270 ID=10.5 OD=36 		8-97031-437-0 01 1 9811-0105 ●
393 03.417 WASHER; LK,AIR DUCT
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 01.270 ID=10.5 OD=36 		8-97031-437-0 01 1 0106- ●
çizim 48806
248 474 248 474 146 320 192 474 191 345
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95 		9-09915-733-1 01 1 9811-9903 ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 03.008 ID=95 		9-09915-733-1 01 1 9904-0105 ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) 03.008 ID=95 		9-09915-733-1 01 1 0106- ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117 		9-09915-075-1 01 1 9811-9903 ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 ID=117 		9-09915-075-1 01 1 9811-9903 ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117 		9-09915-075-1 01 1 9904-0012 ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 ID=117 		9-09915-075-1 01 1 9904-0012 ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117 		9-09915-075-1 01 1 0101-0105 ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 ID=117 		9-09915-075-1 01 1 0101-0105 ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 ID=117 		9-09915-075-1 01 1 0106- ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117 		9-09915-075-1 01 1 0106- ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=112 		9-09915-074-1 01 1 9811- ● ● ● ● ● ●
191 03.407 RUBBER; SEAL,CONN HOSE,AIR INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-94454-802-0 01 1 9811-0105 ● ● ● ● ●
191 03.407 RUBBER; SEAL,CONN HOSE,AIR INT
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-94454-802-0 01 1 0106- ● ● ● ●
192 03.407 CLIP; HOSE
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> ID=87 		8-97087-432-0 01 1 9811-0105 ● ● ● ● ●
192 03.407 CLIP; HOSE
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> ID=87 		8-97087-432-0 01 1 0106- ● ● ● ●
248 03.417 CLIP; RUBBER HOSE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.407 (A) ID=50-69 		8-94316-991-0 01 1 9811-0105 ● ● ● ●
248 03.417 CLIP; RUBBER HOSE
EXC. CHARGE AIR COOLER<6PL> 03.407 (A) ID=50-69 		8-94316-991-0 01 1 9811-0105 ●
248 03.417 CLIP; RUBBER HOSE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.407 (A) ID=50-69 		8-94316-991-0 01 1 0106- ● ● ● ●
248 03.417 CLIP; RUBBER HOSE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.407 (B) ID=68-85 		8-94320-428-0 01 1 9811-0105 ● ● ● ●
248 03.417 CLIP; RUBBER HOSE
EXC. CHARGE AIR COOLER<6PL> 03.407 (B) ID=68-85 		8-94320-428-0 01 1 9811-0105 ●
248 03.417 CLIP; RUBBER HOSE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.407 (B) ID=68-85 		8-94320-428-0 01 1 0106- ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-97103-346-2 01 1 9811-0105 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) 		8-97103-346-2 01 1 0106- ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 9811-9812 ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97104-782-2 01 1 9811-9812 ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 9901-0105 ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 0106- ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97209-707-0 01 1 9811- ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97038-293-0 01 1 9811-9812 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97222-894-0 01 1 9901-9903 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97222-894-0 01 1 9901-9903 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97222-894-0 01 1 9904-9904 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97222-894-0 01 1 9904-9904 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 9905-0011 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 9905-0011 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97223-572-0 01 1 0012-0012 ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 0012-0012 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 0012-0012 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97223-572-0 01 1 0101-0105 ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 0101-0105 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 0101-0105 ● ● ●
320 03.417 HOSE; CONN,ACL 8-97223-572-0 01 1 0101-0105 ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97223-572-0 01 1 0106- ● ● ● ●
320 03.417 HOSE; CONN,ACL 8-97223-572-0 01 1 0106- ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97211-578-0 01 1 9811- ●
345 03.417 CLIP; PCV HOSE
4HE1 ENG(RLY) 		8-97066-710-0 01 1 9811-9903 ● ● ● ● ●
345 03.417 CLIP; PCV HOSE
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97066-710-0 01 1 9811-9903 ● ● ● ●
345 03.417 CLIP; PCV HOSE 8-97066-710-0 01 1 9811-9903 ●
345 03.417 CLIP; PCV HOSE
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97066-710-0 01 1 9904-0012 ● ● ● ● ●
345 03.417 CLIP; PCV HOSE
4HE1 ENG(RLY) 		8-97066-710-0 01 1 9904-0012 ● ● ● ● ●
345 03.417 CLIP; PCV HOSE 8-97066-710-0 01 1 9904-0012 ●
345 03.417 CLIP; PCV HOSE
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97066-710-1 01 1 0101- ● ● ● ● ●
345 03.417 CLIP; PCV HOSE
4HE1 ENG(RLY) 		8-97066-710-1 01 1 0101- ● ● ● ● ●
345 03.417 CLIP; PCV HOSE 8-97066-710-1 01 1 0101- ● ●
474 03.417 BOLT; PIPE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.405 (B) M10X25 FLANGE 		0-28681-025-0 03 1 9811-0105 ● ● ● ●
474 03.417 BOLT; PIPE
EXC. CHARGE AIR COOLER<6PL> 03.405 (B) M10X25 FLANGE 		0-28681-025-0 03 1 9811-0105 ●
474 03.417 BOLT; PIPE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.405 (B) M10X25 FLANGE 		0-28681-025-0 03 1 0106- ● ● ● ●
474 03.417 BOLT; PIPE
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M10X30 FLANGE 		0-28781-030-0 02 1 9811-0105 ● ● ● ● ●
474 03.417 BOLT; PIPE
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M10X30 FLANGE 		0-28781-030-0 02 1 0106- ● ● ● ●
çizim 48878
110 505 110 199 110 110 505 199
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
110 03.403 NUT; RUBBER MTG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9811- ● ● ● ● ● ●
110 03.403 NUT; RUBBER MTG
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (B) M8 FLANGE 		8-94279-517-0 03 1 9811- ●
199 03.417 BRACKET; PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97189-604-0 01 1 9811- ● ● ● ● ● ●
199 03.417 BRACKET; PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97189-603-1 01 1 9811- ● ● ● ● ● ●
505 03.406 RUBBER; MTG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 		8-94158-155-1 02 1 9811- ● ● ● ● ● ●
çizim 50930
399 381 391 281 389 193 477 314 391 147 60 242 391 389 476 320 64 314 391 146 314 391 64 232 389 17 391 5 181 242 281 320
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) D=101.6 		9-09915-502-1 01 1 9811-0012 ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C) D=101.6 		9-09915-502-1 01 1 9811-0012 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) D=101.6 		9-09915-502-1 01 1 0101-0105 ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C) D=101.6 		9-09915-502-1 01 1 0101-0105 ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C) D=101.6 		9-09915-502-1 01 1 0106- ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) D=101.6 		9-09915-502-1 01 1 0106- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> ID=58-79 		1-09707-136-0 01 1 9811- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9811-9903 ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82 		9-09915-511-1 01 1 9904-0011 ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82 		9-09915-511-1 01 1 0012-0105 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82 		9-09915-511-1 01 1 0106- ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92 		9-09915-072-1 01 1 9811-0011 ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92 		9-09915-072-1 01 1 0012-0105 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92 		9-09915-072-1 01 1 0106- ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-699-2 01 1 9811-0105 ● ● ● ● ●
17 03.403 GASKET; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97853-699-2 01 1 9811-0105 ● ● ● ● ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97853-699-2 01 1 9811-0105 ●
17 03.403 GASKET; AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97853-699-2 01 1 0106- ● ● ● ● ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-699-2 01 1 0106- ● ● ● ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97853-699-2 01 1 0106- ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97892-723-0 01 1 9811-9901 ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97892-723-0 02 1 9902- ●
60 03.417 BRACKET; AIR DUCT,UPR
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97856-957-0 01 1 9811-0012 ● ● ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97856-957-0 01 1 0101-0105 ● ● ● ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97856-957-0 01 1 0106- ● ● ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97892-525-4 01 1 9811- ●
64 03.417 BOLT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9811-0105 ● ● ● ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9811-0105 ● ● ● ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0106- ● ● ● ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0106- ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95 		9-09915-733-1 01 1 9811-9903 ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 03.008 ID=95 		9-09915-733-1 01 1 9904-0105 ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) 03.008 ID=95 		9-09915-733-1 01 1 0106- ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117 		9-09915-075-1 01 1 9811-9903 ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 ID=117 		9-09915-075-1 01 1 9811-9903 ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117 		9-09915-075-1 01 1 9904-0012 ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 ID=117 		9-09915-075-1 01 1 9904-0012 ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117 		9-09915-075-1 01 1 0101-0105 ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 ID=117 		9-09915-075-1 01 1 0101-0105 ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 ID=117 		9-09915-075-1 01 1 0106- ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117 		9-09915-075-1 01 1 0106- ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=112 		9-09915-074-1 01 1 9811- ● ● ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95 		9-09915-733-1 01 1 9811- ● ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9811-0105 ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 0106- ●
181 03.407 BOLT; AIR DUCT TO RAD
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-9903 ●
181 03.407 BOLT; AIR DUCT TO RAD
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-9903 ● ● ●
181 03.407 BOLT; AIR DUCT TO RAD
EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-9903 ● ●
181 03.407 BOLT; AIR DUCT TO RAD
EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9904-0011 ● ● ●
181 03.407 BOLT; AIR DUCT TO RAD
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9904-0011 ● ● ●
181 03.407 BOLT; AIR DUCT TO RAD
EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0012-0012 ● ●
181 03.407 BOLT; AIR DUCT TO RAD
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0012-0012 ● ● ● ●
181 03.407 BOLT; AIR DUCT TO RAD
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ● ● ● ● ● ●
181 03.407 BOLT; AIR DUCT TO RAD
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97231-057-0 01 1 9906-0105 ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97231-057-0 01 1 0106- ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 		8-97120-078-1 01 1 9811-9903 ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97120-078-1 01 1 9904-0012 ● ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97120-078-1 01 1 0101-0105 ● ● ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97120-078-1 01 1 0106- ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) 		8-97138-604-0 01 1 9811-0105 ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) 		8-97138-604-0 01 1 0106- ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97044-953-0 01 1 9811-9903 ● ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) 		8-97044-953-0 01 1 9811-9903 ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97044-953-0 01 1 9904-9905 ● ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97044-953-0 01 1 9906-0012 ● ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 		8-97044-953-0 01 1 9906-0012 ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97044-953-0 01 1 0101-0105 ● ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 		8-97044-953-0 01 1 0101-0105 ● ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 		8-97044-953-0 01 1 0106- ● ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97044-953-0 01 1 0106- ● ● ● ●
232 03.417 HOSE; CONN
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97109-423-0 01 1 9811-0105 ● ● ● ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97109-423-0 01 1 9811-0105 ● ● ● ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97109-423-0 01 1 0106- ● ● ● ● ●
232 03.417 HOSE; CONN
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97109-423-0 01 1 0106- ● ● ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97102-361-0 01 1 9811-0105 ● ● ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 		8-97102-361-0 01 1 0106- ●
242 03.417 BRACKET; AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-633-1 01 1 9811-0105 ● ● ● ● ● ●
242 03.417 BRACKET; AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-633-1 01 1 0106- ● ● ● ● ●
242 03.417 BRACKET; AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97857-844-0 01 1 9811-0105 ● ● ● ● ● ●
242 03.417 BRACKET; AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97857-844-0 01 1 0106- ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97231-058-0 01 1 9906-0105 ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97231-058-1 01 1 0106- ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-0 01 1 9811-9903 ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97120-084-0 01 1 9904-0012 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97120-084-0 01 1 0101-0105 ● ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97120-084-1 01 1 0106- ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) 		8-97161-847-0 01 1 9811-0105 ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) 		8-97161-847-1 01 1 0106- ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97125-174-0 01 1 9811-9903 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) 		8-97125-174-0 01 1 9811-9903 ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97125-174-0 01 1 9904-9905 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97125-174-0 01 1 9906-0012 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 		8-97125-174-0 01 1 9906-0012 ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97125-174-0 01 1 0101-0105 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 		8-97125-174-0 01 1 0101-0105 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 		8-97125-174-1 01 1 0106- ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97125-174-1 01 1 0106- ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97180-995-0 01 1 9811- ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A) 		8-97213-911-2 01 1 9811- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B) 		8-97213-912-2 01 1 9811- ●
314 03.417 WASHER; PL,AIR INT DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 9811-0105 ● ● ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 9811-0105 ● ● ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 0106- ● ● ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 0106- ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 		8-97103-346-2 01 1 9811-0105 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) 		8-97103-346-2 01 1 0106- ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 9811-9812 ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97104-782-2 01 1 9811-9812 ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 9901-0105 ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 0106- ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97209-707-0 01 1 9811- ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97038-293-0 01 1 9811-9812 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97222-894-0 01 1 9901-9903 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97222-894-0 01 1 9901-9903 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97222-894-0 01 1 9904-9904 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97222-894-0 01 1 9904-9904 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 9905-0011 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 9905-0011 ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97223-572-0 01 1 0012-0012 ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 0012-0012 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 0012-0012 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97223-572-0 01 1 0101-0105 ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 0101-0105 ● ● ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97223-572-0 01 1 0101-0105 ● ● ●
320 03.417 HOSE; CONN,ACL 8-97223-572-0 01 1 0101-0105 ●
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97223-572-0 01 1 0106- ● ● ● ●
320 03.417 HOSE; CONN,ACL 8-97223-572-0 01 1 0106- ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97211-578-0 01 1 9811- ●
381 03.417 NUT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE 		1-09984-018-0 02 1 9811-0105 ● ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE 		1-09984-018-0 02 1 9811-0105 ● ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE 		1-09984-018-0 02 1 0106- ● ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE 		1-09984-018-0 02 1 0106- ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.570 M8 POP NUT 		8-94279-538-0 03 1 9811- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A) 		8-97080-149-0 01 1 9811-0105 ● ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A) 		8-97080-149-0 01 1 0106- ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B) 		8-97081-886-0 02 1 9811-0105 ● ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B) 		8-97081-886-0 02 1 0106- ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 		8-97080-149-0 03 1 9811- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 06 1 9811-0105 ● ● ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE 		8-94279-517-0 06 1 9811-0105 ● ● ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE 		8-94279-517-0 06 1 0106- ● ● ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 06 1 0106- ● ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 03 1 9811- ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94273-605-0 02 1 9811-0103 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-94273-605-0 02 1 9811-0103 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8>,CHARGE AIR COOLER<6PL> 		8-94273-605-0 02 1 0104-0104 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 		8-94273-605-0 02 1 0104-0104 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,AUSTRALIA EQUIPMENT(RR3),CUSTOM PACKAGE<YM8>, CHARGE AIR COOLER<6PL> 		8-94273-605-0 02 1 0104-0104 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,AUSTRALIA EQUIPMENT(RR3),CUSTOM PACKAGE<YM8> 		8-94273-605-0 02 1 0104-0104 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3), CUSTOMPACKAGE<YM8>,CHARGE AIR COOLER<6PL> 		8-94273-605-0 02 1 0105-0105 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3), CUSTOMPACKAGE<YM8> 		8-94273-605-0 02 1 0105-0105 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3), CUSTOMPACKAGE<YM8> 		8-94273-605-0 02 1 0106- ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3), CUSTOMPACKAGE<YM8>,CHARGE AIR COOLER<6PL> 		8-94273-605-0 02 1 0106- ● ● ● ●
476 03.417 GROMMET; SCREW,COVER
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.445 		1-09983-081-0 04 1 9811-9903 ● ● ● ● ●
476 03.417 GROMMET; SCREW,COVER
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) 16.445 		1-09983-081-0 04 1 9811-9903 ● ● ●
476 03.417 GROMMET; SCREW,COVER
4HG1 ENG(RJH),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 16.445 		1-09983-081-0 04 1 9904-9905 ● ● ● ● ●
476 03.417 GROMMET; SCREW,COVER
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 16.445 		1-09983-081-0 04 1 9906-0105 ● ● ● ● ●
476 03.417 GROMMET; SCREW,COVER
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 16.445 		1-09983-081-0 04 1 9906-0105 ● ● ● ● ●
476 03.417 GROMMET; SCREW,COVER
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 16.445 		1-09983-081-0 04 1 0106- ● ● ● ● ●
476 03.417 GROMMET; SCREW,COVER
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 16.445 		1-09983-081-0 04 1 0106- ● ● ● ●
477 03.417 SCREW; COVER
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 9811-9903 ● ● ● ● ●
477 03.417 SCREW; COVER
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 9811-9903 ● ● ● ●
477 03.417 SCREW; COVER
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 9811-9903 ● ● ●
477 03.417 SCREW; COVER
4HG1 ENG(RJH),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 9904-0012 ● ● ● ● ●
477 03.417 SCREW; COVER
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 9904-0012 ● ● ● ●
477 03.417 SCREW; COVER
4HG1 ENG(RJH),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 0101-0105 ● ● ● ● ● ●
477 03.417 SCREW; COVER
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 0101-0105 ● ● ● ●
477 03.417 SCREW; COVER
4HG1 ENG(RJH),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 0106- ● ● ● ● ●
477 03.417 SCREW; COVER
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 0106- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
