1-11 — RADIATOR HOSE AND SUB TANK (#22118) — 204 parça
çizim 46764
128 56 56 55
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
55 01.173 HOSE; WATER,RAD OUTLET
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97216-029-0 01 1 9811- ● ● ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97133-143-0 01 1 9811-0105 ● ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
EXC. CHARGE AIR COOLER<6PL> 		8-97133-143-0 01 1 9811-0105 ●
55 01.173 HOSE; WATER,RAD OUTLET
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97133-143-0 01 1 0106- ● ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HF1 ENG(RLS) 		8-97124-743-0 01 1 9811-9903 ● ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 		8-97124-743-0 01 1 9811-9903 ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 		8-97124-743-0 01 1 9904-0105 ● ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HF1 ENG(RLS) 		8-97124-743-0 01 1 9904-0105 ● ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 		8-97124-743-0 01 1 0106- ● ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HF1 ENG(RLS) 		8-97124-743-0 01 1 0106- ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97177-372-0 01 1 9811-9903 ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97177-372-0 01 1 9904-0012 ● ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97177-372-0 01 1 0101- ● ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET 8-97177-372-0 01 1 0101- ●
56 01.166 CLIP; WATER HOSE,RAD
4HF1 ENG(RLS),4HE1 ENG(RLY) ID=48 		5-09704-049-0 02 1 9811-9903 ●
56 01.166 CLIP; WATER HOSE,RAD
ID=48 		5-09704-049-0 02 1 9811-9903 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=48 		5-09704-049-0 02 1 9904-0001 ● ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40 		8-97245-216-0 02 1 0002- ● ● ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97160-257-1 01 1 9811- ● ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97133-142-0 01 1 9811-0105 ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
EXC. CHARGE AIR COOLER<6PL> 		8-97133-142-0 01 1 9811-0105 ●
128 01.159 HOSE; WATER,RAD INL
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97133-142-0 01 1 0106- ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HF1 ENG(RLS) 		8-97147-472-0 01 1 9811-9903 ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 		8-97147-472-0 01 1 9811-9903 ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 		8-97147-472-0 01 1 9904-0105 ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HF1 ENG(RLS) 		8-97147-472-0 01 1 9904-0105 ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 		8-97147-472-0 01 1 0106- ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HF1 ENG(RLS) 		8-97147-472-0 01 1 0106- ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97210-676-0 01 1 9811- ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL 8-97210-676-0 01 1 9811- ●

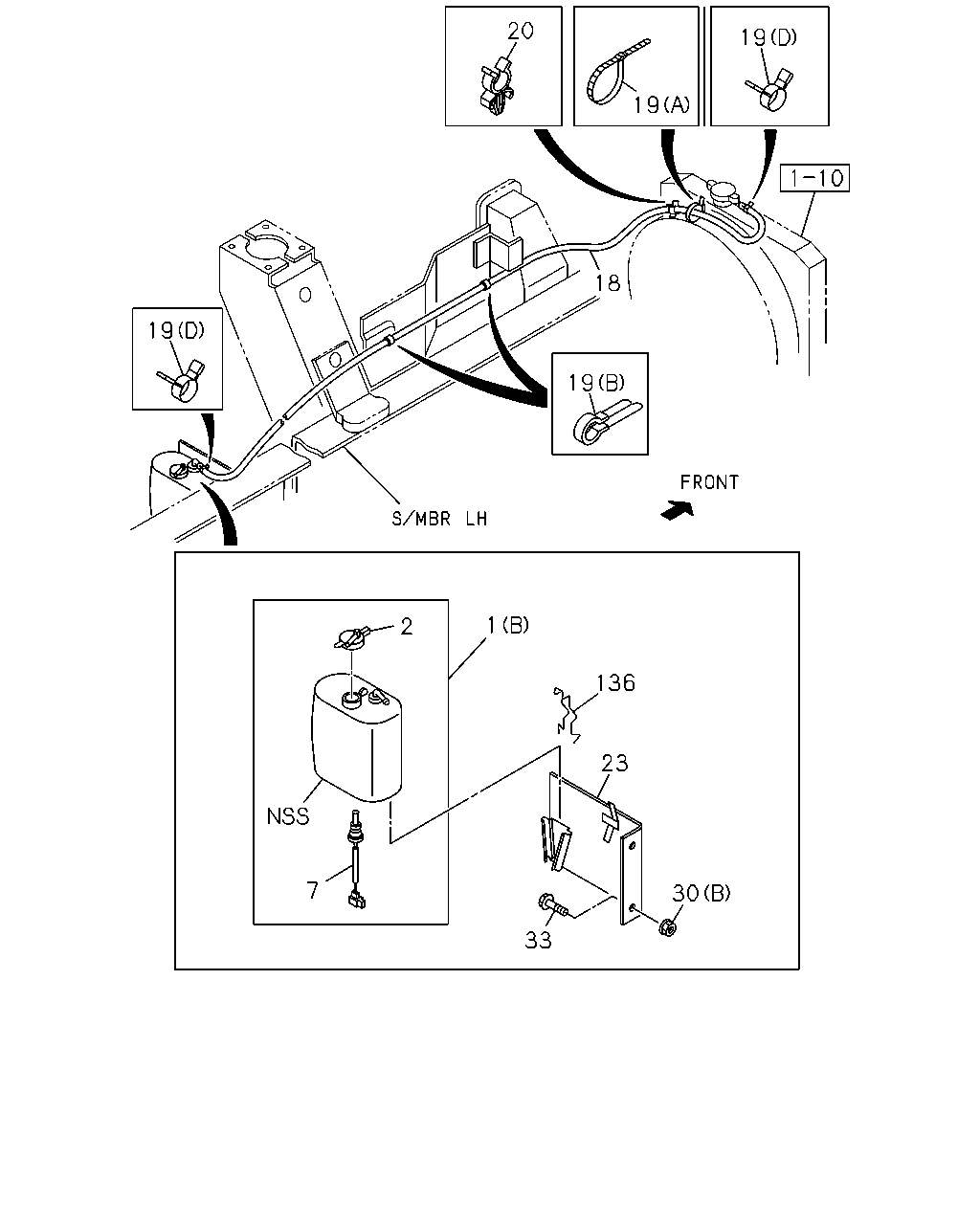

çizim 47387
20 19 19 18 19 19 1 2 136 23 7 30 33
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS),4HE1 ENG(RLY) (A) 		8-97131-202-0 01 1 9811-9811 ●
1 01.219 TANK; SURGE,RAD
(A) 		8-97131-202-0 01 1 9811-9811 ● ● ● ●
1 01.219 TANK; SURGE,RAD
(A) 		8-97210-844-0 01 1 9812- ● ● ● ● ● ●
1 01.219 TANK; SURGE,RAD
(B) 		8-94378-388-1 01 1 9811-0105 ●
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH),4HE1 ENG(RLY) (B) 		8-94378-388-1 01 1 0106- ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97126-876-0 01 1 9811-9811 ●
2 01.203 CAP; SURGE TANK 8-97126-876-0 01 1 9811-9811 ● ● ● ●
2 01.203 CAP; SURGE TANK 8-97217-796-0 01 1 9812- ● ● ● ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9811-0105 ●
2 01.203 CAP; SURGE TANK
4HG1 ENG(RJH),4HE1 ENG(RLY) 		8-94449-363-0 01 1 0106- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) L=1595 		8-97148-533-0 01 1 9811-9903 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) L=1595 		8-97148-533-0 01 1 9811-9903 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) L=1595 		8-97148-533-0 01 1 9904-9908 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) L=1595 		8-97148-533-1 01 1 9909- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> L=1550 		8-97129-560-1 01 1 9811-0105 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
EXC. CHARGE AIR COOLER<6PL> L=1550 		8-97129-560-1 01 1 9811-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> L=1550 		8-97129-560-1 01 1 0106- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH) TURBOCHARGER(K51) L=1455 		8-97148-535-0 01 1 9909-0012 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH) TURBOCHARGER(K51) L=1455 		8-97148-535-1 01 1 0101- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1455 		8-97148-535-1 01 1 0101- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=1660 		8-97209-381-0 01 1 9811-9901 ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=1450 		8-97218-446-0 01 1 9902- ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=1850 		8-97214-382-5 01 1 9811- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97148-536-0 01 1 9811-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH) 		8-97148-536-0 01 1 0106- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS),4HE1 ENG(RLY) (B) ID=14 L=47 		5-09700-319-0 01 1 9811-9903 ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 01 1 9811-9903 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 01 1 9904-0012 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 01 1 0101- ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 9811-9903 ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 9811-9903 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 9904-0012 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 0101- ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12 		8-94416-613-0 01 1 9811-9903 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(E) ID=10 & 12 		8-94416-613-0 01 1 9811-9903 ●
19 01.240 CLIP; HOSE,SURGE TANK
POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12 		8-94416-613-0 01 1 9904-9912 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(E) ID=10 & 12 		8-94416-613-0 01 1 9904-9912 ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (D) ID=12 		8-94238-610-0 02 1 9811- ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) ID=14 L=47 		5-09700-319-0 02 1 9904- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) 03.164 (A) L=217 		8-94235-793-0 01 1 9811-9907 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) 03.164 (A) L=217 		8-94235-793-0 01 1 9908-0105 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.164 (A) L=217 		8-94235-793-0 01 1 9908-0105 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH) 03.164 (A) L=217 		8-94235-793-0 01 1 0106- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.164 (A) L=217 		8-94235-793-0 01 1 0106- ●
20 01.166 CLIP; HOSE,RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> ID=10.8 		8-97354-231-0 01 1 0210- ● ● ● ● ● ●
23 01.219 BRACKET; RESERVE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97214-324-1 01 1 9811- ●
23 01.219 BRACKET; RESERVE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97061-510-0 01 1 9811-0105 ●
23 01.219 BRACKET; RESERVE TANK
4HG1 ENG(RJH) 		8-97061-510-0 01 1 0106- ●
30 01.203 NUT
4HF1 ENG(RLS),4HE1 ENG(RLY) 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 9811-9903 ●
30 01.203 NUT
04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 9811-9903 ● ● ● ●
30 01.203 NUT
04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 9904- ● ● ● ● ● ●
30 01.203 NUT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 9811- ●
30 01.203 NUT
4HG1 ENG(RJH),4HF1 ENG(RLS) 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 9811-0105 ●
30 01.203 NUT
4HG1 ENG(RJH) 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 0106- ●
33 01.277 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9811- ●
33 01.277 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811-0105 ●
33 01.277 BOLT; BRKT
4HG1 ENG(RJH) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0106- ●
136 01.219 STOPPER; SURGE TANK 8-97087-220-0 01 1 9811-0105 ●
136 01.219 STOPPER; SURGE TANK
4HG1 ENG(RJH),4HE1 ENG(RLY) 		8-97087-220-0 01 1 0106- ●

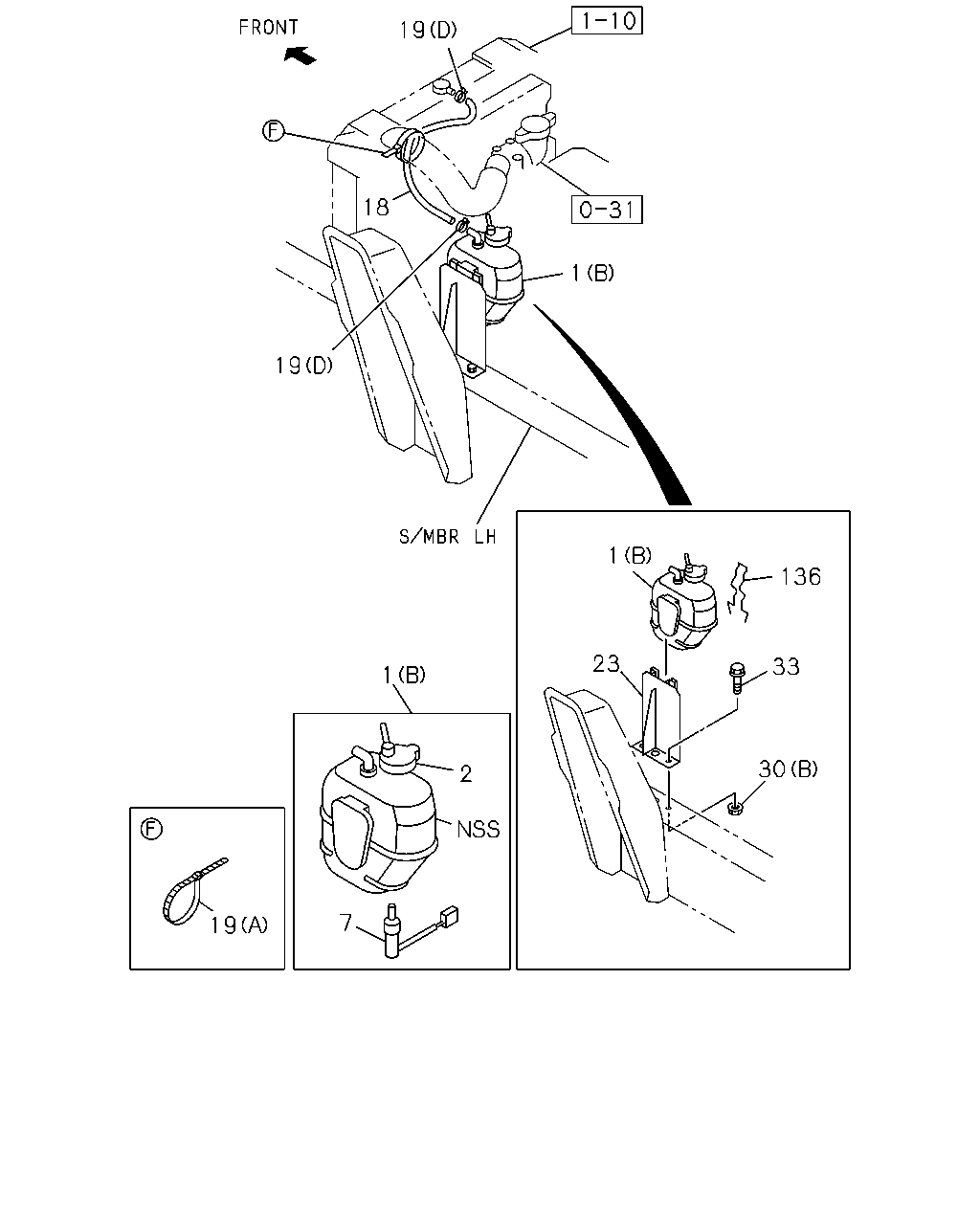

çizim 48211
19 18 1 19 1 136 23 33 1 30 2 7 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS),4HE1 ENG(RLY) (A) 		8-97131-202-0 01 1 9811-9811 ●
1 01.219 TANK; SURGE,RAD
(A) 		8-97131-202-0 01 1 9811-9811 ● ● ● ●
1 01.219 TANK; SURGE,RAD
(A) 		8-97210-844-0 01 1 9812- ● ● ● ● ● ●
1 01.219 TANK; SURGE,RAD
(B) 		8-94378-388-1 01 1 9811-0105 ●
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH),4HE1 ENG(RLY) (B) 		8-94378-388-1 01 1 0106- ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97126-876-0 01 1 9811-9811 ●
2 01.203 CAP; SURGE TANK 8-97126-876-0 01 1 9811-9811 ● ● ● ●
2 01.203 CAP; SURGE TANK 8-97217-796-0 01 1 9812- ● ● ● ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9811-0105 ●
2 01.203 CAP; SURGE TANK
4HG1 ENG(RJH),4HE1 ENG(RLY) 		8-94449-363-0 01 1 0106- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) L=1595 		8-97148-533-0 01 1 9811-9903 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) L=1595 		8-97148-533-0 01 1 9811-9903 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) L=1595 		8-97148-533-0 01 1 9904-9908 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) L=1595 		8-97148-533-1 01 1 9909- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> L=1550 		8-97129-560-1 01 1 9811-0105 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
EXC. CHARGE AIR COOLER<6PL> L=1550 		8-97129-560-1 01 1 9811-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> L=1550 		8-97129-560-1 01 1 0106- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH) TURBOCHARGER(K51) L=1455 		8-97148-535-0 01 1 9909-0012 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH) TURBOCHARGER(K51) L=1455 		8-97148-535-1 01 1 0101- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1455 		8-97148-535-1 01 1 0101- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=1660 		8-97209-381-0 01 1 9811-9901 ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=1450 		8-97218-446-0 01 1 9902- ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=1850 		8-97214-382-5 01 1 9811- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97148-536-0 01 1 9811-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH) 		8-97148-536-0 01 1 0106- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS),4HE1 ENG(RLY) (B) ID=14 L=47 		5-09700-319-0 01 1 9811-9903 ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 01 1 9811-9903 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 01 1 9904-0012 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 01 1 0101- ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 9811-9903 ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 9811-9903 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 9904-0012 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 0101- ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12 		8-94416-613-0 01 1 9811-9903 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(E) ID=10 & 12 		8-94416-613-0 01 1 9811-9903 ●
19 01.240 CLIP; HOSE,SURGE TANK
POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12 		8-94416-613-0 01 1 9904-9912 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(E) ID=10 & 12 		8-94416-613-0 01 1 9904-9912 ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (D) ID=12 		8-94238-610-0 02 1 9811- ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) ID=14 L=47 		5-09700-319-0 02 1 9904- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) 03.164 (A) L=217 		8-94235-793-0 01 1 9811-9907 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) 03.164 (A) L=217 		8-94235-793-0 01 1 9908-0105 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.164 (A) L=217 		8-94235-793-0 01 1 9908-0105 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH) 03.164 (A) L=217 		8-94235-793-0 01 1 0106- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.164 (A) L=217 		8-94235-793-0 01 1 0106- ●
23 01.219 BRACKET; RESERVE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97214-324-1 01 1 9811- ●
23 01.219 BRACKET; RESERVE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97061-510-0 01 1 9811-0105 ●
23 01.219 BRACKET; RESERVE TANK
4HG1 ENG(RJH) 		8-97061-510-0 01 1 0106- ●
30 01.203 NUT
4HF1 ENG(RLS),4HE1 ENG(RLY) 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 9811-9903 ●
30 01.203 NUT
04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 9811-9903 ● ● ● ●
30 01.203 NUT
04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 9904- ● ● ● ● ● ●
30 01.203 NUT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 9811- ●
30 01.203 NUT
4HG1 ENG(RJH),4HF1 ENG(RLS) 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 9811-0105 ●
30 01.203 NUT
4HG1 ENG(RJH) 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 0106- ●
33 01.277 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9811- ●
33 01.277 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811-0105 ●
33 01.277 BOLT; BRKT
4HG1 ENG(RJH) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0106- ●
136 01.219 STOPPER; SURGE TANK 8-97087-220-0 01 1 9811-0105 ●
136 01.219 STOPPER; SURGE TANK
4HG1 ENG(RJH),4HE1 ENG(RLY) 		8-97087-220-0 01 1 0106- ●

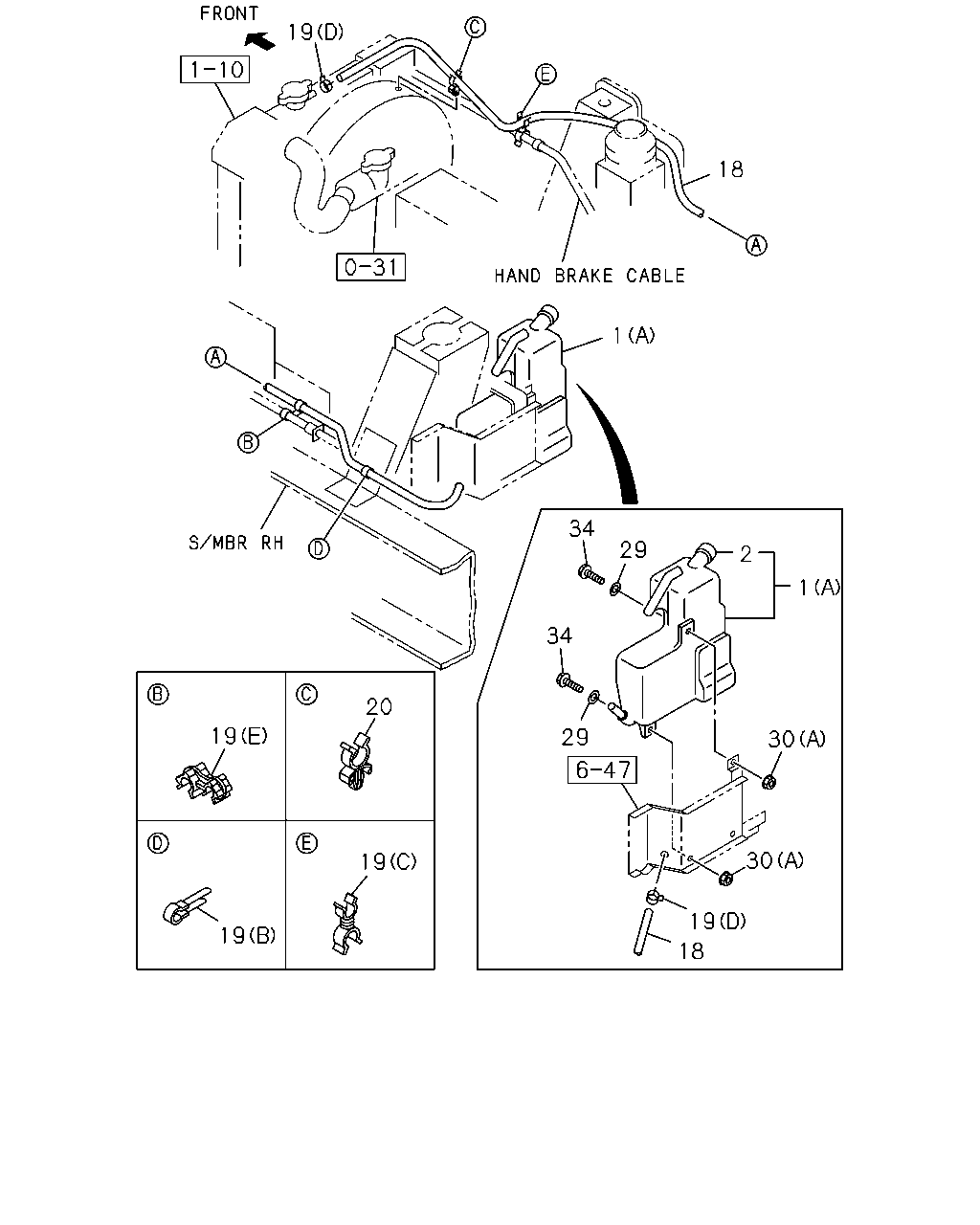

çizim 49014
19 18 1 34 29 2 1 34 20 19 29 30 30 19 19 19 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS),4HE1 ENG(RLY) (A) 		8-97131-202-0 01 1 9811-9811 ●
1 01.219 TANK; SURGE,RAD
(A) 		8-97131-202-0 01 1 9811-9811 ● ● ● ●
1 01.219 TANK; SURGE,RAD
(A) 		8-97210-844-0 01 1 9812- ● ● ● ● ● ●
1 01.219 TANK; SURGE,RAD
(B) 		8-94378-388-1 01 1 9811-0105 ●
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH),4HE1 ENG(RLY) (B) 		8-94378-388-1 01 1 0106- ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97126-876-0 01 1 9811-9811 ●
2 01.203 CAP; SURGE TANK 8-97126-876-0 01 1 9811-9811 ● ● ● ●
2 01.203 CAP; SURGE TANK 8-97217-796-0 01 1 9812- ● ● ● ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9811-0105 ●
2 01.203 CAP; SURGE TANK
4HG1 ENG(RJH),4HE1 ENG(RLY) 		8-94449-363-0 01 1 0106- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) L=1595 		8-97148-533-0 01 1 9811-9903 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) L=1595 		8-97148-533-0 01 1 9811-9903 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) L=1595 		8-97148-533-0 01 1 9904-9908 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) L=1595 		8-97148-533-1 01 1 9909- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> L=1550 		8-97129-560-1 01 1 9811-0105 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
EXC. CHARGE AIR COOLER<6PL> L=1550 		8-97129-560-1 01 1 9811-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> L=1550 		8-97129-560-1 01 1 0106- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH) TURBOCHARGER(K51) L=1455 		8-97148-535-0 01 1 9909-0012 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH) TURBOCHARGER(K51) L=1455 		8-97148-535-1 01 1 0101- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1455 		8-97148-535-1 01 1 0101- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=1660 		8-97209-381-0 01 1 9811-9901 ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=1450 		8-97218-446-0 01 1 9902- ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=1850 		8-97214-382-5 01 1 9811- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97148-536-0 01 1 9811-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH) 		8-97148-536-0 01 1 0106- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS),4HE1 ENG(RLY) (B) ID=14 L=47 		5-09700-319-0 01 1 9811-9903 ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 01 1 9811-9903 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 01 1 9904-0012 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 01 1 0101- ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 9811-9903 ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 9811-9903 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 9904-0012 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 0101- ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12 		8-94416-613-0 01 1 9811-9903 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(E) ID=10 & 12 		8-94416-613-0 01 1 9811-9903 ●
19 01.240 CLIP; HOSE,SURGE TANK
POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12 		8-94416-613-0 01 1 9904-9912 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(E) ID=10 & 12 		8-94416-613-0 01 1 9904-9912 ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (D) ID=12 		8-94238-610-0 02 1 9811- ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) ID=14 L=47 		5-09700-319-0 02 1 9904- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) 03.164 (A) L=217 		8-94235-793-0 01 1 9811-9907 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1 ENG(RLS) 03.164 (A) L=217 		8-94235-793-0 01 1 9908-0105 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.164 (A) L=217 		8-94235-793-0 01 1 9908-0105 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH) 03.164 (A) L=217 		8-94235-793-0 01 1 0106- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.164 (A) L=217 		8-94235-793-0 01 1 0106- ●
20 01.166 CLIP; HOSE,RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> ID=10.8 		8-97354-231-0 01 1 0210- ● ● ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4HF1 ENG(RLS),4HE1 ENG(RLY) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9811-9903 ●
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9811-9903 ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9904- ● ● ● ● ● ●
30 01.203 NUT
4HF1 ENG(RLS),4HE1 ENG(RLY) 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 9811-9903 ●
30 01.203 NUT
04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 9811-9903 ● ● ● ●
30 01.203 NUT
04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 9904- ● ● ● ● ● ●
30 01.203 NUT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 9811- ●
30 01.203 NUT
4HG1 ENG(RJH),4HF1 ENG(RLS) 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 9811-0105 ●
30 01.203 NUT
4HG1 ENG(RJH) 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 0106- ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS),4HE1 ENG(RLY) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 9811-9903 ●
34 01.203 BOLT; RESERVE TANK
04.930 M6X20 FLANGE 		0-28680-620-0 03 1 9811-9903 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
04.930 M6X20 FLANGE 		0-28680-620-0 03 1 9904- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
