Sayfa 1-10 - Isuzu EPC

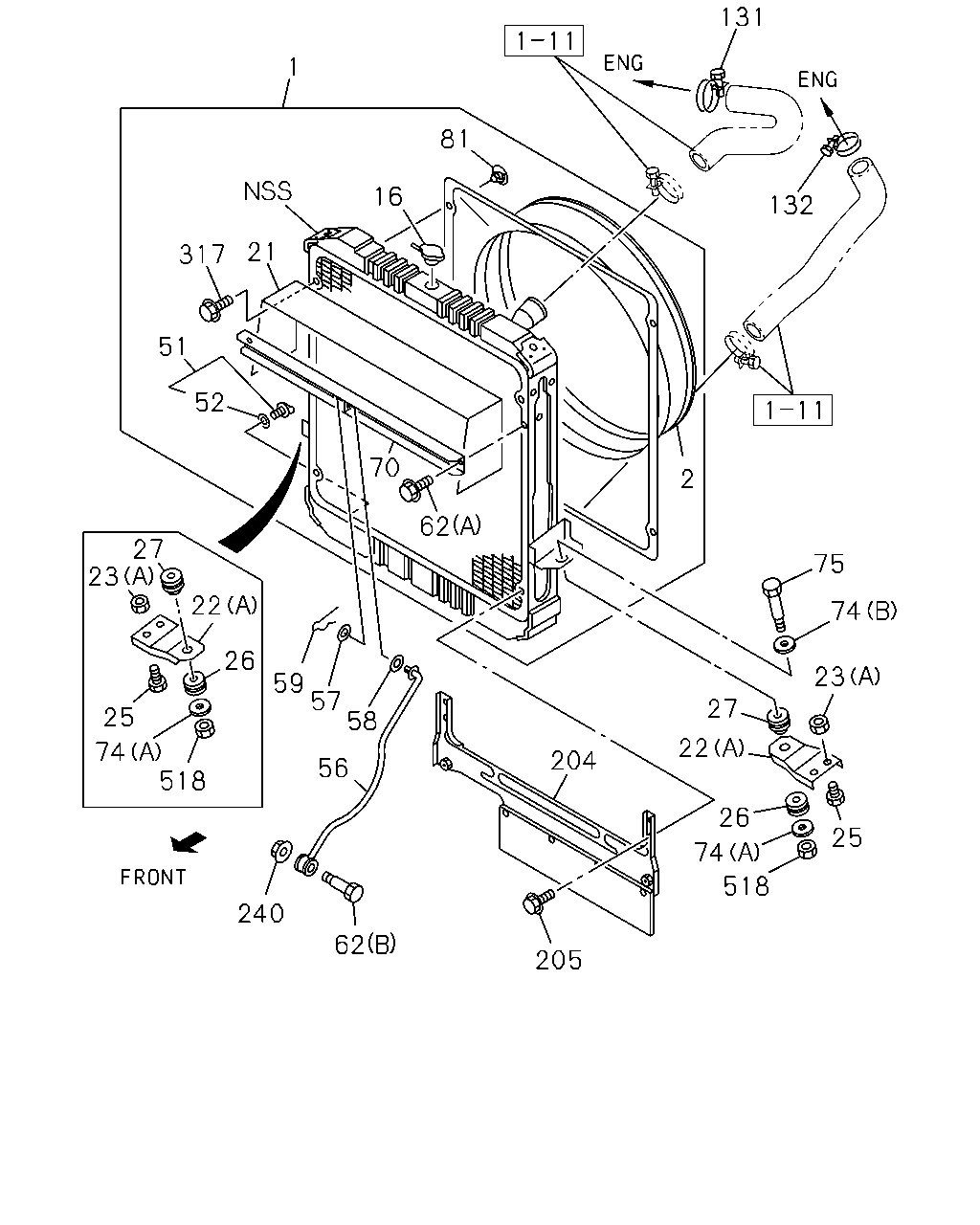

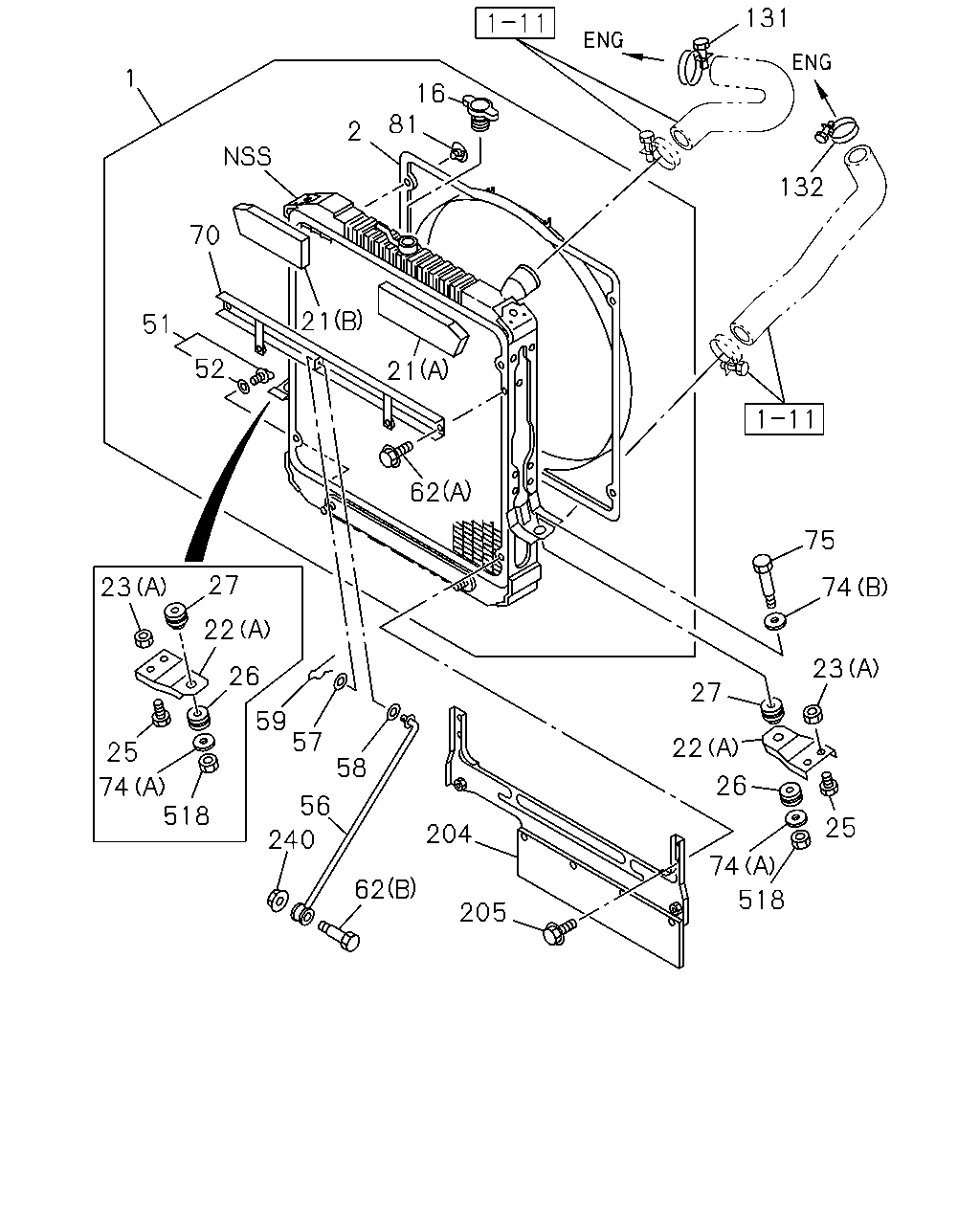

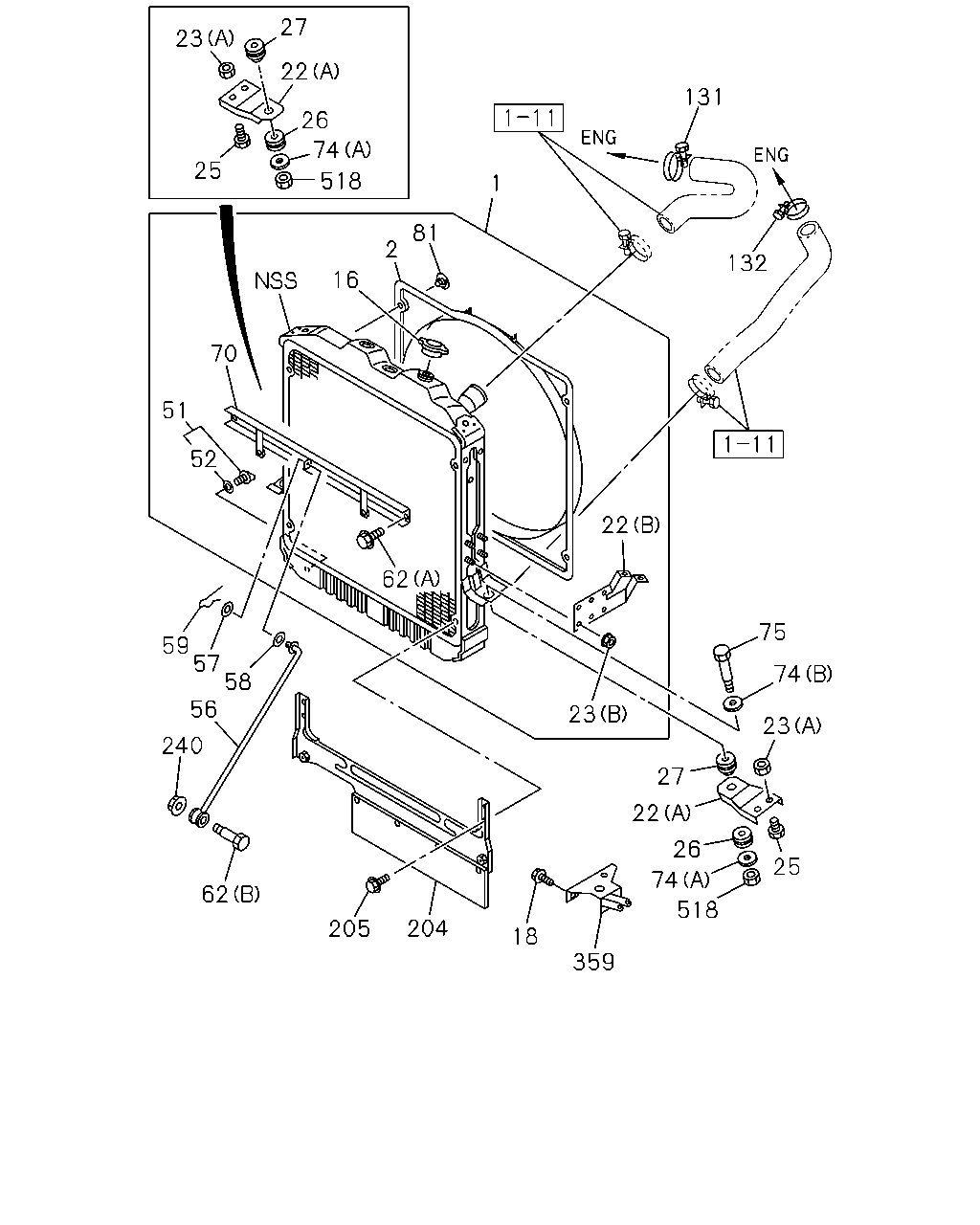

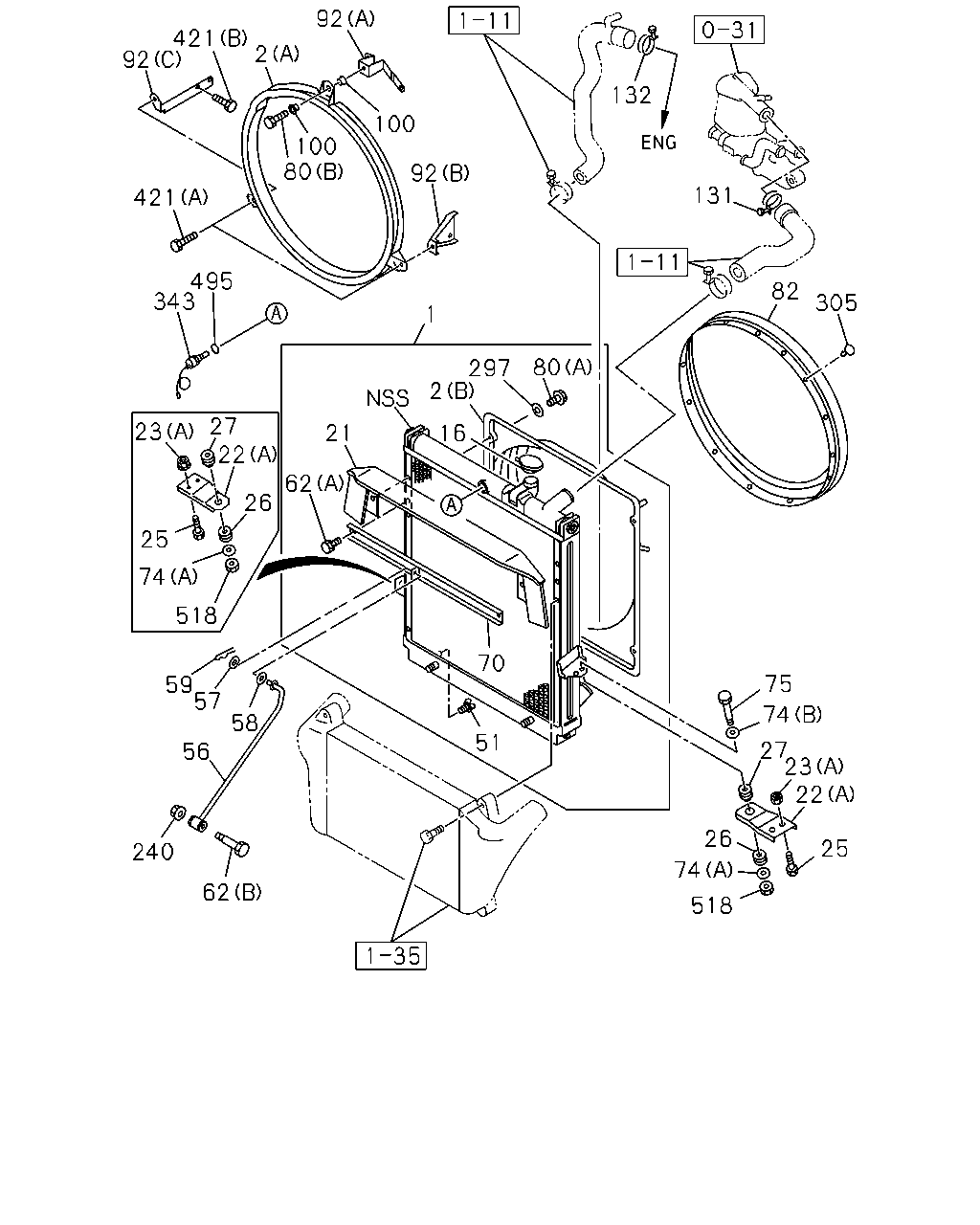

1-10 — RADIATOR (#22117) — 786 parça

131 1 81 16 132 21 317 51 52 70 2 62 27 23 75 22 74 26 23 59 57 58 27 25 22 74 518 204 56 26 25 74 518 240 62 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97213-666-1	01	1	9811-0209	●	●	●	●	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97354-363-0	01	1	0210-	●	●	●	●	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11>	8-97213-667-1	01	1	9811-0209	●	●	●	●		●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11>	8-97354-364-0	01	1	0210-	●	●	●	●		●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97182-423-0	01	1	9811-0105	●	●	●	●		●
1	01.219 RADIATOR ASM EXC. CHARGE AIR COOLER<6PL>	8-97182-423-0	01	1	9811-0105					●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97182-423-0	01	1	0106-	●	●	●	●		●
1	01.219 RADIATOR ASM 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97146-211-1	01	1	9811-9903	●	●	●	●		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51)	8-97146-211-1	01	1	9811-9903		●	●	●		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51)	8-97146-211-1	01	1	9904-0105	●	●	●	●		●
1	01.219 RADIATOR ASM 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97146-211-1	01	1	9904-0105	●	●	●	●		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) M/T MXA5R(RMT) EXC. TURBOCHARGER(K51)	8-97146-211-1	01	1	0106-	●	●	●	●		●
1	01.219 RADIATOR ASM 4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97146-211-1	01	1	0106-	●	●	●	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51)	8-97227-251-0	01	1	9904-		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ>	8-97187-681-0	01	1	9811-9903		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51)	8-97187-681-0	01	1	9904-		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97146-212-1	01	1	9811-9903		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ>	8-97146-212-1	01	1	9904-		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97177-193-1	01	1	9811-9903		●	●	●		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51)	8-97177-193-1	01	1	9904-0012	●	●	●	●		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51)	8-97177-193-1	01	1	0101-	●	●	●	●		●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97068-803-0	01	1	9811-	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97218-802-1	01	1	9811-	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97066-018-0	01	1	9811-9903	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97066-018-0	01	1	9811-9903		●	●	●		●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97066-018-0	01	1	9904-9907	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97066-018-0	01	1	9904-9907	●	●	●	●		●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97066-018-0	01	1	9908-9908	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51)	8-97066-018-0	01	1	9908-9908	●	●	●	●		●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97066-018-0	01	1	9909-0105	●	●	●	●		●
2	01.277 GUIDE; FAN EXC. CHARGE AIR COOLER<6PL>	8-97066-018-0	01	1	9909-0105					●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97066-018-0	01	1	0106-	●	●	●	●		●
2	01.277 GUIDE; FAN 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97066-016-0	01	1	9811-9903	●	●	●	●		●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51)	8-97066-016-0	01	1	9811-9903		●	●	●		●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK)	8-97066-016-0	01	1	9811-9903		●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51)	8-97066-016-0	01	1	9904-9908	●	●	●	●		●
2	01.277 GUIDE; FAN 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97066-016-0	01	1	9904-9908	●	●	●	●		●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK)	8-97066-016-0	01	1	9904-9908		●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97066-016-0	01	1	9909-0012	●	●	●	●		●
2	01.277 GUIDE; FAN A/T 4 SPEED-JATCO(RMK)	8-97066-016-0	01	1	9909-0012		●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97066-016-0	01	1	0101-0105	●	●	●	●		●	●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	8-97066-016-0	01	1	0106-	●	●	●	●		●	●
16	01.203 CAP; RAD	8-97177-872-0	01	1	9811-0008	●	●	●	●	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0009-0012	●	●	●	●	●	●
16	01.203 CAP; RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97177-872-0	01	1	0009-0012	●	●	●	●		●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0101-0105	●	●	●	●	●	●
16	01.203 CAP; RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97177-872-0	01	1	0101-0105	●	●	●	●		●	●
16	01.203 CAP; RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	8-97177-872-0	01	1	0106-	●	●	●	●		●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0106-	●	●	●	●		●
16	01.203 CAP; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97239-187-0	01	1	0009-	●	●	●	●	●	●
21	01.276 SEAL; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97218-801-1	01	1	9811-	●	●	●	●	●	●
21	01.276 SEAL; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190	8-97161-476-0	01	1	9811-0105	●	●	●	●		●
21	01.276 SEAL; RAD EXC. CHARGE AIR COOLER<6PL> 09.190	8-97161-476-0	01	1	9811-0105					●
21	01.276 SEAL; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190	8-97161-476-0	01	1	0106-	●	●	●	●		●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51) (A) L=240	8-97190-922-0	01	1	9811-9903		●	●	●		●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51) (A) L=240	8-97190-922-0	01	1	9904-9907	●	●	●	●		●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (A) L=240	8-97190-922-0	01	1	9904-9907		●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51) (A) L=240	8-97190-922-0	01	1	9908-0012	●	●	●	●		●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51) (A) L=240	8-97190-922-0	01	1	0101-0105	●	●	●	●		●	●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) TURBOCHARGER(K51) (A) L=240	8-97190-922-0	01	1	0106-	●	●	●	●		●	●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51) (B) L=205	8-97190-923-0	01	1	9811-9903		●	●	●		●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51) (B) L=205	8-97190-923-0	01	1	9904-9907	●	●	●	●		●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (B) L=205	8-97190-923-0	01	1	9904-9907		●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51) (B) L=205	8-97190-923-0	01	1	9908-0012	●	●	●	●		●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51) (B) L=205	8-97190-923-0	01	1	0101-0105	●	●	●	●		●	●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) TURBOCHARGER(K51) (B) L=205	8-97190-923-0	01	1	0106-	●	●	●	●		●	●
22	01.270 BRACKET; RAD MTG 4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> (A)	8-94101-621-1	02	1	9811-9903	●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> (A)	8-94101-621-1	02	1	9811-9903		●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> (A)	8-94101-621-1	02	1	9904-0105	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> (A)	8-94101-621-1	02	1	0106-	●	●	●			●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97074-093-0	02	1	9811-9903	●	●	●	●	●	●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> (A)	8-97074-093-0	02	1	9811-9903		●	●	●	●	●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97074-093-0	02	1	9904-	●	●	●	●	●	●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> (A)	8-97074-093-0	02	1	9904-	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	9811-9903	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	9811-9903		●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	9904-0012	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	9904-0012	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	0101-0105	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	0101-0105	●	●	●	●		●
22	01.270 BRACKET; RAD MTG (A)	8-94175-416-0	02	1	0101-0105							●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	0106-	●	●	●			●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	0106-	●	●	●			●
22	01.270 BRACKET; RAD MTG (A)	8-94175-416-0	02	1	0106-							●
22	01.270 BRACKET; RAD MTG 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97096-452-0	02	1	9811-9903	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (A)	8-97096-452-0	02	1	9811-9903		●	●	●		●
22	01.270 BRACKET; RAD MTG 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97096-452-0	02	1	9904-0105	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (A)	8-97096-452-0	02	1	9904-0105	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (A)	8-97096-452-0	02	1	0106-	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97096-452-0	02	1	0106-	●	●	●	●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97024-348-0	01	1	9811-9903		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> (B)	8-97024-348-0	01	1	9904-		●
23	01.271 NUT; RAD MTG 07.874 (A) M10 FLANGE	5-09440-006-0	04	1	9811-	●	●	●	●	●	●	●
23	01.271 NUT; RAD MTG 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	04	1	9811-9903		●
23	01.271 NUT; RAD MTG 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	04	1	9904-		●
25	01.271 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	04	1	9811-	●	●	●	●	●	●	●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	9811-	●	●	●	●	●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	9811-	●	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> W/GASKET	1-09609-023-0	01	1	9811-	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	9811-9903	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) 08.915 W/GASKET	8-94321-236-0	01	1	9811-9903	●	●	●	●		●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH) TURBOCHARGER(K51) 08.915 W/GASKET	8-94321-236-0	01	1	9811-9903		●	●	●		●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51) 08.915 W/GASKET	8-94321-236-0	01	1	9811-9903		●	●	●		●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 08.915 W/GASKET	8-94321-236-0	01	1	9811-9903		●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	9904-9907	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH),4HF1 ENG(RLS) 08.915 W/GASKET	8-94321-236-0	01	1	9904-9907	●	●	●	●		●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	9908-0012	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) 08.915 W/GASKET	8-94321-236-0	01	1	9908-0012	●	●	●	●		●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	0101-0105	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) 08.915 W/GASKET	8-94321-236-0	01	1	0101-0105	●	●	●	●		●	●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) 08.915 W/GASKET	8-94321-236-0	01	1	0106-	●	●	●	●		●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	0106-	●	●	●	●		●
52	08.951 GASKET; DRAIN PLUG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	9811-9903	●	●	●	●	●	●
52	08.951 GASKET; DRAIN PLUG 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) 01.203 ID=10	9-09720-557-0	01	1	9811-9903	●	●	●	●		●
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH) TURBOCHARGER(K51) 01.203 ID=10	9-09720-557-0	01	1	9811-9903		●	●	●		●
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51) 01.203 ID=10	9-09720-557-0	01	1	9811-9903		●	●	●		●
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 01.203 ID=10	9-09720-557-0	01	1	9811-9903		●
52	08.951 GASKET; DRAIN PLUG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	9904-9907	●	●	●	●	●	●
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH),4HF1 ENG(RLS) 01.203 ID=10	9-09720-557-0	01	1	9904-9907	●	●	●	●		●
52	08.951 GASKET; DRAIN PLUG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	9908-0012	●	●	●	●	●	●
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) 01.203 ID=10	9-09720-557-0	01	1	9908-0012	●	●	●	●		●
52	08.951 GASKET; DRAIN PLUG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	0101-0105	●	●	●	●	●	●
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) 01.203 ID=10	9-09720-557-0	01	1	0101-0105	●	●	●	●		●	●
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) 01.203 ID=10	9-09720-557-0	01	1	0106-	●	●	●	●		●	●
52	08.951 GASKET; DRAIN PLUG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	0106-	●	●	●	●		●
56	01.270 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97073-424-2	01	1	9811-	●	●	●	●	●	●
56	01.270 STAY; RAD 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	9811-9903	●	●	●	●		●
56	01.270 STAY; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97032-802-2	01	1	9811-9903		●	●	●		●
56	01.270 STAY; RAD EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	9811-9903					●
56	01.270 STAY; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97032-802-2	01	1	9904-0012	●	●	●	●		●
56	01.270 STAY; RAD 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	9904-0012	●	●	●	●		●
56	01.270 STAY; RAD EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	9904-0012					●
56	01.270 STAY; RAD 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	0101-0105	●	●	●	●	●	●
56	01.270 STAY; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97032-802-2	01	1	0101-0105	●	●	●	●		●	●
56	01.270 STAY; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97032-802-2	01	1	0106-	●	●	●	●		●
56	01.270 STAY; RAD 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	0106-	●	●	●	●		●
56	01.270 STAY; RAD	8-97032-802-2	01	1	0106-							●
56	01.270 STAY; RAD 4HF1 ENG(RLS)	8-97032-798-2	01	1	9811-9903	●	●	●	●		●
56	01.270 STAY; RAD 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51)	8-97032-798-2	01	1	9811-9903		●	●	●		●
56	01.270 STAY; RAD 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51)	8-97032-798-2	01	1	9904-0105	●	●	●	●		●
56	01.270 STAY; RAD 4HF1 ENG(RLS)	8-97032-798-2	01	1	9904-0105	●	●	●	●		●
56	01.270 STAY; RAD 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51)	8-97032-798-2	01	1	0106-	●	●	●	●		●
56	01.270 STAY; RAD 4HF1 ENG(RLS)	8-97032-798-2	01	1	0106-	●	●	●	●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	9811-	●	●	●	●	●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	9811-	●	●	●	●	●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	9811-	●	●	●	●	●	●	●
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9811-	●	●	●	●	●	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	9811-	●	●	●	●	●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY)	8-97073-125-0	01	1	9811-9903	●	●	●	●	●	●
70	01.271 STAY; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97073-125-0	01	1	9811-9903		●	●	●	●	●
70	01.271 STAY; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97073-125-0	01	1	9904-0012	●	●	●	●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY)	8-97073-125-0	01	1	9904-0012	●	●	●	●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY)	8-97073-125-0	01	1	0101-0105	●	●	●	●	●	●
70	01.271 STAY; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51)	8-97073-125-0	01	1	0101-0105	●	●	●	●		●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY)	8-97073-125-0	01	1	0106-	●	●	●	●	●	●
70	01.271 STAY; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) TURBOCHARGER(K51)	8-97073-125-0	01	1	0106-	●	●	●	●		●	●
70	01.271 STAY; RAD 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97047-899-0	01	1	9811-9903	●	●	●	●		●
70	01.271 STAY; RAD 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51)	8-97047-899-0	01	1	9811-9903		●	●	●		●
70	01.271 STAY; RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK)	8-97047-899-0	01	1	9811-9903		●
70	01.271 STAY; RAD 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51)	8-97047-899-0	01	1	9904-0105	●	●	●	●		●
70	01.271 STAY; RAD 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97047-899-0	01	1	9904-0105	●	●	●	●		●
70	01.271 STAY; RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. TURBOCHARGER(K51)	8-97047-899-0	01	1	9904-0105		●
70	01.271 STAY; RAD 4HG1 ENG(RJH) M/T MXA5R(RMT) EXC. TURBOCHARGER(K51)	8-97047-899-0	01	1	0106-	●	●	●	●		●
70	01.271 STAY; RAD 4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97047-899-0	01	1	0106-	●	●	●	●
70	01.271 STAY; RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. TURBOCHARGER(K51)	8-97047-899-0	01	1	0106-		●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	9811-	●	●	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	9811-	●	●	●	●	●	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	9811-	●	●	●	●	●	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97088-810-0	04	1	9811-9903	●	●	●	●	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97088-810-0	04	1	9811-9903	●	●	●	●		●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97088-810-0	04	1	9811-9903		●	●	●		●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51)	8-97088-810-0	04	1	9811-9903		●	●	●		●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK)	8-97088-810-0	04	1	9811-9903		●
81	01.277 SCREW; FAN GUIDE,RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97088-810-0	04	1	9904-9907	●	●	●	●	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97088-810-0	04	1	9904-9907	●	●	●	●		●
81	01.277 SCREW; FAN GUIDE,RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97088-810-0	04	1	9908-0012	●	●	●	●	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97088-810-0	04	1	9908-0012	●	●	●	●		●
81	01.277 SCREW; FAN GUIDE,RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97088-810-0	04	1	0101-0105	●	●	●	●	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97088-810-0	04	1	0101-0105	●	●	●	●		●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	8-97088-810-0	04	1	0106-	●	●	●	●		●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97088-810-0	04	1	0106-	●	●	●	●		●
131	01.166 CLIP; ENG SIDE TOP 4HF1 ENG(RLS),4HE1 ENG(RLY) 00.413 ID=52	1-09704-057-0	01	1	9811-9903	●
131	01.166 CLIP; ENG SIDE TOP 00.413 ID=52	1-09704-057-0	01	1	9811-9903		●	●	●	●	●
131	01.166 CLIP; ENG SIDE TOP 00.413 ID=52	1-09704-057-0	01	1	9904-0001	●	●	●	●	●	●
131	01.166 CLIP; ENG SIDE TOP ID=40	8-97245-216-0	01	1	0002-	●	●	●	●	●	●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HF1 ENG(RLS),4HE1 ENG(RLY) ID=62	9-09915-068-1	01	1	9811-9903	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=62	9-09915-068-1	01	1	9811-9903		●	●	●	●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=62	9-09915-068-1	01	1	9904-0001	●	●	●	●	●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=50	8-97245-217-0	01	1	0002-	●	●	●	●	●	●	●
204	01.267 GUIDE ASM; AIR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97038-894-1	01	1	9811-9903	●
204	01.267 GUIDE ASM; AIR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97038-894-1	01	1	9811-9903		●	●	●		●
204	01.267 GUIDE ASM; AIR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97038-894-1	01	1	9904-0012	●	●	●	●		●
204	01.267 GUIDE ASM; AIR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97038-894-1	01	1	0101-0105	●	●	●	●		●
204	01.267 GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60)	8-97038-894-1	01	1	0101-0105							●
204	01.267 GUIDE ASM; AIR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97038-894-1	01	1	0106-	●	●	●	●		●	●
204	01.267 GUIDE ASM; AIR 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97038-895-1	01	1	9811-0105	●	●	●	●		●
204	01.267 GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97038-895-1	01	1	9811-0105					●
204	01.267 GUIDE ASM; AIR 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97038-895-1	01	1	0106-	●	●	●	●		●
205	01.267 BOLT; AIR GUIDE 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	04	1	9811-0012	●	●	●	●	●	●
205	01.267 BOLT; AIR GUIDE 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	9811-0012	●	●	●	●		●
205	01.267 BOLT; AIR GUIDE 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0101-0105	●	●	●	●	●	●
205	01.267 BOLT; AIR GUIDE 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0101-0105	●	●	●	●		●	●
205	01.267 BOLT; AIR GUIDE 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0106-	●	●	●	●		●	●
205	01.267 BOLT; AIR GUIDE 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0106-	●	●	●	●		●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	9811-	●	●	●	●	●	●	●
317	01.271 BOLT; SEAL 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9811-0105	●	●	●	●		●
317	01.271 BOLT; SEAL EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9811-0105					●
317	01.271 BOLT; SEAL 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0106-	●	●	●	●		●
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	9811-	●	●	●	●	●	●	●

92 421 2 92 132 100 100 80 92 131 421 495 343 82 305 1 80 297 2 27 22 23 21 16 62 26 25 74 518 70 75 59 57 74 58 51 27 23 22 56 26 25 240 74 62 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97213-666-1	01	1	9811-0209	●	●	●	●	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97354-363-0	01	1	0210-	●	●	●	●	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11>	8-97213-667-1	01	1	9811-0209	●	●	●	●		●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11>	8-97354-364-0	01	1	0210-	●	●	●	●		●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97182-423-0	01	1	9811-0105	●	●	●	●		●
1	01.219 RADIATOR ASM EXC. CHARGE AIR COOLER<6PL>	8-97182-423-0	01	1	9811-0105					●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97182-423-0	01	1	0106-	●	●	●	●		●
1	01.219 RADIATOR ASM 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97146-211-1	01	1	9811-9903	●	●	●	●		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51)	8-97146-211-1	01	1	9811-9903		●	●	●		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51)	8-97146-211-1	01	1	9904-0105	●	●	●	●		●
1	01.219 RADIATOR ASM 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97146-211-1	01	1	9904-0105	●	●	●	●		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) M/T MXA5R(RMT) EXC. TURBOCHARGER(K51)	8-97146-211-1	01	1	0106-	●	●	●	●		●
1	01.219 RADIATOR ASM 4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97146-211-1	01	1	0106-	●	●	●	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51)	8-97227-251-0	01	1	9904-		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ>	8-97187-681-0	01	1	9811-9903		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51)	8-97187-681-0	01	1	9904-		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97146-212-1	01	1	9811-9903		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ>	8-97146-212-1	01	1	9904-		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97177-193-1	01	1	9811-9903		●	●	●		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51)	8-97177-193-1	01	1	9904-0012	●	●	●	●		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51)	8-97177-193-1	01	1	0101-	●	●	●	●		●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97068-803-0	01	1	9811-	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97218-802-1	01	1	9811-	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97066-018-0	01	1	9811-9903	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97066-018-0	01	1	9811-9903		●	●	●		●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97066-018-0	01	1	9904-9907	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97066-018-0	01	1	9904-9907	●	●	●	●		●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97066-018-0	01	1	9908-9908	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51)	8-97066-018-0	01	1	9908-9908	●	●	●	●		●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97066-018-0	01	1	9909-0105	●	●	●	●		●
2	01.277 GUIDE; FAN EXC. CHARGE AIR COOLER<6PL>	8-97066-018-0	01	1	9909-0105					●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97066-018-0	01	1	0106-	●	●	●	●		●
2	01.277 GUIDE; FAN 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97066-016-0	01	1	9811-9903	●	●	●	●		●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51)	8-97066-016-0	01	1	9811-9903		●	●	●		●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK)	8-97066-016-0	01	1	9811-9903		●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51)	8-97066-016-0	01	1	9904-9908	●	●	●	●		●
2	01.277 GUIDE; FAN 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97066-016-0	01	1	9904-9908	●	●	●	●		●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK)	8-97066-016-0	01	1	9904-9908		●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97066-016-0	01	1	9909-0012	●	●	●	●		●
2	01.277 GUIDE; FAN A/T 4 SPEED-JATCO(RMK)	8-97066-016-0	01	1	9909-0012		●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97066-016-0	01	1	0101-0105	●	●	●	●		●	●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	8-97066-016-0	01	1	0106-	●	●	●	●		●	●
16	01.203 CAP; RAD	8-97177-872-0	01	1	9811-0008	●	●	●	●	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0009-0012	●	●	●	●	●	●
16	01.203 CAP; RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97177-872-0	01	1	0009-0012	●	●	●	●		●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0101-0105	●	●	●	●	●	●
16	01.203 CAP; RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97177-872-0	01	1	0101-0105	●	●	●	●		●	●
16	01.203 CAP; RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	8-97177-872-0	01	1	0106-	●	●	●	●		●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0106-	●	●	●	●		●
16	01.203 CAP; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97239-187-0	01	1	0009-	●	●	●	●	●	●
21	01.276 SEAL; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97218-801-1	01	1	9811-	●	●	●	●	●	●
21	01.276 SEAL; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190	8-97161-476-0	01	1	9811-0105	●	●	●	●		●
21	01.276 SEAL; RAD EXC. CHARGE AIR COOLER<6PL> 09.190	8-97161-476-0	01	1	9811-0105					●
21	01.276 SEAL; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190	8-97161-476-0	01	1	0106-	●	●	●	●		●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51) (A) L=240	8-97190-922-0	01	1	9811-9903		●	●	●		●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51) (A) L=240	8-97190-922-0	01	1	9904-9907	●	●	●	●		●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (A) L=240	8-97190-922-0	01	1	9904-9907		●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51) (A) L=240	8-97190-922-0	01	1	9908-0012	●	●	●	●		●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51) (A) L=240	8-97190-922-0	01	1	0101-0105	●	●	●	●		●	●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) TURBOCHARGER(K51) (A) L=240	8-97190-922-0	01	1	0106-	●	●	●	●		●	●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51) (B) L=205	8-97190-923-0	01	1	9811-9903		●	●	●		●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51) (B) L=205	8-97190-923-0	01	1	9904-9907	●	●	●	●		●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (B) L=205	8-97190-923-0	01	1	9904-9907		●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51) (B) L=205	8-97190-923-0	01	1	9908-0012	●	●	●	●		●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51) (B) L=205	8-97190-923-0	01	1	0101-0105	●	●	●	●		●	●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) TURBOCHARGER(K51) (B) L=205	8-97190-923-0	01	1	0106-	●	●	●	●		●	●
22	01.270 BRACKET; RAD MTG 4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> (A)	8-94101-621-1	02	1	9811-9903	●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> (A)	8-94101-621-1	02	1	9811-9903		●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> (A)	8-94101-621-1	02	1	9904-0105	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> (A)	8-94101-621-1	02	1	0106-	●	●	●			●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97074-093-0	02	1	9811-9903	●	●	●	●	●	●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> (A)	8-97074-093-0	02	1	9811-9903		●	●	●	●	●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97074-093-0	02	1	9904-	●	●	●	●	●	●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> (A)	8-97074-093-0	02	1	9904-	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	9811-9903	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	9811-9903		●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	9904-0012	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	9904-0012	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	0101-0105	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	0101-0105	●	●	●	●		●
22	01.270 BRACKET; RAD MTG (A)	8-94175-416-0	02	1	0101-0105							●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	0106-	●	●	●			●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	0106-	●	●	●			●
22	01.270 BRACKET; RAD MTG (A)	8-94175-416-0	02	1	0106-							●
22	01.270 BRACKET; RAD MTG 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97096-452-0	02	1	9811-9903	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (A)	8-97096-452-0	02	1	9811-9903		●	●	●		●
22	01.270 BRACKET; RAD MTG 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97096-452-0	02	1	9904-0105	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (A)	8-97096-452-0	02	1	9904-0105	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (A)	8-97096-452-0	02	1	0106-	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97096-452-0	02	1	0106-	●	●	●	●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97024-348-0	01	1	9811-9903		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> (B)	8-97024-348-0	01	1	9904-		●
23	01.271 NUT; RAD MTG 07.874 (A) M10 FLANGE	5-09440-006-0	04	1	9811-	●	●	●	●	●	●	●
23	01.271 NUT; RAD MTG 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	04	1	9811-9903		●
23	01.271 NUT; RAD MTG 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	04	1	9904-		●
25	01.271 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	04	1	9811-	●	●	●	●	●	●	●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	9811-	●	●	●	●	●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	9811-	●	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> W/GASKET	1-09609-023-0	01	1	9811-	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	9811-9903	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) 08.915 W/GASKET	8-94321-236-0	01	1	9811-9903	●	●	●	●		●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH) TURBOCHARGER(K51) 08.915 W/GASKET	8-94321-236-0	01	1	9811-9903		●	●	●		●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51) 08.915 W/GASKET	8-94321-236-0	01	1	9811-9903		●	●	●		●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 08.915 W/GASKET	8-94321-236-0	01	1	9811-9903		●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	9904-9907	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH),4HF1 ENG(RLS) 08.915 W/GASKET	8-94321-236-0	01	1	9904-9907	●	●	●	●		●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	9908-0012	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) 08.915 W/GASKET	8-94321-236-0	01	1	9908-0012	●	●	●	●		●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	0101-0105	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) 08.915 W/GASKET	8-94321-236-0	01	1	0101-0105	●	●	●	●		●	●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) 08.915 W/GASKET	8-94321-236-0	01	1	0106-	●	●	●	●		●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	0106-	●	●	●	●		●
56	01.270 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97073-424-2	01	1	9811-	●	●	●	●	●	●
56	01.270 STAY; RAD 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	9811-9903	●	●	●	●		●
56	01.270 STAY; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97032-802-2	01	1	9811-9903		●	●	●		●
56	01.270 STAY; RAD EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	9811-9903					●
56	01.270 STAY; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97032-802-2	01	1	9904-0012	●	●	●	●		●
56	01.270 STAY; RAD 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	9904-0012	●	●	●	●		●
56	01.270 STAY; RAD EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	9904-0012					●
56	01.270 STAY; RAD 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	0101-0105	●	●	●	●	●	●
56	01.270 STAY; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97032-802-2	01	1	0101-0105	●	●	●	●		●	●
56	01.270 STAY; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97032-802-2	01	1	0106-	●	●	●	●		●
56	01.270 STAY; RAD 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	0106-	●	●	●	●		●
56	01.270 STAY; RAD	8-97032-802-2	01	1	0106-							●
56	01.270 STAY; RAD 4HF1 ENG(RLS)	8-97032-798-2	01	1	9811-9903	●	●	●	●		●
56	01.270 STAY; RAD 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51)	8-97032-798-2	01	1	9811-9903		●	●	●		●
56	01.270 STAY; RAD 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51)	8-97032-798-2	01	1	9904-0105	●	●	●	●		●
56	01.270 STAY; RAD 4HF1 ENG(RLS)	8-97032-798-2	01	1	9904-0105	●	●	●	●		●
56	01.270 STAY; RAD 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51)	8-97032-798-2	01	1	0106-	●	●	●	●		●
56	01.270 STAY; RAD 4HF1 ENG(RLS)	8-97032-798-2	01	1	0106-	●	●	●	●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	9811-	●	●	●	●	●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	9811-	●	●	●	●	●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	9811-	●	●	●	●	●	●	●
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9811-	●	●	●	●	●	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	9811-	●	●	●	●	●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY)	8-97073-125-0	01	1	9811-9903	●	●	●	●	●	●
70	01.271 STAY; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97073-125-0	01	1	9811-9903		●	●	●	●	●
70	01.271 STAY; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97073-125-0	01	1	9904-0012	●	●	●	●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY)	8-97073-125-0	01	1	9904-0012	●	●	●	●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY)	8-97073-125-0	01	1	0101-0105	●	●	●	●	●	●
70	01.271 STAY; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51)	8-97073-125-0	01	1	0101-0105	●	●	●	●		●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY)	8-97073-125-0	01	1	0106-	●	●	●	●	●	●
70	01.271 STAY; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) TURBOCHARGER(K51)	8-97073-125-0	01	1	0106-	●	●	●	●		●	●
70	01.271 STAY; RAD 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97047-899-0	01	1	9811-9903	●	●	●	●		●
70	01.271 STAY; RAD 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51)	8-97047-899-0	01	1	9811-9903		●	●	●		●
70	01.271 STAY; RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK)	8-97047-899-0	01	1	9811-9903		●
70	01.271 STAY; RAD 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51)	8-97047-899-0	01	1	9904-0105	●	●	●	●		●
70	01.271 STAY; RAD 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97047-899-0	01	1	9904-0105	●	●	●	●		●
70	01.271 STAY; RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. TURBOCHARGER(K51)	8-97047-899-0	01	1	9904-0105		●
70	01.271 STAY; RAD 4HG1 ENG(RJH) M/T MXA5R(RMT) EXC. TURBOCHARGER(K51)	8-97047-899-0	01	1	0106-	●	●	●	●		●
70	01.271 STAY; RAD 4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97047-899-0	01	1	0106-	●	●	●	●
70	01.271 STAY; RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. TURBOCHARGER(K51)	8-97047-899-0	01	1	0106-		●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	9811-	●	●	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	9811-	●	●	●	●	●	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	9811-	●	●	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	9811-	●	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.252 (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	9811-	●	●	●	●	●	●
82	01.277 COVER; FAN,RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97218-799-0	01	1	9811-	●	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97148-940-0	01	1	9811-	●	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C)	8-97148-941-1	01	1	9811-	●	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97189-394-0	01	1	9811-	●	●	●	●	●	●
100	01.277 RUBBER; MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-09337-027-0	06	1	9811-	●	●	●	●	●	●
131	01.166 CLIP; ENG SIDE TOP 4HF1 ENG(RLS),4HE1 ENG(RLY) 00.413 ID=52	1-09704-057-0	01	1	9811-9903	●
131	01.166 CLIP; ENG SIDE TOP 00.413 ID=52	1-09704-057-0	01	1	9811-9903		●	●	●	●	●
131	01.166 CLIP; ENG SIDE TOP 00.413 ID=52	1-09704-057-0	01	1	9904-0001	●	●	●	●	●	●
131	01.166 CLIP; ENG SIDE TOP ID=40	8-97245-216-0	01	1	0002-	●	●	●	●	●	●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HF1 ENG(RLS),4HE1 ENG(RLY) ID=62	9-09915-068-1	01	1	9811-9903	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=62	9-09915-068-1	01	1	9811-9903		●	●	●	●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=62	9-09915-068-1	01	1	9904-0001	●	●	●	●	●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=50	8-97245-217-0	01	1	0002-	●	●	●	●	●	●	●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	9811-	●	●	●	●	●	●	●
297	01.277 WASHER; PL,FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	9811-	●	●	●	●	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 16.742 D6.8X11 PUSH RIVET	1-73318-230-0	12	1	9811-0209	●	●	●	●	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-09470-009-0	12	1	0210-	●	●	●	●	●	●
343	01.271 PLUG; WATER LEVEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> M18X12	1-09604-081-0	01	1	9811-	●	●	●	●	●	●
421	01.277 BOLT; BRKT FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	9811-	●	●	●	●	●	●
421	01.277 BOLT; BRKT FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.540 (B) M10X20 FLANGE	0-28181-020-0	02	1	9811-	●	●	●	●	●	●
495	01.274 GASKET; SENSOR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.097	1-09623-185-0	01	1	9811-	●	●	●	●	●	●
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	9811-	●	●	●	●	●	●	●

131 1 16 81 2 132 70 21 51 52 21 62 75 27 23 74 22 23 26 27 59 57 22 25 58 26 74 58 56 25 204 240 74 62 518 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97213-666-1	01	1	9811-0209	●	●	●	●	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97354-363-0	01	1	0210-	●	●	●	●	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11>	8-97213-667-1	01	1	9811-0209	●	●	●	●		●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11>	8-97354-364-0	01	1	0210-	●	●	●	●		●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97182-423-0	01	1	9811-0105	●	●	●	●		●
1	01.219 RADIATOR ASM EXC. CHARGE AIR COOLER<6PL>	8-97182-423-0	01	1	9811-0105					●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97182-423-0	01	1	0106-	●	●	●	●		●
1	01.219 RADIATOR ASM 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97146-211-1	01	1	9811-9903	●	●	●	●		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51)	8-97146-211-1	01	1	9811-9903		●	●	●		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51)	8-97146-211-1	01	1	9904-0105	●	●	●	●		●
1	01.219 RADIATOR ASM 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97146-211-1	01	1	9904-0105	●	●	●	●		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) M/T MXA5R(RMT) EXC. TURBOCHARGER(K51)	8-97146-211-1	01	1	0106-	●	●	●	●		●
1	01.219 RADIATOR ASM 4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97146-211-1	01	1	0106-	●	●	●	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51)	8-97227-251-0	01	1	9904-		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ>	8-97187-681-0	01	1	9811-9903		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51)	8-97187-681-0	01	1	9904-		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97146-212-1	01	1	9811-9903		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ>	8-97146-212-1	01	1	9904-		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97177-193-1	01	1	9811-9903		●	●	●		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51)	8-97177-193-1	01	1	9904-0012	●	●	●	●		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51)	8-97177-193-1	01	1	0101-	●	●	●	●		●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97068-803-0	01	1	9811-	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97218-802-1	01	1	9811-	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97066-018-0	01	1	9811-9903	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97066-018-0	01	1	9811-9903		●	●	●		●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97066-018-0	01	1	9904-9907	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97066-018-0	01	1	9904-9907	●	●	●	●		●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97066-018-0	01	1	9908-9908	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51)	8-97066-018-0	01	1	9908-9908	●	●	●	●		●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97066-018-0	01	1	9909-0105	●	●	●	●		●
2	01.277 GUIDE; FAN EXC. CHARGE AIR COOLER<6PL>	8-97066-018-0	01	1	9909-0105					●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97066-018-0	01	1	0106-	●	●	●	●		●
2	01.277 GUIDE; FAN 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97066-016-0	01	1	9811-9903	●	●	●	●		●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51)	8-97066-016-0	01	1	9811-9903		●	●	●		●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK)	8-97066-016-0	01	1	9811-9903		●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51)	8-97066-016-0	01	1	9904-9908	●	●	●	●		●
2	01.277 GUIDE; FAN 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97066-016-0	01	1	9904-9908	●	●	●	●		●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK)	8-97066-016-0	01	1	9904-9908		●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97066-016-0	01	1	9909-0012	●	●	●	●		●
2	01.277 GUIDE; FAN A/T 4 SPEED-JATCO(RMK)	8-97066-016-0	01	1	9909-0012		●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97066-016-0	01	1	0101-0105	●	●	●	●		●	●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	8-97066-016-0	01	1	0106-	●	●	●	●		●	●
16	01.203 CAP; RAD	8-97177-872-0	01	1	9811-0008	●	●	●	●	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0009-0012	●	●	●	●	●	●
16	01.203 CAP; RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97177-872-0	01	1	0009-0012	●	●	●	●		●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0101-0105	●	●	●	●	●	●
16	01.203 CAP; RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97177-872-0	01	1	0101-0105	●	●	●	●		●	●
16	01.203 CAP; RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	8-97177-872-0	01	1	0106-	●	●	●	●		●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0106-	●	●	●	●		●
16	01.203 CAP; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97239-187-0	01	1	0009-	●	●	●	●	●	●
21	01.276 SEAL; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97218-801-1	01	1	9811-	●	●	●	●	●	●
21	01.276 SEAL; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190	8-97161-476-0	01	1	9811-0105	●	●	●	●		●
21	01.276 SEAL; RAD EXC. CHARGE AIR COOLER<6PL> 09.190	8-97161-476-0	01	1	9811-0105					●
21	01.276 SEAL; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190	8-97161-476-0	01	1	0106-	●	●	●	●		●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51) (A) L=240	8-97190-922-0	01	1	9811-9903		●	●	●		●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51) (A) L=240	8-97190-922-0	01	1	9904-9907	●	●	●	●		●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (A) L=240	8-97190-922-0	01	1	9904-9907		●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51) (A) L=240	8-97190-922-0	01	1	9908-0012	●	●	●	●		●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51) (A) L=240	8-97190-922-0	01	1	0101-0105	●	●	●	●		●	●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) TURBOCHARGER(K51) (A) L=240	8-97190-922-0	01	1	0106-	●	●	●	●		●	●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51) (B) L=205	8-97190-923-0	01	1	9811-9903		●	●	●		●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51) (B) L=205	8-97190-923-0	01	1	9904-9907	●	●	●	●		●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (B) L=205	8-97190-923-0	01	1	9904-9907		●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51) (B) L=205	8-97190-923-0	01	1	9908-0012	●	●	●	●		●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51) (B) L=205	8-97190-923-0	01	1	0101-0105	●	●	●	●		●	●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) TURBOCHARGER(K51) (B) L=205	8-97190-923-0	01	1	0106-	●	●	●	●		●	●
22	01.270 BRACKET; RAD MTG 4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> (A)	8-94101-621-1	02	1	9811-9903	●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> (A)	8-94101-621-1	02	1	9811-9903		●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> (A)	8-94101-621-1	02	1	9904-0105	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> (A)	8-94101-621-1	02	1	0106-	●	●	●			●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97074-093-0	02	1	9811-9903	●	●	●	●	●	●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> (A)	8-97074-093-0	02	1	9811-9903		●	●	●	●	●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97074-093-0	02	1	9904-	●	●	●	●	●	●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> (A)	8-97074-093-0	02	1	9904-	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	9811-9903	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	9811-9903		●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	9904-0012	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	9904-0012	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	0101-0105	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	0101-0105	●	●	●	●		●
22	01.270 BRACKET; RAD MTG (A)	8-94175-416-0	02	1	0101-0105							●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	0106-	●	●	●			●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	0106-	●	●	●			●
22	01.270 BRACKET; RAD MTG (A)	8-94175-416-0	02	1	0106-							●
22	01.270 BRACKET; RAD MTG 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97096-452-0	02	1	9811-9903	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (A)	8-97096-452-0	02	1	9811-9903		●	●	●		●
22	01.270 BRACKET; RAD MTG 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97096-452-0	02	1	9904-0105	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (A)	8-97096-452-0	02	1	9904-0105	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (A)	8-97096-452-0	02	1	0106-	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97096-452-0	02	1	0106-	●	●	●	●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97024-348-0	01	1	9811-9903		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> (B)	8-97024-348-0	01	1	9904-		●
23	01.271 NUT; RAD MTG 07.874 (A) M10 FLANGE	5-09440-006-0	04	1	9811-	●	●	●	●	●	●	●
23	01.271 NUT; RAD MTG 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	04	1	9811-9903		●
23	01.271 NUT; RAD MTG 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	04	1	9904-		●
25	01.271 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	04	1	9811-	●	●	●	●	●	●	●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	9811-	●	●	●	●	●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	9811-	●	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> W/GASKET	1-09609-023-0	01	1	9811-	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	9811-9903	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) 08.915 W/GASKET	8-94321-236-0	01	1	9811-9903	●	●	●	●		●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH) TURBOCHARGER(K51) 08.915 W/GASKET	8-94321-236-0	01	1	9811-9903		●	●	●		●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51) 08.915 W/GASKET	8-94321-236-0	01	1	9811-9903		●	●	●		●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 08.915 W/GASKET	8-94321-236-0	01	1	9811-9903		●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	9904-9907	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH),4HF1 ENG(RLS) 08.915 W/GASKET	8-94321-236-0	01	1	9904-9907	●	●	●	●		●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	9908-0012	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) 08.915 W/GASKET	8-94321-236-0	01	1	9908-0012	●	●	●	●		●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	0101-0105	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) 08.915 W/GASKET	8-94321-236-0	01	1	0101-0105	●	●	●	●		●	●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) 08.915 W/GASKET	8-94321-236-0	01	1	0106-	●	●	●	●		●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	0106-	●	●	●	●		●
52	08.951 GASKET; DRAIN PLUG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	9811-9903	●	●	●	●	●	●
52	08.951 GASKET; DRAIN PLUG 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) 01.203 ID=10	9-09720-557-0	01	1	9811-9903	●	●	●	●		●
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH) TURBOCHARGER(K51) 01.203 ID=10	9-09720-557-0	01	1	9811-9903		●	●	●		●
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51) 01.203 ID=10	9-09720-557-0	01	1	9811-9903		●	●	●		●
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 01.203 ID=10	9-09720-557-0	01	1	9811-9903		●
52	08.951 GASKET; DRAIN PLUG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	9904-9907	●	●	●	●	●	●
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH),4HF1 ENG(RLS) 01.203 ID=10	9-09720-557-0	01	1	9904-9907	●	●	●	●		●
52	08.951 GASKET; DRAIN PLUG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	9908-0012	●	●	●	●	●	●
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) 01.203 ID=10	9-09720-557-0	01	1	9908-0012	●	●	●	●		●
52	08.951 GASKET; DRAIN PLUG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	0101-0105	●	●	●	●	●	●
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) 01.203 ID=10	9-09720-557-0	01	1	0101-0105	●	●	●	●		●	●
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) 01.203 ID=10	9-09720-557-0	01	1	0106-	●	●	●	●		●	●
52	08.951 GASKET; DRAIN PLUG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	0106-	●	●	●	●		●
56	01.270 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97073-424-2	01	1	9811-	●	●	●	●	●	●
56	01.270 STAY; RAD 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	9811-9903	●	●	●	●		●
56	01.270 STAY; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97032-802-2	01	1	9811-9903		●	●	●		●
56	01.270 STAY; RAD EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	9811-9903					●
56	01.270 STAY; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97032-802-2	01	1	9904-0012	●	●	●	●		●
56	01.270 STAY; RAD 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	9904-0012	●	●	●	●		●
56	01.270 STAY; RAD EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	9904-0012					●
56	01.270 STAY; RAD 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	0101-0105	●	●	●	●	●	●
56	01.270 STAY; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97032-802-2	01	1	0101-0105	●	●	●	●		●	●
56	01.270 STAY; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97032-802-2	01	1	0106-	●	●	●	●		●
56	01.270 STAY; RAD 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	0106-	●	●	●	●		●
56	01.270 STAY; RAD	8-97032-802-2	01	1	0106-							●
56	01.270 STAY; RAD 4HF1 ENG(RLS)	8-97032-798-2	01	1	9811-9903	●	●	●	●		●
56	01.270 STAY; RAD 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51)	8-97032-798-2	01	1	9811-9903		●	●	●		●
56	01.270 STAY; RAD 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51)	8-97032-798-2	01	1	9904-0105	●	●	●	●		●
56	01.270 STAY; RAD 4HF1 ENG(RLS)	8-97032-798-2	01	1	9904-0105	●	●	●	●		●
56	01.270 STAY; RAD 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51)	8-97032-798-2	01	1	0106-	●	●	●	●		●
56	01.270 STAY; RAD 4HF1 ENG(RLS)	8-97032-798-2	01	1	0106-	●	●	●	●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	9811-	●	●	●	●	●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	9811-	●	●	●	●	●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	9811-	●	●	●	●	●	●	●
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9811-	●	●	●	●	●	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	9811-	●	●	●	●	●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY)	8-97073-125-0	01	1	9811-9903	●	●	●	●	●	●
70	01.271 STAY; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97073-125-0	01	1	9811-9903		●	●	●	●	●
70	01.271 STAY; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97073-125-0	01	1	9904-0012	●	●	●	●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY)	8-97073-125-0	01	1	9904-0012	●	●	●	●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY)	8-97073-125-0	01	1	0101-0105	●	●	●	●	●	●
70	01.271 STAY; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51)	8-97073-125-0	01	1	0101-0105	●	●	●	●		●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY)	8-97073-125-0	01	1	0106-	●	●	●	●	●	●
70	01.271 STAY; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) TURBOCHARGER(K51)	8-97073-125-0	01	1	0106-	●	●	●	●		●	●
70	01.271 STAY; RAD 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97047-899-0	01	1	9811-9903	●	●	●	●		●
70	01.271 STAY; RAD 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51)	8-97047-899-0	01	1	9811-9903		●	●	●		●
70	01.271 STAY; RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK)	8-97047-899-0	01	1	9811-9903		●
70	01.271 STAY; RAD 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51)	8-97047-899-0	01	1	9904-0105	●	●	●	●		●
70	01.271 STAY; RAD 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97047-899-0	01	1	9904-0105	●	●	●	●		●
70	01.271 STAY; RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. TURBOCHARGER(K51)	8-97047-899-0	01	1	9904-0105		●
70	01.271 STAY; RAD 4HG1 ENG(RJH) M/T MXA5R(RMT) EXC. TURBOCHARGER(K51)	8-97047-899-0	01	1	0106-	●	●	●	●		●
70	01.271 STAY; RAD 4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97047-899-0	01	1	0106-	●	●	●	●
70	01.271 STAY; RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. TURBOCHARGER(K51)	8-97047-899-0	01	1	0106-		●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	9811-	●	●	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	9811-	●	●	●	●	●	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	9811-	●	●	●	●	●	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97088-810-0	04	1	9811-9903	●	●	●	●	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97088-810-0	04	1	9811-9903	●	●	●	●		●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97088-810-0	04	1	9811-9903		●	●	●		●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51)	8-97088-810-0	04	1	9811-9903		●	●	●		●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK)	8-97088-810-0	04	1	9811-9903		●
81	01.277 SCREW; FAN GUIDE,RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97088-810-0	04	1	9904-9907	●	●	●	●	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97088-810-0	04	1	9904-9907	●	●	●	●		●
81	01.277 SCREW; FAN GUIDE,RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97088-810-0	04	1	9908-0012	●	●	●	●	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97088-810-0	04	1	9908-0012	●	●	●	●		●
81	01.277 SCREW; FAN GUIDE,RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97088-810-0	04	1	0101-0105	●	●	●	●	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97088-810-0	04	1	0101-0105	●	●	●	●		●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	8-97088-810-0	04	1	0106-	●	●	●	●		●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97088-810-0	04	1	0106-	●	●	●	●		●
131	01.166 CLIP; ENG SIDE TOP 4HF1 ENG(RLS),4HE1 ENG(RLY) 00.413 ID=52	1-09704-057-0	01	1	9811-9903	●
131	01.166 CLIP; ENG SIDE TOP 00.413 ID=52	1-09704-057-0	01	1	9811-9903		●	●	●	●	●
131	01.166 CLIP; ENG SIDE TOP 00.413 ID=52	1-09704-057-0	01	1	9904-0001	●	●	●	●	●	●
131	01.166 CLIP; ENG SIDE TOP ID=40	8-97245-216-0	01	1	0002-	●	●	●	●	●	●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HF1 ENG(RLS),4HE1 ENG(RLY) ID=62	9-09915-068-1	01	1	9811-9903	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=62	9-09915-068-1	01	1	9811-9903		●	●	●	●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=62	9-09915-068-1	01	1	9904-0001	●	●	●	●	●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=50	8-97245-217-0	01	1	0002-	●	●	●	●	●	●	●
204	01.267 GUIDE ASM; AIR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97038-894-1	01	1	9811-9903	●
204	01.267 GUIDE ASM; AIR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97038-894-1	01	1	9811-9903		●	●	●		●
204	01.267 GUIDE ASM; AIR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97038-894-1	01	1	9904-0012	●	●	●	●		●
204	01.267 GUIDE ASM; AIR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97038-894-1	01	1	0101-0105	●	●	●	●		●
204	01.267 GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60)	8-97038-894-1	01	1	0101-0105							●
204	01.267 GUIDE ASM; AIR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97038-894-1	01	1	0106-	●	●	●	●		●	●
204	01.267 GUIDE ASM; AIR 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97038-895-1	01	1	9811-0105	●	●	●	●		●
204	01.267 GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97038-895-1	01	1	9811-0105					●
204	01.267 GUIDE ASM; AIR 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97038-895-1	01	1	0106-	●	●	●	●		●
205	01.267 BOLT; AIR GUIDE 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	04	1	9811-0012	●	●	●	●	●	●
205	01.267 BOLT; AIR GUIDE 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	9811-0012	●	●	●	●		●
205	01.267 BOLT; AIR GUIDE 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0101-0105	●	●	●	●	●	●
205	01.267 BOLT; AIR GUIDE 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0101-0105	●	●	●	●		●	●
205	01.267 BOLT; AIR GUIDE 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0106-	●	●	●	●		●	●
205	01.267 BOLT; AIR GUIDE 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0106-	●	●	●	●		●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	9811-	●	●	●	●	●	●	●
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	9811-	●	●	●	●	●	●	●

27 23 22 131 26 74 25 518 1 81 2 132 16 70 51 52 22 62 75 59 57 58 56 74 23 23 240 27 22 26 25 74 62 518 204 205 18 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97213-666-1	01	1	9811-0209	●	●	●	●	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97354-363-0	01	1	0210-	●	●	●	●	●	●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11>	8-97213-667-1	01	1	9811-0209	●	●	●	●		●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11>	8-97354-364-0	01	1	0210-	●	●	●	●		●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97182-423-0	01	1	9811-0105	●	●	●	●		●
1	01.219 RADIATOR ASM EXC. CHARGE AIR COOLER<6PL>	8-97182-423-0	01	1	9811-0105					●
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97182-423-0	01	1	0106-	●	●	●	●		●
1	01.219 RADIATOR ASM 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97146-211-1	01	1	9811-9903	●	●	●	●		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51)	8-97146-211-1	01	1	9811-9903		●	●	●		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51)	8-97146-211-1	01	1	9904-0105	●	●	●	●		●
1	01.219 RADIATOR ASM 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97146-211-1	01	1	9904-0105	●	●	●	●		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) M/T MXA5R(RMT) EXC. TURBOCHARGER(K51)	8-97146-211-1	01	1	0106-	●	●	●	●		●
1	01.219 RADIATOR ASM 4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97146-211-1	01	1	0106-	●	●	●	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51)	8-97227-251-0	01	1	9904-		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ>	8-97187-681-0	01	1	9811-9903		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51)	8-97187-681-0	01	1	9904-		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97146-212-1	01	1	9811-9903		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ>	8-97146-212-1	01	1	9904-		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97177-193-1	01	1	9811-9903		●	●	●		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51)	8-97177-193-1	01	1	9904-0012	●	●	●	●		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51)	8-97177-193-1	01	1	0101-	●	●	●	●		●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97068-803-0	01	1	9811-	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97218-802-1	01	1	9811-	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97066-018-0	01	1	9811-9903	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97066-018-0	01	1	9811-9903		●	●	●		●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97066-018-0	01	1	9904-9907	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97066-018-0	01	1	9904-9907	●	●	●	●		●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97066-018-0	01	1	9908-9908	●	●	●	●	●	●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51)	8-97066-018-0	01	1	9908-9908	●	●	●	●		●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97066-018-0	01	1	9909-0105	●	●	●	●		●
2	01.277 GUIDE; FAN EXC. CHARGE AIR COOLER<6PL>	8-97066-018-0	01	1	9909-0105					●
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97066-018-0	01	1	0106-	●	●	●	●		●
2	01.277 GUIDE; FAN 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97066-016-0	01	1	9811-9903	●	●	●	●		●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51)	8-97066-016-0	01	1	9811-9903		●	●	●		●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK)	8-97066-016-0	01	1	9811-9903		●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51)	8-97066-016-0	01	1	9904-9908	●	●	●	●		●
2	01.277 GUIDE; FAN 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97066-016-0	01	1	9904-9908	●	●	●	●		●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK)	8-97066-016-0	01	1	9904-9908		●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97066-016-0	01	1	9909-0012	●	●	●	●		●
2	01.277 GUIDE; FAN A/T 4 SPEED-JATCO(RMK)	8-97066-016-0	01	1	9909-0012		●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97066-016-0	01	1	0101-0105	●	●	●	●		●	●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	8-97066-016-0	01	1	0106-	●	●	●	●		●	●
16	01.203 CAP; RAD	8-97177-872-0	01	1	9811-0008	●	●	●	●	●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0009-0012	●	●	●	●	●	●
16	01.203 CAP; RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97177-872-0	01	1	0009-0012	●	●	●	●		●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0101-0105	●	●	●	●	●	●
16	01.203 CAP; RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97177-872-0	01	1	0101-0105	●	●	●	●		●	●
16	01.203 CAP; RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	8-97177-872-0	01	1	0106-	●	●	●	●		●	●
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0106-	●	●	●	●		●
16	01.203 CAP; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97239-187-0	01	1	0009-	●	●	●	●	●	●
18	01.276 BOLT; RAD FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-		●	●	●
22	01.270 BRACKET; RAD MTG 4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> (A)	8-94101-621-1	02	1	9811-9903	●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> (A)	8-94101-621-1	02	1	9811-9903		●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> (A)	8-94101-621-1	02	1	9904-0105	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> (A)	8-94101-621-1	02	1	0106-	●	●	●			●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97074-093-0	02	1	9811-9903	●	●	●	●	●	●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> (A)	8-97074-093-0	02	1	9811-9903		●	●	●	●	●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97074-093-0	02	1	9904-	●	●	●	●	●	●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> (A)	8-97074-093-0	02	1	9904-	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	9811-9903	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	9811-9903		●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	9904-0012	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	9904-0012	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	0101-0105	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	0101-0105	●	●	●	●		●
22	01.270 BRACKET; RAD MTG (A)	8-94175-416-0	02	1	0101-0105							●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	0106-	●	●	●			●
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94175-416-0	02	1	0106-	●	●	●			●
22	01.270 BRACKET; RAD MTG (A)	8-94175-416-0	02	1	0106-							●
22	01.270 BRACKET; RAD MTG 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97096-452-0	02	1	9811-9903	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (A)	8-97096-452-0	02	1	9811-9903		●	●	●		●
22	01.270 BRACKET; RAD MTG 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97096-452-0	02	1	9904-0105	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (A)	8-97096-452-0	02	1	9904-0105	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (A)	8-97096-452-0	02	1	0106-	●	●	●	●		●
22	01.270 BRACKET; RAD MTG 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97096-452-0	02	1	0106-	●	●	●	●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97024-348-0	01	1	9811-9903		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> (B)	8-97024-348-0	01	1	9904-		●
23	01.271 NUT; RAD MTG 07.874 (A) M10 FLANGE	5-09440-006-0	04	1	9811-	●	●	●	●	●	●	●
23	01.271 NUT; RAD MTG 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	04	1	9811-9903		●
23	01.271 NUT; RAD MTG 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	04	1	9904-		●
25	01.271 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	04	1	9811-	●	●	●	●	●	●	●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	9811-	●	●	●	●	●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	9811-	●	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> W/GASKET	1-09609-023-0	01	1	9811-	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	9811-9903	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) 08.915 W/GASKET	8-94321-236-0	01	1	9811-9903	●	●	●	●		●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH) TURBOCHARGER(K51) 08.915 W/GASKET	8-94321-236-0	01	1	9811-9903		●	●	●		●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51) 08.915 W/GASKET	8-94321-236-0	01	1	9811-9903		●	●	●		●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 08.915 W/GASKET	8-94321-236-0	01	1	9811-9903		●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	9904-9907	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH),4HF1 ENG(RLS) 08.915 W/GASKET	8-94321-236-0	01	1	9904-9907	●	●	●	●		●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	9908-0012	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) 08.915 W/GASKET	8-94321-236-0	01	1	9908-0012	●	●	●	●		●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	0101-0105	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) 08.915 W/GASKET	8-94321-236-0	01	1	0101-0105	●	●	●	●		●	●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) 08.915 W/GASKET	8-94321-236-0	01	1	0106-	●	●	●	●		●	●
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	0106-	●	●	●	●		●
52	08.951 GASKET; DRAIN PLUG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	9811-9903	●	●	●	●	●	●
52	08.951 GASKET; DRAIN PLUG 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) 01.203 ID=10	9-09720-557-0	01	1	9811-9903	●	●	●	●		●
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH) TURBOCHARGER(K51) 01.203 ID=10	9-09720-557-0	01	1	9811-9903		●	●	●		●
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51) 01.203 ID=10	9-09720-557-0	01	1	9811-9903		●	●	●		●
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 01.203 ID=10	9-09720-557-0	01	1	9811-9903		●
52	08.951 GASKET; DRAIN PLUG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	9904-9907	●	●	●	●	●	●
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH),4HF1 ENG(RLS) 01.203 ID=10	9-09720-557-0	01	1	9904-9907	●	●	●	●		●
52	08.951 GASKET; DRAIN PLUG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	9908-0012	●	●	●	●	●	●
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) 01.203 ID=10	9-09720-557-0	01	1	9908-0012	●	●	●	●		●
52	08.951 GASKET; DRAIN PLUG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	0101-0105	●	●	●	●	●	●
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) 01.203 ID=10	9-09720-557-0	01	1	0101-0105	●	●	●	●		●	●
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) 01.203 ID=10	9-09720-557-0	01	1	0106-	●	●	●	●		●	●
52	08.951 GASKET; DRAIN PLUG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	0106-	●	●	●	●		●
56	01.270 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97073-424-2	01	1	9811-	●	●	●	●	●	●
56	01.270 STAY; RAD 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	9811-9903	●	●	●	●		●
56	01.270 STAY; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97032-802-2	01	1	9811-9903		●	●	●		●
56	01.270 STAY; RAD EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	9811-9903					●
56	01.270 STAY; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97032-802-2	01	1	9904-0012	●	●	●	●		●
56	01.270 STAY; RAD 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	9904-0012	●	●	●	●		●
56	01.270 STAY; RAD EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	9904-0012					●
56	01.270 STAY; RAD 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	0101-0105	●	●	●	●	●	●
56	01.270 STAY; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97032-802-2	01	1	0101-0105	●	●	●	●		●	●
56	01.270 STAY; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97032-802-2	01	1	0106-	●	●	●	●		●
56	01.270 STAY; RAD 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97032-802-2	01	1	0106-	●	●	●	●		●
56	01.270 STAY; RAD	8-97032-802-2	01	1	0106-							●
56	01.270 STAY; RAD 4HF1 ENG(RLS)	8-97032-798-2	01	1	9811-9903	●	●	●	●		●
56	01.270 STAY; RAD 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51)	8-97032-798-2	01	1	9811-9903		●	●	●		●
56	01.270 STAY; RAD 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51)	8-97032-798-2	01	1	9904-0105	●	●	●	●		●
56	01.270 STAY; RAD 4HF1 ENG(RLS)	8-97032-798-2	01	1	9904-0105	●	●	●	●		●
56	01.270 STAY; RAD 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51)	8-97032-798-2	01	1	0106-	●	●	●	●		●
56	01.270 STAY; RAD 4HF1 ENG(RLS)	8-97032-798-2	01	1	0106-	●	●	●	●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	9811-	●	●	●	●	●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	9811-	●	●	●	●	●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	9811-	●	●	●	●	●	●	●
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9811-	●	●	●	●	●	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	9811-	●	●	●	●	●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY)	8-97073-125-0	01	1	9811-9903	●	●	●	●	●	●
70	01.271 STAY; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97073-125-0	01	1	9811-9903		●	●	●	●	●
70	01.271 STAY; RAD 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97073-125-0	01	1	9904-0012	●	●	●	●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY)	8-97073-125-0	01	1	9904-0012	●	●	●	●	●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY)	8-97073-125-0	01	1	0101-0105	●	●	●	●	●	●
70	01.271 STAY; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51)	8-97073-125-0	01	1	0101-0105	●	●	●	●		●	●
70	01.271 STAY; RAD 4HE1 ENG(RLY)	8-97073-125-0	01	1	0106-	●	●	●	●	●	●
70	01.271 STAY; RAD 4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) TURBOCHARGER(K51)	8-97073-125-0	01	1	0106-	●	●	●	●		●	●
70	01.271 STAY; RAD 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97047-899-0	01	1	9811-9903	●	●	●	●		●
70	01.271 STAY; RAD 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51)	8-97047-899-0	01	1	9811-9903		●	●	●		●
70	01.271 STAY; RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK)	8-97047-899-0	01	1	9811-9903		●
70	01.271 STAY; RAD 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51)	8-97047-899-0	01	1	9904-0105	●	●	●	●		●
70	01.271 STAY; RAD 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97047-899-0	01	1	9904-0105	●	●	●	●		●
70	01.271 STAY; RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. TURBOCHARGER(K51)	8-97047-899-0	01	1	9904-0105		●
70	01.271 STAY; RAD 4HG1 ENG(RJH) M/T MXA5R(RMT) EXC. TURBOCHARGER(K51)	8-97047-899-0	01	1	0106-	●	●	●	●		●
70	01.271 STAY; RAD 4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97047-899-0	01	1	0106-	●	●	●	●
70	01.271 STAY; RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. TURBOCHARGER(K51)	8-97047-899-0	01	1	0106-		●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	9811-	●	●	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	9811-	●	●	●	●	●	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	9811-	●	●	●	●	●	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97088-810-0	04	1	9811-9903	●	●	●	●	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97088-810-0	04	1	9811-9903	●	●	●	●		●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97088-810-0	04	1	9811-9903		●	●	●		●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. TURBOCHARGER(K51)	8-97088-810-0	04	1	9811-9903		●	●	●		●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK)	8-97088-810-0	04	1	9811-9903		●
81	01.277 SCREW; FAN GUIDE,RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97088-810-0	04	1	9904-9907	●	●	●	●	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97088-810-0	04	1	9904-9907	●	●	●	●		●
81	01.277 SCREW; FAN GUIDE,RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97088-810-0	04	1	9908-0012	●	●	●	●	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97088-810-0	04	1	9908-0012	●	●	●	●		●
81	01.277 SCREW; FAN GUIDE,RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97088-810-0	04	1	0101-0105	●	●	●	●	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97088-810-0	04	1	0101-0105	●	●	●	●		●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	8-97088-810-0	04	1	0106-	●	●	●	●		●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97088-810-0	04	1	0106-	●	●	●	●		●
131	01.166 CLIP; ENG SIDE TOP 4HF1 ENG(RLS),4HE1 ENG(RLY) 00.413 ID=52	1-09704-057-0	01	1	9811-9903	●
131	01.166 CLIP; ENG SIDE TOP 00.413 ID=52	1-09704-057-0	01	1	9811-9903		●	●	●	●	●
131	01.166 CLIP; ENG SIDE TOP 00.413 ID=52	1-09704-057-0	01	1	9904-0001	●	●	●	●	●	●
131	01.166 CLIP; ENG SIDE TOP ID=40	8-97245-216-0	01	1	0002-	●	●	●	●	●	●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HF1 ENG(RLS),4HE1 ENG(RLY) ID=62	9-09915-068-1	01	1	9811-9903	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=62	9-09915-068-1	01	1	9811-9903		●	●	●	●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=62	9-09915-068-1	01	1	9904-0001	●	●	●	●	●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=50	8-97245-217-0	01	1	0002-	●	●	●	●	●	●	●
204	01.267 GUIDE ASM; AIR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97038-894-1	01	1	9811-9903	●
204	01.267 GUIDE ASM; AIR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97038-894-1	01	1	9811-9903		●	●	●		●
204	01.267 GUIDE ASM; AIR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97038-894-1	01	1	9904-0012	●	●	●	●		●
204	01.267 GUIDE ASM; AIR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97038-894-1	01	1	0101-0105	●	●	●	●		●
204	01.267 GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60)	8-97038-894-1	01	1	0101-0105							●
204	01.267 GUIDE ASM; AIR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97038-894-1	01	1	0106-	●	●	●	●		●	●
204	01.267 GUIDE ASM; AIR 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97038-895-1	01	1	9811-0105	●	●	●	●		●
204	01.267 GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97038-895-1	01	1	9811-0105					●
204	01.267 GUIDE ASM; AIR 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97038-895-1	01	1	0106-	●	●	●	●		●
205	01.267 BOLT; AIR GUIDE 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	04	1	9811-0012	●	●	●	●	●	●
205	01.267 BOLT; AIR GUIDE 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	9811-0012	●	●	●	●		●
205	01.267 BOLT; AIR GUIDE 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0101-0105	●	●	●	●	●	●
205	01.267 BOLT; AIR GUIDE 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0101-0105	●	●	●	●		●	●
205	01.267 BOLT; AIR GUIDE 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0106-	●	●	●	●		●	●
205	01.267 BOLT; AIR GUIDE 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0106-	●	●	●	●		●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	9811-	●	●	●	●	●	●	●
359	01.271 BRACKET; RAD STAY FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 04.686	8-97170-632-0	01	1	9811-		●	●	●
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	9811-	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
