Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#22116) — 453 parça

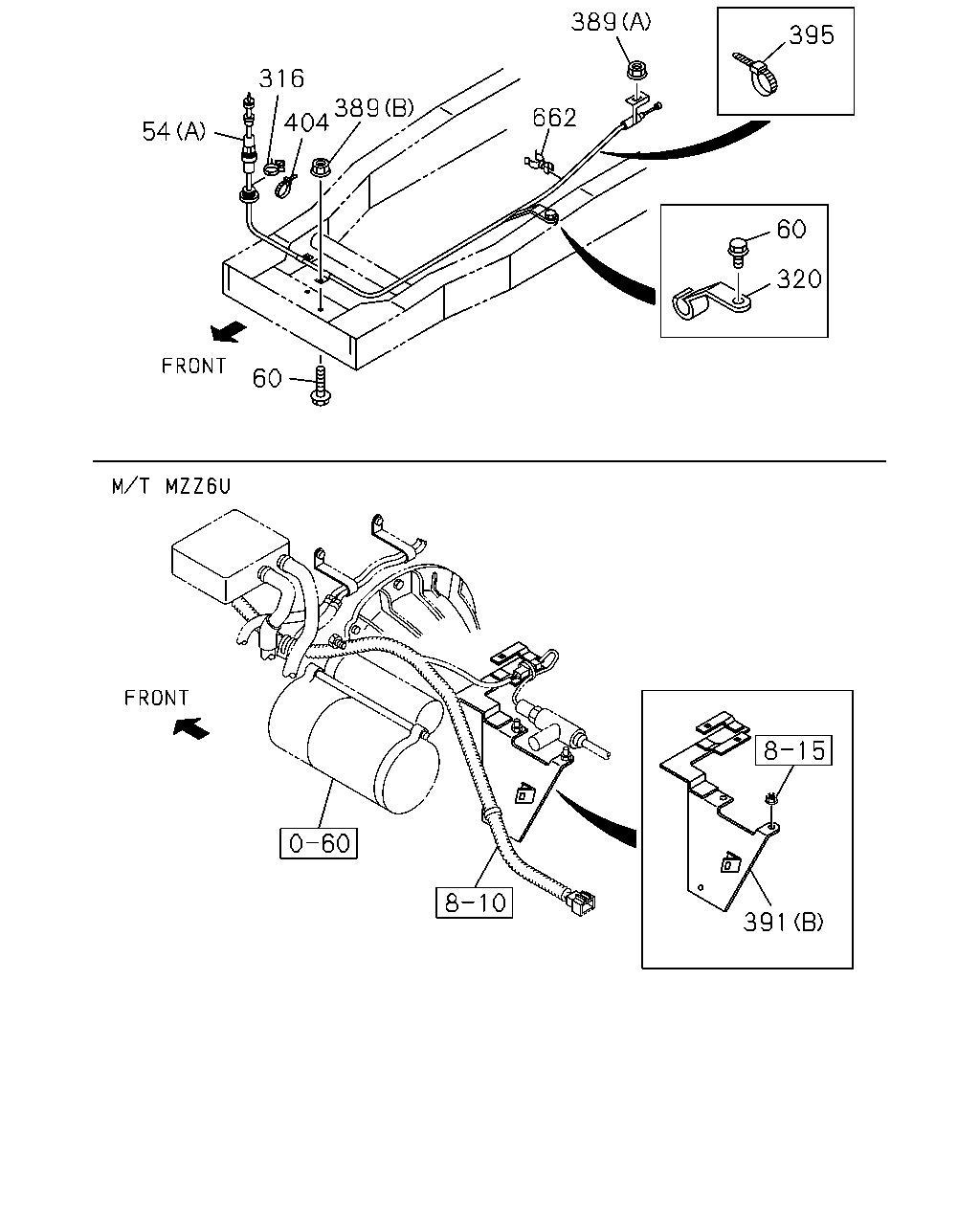

389 395 316 389 404 662 54 60 320 60 391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
54	03.430 CABLE; ENG CONT (B) L=381	8-97352-082-0	01	1	0209-	●
54	03.430 CABLE; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	9811-9903	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	9904-0012	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	0101-0105	●	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	0106-		●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=384	8-97168-299-1	01	1	9811-0208	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=384	8-97168-299-1	01	1	0209-		●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=3078	8-97148-584-1	01	1	9811-9901	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=3078	8-97148-584-3	01	1	9902-	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2913	8-97167-698-1	01	1	9811-9903	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2913	8-97167-698-1	01	1	9904-0105	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2913	8-97167-698-2	01	1	0106-		●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2795	8-97205-846-1	01	1	9811-0105		●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2795	8-97205-846-2	01	1	0106-		●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) (A) L=2898	8-97167-702-0	01	1	9811-0012		●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2898	8-97167-702-0	01	1	9811-0012		●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2898	8-97167-702-0	01	1	0101-0105		●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) (A) L=2898	8-97167-702-0	01	1	0101-0105		●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2898	8-97167-702-1	01	1	0106-		●	●	●		●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) (A) L=2898	8-97167-702-1	01	1	0106-		●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=3078	8-97225-573-1	01	1	9902-						●
60	08.155 BOLT; CABLE 4HF1 ENG(RLS),4HE1 ENG(RLY) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9811-9903		●
60	08.155 BOLT; CABLE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9811-9903	●		●	●	●	●
60	08.155 BOLT; CABLE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9904-	●	●	●	●	●	●	●
60	08.155 BOLT; CABLE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28480-825-0	01	1	9811-9903		●
60	08.155 BOLT; CABLE EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28480-825-0	01	1	9811-9903			●	●	●	●
60	08.155 BOLT; CABLE EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28480-825-0	01	1	9904-0012		●	●	●	●	●
60	08.155 BOLT; CABLE EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28480-825-0	01	1	0101-0105		●	●	●	●	●
60	08.155 BOLT; CABLE M8X25 FLANGE	0-28480-825-0	01	1	0101-0105							●
60	08.155 BOLT; CABLE EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28480-825-0	01	1	0106-		●	●	●		●	●
60	08.155 BOLT; CABLE FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-	●	●	●	●	●	●
60	08.155 BOLT; CABLE FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-	●	●	●	●	●	●
316	03.425 CLIP; LAMP BRKT 16.065 ID=9	5-09707-027-0	01	1	9811-	●	●	●	●	●	●	●
320	03.483 CLIP; FRAME FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 06.672	8-94178-110-0	01	1	9811-	●	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1 ENG(RLS),4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	9811-9903		●
389	03.483 NUT; ACCEL CONT CABLE FIX 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	9811-9903	●		●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	9904-	●	●	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 07.833 (B) M8 W/LK WASHER	8-94327-073-0	03	1	9811-9902		●
389	03.483 NUT; ACCEL CONT CABLE FIX EXC. FRAME STRAIGHT TYPE<7KJ> 07.833 (B) M8 W/LK WASHER	8-94327-073-0	03	1	9811-9902			●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	9903-0105	●	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	9903-0105	●	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	0106-	●	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	0106-		●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX FRAME STRAIGHT TYPE<7KJ> 07.833 (B) M8 W/LK WASHER	8-94327-073-0	02	1	9811-9902	●	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 07.833 (B) M8 W/LK WASHER	8-94327-073-0	02	1	9811-9902	●	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	9811-9902	●	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1 ENG(RLS),4HE1 ENG(RLY) 07.833 (B) M8 W/LK WASHER	8-94327-073-0	02	1	9903-9903		●
389	03.483 NUT; ACCEL CONT CABLE FIX 07.833 (B) M8 W/LK WASHER	8-94327-073-0	02	1	9903-9903	●		●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 07.833 (B) M8 W/LK WASHER	8-94327-073-0	02	1	9904-	●	●	●	●	●	●	●
391	03.452 BRACKET; ENG CONT 4HE1 ENG(RLY) M/T MZZ6U(RSF) (B)	8-97351-929-0	01	1	0208-	●	●	●	●	●	●
391	03.452 BRACKET; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	9811-9903		●
391	03.452 BRACKET; ENG CONT EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	9811-9903	●		●	●	●	●
391	03.452 BRACKET; ENG CONT EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	9904-0012	●	●	●	●	●	●
391	03.452 BRACKET; ENG CONT EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	0101-0105	●	●	●	●	●	●
391	03.452 BRACKET; ENG CONT (A)	8-97172-882-0	01	1	0101-0105							●
391	03.452 BRACKET; ENG CONT EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	0106-		●	●	●	●	●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41) FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	9811-9903	●	●	●	●	●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HEATER & DEFROSTER(C41) FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	9904-	●	●	●	●	●	●
404	03.483 CLIP; CABLE A/T 4 SPEED-JATCO(RMK) 03.162 L=140	5-09707-031-1	01	1	9811-			●
662	03.430 CLIP; ACCEL CONT CABLE EXHAUST BRAKE<NF8> EXC. FRAME STRAIGHT TYPE<7KJ> 03.634 ID=6 & 6	1-09709-217-0	01	1	9811-9903		●	●	●	●	●
662	03.430 CLIP; ACCEL CONT CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 03.634 ID=6 & 6	1-09709-217-0	01	1	9904-0012		●	●	●	●	●
662	03.430 CLIP; ACCEL CONT CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 03.634 ID=6 & 6	1-09709-217-0	01	1	0101-0105		●	●	●	●	●
662	03.430 CLIP; ACCEL CONT CABLE 03.634 ID=6 & 6	1-09709-217-0	01	1	0101-0105							●
662	03.430 CLIP; ACCEL CONT CABLE EXHAUST BRAKE<NF8> EXC. FRAME STRAIGHT TYPE<7KJ> 03.634 ID=6 & 6	1-09709-217-0	01	1	0106-		●	●	●		●	●

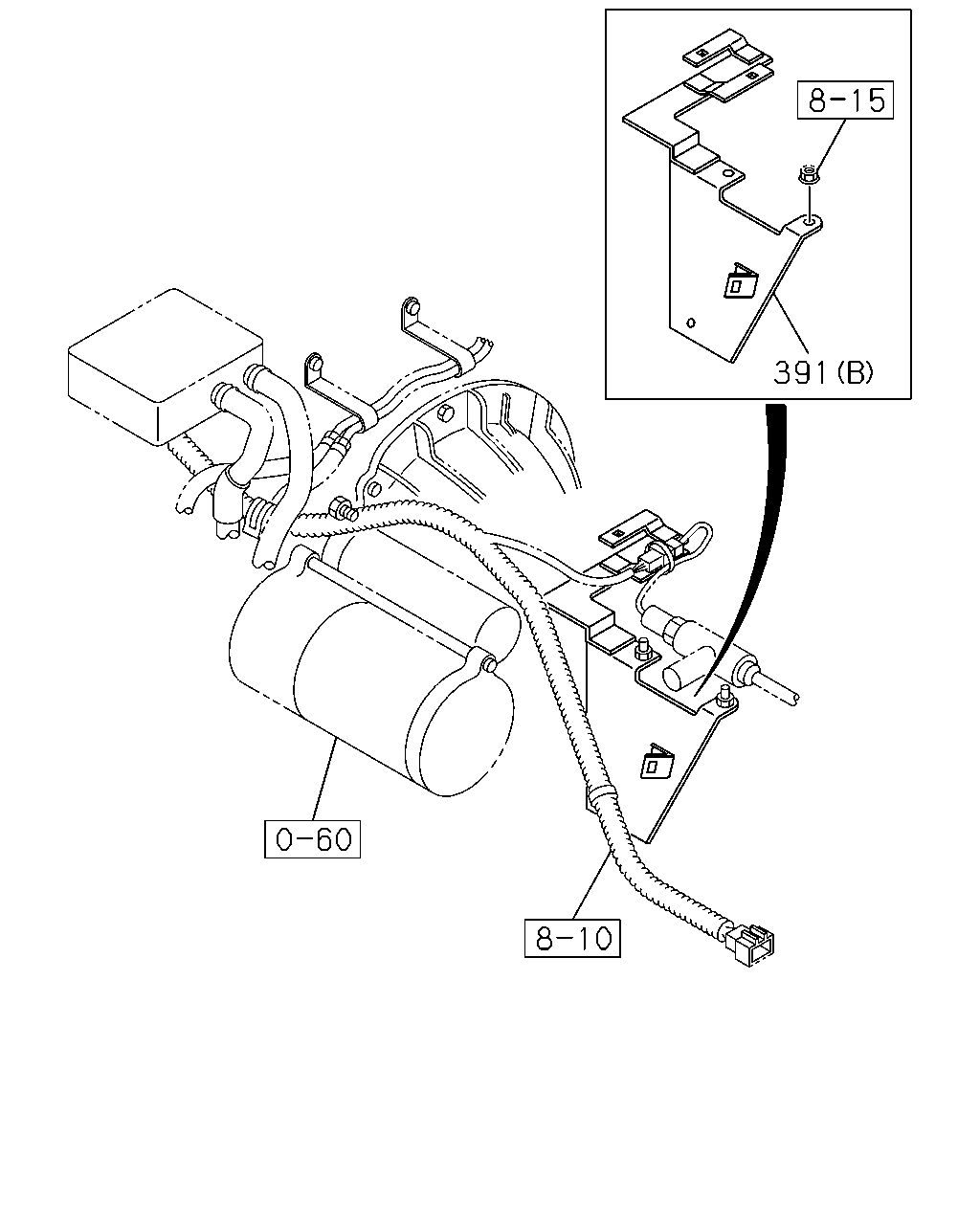

391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
391	03.452 BRACKET; ENG CONT 4HE1 ENG(RLY) M/T MZZ6U(RSF) (B)	8-97351-929-0	01	1	0208-	●	●	●	●	●	●
391	03.452 BRACKET; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	9811-9903		●
391	03.452 BRACKET; ENG CONT EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	9811-9903	●		●	●	●	●
391	03.452 BRACKET; ENG CONT EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	9904-0012	●	●	●	●	●	●
391	03.452 BRACKET; ENG CONT EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	0101-0105	●	●	●	●	●	●
391	03.452 BRACKET; ENG CONT (A)	8-97172-882-0	01	1	0101-0105							●
391	03.452 BRACKET; ENG CONT EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	0106-		●	●	●	●	●	●

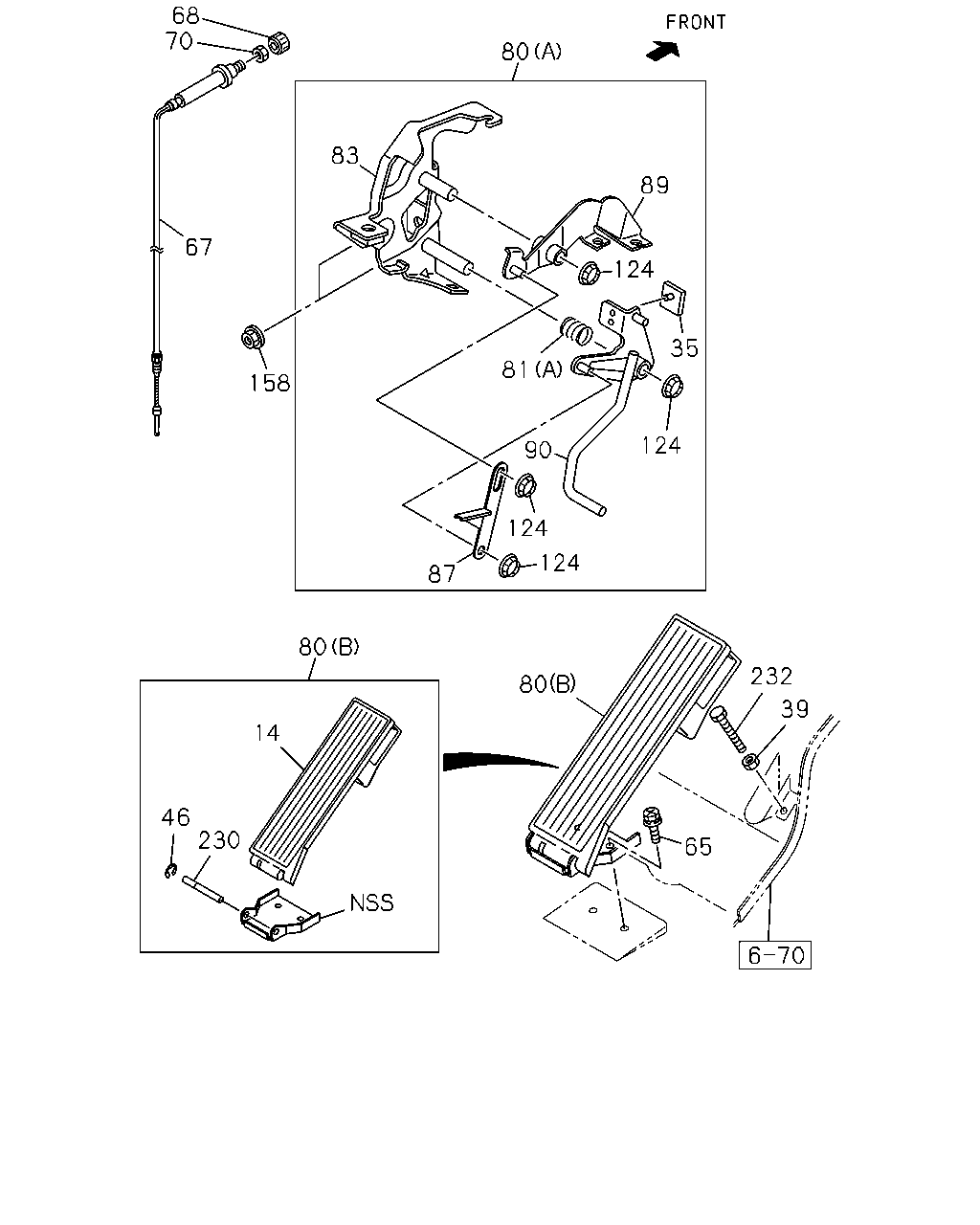

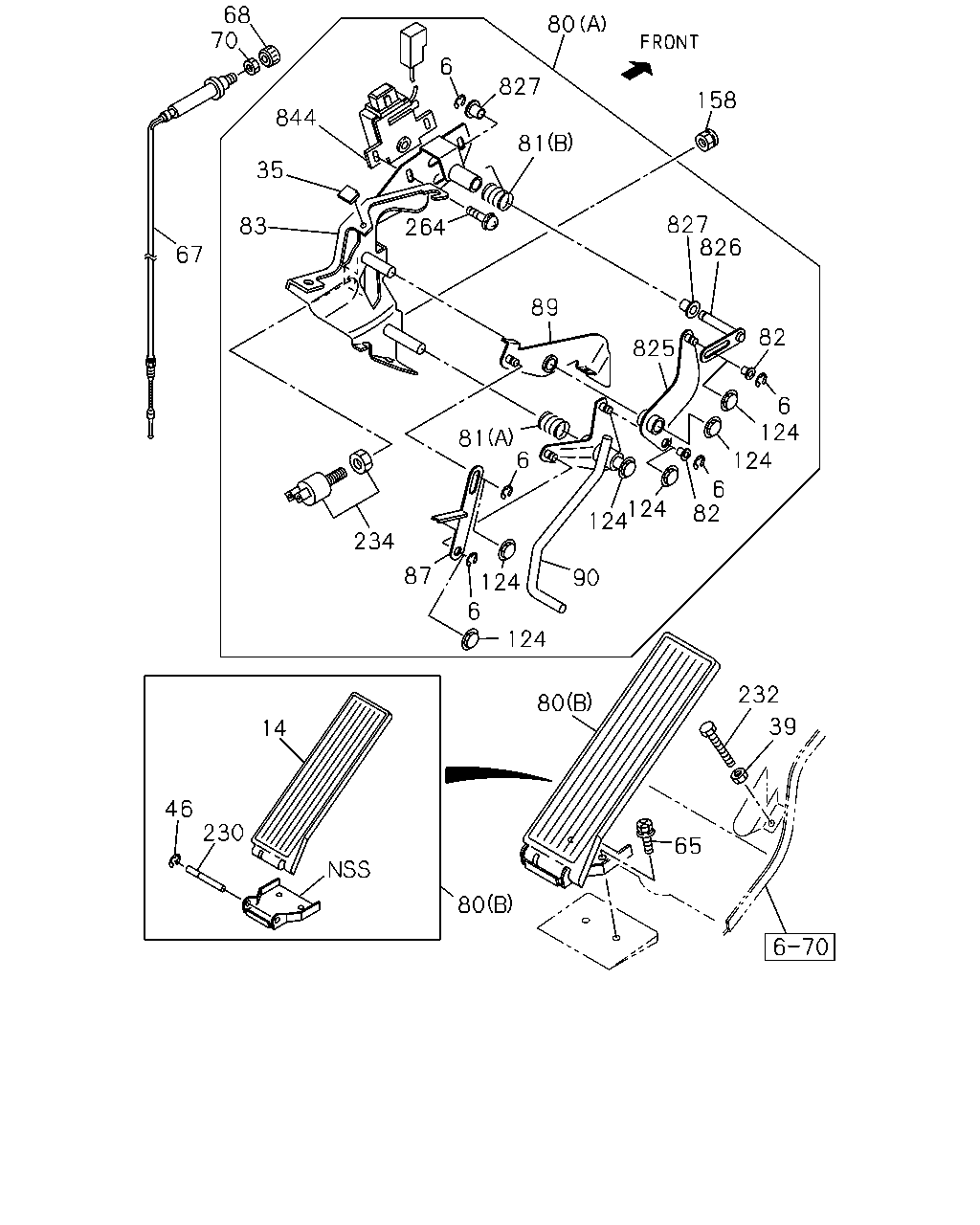

68 70 80 6 827 158 844 81 35 827 826 83 264 67 89 82 825 6 124 124 81 6 6 82 124 124 234 87 90 124 6 124 232 80 39 14 46 230 65 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
6	03.880 RING; SNAP,LINK TO LINK A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ) 04.040 ID=6	9-09185-406-0	01	1	9811-		●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	9811-	●	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	8-97857-401-1	01	1	9811-0012	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	8-97302-305-0	01	1	0101-0105	●	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	8-97302-305-0	01	1	0106-0207	●	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	8-97302-305-0	01	1	0208-	●	●	●	●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	9811-	●	●	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	9811-	●	●	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	9811-	●	●	●	●	●	●	●
67	03.480 CABLE ASM; IDLE CONT L=439	8-97853-058-1	01	1	9811-	●	●	●	●	●	●	●
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	9811-	●	●	●	●	●	●	●
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	9811-	●	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ) (A)	8-97892-381-2	01	1	9811-		●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	9811-	●	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC) (A)	8-97853-057-9	01	1	9811-0012		●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97853-057-9	01	1	9811-0012	●
80	03.452 LINK ASM; ENG CONT M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC) (A)	8-97853-057-9	01	1	0101-0105	●	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT M/T MXA5R(RMT),M/T MBP6P(RNC) (A)	8-97853-057-9	01	1	0106-0207	●	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MZZ6U(RSF) (A)	8-97853-057-9	01	1	0208-	●	●	●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ) (B)	8-97857-168-0	01	1	9811-		●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) (A)	8-97853-205-1	01	1	9811-0012	●	●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) (A)	8-97853-205-1	01	1	0101-0105	●	●	●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) (A)	8-97853-205-1	01	1	0106-0207	●	●	●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) (A)	8-97853-205-1	01	1	0208-	●	●	●	●	●	●	●
82	03.463 BUSHING; ENG CONT LVR A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ)	8-97044-236-0	02	1	9811-		●	●	●
83	03.452 BRACKET; CONT LINK A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ)	8-97853-369-5	01	1	9811-		●	●	●
83	03.452 BRACKET; CONT LINK M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC)	8-97853-201-4	01	1	9811-0012		●	●	●	●	●
83	03.452 BRACKET; CONT LINK	8-97853-201-4	01	1	9811-0012	●
83	03.452 BRACKET; CONT LINK M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC)	8-97853-201-4	01	1	0101-0105	●	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK M/T MXA5R(RMT),M/T MBP6P(RNC)	8-97853-201-4	01	1	0106-0207	●	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MZZ6U(RSF)	8-97853-201-4	01	1	0208-	●	●	●	●	●	●	●
87	03.454 LINK; ENG CONT A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	8-97853-204-1	01	1	9811-0012	●	●	●	●	●	●
87	03.454 LINK; ENG CONT A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	8-97853-204-1	01	1	0101-0105	●	●	●	●	●	●	●
87	03.454 LINK; ENG CONT A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	8-97853-204-1	01	1	0106-0207	●	●	●	●	●	●	●
87	03.454 LINK; ENG CONT A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	8-97853-204-1	01	1	0208-	●	●	●	●	●	●	●
89	03.454 LEVER; RELAY A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ)	8-97868-043-0	01	1	9811-		●	●	●
89	03.454 LEVER; RELAY M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC)	8-97868-042-0	01	1	9811-0012		●	●	●	●	●
89	03.454 LEVER; RELAY	8-97868-042-0	01	1	9811-0012	●
89	03.454 LEVER; RELAY M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC)	8-97868-042-0	01	1	0101-0105	●	●	●	●	●	●	●
89	03.454 LEVER; RELAY M/T MXA5R(RMT),M/T MBP6P(RNC)	8-97868-042-0	01	1	0106-0207	●	●	●	●	●	●	●
89	03.454 LEVER; RELAY M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MZZ6U(RSF)	8-97868-042-0	01	1	0208-	●	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ)	8-97868-041-0	01	1	9811-		●	●	●
90	03.454 LEVER; RELAY,ENG CONT M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC)	8-97868-039-0	01	1	9811-0012		●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT	8-97868-039-0	01	1	9811-0012	●
90	03.454 LEVER; RELAY,ENG CONT M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC)	8-97868-039-0	01	1	0101-0105	●	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT M/T MXA5R(RMT),M/T MBP6P(RNC)	8-97868-039-0	01	1	0106-0207	●	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MZZ6U(RSF)	8-97868-039-0	01	1	0208-	●	●	●	●	●	●	●
124	03.463 NUT; LEVER A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ) ID=4.9 PUSH NUT	8-94279-042-0	04	1	9811-		●	●	●
124	03.463 NUT; LEVER A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	02	1	9811-0012	●	●	●	●	●	●
124	03.463 NUT; LEVER A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	02	1	0101-0105	●	●	●	●	●	●	●
124	03.463 NUT; LEVER A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	02	1	0106-0207	●	●	●	●	●	●	●
124	03.463 NUT; LEVER A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	02	1	0208-	●	●	●	●	●	●	●
124	03.463 NUT; LEVER M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC) ID=4.9 PUSH NUT	8-94279-042-0	02	1	9811-0012		●	●	●	●	●
124	03.463 NUT; LEVER ID=4.9 PUSH NUT	8-94279-042-0	02	1	9811-0012	●
124	03.463 NUT; LEVER M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0101-0105	●	●	●	●	●	●	●
124	03.463 NUT; LEVER M/T MXA5R(RMT),M/T MBP6P(RNC) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0106-0207	●	●	●	●	●	●	●
124	03.463 NUT; LEVER M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MZZ6U(RSF) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0208-	●	●	●	●	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	9811-	●	●	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	9811-	●	●	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	9811-	●	●	●	●	●	●	●
234	03.452 SWITCH; ACCEL A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ)	8-97855-058-0	01	1	9811-		●	●	●
264	03.425 SCREW; ACCEL SW A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ) 03.320 M4X10 W/LK&PL WASHER	9-03920-410-0	02	1	9811-		●	●	●
825	03.454 LEVER; RELAY,TPS A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ)	8-97868-044-0	01	1	9811-		●	●	●
826	03.454 LEVER ASM; TPS A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ)	8-97853-371-2	01	1	9811-		●	●	●
827	03.463 BUSHING; LEVER,TPS A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ) 16.585 OD=9.9	8-94279-701-3	02	1	9811-		●	●	●
844	03.452 SWITCH; THROTTLE VLV A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ)	8-97112-742-0	01	1	9811-		●	●	●

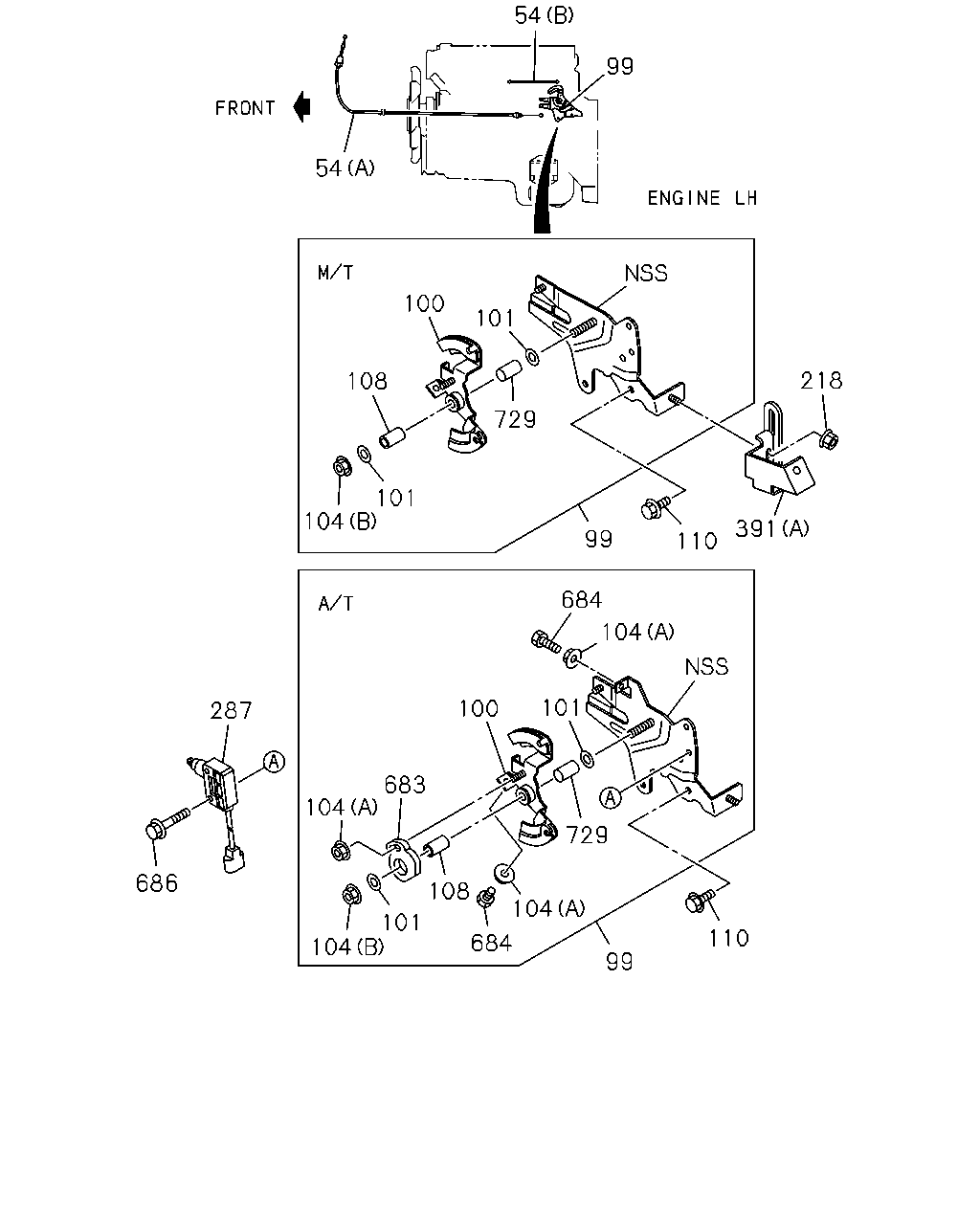

54 99 54 100 101 218 108 729 101 104 391 99 110 684 104 101 100 287 683 104 729 686 108 104 101 104 110 684 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
54	03.430 CABLE; ENG CONT (B) L=381	8-97352-082-0	01	1	0209-	●
54	03.430 CABLE; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	9811-9903	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	9904-0012	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	0101-0105	●	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	0106-		●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=384	8-97168-299-1	01	1	9811-0208	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=384	8-97168-299-1	01	1	0209-		●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=3078	8-97148-584-1	01	1	9811-9901	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=3078	8-97148-584-3	01	1	9902-	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2913	8-97167-698-1	01	1	9811-9903	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2913	8-97167-698-1	01	1	9904-0105	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2913	8-97167-698-2	01	1	0106-		●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2795	8-97205-846-1	01	1	9811-0105		●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2795	8-97205-846-2	01	1	0106-		●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) (A) L=2898	8-97167-702-0	01	1	9811-0012		●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2898	8-97167-702-0	01	1	9811-0012		●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2898	8-97167-702-0	01	1	0101-0105		●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) (A) L=2898	8-97167-702-0	01	1	0101-0105		●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2898	8-97167-702-1	01	1	0106-		●	●	●		●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) (A) L=2898	8-97167-702-1	01	1	0106-		●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=3078	8-97225-573-1	01	1	9902-						●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97118-729-0	01	1	9811-0012	●	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97118-729-0	01	1	0101-0105	●	●	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97118-729-0	01	1	0106-		●	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97167-871-3	01	1	9811-9901	●	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97167-871-3	01	1	9902-0105	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97167-871-3	01	1	0106-		●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11>	8-97118-730-0	01	1	9811-			●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF	8-97302-093-2	01	1	0106-	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97225-505-0	01	1	9902-						●
100	03.463 SHAFT ASM; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97118-737-0	01	1	9811-0012	●	●	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97118-737-0	01	1	0101-0105	●	●	●	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97118-737-0	01	1	0106-		●	●	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97167-870-2	01	1	9811-0105	●	●	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97167-870-2	01	1	0106-		●	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11>	8-97118-738-0	01	1	9811-			●
100	03.463 SHAFT ASM; ENG CONT	8-97302-094-0	01	1	0106-	●
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.276	8-94142-117-0	02	1	9811-9903		●	●	●	●	●
101	03.463 WASHER; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.276	8-94142-117-0	02	1	9811-9903		●
101	03.463 WASHER; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.276	8-94142-117-0	02	1	9811-9903			●	●	●	●
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11> 01.276	8-94142-117-0	02	1	9811-9903			●
101	03.463 WASHER; ENG CONT 01.276	8-94142-117-0	02	1	9811-9903	●
101	03.463 WASHER; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.276	8-94142-117-0	02	1	9904-0012		●	●	●	●	●
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.276	8-94142-117-0	02	1	9904-0012		●	●	●	●	●
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11> 01.276	8-94142-117-0	02	1	9904-0012			●
101	03.463 WASHER; ENG CONT 01.276	8-94142-117-0	02	1	9904-0012	●
101	03.463 WASHER; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.276	8-94142-117-0	02	1	0101-0105		●	●	●	●	●
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.276	8-94142-117-0	02	1	0101-0105		●	●	●	●	●
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11> 01.276	8-94142-117-0	02	1	0101-0105			●
101	03.463 WASHER; ENG CONT 01.276	8-94142-117-0	02	1	0101-0105	●						●
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.276	8-94142-117-0	02	1	0106-		●	●	●	●	●
101	03.463 WASHER; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.276	8-94142-117-0	02	1	0106-		●	●	●
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11> 01.276	8-94142-117-0	02	1	0106-			●
101	03.463 WASHER; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.276	8-94142-117-0	02	1	0106-					●
101	03.463 WASHER; ENG CONT 01.276	8-94142-117-0	02	1	0106-	●						●
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.276	8-94142-117-0	02	1	0106-						●
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9811-9903		●	●	●	●	●
104	03.463 NUT; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9811-9903		●
104	03.463 NUT; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9811-9903			●	●	●	●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9811-9903			●
104	03.463 NUT; ENG CONT 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9811-9903	●
104	03.463 NUT; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9904-0012		●	●	●	●	●
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9904-0012		●	●	●	●	●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9904-0012			●
104	03.463 NUT; ENG CONT 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9904-0012	●
104	03.463 NUT; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0101-0105		●	●	●	●	●
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0101-0105		●	●	●	●	●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0101-0105			●
104	03.463 NUT; ENG CONT 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0101-0105	●						●
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0106-		●	●	●	●	●
104	03.463 NUT; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0106-		●	●	●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0106-			●
104	03.463 NUT; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0106-					●
104	03.463 NUT; ENG CONT 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0106-	●						●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0106-						●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11> 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9811-			●
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97120-004-0	01	1	9811-9903		●	●	●	●	●
108	03.463 BUSHING; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97120-004-0	01	1	9811-9903		●
108	03.463 BUSHING; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97120-004-0	01	1	9811-9903			●	●	●	●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11>	8-97120-004-0	01	1	9811-9903			●
108	03.463 BUSHING; ENG CONT	8-97120-004-0	01	1	9811-9903	●
108	03.463 BUSHING; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97120-004-0	01	1	9904-0012		●	●	●	●	●
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97120-004-0	01	1	9904-0012		●	●	●	●	●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11>	8-97120-004-0	01	1	9904-0012			●
108	03.463 BUSHING; ENG CONT	8-97120-004-0	01	1	9904-0012	●
108	03.463 BUSHING; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97120-004-0	01	1	0101-0105		●	●	●	●	●
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97120-004-0	01	1	0101-0105		●	●	●	●	●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11>	8-97120-004-0	01	1	0101-0105			●
108	03.463 BUSHING; ENG CONT	8-97120-004-0	01	1	0101-0105	●						●
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97120-004-0	01	1	0106-		●	●	●	●	●
108	03.463 BUSHING; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97120-004-0	01	1	0106-		●	●	●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11>	8-97120-004-0	01	1	0106-			●
108	03.463 BUSHING; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97120-004-0	01	1	0106-					●
108	03.463 BUSHING; ENG CONT	8-97120-004-0	01	1	0106-	●						●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97120-004-0	01	1	0106-						●
110	03.463 BOLT; BRKT TO HANGER FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9811-9903	●	●	●	●	●	●
110	03.463 BOLT; BRKT TO HANGER EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9904-0012	●	●	●	●	●	●
110	03.463 BOLT; BRKT TO HANGER EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0101-0105	●	●	●	●	●	●	●
110	03.463 BOLT; BRKT TO HANGER EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0106-		●	●	●	●	●	●
110	03.463 BOLT; BRKT TO HANGER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9811-	●	●	●	●	●	●
218	03.452 NUT; BRKT 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-9903		●
218	03.452 NUT; BRKT EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-9903	●		●	●	●	●
218	03.452 NUT; BRKT EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	9904-0012	●	●	●	●	●	●
218	03.452 NUT; BRKT EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0101-0105	●	●	●	●	●	●
218	03.452 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0101-0105							●
218	03.452 NUT; BRKT EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-		●	●	●	●	●	●
287	03.452 SWITCH ASM; MICRO,ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11> 03.463	8-97014-021-3	01	1	9811-			●
391	03.452 BRACKET; ENG CONT 4HE1 ENG(RLY) M/T MZZ6U(RSF) (B)	8-97351-929-0	01	1	0208-	●	●	●	●	●	●
391	03.452 BRACKET; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	9811-9903		●
391	03.452 BRACKET; ENG CONT EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	9811-9903	●		●	●	●	●
391	03.452 BRACKET; ENG CONT EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	9904-0012	●	●	●	●	●	●
391	03.452 BRACKET; ENG CONT EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	0101-0105	●	●	●	●	●	●
391	03.452 BRACKET; ENG CONT (A)	8-97172-882-0	01	1	0101-0105							●
391	03.452 BRACKET; ENG CONT EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	0106-		●	●	●	●	●	●
683	03.452 CAM; MICRO SWITCH 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11>	8-97014-020-2	01	1	9811-			●
684	03.452 BOLT; SHAFT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11>	8-94388-968-1	02	1	9811-			●
686	03.452 BOLT; MICRO SWITCH 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11> 03.463	8-97014-426-0	02	1	9811-			●
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97118-760-0	01	1	9811-9903		●	●	●	●	●
729	03.451 COLLAR; JOINT 4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97118-760-0	01	1	9811-9903		●
729	03.451 COLLAR; JOINT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97118-760-0	01	1	9811-9903			●	●	●	●
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11>	8-97118-760-0	01	1	9811-9903			●
729	03.451 COLLAR; JOINT	8-97118-760-0	01	1	9811-9903	●
729	03.451 COLLAR; JOINT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97118-760-0	01	1	9904-0012		●	●	●	●	●
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97118-760-0	01	1	9904-0012		●	●	●	●	●
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11>	8-97118-760-0	01	1	9904-0012			●
729	03.451 COLLAR; JOINT	8-97118-760-0	01	1	9904-0012	●
729	03.451 COLLAR; JOINT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97118-760-0	01	1	0101-0105		●	●	●	●	●
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97118-760-0	01	1	0101-0105		●	●	●	●	●
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11>	8-97118-760-0	01	1	0101-0105			●
729	03.451 COLLAR; JOINT	8-97118-760-0	01	1	0101-0105	●						●
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97118-760-0	01	1	0106-		●	●	●	●	●
729	03.451 COLLAR; JOINT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97118-760-0	01	1	0106-		●	●	●
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11>	8-97118-760-0	01	1	0106-			●
729	03.451 COLLAR; JOINT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97118-760-0	01	1	0106-					●
729	03.451 COLLAR; JOINT	8-97118-760-0	01	1	0106-	●						●
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97118-760-0	01	1	0106-						●

54 99 54 114 99 108 729 101 101 100 104 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
54	03.430 CABLE; ENG CONT (B) L=381	8-97352-082-0	01	1	0209-	●
54	03.430 CABLE; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	9811-9903	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	9904-0012	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	0101-0105	●	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	0106-		●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=384	8-97168-299-1	01	1	9811-0208	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=384	8-97168-299-1	01	1	0209-		●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=3078	8-97148-584-1	01	1	9811-9901	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=3078	8-97148-584-3	01	1	9902-	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2913	8-97167-698-1	01	1	9811-9903	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2913	8-97167-698-1	01	1	9904-0105	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2913	8-97167-698-2	01	1	0106-		●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2795	8-97205-846-1	01	1	9811-0105		●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2795	8-97205-846-2	01	1	0106-		●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) (A) L=2898	8-97167-702-0	01	1	9811-0012		●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2898	8-97167-702-0	01	1	9811-0012		●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2898	8-97167-702-0	01	1	0101-0105		●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) (A) L=2898	8-97167-702-0	01	1	0101-0105		●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2898	8-97167-702-1	01	1	0106-		●	●	●		●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) (A) L=2898	8-97167-702-1	01	1	0106-		●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=3078	8-97225-573-1	01	1	9902-						●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97118-729-0	01	1	9811-0012	●	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97118-729-0	01	1	0101-0105	●	●	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97118-729-0	01	1	0106-		●	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97167-871-3	01	1	9811-9901	●	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97167-871-3	01	1	9902-0105	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97167-871-3	01	1	0106-		●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11>	8-97118-730-0	01	1	9811-			●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF	8-97302-093-2	01	1	0106-	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97225-505-0	01	1	9902-						●
100	03.463 SHAFT ASM; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97118-737-0	01	1	9811-0012	●	●	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97118-737-0	01	1	0101-0105	●	●	●	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97118-737-0	01	1	0106-		●	●	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97167-870-2	01	1	9811-0105	●	●	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97167-870-2	01	1	0106-		●	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11>	8-97118-738-0	01	1	9811-			●
100	03.463 SHAFT ASM; ENG CONT	8-97302-094-0	01	1	0106-	●
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.276	8-94142-117-0	02	1	9811-9903		●	●	●	●	●
101	03.463 WASHER; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.276	8-94142-117-0	02	1	9811-9903		●
101	03.463 WASHER; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.276	8-94142-117-0	02	1	9811-9903			●	●	●	●
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11> 01.276	8-94142-117-0	02	1	9811-9903			●
101	03.463 WASHER; ENG CONT 01.276	8-94142-117-0	02	1	9811-9903	●
101	03.463 WASHER; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.276	8-94142-117-0	02	1	9904-0012		●	●	●	●	●
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.276	8-94142-117-0	02	1	9904-0012		●	●	●	●	●
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11> 01.276	8-94142-117-0	02	1	9904-0012			●
101	03.463 WASHER; ENG CONT 01.276	8-94142-117-0	02	1	9904-0012	●
101	03.463 WASHER; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.276	8-94142-117-0	02	1	0101-0105		●	●	●	●	●
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.276	8-94142-117-0	02	1	0101-0105		●	●	●	●	●
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11> 01.276	8-94142-117-0	02	1	0101-0105			●
101	03.463 WASHER; ENG CONT 01.276	8-94142-117-0	02	1	0101-0105	●						●
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.276	8-94142-117-0	02	1	0106-		●	●	●	●	●
101	03.463 WASHER; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.276	8-94142-117-0	02	1	0106-		●	●	●
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11> 01.276	8-94142-117-0	02	1	0106-			●
101	03.463 WASHER; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.276	8-94142-117-0	02	1	0106-					●
101	03.463 WASHER; ENG CONT 01.276	8-94142-117-0	02	1	0106-	●						●
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.276	8-94142-117-0	02	1	0106-						●
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9811-9903		●	●	●	●	●
104	03.463 NUT; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9811-9903		●
104	03.463 NUT; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9811-9903			●	●	●	●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9811-9903			●
104	03.463 NUT; ENG CONT 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9811-9903	●
104	03.463 NUT; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9904-0012		●	●	●	●	●
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9904-0012		●	●	●	●	●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9904-0012			●
104	03.463 NUT; ENG CONT 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9904-0012	●
104	03.463 NUT; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0101-0105		●	●	●	●	●
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0101-0105		●	●	●	●	●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0101-0105			●
104	03.463 NUT; ENG CONT 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0101-0105	●						●
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0106-		●	●	●	●	●
104	03.463 NUT; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0106-		●	●	●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0106-			●
104	03.463 NUT; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0106-					●
104	03.463 NUT; ENG CONT 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0106-	●						●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0106-						●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11> 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9811-			●
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97120-004-0	01	1	9811-9903		●	●	●	●	●
108	03.463 BUSHING; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97120-004-0	01	1	9811-9903		●
108	03.463 BUSHING; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97120-004-0	01	1	9811-9903			●	●	●	●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11>	8-97120-004-0	01	1	9811-9903			●
108	03.463 BUSHING; ENG CONT	8-97120-004-0	01	1	9811-9903	●
108	03.463 BUSHING; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97120-004-0	01	1	9904-0012		●	●	●	●	●
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97120-004-0	01	1	9904-0012		●	●	●	●	●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11>	8-97120-004-0	01	1	9904-0012			●
108	03.463 BUSHING; ENG CONT	8-97120-004-0	01	1	9904-0012	●
108	03.463 BUSHING; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97120-004-0	01	1	0101-0105		●	●	●	●	●
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97120-004-0	01	1	0101-0105		●	●	●	●	●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11>	8-97120-004-0	01	1	0101-0105			●
108	03.463 BUSHING; ENG CONT	8-97120-004-0	01	1	0101-0105	●						●
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97120-004-0	01	1	0106-		●	●	●	●	●
108	03.463 BUSHING; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97120-004-0	01	1	0106-		●	●	●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11>	8-97120-004-0	01	1	0106-			●
108	03.463 BUSHING; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97120-004-0	01	1	0106-					●
108	03.463 BUSHING; ENG CONT	8-97120-004-0	01	1	0106-	●						●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97120-004-0	01	1	0106-						●
110	03.463 BOLT; BRKT TO HANGER FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9811-9903	●	●	●	●	●	●
110	03.463 BOLT; BRKT TO HANGER EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9904-0012	●	●	●	●	●	●
110	03.463 BOLT; BRKT TO HANGER EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0101-0105	●	●	●	●	●	●	●
110	03.463 BOLT; BRKT TO HANGER EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0106-		●	●	●	●	●	●
110	03.463 BOLT; BRKT TO HANGER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9811-	●	●	●	●	●	●
114	03.483 CLIP; HARNESS CONNECTOR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 ID=7-10	8-94472-578-0	01	1	9811-9908		●	●	●	●	●
114	03.483 CLIP; HARNESS CONNECTOR CHARGE AIR COOLER<6PL> 02.559 ID=7-10	8-94472-578-0	01	1	9811-9908	●
114	03.483 CLIP; HARNESS CONNECTOR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 ID=7-10	8-94472-578-0	01	1	9909-	●	●	●	●	●	●
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97118-760-0	01	1	9811-9903		●	●	●	●	●
729	03.451 COLLAR; JOINT 4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97118-760-0	01	1	9811-9903		●
729	03.451 COLLAR; JOINT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97118-760-0	01	1	9811-9903			●	●	●	●
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11>	8-97118-760-0	01	1	9811-9903			●
729	03.451 COLLAR; JOINT	8-97118-760-0	01	1	9811-9903	●
729	03.451 COLLAR; JOINT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97118-760-0	01	1	9904-0012		●	●	●	●	●
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97118-760-0	01	1	9904-0012		●	●	●	●	●
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11>	8-97118-760-0	01	1	9904-0012			●
729	03.451 COLLAR; JOINT	8-97118-760-0	01	1	9904-0012	●
729	03.451 COLLAR; JOINT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97118-760-0	01	1	0101-0105		●	●	●	●	●
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97118-760-0	01	1	0101-0105		●	●	●	●	●
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11>	8-97118-760-0	01	1	0101-0105			●
729	03.451 COLLAR; JOINT	8-97118-760-0	01	1	0101-0105	●						●
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97118-760-0	01	1	0106-		●	●	●	●	●
729	03.451 COLLAR; JOINT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97118-760-0	01	1	0106-		●	●	●
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. FLOOR REMOTE SHIFT<M11>	8-97118-760-0	01	1	0106-			●
729	03.451 COLLAR; JOINT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97118-760-0	01	1	0106-					●
729	03.451 COLLAR; JOINT	8-97118-760-0	01	1	0106-	●						●
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97118-760-0	01	1	0106-						●

68 70 80 83 89 67 124 35 81 158 124 90 124 124 87 80 232 80 39 14 46 230 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	9811-	●	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	8-97857-401-1	01	1	9811-0012	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	8-97302-305-0	01	1	0101-0105	●	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	8-97302-305-0	01	1	0106-0207	●	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	8-97302-305-0	01	1	0208-	●	●	●	●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	9811-	●	●	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	9811-	●	●	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	9811-	●	●	●	●	●	●	●
67	03.480 CABLE ASM; IDLE CONT L=439	8-97853-058-1	01	1	9811-	●	●	●	●	●	●	●
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	9811-	●	●	●	●	●	●	●
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	9811-	●	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ) (A)	8-97892-381-2	01	1	9811-		●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	9811-	●	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC) (A)	8-97853-057-9	01	1	9811-0012		●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97853-057-9	01	1	9811-0012	●
80	03.452 LINK ASM; ENG CONT M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC) (A)	8-97853-057-9	01	1	0101-0105	●	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT M/T MXA5R(RMT),M/T MBP6P(RNC) (A)	8-97853-057-9	01	1	0106-0207	●	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MZZ6U(RSF) (A)	8-97853-057-9	01	1	0208-	●	●	●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ) (B)	8-97857-168-0	01	1	9811-		●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) (A)	8-97853-205-1	01	1	9811-0012	●	●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) (A)	8-97853-205-1	01	1	0101-0105	●	●	●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) (A)	8-97853-205-1	01	1	0106-0207	●	●	●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) (A)	8-97853-205-1	01	1	0208-	●	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ)	8-97853-369-5	01	1	9811-		●	●	●
83	03.452 BRACKET; CONT LINK M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC)	8-97853-201-4	01	1	9811-0012		●	●	●	●	●
83	03.452 BRACKET; CONT LINK	8-97853-201-4	01	1	9811-0012	●
83	03.452 BRACKET; CONT LINK M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC)	8-97853-201-4	01	1	0101-0105	●	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK M/T MXA5R(RMT),M/T MBP6P(RNC)	8-97853-201-4	01	1	0106-0207	●	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MZZ6U(RSF)	8-97853-201-4	01	1	0208-	●	●	●	●	●	●	●
87	03.454 LINK; ENG CONT A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	8-97853-204-1	01	1	9811-0012	●	●	●	●	●	●
87	03.454 LINK; ENG CONT A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	8-97853-204-1	01	1	0101-0105	●	●	●	●	●	●	●
87	03.454 LINK; ENG CONT A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	8-97853-204-1	01	1	0106-0207	●	●	●	●	●	●	●
87	03.454 LINK; ENG CONT A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	8-97853-204-1	01	1	0208-	●	●	●	●	●	●	●
89	03.454 LEVER; RELAY A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ)	8-97868-043-0	01	1	9811-		●	●	●
89	03.454 LEVER; RELAY M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC)	8-97868-042-0	01	1	9811-0012		●	●	●	●	●
89	03.454 LEVER; RELAY	8-97868-042-0	01	1	9811-0012	●
89	03.454 LEVER; RELAY M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC)	8-97868-042-0	01	1	0101-0105	●	●	●	●	●	●	●
89	03.454 LEVER; RELAY M/T MXA5R(RMT),M/T MBP6P(RNC)	8-97868-042-0	01	1	0106-0207	●	●	●	●	●	●	●
89	03.454 LEVER; RELAY M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MZZ6U(RSF)	8-97868-042-0	01	1	0208-	●	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ)	8-97868-041-0	01	1	9811-		●	●	●
90	03.454 LEVER; RELAY,ENG CONT M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC)	8-97868-039-0	01	1	9811-0012		●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT	8-97868-039-0	01	1	9811-0012	●
90	03.454 LEVER; RELAY,ENG CONT M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC)	8-97868-039-0	01	1	0101-0105	●	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT M/T MXA5R(RMT),M/T MBP6P(RNC)	8-97868-039-0	01	1	0106-0207	●	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MZZ6U(RSF)	8-97868-039-0	01	1	0208-	●	●	●	●	●	●	●
124	03.463 NUT; LEVER A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ) ID=4.9 PUSH NUT	8-94279-042-0	04	1	9811-		●	●	●
124	03.463 NUT; LEVER A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	02	1	9811-0012	●	●	●	●	●	●
124	03.463 NUT; LEVER A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	02	1	0101-0105	●	●	●	●	●	●	●
124	03.463 NUT; LEVER A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	02	1	0106-0207	●	●	●	●	●	●	●
124	03.463 NUT; LEVER A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	02	1	0208-	●	●	●	●	●	●	●
124	03.463 NUT; LEVER M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC) ID=4.9 PUSH NUT	8-94279-042-0	02	1	9811-0012		●	●	●	●	●
124	03.463 NUT; LEVER ID=4.9 PUSH NUT	8-94279-042-0	02	1	9811-0012	●
124	03.463 NUT; LEVER M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0101-0105	●	●	●	●	●	●	●
124	03.463 NUT; LEVER M/T MXA5R(RMT),M/T MBP6P(RNC) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0106-0207	●	●	●	●	●	●	●
124	03.463 NUT; LEVER M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MZZ6U(RSF) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0208-	●	●	●	●	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	9811-	●	●	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	9811-	●	●	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	9811-	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
