◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50817 - NPR/NQR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-87 - COUPLING; INJECTION PUMP ▶
0-87 — COUPLING; INJECTION PUMP (#22115) — 32 parça

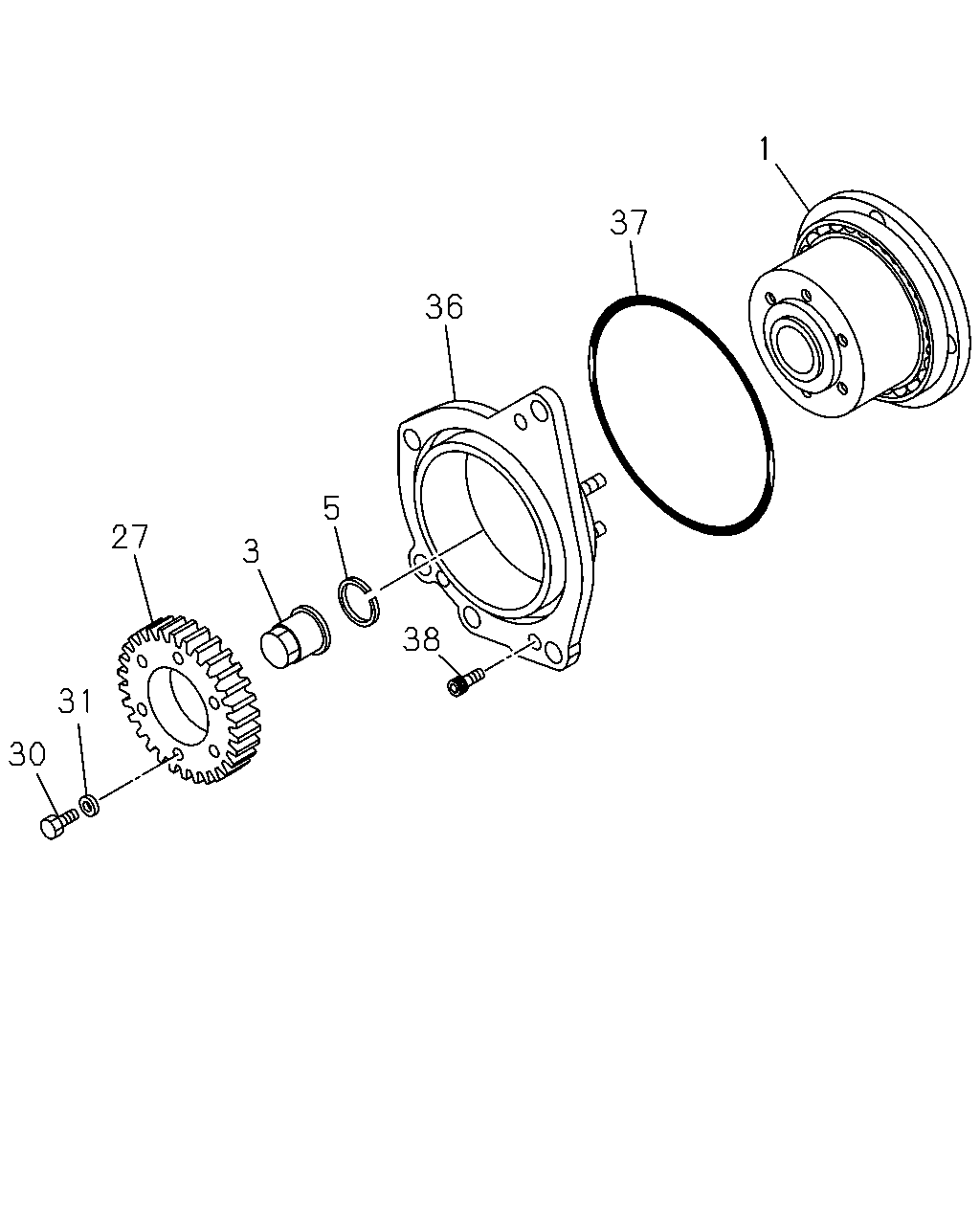

çizim 46766
1 37 36 5 27 3 38 31 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.340 COUPLING; INJ PUMP DRIVE
CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97202-359-4 01 1 9811-0211 ●
1 03.340 COUPLING; INJ PUMP DRIVE
M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 		8-97367-802-0 01 1 0212- ●
1 03.340 COUPLING; INJ PUMP DRIVE
M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> 		8-97367-802-0 01 1 0212- ●
1 03.340 COUPLING; INJ PUMP DRIVE
VOLTAGE 24V<7AE> CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>,ENGINE POWER N-SPEC(7QV),NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97202-358-4 01 1 9811-0003 ●
1 03.340 COUPLING; INJ PUMP DRIVE
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>,ENGINE POWER N-SPEC(7QV) 		8-97202-358-4 01 1 0004-0011 ●
1 03.340 COUPLING; INJ PUMP DRIVE
HEATER & DEFROSTER(C41) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> HYDRO BRAKE BOOSTER<7QQ> EXC. ENGINE POWER N-SPEC(7QV) 		8-97202-358-4 01 1 0004-0011 ●
1 03.340 COUPLING; INJ PUMP DRIVE
CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97202-358-4 01 1 0012-0211 ●
1 03.340 COUPLING; INJ PUMP DRIVE
ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60), HIGH ALTITUDE COMPENSATOR(EE2) 		8-97202-358-4 01 1 0212- ●
3 03.340 NUT; COUPLING FIX,INJ PUMP
CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		1-15749-144-0 01 1 9811-9903 ●
3 03.340 NUT; COUPLING FIX,INJ PUMP
CHARGE AIR COOLER<6PL> 		1-15749-144-0 01 1 9904- ●
5 03.340 WASHER; COUPLING FIX,INJ PUMP
CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		1-15749-145-0 01 1 9811-9903 ●
5 03.340 WASHER; COUPLING FIX,INJ PUMP
CHARGE AIR COOLER<6PL> 		1-15749-145-0 01 1 9904- ●
27 03.340 GEAR; COUPLING
CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97212-190-0 01 1 9811-0211 ●
27 03.340 GEAR; COUPLING
M/T MXA5R(RMT),M/T MBP6P(RNC) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> ENGINE POWER N-SPEC(7QV) EXC. EURO3 SPECIFICATION<NT3>,HYDRO BRAKE BOOSTER<7QQ>,NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97367-803-0 01 1 0212- ●
27 03.340 GEAR; COUPLING
M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EURO2 SPECIFICATION<7AF> EXC. ENGINE POWER N-SPEC(7QV) 		8-97367-803-0 01 1 0212- ●
27 03.340 GEAR; COUPLING
VOLTAGE 24V<7AE> CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>,ENGINE POWER N-SPEC(7QV),NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97212-191-0 01 1 9811-0003 ●
27 03.340 GEAR; COUPLING
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>,ENGINE POWER N-SPEC(7QV) 		8-97212-191-0 01 1 0004-0011 ●
27 03.340 GEAR; COUPLING
HEATER & DEFROSTER(C41) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> HYDRO BRAKE BOOSTER<7QQ> EXC. ENGINE POWER N-SPEC(7QV) 		8-97212-191-0 01 1 0004-0011 ●
27 03.340 GEAR; COUPLING
CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97212-191-0 01 1 0012-0211 ●
27 03.340 GEAR; COUPLING
M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> EXC. EURO2 SPECIFICATION<7AF>,ENGINE POWER N-SPEC(7QV),NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97212-191-0 01 1 0212- ●
27 03.340 GEAR; COUPLING
M/T MBP6P(RNC) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 		8-97212-191-0 01 1 0212- ●
27 03.340 GEAR; COUPLING
M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION<7AF>,ENGINE POWER N-SPEC(7QV),NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97212-191-0 01 1 0212- ●
30 03.340 BOLT; GEAR TO COUPLING
CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97211-798-0 06 1 9811-9903 ●
30 03.340 BOLT; GEAR TO COUPLING
CHARGE AIR COOLER<6PL> 		8-97211-798-0 06 1 9904- ●
31 03.340 WASHER; PL,GEAR TO COUPLING
CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97211-797-0 06 1 9811-9903 ●
31 03.340 WASHER; PL,GEAR TO COUPLING
CHARGE AIR COOLER<6PL> 		8-97211-797-0 06 1 9904- ●
36 03.340 COVER; COUPLING
CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97202-360-2 01 1 9811-9903 ●
36 03.340 COVER; COUPLING
CHARGE AIR COOLER<6PL> 		8-97202-360-2 01 1 9904- ●
37 03.340 GASKET; COUPLING
CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97201-279-0 01 1 9811-9903 ●
37 03.340 GASKET; COUPLING
CHARGE AIR COOLER<6PL> 		8-97201-279-0 01 1 9904- ●
38 03.340 BOLT; COVER,COUPLING
CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		1-09054-035-0 03 1 9811-9903 ●
38 03.340 BOLT; COVER,COUPLING
CHARGE AIR COOLER<6PL> 		1-09054-035-0 03 1 9904- ●
