3-08 — PARKING BRAKE (#2211) — 94 parça

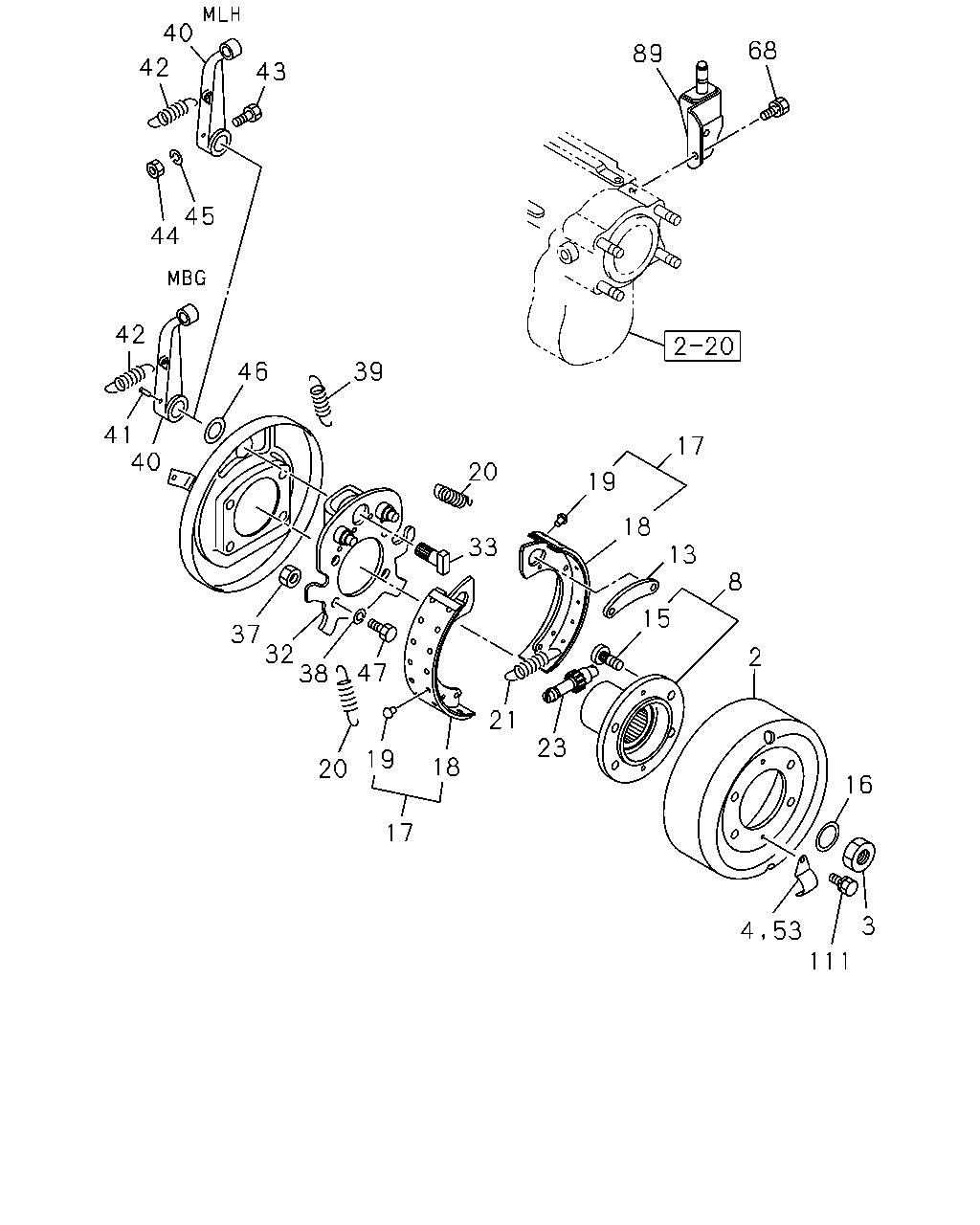

40 68 89 42 43 45 44 42 46 39 41 40 17 20 19 18 33 13 8 15 37 32 38 2 47 21 23 19 18 20 16 17 3 53 111 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	DRUM; PARKING BRK	1-46211-020-0	01	1	0204-	●	●	●
2	DRUM; PARKING BRK	1-46211-020-0	01	1	9101-0203	●	●	●	●	●	●
2	DRUM; PARKING BRK	1-46211-023-0	01	1	9101-							●
3	NUT; LK M30 FLANGE	1-09449-066-1	01	1	0204-	●	●	●
3	NUT; LK M30 FLANGE	1-09449-066-1	01	1	9101-0203	●	●	●	●	●	●
3	NUT; LK M36 FLANGE	1-09449-063-0	01	1	9101-							●
4	COVER; ADJ HOLE	1-46219-018-0	02	1	0204-	●	●	●
4	COVER; ADJ HOLE	1-46219-018-0	02	1	9101-0203	●	●	●	●	●	●
8	FLANGE; PARKING BRK	1-37243-245-0	01	1	0204-	●	●	●
8	FLANGE; PARKING BRK	1-37243-245-0	01	1	9101-0203	●	●	●	●	●	●
8	FLANGE; PARKING BRK	1-37243-107-1	01	1	9101-							●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	0412-	●	●	●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	0204-0411	●	●	●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	9101-0203	●	●	●	●	●	●
13	BRACE; PARKING BRK	9-46239-002-0	01	1	9101-							●
15	BOLT; FLANGE M14X43 KNURL	1-09046-003-0	04	1	0204-	●	●	●
15	BOLT; FLANGE M14X43 KNURL	1-09046-003-0	04	1	9101-0203	●	●	●	●	●	●
15	BOLT; FLANGE M14X53 KNURL	1-09046-008-0	04	1	9101-							●
15	BOLT; FLANGE M8X20 W/LK WASHER	9-01900-820-0	02	1	9101-9204							●
15	BOLT; FLANGE M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-							●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	0204-	●	●	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	9101-0203	●	●	●	●	●	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9101-							●
17	SHOE; PARKING BRK	1-46220-029-0	02	1	0412-	●	●	●
17	SHOE; PARKING BRK	1-46220-024-0	02	1	0301-0411	●	●	●
17	SHOE; PARKING BRK	1-46220-012-0	02	1	9101-9411	●	●	●	●	●	●
17	SHOE; PARKING BRK	1-46220-024-0	02	1	9412-0203	●	●	●	●	●	●
17	SHOE; PARKING BRK	1-46220-009-0	02	1	9101-9410							●
17	SHOE; PARKING BRK	1-46220-022-0	02	1	9411-							●
18	LINING; BRK,PARKING	1-46225-006-0	02	1	9101-9410							●
18	LINING; BRK,PARKING	1-46225-023-0	02	1	9411-							●
19	RIVET; LINING,PARKING BRK	1-09732-012-0	32	1	9101-							●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	0412-	●	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	0301-0411	●	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	9101-0203	●	●	●	●	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	9101-							●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	0412-	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	0301-0411	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	9101-0203	●	●	●	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	9101-							●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	0412-	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	0301-0411	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	9101-0203	●	●	●	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	9101-							●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	0412-	●	●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	0301-0411	●	●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	9101-0203	●	●	●	●	●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-033-0	01	1	9101-							●
33	SHAFT; CAM,PARKING BRK	1-46251-070-0	01	1	0412-	●	●	●
33	SHAFT; CAM,PARKING BRK	1-46251-002-0	01	1	0301-0411	●	●	●
33	SHAFT; CAM,PARKING BRK	1-46251-002-0	01	1	9101-0203	●	●	●	●	●	●
33	SHAFT; CAM,PARKING BRK	9-46251-069-0	01	1	9101-							●
37	NUT; SUPPORT PLATE M14 FLANGE	1-09440-048-0	01	1	0204-	●	●	●
37	NUT; SUPPORT PLATE M14	9-99111-514-0	01	1	9101-9207	●	●	●	●	●	●
37	NUT; SUPPORT PLATE M14 FLANGE	1-09440-047-0	01	1	9208-9310	●	●	●	●	●	●
37	NUT; SUPPORT PLATE M14 FLANGE	1-09440-048-0	01	1	9311-9311	●	●	●	●	●	●
37	NUT; SUPPORT PLATE M14 FLANGE	1-09440-048-0	01	1	9312-0203	●	●	●	●	●	●
37	NUT; SUPPORT PLATE M16	9-99110-516-0	04	1	9101-							●
38	WASHER; LK,SUPPORT PLATE ID=14.2	9-09150-514-0	03	1	0204-	●	●	●
38	WASHER; LK,SUPPORT PLATE ID=14.2	9-09150-514-0	04	1	9101-9207	●	●	●	●	●	●
38	WASHER; LK,SUPPORT PLATE ID=14.2	9-09150-514-0	03	1	9208-0203	●	●	●	●	●	●
38	WASHER; LK,SUPPORT PLATE ID=16.2	9-09150-516-0	04	1	9101-							●
39	COVER; DUST,PARKING BRK	1-46213-019-0	01	1	0412-	●	●	●
39	COVER; DUST,PARKING BRK	1-46213-019-0	01	1	0301-0411	●	●	●
39	COVER; DUST,PARKING BRK	1-46213-019-0	01	1	9101-0203	●	●	●	●	●	●
39	COVER; DUST,PARKING BRK	1-46213-026-0	01	1	9101-							●
40	LEVER; CM/SHF,PARKING BRK	1-46252-043-0	01	1	0412-	●	●	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-003-0	01	1	0204-0411	●	●	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-003-0	01	1	9101-0203	●	●	●	●	●	●
40	LEVER; CM/SHF,PARKING BRK	9-46252-067-0	01	1	9101-							●
41	PIN; KNOCK,LEVER	9-09878-594-0	01	1	0412-	●	●	●
41	PIN; KNOCK,LEVER	9-09878-594-0	01	1	0204-0411	●	●	●
41	PIN; KNOCK,LEVER	9-09878-594-0	01	1	9101-0203	●	●	●	●	●	●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	0412-	●	●	●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	0204-0411	●	●	●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	9101-0203	●	●	●	●	●	●
42	SPRING; RETURN,LEVER	9-09942-363-0	01	1	9101-							●
43	BOLT; LEVER TO CM/SHF	9-01041-045-0	01	1	9101-9204							●
43	BOLT; LEVER TO CM/SHF	0-10811-045-0	01	1	9205-							●
44	NUT; LEVER TO CM/SHF	9-09111-410-0	01	1	9101-							●
45	WASHER; LK,LEVER TO CM/SHF ID=10.2	9-09150-510-0	01	1	9101-							●
46	WASHER; LEVER	9-09855-367-0	01	1	0412-	●	●	●
46	WASHER; LEVER	9-09855-367-0	01	1	0204-0411	●	●	●
46	WASHER; LEVER	9-09855-367-0	01	1	9101-0203	●	●	●	●	●	●
46	WASHER; LEVER	9-09855-362-0	01	1	9101-							●
47	BOLT; SUPPORT PLATE M14X32	0-23801-432-0	03	1	0204-	●	●	●
47	BOLT; SUPPORT PLATE M14X32	0-23801-432-0	03	1	9101-0203	●	●	●	●	●	●
53	COVER; DUST,PARKING BRK	1-46219-030-0	02	1	9101-							●
68	BOLT; BRKT,PARKING BRK CONT M10X20 W/LK WASHER	0-50051-020-0	03	1	9101-9205							●
68	BOLT; BRKT,PARKING BRK CONT M10X16 FLANGE	0-28181-016-0	03	1	9206-							●
89	BRACKET; PARKING BRK CONT	1-46147-114-1	01	1	9101-							●
111	BOLT; COVER,CHECK HOLE M8X18 W/LK WASHER	0-50040-818-0	02	1	0204-	●	●	●
111	BOLT; COVER,CHECK HOLE M8X18 W/LK WASHER	9-01900-818-0	02	1	9101-9204	●	●	●	●	●	●
111	BOLT; COVER,CHECK HOLE M8X18 W/LK WASHER	0-50040-818-0	02	1	9205-0203	●	●	●	●	●	●
