0-84D — FEED PUMP; INJECTION PUMP (#22109) — 65 parça

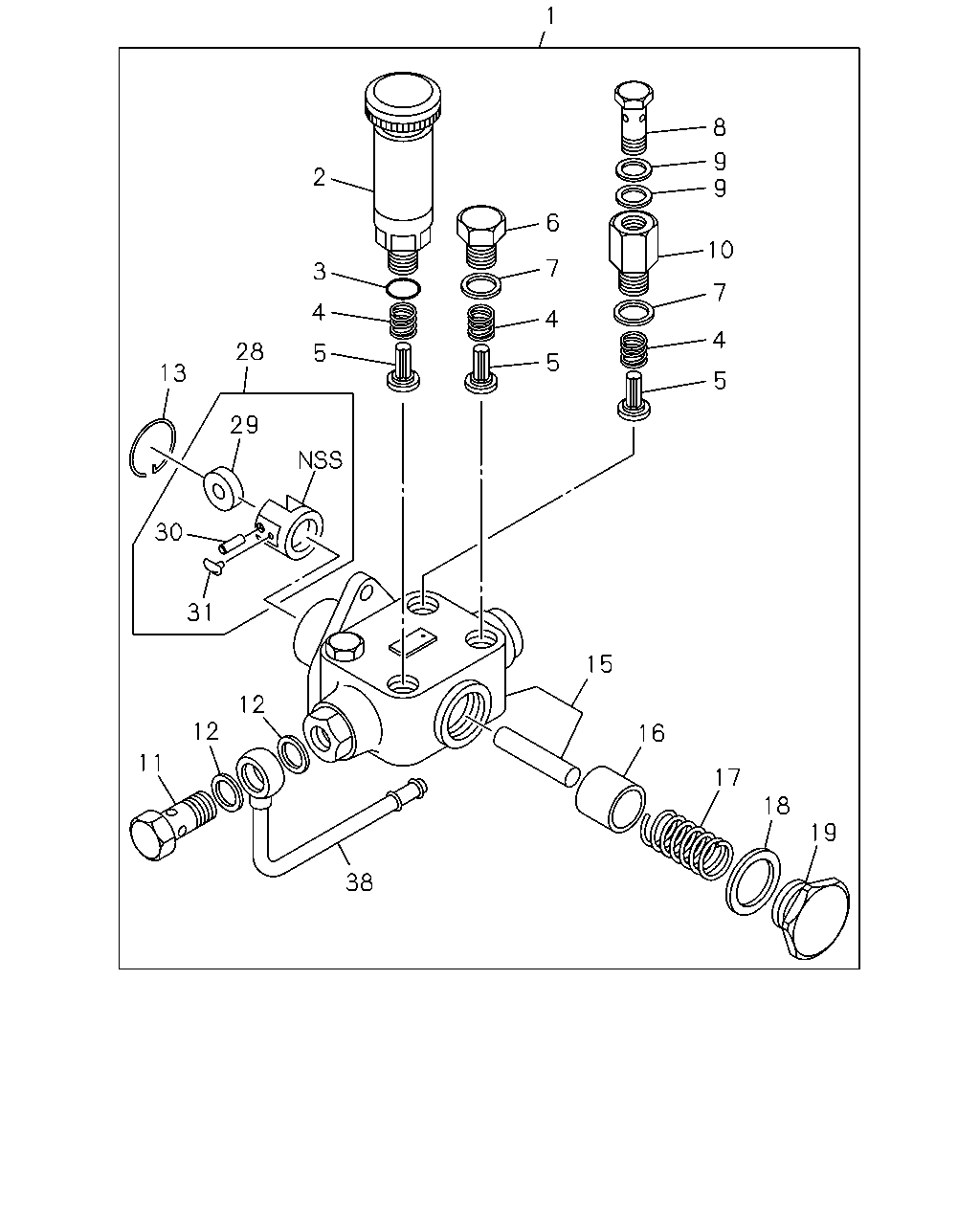

1 8 9 9 2 6 10 7 3 7 4 4 4 28 5 5 13 5 29 30 31 15 12 12 16 11 17 18 19 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.900 PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 8-97170-507-1, 97170507	8-97117-944-0	01	1	-
1	03.900 PUMP ASM; FUEL FEED,INJ PUMP ASM PART: C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	8-97185-289-0	01	1	-
1	03.900 PUMP ASM; FUEL FEED,INJ PUMP ASM PART: B = 8-97212-104-0, 97212104	8-97224-396-0	01	1	-
2	03.910 PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104, C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	1-15761-006-0	01	1	-
3	03.904 GASKET; PRIMING PUMP,FUEL FEED P ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104, C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	1-19623-016-0	01	1	-
4	03.901 SPRING; VLV,FUEL FEED PUMP 03.927 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	9-81351-702-0	02	1	-
4	03.901 SPRING; VLV,FUEL FEED PUMP 03.927 ASM PART: C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	9-81351-702-0	04	1	-
5	03.927 VALVE; FUEL FEED PUMP ASM PART: C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	1-15755-002-0	04	1	-
5	03.927 VALVE; FUEL FEED PUMP ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-15755-002-0	02	1	-
6	03.901 PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	1-15759-009-0	02	1	-
7	03.904 GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-19623-016-0	01	1	-
7	03.904 GASKET; PLUG,FUEL FEED PUMP ASM PART: C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	9-81355-031-0	03	1	-
8	03.162 BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	1-15759-051-0	01	1	-
9	03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 03.163, ID=14.2 OD=19.2 ASM PART: C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	1-09630-085-0	02	1	-
10	03.901 ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-15759-003-0	01	1	-
10	03.901 ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	1-15759-052-0	01	1	-
11	03.162 BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 8-97170-507-1, 97170507	1-15759-029-0	01	1	-
11	03.162 BOLT; EYE,FUEL INL,FEED PUMP M14X30 ASM PART: C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	8-97203-957-0	01	1	-
12	03.162 GASKET; EYE BOLT,INL,FUEL FEED P 03.163, ID=14.2 OD=19.2 ASM PART: A = 8-97170-507-1, 97170507, C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	1-09630-085-0	02	1	-
13	03.901 RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	9-81355-062-0	01	1	-
15	03.900 HOUSING; FUEL FEED PUMP ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-97115-989-0	01	1	-
15	03.900 HOUSING; FUEL FEED PUMP ASM PART: C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	8-97201-263-0	01	1	-
16	03.925 PISTON; FUEL FEED PUMP ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-15752-001-0	01	1	-
16	03.925 PISTON; FUEL FEED PUMP ASM PART: C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	9-81351-205-0	01	1	-
17	03.901 SPRING; PISTON,FUEL FEED PUMP ASM PART: C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	8-97201-264-0	01	1	-
17	03.901 SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	9-81351-302-0	01	1	-
18	03.904 GASKET; PISTON PLUG,FUEL FEED PU ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-15759-042-0	01	1	-
18	03.904 GASKET; PISTON PLUG,FUEL FEED PU ASM PART: C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	9-81355-035-0	01	1	-
19	03.901 PLUG; PISTON SPRING,FUEL FEED PU ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104, C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	8-94171-185-0	01	1	-
28	03.935 TAPPET ASM; FUEL FEED PUMP ASM PART: C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	8-97201-265-0	01	1	-
29	03.901 ROLLER; TAPPET,FUEL FEED PUMP ASM PART: C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	8-97212-776-0	01	1	-
30	03.901 PIN; TAPPET ROLLER,FUEL FEED PUM ASM PART: C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	1-15759-056-0	01	1	-
31	03.901 GUIDE; TAPPET,FUEL FEED PUMP ASM PART: C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	1-15759-057-0	02	1	-
38	03.163 PIPE; FEED PUMP ASM PART: A = 8-97170-507-1, 97170507	8-97093-411-0	01	1	-
38	03.163 PIPE; FEED PUMP ASM PART: C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	8-97185-288-0	01	1	-

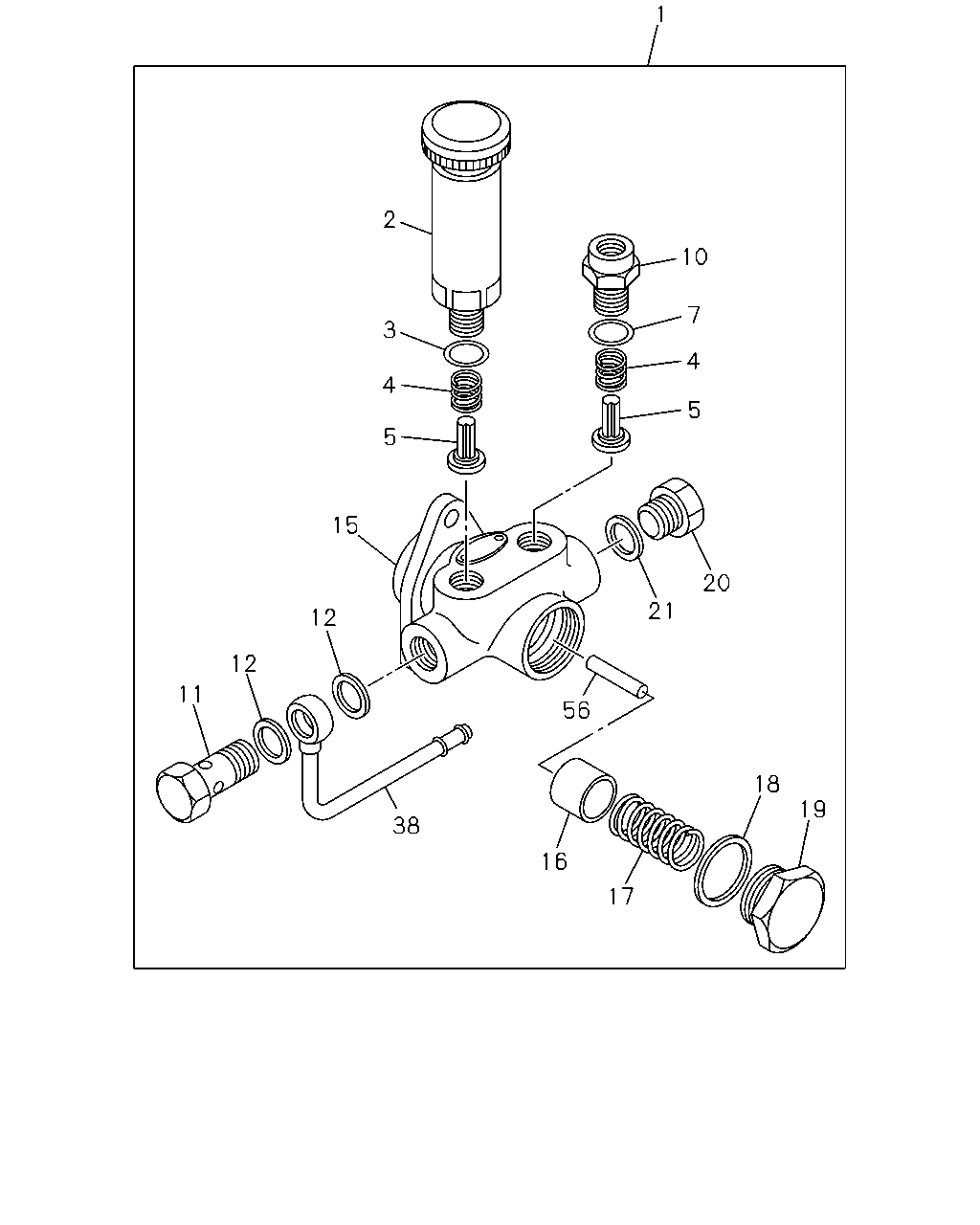

1 2 10 7 3 4 4 5 5 15 20 21 12 12 11 56 18 19 38 16 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.900 PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 8-97170-507-1, 97170507	8-97117-944-0	01	1	-
1	03.900 PUMP ASM; FUEL FEED,INJ PUMP ASM PART: C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	8-97185-289-0	01	1	-
1	03.900 PUMP ASM; FUEL FEED,INJ PUMP ASM PART: B = 8-97212-104-0, 97212104	8-97224-396-0	01	1	-
2	03.910 PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104, C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	1-15761-006-0	01	1	-
3	03.904 GASKET; PRIMING PUMP,FUEL FEED P ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104, C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	1-19623-016-0	01	1	-
4	03.901 SPRING; VLV,FUEL FEED PUMP 03.927 ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	9-81351-702-0	02	1	-
4	03.901 SPRING; VLV,FUEL FEED PUMP 03.927 ASM PART: C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	9-81351-702-0	04	1	-
5	03.927 VALVE; FUEL FEED PUMP ASM PART: C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	1-15755-002-0	04	1	-
5	03.927 VALVE; FUEL FEED PUMP ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-15755-002-0	02	1	-
7	03.904 GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-19623-016-0	01	1	-
7	03.904 GASKET; PLUG,FUEL FEED PUMP ASM PART: C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	9-81355-031-0	03	1	-
10	03.901 ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-15759-003-0	01	1	-
10	03.901 ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	1-15759-052-0	01	1	-
11	03.162 BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 8-97170-507-1, 97170507	1-15759-029-0	01	1	-
11	03.162 BOLT; EYE,FUEL INL,FEED PUMP M14X30 ASM PART: C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	8-97203-957-0	01	1	-
12	03.162 GASKET; EYE BOLT,INL,FUEL FEED P 03.163, ID=14.2 OD=19.2 ASM PART: A = 8-97170-507-1, 97170507, C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	1-09630-085-0	02	1	-
15	03.900 HOUSING; FUEL FEED PUMP ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-97115-989-0	01	1	-
15	03.900 HOUSING; FUEL FEED PUMP ASM PART: C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	8-97201-263-0	01	1	-
16	03.925 PISTON; FUEL FEED PUMP ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-15752-001-0	01	1	-
16	03.925 PISTON; FUEL FEED PUMP ASM PART: C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	9-81351-205-0	01	1	-
17	03.901 SPRING; PISTON,FUEL FEED PUMP ASM PART: C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	8-97201-264-0	01	1	-
17	03.901 SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	9-81351-302-0	01	1	-
18	03.904 GASKET; PISTON PLUG,FUEL FEED PU ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-15759-042-0	01	1	-
18	03.904 GASKET; PISTON PLUG,FUEL FEED PU ASM PART: C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	9-81355-035-0	01	1	-
19	03.901 PLUG; PISTON SPRING,FUEL FEED PU ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104, C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	8-94171-185-0	01	1	-
20	03.901 PLUG; HSG,FUEL FEED PUMP ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-15759-004-0	01	1	-
21	03.904 GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	1-15759-007-0	01	1	-
38	03.163 PIPE; FEED PUMP ASM PART: A = 8-97170-507-1, 97170507	8-97093-411-0	01	1	-
38	03.163 PIPE; FEED PUMP ASM PART: C = 8-97212-185-1, 97212185, D = 8-97212-186-1, 97212186, E = 8-97212-188-1, 97212188, F = 8-97212-189-1, 97212189, G = 8-97225-432-2, 97225432	8-97185-288-0	01	1	-
56	03.901 PUSH ROD ASM PART: A = 8-97170-507-1, 97170507, B = 8-97212-104-0, 97212104	8-97115-990-0	01	1	-
