0-84A — FEED PUMP; INJECTION PUMP (#22106) — 56 parça

1 8 9 9 10 6 7 7 28 13 4 4 5 29 5 30 31 15 16 17 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.900 PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505	8-97117-944-0	01	1	-
1	03.900 PUMP ASM; FUEL FEED,INJ PUMP ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704	8-97214-533-1	01	1	-
1	03.900 PUMP ASM; FUEL FEED,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	8-97224-396-0	01	1	-
4	03.901 SPRING; VLV,FUEL FEED PUMP 03.927 ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	9-81351-702-0	02	1	-
4	03.901 SPRING; VLV,FUEL FEED PUMP 03.927 ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704	9-81351-702-0	04	1	-
5	03.927 VALVE; FUEL FEED PUMP ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704	1-15755-002-0	04	1	-
5	03.927 VALVE; FUEL FEED PUMP ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	1-15755-002-0	02	1	-
6	03.901 PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704	1-15759-066-0	03	1	-
7	03.904 GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	1-19623-016-0	01	1	-
7	03.904 GASKET; PLUG,FUEL FEED PUMP ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704	1-19623-016-0	04	1	-
8	03.162 BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704	1-15759-011-0	01	1	-
9	03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 03.163, ID=14.2 OD=19.2 ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704	1-09630-085-0	02	1	-
10	03.901 ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	1-15759-003-0	01	1	-
10	03.901 ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704	1-15759-067-0	01	1	-
13	03.901 RING; SNAP,TAPPET,FUEL FEED PUMP 03.904 ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704	9-81355-025-0	01	1	-
15	03.900 HOUSING; FUEL FEED PUMP ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704	1-15751-043-0	01	1	-
15	03.900 HOUSING; FUEL FEED PUMP ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	8-97115-989-0	01	1	-
16	03.925 PISTON; FUEL FEED PUMP ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	1-15752-001-0	01	1	-
16	03.925 PISTON; FUEL FEED PUMP ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704	9-81351-205-0	01	1	-
17	03.901 SPRING; PISTON,FUEL FEED PUMP ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704	8-97214-466-0	01	1	-
17	03.901 SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	9-81351-302-0	01	1	-
18	03.904 GASKET; PISTON PLUG,FUEL FEED PU ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	1-15759-042-0	01	1	-
18	03.904 GASKET; PISTON PLUG,FUEL FEED PU ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704	9-81355-035-0	01	1	-
19	03.901 PLUG; PISTON SPRING,FUEL FEED PU ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505, C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704	8-94171-185-0	01	1	-
28	03.935 TAPPET ASM; FUEL FEED PUMP ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704	1-15754-002-0	01	1	-
29	03.901 ROLLER; TAPPET,FUEL FEED PUMP ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704	1-15759-043-0	01	1	-
30	03.901 PIN; TAPPET ROLLER,FUEL FEED PUM ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704	9-81351-406-0	01	1	-
31	03.901 GUIDE; TAPPET,FUEL FEED PUMP ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704	9-81351-416-0	02	1	-

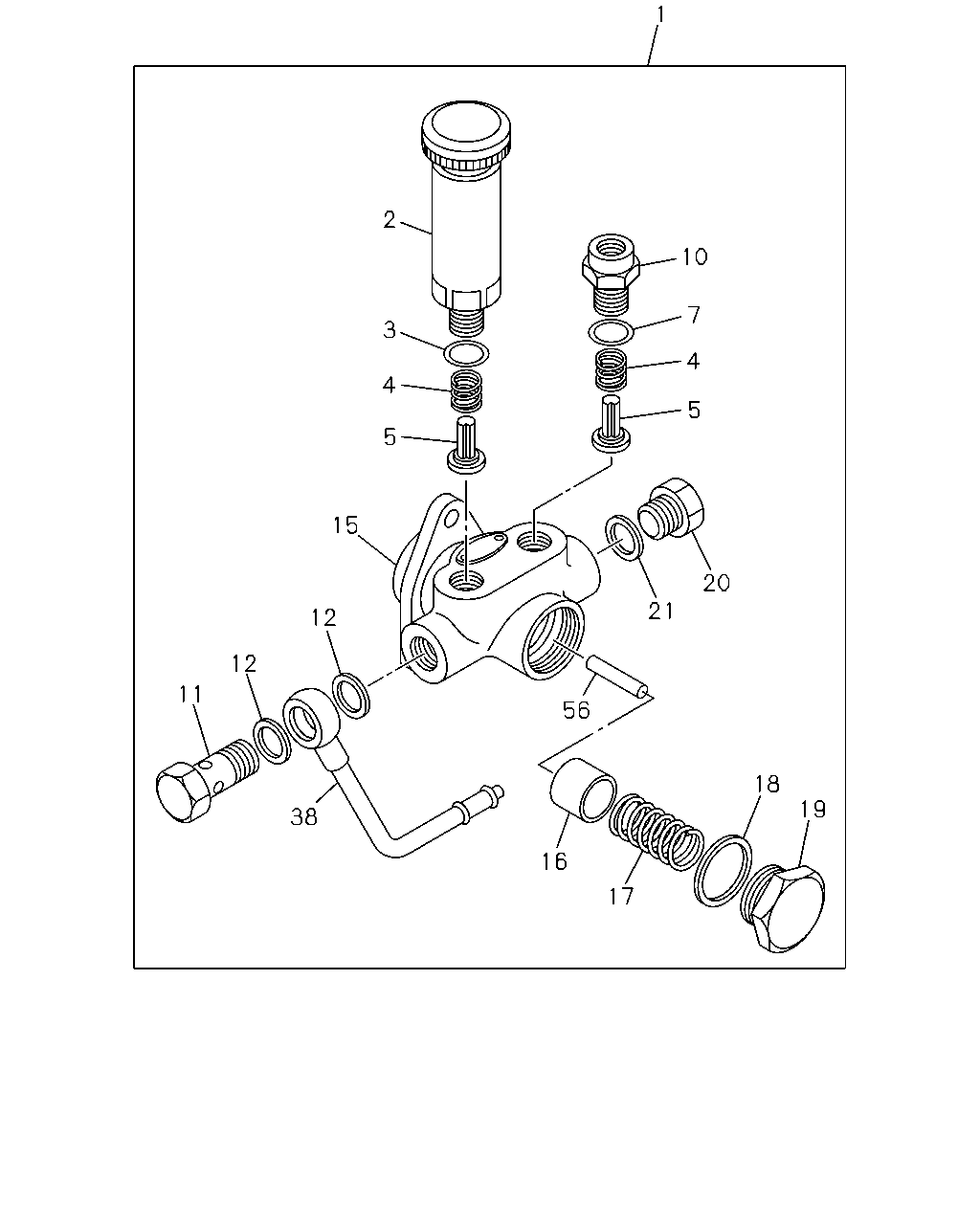

1 2 10 7 3 4 4 5 5 15 20 21 12 12 11 56 18 19 38 16 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.900 PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505	8-97117-944-0	01	1	-
1	03.900 PUMP ASM; FUEL FEED,INJ PUMP ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704	8-97214-533-1	01	1	-
1	03.900 PUMP ASM; FUEL FEED,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	8-97224-396-0	01	1	-
2	03.910 PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	1-15761-006-0	01	1	-
3	03.904 GASKET; PRIMING PUMP,FUEL FEED P ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	1-19623-016-0	01	1	-
4	03.901 SPRING; VLV,FUEL FEED PUMP 03.927 ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	9-81351-702-0	02	1	-
4	03.901 SPRING; VLV,FUEL FEED PUMP 03.927 ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704	9-81351-702-0	04	1	-
5	03.927 VALVE; FUEL FEED PUMP ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704	1-15755-002-0	04	1	-
5	03.927 VALVE; FUEL FEED PUMP ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	1-15755-002-0	02	1	-
7	03.904 GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	1-19623-016-0	01	1	-
7	03.904 GASKET; PLUG,FUEL FEED PUMP ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704	1-19623-016-0	04	1	-
10	03.901 ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	1-15759-003-0	01	1	-
10	03.901 ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704	1-15759-067-0	01	1	-
11	03.162 BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505	1-15759-029-0	01	1	-
12	03.162 GASKET; EYE BOLT,INL,FUEL FEED P 03.163, ID=14.2 OD=19.2 ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505	1-09630-085-0	02	1	-
15	03.900 HOUSING; FUEL FEED PUMP ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704	1-15751-043-0	01	1	-
15	03.900 HOUSING; FUEL FEED PUMP ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	8-97115-989-0	01	1	-
16	03.925 PISTON; FUEL FEED PUMP ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	1-15752-001-0	01	1	-
16	03.925 PISTON; FUEL FEED PUMP ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704	9-81351-205-0	01	1	-
17	03.901 SPRING; PISTON,FUEL FEED PUMP ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704	8-97214-466-0	01	1	-
17	03.901 SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	9-81351-302-0	01	1	-
18	03.904 GASKET; PISTON PLUG,FUEL FEED PU ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	1-15759-042-0	01	1	-
18	03.904 GASKET; PISTON PLUG,FUEL FEED PU ASM PART: C = 8-97178-485-5, 97178485, F = 8-97215-704-2, 97215704	9-81355-035-0	01	1	-
19	03.901 PLUG; PISTON SPRING,FUEL FEED PU ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505, C = 8-97178-485-5, 97178485, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, F = 8-97215-704-2, 97215704	8-94171-185-0	01	1	-
20	03.901 PLUG; HSG,FUEL FEED PUMP ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	1-15759-004-0	01	1	-
21	03.904 GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	1-15759-007-0	01	1	-
38	03.163 PIPE; FEED PUMP ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505	8-97093-411-0	01	1	-
56	03.901 PUSH ROD ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	8-97115-990-0	01	1	-
