◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50810 - NKR(EUROPE)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#22094) — 42 parça

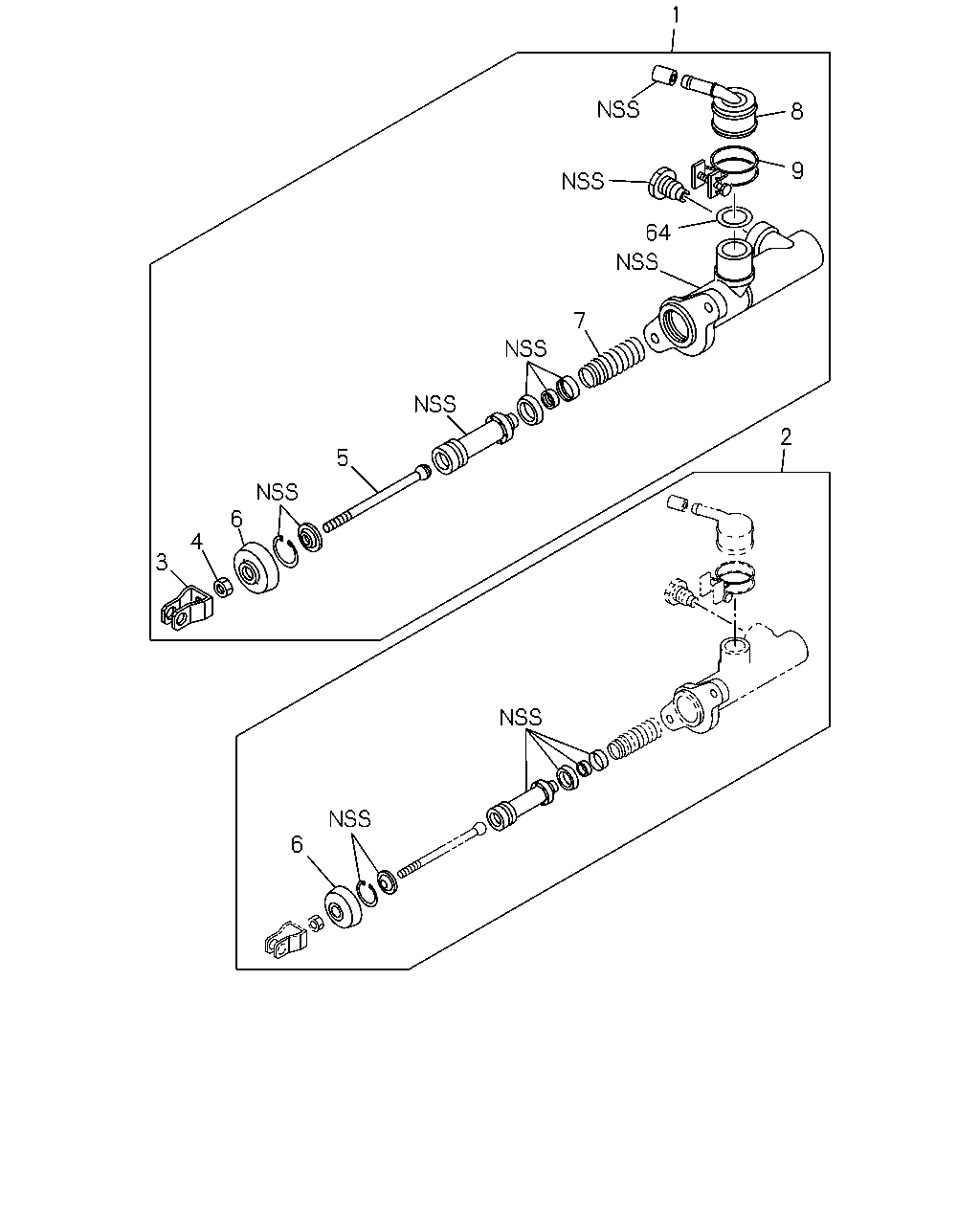

çizim 44812
1 8 9 64 7 2 5 6 4 3 6
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97167-406-0 01 1 9812-0105 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JH1 ENG(RJX) 		8-97300-211-0 01 1 0106- ●
2 00.775 REPAIR KIT; CLU M/CYL 5-87831-597-0 01 1 9812-0105 ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4JH1 ENG(RJX) 		5-87831-597-0 01 1 0106- ●
3 00.777 JOINT; JAW,CLU M/CYL
4JH1 ENG(RJX) 		8-97167-770-0 01 1 0106- ●
3 00.777 JOINT; JAW,CLU M/CYL 8-97167-770-0 01 1 9812-0105 ● ●
4 00.777 NUT; JAW JOINT
4JH1 ENG(RJX) 00.787 M8 		9-09111-408-0 01 1 0106- ●
4 00.777 NUT; JAW JOINT
00.787 M8 		9-09111-408-0 01 1 9812-0105 ● ●
5 00.775 ROD; PUSH,CLU M/CYL
4JH1 ENG(RJX) 		8-97167-768-0 01 1 0106- ●
5 00.775 ROD; PUSH,CLU M/CYL 8-97167-768-0 01 1 9812-0105 ● ●
6 00.775 BOOT; CLU M/CYL
4JH1 ENG(RJX) 		8-94412-200-0 01 1 0106- ●
6 00.775 BOOT; CLU M/CYL 8-94412-200-0 01 1 9812-0105 ● ●
7 00.775 SPRING ASM; CLU M/CYL
4JH1 ENG(RJX) 		8-97167-780-0 01 1 0106- ●
7 00.775 SPRING ASM; CLU M/CYL 8-97167-780-0 01 1 9812-0105 ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4JH1 ENG(RJX) 		8-97167-766-0 01 1 0106- ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL 8-97167-766-0 01 1 9812-0105 ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
4JH1 ENG(RJX) 		8-97167-773-0 01 1 0106- ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 9812-0105 ● ●
64 00.777 GASKET; CONNECTOR
4JH1 ENG(RJX) 		8-97167-767-0 01 1 0106- ●
64 00.777 GASKET; CONNECTOR 8-97167-767-0 01 1 9812-0105 ● ●

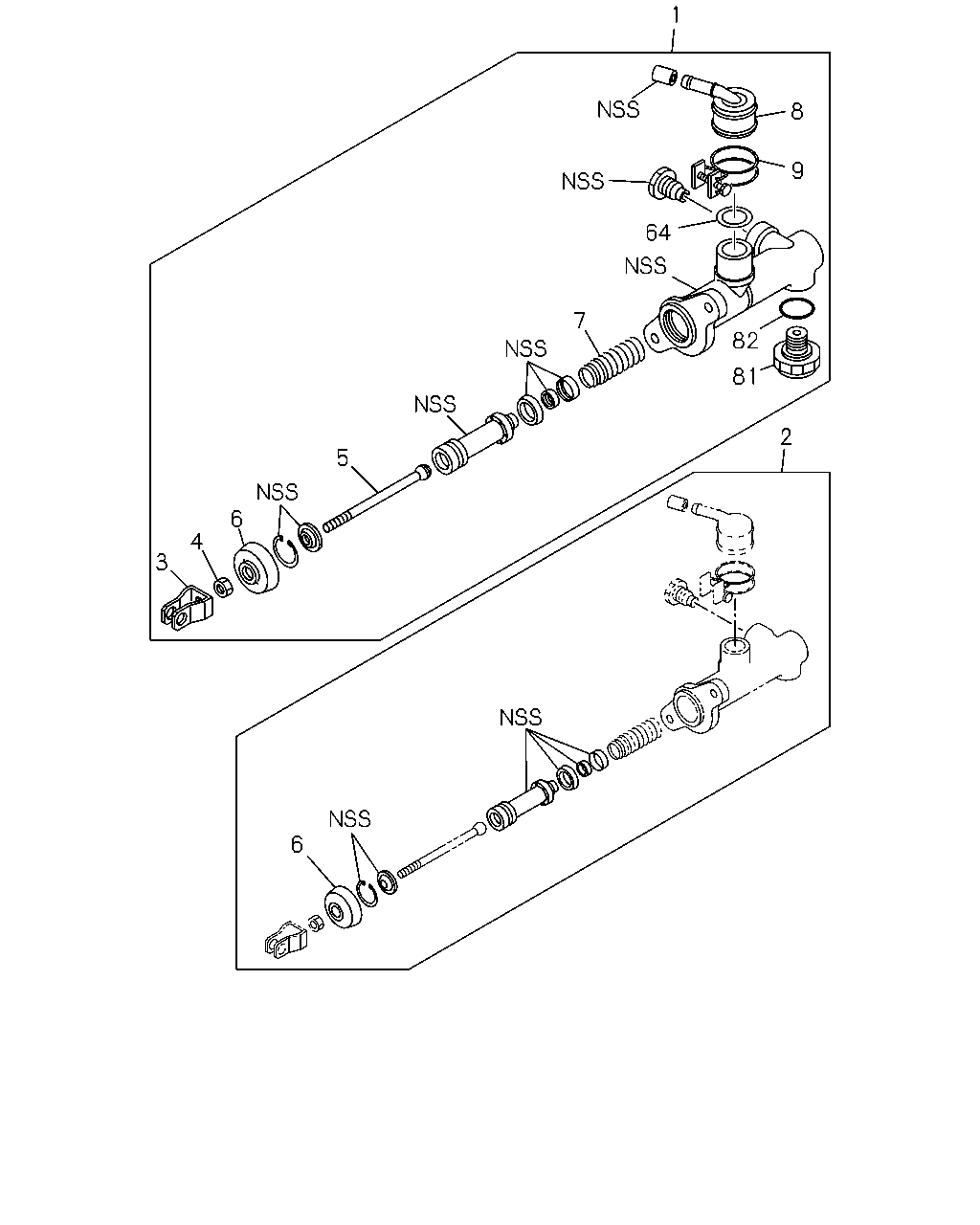

çizim 49570
1 8 9 64 7 82 81 2 5 6 4 3 6
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97167-406-0 01 1 9812-0105 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JH1 ENG(RJX) 		8-97300-211-0 01 1 0106- ●
2 00.775 REPAIR KIT; CLU M/CYL 5-87831-597-0 01 1 9812-0105 ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4JH1 ENG(RJX) 		5-87831-597-0 01 1 0106- ●
3 00.777 JOINT; JAW,CLU M/CYL
4JH1 ENG(RJX) 		8-97167-770-0 01 1 0106- ●
3 00.777 JOINT; JAW,CLU M/CYL 8-97167-770-0 01 1 9812-0105 ● ●
4 00.777 NUT; JAW JOINT
4JH1 ENG(RJX) 00.787 M8 		9-09111-408-0 01 1 0106- ●
4 00.777 NUT; JAW JOINT
00.787 M8 		9-09111-408-0 01 1 9812-0105 ● ●
5 00.775 ROD; PUSH,CLU M/CYL
4JH1 ENG(RJX) 		8-97167-768-0 01 1 0106- ●
5 00.775 ROD; PUSH,CLU M/CYL 8-97167-768-0 01 1 9812-0105 ● ●
6 00.775 BOOT; CLU M/CYL
4JH1 ENG(RJX) 		8-94412-200-0 01 1 0106- ●
6 00.775 BOOT; CLU M/CYL 8-94412-200-0 01 1 9812-0105 ● ●
7 00.775 SPRING ASM; CLU M/CYL
4JH1 ENG(RJX) 		8-97167-780-0 01 1 0106- ●
7 00.775 SPRING ASM; CLU M/CYL 8-97167-780-0 01 1 9812-0105 ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4JH1 ENG(RJX) 		8-97167-766-0 01 1 0106- ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL 8-97167-766-0 01 1 9812-0105 ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
4JH1 ENG(RJX) 		8-97167-773-0 01 1 0106- ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 9812-0105 ● ●
64 00.777 GASKET; CONNECTOR
4JH1 ENG(RJX) 		8-97167-767-0 01 1 0106- ●
64 00.777 GASKET; CONNECTOR 8-97167-767-0 01 1 9812-0105 ● ●
81 00.777 DAMPER; MASTER CYL
4JH1 ENG(RJX) 		8-97190-913-0 01 1 0106- ●
82 00.777 GASKET; DAMPER
4JH1 ENG(RJX) 		8-97191-396-0 01 1 0106- ●
