2-01 — CLUTCH (#22090) — 74 parça

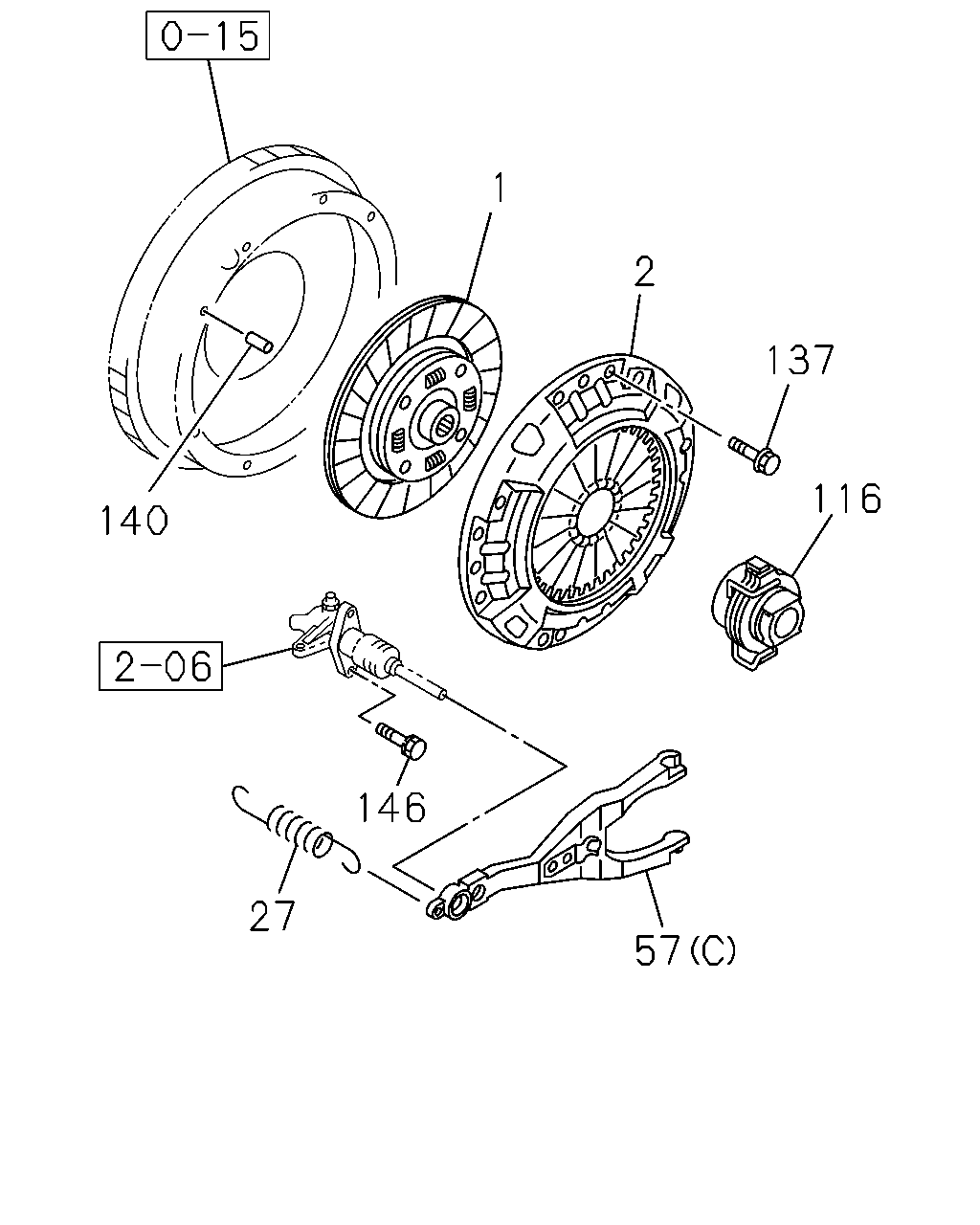

1 2 137 116 140 146 27 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.886 DISC; CLUTCH 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 9.5"	8-97013-548-0	01	1	9906-0105	●
1	00.886 DISC; CLUTCH 4JH1 ENG(RJX)	8-97166-390-1	01	1	0106-		●
1	00.886 DISC; CLUTCH 4JG2 ENG(RJC)	8-97217-985-0	01	1	9812-9905	●
1	00.886 DISC; CLUTCH 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97217-985-0	01	1	9906-0008	●		●
1	00.886 DISC; CLUTCH 4JG2 ENG(RJC)	8-97217-985-0	01	1	9906-0008	●
1	00.886 DISC; CLUTCH 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97257-124-0	01	1	0009-0105	●		●
1	00.886 DISC; CLUTCH 4JG2 ENG(RJC)	8-97257-124-0	01	1	0009-0105	●
2	00.859 PLATE ASM; PRESSURE,CLU 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>	8-94259-132-1	01	1	9906-0105	●
2	00.859 PLATE ASM; PRESSURE,CLU 4JH1 ENG(RJX)	8-97259-693-0	01	1	0106-		●
2	00.859 PLATE ASM; PRESSURE,CLU 4JG2 ENG(RJC)	8-97109-246-0	01	1	9812-9905	●
2	00.859 PLATE ASM; PRESSURE,CLU 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97109-246-0	01	1	9906-0105	●		●
2	00.859 PLATE ASM; PRESSURE,CLU 4JG2 ENG(RJC)	8-97109-246-0	01	1	9906-0105	●
27	00.837 SPRING; RETURN,SHIFT FORK 4JG2 ENG(RJC)	8-97184-358-0	01	1	9812-9905	●
27	00.837 SPRING; RETURN,SHIFT FORK 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97184-358-0	01	1	9906-0105	●		●
27	00.837 SPRING; RETURN,SHIFT FORK 4JH1 ENG(RJX)	8-97184-359-0	01	1	0106-		●
57	00.795 FORK; SHIFT,CLU 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (A)	8-97024-528-0	01	1	9906-0105	●
57	00.795 FORK; SHIFT,CLU 4JG2 ENG(RJC) (B)	8-97033-701-0	01	1	9812-9905	●
57	00.795 FORK; SHIFT,CLU 4JB1 ENG(RLF) TURBOCHARGER<K51> (B)	8-97033-701-0	01	1	9906-0105	●		●
57	00.795 FORK; SHIFT,CLU 4JG2 ENG(RJC) (B)	8-97033-701-0	01	1	9906-0105	●
57	00.795 FORK; SHIFT,CLU 4JH1 ENG(RJX) (C)	8-97187-936-0	01	1	0106-		●
116	00.799 BLOCK; SHIFT,CLU 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>	8-94313-167-0	01	1	9906-0006	●
116	00.799 BLOCK; SHIFT,CLU 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>	8-97258-191-0	01	1	0007-0105	●
116	00.799 BLOCK; SHIFT,CLU 4JG2 ENG(RJC)	8-97033-699-0	01	1	9812-9905	●
116	00.799 BLOCK; SHIFT,CLU 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97033-699-0	01	1	9906-0105	●		●
116	00.799 BLOCK; SHIFT,CLU 4JG2 ENG(RJC)	8-97033-699-0	01	1	9906-0105	●
116	00.799 BLOCK; SHIFT,CLU 4JH1 ENG(RJX)	8-97089-652-0	01	1	0106-		●
137	00.862 BOLT; CLU COVER 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.062 M8X16 FLANGE	0-28080-816-0	06	1	9812-0105	●		●
137	00.862 BOLT; CLU COVER 4JH1 ENG(RJX) 02.559 M10X16 FLANGE	0-28081-016-0	10	1	0106-		●
140	00.862 PIN; STRAIGHT 4JG2 ENG(RJC),4JB1 ENG(RLF) OD=6 L=24	9-09878-532-0	02	1	9812-0105	●		●
140	00.862 PIN; STRAIGHT 4JH1 ENG(RJX) L=25	8-94410-361-0	02	1	0106-		●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.686 M8X30 FLANGE	0-28680-830-0	02	1	9812-0105	●		●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 04.686 M8X30 FLANGE	0-28680-830-0	02	1	0106-		●

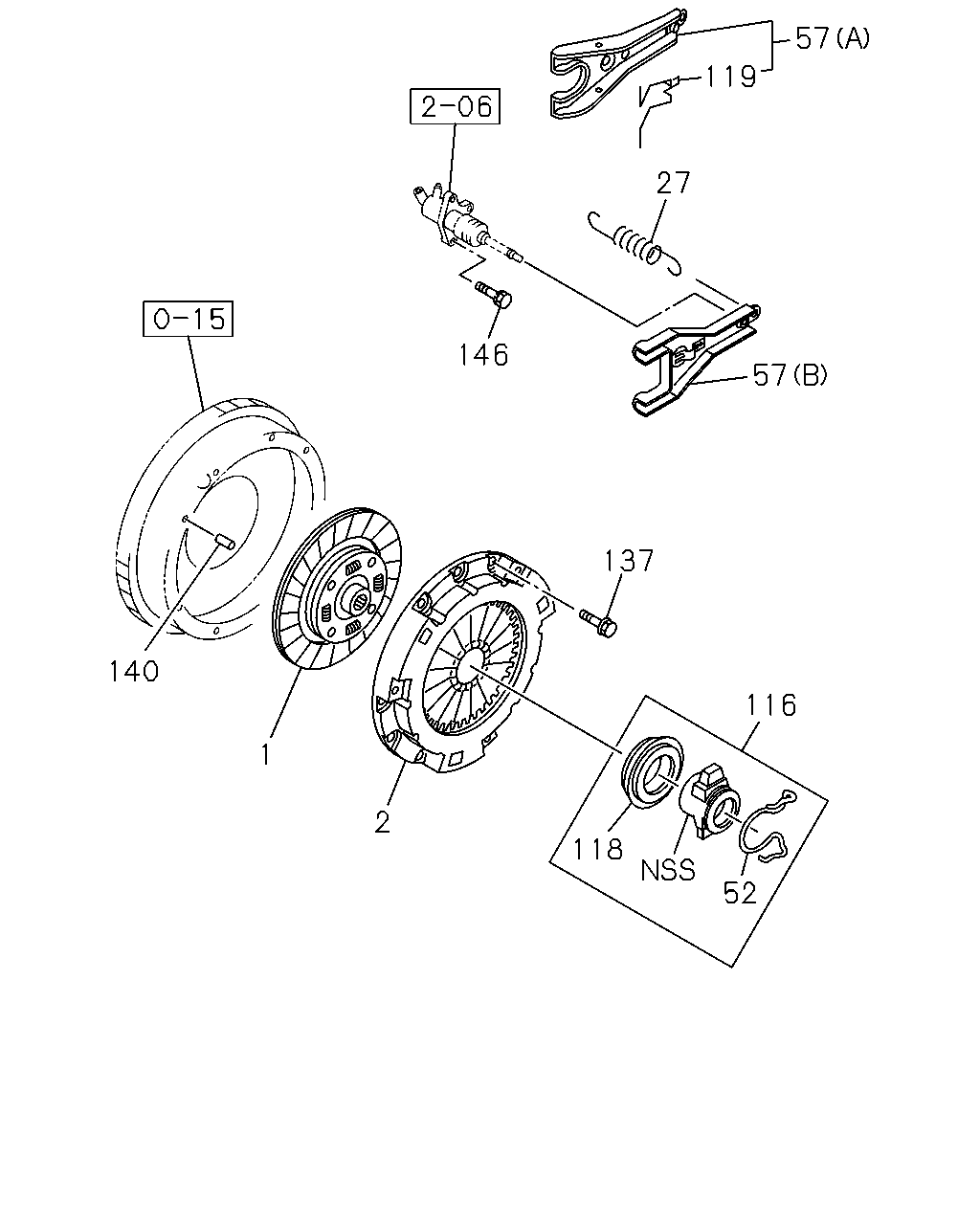

57 119 27 146 57 137 140 116 1 2 118 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.886 DISC; CLUTCH 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 9.5"	8-97013-548-0	01	1	9906-0105	●
1	00.886 DISC; CLUTCH 4JH1 ENG(RJX)	8-97166-390-1	01	1	0106-		●
1	00.886 DISC; CLUTCH 4JG2 ENG(RJC)	8-97217-985-0	01	1	9812-9905	●
1	00.886 DISC; CLUTCH 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97217-985-0	01	1	9906-0008	●		●
1	00.886 DISC; CLUTCH 4JG2 ENG(RJC)	8-97217-985-0	01	1	9906-0008	●
1	00.886 DISC; CLUTCH 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97257-124-0	01	1	0009-0105	●		●
1	00.886 DISC; CLUTCH 4JG2 ENG(RJC)	8-97257-124-0	01	1	0009-0105	●
2	00.859 PLATE ASM; PRESSURE,CLU 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>	8-94259-132-1	01	1	9906-0105	●
2	00.859 PLATE ASM; PRESSURE,CLU 4JH1 ENG(RJX)	8-97259-693-0	01	1	0106-		●
2	00.859 PLATE ASM; PRESSURE,CLU 4JG2 ENG(RJC)	8-97109-246-0	01	1	9812-9905	●
2	00.859 PLATE ASM; PRESSURE,CLU 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97109-246-0	01	1	9906-0105	●		●
2	00.859 PLATE ASM; PRESSURE,CLU 4JG2 ENG(RJC)	8-97109-246-0	01	1	9906-0105	●
27	00.837 SPRING; RETURN,SHIFT FORK 4JG2 ENG(RJC)	8-97184-358-0	01	1	9812-9905	●
27	00.837 SPRING; RETURN,SHIFT FORK 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97184-358-0	01	1	9906-0105	●		●
27	00.837 SPRING; RETURN,SHIFT FORK 4JH1 ENG(RJX)	8-97184-359-0	01	1	0106-		●
52	00.797 SPRING; SHIFT BLOCK TO FORK 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>	8-94460-893-0	01	1	9906-0105	●
52	00.797 SPRING; SHIFT BLOCK TO FORK 4JG2 ENG(RJC)	8-97017-094-0	01	1	9812-9905	●
52	00.797 SPRING; SHIFT BLOCK TO FORK 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97017-094-0	01	1	9906-0105	●		●
52	00.797 SPRING; SHIFT BLOCK TO FORK 4JG2 ENG(RJC)	8-97017-094-0	01	1	9906-0105	●
57	00.795 FORK; SHIFT,CLU 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (A)	8-97024-528-0	01	1	9906-0105	●
57	00.795 FORK; SHIFT,CLU 4JG2 ENG(RJC) (B)	8-97033-701-0	01	1	9812-9905	●
57	00.795 FORK; SHIFT,CLU 4JB1 ENG(RLF) TURBOCHARGER<K51> (B)	8-97033-701-0	01	1	9906-0105	●		●
57	00.795 FORK; SHIFT,CLU 4JG2 ENG(RJC) (B)	8-97033-701-0	01	1	9906-0105	●
57	00.795 FORK; SHIFT,CLU 4JH1 ENG(RJX) (C)	8-97187-936-0	01	1	0106-		●
116	00.799 BLOCK; SHIFT,CLU 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>	8-94313-167-0	01	1	9906-0006	●
116	00.799 BLOCK; SHIFT,CLU 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>	8-97258-191-0	01	1	0007-0105	●
116	00.799 BLOCK; SHIFT,CLU 4JG2 ENG(RJC)	8-97033-699-0	01	1	9812-9905	●
116	00.799 BLOCK; SHIFT,CLU 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97033-699-0	01	1	9906-0105	●		●
116	00.799 BLOCK; SHIFT,CLU 4JG2 ENG(RJC)	8-97033-699-0	01	1	9906-0105	●
116	00.799 BLOCK; SHIFT,CLU 4JH1 ENG(RJX)	8-97089-652-0	01	1	0106-		●
118	00.799 BEARING; CLU RELEASE 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>	5-31314-001-1	01	1	9906-0006	●
118	00.799 BEARING; CLU RELEASE 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>	8-97258-195-0	01	1	0007-0105	●
118	00.799 BEARING; CLU RELEASE 4JG2 ENG(RJC) JTEKT	8-94379-499-0	01	1	9812-9905	●
118	00.799 BEARING; CLU RELEASE 4JB1 ENG(RLF) TURBOCHARGER<K51> JTEKT	8-94379-499-0	01	1	9906-0105	●		●
118	00.799 BEARING; CLU RELEASE 4JG2 ENG(RJC) JTEKT	8-94379-499-0	01	1	9906-0105	●
119	00.797 SPRING; SHIFT FORK 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>	5-31349-004-0	01	1	9906-0105	●
137	00.862 BOLT; CLU COVER 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.062 M8X16 FLANGE	0-28080-816-0	06	1	9812-0105	●		●
137	00.862 BOLT; CLU COVER 4JH1 ENG(RJX) 02.559 M10X16 FLANGE	0-28081-016-0	10	1	0106-		●
140	00.862 PIN; STRAIGHT 4JG2 ENG(RJC),4JB1 ENG(RLF) OD=6 L=24	9-09878-532-0	02	1	9812-0105	●		●
140	00.862 PIN; STRAIGHT 4JH1 ENG(RJX) L=25	8-94410-361-0	02	1	0106-		●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.686 M8X30 FLANGE	0-28680-830-0	02	1	9812-0105	●		●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 04.686 M8X30 FLANGE	0-28680-830-0	02	1	0106-		●
