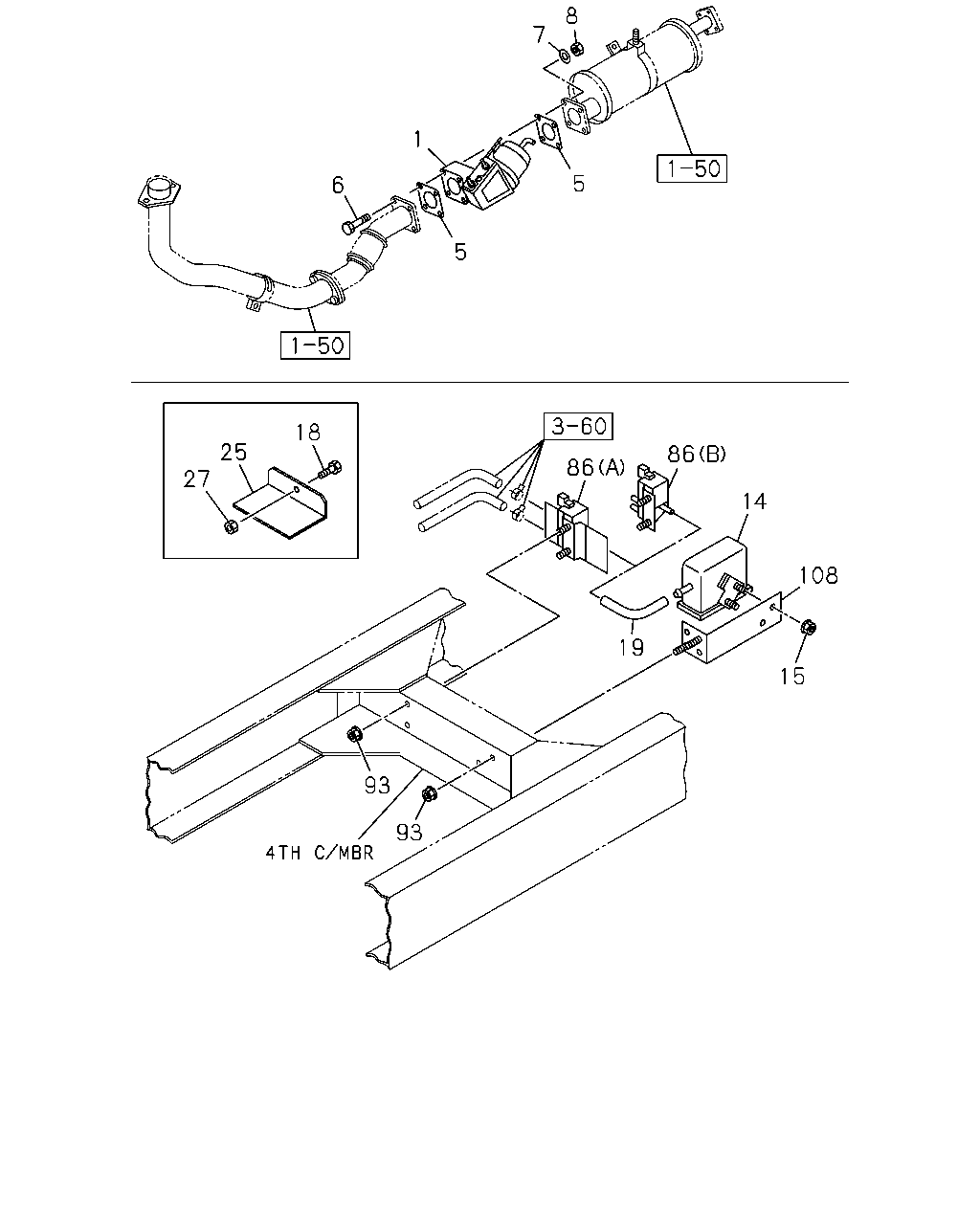

1-56 — EXHAUST BRAKE SYSTEM (#22089) — 87 parça

1 7 8 93 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.632 BRAKE UNIT; EXH 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97102-372-2	01	1	9906-0105	●	●
1	03.632 BRAKE UNIT; EXH 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-97102-372-3	01	1	0106-0203	●	●
1	03.632 BRAKE UNIT; EXH 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-97102-372-3	01	1	0204-	●	●
1	03.632 BRAKE UNIT; EXH 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T)	8-97102-372-3	01	1	0204-			●
1	03.632 BRAKE UNIT; EXH 4JG2 ENG(RJC) EXHAUST BRAKE<NF8>	8-97034-024-3	01	1	9812-9905	●	●
1	03.632 BRAKE UNIT; EXH 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	8-97034-024-3	01	1	9906-0105	●	●
1	03.632 BRAKE UNIT; EXH 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> REAR WIDE TREAD(V4T)	8-97288-424-1	01	1	0204-			●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	9906-0105	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	0106-	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 03.613 ID=10.5	5-09500-013-0	04	1	9812-9905	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 03.613 ID=10.5	5-09500-013-0	04	1	9906-0105	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 02.559 M8	9-09110-408-0	04	1	9906-0105	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 02.559 M8	9-09110-408-0	04	1	0106-	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 03.613 M10 H=18	9-09640-014-0	04	1	9812-9905	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 03.613 M10 H=18	9-09640-014-0	04	1	9906-0105	●	●
86	03.636 VALVE; MAG,EXH BRK 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A)	8-97170-945-0	01	1	9906-9911	●
86	03.636 VALVE; MAG,EXH BRK 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A)	8-97219-362-0	01	1	9912-0105	●
86	03.636 VALVE; MAG,EXH BRK 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A)	8-97219-362-0	01	1	0106-	●		●
86	03.636 VALVE; MAG,EXH BRK 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> (A)	8-97069-300-2	01	1	9812-9905	●	●
86	03.636 VALVE; MAG,EXH BRK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (A)	8-97069-300-2	01	1	9906-0105	●	●
86	03.636 VALVE; MAG,EXH BRK 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B)	8-97161-801-0	01	1	9906-0105		●
86	03.636 VALVE; MAG,EXH BRK 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B)	8-97161-801-0	01	1	0106-		●
93	08.917 NUT; MAG VLV 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	04	1	9906-0002	●
93	08.917 NUT; MAG VLV 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	0003-0105	●	●
93	08.917 NUT; MAG VLV 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●	●	●
93	08.917 NUT; MAG VLV 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9906-9909	●	●
93	08.917 NUT; MAG VLV 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9910-0002		●
93	08.917 NUT; MAG VLV 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-9905	●	●
93	08.917 NUT; MAG VLV 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 07.633 M8 FLANGE	0-91150-108-0	01	1	9906-0105	●	●

8 7 1 5 6 5 18 25 27 86 86 14 108 19 15 93 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.632 BRAKE UNIT; EXH 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97102-372-2	01	1	9906-0105	●	●
1	03.632 BRAKE UNIT; EXH 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-97102-372-3	01	1	0106-0203	●	●
1	03.632 BRAKE UNIT; EXH 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-97102-372-3	01	1	0204-	●	●
1	03.632 BRAKE UNIT; EXH 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T)	8-97102-372-3	01	1	0204-			●
1	03.632 BRAKE UNIT; EXH 4JG2 ENG(RJC) EXHAUST BRAKE<NF8>	8-97034-024-3	01	1	9812-9905	●	●
1	03.632 BRAKE UNIT; EXH 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	8-97034-024-3	01	1	9906-0105	●	●
1	03.632 BRAKE UNIT; EXH 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> REAR WIDE TREAD(V4T)	8-97288-424-1	01	1	0204-			●
5	03.634 GASKET; EXH BRAKE UNIT 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	9906-0105	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	0106-	●	●	●
6	03.632 BOLT; EXH BRAKE UNIT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.708 M8X70	0-10805-870-0	04	1	9906-0105	●	●
6	03.632 BOLT; EXH BRAKE UNIT FIX 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 03.708 M8X70	0-10805-870-0	04	1	0106-	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	9906-0105	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	0106-	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 03.613 ID=10.5	5-09500-013-0	04	1	9812-9905	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 03.613 ID=10.5	5-09500-013-0	04	1	9906-0105	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 02.559 M8	9-09110-408-0	04	1	9906-0105	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 02.559 M8	9-09110-408-0	04	1	0106-	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 03.613 M10 H=18	9-09640-014-0	04	1	9812-9905	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 03.613 M10 H=18	9-09640-014-0	04	1	9906-0105	●	●
14	03.634 FILTER; AIR,EXH BRAKE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97033-888-0	01	1	9906-0105	●	●
14	03.634 FILTER; AIR,EXH BRAKE 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97033-888-0	01	1	0106-	●	●	●
15	03.634 NUT; AIR FILTER 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9906-0002	●	●
15	03.634 NUT; AIR FILTER 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	0003-0105	●	●
15	03.634 NUT; AIR FILTER 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	0003-0105	●
15	03.634 NUT; AIR FILTER 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-0203	●	●
15	03.634 NUT; AIR FILTER 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-0203	●
15	03.634 NUT; AIR FILTER 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	0204-	●	●	●
15	03.634 NUT; AIR FILTER 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	0204-	●	●	●
18	03.636 BOLT; PROTECTOR 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0106-	●		●
19	03.630 HOSE; AIR FILTER 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> L=220 SERVICED BY L=3000	0-08258-300-0	01	1	9906-0105	●
19	03.630 HOSE; AIR FILTER 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> L=220 SERVICED BY L=3000	0-08258-300-0	01	1	0106-0203	●
19	03.630 HOSE; AIR FILTER 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> L=220 SERVICED BY L=3000	0-08258-300-0	01	1	0204-0209	●
19	03.630 HOSE; AIR FILTER 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T) L=220 SERVICED BY L=3000	0-08258-300-0	01	1	0204-0209			●
19	03.630 HOSE; AIR FILTER 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> L=220 SERVICED BY L=3000	0-08258-300-0	01	1	0210-	●		●
19	03.630 HOSE; AIR FILTER 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> L=180 SERVICED BY L=3000	0-08258-300-0	01	1	9906-0105		●
19	03.630 HOSE; AIR FILTER 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> L=180 SERVICED BY L=3000	0-08258-300-0	01	1	0106-		●
19	03.630 HOSE; AIR FILTER 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> REAR WIDE TREAD(V4T) L=160 SERVICED BY L=3000	0-08258-300-0	01	1	0204-0209			●
25	03.640 PROTECTOR; HEAT,VLV 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97255-215-0	01	1	0106-	●		●
27	03.632 NUT; HEAT PROTECTOR 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●		●
86	03.636 VALVE; MAG,EXH BRK 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A)	8-97170-945-0	01	1	9906-9911	●
86	03.636 VALVE; MAG,EXH BRK 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A)	8-97219-362-0	01	1	9912-0105	●
86	03.636 VALVE; MAG,EXH BRK 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A)	8-97219-362-0	01	1	0106-	●		●
86	03.636 VALVE; MAG,EXH BRK 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> (A)	8-97069-300-2	01	1	9812-9905	●	●
86	03.636 VALVE; MAG,EXH BRK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (A)	8-97069-300-2	01	1	9906-0105	●	●
86	03.636 VALVE; MAG,EXH BRK 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B)	8-97161-801-0	01	1	9906-0105		●
86	03.636 VALVE; MAG,EXH BRK 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B)	8-97161-801-0	01	1	0106-		●
93	08.917 NUT; MAG VLV 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	04	1	9906-0002	●
93	08.917 NUT; MAG VLV 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	0003-0105	●	●
93	08.917 NUT; MAG VLV 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●	●	●
93	08.917 NUT; MAG VLV 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9906-9909	●	●
93	08.917 NUT; MAG VLV 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9910-0002		●
93	08.917 NUT; MAG VLV 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-9905	●	●
93	08.917 NUT; MAG VLV 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 07.633 M8 FLANGE	0-91150-108-0	01	1	9906-0105	●	●
108	03.634 BRACKET; AIR FILTER 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97106-474-2	01	1	9906-0105	●
108	03.634 BRACKET; AIR FILTER 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97106-474-2	01	1	0106-0203	●
108	03.634 BRACKET; AIR FILTER 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97106-474-2	01	1	0204-	●
108	03.634 BRACKET; AIR FILTER 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T)	8-97106-474-2	01	1	0204-			●
108	03.634 BRACKET; AIR FILTER 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> REAR WIDE TREAD(V4T)	8-97106-474-2	01	1	0204-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
