Sayfa 1-45 - Isuzu EPC

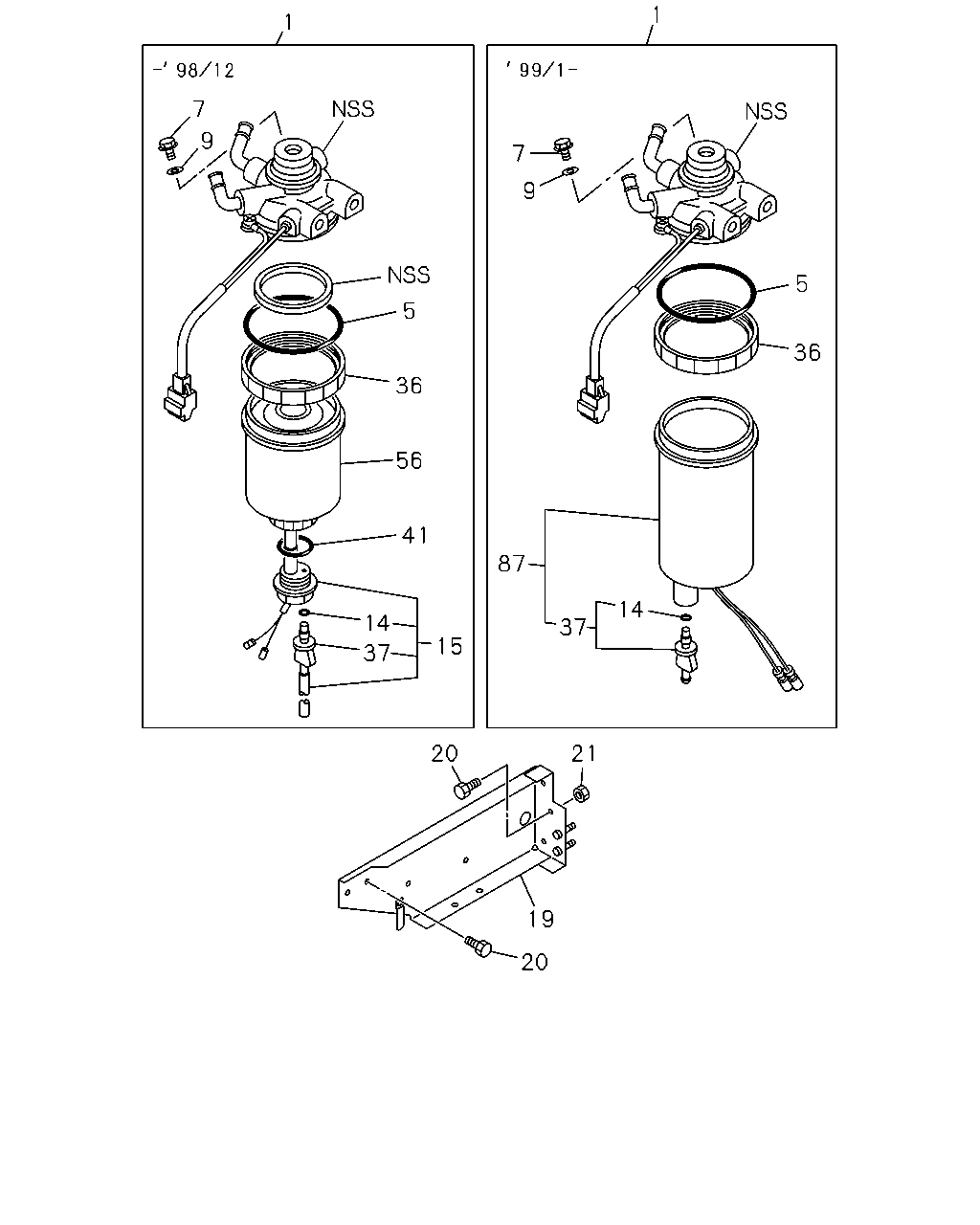

1-45 — WATER SEDIMENTER; FUEL (#22086) — 143 parça

1 9 7 5 36 87 14 37 20 21 19 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU>	8-97081-815-1	01	1	9812-9905	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-97081-815-1	01	1	9906-0105	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97081-814-1	01	1	9812-9905	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97081-814-1	01	1	9906-0105	●	●
1	03.890 SEDIMENTER; FUEL 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97240-126-1	01	1	0106-	●	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JG2 ENG(RJC)	5-09623-075-0	01	1	9812-9905	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER	5-09623-075-0	01	1	9906-0105	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JG2 ENG(RJC)	8-94132-674-0	01	1	9812-9905	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	9906-0105	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	0106-	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JG2 ENG(RJC)	8-94132-675-0	01	1	9812-9905	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR	8-94132-675-0	01	1	9906-0105	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0106-	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JG2 ENG(RJC)	8-94447-156-0	01	1	9812-9905	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT	8-94447-156-0	01	1	9906-0105	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	0106-	●	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JG2 ENG(RJC)	8-97090-294-3	01	1	9812-9905	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97090-294-3	01	1	9906-0105	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JG2 ENG(RJC)	8-97090-296-3	01	1	9812-9905		●
19	03.890 BRACKET; FUEL SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97090-296-3	01	1	9906-0105		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9812-9905	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9906-0105	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9812-9905	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9812-9905	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9906-9911	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9906-9911	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9912-0105	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9912-0105	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9812-9905	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9906-0105	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1 ENG(RJX) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0106-0203	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1 ENG(RJX) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0204-	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9812-9905		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9906-0105		●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-9905	●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	9906-0105	●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC) 04.785 M10 FLANGE	0-91150-110-0	02	1	9812-9905	●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	02	1	9906-0105	●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC) 04.785 M10 FLANGE	0-91150-110-0	03	1	9812-9905		●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	03	1	9906-0105		●
36	03.890 RING; BODY TO CASE 4JG2 ENG(RJC)	5-13234-001-0	01	1	9812-9905	●	●
36	03.890 RING; BODY TO CASE	5-13234-001-0	01	1	9906-0105	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU>	8-94450-148-0	01	1	9812-9812	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	9812-9812	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC)	8-94453-746-0	01	1	9901-9905	●	●
37	03.890 PLUG; SENSOR	8-94453-746-0	01	1	9906-0105	●	●
37	03.890 PLUG; SENSOR 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97123-549-0	01	1	0106-	●	●	●
87	03.890 CASE ASM; SEDIMENTER 4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-0	01	1	9812-9812	●	●
87	03.890 CASE ASM; SEDIMENTER 4JG2 ENG(RJC)	8-97219-363-0	01	1	9901-9905	●	●
87	03.890 CASE ASM; SEDIMENTER	8-97219-363-0	01	1	9906-0105	●	●

1 1 7 9 7 9 5 5 36 36 56 41 87 14 14 37 15 37 20 21 19 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU>	8-97081-815-1	01	1	9812-9905	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-97081-815-1	01	1	9906-0105	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97081-814-1	01	1	9812-9905	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97081-814-1	01	1	9906-0105	●	●
1	03.890 SEDIMENTER; FUEL 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97240-126-1	01	1	0106-	●	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JG2 ENG(RJC)	5-09623-075-0	01	1	9812-9905	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER	5-09623-075-0	01	1	9906-0105	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JG2 ENG(RJC)	8-94132-674-0	01	1	9812-9905	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	9906-0105	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	0106-	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JG2 ENG(RJC)	8-94132-675-0	01	1	9812-9905	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR	8-94132-675-0	01	1	9906-0105	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0106-	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JG2 ENG(RJC)	8-94447-156-0	01	1	9812-9905	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT	8-94447-156-0	01	1	9906-0105	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	0106-	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU>	8-97103-765-0	01	1	9812-9812	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97079-821-0	01	1	0106-	●	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JG2 ENG(RJC)	8-97090-294-3	01	1	9812-9905	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97090-294-3	01	1	9906-0105	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JG2 ENG(RJC)	8-97090-296-3	01	1	9812-9905		●
19	03.890 BRACKET; FUEL SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97090-296-3	01	1	9906-0105		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9812-9905	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9906-0105	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9812-9905	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9812-9905	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9906-9911	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9906-9911	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9912-0105	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9912-0105	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9812-9905	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9906-0105	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1 ENG(RJX) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0106-0203	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1 ENG(RJX) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0204-	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9812-9905		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9906-0105		●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-9905	●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	9906-0105	●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC) 04.785 M10 FLANGE	0-91150-110-0	02	1	9812-9905	●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	02	1	9906-0105	●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC) 04.785 M10 FLANGE	0-91150-110-0	03	1	9812-9905		●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	03	1	9906-0105		●
36	03.890 RING; BODY TO CASE 4JG2 ENG(RJC)	5-13234-001-0	01	1	9812-9905	●	●
36	03.890 RING; BODY TO CASE	5-13234-001-0	01	1	9906-0105	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU>	8-94450-148-0	01	1	9812-9812	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	9812-9812	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC)	8-94453-746-0	01	1	9901-9905	●	●
37	03.890 PLUG; SENSOR	8-94453-746-0	01	1	9906-0105	●	●
37	03.890 PLUG; SENSOR 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97123-549-0	01	1	0106-	●	●	●
41	03.890 GASKET; SENSOR TO CASE 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	9812-9812	●	●
41	03.890 GASKET; SENSOR TO CASE 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0106-	●	●	●
56	03.890 CASE; FUEL SEDIMENTER 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU>	5-13211-030-0	01	1	9812-9812	●	●
87	03.890 CASE ASM; SEDIMENTER 4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-0	01	1	9812-9812	●	●
87	03.890 CASE ASM; SEDIMENTER 4JG2 ENG(RJC)	8-97219-363-0	01	1	9901-9905	●	●
87	03.890 CASE ASM; SEDIMENTER	8-97219-363-0	01	1	9906-0105	●	●

1 15 41 7 9 14 37 57 41 14 37 41 20 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU>	8-97081-815-1	01	1	9812-9905	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-97081-815-1	01	1	9906-0105	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97081-814-1	01	1	9812-9905	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97081-814-1	01	1	9906-0105	●	●
1	03.890 SEDIMENTER; FUEL 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97240-126-1	01	1	0106-	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JG2 ENG(RJC)	8-94132-674-0	01	1	9812-9905	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	9906-0105	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	0106-	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JG2 ENG(RJC)	8-94132-675-0	01	1	9812-9905	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR	8-94132-675-0	01	1	9906-0105	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0106-	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JG2 ENG(RJC)	8-94447-156-0	01	1	9812-9905	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT	8-94447-156-0	01	1	9906-0105	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	0106-	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU>	8-97103-765-0	01	1	9812-9812	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97079-821-0	01	1	0106-	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9812-9905	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9906-0105	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9812-9905	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9812-9905	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9906-9911	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9906-9911	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9912-0105	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9912-0105	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9812-9905	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9906-0105	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1 ENG(RJX) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0106-0203	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1 ENG(RJX) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0204-	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9812-9905		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9906-0105		●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU>	8-94450-148-0	01	1	9812-9812	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	9812-9812	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC)	8-94453-746-0	01	1	9901-9905	●	●
37	03.890 PLUG; SENSOR	8-94453-746-0	01	1	9906-0105	●	●
37	03.890 PLUG; SENSOR 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97123-549-0	01	1	0106-	●	●	●
41	03.890 GASKET; SENSOR TO CASE 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	9812-9812	●	●
41	03.890 GASKET; SENSOR TO CASE 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0106-	●	●	●
57	03.890 CARTRIDGE KIT; FUEL FILTER 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94369-299-3	01	1	0106-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
