Sayfa 1-41 - Isuzu EPC

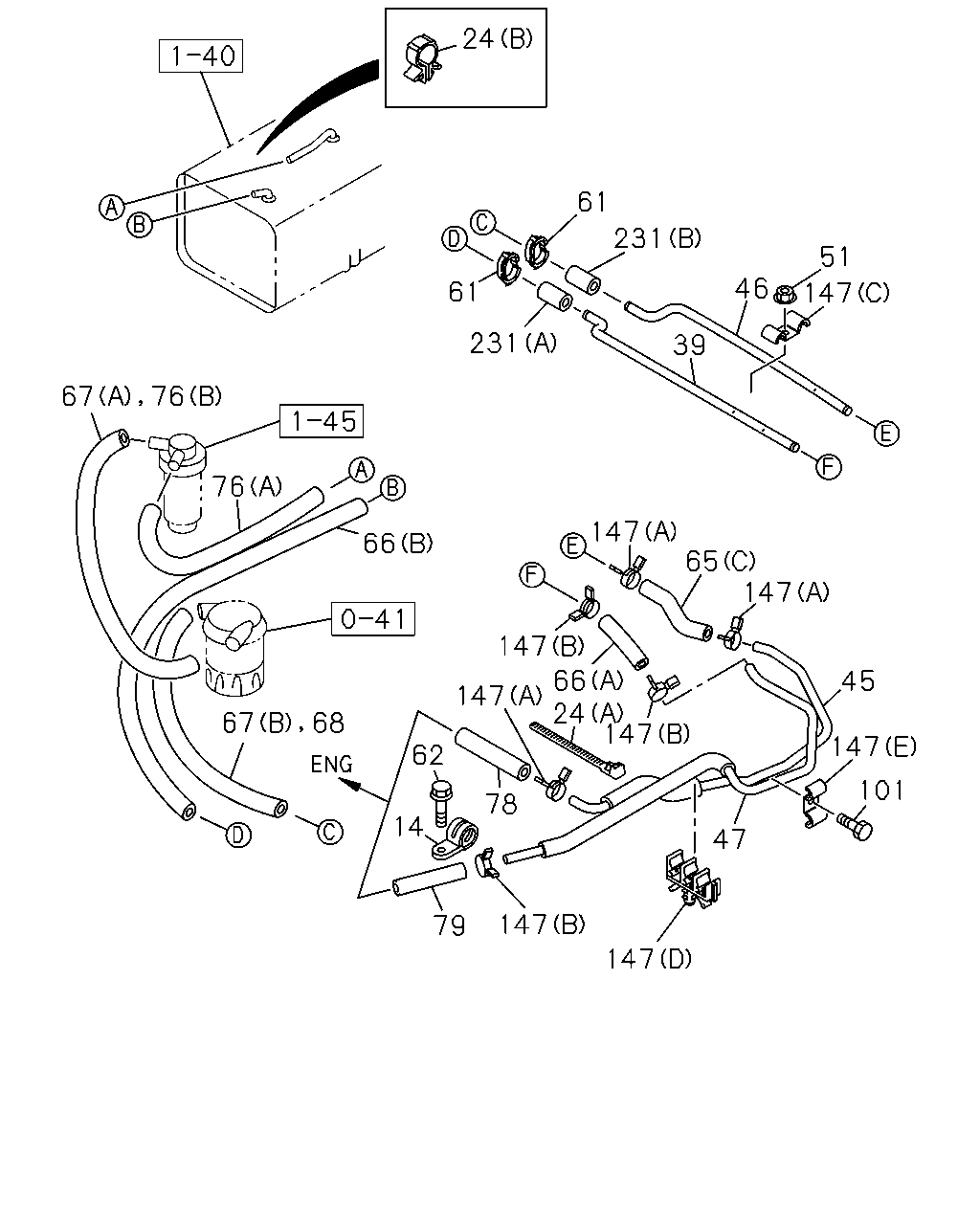

1-41 — FUEL PIPING; CHASSIS (#22085) — 250 parça

24 61 231 51 46 61 147 231 39 67 76 76 147 65 147 66 147 66 24 147 45 147 147 62 101 78 14 47 147 79 147 67 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	03.162 CLIP; HOSE 4JB1 ENG(RLF) 09.242 ID=22 L=22	5-83574-045-0	01	1	9906-0004	●	●
14	03.162 CLIP; HOSE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 09.242 ID=22 L=22	5-83574-045-0	01	1	0005-0105	●	●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	9812-0105	●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) (C)	8-97254-204-1	01	1	0106-	●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	9812-0105	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	9812-0105	●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) (A) L=140	5-09707-031-1	01	1	0106-	●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	9812-9905	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	9906-0105	●	●
39	03.163 PIPE; FUEL 4JG2 ENG(RJC)	8-97090-339-3	01	1	9812-9905	●
39	03.163 PIPE; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97090-339-3	01	1	9906-0105	●
39	03.163 PIPE; FUEL 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97259-379-2	01	1	0106-	●
39	03.163 PIPE; FUEL 4JG2 ENG(RJC)	8-97088-710-2	01	1	9812-9905		●
39	03.163 PIPE; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97088-710-2	01	1	9906-0105		●
39	03.163 PIPE; FUEL 4JH1 ENG(RJX)	8-97259-521-1	01	1	0106-		●	●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97035-640-3	01	1	9812-9905	●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP)	8-97035-640-3	01	1	9906-0105	●
45	03.163 PIPE; FUEL,DELIVERY 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97259-377-3	01	1	0106-	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>	8-97091-493-1	01	1	0005-0105		●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97178-125-0	01	1	9812-9812		●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97222-495-0	01	1	9901-9902		●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97225-253-0	01	1	9903-9905		●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97225-253-0	01	1	9906-0004		●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97225-253-0	01	1	0005-0105		●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97225-253-0	01	1	0005-0105		●
45	03.163 PIPE; FUEL,DELIVERY 4JH1 ENG(RJX)	8-97259-518-4	01	1	0106-		●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC)	8-97075-972-3	01	1	9812-9905	●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97075-972-3	01	1	9906-0105	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97259-376-2	01	1	0106-	●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC)	8-97070-373-2	01	1	9812-9905		●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97070-373-2	01	1	9906-0105		●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX)	8-97259-520-1	01	1	0106-		●	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC)	8-97080-713-2	01	1	9812-9905	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP)	8-97080-713-2	01	1	9906-0105	●
47	03.163 PIPE; FUEL,RETURN 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97259-378-2	01	1	0106-	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC)	8-97088-709-6	01	1	9812-9905		●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97088-709-6	01	1	9906-0105		●
47	03.163 PIPE; FUEL,RETURN 4JH1 ENG(RJX)	8-97259-519-3	01	1	0106-		●	●
51	03.162 NUT; CLIP,PIPE 4JG2 ENG(RJC) 04.594 M6 FLANGE	0-91150-106-0	03	1	9812-9905	●	●
51	03.162 NUT; CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.594 M6 FLANGE	0-91150-106-0	03	1	9906-0105	●	●
51	03.162 NUT; CLIP,PIPE 4JH1 ENG(RJX) 04.594 M6 FLANGE	0-91150-106-0	03	1	0106-	●	●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	9812-	●	●	●
62	03.162 BOLT; CLIP FIX 4JB1 ENG(RLF) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9906-0004	●	●
62	03.162 BOLT; CLIP FIX 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0005-0105	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (A) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0106-		●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JG2 ENG(RJC) 03.003 (C) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9905	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (C) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0105	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-0103	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0104-0105	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0104-0104		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-0105		●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9812-0105	●	●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0106-0106	●
67	03.163 HOSE; FUEL,DELIVERY 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0106-0106		●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	9812-0103	●	●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	0104-0105	●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (A) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	0104-0104		●
67	03.163 HOSE; FUEL,DELIVERY 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL FILTER DUAL(S6B) 03.003 (A) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	0105-0105		●
68	03.163 HOSE; FUEL,FILTER TO PIPE 4JG2 ENG(RJC) EXC. FUEL FILTER DUAL(S6B)	8-97091-765-0	01	1	9812-9905	●
68	03.163 HOSE; FUEL,FILTER TO PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B)	8-97091-765-0	01	1	9906-0105	●
68	03.163 HOSE; FUEL,FILTER TO PIPE 4JG2 ENG(RJC) EXC. FUEL FILTER DUAL(S6B) 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9905		●
68	03.163 HOSE; FUEL,FILTER TO PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0103		●
68	03.163 HOSE; FUEL,FILTER TO PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 L=180 SERVICED BY L=3000	0-01259-300-0	01	1	0104-0105		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9812-0105	●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) (C) L=500 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9905	●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0104	●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0105-0105	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9905		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0103		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0104-0105		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0105-0105		●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) (C) L=600 SERVICED BY L=3000	0-01262-300-0	01	1	0106-		●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF)	8-97222-766-0	01	1	9906-0004	●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97222-766-0	01	1	0005-0105	●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0005-0105	●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JH1 ENG(RJX) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0106-		●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) 03.003 L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9812-0105	●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) L=310 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9905	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) L=240 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1 ENG(RJX) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0106-		●	●
101	03.162 BOLT; CLIP,FUEL PIPE 4JG2 ENG(RJC) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	9812-9905	●
101	03.162 BOLT; CLIP,FUEL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	9906-0105	●
101	03.162 BOLT; CLIP,FUEL PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0106-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (E) ID=13 & 9 L=18 & 17	1-09700-075-0	02	1	9812-9905	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (E) ID=13 & 9 L=18 & 17	1-09700-075-0	02	1	9906-0105	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	0106-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9812-9905	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9906-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 04.686 (G) ID=13 & 7 L=16 & 14	1-09700-070-0	03	1	0106-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) 04.930 (A) ID=16	8-94238-568-0	10	1	9812-9905	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.930 (A) ID=16	8-94238-568-0	10	1	9906-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.762 (H) ID=19	8-94238-569-0	08	1	0106-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) 01.219 (B) ID=13	8-94238-571-0	06	1	9812-9905	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.219 (B) ID=13	8-94238-571-0	06	1	9906-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.219 (B) ID=13	8-94238-571-0	06	1	0106-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9812-9905	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9906-9912	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9906-9912		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0001-0105	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0001-0105		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (I) ID=12 & 6.35 & 4.76	8-97254-201-0	01	1	0106-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9812-9905		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9906-9912		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0001-0105		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9812-	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9812-0105	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4JH1 ENG(RJX) (B) OD=16.5 L=50	8-97214-235-0	01	1	0106-	●	●	●

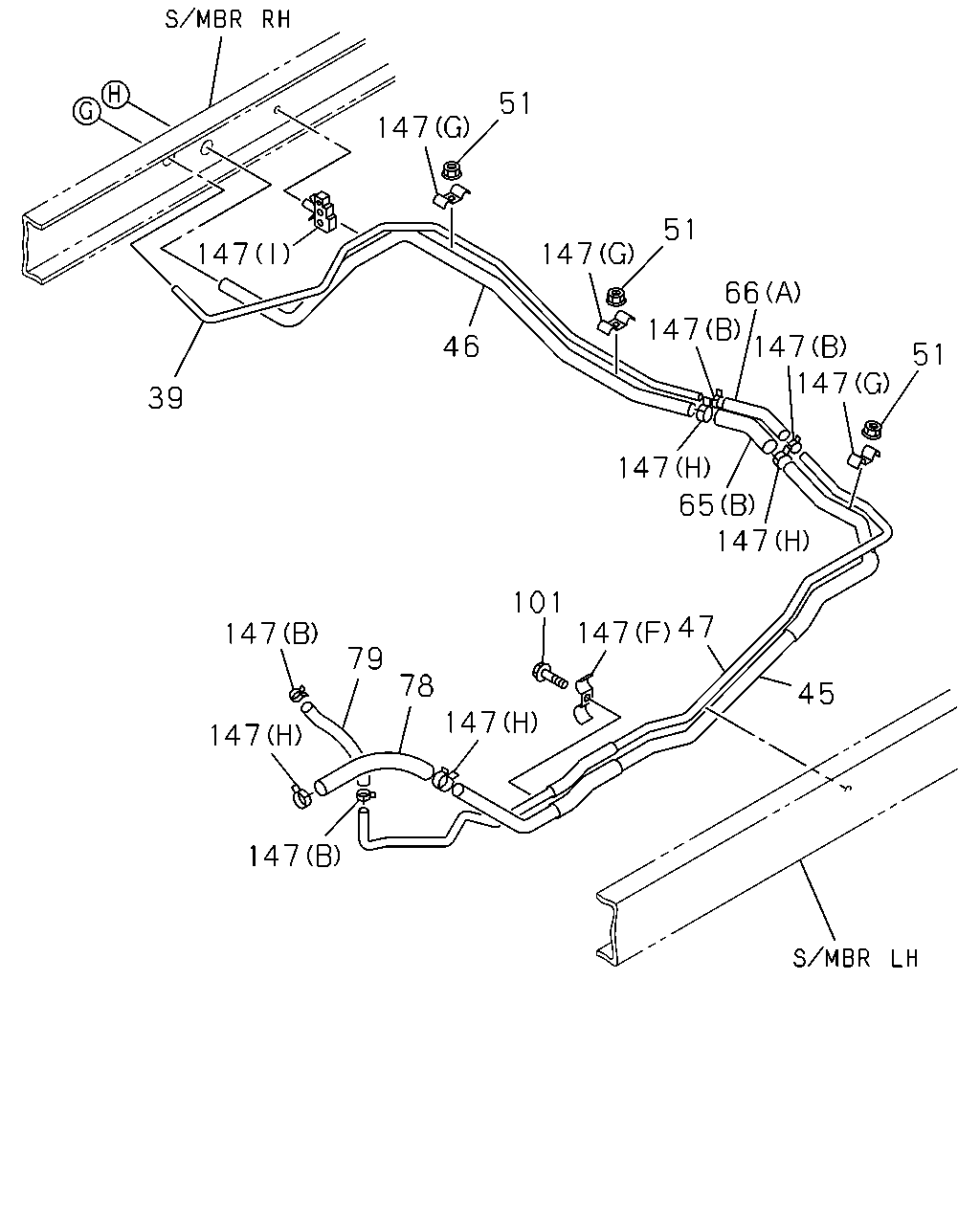

51 147 51 147 147 66 147 46 147 147 51 39 147 65 147 101 147 47 147 79 78 147 45 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	03.163 PIPE; FUEL 4JG2 ENG(RJC)	8-97090-339-3	01	1	9812-9905	●
39	03.163 PIPE; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97090-339-3	01	1	9906-0105	●
39	03.163 PIPE; FUEL 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97259-379-2	01	1	0106-	●
39	03.163 PIPE; FUEL 4JG2 ENG(RJC)	8-97088-710-2	01	1	9812-9905		●
39	03.163 PIPE; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97088-710-2	01	1	9906-0105		●
39	03.163 PIPE; FUEL 4JH1 ENG(RJX)	8-97259-521-1	01	1	0106-		●	●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97035-640-3	01	1	9812-9905	●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP)	8-97035-640-3	01	1	9906-0105	●
45	03.163 PIPE; FUEL,DELIVERY 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97259-377-3	01	1	0106-	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>	8-97091-493-1	01	1	0005-0105		●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97178-125-0	01	1	9812-9812		●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97222-495-0	01	1	9901-9902		●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97225-253-0	01	1	9903-9905		●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97225-253-0	01	1	9906-0004		●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97225-253-0	01	1	0005-0105		●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97225-253-0	01	1	0005-0105		●
45	03.163 PIPE; FUEL,DELIVERY 4JH1 ENG(RJX)	8-97259-518-4	01	1	0106-		●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC)	8-97075-972-3	01	1	9812-9905	●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97075-972-3	01	1	9906-0105	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97259-376-2	01	1	0106-	●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC)	8-97070-373-2	01	1	9812-9905		●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97070-373-2	01	1	9906-0105		●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX)	8-97259-520-1	01	1	0106-		●	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC)	8-97080-713-2	01	1	9812-9905	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP)	8-97080-713-2	01	1	9906-0105	●
47	03.163 PIPE; FUEL,RETURN 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97259-378-2	01	1	0106-	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC)	8-97088-709-6	01	1	9812-9905		●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97088-709-6	01	1	9906-0105		●
47	03.163 PIPE; FUEL,RETURN 4JH1 ENG(RJX)	8-97259-519-3	01	1	0106-		●	●
51	03.162 NUT; CLIP,PIPE 4JG2 ENG(RJC) 04.594 M6 FLANGE	0-91150-106-0	03	1	9812-9905	●	●
51	03.162 NUT; CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.594 M6 FLANGE	0-91150-106-0	03	1	9906-0105	●	●
51	03.162 NUT; CLIP,PIPE 4JH1 ENG(RJX) 04.594 M6 FLANGE	0-91150-106-0	03	1	0106-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (A) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0106-		●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JG2 ENG(RJC) 03.003 (C) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9905	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (C) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0105	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-0103	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0104-0105	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0104-0104		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-0105		●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF)	8-97222-766-0	01	1	9906-0004	●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97222-766-0	01	1	0005-0105	●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0005-0105	●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JH1 ENG(RJX) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0106-		●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) 03.003 L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9812-0105	●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) L=310 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9905	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) L=240 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1 ENG(RJX) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0106-		●	●
101	03.162 BOLT; CLIP,FUEL PIPE 4JG2 ENG(RJC) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	9812-9905	●
101	03.162 BOLT; CLIP,FUEL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	9906-0105	●
101	03.162 BOLT; CLIP,FUEL PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0106-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (E) ID=13 & 9 L=18 & 17	1-09700-075-0	02	1	9812-9905	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (E) ID=13 & 9 L=18 & 17	1-09700-075-0	02	1	9906-0105	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	0106-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9812-9905	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9906-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 04.686 (G) ID=13 & 7 L=16 & 14	1-09700-070-0	03	1	0106-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) 04.930 (A) ID=16	8-94238-568-0	10	1	9812-9905	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.930 (A) ID=16	8-94238-568-0	10	1	9906-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.762 (H) ID=19	8-94238-569-0	08	1	0106-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) 01.219 (B) ID=13	8-94238-571-0	06	1	9812-9905	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.219 (B) ID=13	8-94238-571-0	06	1	9906-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.219 (B) ID=13	8-94238-571-0	06	1	0106-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9812-9905	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9906-9912	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9906-9912		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0001-0105	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0001-0105		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (I) ID=12 & 6.35 & 4.76	8-97254-201-0	01	1	0106-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9812-9905		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9906-9912		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0001-0105		●

231 61 147 66 231 61 147 65 65 76 66 147 147 147 147 24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	9812-0105	●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) (C)	8-97254-204-1	01	1	0106-	●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	9812-0105	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	9812-0105	●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) (A) L=140	5-09707-031-1	01	1	0106-	●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	9812-9905	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	9906-0105	●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	9812-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (A) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0106-		●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JG2 ENG(RJC) 03.003 (C) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9905	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (C) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0105	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9812-0103	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0104-0105	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9812-9905	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9906-0105	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0106-	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0104-0104		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-0105		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9812-0105	●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) (C) L=500 SERVICED BY L=3000	0-01262-300-0	01	1	0106-	●		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9905	●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0104	●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0105-0105	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9812-9905		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9906-0103		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0104-0105		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0105-0105		●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) (C) L=600 SERVICED BY L=3000	0-01262-300-0	01	1	0106-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (E) ID=13 & 9 L=18 & 17	1-09700-075-0	02	1	9812-9905	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (E) ID=13 & 9 L=18 & 17	1-09700-075-0	02	1	9906-0105	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	0106-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9812-9905	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9906-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 04.686 (G) ID=13 & 7 L=16 & 14	1-09700-070-0	03	1	0106-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) 04.930 (A) ID=16	8-94238-568-0	10	1	9812-9905	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.930 (A) ID=16	8-94238-568-0	10	1	9906-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.762 (H) ID=19	8-94238-569-0	08	1	0106-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) 01.219 (B) ID=13	8-94238-571-0	06	1	9812-9905	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.219 (B) ID=13	8-94238-571-0	06	1	9906-0105	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.219 (B) ID=13	8-94238-571-0	06	1	0106-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9812-9905	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9906-9912	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9906-9912		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0001-0105	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0001-0105		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (I) ID=12 & 6.35 & 4.76	8-97254-201-0	01	1	0106-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9812-9905		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9906-9912		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0001-0105		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9812-	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9812-0105	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4JH1 ENG(RJX) (B) OD=16.5 L=50	8-97214-235-0	01	1	0106-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
