◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50810 - NKR(EUROPE)-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-35 - CHARGE AIR COOLER ▶
1-35 — CHARGE AIR COOLER (#22083) — 10 parça

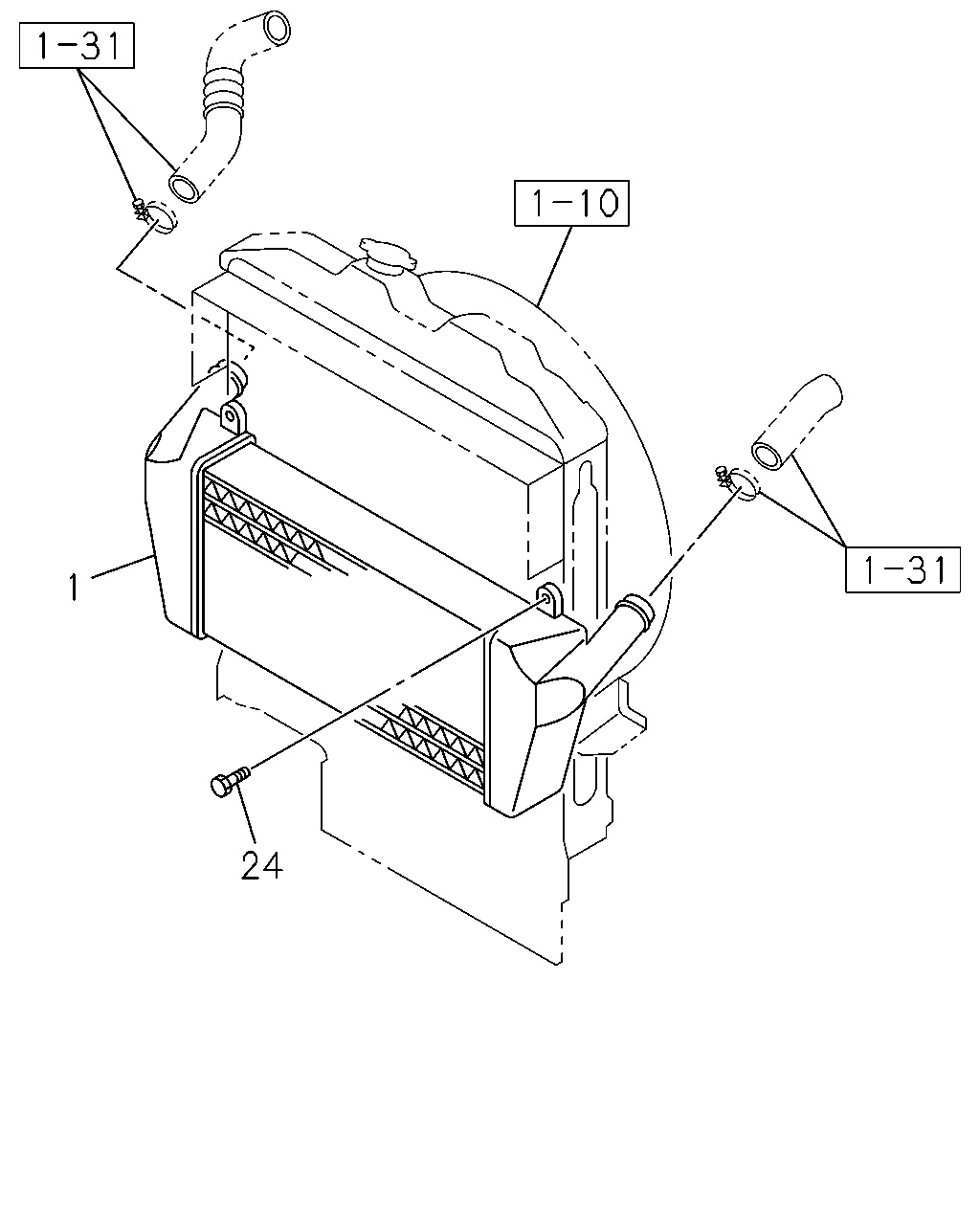

çizim 10067
1 24
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.374 COOLER; CHARGE AIR
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97210-644-0 01 1 9906-0105 ● ●
1 03.374 COOLER; CHARGE AIR
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) 		8-97240-039-2 01 1 0106-0203 ●
1 03.374 COOLER; CHARGE AIR
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 		8-97240-039-2 01 1 0106-0203 ●
1 03.374 COOLER; CHARGE AIR
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) 		8-97240-039-2 01 1 0204- ●
1 03.374 COOLER; CHARGE AIR
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 		8-97240-039-2 01 1 0204- ● ●
24 03.374 BOLT; COOLER TO RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.531 M8X25 FLANGE 		0-28080-825-0 04 1 9906-0105 ● ●
24 03.374 BOLT; COOLER TO RAD
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) 01.531 M8X25 FLANGE 		0-28080-825-0 04 1 0106-0203 ●
24 03.374 BOLT; COOLER TO RAD
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 01.531 M8X25 FLANGE 		0-28080-825-0 04 1 0106-0203 ●
24 03.374 BOLT; COOLER TO RAD
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) 01.531 M8X25 FLANGE 		0-28080-825-0 04 1 0204- ●
24 03.374 BOLT; COOLER TO RAD
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> 01.531 M8X25 FLANGE 		0-28080-825-0 04 1 0204- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
