Sayfa 1-30 - Isuzu EPC

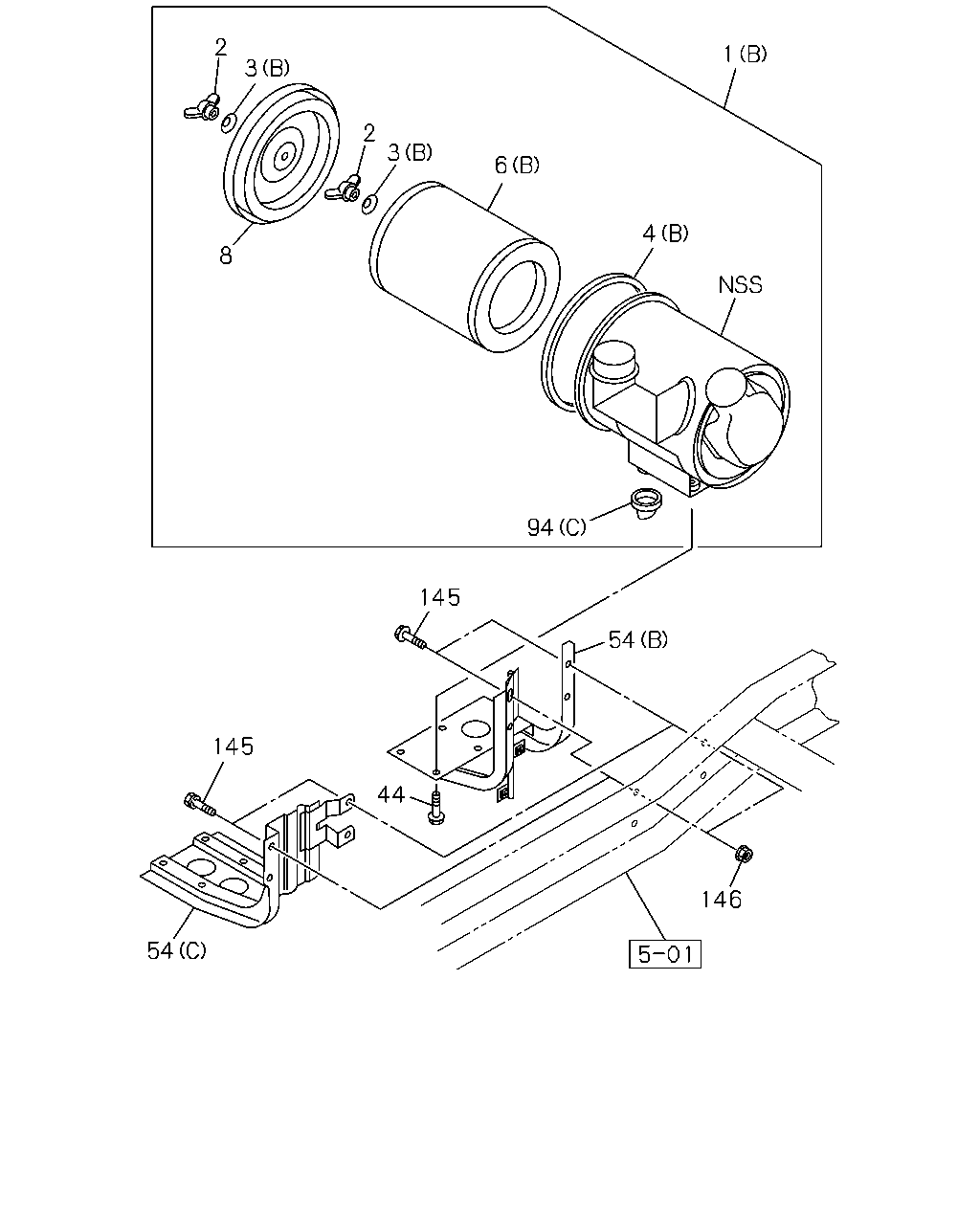

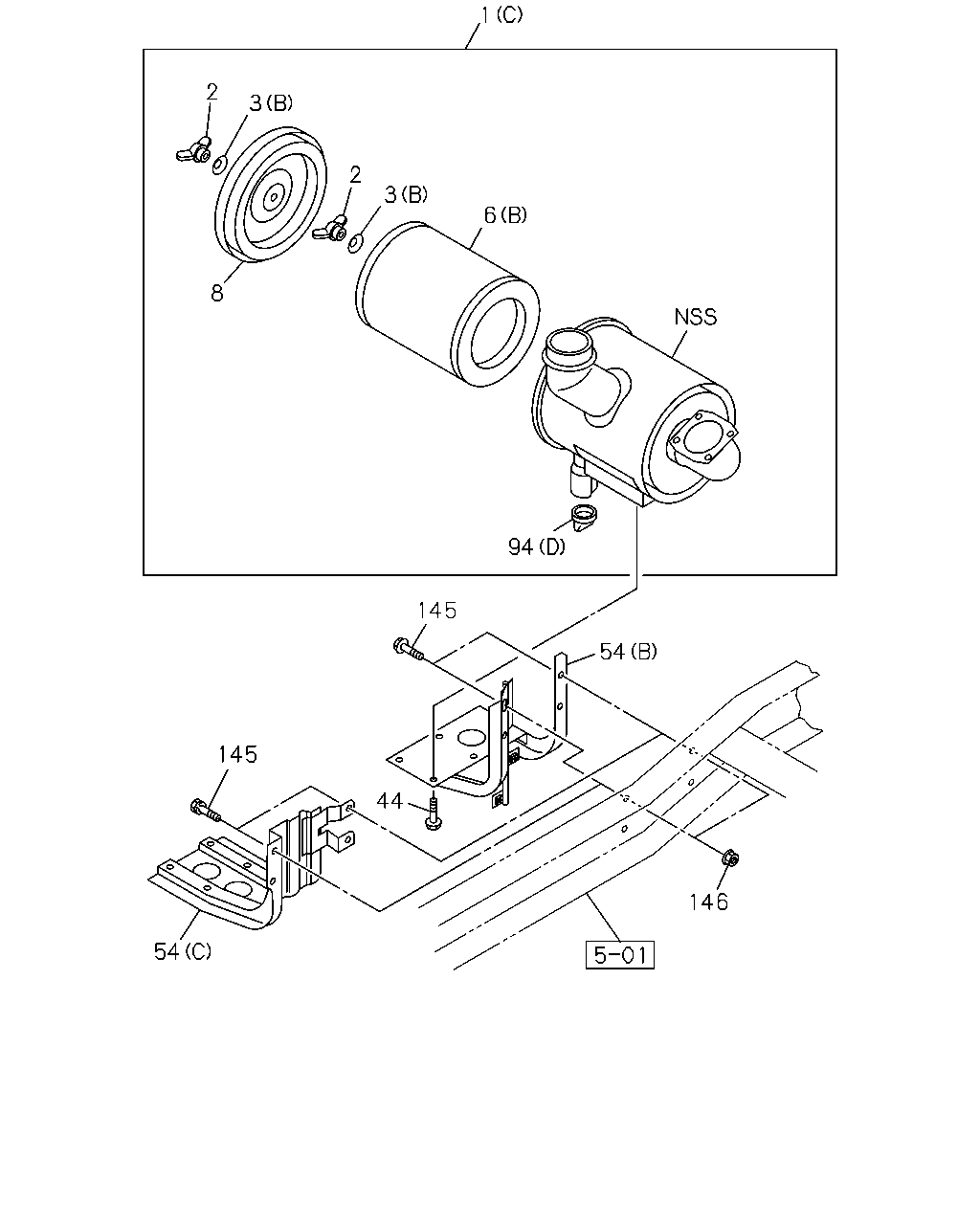

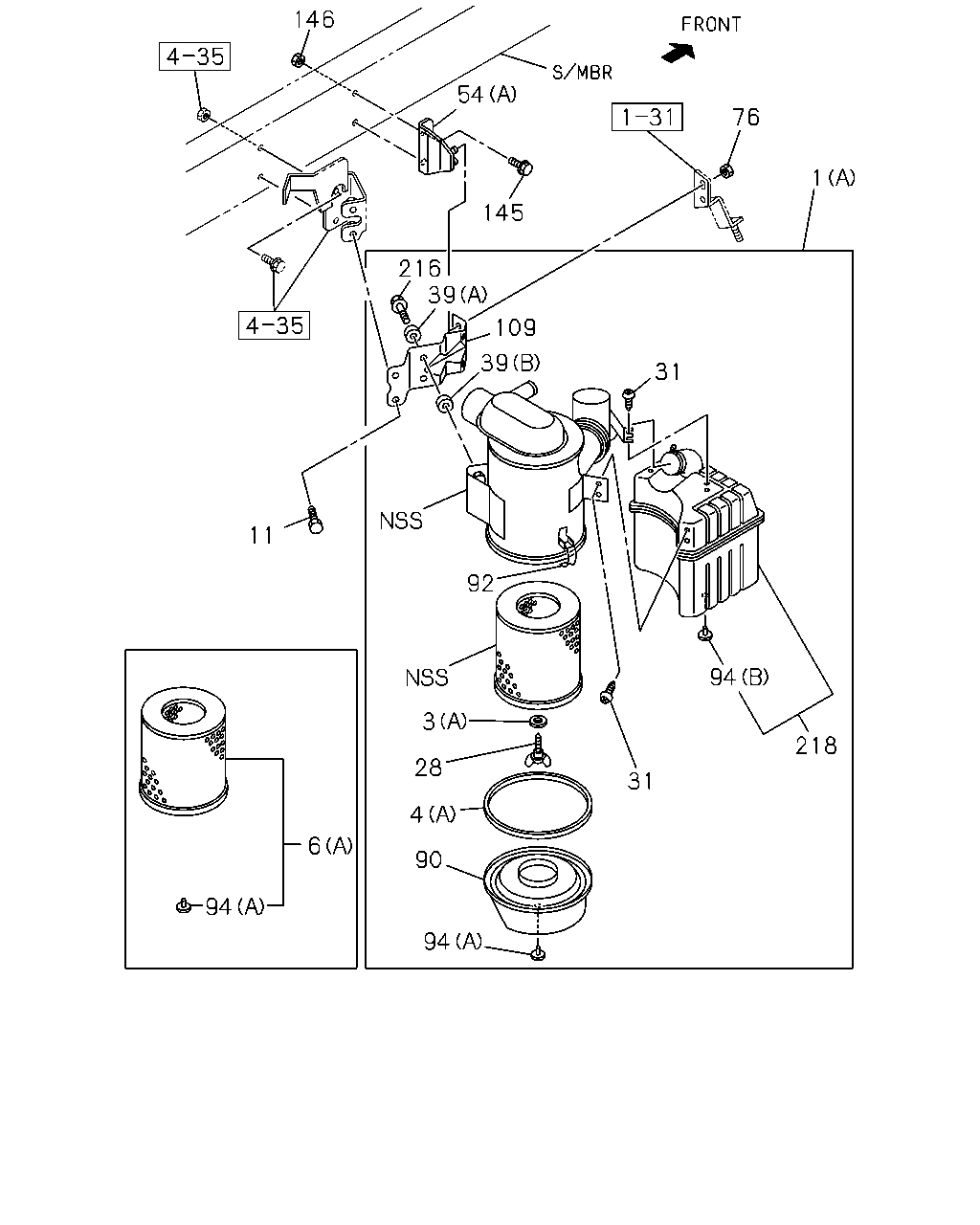

1-30 — AIR CLEANER (#22081) — 145 parça

146 54 76 1 145 216 39 109 39 31 11 92 94 3 218 28 31 4 6 90 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC) (A)	8-97090-028-1	01	1	9812-9905	●	●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97090-028-1	01	1	9906-0105	●	●
1	03.402 CLEANER ASM; AIR 4JH1 ENG(RJX) (C)	8-97240-054-2	01	1	0106-	●	●	●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97062-053-1	01	1	9906-0105	●	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC) (A)	9-14219-279-0	01	1	9812-9905	●	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	9-14219-279-0	01	1	9906-0105	●	●
3	03.403 WASHER; SEAL,WING NUT 4JH1 ENG(RJX) (B)	1-14219-225-0	02	1	0106-	●	●	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B)	1-14219-225-0	02	1	9906-0105	●	●
4	03.403 GASKET; COVER TO BODY 4JG2 ENG(RJC) (A)	8-94361-137-0	01	1	9812-9905	●	●
4	03.403 GASKET; COVER TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94361-137-0	01	1	9906-0105	●	●
4	03.403 GASKET; COVER TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.410 (B)	8-94156-051-0	01	1	9906-0105	●	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC) (A)	8-97173-210-0	01	1	9812-9905	●	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97173-210-0	01	1	9906-0105	●	●
6	03.410 FILTER; ACL 4JH1 ENG(RJX) (B)	8-94156-052-0	01	1	0106-	●	●	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-94156-052-0	01	1	9906-0105	●	●
11	03.403 BOLT; ACL 4JG2 ENG(RJC) 03.405 M10X25 FLANGE	0-28681-025-0	02	1	9812-9905	●	●
11	03.403 BOLT; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.405 M10X25 FLANGE	0-28681-025-0	02	1	9906-0105	●	●
28	03.403 BOLT; WING,ACL 4JG2 ENG(RJC)	9-14217-090-0	01	1	9812-9905	●	●
28	03.403 BOLT; WING,ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	9-14217-090-0	01	1	9906-0105	●	●
31	03.406 SCREW; ACL 4JG2 ENG(RJC) 03.402	8-97100-001-0	04	1	9812-9905	●	●
31	03.406 SCREW; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.402	8-97100-001-0	04	1	9906-0105	●	●
39	03.403 RUBBER; MTG,BOLT 4JG2 ENG(RJC) (A)	8-97100-002-0	04	1	9812-9905	●	●
39	03.403 RUBBER; MTG,BOLT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97100-002-0	04	1	9906-0105	●	●
39	03.403 RUBBER; MTG,BOLT 4JG2 ENG(RJC) (B)	8-97100-007-0	02	1	9812-9905	●	●
39	03.403 RUBBER; MTG,BOLT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97100-007-0	02	1	9906-0105	●	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) (B)	8-97212-379-2	01	1	9906-0105	●
54	03.405 BRACKET; ACL 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97315-605-0	01	1	0106-	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC) (A)	8-97038-519-1	01	1	9812-9905	●	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97038-519-1	01	1	9906-0105	●	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) (C)	8-97107-139-0	01	1	9906-0105		●
54	03.405 BRACKET; ACL 4JH1 ENG(RJX) (C)	8-97107-139-0	01	1	0106-		●	●
76	03.405 NUT; BRKT TO ACL 4JG2 ENG(RJC) 04.785 M10 FLANGE	0-91150-110-0	02	1	9812-9905	●	●
76	03.405 NUT; BRKT TO ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	9906-0105	●	●
90	03.406 CUP; ACL 4JG2 ENG(RJC)	8-97215-621-0	01	1	9812-9905	●	●
90	03.406 CUP; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97215-621-0	01	1	9906-0105	●	●
92	03.405 CLIP; WIRE,ACL 4JG2 ENG(RJC)	8-94118-230-0	03	1	9812-9905	●	●
92	03.405 CLIP; WIRE,ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-94118-230-0	03	1	9906-0105	●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC) (A)	8-94439-205-0	01	1	9812-9905	●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94439-205-0	01	1	9906-0105	●	●
94	03.415 VALVE; VACUATOR 4JH1 ENG(RJX) (D)	8-94447-157-0	01	1	0106-	●	●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC) (B)	8-97148-258-0	01	1	9812-9905	●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97148-258-0	01	1	9906-0105	●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-94160-187-0	01	1	9906-0105	●	●
109	03.405 STAY; ACL 4JG2 ENG(RJC)	8-97215-622-0	01	1	9812-9905	●	●
109	03.405 STAY; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97215-622-0	01	1	9906-0105	●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC) M10X25 FLANGE	0-28681-025-0	02	1	9812-9905	●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> M10X25 FLANGE	0-28681-025-0	02	1	9906-0105	●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	9906-0105	●	●
145	03.405 BOLT; BRKT TO FRAME 4JH1 ENG(RJX) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0106-	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE	0-91150-110-0	04	1	9906-0105	●	●
146	03.405 NUT; BRKT TO FRAME 4JH1 ENG(RJX) 04.785 M10 FLANGE	0-91150-110-0	04	1	0106-	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC) 04.785 M10 FLANGE	0-91150-110-0	04	1	9812-9812		●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC) 04.785 M10 FLANGE	0-91150-110-0	02	1	9901-9905		●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC) 04.785 M10 FLANGE	0-91150-110-0	02	1	9901-9905		●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	9906-0105		●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	9906-0105		●
216	03.402 BOLT; ACL TO SILENCER 4JG2 ENG(RJC)	8-97126-074-0	04	1	9812-9905	●	●
216	03.402 BOLT; ACL TO SILENCER 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97126-074-0	04	1	9906-0105	●	●
218	03.417 RESONATOR; ACL 4JG2 ENG(RJC)	8-97106-120-1	01	1	9812-9905	●	●
218	03.417 RESONATOR; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97106-120-1	01	1	9906-0105	●	●

1 2 3 2 3 6 8 94 145 54 145 44 146 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC) (A)	8-97090-028-1	01	1	9812-9905	●	●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97090-028-1	01	1	9906-0105	●	●
1	03.402 CLEANER ASM; AIR 4JH1 ENG(RJX) (C)	8-97240-054-2	01	1	0106-	●	●	●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97062-053-1	01	1	9906-0105	●	●
2	03.403 NUT; WING,ELEMENT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	1-14217-068-0	02	1	9906-0105	●	●
2	03.403 NUT; WING,ELEMENT 4JH1 ENG(RJX)	1-14217-068-0	02	1	0106-	●	●	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC) (A)	9-14219-279-0	01	1	9812-9905	●	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	9-14219-279-0	01	1	9906-0105	●	●
3	03.403 WASHER; SEAL,WING NUT 4JH1 ENG(RJX) (B)	1-14219-225-0	02	1	0106-	●	●	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B)	1-14219-225-0	02	1	9906-0105	●	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC) (A)	8-97173-210-0	01	1	9812-9905	●	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97173-210-0	01	1	9906-0105	●	●
6	03.410 FILTER; ACL 4JH1 ENG(RJX) (B)	8-94156-052-0	01	1	0106-	●	●	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-94156-052-0	01	1	9906-0105	●	●
8	03.410 COVER ASM; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94156-050-0	01	1	9906-0105	●	●
8	03.410 COVER ASM; ACL 4JH1 ENG(RJX)	8-97313-386-0	01	1	0106-	●	●	●
44	03.403 BOLT; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	9906-0105	●	●
44	03.403 BOLT; ACL 4JH1 ENG(RJX) 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	0106-	●	●	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) (B)	8-97212-379-2	01	1	9906-0105	●
54	03.405 BRACKET; ACL 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97315-605-0	01	1	0106-	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC) (A)	8-97038-519-1	01	1	9812-9905	●	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97038-519-1	01	1	9906-0105	●	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) (C)	8-97107-139-0	01	1	9906-0105		●
54	03.405 BRACKET; ACL 4JH1 ENG(RJX) (C)	8-97107-139-0	01	1	0106-		●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC) (A)	8-94439-205-0	01	1	9812-9905	●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94439-205-0	01	1	9906-0105	●	●
94	03.415 VALVE; VACUATOR 4JH1 ENG(RJX) (D)	8-94447-157-0	01	1	0106-	●	●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC) (B)	8-97148-258-0	01	1	9812-9905	●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97148-258-0	01	1	9906-0105	●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-94160-187-0	01	1	9906-0105	●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC) M10X25 FLANGE	0-28681-025-0	02	1	9812-9905	●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> M10X25 FLANGE	0-28681-025-0	02	1	9906-0105	●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	9906-0105	●	●
145	03.405 BOLT; BRKT TO FRAME 4JH1 ENG(RJX) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0106-	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE	0-91150-110-0	04	1	9906-0105	●	●
146	03.405 NUT; BRKT TO FRAME 4JH1 ENG(RJX) 04.785 M10 FLANGE	0-91150-110-0	04	1	0106-	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC) 04.785 M10 FLANGE	0-91150-110-0	04	1	9812-9812		●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC) 04.785 M10 FLANGE	0-91150-110-0	02	1	9901-9905		●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC) 04.785 M10 FLANGE	0-91150-110-0	02	1	9901-9905		●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	9906-0105		●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	9906-0105		●

2 1 3 2 3 6 4 8 94 145 54 145 44 146 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC) (A)	8-97090-028-1	01	1	9812-9905	●	●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97090-028-1	01	1	9906-0105	●	●
1	03.402 CLEANER ASM; AIR 4JH1 ENG(RJX) (C)	8-97240-054-2	01	1	0106-	●	●	●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97062-053-1	01	1	9906-0105	●	●
2	03.403 NUT; WING,ELEMENT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	1-14217-068-0	02	1	9906-0105	●	●
2	03.403 NUT; WING,ELEMENT 4JH1 ENG(RJX)	1-14217-068-0	02	1	0106-	●	●	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC) (A)	9-14219-279-0	01	1	9812-9905	●	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	9-14219-279-0	01	1	9906-0105	●	●
3	03.403 WASHER; SEAL,WING NUT 4JH1 ENG(RJX) (B)	1-14219-225-0	02	1	0106-	●	●	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B)	1-14219-225-0	02	1	9906-0105	●	●
4	03.403 GASKET; COVER TO BODY 4JG2 ENG(RJC) (A)	8-94361-137-0	01	1	9812-9905	●	●
4	03.403 GASKET; COVER TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94361-137-0	01	1	9906-0105	●	●
4	03.403 GASKET; COVER TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.410 (B)	8-94156-051-0	01	1	9906-0105	●	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC) (A)	8-97173-210-0	01	1	9812-9905	●	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97173-210-0	01	1	9906-0105	●	●
6	03.410 FILTER; ACL 4JH1 ENG(RJX) (B)	8-94156-052-0	01	1	0106-	●	●	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-94156-052-0	01	1	9906-0105	●	●
8	03.410 COVER ASM; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94156-050-0	01	1	9906-0105	●	●
8	03.410 COVER ASM; ACL 4JH1 ENG(RJX)	8-97313-386-0	01	1	0106-	●	●	●
44	03.403 BOLT; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	9906-0105	●	●
44	03.403 BOLT; ACL 4JH1 ENG(RJX) 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	0106-	●	●	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) (B)	8-97212-379-2	01	1	9906-0105	●
54	03.405 BRACKET; ACL 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97315-605-0	01	1	0106-	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC) (A)	8-97038-519-1	01	1	9812-9905	●	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97038-519-1	01	1	9906-0105	●	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) (C)	8-97107-139-0	01	1	9906-0105		●
54	03.405 BRACKET; ACL 4JH1 ENG(RJX) (C)	8-97107-139-0	01	1	0106-		●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC) (A)	8-94439-205-0	01	1	9812-9905	●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94439-205-0	01	1	9906-0105	●	●
94	03.415 VALVE; VACUATOR 4JH1 ENG(RJX) (D)	8-94447-157-0	01	1	0106-	●	●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC) (B)	8-97148-258-0	01	1	9812-9905	●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97148-258-0	01	1	9906-0105	●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-94160-187-0	01	1	9906-0105	●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC) M10X25 FLANGE	0-28681-025-0	02	1	9812-9905	●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> M10X25 FLANGE	0-28681-025-0	02	1	9906-0105	●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	9906-0105	●	●
145	03.405 BOLT; BRKT TO FRAME 4JH1 ENG(RJX) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0106-	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE	0-91150-110-0	04	1	9906-0105	●	●
146	03.405 NUT; BRKT TO FRAME 4JH1 ENG(RJX) 04.785 M10 FLANGE	0-91150-110-0	04	1	0106-	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC) 04.785 M10 FLANGE	0-91150-110-0	04	1	9812-9812		●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC) 04.785 M10 FLANGE	0-91150-110-0	02	1	9901-9905		●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC) 04.785 M10 FLANGE	0-91150-110-0	02	1	9901-9905		●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	9906-0105		●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	9906-0105		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
