2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#2208) — 109 parça

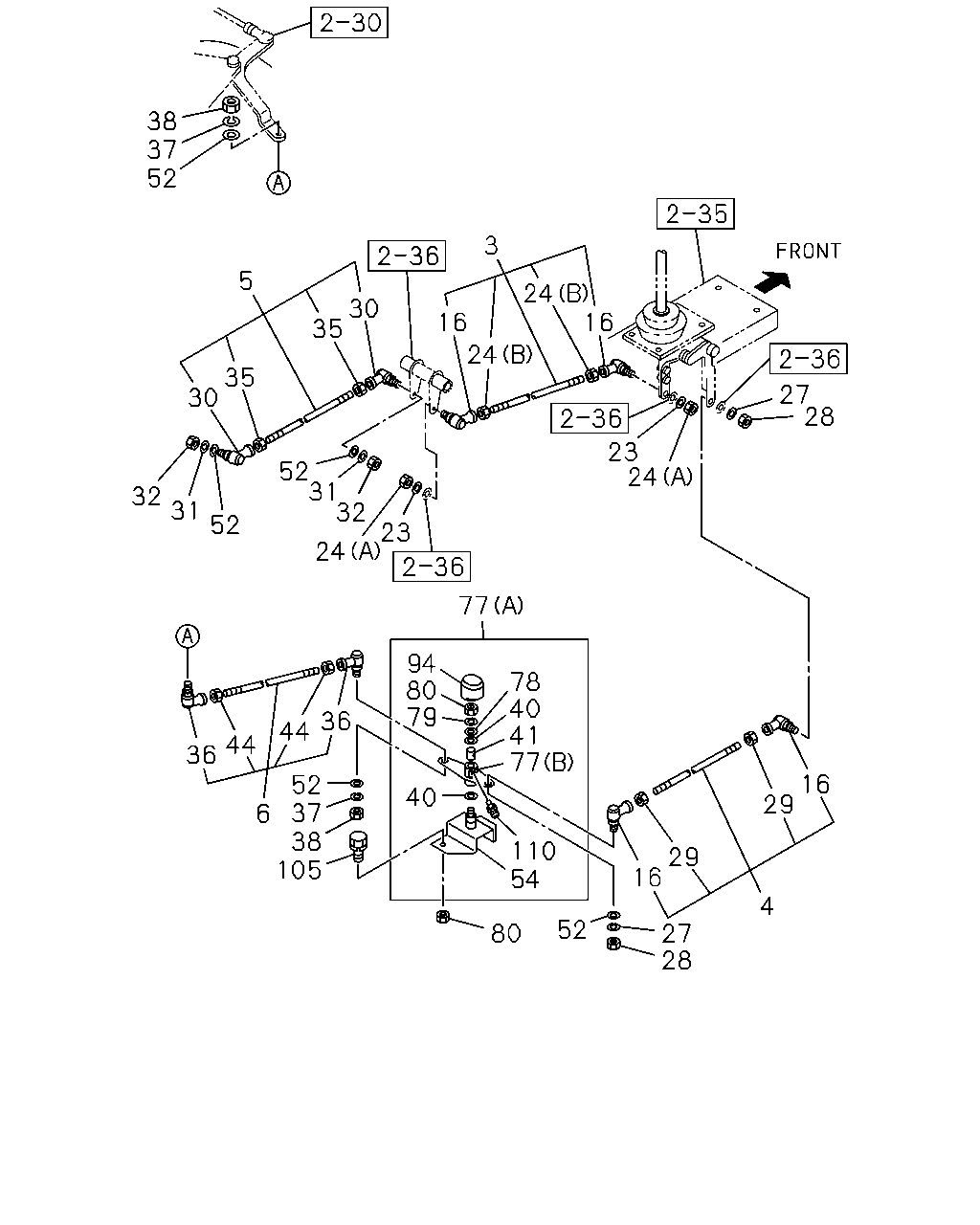

çizim 29641
38 37 52 3 5 24 16 30 35 16 24 35 30 27 28 23 24 52 31 32 32 31 52 23 24 77 94 80 79 78 40 41 77 36 44 44 36 16 29 52 37 38 105 40 6 110 54 29 16 4 52 80 27 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
3 ROD; LINK,2ND SHIFT
RIGHT HAND DRIVE(MTR5FB) L=616 		1-33660-785-1 01 1 9101-0203 ● ● ● ● ● ●
3 ROD; LINK,2ND SHIFT
RIGHT HAND DRIVE(MTR5FB) L=616 		1-33660-785-1 01 1 0204- ● ● ●
3 ROD; LINK,2ND SHIFT
LEFT HAND DRIVE(MTR6FB) L=619 		1-33660-798-1 01 1 9101- ● ● ● ● ● ●
3 ROD; LINK,2ND SHIFT
L=635 		1-33660-778-1 01 1 9101- ●
4 ROD; LINK,2ND SELECT
RIGHT HAND DRIVE(MTR5FB) L=425 		1-33660-787-1 01 1 9101-0203 ● ● ● ● ● ●
4 ROD; LINK,2ND SELECT
RIGHT HAND DRIVE(MTR5FB) L=425 		1-33660-787-1 01 1 0204- ● ● ●
4 ROD; LINK,2ND SELECT
LEFT HAND DRIVE(MTR6FB) L=328 		1-33660-795-2 01 1 9101- ● ● ● ● ● ●
4 ROD; LINK,2ND SELECT
L=425 		1-33660-777-1 01 1 9101- ●
5 ROD; LINK,3RD SHIFT
RIGHT HAND DRIVE(MTR5FB) L=331 		1-33650-372-2 01 1 9101-0203 ● ● ● ● ● ●
5 ROD; LINK,3RD SHIFT
RIGHT HAND DRIVE(MTR5FB) L=331 		1-33650-372-2 01 1 0204- ● ● ●
5 ROD; LINK,3RD SHIFT
LEFT HAND DRIVE(MTR6FB) L=327 		1-33660-748-0 01 1 9101- ● ● ● ● ● ●
5 ROD; LINK,3RD SHIFT
L=291 		1-33660-775-1 01 1 9101- ●
5 ROD; LINK,3RD SHIFT
LEFT HAND DRIVE(MTR6FB) L=270 		1-09765-145-0 01 1 0204- ● ● ●
5 ROD; LINK,3RD SHIFT
L=270 		1-09765-145-0 01 1 0204- ● ● ●
6 ROD; LINK,3RD SELECT
RIGHT HAND DRIVE(MTR5FB) L=582 		1-33660-786-1 01 1 9101-0203 ● ● ● ● ● ●
6 ROD; LINK,3RD SELECT
RIGHT HAND DRIVE(MTR5FB) L=582 		1-33660-786-1 01 1 0204- ● ● ●
6 ROD; LINK,3RD SELECT
LEFT HAND DRIVE(MTR6FB) L=645 		1-33660-822-1 01 1 9101- ● ● ● ● ● ●
6 ROD; LINK,3RD SELECT
L=497 		1-33660-776-1 01 1 9101- ●
16 JOINT ASM; BALL,CONT ROD
M10 LEFT THREAD 		1-09760-078-0 04 1 9101-0203 ● ● ● ● ● ● ●
16 JOINT ASM; BALL,CONT ROD
LEFT HAND DRIVE(MTR6FB) 		1-09760-078-0 04 1 0204- ● ● ●
16 JOINT ASM; BALL,CONT ROD 1-09760-078-0 04 1 0204- ● ● ● ●
23 WASHER; LK,2ND LINK ROD 9-09150-510-0 02 1 9101-9301 ● ● ● ● ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
(A) 		9-09110-410-0 02 1 9101-9301 ● ● ● ● ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
(A) M10 T=10 FLANGE 		1-09440-050-0 02 1 9302-9710 ● ● ● ● ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
(A) M10 T=11 FLANGE 		1-09440-056-0 02 1 9711- ● ● ● ● ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
(B) M10 		9-09111-410-0 02 1 9101-0203 ● ● ● ● ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
LEFT HAND DRIVE(MTR6FB) (B) M10 		9-09111-410-0 02 1 0204- ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
(B) M10 		9-09111-410-0 02 1 0204- ● ● ● ●
27 WASHER; LK,2ND LINK ROD
ID=10.2 		9-09150-510-0 02 1 9101-9301 ● ● ● ● ● ● ●
28 NUT; 2ND LINK ROD 9-09110-410-0 02 1 9101-9301 ● ● ● ● ● ● ●
28 NUT; 2ND LINK ROD
M10 T=10 FLANGE 		1-09440-050-0 02 1 9302-9710 ● ● ● ● ● ● ●
28 NUT; 2ND LINK ROD
M10 T=11 FLANGE 		1-09440-056-0 02 1 9711- ● ● ● ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9101-0203 ● ● ● ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
LEFT HAND DRIVE(MTR6FB) M10 		9-09111-410-0 02 1 0204- ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0204- ● ● ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD
RIGHT HAND DRIVE(MTR5FB) RH THREAD 		5-09760-019-0 01 1 9101-0203 ● ● ● ● ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD
RIGHT HAND DRIVE(MTR5FB) RH THREAD 		5-09760-019-0 01 1 0204-0404 ● ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD
RIGHT HAND DRIVE(MTR5FB) LH THREAD 		5-09760-020-0 01 1 9101-0203 ● ● ● ● ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD
RIGHT HAND DRIVE(MTR5FB) LH THREAD 		5-09760-020-0 01 1 0204-0404 ● ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD
LEFT HAND DRIVE(MTR6FB) RH THREAD 		1-09760-085-0 01 1 9101-0404 ● ● ● ● ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD
LEFT HAND DRIVE(MTR6FB) RH THREAD 		1-09760-085-0 01 1 0405- ● ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD
RH THREAD 		1-09760-085-0 01 1 0405- ● ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD
LEFT HAND DRIVE(MTR6FB) LH THREAD 		1-09760-086-0 01 1 9101-0404 ● ● ● ● ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD
LEFT HAND DRIVE(MTR6FB) LH THREAD 		1-09760-086-0 01 1 0405- ● ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD
LH THREAD 		1-09760-086-0 01 1 0405- ● ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-078-0 02 1 9101- ●
31 WASHER; LK,3RD LINK ROD 9-09150-510-0 02 1 9101-9301 ● ● ● ● ● ● ●
32 NUT; 3RD LINK ROD
M10 		9-09110-410-0 02 1 9101-9301 ● ● ● ● ● ● ●
32 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-050-0 02 1 9302-9710 ● ● ● ● ● ● ●
32 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-056-0 02 1 9711- ● ● ● ● ● ● ●
32 NUT; 3RD LINK ROD
M10 		9-09111-410-0 02 1 9101- ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 LH THREAD 		1-09400-017-0 01 1 9101-0203 ● ● ● ● ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
LEFT HAND DRIVE(MTR6FB) M10 LH THREAD 		1-09400-017-0 01 1 0204- ● ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 LH THREAD 		1-09400-017-0 01 1 0204- ● ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD 9-09111-410-0 01 1 9101-0203 ● ● ● ● ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
LEFT HAND DRIVE(MTR6FB) M10 		9-09111-410-0 01 1 0204- ● ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 01 1 0204- ● ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-078-0 02 1 9101-0203 ● ● ● ● ● ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
LEFT HAND DRIVE(MTR6FB) 		1-09760-078-0 02 1 0204- ● ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-078-0 02 1 0204- ● ● ● ●
37 WASHER; LK,3RD LINK ROD 9-09150-510-0 02 1 9101-9301 ● ● ● ● ● ● ●
38 NUT; 3RD LINK ROD
FRONT AXLE F063<FS7> 		9-09110-410-0 02 1 9101-9301 ● ● ● ● ● ● ●
38 NUT; 3RD LINK ROD
FRONT AXLE F063<FS7> M10 T=10 FLANGE 		1-09440-050-0 02 1 9302-9710 ● ● ● ● ● ● ●
38 NUT; 3RD LINK ROD
FRONT AXLE F063<FS7> M10 T=11 FLANGE 		1-09440-056-0 02 1 9711- ● ● ● ● ● ● ●
40 WASHER; RELAY LEVER 1-09503-028-1 01 1 9101-0203 ● ● ● ● ● ● ●
40 WASHER; RELAY LEVER
LEFT HAND DRIVE(MTR6FB) 		1-09503-028-1 01 1 0204- ● ● ●
40 WASHER; RELAY LEVER 1-09503-028-1 01 1 0204- ● ● ● ●
41 BUSHING; CONT ROD,RELAY LEVER 1-09330-006-0 01 1 9101-0203 ● ● ● ● ● ● ●
41 BUSHING; CONT ROD,RELAY LEVER
LEFT HAND DRIVE(MTR6FB) 		1-09330-006-0 01 1 0204- ● ● ●
41 BUSHING; CONT ROD,RELAY LEVER 1-09330-006-0 01 1 0204- ● ● ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD 9-09111-410-0 02 1 9101-0203 ● ● ● ● ● ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
LEFT HAND DRIVE(MTR6FB) M10 		9-09111-410-0 02 1 0204- ● ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0204- ● ● ● ●
52 WASHER; PL,CONT ROD TO LEVER 1-09503-222-0 04 1 9101- ● ● ● ● ● ● ●
54 BRACKET; RELAY LEVER,TRANS SIDE
RIGHT HAND DRIVE(MTR5FB) 		1-33657-385-0 01 1 9101-0203 ● ● ● ● ● ●
54 BRACKET; RELAY LEVER,TRANS SIDE
RIGHT HAND DRIVE(MTR5FB) 		1-33657-385-0 01 1 0204- ● ● ●
54 BRACKET; RELAY LEVER,TRANS SIDE
LEFT HAND DRIVE(MTR6FB) 		1-33657-399-1 01 1 9101- ● ● ● ● ● ●
54 BRACKET; RELAY LEVER,TRANS SIDE 1-33657-337-0 01 1 9101- ●
77 LEVER; RELAY,2ND SELECT
RIGHT HAND DRIVE(MTR5FB) (B) 		1-33651-377-0 01 1 9101-0203 ● ● ● ● ● ●
77 LEVER; RELAY,2ND SELECT
RIGHT HAND DRIVE(MTR5FB) (B) 		1-33651-377-0 01 1 0204- ● ● ●
77 LEVER; RELAY,2ND SELECT
RIGHT HAND DRIVE(MTR5FB) (A) 		1-33660-484-0 01 1 9101-0203 ● ● ● ● ● ●
77 LEVER; RELAY,2ND SELECT
RIGHT HAND DRIVE(MTR5FB) (A) 		1-33660-484-0 01 1 0204- ● ● ●
77 LEVER; RELAY,2ND SELECT
LEFT HAND DRIVE(MTR6FB) (B) 		1-33651-468-0 01 1 9101- ● ● ● ● ● ●
77 LEVER; RELAY,2ND SELECT
LEFT HAND DRIVE(MTR6FB) (A) 		1-33660-522-1 01 1 9101- ● ● ● ● ● ●
77 LEVER; RELAY,2ND SELECT
(B) 		1-33651-359-0 01 1 9101- ●
77 LEVER; RELAY,2ND SELECT
(A) 		1-33660-138-1 01 1 9101- ●
78 WASHER; PL,RELAY LEVER
ID=16.5 OD=27.8 H=3.5 		1-09503-047-0 01 1 9101-0203 ● ● ● ● ● ● ●
78 WASHER; PL,RELAY LEVER
LEFT HAND DRIVE(MTR6FB) ID=16.5 OD=27.8 H=3.5 		1-09503-047-0 01 1 0204- ● ● ●
78 WASHER; PL,RELAY LEVER
ID=16.5 OD=27.8 H=3.5 		1-09503-047-0 01 1 0204- ● ● ● ●
78 WASHER; PL,RELAY LEVER
ID=10.5 OD=26 		9-09160-710-0 01 1 9101-0203 ● ● ● ● ● ● ●
78 WASHER; PL,RELAY LEVER
LEFT HAND DRIVE(MTR6FB) ID=10.5 OD=26 		9-09160-710-0 01 1 0204- ● ● ●
78 WASHER; PL,RELAY LEVER
ID=10.5 OD=26 		9-09160-710-0 01 1 0204- ● ● ● ●
79 WASHER; LK,BRKT,RELAY LEVER
ID=10.2 		9-09150-510-0 01 1 9101-0203 ● ● ● ● ● ● ●
79 WASHER; LK,BRKT,RELAY LEVER
LEFT HAND DRIVE(MTR6FB) ID=10.2 		9-09150-510-0 01 1 0204- ● ● ●
79 WASHER; LK,BRKT,RELAY LEVER
ID=10.2 		9-09150-510-0 01 1 0204- ● ● ● ●
80 NUT; BRKT,RELAY LEVER
RIGHT HAND DRIVE(MTR5FB) M10 		9-09110-410-0 02 1 9101-9307 ● ● ● ● ● ●
80 NUT; BRKT,RELAY LEVER
M10 		9-09110-410-0 02 1 9101-9307 ●
80 NUT; BRKT,RELAY LEVER
RIGHT HAND DRIVE(MTR5FB) M10 		9-09110-510-0 02 1 9308- ● ● ● ● ● ●
80 NUT; BRKT,RELAY LEVER
M10 		9-09110-510-0 02 1 9308- ●
80 NUT; BRKT,RELAY LEVER
M10 		9-09110-410-0 01 1 9101-0203 ● ● ● ● ● ● ●
80 NUT; BRKT,RELAY LEVER
LEFT HAND DRIVE(MTR6FB) M10 		9-09110-410-0 01 1 0204- ● ● ●
80 NUT; BRKT,RELAY LEVER
M10 		9-09110-410-0 01 1 0204- ● ● ● ●
94 GUARD; MUD,RELAY LEVER 1-33659-016-0 01 1 9101-0203 ● ● ● ● ● ● ●
94 GUARD; MUD,RELAY LEVER
LEFT HAND DRIVE(MTR6FB) 		1-33659-016-0 01 1 0204- ● ● ●
94 GUARD; MUD,RELAY LEVER 1-33659-016-0 01 1 0204- ● ● ● ●
105 BOLT; BRKT,2ND RELAY LEVER
M10X35 W/LK WASHER 		0-50041-035-0 02 1 9101- ● ● ● ● ● ● ●
110 NIPPLE; GREASE,RELAY LEVER
M6 STRAIGHT 		9-09031-006-0 01 1 9101-0203 ● ● ● ● ● ● ●
110 NIPPLE; GREASE,RELAY LEVER
LEFT HAND DRIVE(MTR6FB) M6 STRAIGHT 		9-09031-006-0 01 1 0204- ● ● ●
110 NIPPLE; GREASE,RELAY LEVER
M6 STRAIGHT 		9-09031-006-0 01 1 0204- ● ● ● ●
