1-01 — ACCELERATOR PEDAL AND CONTROL (#22078) — 70 parça

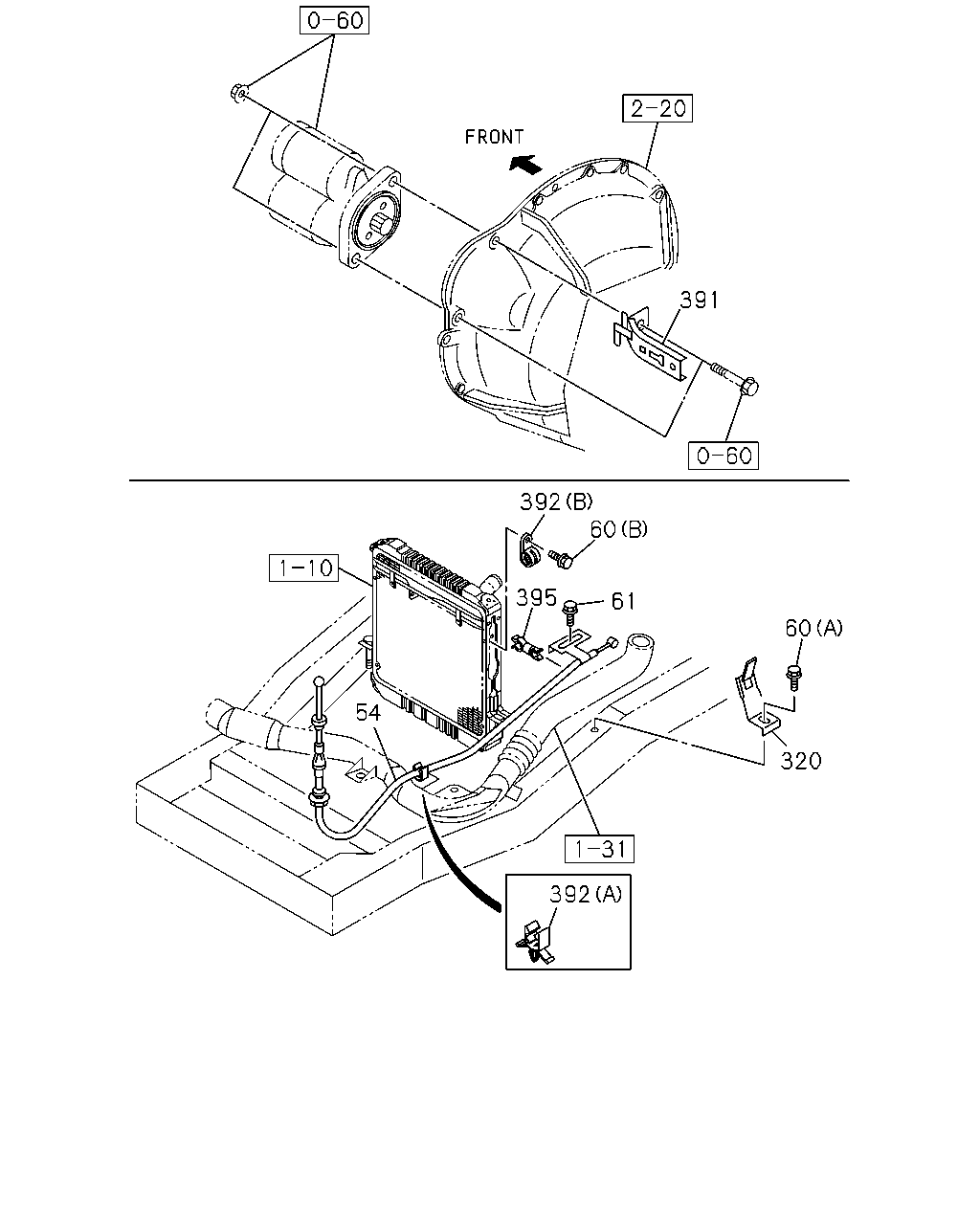

391 392 60 395 61 60 54 320 392

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	03.430 CABLE; ENG CONT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> L=1749	8-97228-819-1	01	1	9906-0105	●	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC) L=1701	8-97118-537-1	01	1	9812-9905	●	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> L=1701	8-97118-537-1	01	1	9906-9911	●	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> L=1701	8-97118-537-1	01	1	9912-0105	●	●
60	08.155 BOLT; CABLE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	9906-0105	●	●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL> 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	9906-0105	●	●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 4JG2 ENG(RJC) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9812-9905	●	●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9906-0105	●	●
320	03.483 CLIP; FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL>	8-94167-969-2	01	1	9906-0105	●	●
391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 02.483	8-97068-801-1	01	1	9906-0105		●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.334 (B) ID=16	9-09525-552-0	01	1	9906-0105	●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC) 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	9812-9905	●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	9906-0105	●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 04.930 ID=10 & 16.5	8-94360-745-0	01	1	9906-0105	●	●

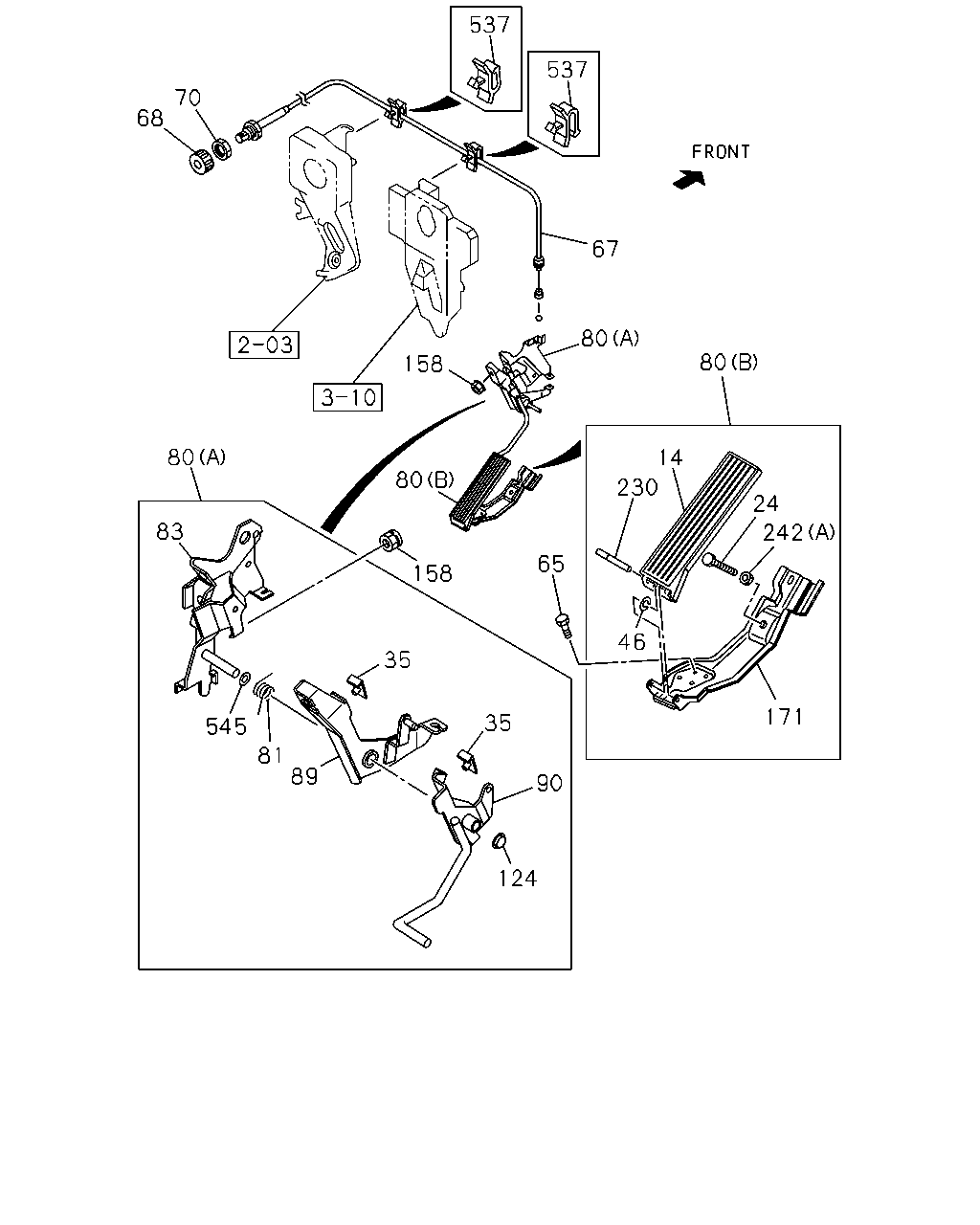

537 537 70 68 67 80 80 158 80 14 80 230 24 83 242 65 158 46 35 171 35 545 81 89 90 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	03.451 PAD; PEDAL,ACCEL	8-97859-101-0	01	1	9812-	●	●	●
24	03.483 BOLT; BRKT 03.459	0-20800-840-0	01	1	9812-	●	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97857-401-1	02	1	9812-0012	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97302-305-0	02	1	0101-0105	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	9812-	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	9812-	●	●	●
67	03.480 CABLE ASM; IDLE CONT L=945	8-97856-223-4	01	1	9812-0105	●	●
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	9812-0105	●	●
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	9812-0105	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	9812-	●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97859-518-3	01	1	9812-0105	●	●
80	03.452 LINK ASM; ENG CONT 4JH1 ENG(RJX) (C)	8-97994-589-3	01	1	0106-	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	9812-0105	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JH1 ENG(RJX)	8-97853-205-1	01	1	0106-	●	●	●
83	03.452 BRACKET; CONT LINK	8-97859-519-0	01	1	9812-0105	●	●
83	03.452 BRACKET; CONT LINK 4JH1 ENG(RJX)	8-97994-592-1	01	1	0106-	●	●	●
89	03.454 LEVER; RELAY	8-97857-617-4	01	1	9812-0105	●	●
90	03.454 LEVER; RELAY,ENG CONT	8-97857-613-6	01	1	9812-0105	●	●
90	03.454 LEVER; RELAY,ENG CONT 4JH1 ENG(RJX)	8-97994-590-1	01	1	0106-	●	●	●
124	03.463 NUT; LEVER 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	9812-0105	●	●
124	03.463 NUT; LEVER 4JH1 ENG(RJX) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0106-	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	9812-	●	●	●
171	03.483 BRACKET ASM; ACCEL PEDAL	8-97857-482-1	01	1	9812-	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	9812-	●	●	●
242	03.483 NUT; ACCEL PEDAL 02.559 (A) M8	9-09110-408-0	01	1	9812-	●	●	●
242	03.483 NUT; ACCEL PEDAL 4JH1 ENG(RJX) 10.147 (B) M6 W/DISHED WASHER	8-94423-325-0	01	1	0106-	●	●	●
537	03.483 CLIP; IDLING CONT CABLE 04.342 ID=7	5-09707-053-0	02	1	9812-0105	●	●
545	03.463 WASHER; NYLON 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	9812-0105	●	●

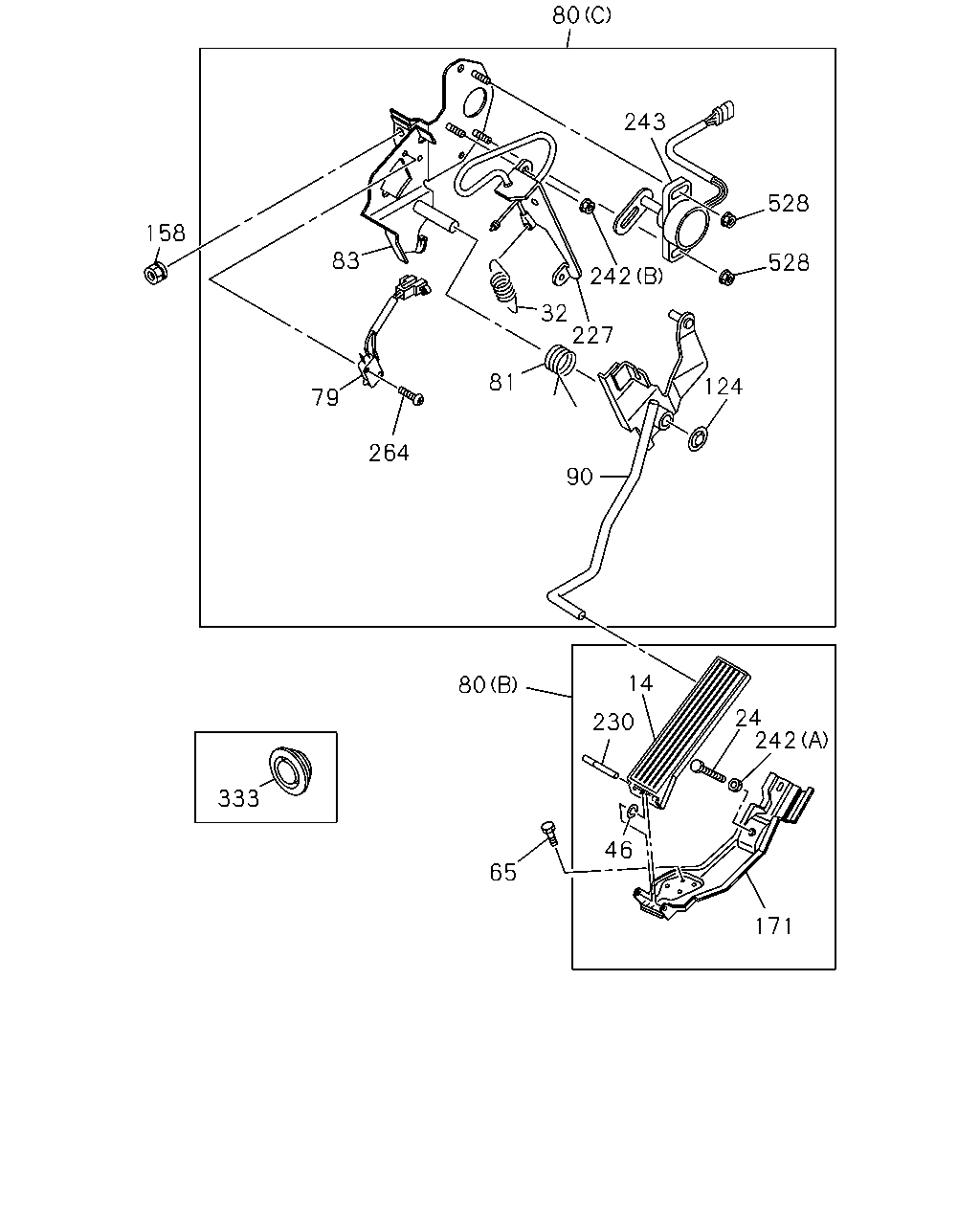

80 243 528 158 83 528 242 32 227 81 124 79 264 90 14 80 24 242 230 333 46 65 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	03.451 PAD; PEDAL,ACCEL	8-97859-101-0	01	1	9812-	●	●	●
24	03.483 BOLT; BRKT 03.459	0-20800-840-0	01	1	9812-	●	●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4JH1 ENG(RJX)	1-71907-268-0	01	1	0106-0208	●	●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4JH1 ENG(RJX)	8-97997-917-0	01	1	0209-	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	9812-	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	9812-	●	●	●
79	03.451 SWITCH; ACCEL PEDAL 4JH1 ENG(RJX)	8-97224-056-0	01	1	0106-	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	9812-	●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97859-518-3	01	1	9812-0105	●	●
80	03.452 LINK ASM; ENG CONT 4JH1 ENG(RJX) (C)	8-97994-589-3	01	1	0106-	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	9812-0105	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JH1 ENG(RJX)	8-97853-205-1	01	1	0106-	●	●	●
83	03.452 BRACKET; CONT LINK	8-97859-519-0	01	1	9812-0105	●	●
83	03.452 BRACKET; CONT LINK 4JH1 ENG(RJX)	8-97994-592-1	01	1	0106-	●	●	●
90	03.454 LEVER; RELAY,ENG CONT	8-97857-613-6	01	1	9812-0105	●	●
90	03.454 LEVER; RELAY,ENG CONT 4JH1 ENG(RJX)	8-97994-590-1	01	1	0106-	●	●	●
124	03.463 NUT; LEVER 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	9812-0105	●	●
124	03.463 NUT; LEVER 4JH1 ENG(RJX) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0106-	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	9812-	●	●	●
171	03.483 BRACKET ASM; ACCEL PEDAL	8-97857-482-1	01	1	9812-	●	●	●
227	03.430 CABLE ASM; RETURN,ACCEL PEDAL 4JH1 ENG(RJX)	8-97892-203-5	01	1	0106-	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	9812-	●	●	●
242	03.483 NUT; ACCEL PEDAL 02.559 (A) M8	9-09110-408-0	01	1	9812-	●	●	●
242	03.483 NUT; ACCEL PEDAL 4JH1 ENG(RJX) 10.147 (B) M6 W/DISHED WASHER	8-94423-325-0	01	1	0106-	●	●	●
243	03.425 SENSOR; ACCEL 4JH1 ENG(RJX)	8-97305-922-0	01	1	0106-	●	●	●
264	03.425 SCREW; ACCEL SW 4JH1 ENG(RJX) 03.451 M3X16 TAPPING	0-71280-316-0	02	1	0106-	●	●	●
333	03.671 GROMMET; HOLE,CABLE 4JH1 ENG(RJX) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0106-	●	●	●
528	03.463 NUT; ACCEL SENSOR 4JH1 ENG(RJX) 10.147 M6 W/DISHED WASHER	8-94423-325-0	02	1	0106-	●	●	●
