0-85A — AUTO TIMER; INJECTION PUMP (#22077) — 108 parça

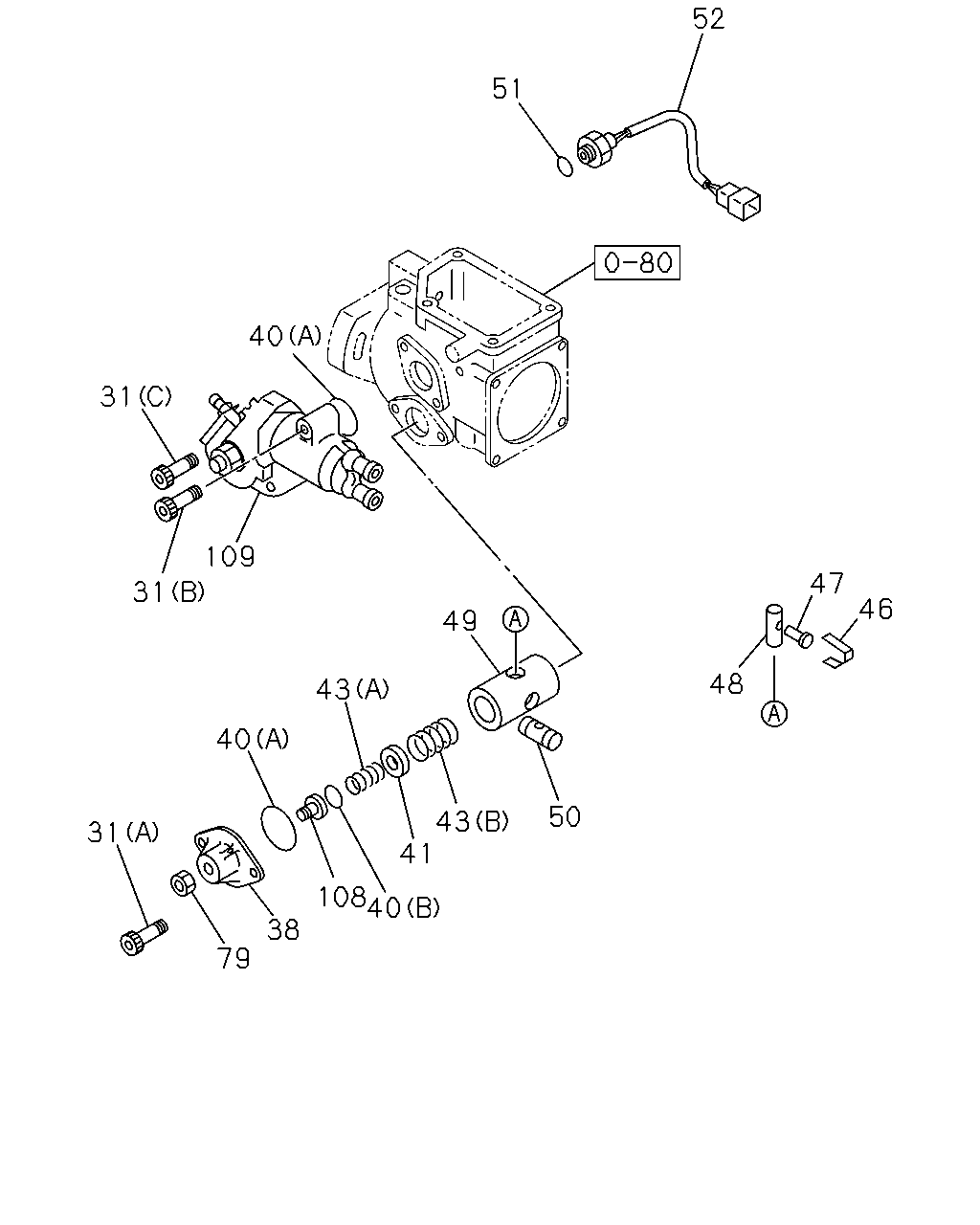

52 51 40 31 109 47 31 46 49 48 43 40 50 43 41 31 108 40 38 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	03.330 SCREW; TIMER COVER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-94313-276-0	02	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP (A), M6X16 ASM PART: B = 8-97138-842-2, 97138842	8-97140-853-0	02	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP (B), M6X45 ASM PART: B = 8-97138-842-2, 97138842	8-97141-258-0	01	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP (C), M6X10 ASM PART: B = 8-97138-842-2, 97138842	8-97141-456-0	02	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP ASM PART: C = 8-97204-201-7, 97204201	8-97231-933-0	02	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: C = 8-97204-201-7, 97204201	8-94227-500-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-94473-120-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97161-886-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP 03.306, (C) ASM PART: D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-94227-491-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP (C) ASM PART: A = 8-97120-180-1, 97120180	8-94433-763-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP (A), ID=27.5 ASM PART: B = 8-97138-842-2, 97138842	8-97140-980-0	02	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP (B), ID=8.8 ASM PART: B = 8-97138-842-2, 97138842	8-97161-897-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP 03.306, (D) ASM PART: C = 8-97204-201-7, 97204201	8-97224-532-0	01	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM 03.320, T=2.40 ASM PART: A = 8-97120-180-1, 97120180, C = 8-97204-201-7, 97204201, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-94121-620-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.60 ASM PART: A = 8-97120-180-1, 97120180, C = 8-97204-201-7, 97204201, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-94227-495-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.70 ASM PART: A = 8-97120-180-1, 97120180, C = 8-97204-201-7, 97204201, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-94227-496-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.90 ASM PART: A = 8-97120-180-1, 97120180, C = 8-97204-201-7, 97204201, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-94227-497-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.00 ASM PART: A = 8-97120-180-1, 97120180, C = 8-97204-201-7, 97204201, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-94227-498-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.20 ASM PART: A = 8-97120-180-1, 97120180, C = 8-97204-201-7, 97204201, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-94227-499-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.5 ASM PART: B = 8-97138-842-2, 97138842	8-97161-954-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=40.0 ASM PART: A = 8-97120-180-1, 97120180	8-97045-508-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=40.2 ASM PART: A = 8-97120-180-1, 97120180	8-97047-719-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=39.8 ASM PART: D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-97125-521-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=42.7 ASM PART: D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-97125-522-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=41.3 ASM PART: D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-97125-523-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=40.6 ASM PART: A = 8-97120-180-1, 97120180	8-97125-524-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (A), L=33.6 ASM PART: B = 8-97138-842-2, 97138842	8-97161-899-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (A), L=32.7 ASM PART: B = 8-97138-842-2, 97138842	8-97161-900-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (A), L=33.1 ASM PART: B = 8-97138-842-2, 97138842	8-97161-901-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (B) ASM PART: B = 8-97138-842-2, 97138842	8-97161-961-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=44.0 ASM PART: C = 8-97204-201-7, 97204201	8-97231-929-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=41.7 ASM PART: C = 8-97204-201-7, 97204201	8-97231-930-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=42.0 ASM PART: C = 8-97204-201-7, 97204201	8-97231-931-0	01	1	-
46	03.330 CLIP; HOLDER PIN,TIMER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, C = 8-97204-201-7, 97204201, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-94227-488-0	01	1	-
46	03.330 CLIP; HOLDER PIN,TIMER,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97140-961-0	01	1	-
47	03.340 PIN; HOLDER PIN,TIMER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, C = 8-97204-201-7, 97204201, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-94227-487-0	01	1	-
47	03.340 PIN; HOLDER PIN,TIMER,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97140-952-0	01	1	-
48	03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM ASM PART: A = 8-97120-180-1, 97120180, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-94227-486-0	01	1	-
48	03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM ASM PART: B = 8-97138-842-2, 97138842	8-97140-951-0	01	1	-
48	03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM ASM PART: C = 8-97204-201-7, 97204201	8-97214-493-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-94174-739-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-94426-069-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97161-881-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: C = 8-97204-201-7, 97204201	8-97231-928-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-94227-493-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-97119-163-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97140-944-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: C = 8-97204-201-7, 97204201	8-97218-961-0	01	1	-
51	03.340 GASKET; TIMING SENSOR,INJ PUMP 03.306 ASM PART: A = 8-97120-180-1, 97120180, C = 8-97204-201-7, 97204201, E = 8-97216-366-0, 97216366	8-94227-671-0	01	1	-
51	03.340 GASKET; TIMING SENSOR,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97161-962-0	01	1	-
52	03.340 SENSOR; TIMING,TACHOMETER,INJ PU ASM PART: A = 8-97120-180-1, 97120180, C = 8-97204-201-7, 97204201, E = 8-97216-366-0, 97216366	8-94343-307-0	01	1	-
52	03.340 SENSOR; TIMING,TACHOMETER,INJ PU ASM PART: B = 8-97138-842-2, 97138842	8-97161-903-0	01	1	-
79	03.340 NUT; CAP,TIMER COVER,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97161-898-0	01	1	-
108	03.330 STOPPER; TIMER,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97161-896-0	01	1	-
109	03.330 COVER SUB ASM; TIMER ASM PART: B = 8-97138-842-2, 97138842	8-97161-963-0	01	1	-

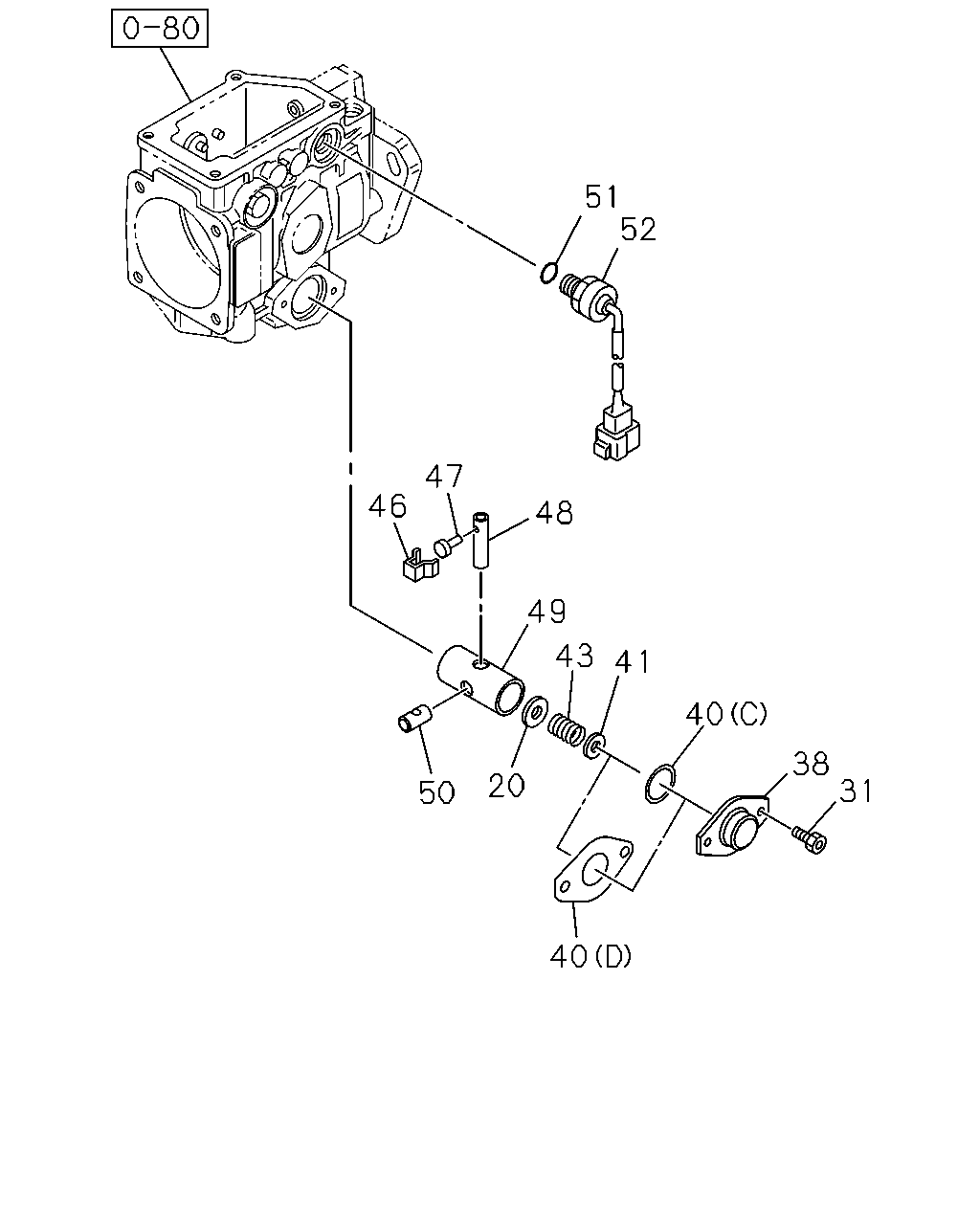

51 52 47 46 48 49 43 41 40 38 31 20 50 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.60 ASM PART: A = 8-97120-180-1, 97120180, C = 8-97204-201-7, 97204201, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-94227-495-0	01	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-94313-276-0	02	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP (A), M6X16 ASM PART: B = 8-97138-842-2, 97138842	8-97140-853-0	02	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP (B), M6X45 ASM PART: B = 8-97138-842-2, 97138842	8-97141-258-0	01	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP (C), M6X10 ASM PART: B = 8-97138-842-2, 97138842	8-97141-456-0	02	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP ASM PART: C = 8-97204-201-7, 97204201	8-97231-933-0	02	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: C = 8-97204-201-7, 97204201	8-94227-500-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-94473-120-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97161-886-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP 03.306, (C) ASM PART: D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-94227-491-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP (C) ASM PART: A = 8-97120-180-1, 97120180	8-94433-763-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP (A), ID=27.5 ASM PART: B = 8-97138-842-2, 97138842	8-97140-980-0	02	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP (B), ID=8.8 ASM PART: B = 8-97138-842-2, 97138842	8-97161-897-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP 03.306, (D) ASM PART: C = 8-97204-201-7, 97204201	8-97224-532-0	01	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM 03.320, T=2.40 ASM PART: A = 8-97120-180-1, 97120180, C = 8-97204-201-7, 97204201, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-94121-620-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.60 ASM PART: A = 8-97120-180-1, 97120180, C = 8-97204-201-7, 97204201, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-94227-495-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.70 ASM PART: A = 8-97120-180-1, 97120180, C = 8-97204-201-7, 97204201, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-94227-496-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.90 ASM PART: A = 8-97120-180-1, 97120180, C = 8-97204-201-7, 97204201, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-94227-497-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.00 ASM PART: A = 8-97120-180-1, 97120180, C = 8-97204-201-7, 97204201, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-94227-498-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.20 ASM PART: A = 8-97120-180-1, 97120180, C = 8-97204-201-7, 97204201, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-94227-499-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.5 ASM PART: B = 8-97138-842-2, 97138842	8-97161-954-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=40.0 ASM PART: A = 8-97120-180-1, 97120180	8-97045-508-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=40.2 ASM PART: A = 8-97120-180-1, 97120180	8-97047-719-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=39.8 ASM PART: D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-97125-521-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=42.7 ASM PART: D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-97125-522-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=41.3 ASM PART: D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-97125-523-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=40.6 ASM PART: A = 8-97120-180-1, 97120180	8-97125-524-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (A), L=33.6 ASM PART: B = 8-97138-842-2, 97138842	8-97161-899-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (A), L=32.7 ASM PART: B = 8-97138-842-2, 97138842	8-97161-900-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (A), L=33.1 ASM PART: B = 8-97138-842-2, 97138842	8-97161-901-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (B) ASM PART: B = 8-97138-842-2, 97138842	8-97161-961-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=44.0 ASM PART: C = 8-97204-201-7, 97204201	8-97231-929-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=41.7 ASM PART: C = 8-97204-201-7, 97204201	8-97231-930-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=42.0 ASM PART: C = 8-97204-201-7, 97204201	8-97231-931-0	01	1	-
46	03.330 CLIP; HOLDER PIN,TIMER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, C = 8-97204-201-7, 97204201, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-94227-488-0	01	1	-
46	03.330 CLIP; HOLDER PIN,TIMER,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97140-961-0	01	1	-
47	03.340 PIN; HOLDER PIN,TIMER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, C = 8-97204-201-7, 97204201, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-94227-487-0	01	1	-
47	03.340 PIN; HOLDER PIN,TIMER,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97140-952-0	01	1	-
48	03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM ASM PART: A = 8-97120-180-1, 97120180, D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-94227-486-0	01	1	-
48	03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM ASM PART: B = 8-97138-842-2, 97138842	8-97140-951-0	01	1	-
48	03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM ASM PART: C = 8-97204-201-7, 97204201	8-97214-493-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-94174-739-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-94426-069-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97161-881-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: C = 8-97204-201-7, 97204201	8-97231-928-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: D = 8-97216-365-0, 97216365, E = 8-97216-366-0, 97216366	8-94227-493-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-97119-163-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97140-944-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: C = 8-97204-201-7, 97204201	8-97218-961-0	01	1	-
51	03.340 GASKET; TIMING SENSOR,INJ PUMP 03.306 ASM PART: A = 8-97120-180-1, 97120180, C = 8-97204-201-7, 97204201, E = 8-97216-366-0, 97216366	8-94227-671-0	01	1	-
51	03.340 GASKET; TIMING SENSOR,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97161-962-0	01	1	-
52	03.340 SENSOR; TIMING,TACHOMETER,INJ PU ASM PART: A = 8-97120-180-1, 97120180, C = 8-97204-201-7, 97204201, E = 8-97216-366-0, 97216366	8-94343-307-0	01	1	-
52	03.340 SENSOR; TIMING,TACHOMETER,INJ PU ASM PART: B = 8-97138-842-2, 97138842	8-97161-903-0	01	1	-
