2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#2207) — 38 parça

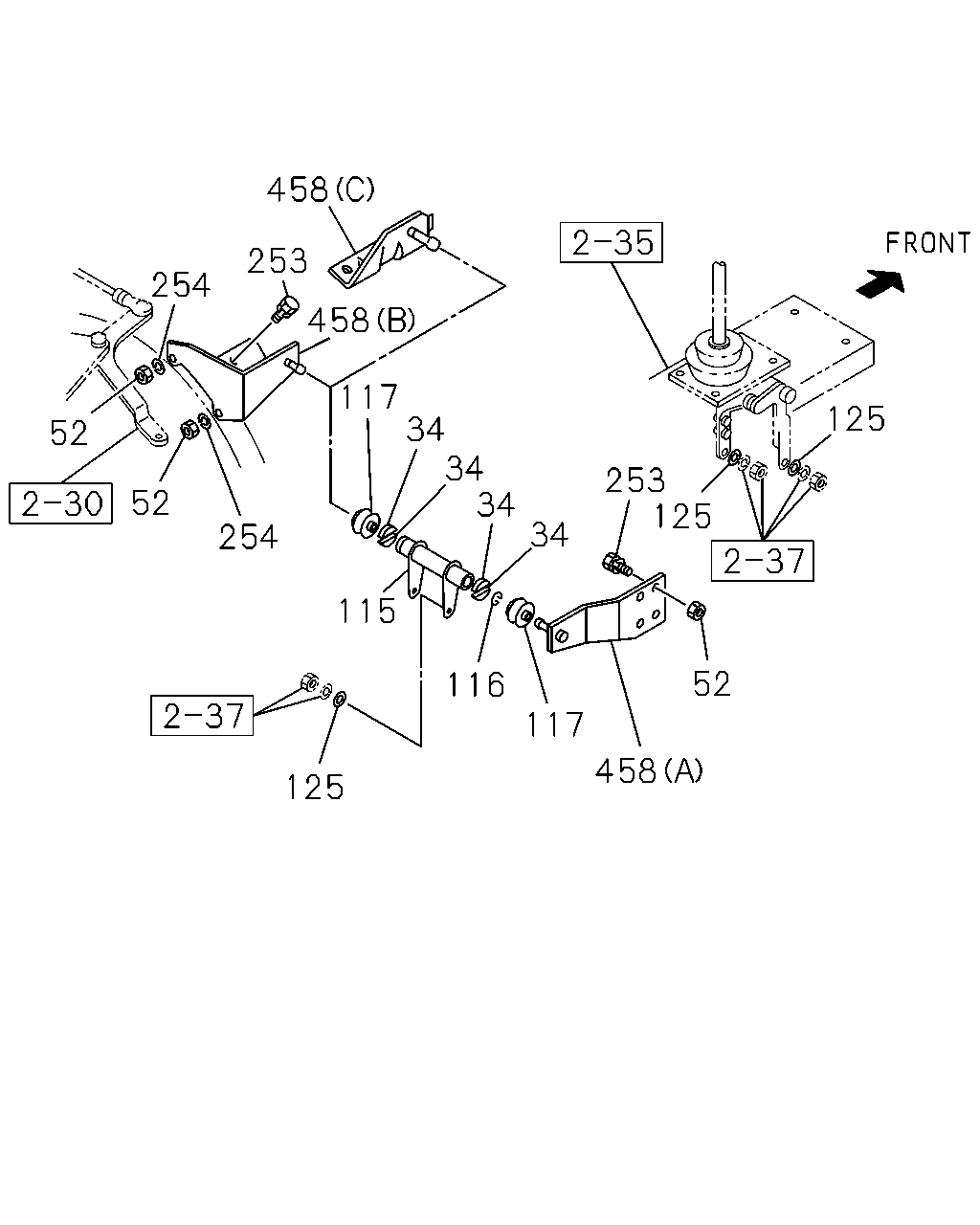

çizim 94509
458 253 254 458 125 117 34 34 34 34 52 253 125 52 254 115 52 116 117 458 125
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
34 SEAT; BALL,RELAY LEVER 1-33659-023-1 04 1 9203-9204 ● ● ● ● ● ● ●
34 SEAT; BALL,RELAY LEVER 1-33659-023-1 04 1 9101-9202 ● ● ● ● ● ● ●
34 SEAT; BALL,RELAY LEVER 1-33659-023-1 04 1 9205-0203 ● ● ● ● ● ● ●
34 SEAT; BALL,RELAY LEVER
LEFT HAND DRIVE(MTR6FB) 		1-33659-023-1 04 1 0204- ● ● ●
34 SEAT; BALL,RELAY LEVER 1-33659-023-1 04 1 0204- ● ● ● ●
52 NUT; BRKT
M10 		9-09110-410-0 04 1 9101-9307 ● ● ● ● ● ● ●
52 NUT; BRKT
M10 		9-09110-510-0 04 1 9308- ● ● ● ● ● ● ●
52 NUT; BRKT
M10 		9-09110-410-0 02 1 9101-9307 ●
52 NUT; BRKT
M10 		9-09110-510-0 02 1 9308- ●
115 LEVER; RELAY,2ND SHIFT
RIGHT HAND DRIVE(MTR5FB) 		1-33651-451-1 01 1 9101-0203 ● ● ● ● ● ●
115 LEVER; RELAY,2ND SHIFT
RIGHT HAND DRIVE(MTR5FB) 		1-33651-451-1 01 1 0204- ● ● ●
115 LEVER; RELAY,2ND SHIFT
LEFT HAND DRIVE(MTR6FB) 		1-33651-467-1 01 1 9101- ● ● ● ● ● ●
115 LEVER; RELAY,2ND SHIFT 1-33651-358-1 01 1 9101- ●
115 LEVER; RELAY,2ND SHIFT
LEFT HAND DRIVE(MTR6FB) 		1-33660-521-2 01 1 0204- ● ● ● ● ● ●
115 LEVER; RELAY,2ND SHIFT
RIGHT HAND DRIVE(MTR5FB) 		1-33660-424-2 01 1 0204- ● ● ●
116 RING; SNAP,RELAY LEVER
OD=21.5 		9-09180-520-0 01 1 9203-0203 ● ● ● ● ● ● ●
116 RING; SNAP,RELAY LEVER
LEFT HAND DRIVE(MTR6FB) OD=21.5 		9-09180-520-0 01 1 0204- ● ● ●
116 RING; SNAP,RELAY LEVER
OD=21.5 		9-09180-520-0 01 1 0204- ● ● ● ●
116 RING; SNAP,RELAY LEVER
OD=21.5 		9-09180-520-0 01 1 9101-9202 ● ● ● ● ● ● ●
117 SEAL; DUST,RELAY LEVER 1-33659-010-0 02 1 9203-0203 ● ● ● ● ● ● ●
117 SEAL; DUST,RELAY LEVER
LEFT HAND DRIVE(MTR6FB) 		1-33659-010-0 02 1 0204- ● ● ●
117 SEAL; DUST,RELAY LEVER 1-33659-010-0 02 1 0204- ● ● ● ●
117 SEAL; DUST,RELAY LEVER 1-33659-010-0 02 1 9101-9202 ● ● ● ● ● ● ●
125 WASHER; PL,SHIFT ROD 1-09503-222-0 04 1 9101- ● ● ● ● ● ● ●
253 BOLT; BRKT,2ND RELAY LEVER
RIGHT HAND DRIVE(MTR5FB) M10X20 W/LK WASHER 		0-50051-020-0 02 1 9101-0203 ● ● ● ● ● ●
253 BOLT; BRKT,2ND RELAY LEVER
RIGHT HAND DRIVE(MTR5FB) M10X20 W/LK WASHER 		0-50051-020-0 02 1 0204- ● ● ●
253 BOLT; BRKT,2ND RELAY LEVER
LEFT HAND DRIVE(MTR6FB) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9101- ● ● ● ● ● ●
253 BOLT; BRKT,2ND RELAY LEVER
M10X35 W/LK WASHER 		0-50041-035-0 04 1 9101- ● ● ● ● ● ● ●
253 BOLT; BRKT,2ND RELAY LEVER
M10X20 W/LK WASHER 		0-50051-020-0 01 1 9101- ●
254 WASHER; LK,RELAY LEVER
ID=10.2 		9-09150-510-0 02 1 9101- ●
458 BRACKET; 2ND RELAY LEVER
RIGHT HAND DRIVE(MTR5FB) (C) 		1-33657-051-2 01 1 9101-0203 ● ● ● ● ● ●
458 BRACKET; 2ND RELAY LEVER
RIGHT HAND DRIVE(MTR5FB) (C) 		1-33657-051-2 01 1 0204- ● ● ●
458 BRACKET; 2ND RELAY LEVER
RIGHT HAND DRIVE(MTR5FB) (A) 		1-33657-306-1 01 1 9101-0203 ● ● ● ● ● ●
458 BRACKET; 2ND RELAY LEVER
RIGHT HAND DRIVE(MTR5FB) (A) 		1-33657-306-1 01 1 0204- ● ● ●
458 BRACKET; 2ND RELAY LEVER
LEFT HAND DRIVE(MTR6FB) (B) 		1-33657-321-2 01 1 9101- ● ● ● ● ● ●
458 BRACKET; 2ND RELAY LEVER
LEFT HAND DRIVE(MTR6FB) (A) 		1-33657-398-1 01 1 9101- ● ● ● ● ● ●
458 BRACKET; 2ND RELAY LEVER
(A) 		1-33657-288-2 01 1 9101- ●
458 BRACKET; 2ND RELAY LEVER
(B) 		1-33657-289-2 01 1 9101- ●
