2 |

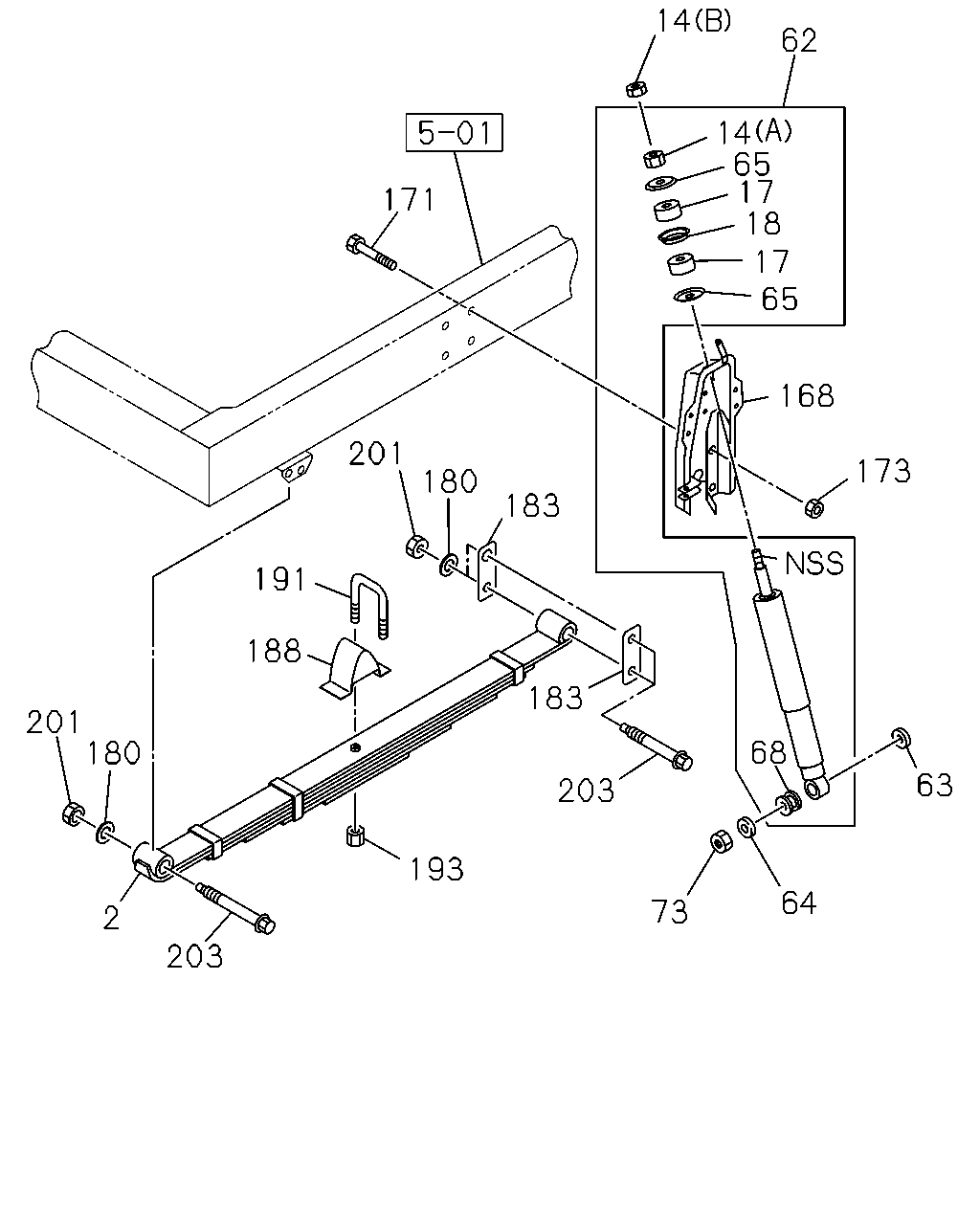

07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,
MINIBUS CHASSIS<V4B>,ISRAEL
EQUIPMENT(7LX)
6-LEAF
|
8-97174-305-0 |
01 |
1 |
9811-0202 |
● |
● |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,
MINIBUS CHASSIS<V4B>,ISRAEL
EQUIPMENT(7LX)
6-LEAF
|
8-97174-305-0 |
01 |
1 |
0203- |
● |
● |
● |
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,
MINIBUS CHASSIS<V4B>,ISRAEL
EQUIPMENT(7LX)
6-LEAF
|
8-97174-304-0 |
01 |
1 |
9811-0202 |
● |
● |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,
MINIBUS CHASSIS<V4B>,ISRAEL
EQUIPMENT(7LX)
6-LEAF
|
8-97174-304-0 |
01 |
1 |
0203- |
● |
● |
● |
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
EXC. FRONT STABILIZER SHAFT<F59>,
FRAME STRAIGHT TYPE<7KJ>,ISRAEL EQUIPMENT
(7LX)
6-LEAF
|
8-97092-446-1 |
01 |
1 |
9811-0202 |
● |
● |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
EXC. FRONT STABILIZER SHAFT<F59>,
FRAME STRAIGHT TYPE<7KJ>,ISRAEL EQUIPMENT
(7LX)
6-LEAF
|
8-97092-446-1 |
01 |
1 |
0203- |
● |
● |
● |
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
EXC. FRONT STABILIZER SHAFT<F59>,
FRAME STRAIGHT TYPE<7KJ>,ISRAEL EQUIPMENT
(7LX)
6-LEAF
|
8-97092-445-1 |
01 |
1 |
9811-0202 |
● |
● |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
EXC. FRONT STABILIZER SHAFT<F59>,
FRAME STRAIGHT TYPE<7KJ>,ISRAEL EQUIPMENT
(7LX)
6-LEAF
|
8-97092-445-1 |
01 |
1 |
0203- |
● |
● |
● |
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. FRONT STABILIZER SHAFT<F59>,
FRAME STRAIGHT TYPE<7KJ>
7-LEAF
|
8-97092-450-1 |
01 |
1 |
9811-0105 |
● |
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX)
EXC. FRONT STABILIZER SHAFT<F59>,
FRAME STRAIGHT TYPE<7KJ>
7-LEAF
|
8-97092-450-1 |
01 |
1 |
0106- |
● |
● |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. FRONT STABILIZER SHAFT<F59>,
FRAME STRAIGHT TYPE<7KJ>
7-LEAF
|
8-97092-449-1 |
01 |
1 |
9811-0105 |
● |
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX)
EXC. FRONT STABILIZER SHAFT<F59>,
FRAME STRAIGHT TYPE<7KJ>
7-LEAF
|
8-97092-449-1 |
01 |
1 |
0106- |
● |
● |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,
MINIBUS CHASSIS<V4B>,ISRAEL
EQUIPMENT(7LX),TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-97096-544-2 |
01 |
1 |
9811-9902 |
● |
● |
● |
|
● |
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,
MINIBUS CHASSIS<V4B>,ISRAEL
EQUIPMENT(7LX),TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-97096-544-2 |
01 |
1 |
9903-0011 |
● |
● |
● |
|
● |
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 8.0-8.5TON(RPZ)
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,
TIRESIZE 8.25-16<7QP>
6-LEAF
|
8-97096-544-2 |
01 |
1 |
9903-0011 |
|
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,
MINIBUS CHASSIS<V4B>,ISRAEL
EQUIPMENT(7LX),TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-97096-544-2 |
01 |
1 |
0012-0012 |
● |
● |
● |
|
● |
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 8.0-8.5TON(RPZ)
MINI BUS CHASSIS<V4B>
EGYPT EQUIPMENT(YJ4)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,
TIRESIZE 8.25-16<7QP>
6-LEAF
|
8-97096-544-2 |
01 |
1 |
0012-0012 |
|
|
|
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,
MINIBUS CHASSIS<V4B>,ISRAEL
EQUIPMENT(7LX),TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-97096-544-2 |
01 |
1 |
0101-0105 |
● |
● |
● |
|
● |
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 8.0-8.5TON(RPZ)
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,
TIRESIZE 8.25-16<7QP>
6-LEAF
|
8-97096-544-2 |
01 |
1 |
0101-0105 |
|
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,
MINIBUS CHASSIS<V4B>,ISRAEL
EQUIPMENT(7LX),TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-97096-544-2 |
01 |
1 |
0106- |
● |
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 8.0-8.5TON(RPZ)
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,
TIRESIZE 8.25-16<7QP>
6-LEAF
|
8-97096-544-2 |
01 |
1 |
0106- |
|
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,
MINIBUS CHASSIS<V4B>,ISRAEL
EQUIPMENT(7LX),TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-97122-381-2 |
01 |
1 |
9811-9902 |
● |
● |
● |
|
● |
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,
TIRESIZE 8.25-16<7QP>
6-LEAF
|
8-97122-381-2 |
01 |
1 |
9811-9902 |
|
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,
TIRESIZE 8.25-16<7QP>
6-LEAF
|
8-97122-381-2 |
01 |
1 |
9811-9902 |
|
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,
MINIBUS CHASSIS<V4B>,ISRAEL
EQUIPMENT(7LX),TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-97122-381-2 |
01 |
1 |
9903-0011 |
● |
● |
● |
|
● |
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,
TIRESIZE 8.25-16<7QP>
6-LEAF
|
8-97122-381-2 |
01 |
1 |
9903-0011 |
|
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,
TIRESIZE 8.25-16<7QP>
6-LEAF
|
8-97122-381-2 |
01 |
1 |
9903-0011 |
|
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,
MINIBUS CHASSIS<V4B>,ISRAEL
EQUIPMENT(7LX),TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-97122-381-2 |
01 |
1 |
0012-0012 |
● |
● |
● |
|
● |
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,
TIRESIZE 8.25-16<7QP>
6-LEAF
|
8-97122-381-2 |
01 |
1 |
0012-0012 |
|
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,
TIRESIZE 8.25-16<7QP>
6-LEAF
|
8-97122-381-2 |
01 |
1 |
0012-0012 |
|
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 8.0-8.5TON(RPZ)
MINI BUS CHASSIS<V4B>
EGYPT EQUIPMENT(YJ4)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,
TIRESIZE 8.25-16<7QP>
6-LEAF
|
8-97122-381-2 |
01 |
1 |
0012-0012 |
|
|
|
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,
MINIBUS CHASSIS<V4B>,ISRAEL
EQUIPMENT(7LX),TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-97122-381-2 |
01 |
1 |
0101-0105 |
● |
● |
● |
|
● |
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,
TIRESIZE 8.25-16<7QP>
6-LEAF
|
8-97122-381-2 |
01 |
1 |
0101-0105 |
|
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),
G.V.W. 8.0-8.5TON(RPZ)
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,
TIRESIZE 8.25-16<7QP>
6-LEAF
|
8-97122-381-2 |
01 |
1 |
0101-0105 |
|
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,
MINIBUS CHASSIS<V4B>,ISRAEL
EQUIPMENT(7LX),TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-97122-381-2 |
01 |
1 |
0106- |
● |
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,
TIRESIZE 8.25-16<7QP>
6-LEAF
|
8-97122-381-2 |
01 |
1 |
0106- |
|
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),
G.V.W. 8.0-8.5TON(RPZ)
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT STABILIZER SHAFT<F59>,
TIRESIZE 8.25-16<7QP>
6-LEAF
|
8-97122-381-2 |
01 |
1 |
0106- |
|
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>,ISRAEL
EQUIPMENT(7LX)
6-LEAF
|
8-97202-806-0 |
01 |
1 |
9811-0105 |
|
● |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>,ISRAEL
EQUIPMENT(7LX)
6-LEAF
|
8-97202-806-0 |
01 |
1 |
0106-0202 |
● |
● |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>,ISRAEL
EQUIPMENT(7LX)
6-LEAF
|
8-97202-806-0 |
01 |
1 |
0203- |
● |
● |
● |
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>,ISRAEL
EQUIPMENT(7LX)
6-LEAF
|
8-97202-805-0 |
01 |
1 |
9811-0105 |
|
● |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>,ISRAEL
EQUIPMENT(7LX)
6-LEAF
|
8-97202-805-0 |
01 |
1 |
0106-0202 |
● |
● |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>,ISRAEL
EQUIPMENT(7LX)
6-LEAF
|
8-97202-805-0 |
01 |
1 |
0203- |
● |
● |
● |
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ISRAEL
EQUIPMENT(7LX)
6-LEAF
|
8-97092-454-1 |
01 |
1 |
9811-0105 |
|
● |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ISRAEL
EQUIPMENT(7LX)
6-LEAF
|
8-97092-454-1 |
01 |
1 |
0106-0202 |
● |
● |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ISRAEL
EQUIPMENT(7LX)
6-LEAF
|
8-97092-454-1 |
01 |
1 |
0203- |
● |
● |
● |
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ISRAEL
EQUIPMENT(7LX)
6-LEAF
|
8-97092-453-1 |
01 |
1 |
9811-0105 |
|
● |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ISRAEL
EQUIPMENT(7LX)
6-LEAF
|
8-97092-453-1 |
01 |
1 |
0106-0202 |
● |
● |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ISRAEL
EQUIPMENT(7LX)
6-LEAF
|
8-97092-453-1 |
01 |
1 |
0203- |
● |
● |
● |
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX)
EXC. FRAME STRAIGHT TYPE<7KJ>
7-LEAF
|
8-97092-456-1 |
01 |
1 |
9811-0105 |
|
● |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX)
EXC. FRAME STRAIGHT TYPE<7KJ>
7-LEAF
|
8-97092-456-1 |
01 |
1 |
0106- |
● |
● |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX)
EXC. FRAME STRAIGHT TYPE<7KJ>
7-LEAF
|
8-97092-455-1 |
01 |
1 |
9811-0105 |
|
● |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX)
EXC. FRAME STRAIGHT TYPE<7KJ>
7-LEAF
|
8-97092-455-1 |
01 |
1 |
0106- |
● |
● |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
ISRAEL EQUIPMENT(7LX)
FRONT STABILIZER SHAFT<F59>
G.V.W. 5.0-5.5TON(RPT),G.V.W.
6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
3-LEAF
|
8-97033-430-3 |
01 |
1 |
9811-0105 |
|
● |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
ISRAEL EQUIPMENT(7LX)
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
3-LEAF
|
8-97033-430-3 |
01 |
1 |
0106-0202 |
|
● |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
ISRAEL EQUIPMENT(7LX)
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
3-LEAF
|
8-97033-430-3 |
01 |
1 |
0203- |
|
● |
● |
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
ISRAEL EQUIPMENT(7LX)
FRONT STABILIZER SHAFT<F59>
G.V.W. 5.0-5.5TON(RPT),G.V.W.
6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
3-LEAF
|
8-97033-429-3 |
01 |
1 |
9811-0105 |
|
● |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
ISRAEL EQUIPMENT(7LX)
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
3-LEAF
|
8-97033-429-3 |
01 |
1 |
0106-0202 |
|
● |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
ISRAEL EQUIPMENT(7LX)
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
3-LEAF
|
8-97033-429-3 |
01 |
1 |
0203- |
|
● |
● |
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
ISRAEL EQUIPMENT(7LX)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
6.0-6.5TON(RPV)
EXC. FRONT STABILIZER SHAFT<F59>,
FRAME STRAIGHT TYPE<7KJ>
3-LEAF
|
8-97033-432-3 |
01 |
1 |
9811-0105 |
|
● |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
ISRAEL EQUIPMENT(7LX)
G.V.W. 6.0-6.5TON(RPV)
EXC. FRONT STABILIZER SHAFT<F59>,
FRAME STRAIGHT TYPE<7KJ>
3-LEAF
|
8-97033-432-3 |
01 |
1 |
0106-0202 |
|
● |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
ISRAEL EQUIPMENT(7LX)
G.V.W. 6.0-6.5TON(RPV)
EXC. FRONT STABILIZER SHAFT<F59>,
FRAME STRAIGHT TYPE<7KJ>
3-LEAF
|
8-97033-432-3 |
01 |
1 |
0203- |
|
● |
● |
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
ISRAEL EQUIPMENT(7LX)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
6.0-6.5TON(RPV)
EXC. FRONT STABILIZER SHAFT<F59>,
FRAME STRAIGHT TYPE<7KJ>
3-LEAF
|
8-97033-431-3 |
01 |
1 |
9811-0105 |
|
● |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
ISRAEL EQUIPMENT(7LX)
G.V.W. 6.0-6.5TON(RPV)
EXC. FRONT STABILIZER SHAFT<F59>,
FRAME STRAIGHT TYPE<7KJ>
3-LEAF
|
8-97033-431-3 |
01 |
1 |
0106-0202 |
|
● |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
ISRAEL EQUIPMENT(7LX)
G.V.W. 6.0-6.5TON(RPV)
EXC. FRONT STABILIZER SHAFT<F59>,
FRAME STRAIGHT TYPE<7KJ>
3-LEAF
|
8-97033-431-3 |
01 |
1 |
0203- |
|
● |
● |
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
ISRAEL EQUIPMENT(7LX)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
3-LEAF
|
8-97184-267-0 |
01 |
1 |
9811-0202 |
|
● |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
3-LEAF
|
8-97184-267-0 |
01 |
1 |
9811-0202 |
|
|
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
ISRAEL EQUIPMENT(7LX)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
3-LEAF
|
8-97184-267-0 |
01 |
1 |
0203- |
|
● |
● |
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
ISRAEL EQUIPMENT(7LX)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
3-LEAF
|
8-97184-266-0 |
01 |
1 |
9811-0202 |
|
● |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
3-LEAF
|
8-97184-266-0 |
01 |
1 |
9811-0202 |
|
|
|
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
ISRAEL EQUIPMENT(7LX)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
3-LEAF
|
8-97184-266-0 |
01 |
1 |
0203- |
|
● |
● |
● |
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 8.0-8.5TON(RPZ)
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. EGYPT EQUIPMENT(YJ4),TIRE SIZE
8.25-16<7QP>
6-LEAF
|
8-97287-990-0 |
01 |
1 |
0012-0012 |
|
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 8.0-8.5TON(RPZ)
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. EGYPT EQUIPMENT(YJ4),TIRE SIZE
8.25-16<7QP>
6-LEAF
|
8-97287-990-0 |
01 |
1 |
0012-0012 |
|
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>,ISRAEL
EQUIPMENT(7LX),TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-97202-804-0 |
01 |
1 |
9811-9902 |
|
● |
● |
|
● |
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>,ISRAEL
EQUIPMENT(7LX),TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-97202-804-0 |
01 |
1 |
9903-0011 |
|
● |
● |
|
● |
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 8.0-8.5TON(RPZ)
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-97202-804-0 |
01 |
1 |
9903-0011 |
|
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>,ISRAEL
EQUIPMENT(7LX),TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-97202-804-0 |
01 |
1 |
0012-0105 |
|
● |
● |
|
● |
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>,ISRAEL
EQUIPMENT(7LX),TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-97202-804-0 |
01 |
1 |
0106- |
● |
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>,ISRAEL
EQUIPMENT(7LX),TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-97147-110-1 |
01 |
1 |
9811-9902 |
|
● |
● |
|
● |
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-97147-110-1 |
01 |
1 |
9811-9902 |
|
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-97147-110-1 |
01 |
1 |
9811-9902 |
|
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>,ISRAEL
EQUIPMENT(7LX),TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-97147-110-1 |
01 |
1 |
9903-0011 |
|
● |
● |
|
● |
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-97147-110-1 |
01 |
1 |
9903-0011 |
|
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-97147-110-1 |
01 |
1 |
9903-0011 |
|
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>,ISRAEL
EQUIPMENT(7LX),TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-97147-110-1 |
01 |
1 |
0012-0105 |
|
● |
● |
|
● |
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-97147-110-1 |
01 |
1 |
0012-0105 |
|
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-97147-110-1 |
01 |
1 |
0012-0105 |
|
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>,ISRAEL
EQUIPMENT(7LX),TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-97147-110-1 |
01 |
1 |
0106- |
● |
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-97147-110-1 |
01 |
1 |
0106- |
|
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-97147-110-1 |
01 |
1 |
0106- |
|
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-97147-601-1 |
01 |
1 |
9811-0105 |
|
● |
● |
|
● |
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-97147-601-1 |
01 |
1 |
0106- |
|
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-97147-600-1 |
01 |
1 |
9811-0105 |
|
● |
● |
|
● |
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
TIRE SIZE 8.25-16<7QP>
6-LEAF
|
8-97147-600-1 |
01 |
1 |
0106- |
|
● |
● |
|
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
ISRAEL EQUIPMENT(7LX)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE
8.25-16<7QP>
3-LEAF
|
8-97134-406-2 |
01 |
1 |
9811-9811 |
|
● |
● |
|
|
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
ISRAEL EQUIPMENT(7LX)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE
8.25-16<7QP>
3-LEAF
|
8-97134-406-2 |
01 |
1 |
9812- |
|
● |
● |
|
● |
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
ISRAEL EQUIPMENT(7LX)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE
8.25-16<7QP>
3-LEAF
|
8-97134-405-2 |
01 |
1 |
9811-9811 |
|
● |
● |
|
|
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
ISRAEL EQUIPMENT(7LX)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE
8.25-16<7QP>
3-LEAF
|
8-97134-405-2 |
01 |
1 |
9812- |
|
● |
● |
|
● |
● |
| |
14 |
07.389 NUT; S/ABS,UPR
(A)
M10 T=8
|
9-09640-020-0 |
02 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
| |
14 |
07.389 NUT; S/ABS,UPR
(B)
M10 T=6
|
9-09640-021-0 |
02 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
| |
17 |
07.388 BUSHING; RUBBER,S/ABS
TIRE SIZE 8.25-16<7QP>
KYB
|
9-51631-055-0 |
04 |
1 |
9811-0105 |
● |
● |
● |
|
● |
● |
| |
17 |
07.388 BUSHING; RUBBER,S/ABS
TIRE SIZE 8.25-16<7QP>
KYB
|
9-51631-055-0 |
04 |
1 |
0106- |
|
● |
● |
|
● |
|
| |
17 |
07.388 BUSHING; RUBBER,S/ABS
EXC. TIRE SIZE 8.25-16<7QP>
TOKICO
|
9-51631-603-0 |
04 |
1 |
9811-0011 |
● |
● |
● |
|
● |
● |
| |
17 |
07.388 BUSHING; RUBBER,S/ABS
TOKICO
|
9-51631-603-0 |
04 |
1 |
9811-0011 |
|
|
|
● |
|
|
| |
17 |
07.388 BUSHING; RUBBER,S/ABS
EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE
8.25-16<7QP>
TOKICO
|
9-51631-603-0 |
04 |
1 |
0012-0012 |
● |
● |
● |
● |
● |
● |
| |
17 |
07.388 BUSHING; RUBBER,S/ABS
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. TIRE SIZE 8.25-16<7QP>
TOKICO
|
9-51631-603-0 |
04 |
1 |
0012-0012 |
|
● |
● |
|
● |
|
| |
17 |
07.388 BUSHING; RUBBER,S/ABS
MINI BUS CHASSIS<V4B>
EXC. FRAME STRAIGHT TYPE<7KJ>,TIRE
SIZE 8.25-16<7QP>
TOKICO
|
9-51631-603-0 |
04 |
1 |
0012-0012 |
|
● |
● |
|
● |
|
| |
17 |
07.388 BUSHING; RUBBER,S/ABS
EXC. TIRE SIZE 8.25-16<7QP>
TOKICO
|
9-51631-603-0 |
04 |
1 |
0101-0105 |
● |
● |
● |
|
● |
● |
| |
17 |
07.388 BUSHING; RUBBER,S/ABS
TOKICO
|
9-51631-603-0 |
04 |
1 |
0101-0105 |
|
|
|
● |
|
|
| |
17 |
07.388 BUSHING; RUBBER,S/ABS
TOKICO
|
9-51631-603-0 |
04 |
1 |
0106- |
● |
|
|
● |
|
● |
| |
17 |
07.388 BUSHING; RUBBER,S/ABS
EXC. TIRE SIZE 8.25-16<7QP>
TOKICO
|
9-51631-603-0 |
04 |
1 |
0106- |
|
● |
● |
|
● |
|
| |
18 |
07.347 WASHER; CENTERING,S/ABS
TOKICO
|
8-94412-791-0 |
02 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
TIRE SIZE 8.25-16<7QP>
|
8-97147-097-0 |
02 |
1 |
9811-0003 |
● |
● |
● |
|
● |
● |
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
TIRE SIZE 8.25-16<7QP>
|
8-97253-619-0 |
02 |
1 |
0004-0105 |
● |
● |
● |
|
● |
● |
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
TIRE SIZE 8.25-16<7QP>
|
8-97253-619-0 |
02 |
1 |
0106- |
|
● |
● |
|
● |
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
EXC. TIRE SIZE 8.25-16<7QP>
|
8-97160-087-0 |
02 |
1 |
9811-0003 |
● |
● |
● |
|
● |
● |
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
|
8-97160-087-0 |
02 |
1 |
9811-0003 |
|
|
|
● |
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
EXC. TIRE SIZE 8.25-16<7QP>
|
8-97253-617-0 |
02 |
1 |
0004-0011 |
● |
● |
● |
|
● |
● |
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
|
8-97253-617-0 |
02 |
1 |
0004-0011 |
|
|
|
● |
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE
8.25-16<7QP>
|
8-97253-617-0 |
02 |
1 |
0012-0012 |
● |
● |
● |
● |
● |
● |
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. TIRE SIZE 8.25-16<7QP>
|
8-97253-617-0 |
02 |
1 |
0012-0012 |
|
● |
● |
|
● |
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
MINI BUS CHASSIS<V4B>
EXC. FRAME STRAIGHT TYPE<7KJ>,TIRE
SIZE 8.25-16<7QP>
|
8-97253-617-0 |
02 |
1 |
0012-0012 |
|
● |
● |
|
● |
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
EXC. TIRE SIZE 8.25-16<7QP>
|
8-97253-617-0 |
02 |
1 |
0101-0105 |
● |
● |
● |
|
● |
● |
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
|
8-97253-617-0 |
02 |
1 |
0101-0105 |
|
|
|
● |
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
|
8-97253-617-0 |
02 |
1 |
0106- |
● |
|
|
● |
|
● |
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
EXC. TIRE SIZE 8.25-16<7QP>
|
8-97253-617-0 |
02 |
1 |
0106- |
|
● |
● |
|
● |
|
| |
63 |
07.347 WASHER; PL,S/ABS,LWR
08.929
ID=21 OD=40
|
9-09164-620-0 |
02 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
| |
64 |
07.347 WASHER; S/ABS,LWR
ID=15.0
|
9-51679-012-0 |
02 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
| |
65 |
07.347 WASHER; S/ABS
OD=40
|
9-51631-614-0 |
04 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
| |
68 |
07.388 BUSHING; S/ABS
TOKICO
|
8-94382-149-0 |
02 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
| |
73 |
07.347 NUT; BRKT,SHOCK
06.232
M14
|
9-99110-414-0 |
02 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
|
8-97102-611-1 |
01 |
1 |
9811-0105 |
● |
● |
● |
|
● |
● |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
|
8-97102-611-2 |
01 |
1 |
0106-0202 |
● |
● |
● |
|
● |
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
|
8-97102-611-2 |
01 |
1 |
0203- |
● |
● |
● |
● |
● |
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
|
8-97102-609-1 |
01 |
1 |
9811-9904 |
● |
● |
● |
|
● |
● |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
|
8-97228-372-1 |
01 |
1 |
9905-9910 |
● |
● |
● |
|
● |
● |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
|
8-97240-796-0 |
01 |
1 |
9911-0105 |
● |
● |
● |
|
● |
● |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
|
8-97240-796-1 |
01 |
1 |
0106-0202 |
● |
● |
● |
|
● |
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
|
8-97240-796-1 |
01 |
1 |
0203- |
● |
● |
● |
● |
● |
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
EXC. FRAME STRAIGHT TYPE<7KJ>
07.395
|
8-94162-751-4 |
01 |
1 |
9811-9811 |
● |
|
|
|
● |
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
07.395
|
8-94162-751-4 |
01 |
1 |
9811-9811 |
|
● |
● |
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
EXC. FRAME STRAIGHT TYPE<7KJ>
07.395
|
8-94162-751-4 |
01 |
1 |
9812-0106 |
● |
|
|
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
07.395
|
8-94162-751-4 |
01 |
1 |
9812-0106 |
|
● |
● |
|
● |
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97316-009-0 |
01 |
1 |
0107-0202 |
● |
|
|
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97316-009-0 |
01 |
1 |
0107-0202 |
|
● |
● |
|
● |
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97316-009-0 |
01 |
1 |
0203- |
● |
● |
● |
● |
● |
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
EXC. FRAME STRAIGHT TYPE<7KJ>
07.395
|
8-94162-750-3 |
01 |
1 |
9811-9811 |
● |
|
|
|
● |
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
07.395
|
8-94162-750-3 |
01 |
1 |
9811-9811 |
|
● |
● |
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
EXC. FRAME STRAIGHT TYPE<7KJ>
07.395
|
8-94162-750-3 |
01 |
1 |
9812-0106 |
● |
|
|
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
07.395
|
8-94162-750-3 |
01 |
1 |
9812-0106 |
|
● |
● |
|
● |
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97316-008-0 |
01 |
1 |
0107-0202 |
● |
|
|
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97316-008-0 |
01 |
1 |
0107-0202 |
|
● |
● |
|
● |
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97316-008-0 |
01 |
1 |
0203- |
● |
● |
● |
● |
● |
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52>
EXC. FRAME STRAIGHT TYPE<7KJ>
07.395
|
8-94468-737-3 |
01 |
1 |
9811-9811 |
|
● |
● |
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52>
EXC. FRAME STRAIGHT TYPE<7KJ>
07.395
|
8-94468-737-3 |
01 |
1 |
9812-0106 |
|
● |
● |
|
● |
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97316-011-0 |
01 |
1 |
0107-0202 |
|
● |
● |
|
● |
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97316-011-0 |
01 |
1 |
0203- |
|
● |
● |
● |
● |
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52>
EXC. FRAME STRAIGHT TYPE<7KJ>
07.395
|
8-94468-736-2 |
01 |
1 |
9811-9811 |
|
● |
● |
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52>
EXC. FRAME STRAIGHT TYPE<7KJ>
07.395
|
8-94468-736-2 |
01 |
1 |
9812-0106 |
|
● |
● |
|
● |
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97316-010-0 |
01 |
1 |
0107-0202 |
|
● |
● |
|
● |
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97316-010-0 |
01 |
1 |
0203- |
|
● |
● |
● |
● |
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
|
8-97175-282-2 |
01 |
1 |
9811-9811 |
|
● |
● |
|
|
● |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
|
8-97175-282-2 |
01 |
1 |
9812-9812 |
|
● |
● |
|
● |
● |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
|
8-97175-282-2 |
01 |
1 |
9901-0009 |
|
● |
● |
|
● |
● |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
|
8-97175-282-2 |
01 |
1 |
9901-0009 |
|
|
|
● |
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
|
8-97300-358-0 |
01 |
1 |
0010-0105 |
|
● |
● |
|
● |
● |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
|
8-97300-358-0 |
01 |
1 |
0010-0105 |
|
|
|
● |
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
|
8-97300-358-1 |
01 |
1 |
0106-0202 |
|
● |
● |
|
● |
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
|
8-97300-358-1 |
01 |
1 |
0106-0202 |
|
|
|
● |
|
● |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
|
8-97300-358-1 |
01 |
1 |
0203- |
|
● |
● |
● |
● |
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
|
8-97300-358-1 |
01 |
1 |
0203- |
|
|
|
|
|
● |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
|
8-97175-283-2 |
01 |
1 |
9811-9811 |
|
● |
● |
|
|
● |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
|
8-97175-283-2 |
01 |
1 |
9812-9812 |
|
● |
● |
|
● |
● |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
|
8-97175-283-2 |
01 |
1 |
9901-0009 |
|
● |
● |
|
● |
● |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
|
8-97175-283-2 |
01 |
1 |
9901-0009 |
|
|
|
● |
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
|
8-97300-359-0 |
01 |
1 |
0010-0105 |
|
● |
● |
|
● |
● |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
|
8-97300-359-0 |
01 |
1 |
0010-0105 |
|
|
|
● |
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
|
8-97300-359-1 |
01 |
1 |
0106-0202 |
|
● |
● |
|
● |
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
|
8-97300-359-1 |
01 |
1 |
0106-0202 |
|
|
|
● |
|
● |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
|
8-97300-359-1 |
01 |
1 |
0203- |
|
● |
● |
● |
● |
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
|
8-97300-359-1 |
01 |
1 |
0203- |
|
|
|
|
|
● |
| |
171 |
07.395 BOLT; S/ABS BRKT
07.632
M12X35 FLANGE
|
0-28681-235-0 |
08 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
| |
173 |
07.395 NUT; S/ABS
06.606
M12
|
8-94139-015-0 |
08 |
1 |
9811-0009 |
● |
● |
● |
● |
● |
● |
| |
173 |
07.395 NUT; S/ABS
06.606
M12
|
8-94139-015-0 |
08 |
1 |
0010-0105 |
● |
|
|
|
|
|
| |
173 |
07.395 NUT; S/ABS
EXC. FRAME STRAIGHT TYPE<7KJ>
06.606
M12
|
8-94139-015-0 |
08 |
1 |
0010-0105 |
|
● |
● |
|
● |
|
| |
173 |
07.395 NUT; S/ABS
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
06.606
M12
|
8-94139-015-0 |
08 |
1 |
0010-0105 |
|
● |
● |
|
● |
|
| |
173 |
07.395 NUT; S/ABS
EXC. DISC BRAKE FRT<J52>
06.606
M12
|
8-94139-015-0 |
08 |
1 |
0010-0105 |
|
|
|
|
|
● |
| |
173 |
07.395 NUT; S/ABS
06.606
M12
|
8-94139-015-0 |
08 |
1 |
0106-0202 |
● |
|
|
|
|
|
| |
173 |
07.395 NUT; S/ABS
EXC. FRAME STRAIGHT TYPE<7KJ>
06.606
M12
|
8-94139-015-0 |
08 |
1 |
0106-0202 |
|
● |
● |
|
● |
|
| |
173 |
07.395 NUT; S/ABS
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
06.606
M12
|
8-94139-015-0 |
08 |
1 |
0106-0202 |
|
● |
● |
|
● |
|
| |
173 |
07.395 NUT; S/ABS
06.606
M12
|
8-94139-015-0 |
08 |
1 |
0203- |
● |
|
|
|
|
|
| |
173 |
07.395 NUT; S/ABS
EXC. FRAME STRAIGHT TYPE<7KJ>
06.606
M12
|
8-94139-015-0 |
08 |
1 |
0203- |
|
● |
● |
● |
● |
|
| |
173 |
07.395 NUT; S/ABS
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
06.606
M12
|
8-94139-015-0 |
08 |
1 |
0203- |
|
● |
● |
● |
● |
|
| |
173 |
07.395 NUT; S/ABS
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
06.606
M12
|
8-94139-015-0 |
06 |
1 |
0010-0105 |
|
● |
● |
|
● |
● |
| |
173 |
07.395 NUT; S/ABS
06.606
M12
|
8-94139-015-0 |
06 |
1 |
0010-0105 |
|
|
|
● |
|
|
| |
173 |
07.395 NUT; S/ABS
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
06.606
M12
|
8-94139-015-0 |
06 |
1 |
0106-0202 |
|
● |
● |
|
● |
|
| |
173 |
07.395 NUT; S/ABS
06.606
M12
|
8-94139-015-0 |
06 |
1 |
0106-0202 |
|
|
|
● |
|
● |
| |
173 |
07.395 NUT; S/ABS
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
06.606
M12
|
8-94139-015-0 |
06 |
1 |
0203- |
|
● |
● |
● |
● |
|
| |
173 |
07.395 NUT; S/ABS
06.606
M12
|
8-94139-015-0 |
06 |
1 |
0203- |
|
|
|
|
|
● |
| |
180 |
07.347 WASHER; PL,PIN
KD PREPARATORY PACK<6HF>
07.172
ID=16.5
|
8-97070-925-1 |
06 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
| |
183 |
07.436 SHACKLE; FRT SUSP
|
8-94110-399-3 |
04 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
FRAME STRAIGHT TYPE<7KJ>
|
8-94422-380-4 |
02 |
1 |
9811-0105 |
● |
● |
● |
|
● |
|
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
|
8-94422-380-4 |
02 |
1 |
9811-0105 |
|
|
|
● |
|
● |
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
FRAME STRAIGHT TYPE<7KJ>
|
8-94422-380-4 |
02 |
1 |
0106- |
● |
● |
● |
● |
● |
● |
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRAME STRAIGHT TYPE<7KJ>,ISRAEL
EQUIPMENT(7LX)
07.422
|
8-94101-347-4 |
02 |
1 |
9811-0202 |
● |
● |
● |
|
● |
|
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRAME STRAIGHT TYPE<7KJ>,ISRAEL
EQUIPMENT(7LX)
07.422
|
8-94101-347-4 |
02 |
1 |
0203- |
● |
● |
● |
● |
● |
|
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
ISRAEL EQUIPMENT(7LX)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97039-571-1 |
02 |
1 |
9811-9811 |
|
● |
● |
|
|
|
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
ISRAEL EQUIPMENT(7LX)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97039-571-1 |
02 |
1 |
9812-0202 |
|
● |
● |
|
● |
|
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
ISRAEL EQUIPMENT(7LX)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97039-571-1 |
02 |
1 |
0203- |
|
● |
● |
● |
● |
|
| |
191 |
07.417 U-BOLT; FRT SPR
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
EXC. FRONT STABILIZER SHAFT<F59>,
FRAME STRAIGHT TYPE<7KJ>,ISRAEL EQUIPMENT
(7LX)
L=105
|
8-94157-676-1 |
04 |
1 |
9811-9811 |
● |
● |
● |
|
● |
|
| |
191 |
07.417 U-BOLT; FRT SPR
ISRAEL EQUIPMENT(7LX)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=105
|
8-94157-676-1 |
04 |
1 |
9811-9811 |
|
● |
● |
|
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
L=105
|
8-94157-676-1 |
04 |
1 |
9811-9811 |
|
|
|
● |
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
EXC. FRONT STABILIZER SHAFT<F59>,
FRAME STRAIGHT TYPE<7KJ>,ISRAEL EQUIPMENT
(7LX)
L=105
|
8-94157-676-1 |
04 |
1 |
9812-9812 |
● |
● |
● |
|
● |
|
| |
191 |
07.417 U-BOLT; FRT SPR
ISRAEL EQUIPMENT(7LX)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=105
|
8-94157-676-1 |
04 |
1 |
9812-9812 |
|
● |
● |
|
● |
|
| |
191 |
07.417 U-BOLT; FRT SPR
L=105
|
8-94157-676-1 |
04 |
1 |
9812-9812 |
|
|
|
● |
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
EXC. FRONT STABILIZER SHAFT<F59>,
FRAME STRAIGHT TYPE<7KJ>,ISRAEL EQUIPMENT
(7LX)
L=105
|
8-94157-676-2 |
04 |
1 |
9901-0202 |
● |
● |
● |
|
● |
|
| |
191 |
07.417 U-BOLT; FRT SPR
ISRAEL EQUIPMENT(7LX)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=105
|
8-94157-676-2 |
04 |
1 |
9901-0202 |
|
● |
● |
|
● |
|
| |
191 |
07.417 U-BOLT; FRT SPR
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
EXC. FRONT STABILIZER SHAFT<F59>,
FRAME STRAIGHT TYPE<7KJ>,ISRAEL EQUIPMENT
(7LX)
L=105
|
8-94157-676-2 |
04 |
1 |
0203- |
● |
● |
● |
● |
● |
|
| |
191 |
07.417 U-BOLT; FRT SPR
ISRAEL EQUIPMENT(7LX)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=105
|
8-94157-676-2 |
04 |
1 |
0203- |
|
● |
● |
● |
● |
|
| |
191 |
07.417 U-BOLT; FRT SPR
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
L=125
|
8-94119-671-3 |
04 |
1 |
9811-9902 |
● |
● |
● |
|
● |
● |
| |
191 |
07.417 U-BOLT; FRT SPR
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
L=125
|
8-94119-671-3 |
04 |
1 |
9811-9902 |
|
● |
● |
|
● |
|
| |
191 |
07.417 U-BOLT; FRT SPR
L=125
|
8-94119-671-3 |
04 |
1 |
9811-9902 |
|
|
|
● |
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
L=125
|
8-94119-671-4 |
04 |
1 |
9903- |
● |
● |
● |
● |
● |
● |
| |
191 |
07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
EXC. FRAME STRAIGHT TYPE<7KJ>,ISRAEL
EQUIPMENT(7LX)
L=115
|
8-94412-504-2 |
04 |
1 |
9811-0105 |
|
● |
● |
|
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
EXC. FRAME STRAIGHT TYPE<7KJ>,ISRAEL
EQUIPMENT(7LX)
L=115
|
8-94412-504-2 |
04 |
1 |
0106-0202 |
● |
● |
● |
|
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
EXC. FRAME STRAIGHT TYPE<7KJ>,ISRAEL
EQUIPMENT(7LX)
L=115
|
8-94412-504-2 |
04 |
1 |
0203- |
● |
● |
● |
● |
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
G.V.W. 8.0-8.5TON(RPZ)
TIRE SIZE 8.25-16<7QP>
L=165
|
9-51171-075-1 |
04 |
1 |
9811-9812 |
|
● |
● |
|
● |
● |
| |
191 |
07.417 U-BOLT; FRT SPR
G.V.W. 8.0-8.5TON(RPZ)
TIRE SIZE 8.25-16<7QP>
L=165
|
9-51171-075-1 |
04 |
1 |
9901-0105 |
● |
● |
● |
|
● |
● |
| |
191 |
07.417 U-BOLT; FRT SPR
G.V.W. 8.0-8.5TON(RPZ)
TIRE SIZE 8.25-16<7QP>
L=165
|
9-51171-075-1 |
04 |
1 |
0106- |
|
● |
● |
|
● |
|
| |
191 |
07.417 U-BOLT; FRT SPR
G.V.W. 8.0-8.5TON(RPZ)
EXC. TIRE SIZE 8.25-16<7QP>
L=135
|
9-51171-073-2 |
04 |
1 |
9811-9812 |
|
● |
● |
|
● |
● |
| |
191 |
07.417 U-BOLT; FRT SPR
G.V.W. 8.0-8.5TON(RPZ)
EXC. TIRE SIZE 8.25-16<7QP>
L=135
|
9-51171-073-2 |
04 |
1 |
9901-0105 |
● |
● |
● |
|
● |
● |
| |
191 |
07.417 U-BOLT; FRT SPR
G.V.W. 8.0-8.5TON(RPZ)
EXC. TIRE SIZE 8.25-16<7QP>
L=135
|
9-51171-073-2 |
04 |
1 |
0106- |
|
● |
● |
|
● |
|
| |
193 |
07.417 NUT; U BOLT
G.V.W. 5.0-5.5TON(RPT),G.V.W.
6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),
G.V.W. 7.5-8.0TON(RPY)
M14 FLANGE
|
8-94137-483-0 |
08 |
1 |
9811-0105 |
● |
● |
● |
|
● |
● |
| |
193 |
07.417 NUT; U BOLT
M14 FLANGE
|
8-94137-483-0 |
08 |
1 |
9811-0105 |
|
|
|
● |
|
|
| |
193 |
07.417 NUT; U BOLT
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
M14 FLANGE
|
8-94137-483-0 |
08 |
1 |
0106- |
● |
● |
● |
● |
● |
● |
| |
193 |
07.417 NUT; U BOLT
G.V.W. 8.0-8.5TON(RPZ)
M16
|
1-09440-028-1 |
08 |
1 |
9811-9812 |
|
● |
● |
|
● |
● |
| |
193 |
07.417 NUT; U BOLT
G.V.W. 8.0-8.5TON(RPZ)
M16
|
1-09440-028-1 |
08 |
1 |
9901-0105 |
● |
● |
● |
|
● |
● |
| |
193 |
07.417 NUT; U BOLT
G.V.W. 8.0-8.5TON(RPZ)
M16
|
1-09440-028-1 |
08 |
1 |
0106- |
|
● |
● |
|
● |
|
| |
201 |
07.427 NUT; PIN LK
KD PREPARATORY PACK<6HF>
08.915
M16
|
9-99110-516-0 |
06 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
| |
201 |
07.427 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF>
07.529
M16 FLANGE
|
8-97147-389-0 |
06 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
| |
203 |
07.427 PIN; SPR TO SHACKLE
KD PREPARATORY PACK<6HF>
M16X122
|
9-51361-602-2 |
06 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
| |
203 |
07.427 PIN; SPR TO SHACKLE
EXC. KD PREPARATORY PACK<6HF>
07.529
M16X122 FLANGE
|
8-97076-850-2 |
06 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
