2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#2206) — 97 parça

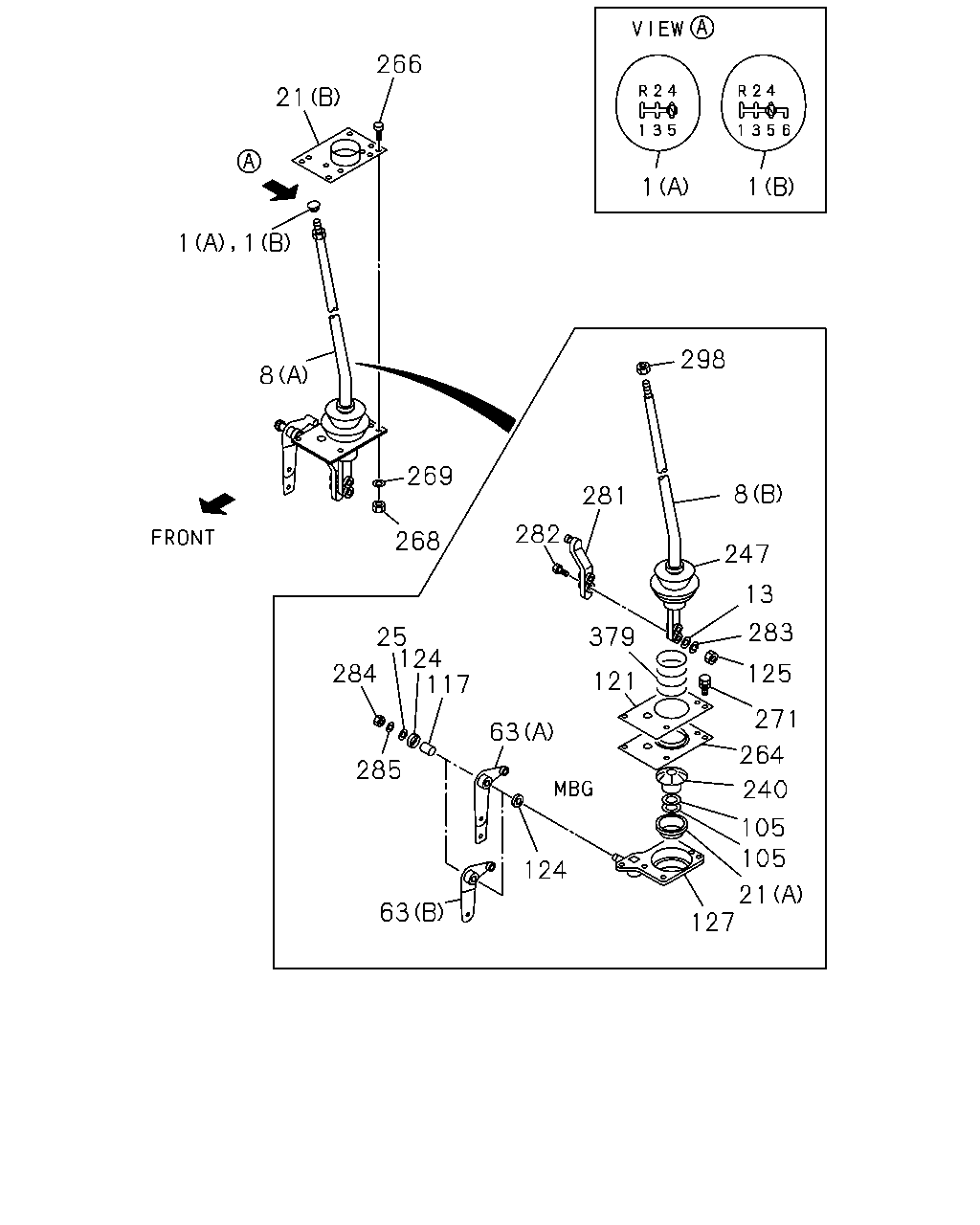

çizim 29383
266 21 1 1 1 1 298 8 269 8 281 282 268 247 13 283 379 25 124 117 284 125 121 271 63 264 285 240 105 105 124 21 127 63
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 KNOB; CHANGE LEVER
(A) 		9-33611-070-0 01 1 9101-0203 ● ● ● ● ●
1 KNOB; CHANGE LEVER
(A) 		9-33611-070-0 01 1 0204-0204 ● ● ●
1 KNOB; CHANGE LEVER
(A) 		1-33611-034-0 01 1 0204- ● ● ●
1 KNOB; CHANGE LEVER
(B) 		1-33611-006-0 01 1 9101-0203 ● ●
1 KNOB; CHANGE LEVER
RIGHT HAND DRIVE(MTR5FB) (B) 		1-33611-006-0 01 1 0204- ●
8 LEVER; CHANGE
RIGHT HAND DRIVE(MTR5FB) (A) 		1-33610-779-1 01 1 9101-0203 ● ● ● ●
8 LEVER; CHANGE
RIGHT HAND DRIVE(MTR5FB) (A) 		1-33610-779-1 01 1 0204- ● ●
8 LEVER; CHANGE
LEFT HAND DRIVE(MTR6FB) (A) 		1-33610-782-1 01 1 9101-0203 ● ● ● ●
8 LEVER; CHANGE
LEFT HAND DRIVE(MTR6FB) (A) 		1-33610-782-1 01 1 0204- ● ●
8 LEVER; CHANGE
RIGHT HAND DRIVE(MTR5FB) (B) 		1-33613-273-0 01 1 9101-0203 ● ● ● ● ● ●
8 LEVER; CHANGE
(B) 		1-33613-273-0 01 1 9101-0203 ●
8 LEVER; CHANGE
RIGHT HAND DRIVE(MTR5FB) (B) 		1-33613-273-0 01 1 0204- ● ● ●
8 LEVER; CHANGE
(B) 		1-33613-273-0 01 1 0204- ●
8 LEVER; CHANGE
LEFT HAND DRIVE(MTR6FB) (B) 		1-33613-270-0 01 1 9101-0203 ● ● ● ● ● ●
8 LEVER; CHANGE
LEFT HAND DRIVE(MTR6FB) (B) 		1-33613-270-0 01 1 0204- ● ●
8 LEVER; CHANGE
RIGHT HAND DRIVE(MTR5FB) (A) 		1-33610-787-1 01 1 9101-0203 ● ●
8 LEVER; CHANGE
RIGHT HAND DRIVE(MTR5FB) (A) 		1-33610-787-1 01 1 0204- ●
8 LEVER; CHANGE
LEFT HAND DRIVE(MTR6FB) (A) 		1-33610-790-1 01 1 9101-0203 ● ●
8 LEVER; CHANGE
(A) 		1-33610-813-0 01 1 9101-9204 ●
8 LEVER; CHANGE
(A) 		1-33610-813-1 01 1 9205-0203 ●
8 LEVER; CHANGE
(A) 		1-33610-813-1 01 1 0204- ●
13 WASHER; PL,SUPER SHIFT LEVER 5-09503-135-0 02 1 9101-0203 ● ● ● ● ● ● ●
13 WASHER; PL,SUPER SHIFT LEVER 5-09503-135-0 02 1 0204- ● ● ●
13 WASHER; PL,SUPER SHIFT LEVER
RIGHT HAND DRIVE(MTR5FB) 		5-09503-135-0 02 1 0204- ●
21 SEAT; CHANGE LEVER
(B) 		1-33619-081-0 01 1 9101- ● ● ● ● ● ● ●
21 SEAT; CHANGE LEVER
(A) 		1-33619-293-0 01 1 9101-0203 ● ● ● ● ● ● ●
21 SEAT; CHANGE LEVER
(A) 		1-33619-293-0 01 1 0204- ● ● ●
21 SEAT; CHANGE LEVER
RIGHT HAND DRIVE(MTR5FB) (A) 		1-33619-293-0 01 1 0204- ●
25 WASHER
ID=10.5 OD=26 		9-09160-710-0 01 1 9101-0203 ● ● ● ● ● ● ●
25 WASHER
ID=10.5 OD=26 		9-09160-710-0 01 1 0204- ● ● ●
25 WASHER
RIGHT HAND DRIVE(MTR5FB) ID=10.5 OD=26 		9-09160-710-0 01 1 0204- ●
63 LEVER; RELAY,SELECT
(A) 		1-33651-378-0 01 1 9101-0203 ● ● ● ● ● ●
63 LEVER; RELAY,SELECT
(A) 		1-33651-378-0 01 1 0204- ● ●
63 LEVER; RELAY,SELECT
RIGHT HAND DRIVE(MTR5FB) (A) 		1-33651-378-0 01 1 0204- ●
63 LEVER; RELAY,SELECT
(B) 		1-33651-411-0 01 1 9101- ●
105 SHIM; CHANGE LEVER
T=0.3 ID=25 		1-33612-004-0 AR 1 9101-0203 ● ● ● ● ● ● ●
105 SHIM; CHANGE LEVER
T=0.3 ID=25 		1-33612-004-0 AR 1 0204- ● ● ●
105 SHIM; CHANGE LEVER
RIGHT HAND DRIVE(MTR5FB) T=0.3 ID=25 		1-33612-004-0 AR 1 0204- ●
105 SHIM; CHANGE LEVER
T=0.1 ID=25 		1-33612-005-0 AR 1 9101-0203 ● ● ● ● ● ● ●
105 SHIM; CHANGE LEVER
T=0.1 ID=25 		1-33612-005-0 AR 1 0204- ● ● ●
105 SHIM; CHANGE LEVER
RIGHT HAND DRIVE(MTR5FB) T=0.1 ID=25 		1-33612-005-0 AR 1 0204- ●
117 BUSHING; RELAY LEVER 1-09330-004-0 01 1 9101-0203 ● ● ● ● ● ● ●
117 BUSHING; RELAY LEVER 1-09330-004-0 01 1 0204- ● ● ●
117 BUSHING; RELAY LEVER
RIGHT HAND DRIVE(MTR5FB) 		1-09330-004-0 01 1 0204- ●
121 SEAL; CHANGE LEVER 1-33619-022-0 01 1 9101-9310 ● ● ● ● ● ● ●
124 WASHER; PL,RELAY LEVER
ID=16.5 OD=27.8 H=3.5 		1-09503-047-0 02 1 9101-0203 ● ● ● ● ● ● ●
124 WASHER; PL,RELAY LEVER
ID=16.5 OD=27.8 H=3.5 		1-09503-047-0 02 1 0204- ● ● ●
124 WASHER; PL,RELAY LEVER
RIGHT HAND DRIVE(MTR5FB) ID=16.5 OD=27.8 H=3.5 		1-09503-047-0 02 1 0204- ●
125 NUT; ARM
M8 		9-09110-508-0 02 1 9101-0203 ● ● ● ● ● ● ●
125 NUT; ARM
M8 		9-09110-508-0 02 1 0204- ● ● ●
125 NUT; ARM
RIGHT HAND DRIVE(MTR5FB) M8 		9-09110-508-0 02 1 0204- ●
127 SUPPORT; CHANGE LEVER 1-33619-092-0 01 1 9101-0203 ● ● ● ● ● ● ●
127 SUPPORT; CHANGE LEVER 1-33619-092-0 01 1 0204- ● ● ●
127 SUPPORT; CHANGE LEVER
RIGHT HAND DRIVE(MTR5FB) 		1-33619-092-0 01 1 0204- ●
240 COVER; SPHERICAL,CHANGE LEVER 1-33614-108-0 01 1 9101-0203 ● ● ● ● ● ● ●
240 COVER; SPHERICAL,CHANGE LEVER 1-33614-108-0 01 1 0204- ● ● ●
240 COVER; SPHERICAL,CHANGE LEVER
RIGHT HAND DRIVE(MTR5FB) 		1-33614-108-0 01 1 0204- ●
247 SEAL; DUST,CHANGE LEVER 1-33614-046-0 01 1 9101-0203 ● ● ● ● ● ● ●
247 SEAL; DUST,CHANGE LEVER 1-33614-046-0 01 1 0204- ● ● ●
247 SEAL; DUST,CHANGE LEVER
RIGHT HAND DRIVE(MTR5FB) 		1-33614-046-0 01 1 0204- ●
264 PLATE; COVER 1-33619-026-0 01 1 9101-0203 ● ● ● ● ● ● ●
264 PLATE; COVER 1-33619-026-0 01 1 0204- ● ● ●
264 PLATE; COVER
RIGHT HAND DRIVE(MTR5FB) 		1-33619-026-0 01 1 0204- ●
266 BOLT; SEAT SET
M8X35 W/LK WASHER 		0-50040-835-0 04 1 9101-9310 ● ● ● ● ● ● ●
266 BOLT; SEAT SET
M8X30 W/LK WASHER 		0-50040-830-0 04 1 9311- ● ● ● ● ● ● ●
268 NUT; SEAT SET
M8 		9-09110-408-0 04 1 9101- ● ● ● ● ● ● ●
269 WASHER; PL,SEAT SET
ID=8.4 		9-09160-508-0 04 1 9101- ● ● ● ● ● ● ●
271 BOLT; BRKT
M6X12 W/LK WASHER 		9-01900-612-0 02 1 9101-9204 ● ● ● ● ● ● ●
271 BOLT; BRKT
M6X12 W/LK WASHER 		0-50040-612-0 02 1 9205-0203 ● ● ● ● ● ● ●
271 BOLT; BRKT
M6X12 W/LK WASHER 		0-50040-612-0 02 1 0204- ● ● ●
271 BOLT; BRKT
RIGHT HAND DRIVE(MTR5FB) M6X12 W/LK WASHER 		0-50040-612-0 02 1 0204- ●
281 ARM; SELECT,CHANGE LEVER 1-33651-035-1 01 1 9101-0203 ● ● ● ● ● ● ●
281 ARM; SELECT,CHANGE LEVER 1-33651-035-1 01 1 0204- ● ● ●
281 ARM; SELECT,CHANGE LEVER
RIGHT HAND DRIVE(MTR5FB) 		1-33651-035-1 01 1 0204- ●
282 BOLT; ARM
M8X45 		9-01065-845-0 02 1 9101-0203 ● ● ● ● ● ● ●
282 BOLT; ARM
M8X45 		9-01065-845-0 02 1 0204- ● ● ●
282 BOLT; ARM
RIGHT HAND DRIVE(MTR5FB) M8X45 		9-01065-845-0 02 1 0204- ●
283 WASHER; LK,ARM
ID=8.2 		9-09150-608-0 02 1 9101-0203 ● ● ● ● ● ● ●
283 WASHER; LK,ARM
ID=8.2 		9-09150-608-0 02 1 0204- ● ● ●
283 WASHER; LK,ARM
RIGHT HAND DRIVE(MTR5FB) ID=8.2 		9-09150-608-0 02 1 0204- ●
284 NUT; RELAY LEVER
M10 		9-09110-410-0 01 1 9101-0203 ● ● ● ● ● ● ●
284 NUT; RELAY LEVER
M10 		9-09110-410-0 01 1 0204- ● ● ●
284 NUT; RELAY LEVER
RIGHT HAND DRIVE(MTR5FB) M10 		9-09110-410-0 01 1 0204- ●
285 WASHER; LK,RELAY LEVER
ID=10.2 		9-09150-510-0 01 1 9101-0203 ● ● ● ● ● ● ●
285 WASHER; LK,RELAY LEVER
ID=10.2 		9-09150-510-0 01 1 0204- ● ● ●
285 WASHER; LK,RELAY LEVER
RIGHT HAND DRIVE(MTR5FB) ID=10.2 		9-09150-510-0 01 1 0204- ●
298 NUT; LK,KNOB
LEFT HAND DRIVE(MTR6FB) 		9-33614-043-0 01 1 9101-0203 ● ● ● ●
298 NUT; LK,KNOB 9-33614-043-0 01 1 9101-0203 ● ●
298 NUT; LK,KNOB
LEFT HAND DRIVE(MTR6FB) 		9-33614-043-0 01 1 0204- ● ●
298 NUT; LK,KNOB
RIGHT HAND DRIVE(MTR5FB) 		9-33614-043-0 01 1 0204- ●
298 NUT; LK,KNOB 9-33619-043-0 01 1 9101-0203 ● ● ● ● ● ● ●
298 NUT; LK,KNOB 9-33619-043-0 01 1 0204-0204 ● ● ●
298 NUT; LK,KNOB
RIGHT HAND DRIVE(MTR5FB) 		9-33619-043-0 01 1 0204-0204 ●
298 NUT; LK,KNOB
RIGHT HAND DRIVE(MTR5FB) 		9-33619-043-0 01 1 0204- ●
379 SPRING; RETURN,COVER 1-09580-090-0 01 1 9101-0203 ● ● ● ● ● ● ●
379 SPRING; RETURN,COVER 1-09580-090-0 01 1 0204- ● ● ●
379 SPRING; RETURN,COVER
RIGHT HAND DRIVE(MTR5FB) 		1-09580-090-0 01 1 0204- ●
