4-40 — STEERING UNIT (#22058) — 97 parça

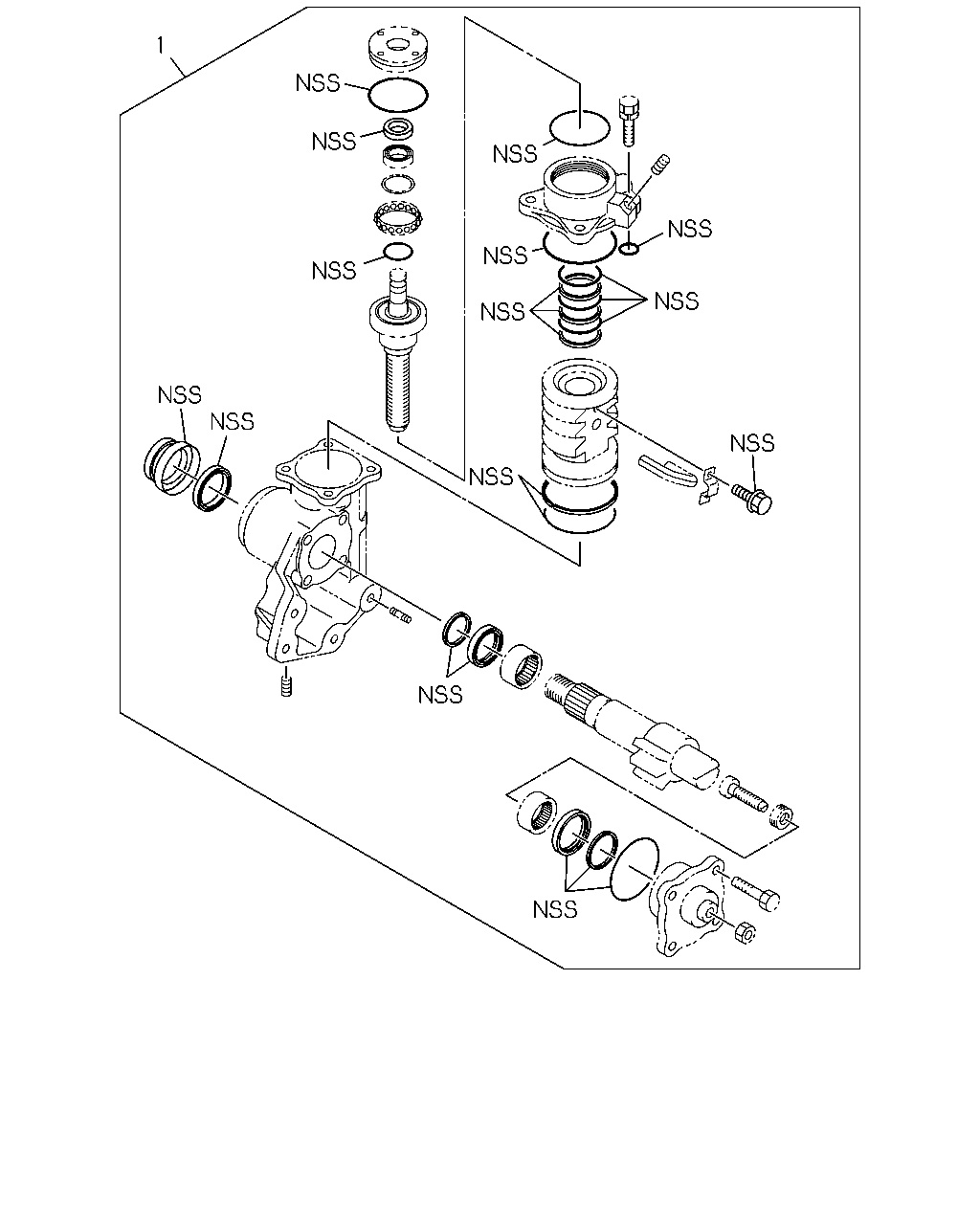

çizim 9445
1
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-97173-468-5, 97173468 		8-97218-601-1 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: D = 8-97251-841-0, 97251841, E = 8-97305-047-1, 97305047 		8-97264-442-0 01 1 -

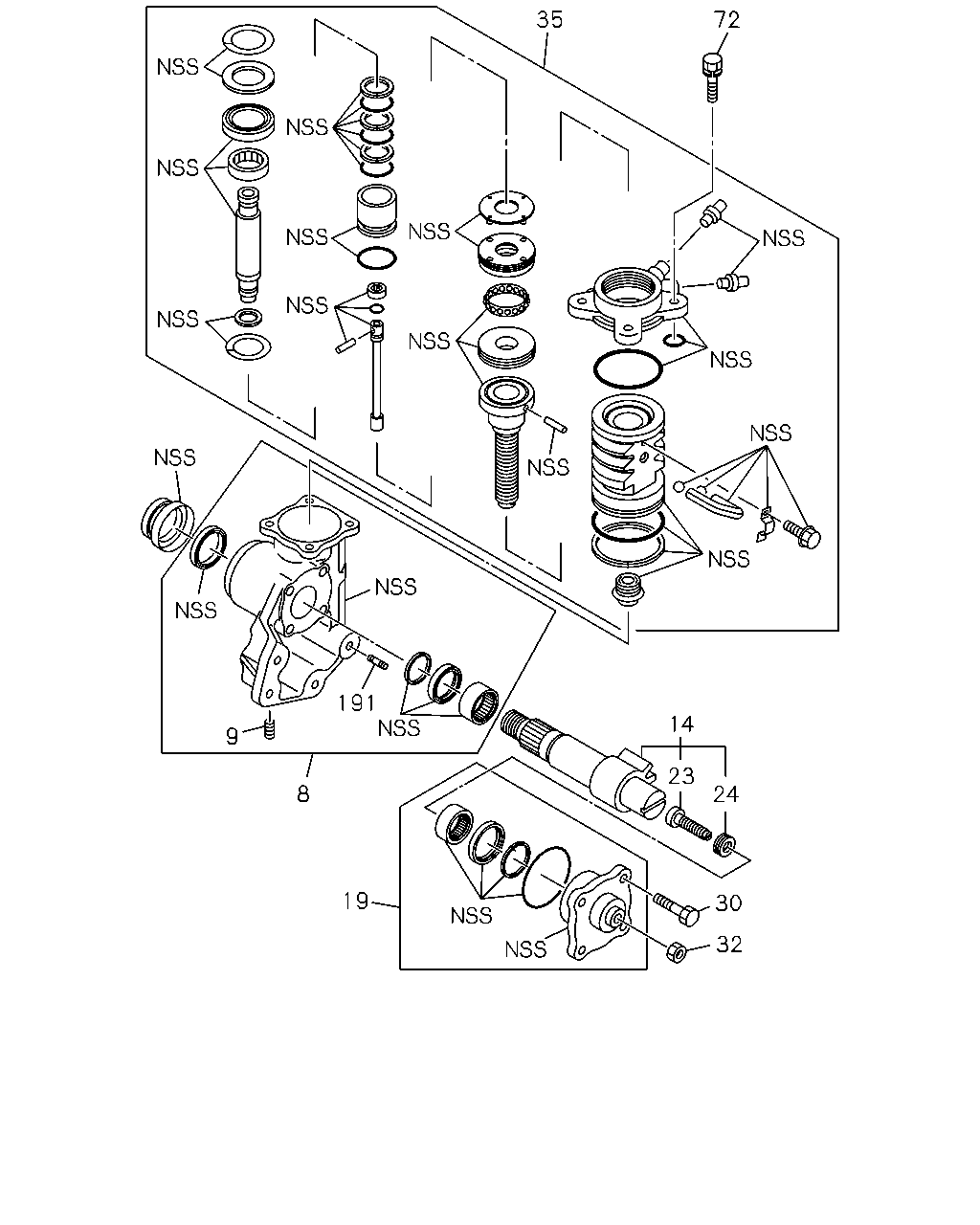

çizim 10744
35 72 191 14 9 23 8 24 19 30 32
BalonParca AdiParca NoAdetTipApplied Date
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97073-274-0, 97073274 		8-97108-215-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-97173-468-5, 97173468, D = 8-97251-841-0, 97251841, E = 8-97305-047-1, 97305047 		8-97173-514-2 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: C = 8-97224-870-0, 97224870 		8-97226-606-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		5-09605-020-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-97173-468-5, 97173468, D = 8-97251-841-0, 97251841, E = 8-97305-047-1, 97305047 		8-97014-820-0 02 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		8-97081-092-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97173-468-5, 97173468, D = 8-97251-841-0, 97251841 		8-97173-510-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: E = 8-97305-047-1, 97305047 		8-97287-203-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: D = 8-97251-841-0, 97251841, E = 8-97305-047-1, 97305047 		8-97014-933-1 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97073-274-0, 97073274 		8-97081-094-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: C = 8-97224-870-0, 97224870 		8-97226-610-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: B = 8-97173-468-5, 97173468, D = 8-97251-841-0, 97251841, E = 8-97305-047-1, 97305047 		8-97014-842-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		9-44277-010-0 01 1 -
24 06.822 RETAINER; STRG UNIT
ASM PART: B = 8-97173-468-5, 97173468, D = 8-97251-841-0, 97251841, E = 8-97305-047-1, 97305047 		8-97014-841-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: D = 8-97251-841-0, 97251841, E = 8-97305-047-1, 97305047 		8-97014-836-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
02.277, M10X25 ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		9-01911-025-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: D = 8-97251-841-0, 97251841, E = 8-97305-047-1, 97305047 		8-97014-834-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		8-97081-100-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-97173-468-5, 97173468 		8-97218-596-1 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: D = 8-97251-841-0, 97251841 		8-97264-468-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: E = 8-97305-047-1, 97305047 		8-97287-201-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
ASM PART: D = 8-97251-841-0, 97251841, E = 8-97305-047-1, 97305047 		1-44519-110-0 04 1 -
191 06.809 STUD; STRG UNIT
ASM PART: B = 8-97173-468-5, 97173468, D = 8-97251-841-0, 97251841, E = 8-97305-047-1, 97305047 		8-97078-173-0 01 1 -

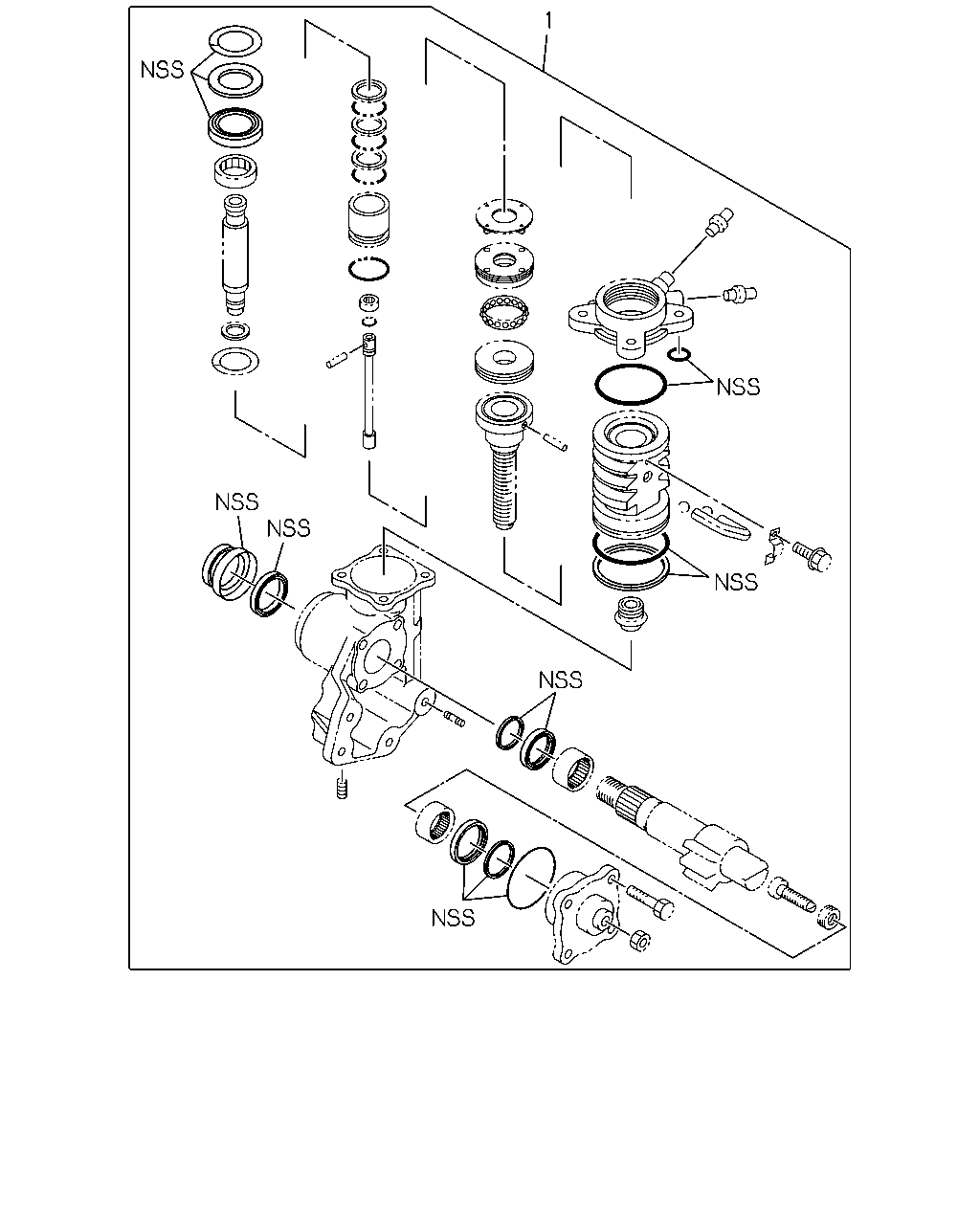

çizim 12532
1
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-97173-468-5, 97173468 		8-97218-601-1 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: D = 8-97251-841-0, 97251841, E = 8-97305-047-1, 97305047 		8-97264-442-0 01 1 -
çizim 47198
66 69 68 26 44 43 55 9 43 8 7 13 14 22 30 23 25 26 19 32
BalonParca AdiParca NoAdetTipApplied Date
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		9-09924-502-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97073-274-0, 97073274 		8-97108-215-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-97173-468-5, 97173468, D = 8-97251-841-0, 97251841, E = 8-97305-047-1, 97305047 		8-97173-514-2 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: C = 8-97224-870-0, 97224870 		8-97226-606-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		5-09605-020-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-97173-468-5, 97173468, D = 8-97251-841-0, 97251841, E = 8-97305-047-1, 97305047 		8-97014-820-0 02 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		8-97015-202-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		8-97081-092-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97173-468-5, 97173468, D = 8-97251-841-0, 97251841 		8-97173-510-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: E = 8-97305-047-1, 97305047 		8-97287-203-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: D = 8-97251-841-0, 97251841, E = 8-97305-047-1, 97305047 		8-97014-933-1 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97073-274-0, 97073274 		8-97081-094-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: C = 8-97224-870-0, 97224870 		8-97226-610-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		8-97015-209-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: B = 8-97173-468-5, 97173468, D = 8-97251-841-0, 97251841, E = 8-97305-047-1, 97305047 		8-97014-842-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		9-44277-010-0 01 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.035 +0.015 ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		9-44279-013-0 01 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.065 +0.045 ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		9-44279-014-0 01 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.095 +0.075 ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		9-44279-015-0 01 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.125 +0.105 ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		9-44279-016-0 01 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.155 +0.135 ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		9-44279-017-0 01 1 -
26 06.521 GASKET; COVER,STRG UNIT
(A) ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		8-97081-096-0 01 1 -
26 06.521 GASKET; COVER,STRG UNIT
06.825, (B) ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		8-97081-098-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: D = 8-97251-841-0, 97251841, E = 8-97305-047-1, 97305047 		8-97014-836-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
02.277, M10X25 ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		9-01911-025-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: D = 8-97251-841-0, 97251841, E = 8-97305-047-1, 97305047 		8-97014-834-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		8-97081-100-0 01 1 -
43 06.525 BEARING; WORM SHAFT,STRG UNIT
ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		8-94130-938-0 02 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.525 ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		8-94130-940-0 01 1 -
55 06.524 WORM & BALL NUT ASM; STRG UNIT
ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		8-97108-220-0 01 1 -
66 06.518 COVER; REAR STRG UNIT
ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		8-94130-939-0 01 1 -
68 06.825 SHIM; COVER STRG UNIT
T=0.05 ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		8-94130-942-0 01 1 -
68 06.825 SHIM; COVER STRG UNIT
T=0.07 ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		8-94130-943-0 01 1 -
68 06.825 SHIM; COVER STRG UNIT
T=0.08 ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		8-94130-944-0 01 1 -
68 06.825 SHIM; COVER STRG UNIT
T=0.10 ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		8-94130-945-0 01 1 -
68 06.825 SHIM; COVER STRG UNIT
T=0.20 ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		8-94130-946-0 01 1 -
68 06.825 SHIM; COVER STRG UNIT
T=0.50 ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		8-94130-947-0 01 1 -
69 06.521 BOLT; COVER FIX STRG UNIT
02.277, M10X25 ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		9-01911-025-0 04 1 -

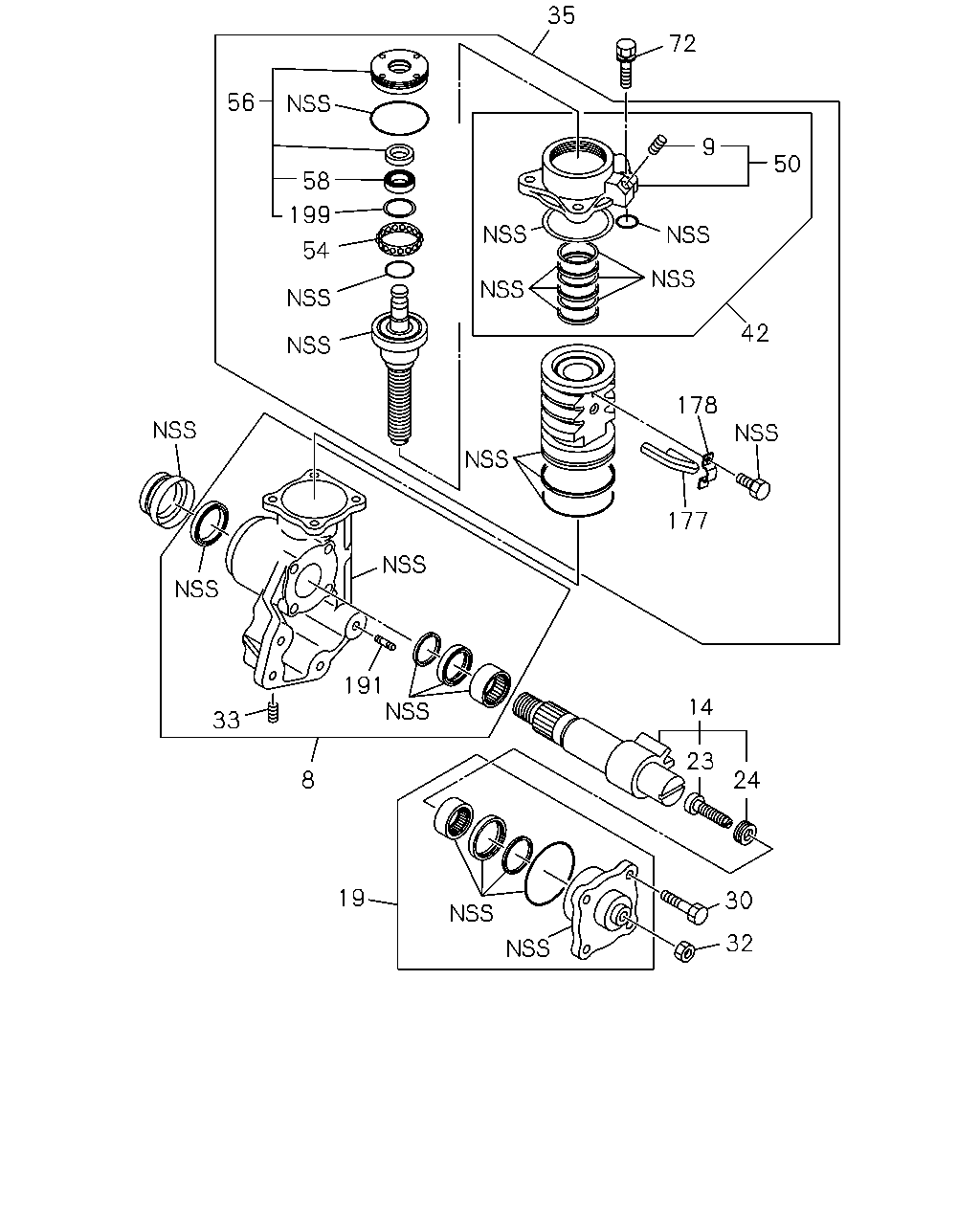

çizim 47412
35 72 56 9 50 58 199 54 42 178 177 191 14 33 23 8 24 19 30 32
BalonParca AdiParca NoAdetTipApplied Date
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97073-274-0, 97073274 		8-97108-215-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-97173-468-5, 97173468, D = 8-97251-841-0, 97251841, E = 8-97305-047-1, 97305047 		8-97173-514-2 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: C = 8-97224-870-0, 97224870 		8-97226-606-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		5-09605-020-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-97173-468-5, 97173468, D = 8-97251-841-0, 97251841, E = 8-97305-047-1, 97305047 		8-97014-820-0 02 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		8-97081-092-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97173-468-5, 97173468, D = 8-97251-841-0, 97251841 		8-97173-510-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: E = 8-97305-047-1, 97305047 		8-97287-203-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: D = 8-97251-841-0, 97251841, E = 8-97305-047-1, 97305047 		8-97014-933-1 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97073-274-0, 97073274 		8-97081-094-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: C = 8-97224-870-0, 97224870 		8-97226-610-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: B = 8-97173-468-5, 97173468, D = 8-97251-841-0, 97251841, E = 8-97305-047-1, 97305047 		8-97014-842-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		9-44277-010-0 01 1 -
24 06.822 RETAINER; STRG UNIT
ASM PART: B = 8-97173-468-5, 97173468, D = 8-97251-841-0, 97251841, E = 8-97305-047-1, 97305047 		8-97014-841-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: D = 8-97251-841-0, 97251841, E = 8-97305-047-1, 97305047 		8-97014-836-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
02.277, M10X25 ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		9-01911-025-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: D = 8-97251-841-0, 97251841, E = 8-97305-047-1, 97305047 		8-97014-834-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97073-274-0, 97073274, C = 8-97224-870-0, 97224870 		8-97081-100-0 01 1 -
33 06.806 PLUG; DRAIN,STRG UNIT
ASM PART: B = 8-97173-468-5, 97173468 		8-97014-820-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-97173-468-5, 97173468 		8-97218-596-1 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: D = 8-97251-841-0, 97251841 		8-97264-468-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: E = 8-97305-047-1, 97305047 		8-97287-201-0 01 1 -
42 06.586 HOUSING & SEAL ASM; STRG UNIT
ASM PART: B = 8-97173-468-5, 97173468 		8-97173-513-0 01 1 -
50 06.586 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 8-97173-468-5, 97173468 		8-97173-509-0 01 1 -
54 06.835 CASE; BEARING STRG UNIT
ASM PART: B = 8-97173-468-5, 97173468 		8-97014-810-0 01 1 -
56 06.560 PLUG & SEAL ASM; STRG UNIT
06.850 ASM PART: B = 8-97173-468-5, 97173468 		8-97076-364-1 01 1 -
58 06.835 BEARING; HSG STRG UNIT
ASM PART: B = 8-97173-468-5, 97173468 		8-97014-812-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
ASM PART: D = 8-97251-841-0, 97251841, E = 8-97305-047-1, 97305047 		1-44519-110-0 04 1 -
177 06.822 TUBE; BALL BRG STRG UNIT
ASM PART: B = 8-97173-468-5, 97173468 		8-97014-809-0 02 1 -
178 06.822 CLIP; BALL TUBE STRG UNIT
ASM PART: B = 8-97173-468-5, 97173468 		8-97014-808-0 01 1 -
191 06.809 STUD; STRG UNIT
ASM PART: B = 8-97173-468-5, 97173468, D = 8-97251-841-0, 97251841, E = 8-97305-047-1, 97305047 		8-97078-173-0 01 1 -
199 06.521 WASHER; WAVE,STRG UNIT
ASM PART: B = 8-97173-468-5, 97173468 		8-97201-812-0 01 1 -
