◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50815 - NPR/NQR-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#22057) — 109 parça
çizim 47576
36 23 42 1 7 29 23 24 7 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) HEATER & DEFROSTER(C41) EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ENGINE POWER N-SPEC(7QV) (B) 		8-97258-461-0 01 1 0205-0207 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) M/T MZZ6U(RSF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> FAST GLOW SYSTEM<KM6> TURBOCHARGER(K51) EXHAUST BRAKE<NF8> POWER STEERING<N40> VOLTAGE 24V<7AE> VEHICLE CATEGORY NQR<7NQ> HYDRO BRAKE BOOSTER<7QQ> EXC. HIGH ALTITUDE COMPENSATOR(EE2), COLOMBIA EQUIPMENT(X74),CHARGE AIR COO LER<6PL> (B) 		8-97258-461-0 01 1 0208- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> POWER STEERING<N40> HYDRO BRAKE BOOSTER<7QQ> EXC. ENGINE POWER N-SPEC(7QV) (B) 		8-97258-461-0 01 1 0208- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) HEATER & DEFROSTER(C41) EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ENGINE POWER N-SPEC(7QV) (B) 		8-97258-461-0 01 1 0208- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> (A) 		8-97136-597-0 01 1 9811-0105 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> (A) 		8-97136-597-0 01 1 0106- ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) POWER STEERING<N40> HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97175-115-0 01 1 9811-0105 ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) POWER STEERING<N40> HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97175-115-0 01 1 0106-0204 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM) POWER STEERING<N40> HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97175-115-0 01 1 0205-0205 ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> EXC. EURO3 SPECIFICATION<NT3> (B) 		8-97175-115-0 01 1 0205-0205 ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> EURO3 SPECIFICATION<NT3> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97175-115-0 01 1 0205-0205 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (B) 		8-97175-115-0 01 1 0205-0205 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM) TURBOCHARGER(K51) POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> HYDRO BRAKE BOOSTER<7QQ> EXC. HIGH ALTITUDE COMPENSATOR(EE2), COLOMBIA EQUIPMENT(X74),CHARGE AIR COO LER<6PL> (B) 		8-97175-115-0 01 1 0206- ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> POWER STEERING<N40> HYDRO BRAKE BOOSTER<7QQ> EXC. ENGINE POWER N-SPEC(7QV) (B) 		8-97175-115-0 01 1 0206- ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) HEATER & DEFROSTER(C41) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> POWER STEERING<N40> HYDRO BRAKE BOOSTER<7QQ> EXC. EURO2 SPECIFICATION<7AF>,ENGINE POWER N-SPEC(7QV),NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97175-115-0 01 1 0206- ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EURO2 SPECIFICATION<7AF> POWER STEERING<N40> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ENGINE POWER N-SPEC(7QV) (B) 		8-97175-115-0 01 1 0206- ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> POWER STEERING<N40> HYDRO BRAKE BOOSTER<7QQ> EXC. EURO3 SPECIFICATION<NT3>, VOLTAGE24V<7AE>,EURO2 SPECIFICATION<7AF>,EN GINE POWER N-SPEC(7QV),NOISE PACK FORREGULATION VAR.2<7TF> (B) 		8-97175-115-0 01 1 0206- ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (B) 		8-97175-115-0 01 1 0206- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97136-574-1 01 1 9811-0202 ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> EXC. VEHICLE CATEGORY NQR<7NQ> (A) 		8-97136-574-1 01 1 9811-0202 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97136-574-1 01 1 0203- ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> EXC. VEHICLE CATEGORY NQR<7NQ> (A) 		8-97136-574-1 01 1 0203- ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JB1 ENG(RLF) POWER STEERING<N40> (C) 		8-97084-207-0 01 1 9811-9903 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JB1 ENG(RLF) POWER STEERING<N40> (C) 		8-97226-344-0 01 1 9904-0001 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JB1 ENG(RLF) POWER STEERING<N40> (C) 		8-97247-061-1 01 1 0002-0105 ●
7 09.181 BOLT; OIL PUMP,P/S
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> 00.685 M10X28 FLANGE 		0-28181-028-0 02 1 9811-0105 ● ● ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
POWER STEERING<N40> 00.685 M10X28 FLANGE 		0-28181-028-0 02 1 0106- ● ● ● ● ● ●
23 06.660 GEAR; OIL PUMP
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> 		8-97114-550-0 01 1 9811-0103 ● ● ● ● ● ●
23 06.660 GEAR; OIL PUMP
4HE1 ENG(RLY) POWER STEERING<N40> HYDRO BRAKE BOOSTER<7QQ> 		8-97114-550-0 01 1 0104-0104 ● ● ● ● ●
23 06.660 GEAR; OIL PUMP
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> 		8-97114-550-0 01 1 0105-0105 ● ● ● ● ● ●
23 06.660 GEAR; OIL PUMP
POWER STEERING<N40> 		8-97114-550-0 01 1 0106- ● ● ● ● ● ●
23 06.660 GEAR; OIL PUMP
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97262-856-0 01 1 0104-0104 ● ● ● ● ●
24 06.673 NUT; GEAR,P/S PUMP
4HE1 ENG(RLY) POWER STEERING<N40> HYDRO BRAKE BOOSTER<7QQ> 07.243 M12 FLANGE 		0-91150-212-0 01 1 9811-0105 ● ● ● ● ●
24 06.673 NUT; GEAR,P/S PUMP
4HE1 ENG(RLY) POWER STEERING<N40> HYDRO BRAKE BOOSTER<7QQ> 07.243 M12 FLANGE 		0-91150-212-0 01 1 0106- ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> (F) M14X20 FLANGE 		0-28881-420-0 01 1 9811-0003 ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> (F) M14X20 FLANGE 		0-28881-420-0 01 1 0004-0105 ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ> (F) M14X20 FLANGE 		0-28881-420-0 01 1 0106- ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JB1 ENG(RLF) POWER STEERING<N40> 03.278 (D) M8X100 FLANGE 		0-28080-800-0 01 1 9811-0105 ●
29 09.171 BOLT; BRKT,POWER STRG
4JB1 ENG(RLF) POWER STEERING<N40> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 9811-0105 ●
29 09.171 BOLT; BRKT,POWER STRG
4JB1 ENG(RLF) POWER STEERING<N40> 01.251 (E) M8X60 FLANGE 		0-28080-860-0 01 1 9811-0105 ●
29 09.171 BOLT; BRKT,POWER STRG
4JB1 ENG(RLF) POWER STEERING<N40> 09.198 (C) M10X100 FLANGE 		0-28081-000-0 01 1 9811-0105 ●
29 09.171 BOLT; BRKT,POWER STRG
4JB1 ENG(RLF) POWER STEERING<N40> 03.611 (B) M10X20 FLANGE 		0-28681-020-0 05 1 9811-0105 ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97112-866-0 01 1 9811-9811 ● ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HE1 ENG(RLY) POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL> 		8-97112-866-0 01 1 9811-9811 ● ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HG1 ENG(RJH) TURBOCHARGER(K51) POWER STEERING<N40> 		8-97112-866-0 01 1 9811-9811 ● ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97112-866-0 01 1 9812-9910 ● ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HG1 ENG(RJH) TURBOCHARGER(K51) POWER STEERING<N40> 		8-97112-866-0 01 1 9812-9910 ● ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97112-866-0 01 1 9911-0006 ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HG1 ENG(RJH) TURBOCHARGER(K51) POWER STEERING<N40> 		8-97112-866-0 01 1 9911-0006 ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97112-866-0 01 1 0007-0007 ● ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97112-866-0 01 1 0008-0105 ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97112-866-0 01 1 0106- ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HF1 ENG(RLS) POWER STEERING<N40> 		8-97209-356-0 01 1 9811-9903 ● ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HG1 ENG(RJH) POWER STEERING<N40> EXC. TURBOCHARGER(K51) 		8-97209-356-0 01 1 9811-9903 ● ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97209-356-0 01 1 9904-9907 ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HG1 ENG(RJH) TURBOCHARGER(K51) POWER STEERING<N40> 		8-97209-356-0 01 1 9904-9907 ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HF1 ENG(RLS) POWER STEERING<N40> 		8-97209-356-0 01 1 9908-0004 ● ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HG1 ENG(RJH) POWER STEERING<N40> EXC. TURBOCHARGER(K51) 		8-97209-356-0 01 1 9908-0004 ● ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HF1 ENG(RLS) POWER STEERING<N40> 		8-97209-356-0 01 1 0005-0006 ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HG1 ENG(RJH) POWER STEERING<N40> EXC. TURBOCHARGER(K51) 		8-97209-356-0 01 1 0005-0006 ● ● ● ●
42 06.672 NUT; ADJ PLATE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-0003 ● ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0004-0105 ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106- ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4JB1 ENG(RLF) POWER STEERING<N40> 04.785 M10 FLANGE 		0-91150-110-0 01 1 9811-0105 ●

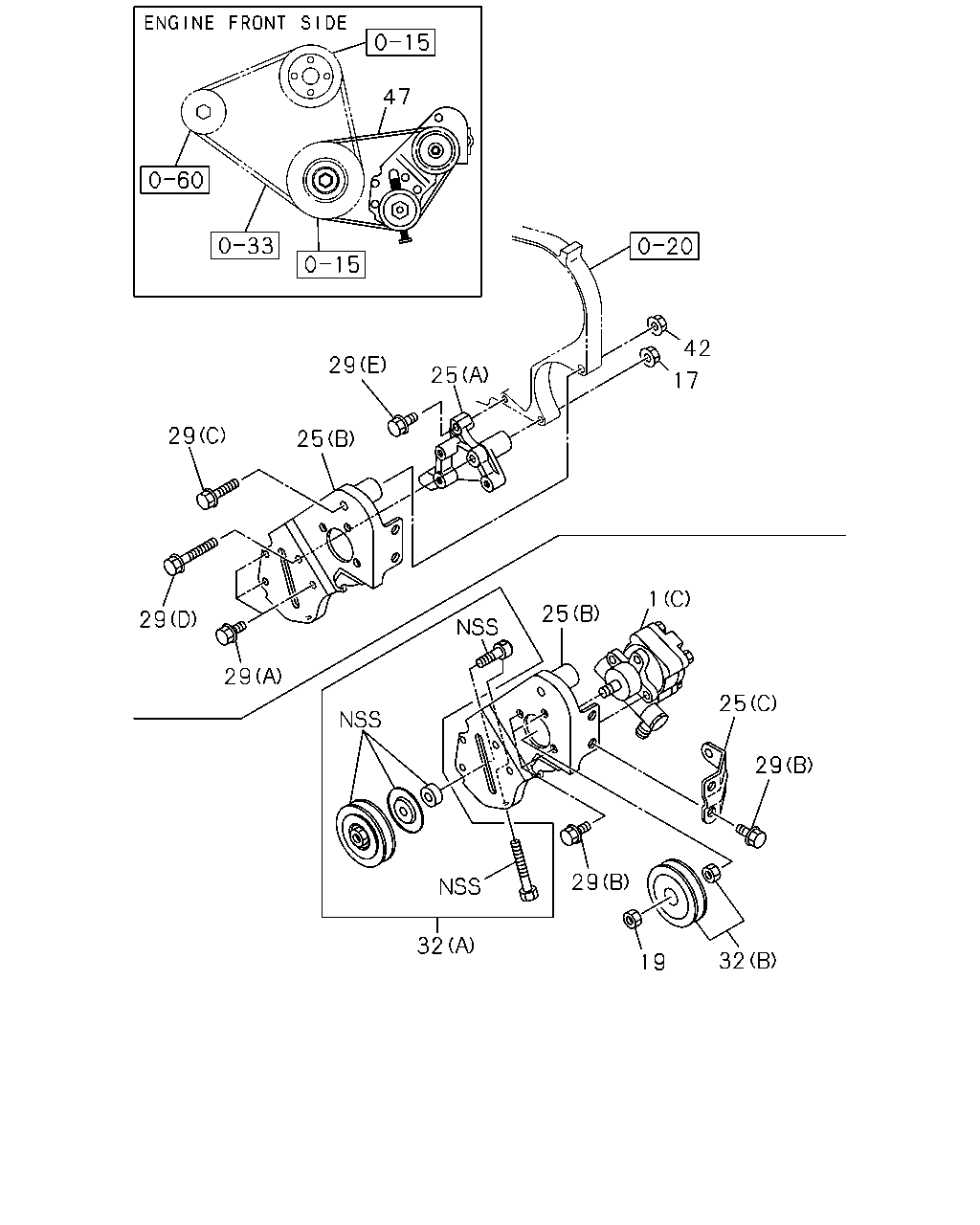

çizim 49215
47 42 29 25 17 29 25 1 25 29 29 25 29 29 32 32 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) HEATER & DEFROSTER(C41) EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ENGINE POWER N-SPEC(7QV) (B) 		8-97258-461-0 01 1 0205-0207 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) M/T MZZ6U(RSF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> FAST GLOW SYSTEM<KM6> TURBOCHARGER(K51) EXHAUST BRAKE<NF8> POWER STEERING<N40> VOLTAGE 24V<7AE> VEHICLE CATEGORY NQR<7NQ> HYDRO BRAKE BOOSTER<7QQ> EXC. HIGH ALTITUDE COMPENSATOR(EE2), COLOMBIA EQUIPMENT(X74),CHARGE AIR COO LER<6PL> (B) 		8-97258-461-0 01 1 0208- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> POWER STEERING<N40> HYDRO BRAKE BOOSTER<7QQ> EXC. ENGINE POWER N-SPEC(7QV) (B) 		8-97258-461-0 01 1 0208- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) HEATER & DEFROSTER(C41) EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ENGINE POWER N-SPEC(7QV) (B) 		8-97258-461-0 01 1 0208- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> (A) 		8-97136-597-0 01 1 9811-0105 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> (A) 		8-97136-597-0 01 1 0106- ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) POWER STEERING<N40> HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97175-115-0 01 1 9811-0105 ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) POWER STEERING<N40> HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97175-115-0 01 1 0106-0204 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM) POWER STEERING<N40> HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97175-115-0 01 1 0205-0205 ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> EXC. EURO3 SPECIFICATION<NT3> (B) 		8-97175-115-0 01 1 0205-0205 ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> EURO3 SPECIFICATION<NT3> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97175-115-0 01 1 0205-0205 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (B) 		8-97175-115-0 01 1 0205-0205 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM) TURBOCHARGER(K51) POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> HYDRO BRAKE BOOSTER<7QQ> EXC. HIGH ALTITUDE COMPENSATOR(EE2), COLOMBIA EQUIPMENT(X74),CHARGE AIR COO LER<6PL> (B) 		8-97175-115-0 01 1 0206- ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> POWER STEERING<N40> HYDRO BRAKE BOOSTER<7QQ> EXC. ENGINE POWER N-SPEC(7QV) (B) 		8-97175-115-0 01 1 0206- ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) HEATER & DEFROSTER(C41) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> POWER STEERING<N40> HYDRO BRAKE BOOSTER<7QQ> EXC. EURO2 SPECIFICATION<7AF>,ENGINE POWER N-SPEC(7QV),NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97175-115-0 01 1 0206- ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EURO2 SPECIFICATION<7AF> POWER STEERING<N40> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ENGINE POWER N-SPEC(7QV) (B) 		8-97175-115-0 01 1 0206- ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> POWER STEERING<N40> HYDRO BRAKE BOOSTER<7QQ> EXC. EURO3 SPECIFICATION<NT3>, VOLTAGE24V<7AE>,EURO2 SPECIFICATION<7AF>,EN GINE POWER N-SPEC(7QV),NOISE PACK FORREGULATION VAR.2<7TF> (B) 		8-97175-115-0 01 1 0206- ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (B) 		8-97175-115-0 01 1 0206- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97136-574-1 01 1 9811-0202 ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> EXC. VEHICLE CATEGORY NQR<7NQ> (A) 		8-97136-574-1 01 1 9811-0202 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97136-574-1 01 1 0203- ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> EXC. VEHICLE CATEGORY NQR<7NQ> (A) 		8-97136-574-1 01 1 0203- ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JB1 ENG(RLF) POWER STEERING<N40> (C) 		8-97084-207-0 01 1 9811-9903 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JB1 ENG(RLF) POWER STEERING<N40> (C) 		8-97226-344-0 01 1 9904-0001 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JB1 ENG(RLF) POWER STEERING<N40> (C) 		8-97247-061-1 01 1 0002-0105 ●
17 06.606 NUT; POWER STRG PUMP
4JB1 ENG(RLF) POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ●
19 07.874 NUT; PULLEY,OIL PUMP
4JB1 ENG(RLF) POWER STEERING<N40> 06.606 M12 		8-94139-015-0 01 1 9811-0105 ●
25 06.606 BRACKET; P/S PUMP
4JB1 ENG(RLF) POWER STEERING<N40> (B) 		8-97065-974-0 01 1 9811-0105 ●
25 06.606 BRACKET; P/S PUMP
4JB1 ENG(RLF) POWER STEERING<N40> (A) 		8-97107-869-0 01 1 9811-0105 ●
25 06.606 BRACKET; P/S PUMP
4JB1 ENG(RLF) POWER STEERING<N40> (C) 		8-97107-872-0 01 1 9811-0105 ●
29 09.171 BOLT; BRKT,POWER STRG
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> (F) M14X20 FLANGE 		0-28881-420-0 01 1 9811-0003 ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> (F) M14X20 FLANGE 		0-28881-420-0 01 1 0004-0105 ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ> (F) M14X20 FLANGE 		0-28881-420-0 01 1 0106- ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JB1 ENG(RLF) POWER STEERING<N40> 03.278 (D) M8X100 FLANGE 		0-28080-800-0 01 1 9811-0105 ●
29 09.171 BOLT; BRKT,POWER STRG
4JB1 ENG(RLF) POWER STEERING<N40> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 9811-0105 ●
29 09.171 BOLT; BRKT,POWER STRG
4JB1 ENG(RLF) POWER STEERING<N40> 01.251 (E) M8X60 FLANGE 		0-28080-860-0 01 1 9811-0105 ●
29 09.171 BOLT; BRKT,POWER STRG
4JB1 ENG(RLF) POWER STEERING<N40> 09.198 (C) M10X100 FLANGE 		0-28081-000-0 01 1 9811-0105 ●
29 09.171 BOLT; BRKT,POWER STRG
4JB1 ENG(RLF) POWER STEERING<N40> 03.611 (B) M10X20 FLANGE 		0-28681-020-0 05 1 9811-0105 ●
32 06.665 PULLEY; IDLER,P/S
4JB1 ENG(RLF) POWER STEERING<N40> 06.655 (A) 		8-94128-866-0 01 1 9811-0105 ●
32 06.665 PULLEY; IDLER,P/S
4JB1 ENG(RLF) POWER STEERING<N40> (B) 		8-97084-332-0 01 1 9811-0105 ●
42 06.672 NUT; ADJ PLATE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-0003 ● ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0004-0105 ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106- ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4JB1 ENG(RLF) POWER STEERING<N40> 04.785 M10 FLANGE 		0-91150-110-0 01 1 9811-0105 ●
47 01.066 BELT; P/S PUMP
4JB1 ENG(RLF) POWER STEERING<N40> 		8-97085-131-0 01 1 9811-0105 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
