◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10650 - MT111,112 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#2205) — 1058 parça

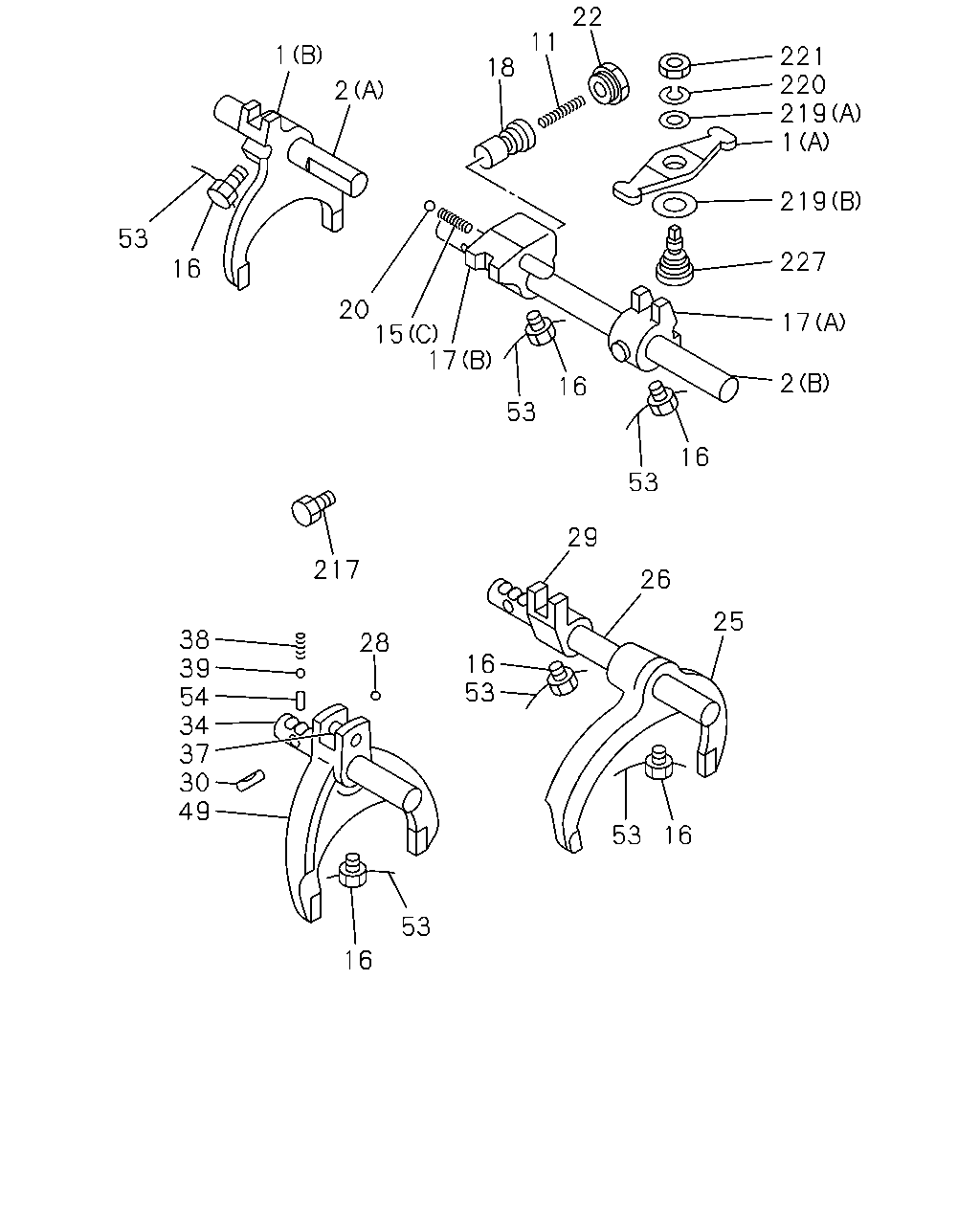

çizim 27992
22 11 1 221 220 219 1 18 2 219 53 227 16 20 15 17 17 2 16 53 16 53 29 217 26 25 38 39 54 34 37 30 49 28 16 53 53 16 53 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 ARM; SHIFT,1ST & REV
(C) 		1-33511-078-3 01 1 0204- ● ● ●
1 ARM; SHIFT,1ST & REV
(C) 		1-33511-078-3 01 1 9101-0203 ● ● ● ● ● ●
1 ARM; SHIFT,1ST & REV
(A) 		1-33511-082-0 01 1 9101- ●
1 ARM; SHIFT,1ST & REV
(B) 		1-33511-138-1 01 1 9101- ●
2 ROD; SHIFT,1ST & REV
(C) 		1-33531-318-2 01 1 0204- ● ● ●
2 ROD; SHIFT,1ST & REV
(C) 		1-33531-318-2 01 1 9101-0203 ● ● ● ● ● ●
2 ROD; SHIFT,1ST & REV
(A) L=165 		1-33531-118-2 01 1 9101- ●
2 ROD; SHIFT,1ST & REV
(B) L=313 		1-33531-119-2 01 1 9101- ●
11 SPRING; RETURN,SHIFT SLEEVE
LEFT HAND DRIVE(MTR6FB) 		9-09941-160-0 01 1 9101-0203 ● ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9101-0203 ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 0204-0212 ●
11 SPRING; RETURN,SHIFT SLEEVE
LEFT HAND DRIVE(MTR6FB) 		9-09941-160-0 01 1 0301- ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 0301- ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-308-0 01 1 0204- ●
15 SPRING; LK,SHIFT SLEEVE
LEFT HAND DRIVE(MTR6FB) (A) 		9-09940-854-0 01 1 0204- ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09940-854-0 01 1 9101-9310 ● ● ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
LEFT HAND DRIVE(MTR6FB) (A) 		9-09940-854-0 01 1 9311-0203 ● ● ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-308-0 01 1 9101-0203 ● ●
15 SPRING; LK,SHIFT SLEEVE
(C) 		1-09580-439-0 01 1 9101- ●
16 BOLT; SHIFT ARM & BLOCK SET
M12X20 3-HOLE 		1-09052-025-0 06 1 9101-9205 ●
16 BOLT; SHIFT ARM & BLOCK SET
M12X20 NO-HOLE 		1-09052-032-1 06 1 9206-9512 ●
16 BOLT; SHIFT ARM & BLOCK SET
M12X20 		1-09052-039-0 06 1 9601- ●
17 BLOCK; SHIFT,1ST & REV
RIGHT HAND DRIVE(MTR5FB) (C) 		1-33511-154-1 01 1 0204- ●
17 BLOCK; SHIFT,1ST & REV
(C) 		1-33511-154-1 01 1 0204- ● ●
17 BLOCK; SHIFT,1ST & REV
LEFT HAND DRIVE(MTR6FB) (C) 		1-33511-160-1 01 1 0204- ●
17 BLOCK; SHIFT,1ST & REV
RIGHT HAND DRIVE(MTR5FB) (C) 		1-33511-154-1 01 1 9101-0203 ● ● ● ● ● ●
17 BLOCK; SHIFT,1ST & REV
LEFT HAND DRIVE(MTR6FB) (C) 		1-33511-160-1 01 1 9101-0203 ● ● ● ● ● ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-104-0 01 1 9101- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-304-2 01 1 9101- ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK
LEFT HAND DRIVE(MTR6FB) 		1-33516-015-1 01 1 0204- ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-015-1 01 1 9101-9310 ● ● ● ● ● ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK
LEFT HAND DRIVE(MTR6FB) 		1-33516-015-1 01 1 9311-0203 ● ● ● ● ● ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-024-0 01 1 9101- ●
20 BALL; DETENT SLEEVE
LEFT HAND DRIVE(MTR6FB) 		9-00097-009-0 01 1 0204- ●
20 BALL; DETENT SLEEVE 9-00097-009-0 01 1 9101-9310 ● ● ● ● ● ●
20 BALL; DETENT SLEEVE
LEFT HAND DRIVE(MTR6FB) 		9-00097-009-0 01 1 9311-0203 ● ● ● ● ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9101- ●
22 CAP; RETURN SPR,SHIFT BLOCK
LEFT HAND DRIVE(MTR6FB) 		9-33516-060-1 01 1 9101-0203 ● ● ● ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9101-0203 ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 0204-0212 ●
22 CAP; RETURN SPR,SHIFT BLOCK
LEFT HAND DRIVE(MTR6FB) 		9-33516-060-1 01 1 0301- ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 0301- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-441-0 01 1 0204- ● ● ●
25 ARM; SHIFT,2ND & 3RD 1-33511-258-2 01 1 9101-9201 ● ● ● ● ● ●
25 ARM; SHIFT,2ND & 3RD 1-33511-441-0 01 1 9202-0203 ● ● ● ● ● ●
25 ARM; SHIFT,2ND & 3RD 1-33511-252-1 01 1 9101- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-245-0 01 1 9101-0203 ● ● ● ● ● ●
26 ROD; SHIFT,2ND & 3RD 1-33531-245-0 01 1 0204- ● ● ●
26 ROD; SHIFT,2ND & 3RD 1-33531-267-0 01 1 9101- ●
28 BALL; INTER LK 9-00097-010-0 04 1 0204- ● ●
28 BALL; INTER LK 9-00097-010-0 06 1 0204- ●
28 BALL; INTER LK 9-00097-010-0 04 1 9101-0203 ● ● ● ●
28 BALL; INTER LK 9-00097-010-0 06 1 9101-0203 ● ●
28 BALL; INTER LK
EXC. CLUTCH SYSTEM MINIPACK(B1Z) 		9-00097-501-0 02 1 9101-9204 ●
28 BALL; INTER LK 9-00097-501-0 02 1 9205-0203 ●
28 BALL; INTER LK
EXC. CLUTCH SYSTEM MINIPACK(B1Z) 		9-00097-501-0 03 1 9101-9204 ●
28 BALL; INTER LK 9-00097-501-0 03 1 9205- ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-346-1 01 1 9101- ●
30 PIN; INTER LK 1-33534-002-0 01 1 0204- ● ●
30 PIN; INTER LK 1-33534-002-0 02 1 0204- ●
30 PIN; INTER LK 1-33534-002-0 01 1 9101-0203 ● ● ● ●
30 PIN; INTER LK 1-33534-002-0 02 1 9101-0203 ● ●
30 PIN; INTER LK 9-33534-003-0 02 1 9101- ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-218-0 01 1 9101-0203 ● ● ● ● ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-218-0 01 1 0204- ● ● ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-244-1 01 1 9101-0203 ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-121-2 01 1 9101- ●
37 PIN; STOPPER ARM
OD=12 L=32 		9-08161-232-0 01 1 9101- ●
38 SPRING; DETENT 1-09580-374-0 03 1 0204- ● ●
38 SPRING; DETENT 1-09580-374-0 04 1 0204- ●
38 SPRING; DETENT 1-09580-374-0 03 1 9101-0203 ● ● ● ●
38 SPRING; DETENT 1-09580-374-0 04 1 9101-0203 ● ●
38 SPRING; DETENT 1-09580-193-0 03 1 9101- ●
39 BALL; DETENT 9-00097-013-0 03 1 9101-0203 ● ● ● ● ●
39 BALL; DETENT
RIGHT HAND DRIVE(MTR5FB) 		9-00097-013-0 03 1 0204-0407 ● ●
39 BALL; DETENT
LEFT HAND DRIVE(MTR6FB) FINAL GEAR 39/7 15.5"(W3K) 		9-00097-013-0 03 1 0204-0407 ●
39 BALL; DETENT
FINAL GEAR 39/6 15.5"(W1T) 		9-00097-013-0 03 1 0204-0407 ●
39 BALL; DETENT
RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 39/6 15.5"(W1T) TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-14 LUG(41R) 		9-00097-013-0 03 1 0408- ● ●
39 BALL; DETENT
FINAL GEAR 39/7 15.5"(W3K) TIRE 9.00-20-14 RIB(10T),TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-14 LUG(41R) 		9-00097-013-0 03 1 0408- ●
39 BALL; DETENT
RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/6 15.5"(W1T) TIRE 9.00-20-14 RIB(10T) 		9-00097-013-0 03 1 0408- ●
39 BALL; DETENT
RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 43/7 15.5"(W1R) TIRE 9.00-20-14 RIB(10T) 		9-00097-013-0 03 1 0408- ●
39 BALL; DETENT
FINAL GEAR 39/6 15.5"(W1T) 		9-00097-013-0 03 1 0408- ●
39 BALL; DETENT 9-00097-013-0 04 1 9101-0203 ● ●
39 BALL; DETENT 9-00097-013-0 04 1 0204- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-444-1 01 1 0204- ● ●
49 ARM; SHIFT,4TH & 5TH 1-33511-443-0 01 1 0204- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-190-1 01 1 9101-9201 ● ● ●
49 ARM; SHIFT,4TH & 5TH 1-33511-444-1 01 1 9202-0203 ● ● ●
49 ARM; SHIFT,4TH & 5TH 1-33511-219-1 01 1 9101-0203 ●
49 ARM; SHIFT,4TH & 5TH 1-33511-189-2 01 1 9101-9201 ● ●
49 ARM; SHIFT,4TH & 5TH 1-33511-443-0 01 1 9202-0203 ● ●
49 ARM; SHIFT,4TH & 5TH 1-33511-250-1 01 1 9101- ●
53 WIRE; BOLT
L=200 		9-08351-020-0 04 1 9101-9107 ● ● ●
53 WIRE; BOLT
L=200 		9-08351-020-0 05 1 9101-9107 ●
53 WIRE; BOLT
L=200 		9-08351-020-0 06 1 9101-9107 ● ● ●
53 WIRE; BOLT
L=200 		9-08351-020-0 06 1 9108-9205 ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 02 1 9101- ●
217 SCREW; SET,6TH SHIFT BLOCK
M8X12.5 		9-09814-533-0 01 1 9101- ●
219 WASHER; PL,SPINDLE
(A) ID=12.5 OD=26 		9-09164-612-0 01 1 9101-9205 ●
219 WASHER; PL,SPINDLE
(A) ID=12.5 OD=26 		9-09164-612-0 01 1 9205-9205 ●
219 WASHER; PL,SPINDLE
(B) ID=16.5 		9-09857-042-0 01 1 9101- ●
220 WASHER; LK,SPINDLE
ID=12.2 		9-09150-512-0 01 1 9101-9205 ●
220 WASHER; LK,SPINDLE
ID=12.2 		9-09150-512-0 01 1 9205-9205 ●
221 NUT; SPINDLE
M12 		9-99110-412-0 01 1 9101-9205 ●
221 NUT; SPINDLE
M12 		9-99110-412-0 01 1 9205-9205 ●
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 9206- ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 9101- ●

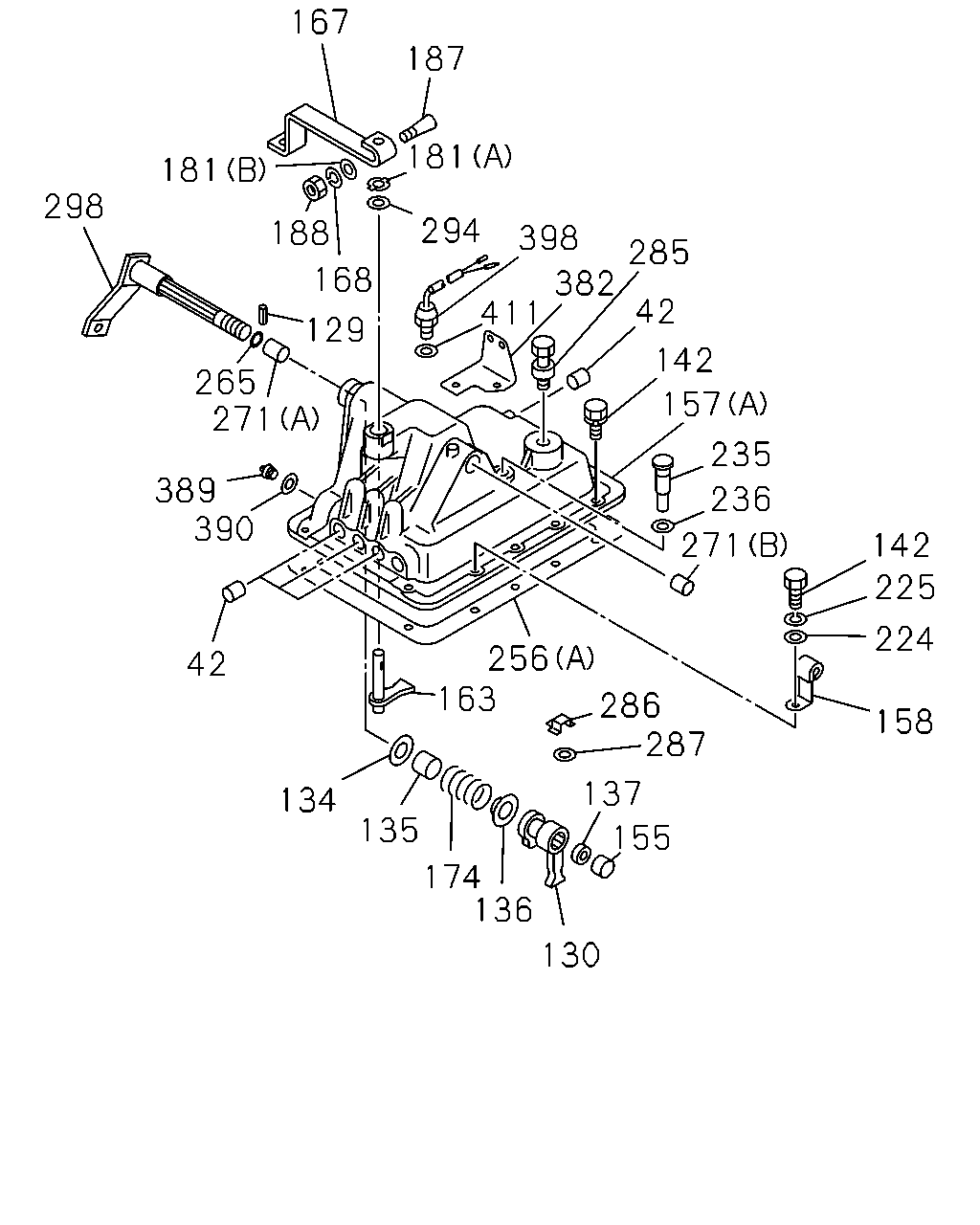

çizim 28299
167 187 181 181 298 294 188 398 285 382 168 42 411 129 142 265 271 157 235 389 390 236 271 142 225 224 256 163 42 286 287 158 137 134 135 155 174 136 130
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
42 CAP; QUAD BOX
RIGHT HAND DRIVE(MTR5FB) OD=20 		1-33545-002-1 05 1 0204- ●
42 CAP; QUAD BOX
OD=20 		1-33545-002-1 05 1 0204- ●
42 CAP; QUAD BOX
OD=20 		1-33545-002-1 06 1 0204- ●
42 CAP; QUAD BOX
LEFT HAND DRIVE(MTR6FB) OD=20 		1-33545-002-1 04 1 0204- ●
42 CAP; QUAD BOX
RIGHT HAND DRIVE(MTR5FB) OD=20 		1-33545-002-1 05 1 9101-0203 ● ● ●
42 CAP; QUAD BOX
LEFT HAND DRIVE(MTR6FB) OD=20 		1-33545-002-1 05 1 9101-0203 ● ● ●
42 CAP; QUAD BOX
LEFT HAND DRIVE(MTR6FB) OD=20 		1-33545-002-1 04 1 9101-0203 ● ● ●
42 CAP; QUAD BOX
RIGHT HAND DRIVE(MTR5FB) OD=20 		1-33545-002-1 06 1 9101-9310 ● ● ●
42 CAP; QUAD BOX
RIGHT HAND DRIVE(MTR5FB) OD=20 		1-33545-002-1 06 1 9311-0203 ●
42 CAP; QUAD BOX
OD=20 		1-33545-002-1 06 1 9311-0203 ● ●
129 PIN; SPR,SHIFT
RIGHT HAND DRIVE(MTR5FB) 		1-09740-008-0 01 1 0204- ●
129 PIN; SPR,SHIFT 1-09740-008-0 01 1 0204- ● ●
129 PIN; SPR,SHIFT
RIGHT HAND DRIVE(MTR5FB) 		1-09740-008-0 01 1 9101-0203 ● ● ● ● ● ●
130 LEVER; SHIFT,INTERNAL
RIGHT HAND DRIVE(MTR5FB) 		1-33521-062-0 01 1 0204- ●
130 LEVER; SHIFT,INTERNAL 1-33521-062-0 01 1 0204- ● ●
130 LEVER; SHIFT,INTERNAL
LEFT HAND DRIVE(MTR6FB) 		1-33521-082-3 01 1 0204- ●
130 LEVER; SHIFT,INTERNAL
RIGHT HAND DRIVE(MTR5FB) 		1-33521-062-0 01 1 9101-0203 ● ● ● ● ● ●
130 LEVER; SHIFT,INTERNAL
LEFT HAND DRIVE(MTR6FB) 		1-33521-082-3 01 1 9101-0203 ● ● ● ● ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-068-3 01 1 9101- ●
134 SEAT; REV RESIST SPR
RIGHT HAND DRIVE(MTR5FB) 		1-33549-024-0 01 1 0204- ●
134 SEAT; REV RESIST SPR 1-33549-024-0 01 1 0204- ● ●
134 SEAT; REV RESIST SPR
RIGHT HAND DRIVE(MTR5FB) 		1-33549-024-0 01 1 9101-0203 ● ● ● ● ● ●
135 STOPPER; LOW & REV,SELECT
RIGHT HAND DRIVE(MTR5FB) 		1-33537-003-1 01 1 0204- ●
135 STOPPER; LOW & REV,SELECT 1-33537-003-1 01 1 0204- ● ●
135 STOPPER; LOW & REV,SELECT
RIGHT HAND DRIVE(MTR5FB) 		1-33537-003-1 01 1 9101-0203 ● ● ● ● ● ●
136 SLEEVE; REV RESIST SPR
RIGHT HAND DRIVE(MTR5FB) 		1-33516-002-0 01 1 0204- ●
136 SLEEVE; REV RESIST SPR 1-33516-002-0 01 1 0204- ● ●
136 SLEEVE; REV RESIST SPR
RIGHT HAND DRIVE(MTR5FB) 		1-33516-002-0 01 1 9101-0203 ● ● ● ● ● ●
137 STOPPER; 4TH & 5TH,SELECT
RIGHT HAND DRIVE(MTR5FB) 		1-33537-006-0 01 1 0204- ●
137 STOPPER; 4TH & 5TH,SELECT 1-33537-006-0 01 1 0204- ●
137 STOPPER; 4TH & 5TH,SELECT
RIGHT HAND DRIVE(MTR5FB) 		1-33537-006-0 01 1 9101-0203 ● ● ● ●
142 BOLT; QUAD BOX
RIGHT HAND DRIVE(MTR5FB) M10X28 FLANGE 		0-28181-028-0 08 1 0204- ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 08 1 0204- ●
142 BOLT; QUAD BOX
M10X32 FLANGE 		0-28181-032-0 01 1 0204- ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-1 01 1 0204- ● ●
142 BOLT; QUAD BOX
M10X34 		1-09040-091-1 01 1 0204- ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 11 1 0204- ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MTR6FB) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0204- ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0204- ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MTR6FB) M10X28 FLANGE 		0-28181-028-0 12 1 0204- ●
142 BOLT; QUAD BOX
M10X35 W/LK WASHER 		0-50051-035-0 01 1 9101-9205 ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 08 1 9206-0203 ● ● ● ●
142 BOLT; QUAD BOX
M10X35 		1-09040-064-1 01 1 9101-9205 ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-1 01 1 9206-0203 ● ● ● ●
142 BOLT; QUAD BOX
RIGHT HAND DRIVE(MTR5FB) M10X32 W/LK&PL WASHER 		0-50151-032-0 08 1 9101-9205 ● ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MTR6FB) M10X28 FLANGE 		0-28181-028-0 04 1 9206-0203 ● ● ● ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MTR6FB) M10X30 W/LK WASHER 		0-50051-030-0 08 1 9101-9205 ● ● ● ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MTR6FB) M10X35 W/LK&PL WASHER 		0-50151-035-0 04 1 9101-9205 ● ● ● ● ● ●
142 BOLT; QUAD BOX
M10X35 W/LK&PL WASHER 		0-50151-035-0 04 1 9101-9205 ●
142 BOLT; QUAD BOX
M10X32 FLANGE 		0-28181-032-0 01 1 9206-0203 ● ● ● ●

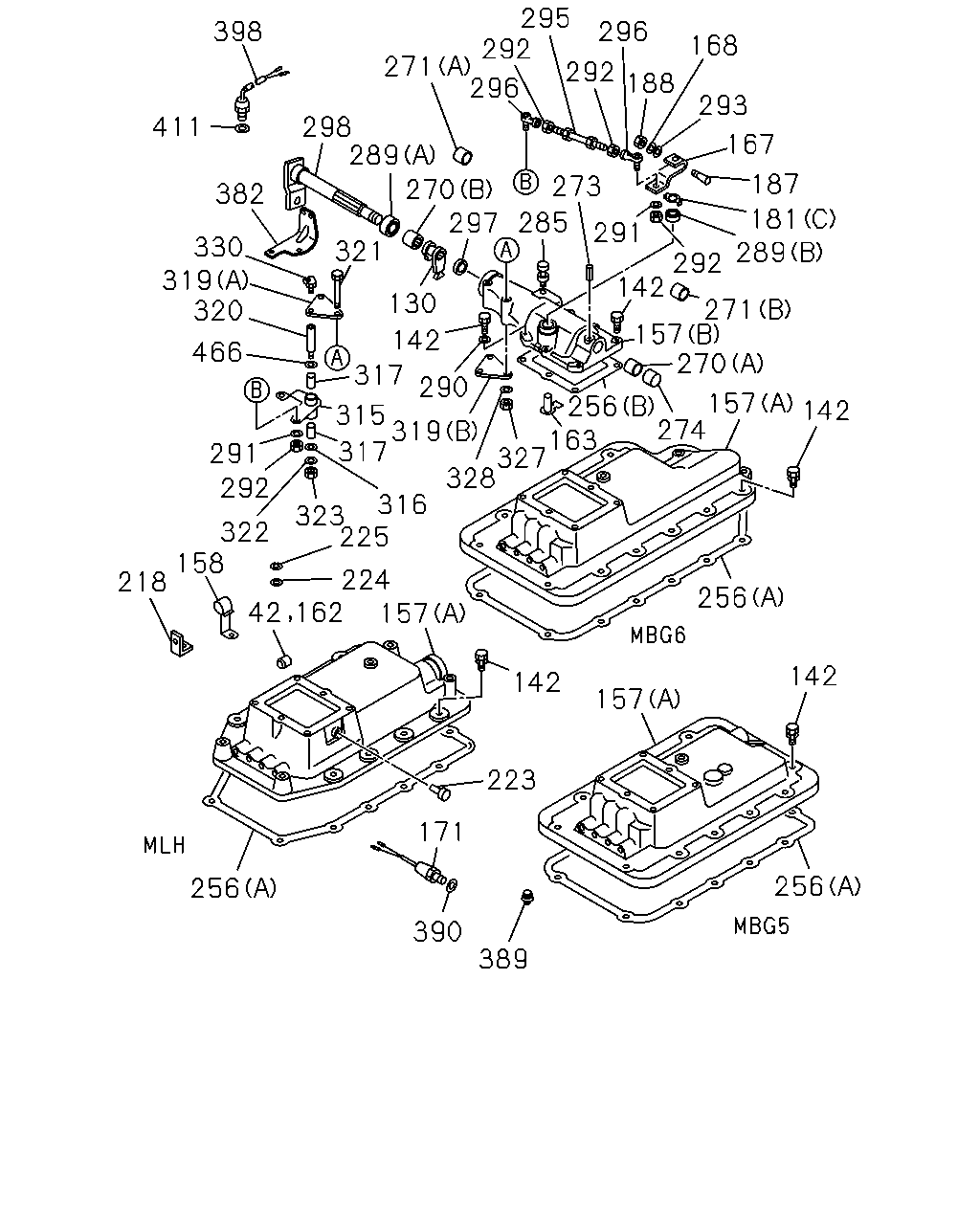

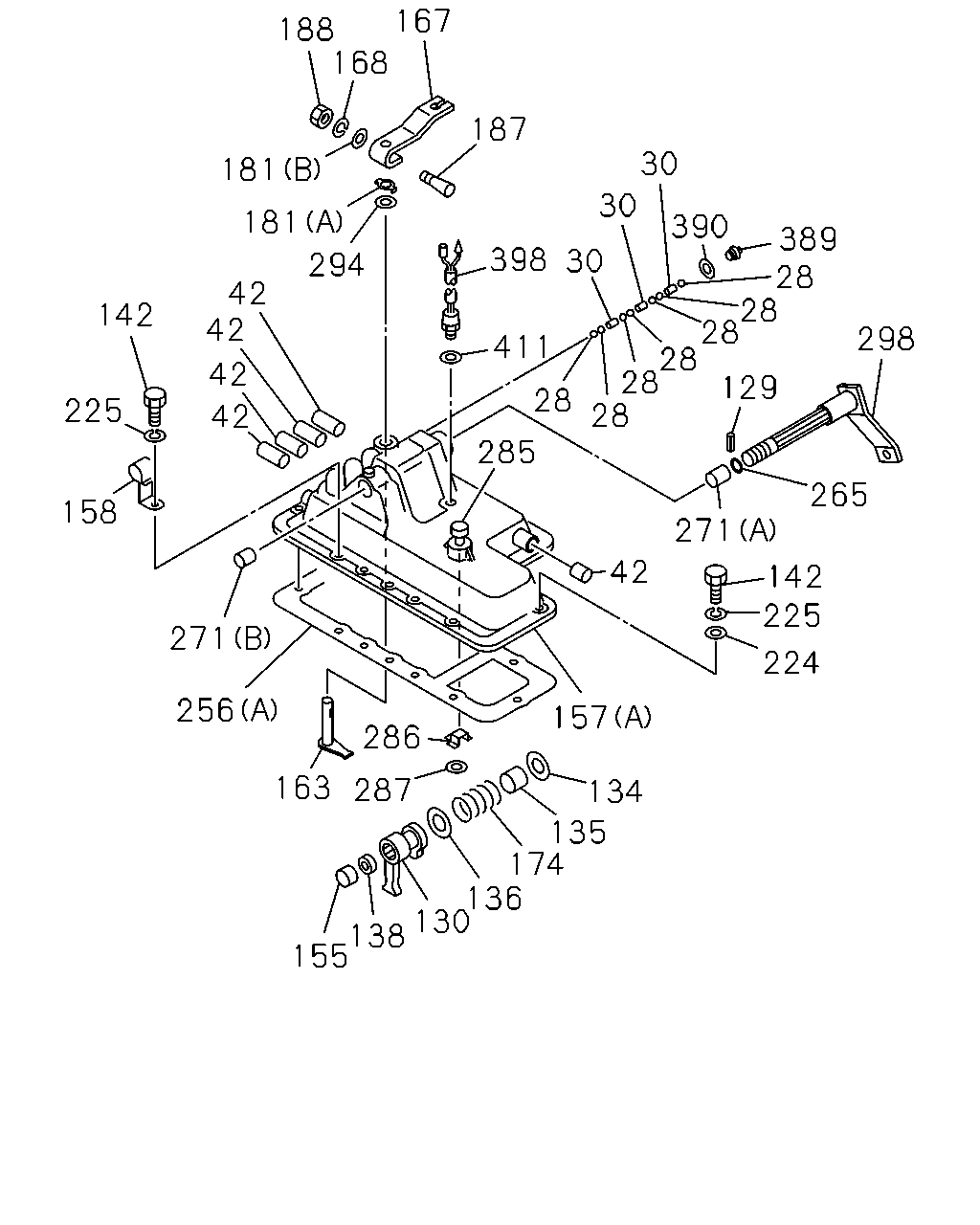

142 BOLT; QUAD BOX
LEFT HAND DRIVE(MTR6FB) M10X35 		1-09040-064-1 02 1 9101-9205 ● ● ● ● ● ●
142 BOLT; QUAD BOX
M10X35 		1-09040-064-1 02 1 9101-9205 ●
142 BOLT; QUAD BOX
M10X34 		1-09040-091-1 01 1 9206-0203 ● ● ● ●
142 BOLT; QUAD BOX
M10X30 		1-09040-063-1 01 1 9101-9205 ● ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-1 03 1 9206- ●
142 BOLT; QUAD BOX
RIGHT HAND DRIVE(MTR5FB) M10X32 W/LK&PL WASHER 		0-50151-032-0 11 1 9101-9205 ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MTR6FB) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9206-9310 ● ● ● ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MTR6FB) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 9311-0203 ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-1 02 1 9311-0203 ● ●
142 BOLT; QUAD BOX
M10X30 		1-09040-063-1 02 1 9101-9205 ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 11 1 9206-0203 ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MTR6FB) M10X30 W/LK WASHER 		0-50051-030-0 11 1 9101-9205 ● ●
142 BOLT; QUAD BOX
M10X50 		0-16806-050-0 02 1 9101-9205 ●
142 BOLT; QUAD BOX
M10X45 FLANGE 		0-28181-045-0 02 1 9206- ●
142 BOLT; QUAD BOX
M10X65 		0-16806-065-0 02 1 9101-9205 ●
142 BOLT; QUAD BOX
M10X60 FLANGE 		0-28181-060-0 02 1 9206- ●
142 BOLT; QUAD BOX
M10X32 W/LK&PL WASHER 		0-50151-032-0 03 1 9101-9205 ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 07 1 9206- ●
142 BOLT; QUAD BOX
M10X33 		1-09029-040-3 02 1 9101-9205 ●
142 BOLT; QUAD BOX
M10X20,M10X26 L=56 		1-09049-014-1 02 1 9206- ●
155 STOPPER; 6TH,SELECT
RIGHT HAND DRIVE(MTR5FB) 		1-33537-004-1 01 1 0301- ●
155 STOPPER; 6TH,SELECT 1-33537-004-1 01 1 0301- ● ●
155 STOPPER; 6TH,SELECT
RIGHT HAND DRIVE(MTR5FB) 		1-33537-004-1 01 1 9101-0203 ● ● ● ● ● ●
157 BOX; QUAD,TRANS
RIGHT HAND DRIVE(MTR5FB) (A) 		1-33541-310-0 01 1 0204- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-310-0 01 1 0204- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-311-0 01 1 0204- ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MTR6FB) (B) 		1-33541-256-2 01 1 0301- ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MTR6FB) (A) 		1-33541-439-0 01 1 0204- ●
157 BOX; QUAD,TRANS
RIGHT HAND DRIVE(MTR5FB) (A) 		1-33541-310-0 01 1 9101-0203 ● ● ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MTR6FB) (A) 		1-33541-285-2 01 1 9101-9810 ● ● ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MTR6FB) (A) 		1-33541-439-0 01 1 9811-0203 ● ● ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MTR6FB) (B) 		1-33541-256-2 01 1 9101-0203 ● ● ● ● ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-256-2 01 1 9101-0203 ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MTR6FB) (B) 		1-33541-256-2 01 1 0204-0212 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-256-2 01 1 0204-0212 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-256-2 01 1 0301- ●
157 BOX; QUAD,TRANS
RIGHT HAND DRIVE(MTR5FB) (A) 		1-33541-313-0 01 1 9101-0203 ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MTR6FB) (A) 		1-33541-287-1 01 1 9101-9810 ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MTR6FB) (A) 		1-33541-431-0 01 1 9811-0203 ●
157 BOX; QUAD,TRANS
RIGHT HAND DRIVE(MTR5FB) (A) 		1-33541-311-0 01 1 9101-0203 ● ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MTR6FB) (A) 		1-33541-286-1 01 1 9101-9810 ● ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MTR6FB) (A) 		1-33541-430-1 01 1 9811-0203 ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-370-0 01 1 9101- ●
158 CLIP; HARNESS
ID=11 		1-09700-415-0 02 1 0204- ● ● ●
158 CLIP; HARNESS 1-09700-415-0 02 1 9101-0203 ● ● ● ● ● ●
158 CLIP; HARNESS 1-09700-415-0 01 1 9101- ●
163 LEVER; SELECT,INTERNAL
RIGHT HAND DRIVE(MTR5FB) 		1-33522-032-0 01 1 0301- ●
163 LEVER; SELECT,INTERNAL 1-33522-032-0 01 1 0301- ● ●
163 LEVER; SELECT,INTERNAL
RIGHT HAND DRIVE(MTR5FB) 		1-33522-032-0 01 1 9101-0203 ● ● ● ● ● ●
163 LEVER; SELECT,INTERNAL
LEFT HAND DRIVE(MTR6FB) 		1-33522-041-4 01 1 9101-0203 ● ● ● ● ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 9101-0203 ●
163 LEVER; SELECT,INTERNAL
RIGHT HAND DRIVE(MTR5FB) 		1-33522-041-4 01 1 0204- ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0204- ● ●
167 LEVER; SELECT,EXTERNAL
RIGHT HAND DRIVE(MTR5FB) 		1-33521-044-0 01 1 0204- ●
167 LEVER; SELECT,EXTERNAL 1-33521-044-0 01 1 0204- ● ●
167 LEVER; SELECT,EXTERNAL
RIGHT HAND DRIVE(MTR5FB) 		1-33521-044-0 01 1 9101-0203 ● ● ● ● ● ●
167 LEVER; SELECT,EXTERNAL
LEFT HAND DRIVE(MTR6FB) 		1-33521-064-0 01 1 9101-0203 ● ● ● ● ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-0 01 1 9101-0203 ●
167 LEVER; SELECT,EXTERNAL
LEFT HAND DRIVE(MTR6FB) 		1-33521-064-0 01 1 0204- ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-0 01 1 0204- ●
168 WASHER; LK,SELECT LEVER
ID=8.2 		9-09150-508-0 01 1 9101-9205 ● ● ● ● ● ● ●
174 SPRING; REV
RIGHT HAND DRIVE(MTR5FB) 		1-09580-093-1 01 1 0204- ●
174 SPRING; REV 1-09580-093-1 01 1 0204- ● ●
174 SPRING; REV
RIGHT HAND DRIVE(MTR5FB) 		1-09580-093-1 01 1 9101-0203 ● ● ● ● ● ●
181 WASHER; PL,SELECT LEVER
RIGHT HAND DRIVE(MTR5FB) (A) OD=37 		1-09532-007-0 01 1 0204- ●
181 WASHER; PL,SELECT LEVER
(A) OD=37 		1-09532-007-0 01 1 0204- ● ●
181 WASHER; PL,SELECT LEVER
RIGHT HAND DRIVE(MTR5FB) (B) ID=8.4 OD=22 		9-09160-708-0 01 1 0204- ●
181 WASHER; PL,SELECT LEVER
(B) ID=8.4 OD=22 		9-09160-708-0 01 1 0204- ● ●
181 WASHER; PL,SELECT LEVER
RIGHT HAND DRIVE(MTR5FB) (A) OD=37 		1-09532-007-0 01 1 9101-0203 ● ● ● ● ● ●
181 WASHER; PL,SELECT LEVER
RIGHT HAND DRIVE(MTR5FB) (B) ID=8.4 OD=22 		9-09160-708-0 01 1 9101-0203 ● ● ● ● ● ●
181 WASHER; PL,SELECT LEVER
LEFT HAND DRIVE(MTR6FB) (C) OD=40 		1-09532-008-0 01 1 9101-0203 ● ● ● ● ● ●
181 WASHER; PL,SELECT LEVER
(C) OD=40 		1-09532-008-0 01 1 9101-0203 ●
181 WASHER; PL,SELECT LEVER
LEFT HAND DRIVE(MTR6FB) (C) OD=40 		1-09532-008-0 01 1 0204- ●
181 WASHER; PL,SELECT LEVER
(C) OD=40 		1-09532-008-0 01 1 0204- ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9101-0203 ● ● ● ● ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0204-0212 ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0301-0407 ● ● ● ●
187 BOLT; SELECT LEVER
RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 39/6 15.5"(W1T) TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-14 LUG(41R) M8X42 		1-33659-045-0 01 1 0408- ● ● ●
187 BOLT; SELECT LEVER
FINAL GEAR 39/7 15.5"(W3K) TIRE 9.00-20-14 RIB(10T),TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-14 LUG(41R) M8X42 		1-33659-045-0 01 1 0408- ●
187 BOLT; SELECT LEVER
RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/6 15.5"(W1T) TIRE 9.00-20-14 RIB(10T) M8X42 		1-33659-045-0 01 1 0408- ●
187 BOLT; SELECT LEVER
RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 43/7 15.5"(W1R) TIRE 9.00-20-14 RIB(10T) M8X42 		1-33659-045-0 01 1 0408- ● ●
187 BOLT; SELECT LEVER
FINAL GEAR 39/6 15.5"(W1T) M8X42 		1-33659-045-0 01 1 0408- ●
188 NUT; SELECT LEVER
RIGHT HAND DRIVE(MTR5FB) M8 FLANGE 		0-91150-208-0 01 1 0204- ●
188 NUT; SELECT LEVER
M8 FLANGE 		0-91150-208-0 01 1 0204- ● ●
188 NUT; SELECT LEVER
LEFT HAND DRIVE(MTR6FB) M8 FLANGE 		1-09440-049-0 01 1 9305-9804 ● ● ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9305-9804 ●
188 NUT; SELECT LEVER
LEFT HAND DRIVE(MTR6FB) M8 FLANGE 		1-09440-062-1 01 1 9805-0203 ● ● ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9805-0203 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0204-0212 ●
188 NUT; SELECT LEVER
LEFT HAND DRIVE(MTR6FB) M8 FLANGE 		1-09440-062-1 01 1 0301- ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0301- ●
188 NUT; SELECT LEVER
M8 		9-09110-408-0 01 1 9101-9205 ● ● ● ● ● ● ●
188 NUT; SELECT LEVER
M8 		9-09110-408-0 01 1 9205-9205 ● ● ● ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		0-91150-208-0 01 1 9206-9304 ● ● ● ● ● ● ●
188 NUT; SELECT LEVER
RIGHT HAND DRIVE(MTR5FB) M8 FLANGE 		0-91150-208-0 01 1 9305-0203 ● ● ● ● ● ●
224 WASHER; PL,QUAD BOX
ID=10.5 OD=18 		9-09160-510-0 01 1 9101-9205 ● ● ● ● ● ●
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 9101- ●
224 WASHER; PL,QUAD BOX
ID=10.5 		9-09164-510-0 06 1 9101-9205 ●
224 WASHER; PL,QUAD BOX
ID=10.5 		9-09164-510-0 06 1 9205-9205 ●
225 WASHER; LK,QUAD BOX
ID=10.2 		9-09150-510-0 02 1 9101-9205 ● ● ● ● ● ●
225 WASHER; LK,QUAD BOX
ID=10.2 		9-09150-510-0 09 1 9101-9205 ●
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 9101- ●
235 PIN; PINION 1-33539-013-0 01 1 9101-0203 ●
236 GASKET; PIN,PINION
ID=9.8 		9-09561-110-0 01 1 9101-0203 ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33542-036-2 01 1 0204- ● ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33542-037-1 01 1 0204- ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33542-036-2 01 1 9101-0203 ● ● ● ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). LEFT HAND DRIVE(MTR6FB). (B) 		1-33542-046-0 01 1 9101-9108 ● ● ● ● ● ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33542-046-0 01 1 9101-9108 ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33542-037-1 01 1 9101-0203 ● ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). RIGHT HAND DRIVE(MTR5FB). 		1-09625-269-0 01 1 0204- ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-269-0 01 1 0204- ● ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). RIGHT HAND DRIVE(MTR5FB) 		1-09625-269-0 01 1 9101-0203 ● ● ● ● ● ●
271 BUSHING; QUAD BOX
(A) ID=25 OD=28 		1-33549-107-0 01 1 9101- ● ● ● ● ● ●
271 BUSHING; QUAD BOX
(B) ID=17 OD=19 		1-33549-108-0 01 1 9101- ● ● ● ● ● ●
285 BREATHER; AIR,QUAD BOX
RIGHT HAND DRIVE(MTR5FB) 		1-33547-013-0 01 1 0204- ●
285 BREATHER; AIR,QUAD BOX 1-33547-013-0 01 1 0204- ● ●
285 BREATHER; AIR,QUAD BOX
RIGHT HAND DRIVE(MTR5FB) 		1-33547-013-0 01 1 9101-0203 ● ● ● ● ● ●
285 BREATHER; AIR,QUAD BOX
LEFT HAND DRIVE(MTR6FB) 		1-33149-008-0 01 1 9101-0203 ● ● ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9101-0203 ●
285 BREATHER; AIR,QUAD BOX
LEFT HAND DRIVE(MTR6FB) 		1-33149-008-0 01 1 0204- ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0204- ●
286 PLATE; BAFFLE,AIR BREATHER
RIGHT HAND DRIVE(MTR5FB) 		1-33549-102-0 01 1 0204- ●
286 PLATE; BAFFLE,AIR BREATHER 1-33549-102-0 01 1 0204- ● ●
286 PLATE; BAFFLE,AIR BREATHER
RIGHT HAND DRIVE(MTR5FB) 		1-33549-102-0 01 1 9101-0203 ● ● ● ● ● ●
287 COVER; AIR BREATHER
RIGHT HAND DRIVE(MTR5FB) 		1-33549-103-0 01 1 0204- ●
287 COVER; AIR BREATHER 1-33549-103-0 01 1 0204- ● ●
287 COVER; AIR BREATHER
RIGHT HAND DRIVE(MTR5FB) 		1-33549-103-0 01 1 9101-0203 ● ● ● ● ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). RIGHT HAND DRIVE(MTR5FB). 		1-09625-369-0 01 1 0204- ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-369-0 01 1 0204- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). RIGHT HAND DRIVE(MTR5FB) 		1-09625-369-0 01 1 9101-0203 ● ● ● ● ● ●
298 SHAFT; SHIFT LEVER
RIGHT HAND DRIVE(MTR5FB) 		1-33522-106-0 01 1 0204- ●
298 SHAFT; SHIFT LEVER 1-33522-106-0 01 1 0204- ● ●
298 SHAFT; SHIFT LEVER
LEFT HAND DRIVE(MTR6FB) 		1-33522-098-0 01 1 0204- ●
298 SHAFT; SHIFT LEVER
RIGHT HAND DRIVE(MTR5FB) 		1-33522-106-0 01 1 9101-0203 ● ● ● ● ● ●
298 SHAFT; SHIFT LEVER
LEFT HAND DRIVE(MTR6FB) 		1-33522-098-0 01 1 9101-0203 ● ● ● ● ● ●
298 SHAFT; SHIFT LEVER 1-33522-058-1 01 1 9101- ●
382 BRACKET; PARKING BRK CONT CABLE 1-46147-137-1 01 1 0204- ● ●
382 BRACKET; PARKING BRK CONT CABLE 1-46147-086-1 01 1 9101-9104 ● ● ● ●
382 BRACKET; PARKING BRK CONT CABLE 1-46147-137-1 01 1 9105-0203 ● ● ● ●
389 PLUG; QUAD BOX,NEUTRAL SW
M14X9 		9-99202-314-0 01 1 0204- ● ● ●
389 PLUG; QUAD BOX,NEUTRAL SW
M14X9 		9-99202-314-0 01 1 9101-0203 ● ● ● ● ● ●
389 PLUG; QUAD BOX,NEUTRAL SW
EXC. CLUTCH SYSTEM MINIPACK(B1Z) M18X12 		9-99202-318-0 01 1 9101-9204 ●
389 PLUG; QUAD BOX,NEUTRAL SW
M18X12 		9-99202-318-0 01 1 9205-0203 ●
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 0204- ● ● ●
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14 		9-09920-393-0 01 1 9101-9208 ● ● ● ● ● ●
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 9209-0203 ● ● ● ● ● ●
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). EXC. CLUTCH SYSTEM MINIPACK(B1Z) ID=18 		9-09571-418-0 01 1 9101-9204 ●
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). ID=18 		9-09571-418-0 01 1 9205-0203 ●
398 SWITCH; REV LAMP 1-82440-050-1 01 1 0204- ● ● ●
398 SWITCH; REV LAMP 1-82440-050-1 01 1 9101-0203 ● ● ● ● ● ●
398 SWITCH; REV LAMP 1-82440-054-0 01 1 9101- ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 0204- ● ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14 		9-09920-393-0 01 1 9101-9208 ● ● ● ● ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 9209-0203 ● ● ● ● ● ●

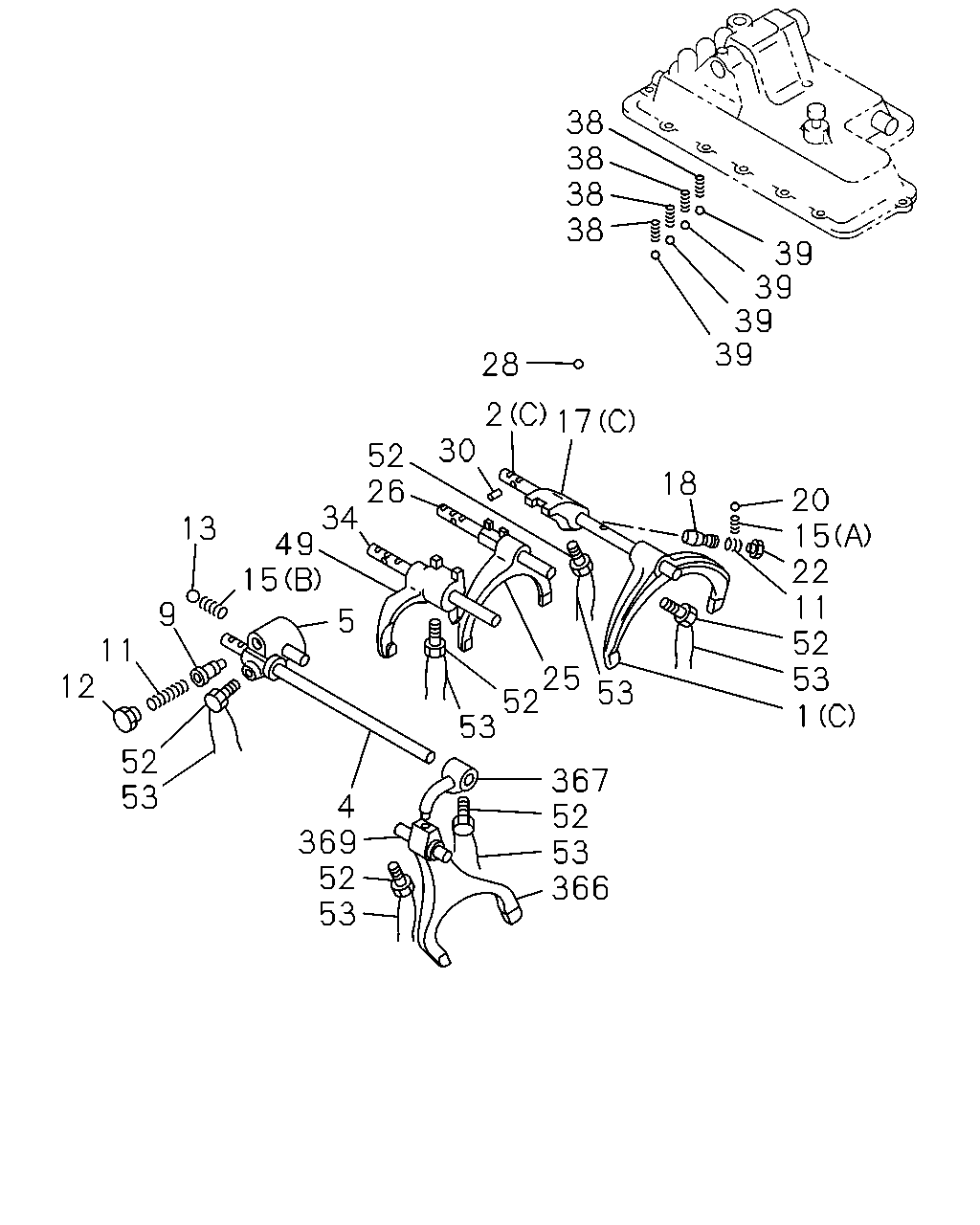

çizim 28675
38 38 38 38 39 39 39 39 28 2 17 30 52 26 34 49 15 18 20 15 22 11 52 53 1 13 9 5 11 12 25 52 53 53 52 53 367 52 53 366 4 369 52 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 ARM; SHIFT,1ST & REV
(C) 		1-33511-078-3 01 1 0204- ● ● ●
1 ARM; SHIFT,1ST & REV
(C) 		1-33511-078-3 01 1 9101-0203 ● ● ● ● ● ●
1 ARM; SHIFT,1ST & REV
(A) 		1-33511-082-0 01 1 9101- ●
1 ARM; SHIFT,1ST & REV
(B) 		1-33511-138-1 01 1 9101- ●
2 ROD; SHIFT,1ST & REV
(C) 		1-33531-318-2 01 1 0204- ● ● ●
2 ROD; SHIFT,1ST & REV
(C) 		1-33531-318-2 01 1 9101-0203 ● ● ● ● ● ●
2 ROD; SHIFT,1ST & REV
(A) L=165 		1-33531-118-2 01 1 9101- ●
2 ROD; SHIFT,1ST & REV
(B) L=313 		1-33531-119-2 01 1 9101- ●
4 ROD; SHIFT,6TH 1-33531-219-0 01 1 9101-0203 ● ●
4 ROD; SHIFT,6TH 1-33531-219-0 01 1 0204- ●
5 BLOCK; SHIFT,6TH 1-33511-153-1 01 1 0204- ●
5 BLOCK; SHIFT,6TH 1-33511-153-1 01 1 9101-0203 ● ●
9 SLEEVE; 6TH,SHIFT BLOCK 1-33516-015-1 01 1 0204- ●
9 SLEEVE; 6TH,SHIFT BLOCK 1-33516-015-1 01 1 9101-0203 ● ●
11 SPRING; RETURN,SHIFT SLEEVE
LEFT HAND DRIVE(MTR6FB) 		9-09941-160-0 01 1 9101-0203 ● ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9101-0203 ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 0204-0212 ●
11 SPRING; RETURN,SHIFT SLEEVE
LEFT HAND DRIVE(MTR6FB) 		9-09941-160-0 01 1 0301- ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 0301- ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 0204- ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9101-0203 ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-009-0 01 1 0204- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-009-0 01 1 9101-0203 ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-308-0 01 1 0204- ●
15 SPRING; LK,SHIFT SLEEVE
LEFT HAND DRIVE(MTR6FB) (A) 		9-09940-854-0 01 1 0204- ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09940-854-0 01 1 9101-9310 ● ● ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
LEFT HAND DRIVE(MTR6FB) (A) 		9-09940-854-0 01 1 9311-0203 ● ● ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-308-0 01 1 9101-0203 ● ●
15 SPRING; LK,SHIFT SLEEVE
(C) 		1-09580-439-0 01 1 9101- ●
17 BLOCK; SHIFT,1ST & REV
RIGHT HAND DRIVE(MTR5FB) (C) 		1-33511-154-1 01 1 0204- ●
17 BLOCK; SHIFT,1ST & REV
(C) 		1-33511-154-1 01 1 0204- ● ●
17 BLOCK; SHIFT,1ST & REV
LEFT HAND DRIVE(MTR6FB) (C) 		1-33511-160-1 01 1 0204- ●
17 BLOCK; SHIFT,1ST & REV
RIGHT HAND DRIVE(MTR5FB) (C) 		1-33511-154-1 01 1 9101-0203 ● ● ● ● ● ●
17 BLOCK; SHIFT,1ST & REV
LEFT HAND DRIVE(MTR6FB) (C) 		1-33511-160-1 01 1 9101-0203 ● ● ● ● ● ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-104-0 01 1 9101- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-304-2 01 1 9101- ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK
LEFT HAND DRIVE(MTR6FB) 		1-33516-015-1 01 1 0204- ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-015-1 01 1 9101-9310 ● ● ● ● ● ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK
LEFT HAND DRIVE(MTR6FB) 		1-33516-015-1 01 1 9311-0203 ● ● ● ● ● ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-024-0 01 1 9101- ●
20 BALL; DETENT SLEEVE
LEFT HAND DRIVE(MTR6FB) 		9-00097-009-0 01 1 0204- ●
20 BALL; DETENT SLEEVE 9-00097-009-0 01 1 9101-9310 ● ● ● ● ● ●
20 BALL; DETENT SLEEVE
LEFT HAND DRIVE(MTR6FB) 		9-00097-009-0 01 1 9311-0203 ● ● ● ● ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9101- ●
22 CAP; RETURN SPR,SHIFT BLOCK
LEFT HAND DRIVE(MTR6FB) 		9-33516-060-1 01 1 9101-0203 ● ● ● ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9101-0203 ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 0204-0212 ●
22 CAP; RETURN SPR,SHIFT BLOCK
LEFT HAND DRIVE(MTR6FB) 		9-33516-060-1 01 1 0301- ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 0301- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-441-0 01 1 0204- ● ● ●
25 ARM; SHIFT,2ND & 3RD 1-33511-258-2 01 1 9101-9201 ● ● ● ● ● ●
25 ARM; SHIFT,2ND & 3RD 1-33511-441-0 01 1 9202-0203 ● ● ● ● ● ●
25 ARM; SHIFT,2ND & 3RD 1-33511-252-1 01 1 9101- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-245-0 01 1 9101-0203 ● ● ● ● ● ●
26 ROD; SHIFT,2ND & 3RD 1-33531-245-0 01 1 0204- ● ● ●
26 ROD; SHIFT,2ND & 3RD 1-33531-267-0 01 1 9101- ●
28 BALL; INTER LK 9-00097-010-0 04 1 0204- ● ●
28 BALL; INTER LK 9-00097-010-0 06 1 0204- ●
28 BALL; INTER LK 9-00097-010-0 04 1 9101-0203 ● ● ● ●
28 BALL; INTER LK 9-00097-010-0 06 1 9101-0203 ● ●
28 BALL; INTER LK
EXC. CLUTCH SYSTEM MINIPACK(B1Z) 		9-00097-501-0 02 1 9101-9204 ●
28 BALL; INTER LK 9-00097-501-0 02 1 9205-0203 ●
28 BALL; INTER LK
EXC. CLUTCH SYSTEM MINIPACK(B1Z) 		9-00097-501-0 03 1 9101-9204 ●
28 BALL; INTER LK 9-00097-501-0 03 1 9205- ●
30 PIN; INTER LK 1-33534-002-0 01 1 0204- ● ●
30 PIN; INTER LK 1-33534-002-0 02 1 0204- ●
30 PIN; INTER LK 1-33534-002-0 01 1 9101-0203 ● ● ● ●
30 PIN; INTER LK 1-33534-002-0 02 1 9101-0203 ● ●
30 PIN; INTER LK 9-33534-003-0 02 1 9101- ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-218-0 01 1 9101-0203 ● ● ● ● ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-218-0 01 1 0204- ● ● ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-244-1 01 1 9101-0203 ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-121-2 01 1 9101- ●
38 SPRING; DETENT 1-09580-374-0 03 1 0204- ● ●
38 SPRING; DETENT 1-09580-374-0 04 1 0204- ●
38 SPRING; DETENT 1-09580-374-0 03 1 9101-0203 ● ● ● ●
38 SPRING; DETENT 1-09580-374-0 04 1 9101-0203 ● ●
38 SPRING; DETENT 1-09580-193-0 03 1 9101- ●
39 BALL; DETENT 9-00097-013-0 03 1 9101-0203 ● ● ● ● ●
39 BALL; DETENT
RIGHT HAND DRIVE(MTR5FB) 		9-00097-013-0 03 1 0204-0407 ● ●
39 BALL; DETENT
LEFT HAND DRIVE(MTR6FB) FINAL GEAR 39/7 15.5"(W3K) 		9-00097-013-0 03 1 0204-0407 ●
39 BALL; DETENT
FINAL GEAR 39/6 15.5"(W1T) 		9-00097-013-0 03 1 0204-0407 ●
39 BALL; DETENT
RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 39/6 15.5"(W1T) TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-14 LUG(41R) 		9-00097-013-0 03 1 0408- ● ●
39 BALL; DETENT
FINAL GEAR 39/7 15.5"(W3K) TIRE 9.00-20-14 RIB(10T),TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-14 LUG(41R) 		9-00097-013-0 03 1 0408- ●
39 BALL; DETENT
RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/6 15.5"(W1T) TIRE 9.00-20-14 RIB(10T) 		9-00097-013-0 03 1 0408- ●
39 BALL; DETENT
RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 43/7 15.5"(W1R) TIRE 9.00-20-14 RIB(10T) 		9-00097-013-0 03 1 0408- ●
39 BALL; DETENT
FINAL GEAR 39/6 15.5"(W1T) 		9-00097-013-0 03 1 0408- ●
39 BALL; DETENT 9-00097-013-0 04 1 9101-0203 ● ●
39 BALL; DETENT 9-00097-013-0 04 1 0204- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-444-1 01 1 0204- ● ●
49 ARM; SHIFT,4TH & 5TH 1-33511-443-0 01 1 0204- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-190-1 01 1 9101-9201 ● ● ●
49 ARM; SHIFT,4TH & 5TH 1-33511-444-1 01 1 9202-0203 ● ● ●
49 ARM; SHIFT,4TH & 5TH 1-33511-219-1 01 1 9101-0203 ●
49 ARM; SHIFT,4TH & 5TH 1-33511-189-2 01 1 9101-9201 ● ●
49 ARM; SHIFT,4TH & 5TH 1-33511-443-0 01 1 9202-0203 ● ●
49 ARM; SHIFT,4TH & 5TH 1-33511-250-1 01 1 9101- ●
52 BOLT; SHIFT ARM 1-09052-034-2 04 1 0204- ● ●
52 BOLT; SHIFT ARM 1-09052-034-2 06 1 0204- ●
52 BOLT; SHIFT ARM 1-09052-004-2 04 1 9101-9107 ● ● ●
52 BOLT; SHIFT ARM 1-09052-034-2 04 1 9108-0203 ● ● ●
52 BOLT; SHIFT ARM 1-09052-004-2 05 1 9101-9107 ●
52 BOLT; SHIFT ARM 1-09052-034-2 05 1 9108-0203 ●
52 BOLT; SHIFT ARM 1-09052-004-2 06 1 9101-9107 ● ●
52 BOLT; SHIFT ARM 1-09052-034-2 06 1 9108-0203 ● ●
53 WIRE; BOLT
L=200 		9-08351-020-0 04 1 9101-9107 ● ● ●
53 WIRE; BOLT
L=200 		9-08351-020-0 05 1 9101-9107 ●
53 WIRE; BOLT
L=200 		9-08351-020-0 06 1 9101-9107 ● ● ●
53 WIRE; BOLT
L=200 		9-08351-020-0 06 1 9108-9205 ●
366 ARM; SHIFT,LWR,6TH 1-33511-218-1 01 1 0204- ●
366 ARM; SHIFT,LWR,6TH 1-33511-218-1 01 1 9101-0203 ● ●
367 ARM; SHIFT,UPR,6TH 1-33511-073-2 01 1 0204- ●
367 ARM; SHIFT,UPR,6TH 1-33511-073-2 01 1 9101-0203 ● ●
369 SPINDLE; 6TH,SHIFT ARM 9-33513-003-0 01 1 9101-0203 ● ●
369 SPINDLE; 6TH,SHIFT ARM 9-33513-003-0 01 1 0204- ●
çizim 28921
167 188 168 187 30 181 30 181 390 389 28 28 28 28 28 28 398 30 294 42 42 142 298 411 42 129 28 225 42 285 265 158 271 42 142 225 271 224 256 157 286 163 287 134 135 174 136 130 138 155
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
28 BALL; INTER LK 9-00097-010-0 04 1 0204- ● ●
28 BALL; INTER LK 9-00097-010-0 06 1 0204- ●
28 BALL; INTER LK 9-00097-010-0 04 1 9101-0203 ● ● ● ●
28 BALL; INTER LK 9-00097-010-0 06 1 9101-0203 ● ●
28 BALL; INTER LK
EXC. CLUTCH SYSTEM MINIPACK(B1Z) 		9-00097-501-0 02 1 9101-9204 ●
28 BALL; INTER LK 9-00097-501-0 02 1 9205-0203 ●
28 BALL; INTER LK
EXC. CLUTCH SYSTEM MINIPACK(B1Z) 		9-00097-501-0 03 1 9101-9204 ●
28 BALL; INTER LK 9-00097-501-0 03 1 9205- ●
30 PIN; INTER LK 1-33534-002-0 01 1 0204- ● ●
30 PIN; INTER LK 1-33534-002-0 02 1 0204- ●
30 PIN; INTER LK 1-33534-002-0 01 1 9101-0203 ● ● ● ●
30 PIN; INTER LK 1-33534-002-0 02 1 9101-0203 ● ●
30 PIN; INTER LK 9-33534-003-0 02 1 9101- ●
42 CAP; QUAD BOX
RIGHT HAND DRIVE(MTR5FB) OD=20 		1-33545-002-1 05 1 0204- ●
42 CAP; QUAD BOX
OD=20 		1-33545-002-1 05 1 0204- ●
42 CAP; QUAD BOX
OD=20 		1-33545-002-1 06 1 0204- ●
42 CAP; QUAD BOX
LEFT HAND DRIVE(MTR6FB) OD=20 		1-33545-002-1 04 1 0204- ●
42 CAP; QUAD BOX
RIGHT HAND DRIVE(MTR5FB) OD=20 		1-33545-002-1 05 1 9101-0203 ● ● ●
42 CAP; QUAD BOX
LEFT HAND DRIVE(MTR6FB) OD=20 		1-33545-002-1 05 1 9101-0203 ● ● ●
42 CAP; QUAD BOX
LEFT HAND DRIVE(MTR6FB) OD=20 		1-33545-002-1 04 1 9101-0203 ● ● ●
42 CAP; QUAD BOX
RIGHT HAND DRIVE(MTR5FB) OD=20 		1-33545-002-1 06 1 9101-9310 ● ● ●
42 CAP; QUAD BOX
RIGHT HAND DRIVE(MTR5FB) OD=20 		1-33545-002-1 06 1 9311-0203 ●
42 CAP; QUAD BOX
OD=20 		1-33545-002-1 06 1 9311-0203 ● ●
129 PIN; SPR,SHIFT
RIGHT HAND DRIVE(MTR5FB) 		1-09740-008-0 01 1 0204- ●
129 PIN; SPR,SHIFT 1-09740-008-0 01 1 0204- ● ●
129 PIN; SPR,SHIFT
RIGHT HAND DRIVE(MTR5FB) 		1-09740-008-0 01 1 9101-0203 ● ● ● ● ● ●
130 LEVER; SHIFT,INTERNAL
RIGHT HAND DRIVE(MTR5FB) 		1-33521-062-0 01 1 0204- ●
130 LEVER; SHIFT,INTERNAL 1-33521-062-0 01 1 0204- ● ●
130 LEVER; SHIFT,INTERNAL
LEFT HAND DRIVE(MTR6FB) 		1-33521-082-3 01 1 0204- ●
130 LEVER; SHIFT,INTERNAL
RIGHT HAND DRIVE(MTR5FB) 		1-33521-062-0 01 1 9101-0203 ● ● ● ● ● ●
130 LEVER; SHIFT,INTERNAL
LEFT HAND DRIVE(MTR6FB) 		1-33521-082-3 01 1 9101-0203 ● ● ● ● ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-068-3 01 1 9101- ●
134 SEAT; REV RESIST SPR
RIGHT HAND DRIVE(MTR5FB) 		1-33549-024-0 01 1 0204- ●
134 SEAT; REV RESIST SPR 1-33549-024-0 01 1 0204- ● ●
134 SEAT; REV RESIST SPR
RIGHT HAND DRIVE(MTR5FB) 		1-33549-024-0 01 1 9101-0203 ● ● ● ● ● ●
135 STOPPER; LOW & REV,SELECT
RIGHT HAND DRIVE(MTR5FB) 		1-33537-003-1 01 1 0204- ●
135 STOPPER; LOW & REV,SELECT 1-33537-003-1 01 1 0204- ● ●
135 STOPPER; LOW & REV,SELECT
RIGHT HAND DRIVE(MTR5FB) 		1-33537-003-1 01 1 9101-0203 ● ● ● ● ● ●
136 SLEEVE; REV RESIST SPR
RIGHT HAND DRIVE(MTR5FB) 		1-33516-002-0 01 1 0204- ●
136 SLEEVE; REV RESIST SPR 1-33516-002-0 01 1 0204- ● ●
136 SLEEVE; REV RESIST SPR
RIGHT HAND DRIVE(MTR5FB) 		1-33516-002-0 01 1 9101-0203 ● ● ● ● ● ●
138 WASHER; 6TH,STOPPER
ID=17 		9-09160-516-0 01 1 0204- ●
138 WASHER; 6TH,STOPPER
RIGHT HAND DRIVE(MTR5FB) 		9-09160-516-0 01 1 9101-0203 ● ●
142 BOLT; QUAD BOX
RIGHT HAND DRIVE(MTR5FB) M10X28 FLANGE 		0-28181-028-0 08 1 0204- ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 08 1 0204- ●
142 BOLT; QUAD BOX
M10X32 FLANGE 		0-28181-032-0 01 1 0204- ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-1 01 1 0204- ● ●
142 BOLT; QUAD BOX
M10X34 		1-09040-091-1 01 1 0204- ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 11 1 0204- ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MTR6FB) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0204- ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0204- ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MTR6FB) M10X28 FLANGE 		0-28181-028-0 12 1 0204- ●
142 BOLT; QUAD BOX
M10X35 W/LK WASHER 		0-50051-035-0 01 1 9101-9205 ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 08 1 9206-0203 ● ● ● ●
142 BOLT; QUAD BOX
M10X35 		1-09040-064-1 01 1 9101-9205 ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-1 01 1 9206-0203 ● ● ● ●
142 BOLT; QUAD BOX
RIGHT HAND DRIVE(MTR5FB) M10X32 W/LK&PL WASHER 		0-50151-032-0 08 1 9101-9205 ● ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MTR6FB) M10X28 FLANGE 		0-28181-028-0 04 1 9206-0203 ● ● ● ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MTR6FB) M10X30 W/LK WASHER 		0-50051-030-0 08 1 9101-9205 ● ● ● ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MTR6FB) M10X35 W/LK&PL WASHER 		0-50151-035-0 04 1 9101-9205 ● ● ● ● ● ●
142 BOLT; QUAD BOX
M10X35 W/LK&PL WASHER 		0-50151-035-0 04 1 9101-9205 ●
142 BOLT; QUAD BOX
M10X32 FLANGE 		0-28181-032-0 01 1 9206-0203 ● ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MTR6FB) M10X35 		1-09040-064-1 02 1 9101-9205 ● ● ● ● ● ●
142 BOLT; QUAD BOX
M10X35 		1-09040-064-1 02 1 9101-9205 ●
142 BOLT; QUAD BOX
M10X34 		1-09040-091-1 01 1 9206-0203 ● ● ● ●
142 BOLT; QUAD BOX
M10X30 		1-09040-063-1 01 1 9101-9205 ● ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-1 03 1 9206- ●
142 BOLT; QUAD BOX
RIGHT HAND DRIVE(MTR5FB) M10X32 W/LK&PL WASHER 		0-50151-032-0 11 1 9101-9205 ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MTR6FB) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9206-9310 ● ● ● ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MTR6FB) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 9311-0203 ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-1 02 1 9311-0203 ● ●
142 BOLT; QUAD BOX
M10X30 		1-09040-063-1 02 1 9101-9205 ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 11 1 9206-0203 ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MTR6FB) M10X30 W/LK WASHER 		0-50051-030-0 11 1 9101-9205 ● ●
142 BOLT; QUAD BOX
M10X50 		0-16806-050-0 02 1 9101-9205 ●
142 BOLT; QUAD BOX
M10X45 FLANGE 		0-28181-045-0 02 1 9206- ●
142 BOLT; QUAD BOX
M10X65 		0-16806-065-0 02 1 9101-9205 ●
142 BOLT; QUAD BOX
M10X60 FLANGE 		0-28181-060-0 02 1 9206- ●
142 BOLT; QUAD BOX
M10X32 W/LK&PL WASHER 		0-50151-032-0 03 1 9101-9205 ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 07 1 9206- ●
142 BOLT; QUAD BOX
M10X33 		1-09029-040-3 02 1 9101-9205 ●
142 BOLT; QUAD BOX
M10X20,M10X26 L=56 		1-09049-014-1 02 1 9206- ●
155 STOPPER; 6TH,SELECT
RIGHT HAND DRIVE(MTR5FB) 		1-33537-004-1 01 1 0301- ●
155 STOPPER; 6TH,SELECT 1-33537-004-1 01 1 0301- ● ●
155 STOPPER; 6TH,SELECT
RIGHT HAND DRIVE(MTR5FB) 		1-33537-004-1 01 1 9101-0203 ● ● ● ● ● ●
157 BOX; QUAD,TRANS
RIGHT HAND DRIVE(MTR5FB) (A) 		1-33541-310-0 01 1 0204- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-310-0 01 1 0204- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-311-0 01 1 0204- ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MTR6FB) (B) 		1-33541-256-2 01 1 0301- ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MTR6FB) (A) 		1-33541-439-0 01 1 0204- ●
157 BOX; QUAD,TRANS
RIGHT HAND DRIVE(MTR5FB) (A) 		1-33541-310-0 01 1 9101-0203 ● ● ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MTR6FB) (A) 		1-33541-285-2 01 1 9101-9810 ● ● ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MTR6FB) (A) 		1-33541-439-0 01 1 9811-0203 ● ● ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MTR6FB) (B) 		1-33541-256-2 01 1 9101-0203 ● ● ● ● ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-256-2 01 1 9101-0203 ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MTR6FB) (B) 		1-33541-256-2 01 1 0204-0212 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-256-2 01 1 0204-0212 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-256-2 01 1 0301- ●
157 BOX; QUAD,TRANS
RIGHT HAND DRIVE(MTR5FB) (A) 		1-33541-313-0 01 1 9101-0203 ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MTR6FB) (A) 		1-33541-287-1 01 1 9101-9810 ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MTR6FB) (A) 		1-33541-431-0 01 1 9811-0203 ●
157 BOX; QUAD,TRANS
RIGHT HAND DRIVE(MTR5FB) (A) 		1-33541-311-0 01 1 9101-0203 ● ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MTR6FB) (A) 		1-33541-286-1 01 1 9101-9810 ● ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MTR6FB) (A) 		1-33541-430-1 01 1 9811-0203 ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-370-0 01 1 9101- ●
158 CLIP; HARNESS
ID=11 		1-09700-415-0 02 1 0204- ● ● ●
158 CLIP; HARNESS 1-09700-415-0 02 1 9101-0203 ● ● ● ● ● ●
158 CLIP; HARNESS 1-09700-415-0 01 1 9101- ●
163 LEVER; SELECT,INTERNAL
RIGHT HAND DRIVE(MTR5FB) 		1-33522-032-0 01 1 0301- ●
163 LEVER; SELECT,INTERNAL 1-33522-032-0 01 1 0301- ● ●
163 LEVER; SELECT,INTERNAL
RIGHT HAND DRIVE(MTR5FB) 		1-33522-032-0 01 1 9101-0203 ● ● ● ● ● ●
163 LEVER; SELECT,INTERNAL
LEFT HAND DRIVE(MTR6FB) 		1-33522-041-4 01 1 9101-0203 ● ● ● ● ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 9101-0203 ●
163 LEVER; SELECT,INTERNAL
RIGHT HAND DRIVE(MTR5FB) 		1-33522-041-4 01 1 0204- ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0204- ● ●
167 LEVER; SELECT,EXTERNAL
RIGHT HAND DRIVE(MTR5FB) 		1-33521-044-0 01 1 0204- ●
167 LEVER; SELECT,EXTERNAL 1-33521-044-0 01 1 0204- ● ●
167 LEVER; SELECT,EXTERNAL
RIGHT HAND DRIVE(MTR5FB) 		1-33521-044-0 01 1 9101-0203 ● ● ● ● ● ●
167 LEVER; SELECT,EXTERNAL
LEFT HAND DRIVE(MTR6FB) 		1-33521-064-0 01 1 9101-0203 ● ● ● ● ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-0 01 1 9101-0203 ●
167 LEVER; SELECT,EXTERNAL
LEFT HAND DRIVE(MTR6FB) 		1-33521-064-0 01 1 0204- ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-0 01 1 0204- ●
168 WASHER; LK,SELECT LEVER
ID=8.2 		9-09150-508-0 01 1 9101-9205 ● ● ● ● ● ● ●
174 SPRING; REV
RIGHT HAND DRIVE(MTR5FB) 		1-09580-093-1 01 1 0204- ●
174 SPRING; REV 1-09580-093-1 01 1 0204- ● ●
174 SPRING; REV
RIGHT HAND DRIVE(MTR5FB) 		1-09580-093-1 01 1 9101-0203 ● ● ● ● ● ●
181 WASHER; PL,SELECT LEVER
RIGHT HAND DRIVE(MTR5FB) (A) OD=37 		1-09532-007-0 01 1 0204- ●
181 WASHER; PL,SELECT LEVER
(A) OD=37 		1-09532-007-0 01 1 0204- ● ●
181 WASHER; PL,SELECT LEVER
RIGHT HAND DRIVE(MTR5FB) (B) ID=8.4 OD=22 		9-09160-708-0 01 1 0204- ●
181 WASHER; PL,SELECT LEVER
(B) ID=8.4 OD=22 		9-09160-708-0 01 1 0204- ● ●
181 WASHER; PL,SELECT LEVER
RIGHT HAND DRIVE(MTR5FB) (A) OD=37 		1-09532-007-0 01 1 9101-0203 ● ● ● ● ● ●
181 WASHER; PL,SELECT LEVER
RIGHT HAND DRIVE(MTR5FB) (B) ID=8.4 OD=22 		9-09160-708-0 01 1 9101-0203 ● ● ● ● ● ●
181 WASHER; PL,SELECT LEVER
LEFT HAND DRIVE(MTR6FB) (C) OD=40 		1-09532-008-0 01 1 9101-0203 ● ● ● ● ● ●
181 WASHER; PL,SELECT LEVER
(C) OD=40 		1-09532-008-0 01 1 9101-0203 ●
181 WASHER; PL,SELECT LEVER
LEFT HAND DRIVE(MTR6FB) (C) OD=40 		1-09532-008-0 01 1 0204- ●
181 WASHER; PL,SELECT LEVER
(C) OD=40 		1-09532-008-0 01 1 0204- ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9101-0203 ● ● ● ● ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0204-0212 ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0301-0407 ● ● ● ●
187 BOLT; SELECT LEVER
RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 39/6 15.5"(W1T) TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-14 LUG(41R) M8X42 		1-33659-045-0 01 1 0408- ● ● ●
187 BOLT; SELECT LEVER
FINAL GEAR 39/7 15.5"(W3K) TIRE 9.00-20-14 RIB(10T),TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-14 LUG(41R) M8X42 		1-33659-045-0 01 1 0408- ●
187 BOLT; SELECT LEVER
RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/6 15.5"(W1T) TIRE 9.00-20-14 RIB(10T) M8X42 		1-33659-045-0 01 1 0408- ●
187 BOLT; SELECT LEVER
RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 43/7 15.5"(W1R) TIRE 9.00-20-14 RIB(10T) M8X42 		1-33659-045-0 01 1 0408- ● ●
187 BOLT; SELECT LEVER
FINAL GEAR 39/6 15.5"(W1T) M8X42 		1-33659-045-0 01 1 0408- ●
188 NUT; SELECT LEVER
RIGHT HAND DRIVE(MTR5FB) M8 FLANGE 		0-91150-208-0 01 1 0204- ●
188 NUT; SELECT LEVER
M8 FLANGE 		0-91150-208-0 01 1 0204- ● ●
188 NUT; SELECT LEVER
LEFT HAND DRIVE(MTR6FB) M8 FLANGE 		1-09440-049-0 01 1 9305-9804 ● ● ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9305-9804 ●
188 NUT; SELECT LEVER
LEFT HAND DRIVE(MTR6FB) M8 FLANGE 		1-09440-062-1 01 1 9805-0203 ● ● ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9805-0203 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0204-0212 ●
188 NUT; SELECT LEVER
LEFT HAND DRIVE(MTR6FB) M8 FLANGE 		1-09440-062-1 01 1 0301- ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0301- ●
188 NUT; SELECT LEVER
M8 		9-09110-408-0 01 1 9101-9205 ● ● ● ● ● ● ●
188 NUT; SELECT LEVER
M8 		9-09110-408-0 01 1 9205-9205 ● ● ● ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		0-91150-208-0 01 1 9206-9304 ● ● ● ● ● ● ●
188 NUT; SELECT LEVER
RIGHT HAND DRIVE(MTR5FB) M8 FLANGE 		0-91150-208-0 01 1 9305-0203 ● ● ● ● ● ●
224 WASHER; PL,QUAD BOX
ID=10.5 OD=18 		9-09160-510-0 01 1 9101-9205 ● ● ● ● ● ●
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 9101- ●
224 WASHER; PL,QUAD BOX
ID=10.5 		9-09164-510-0 06 1 9101-9205 ●
224 WASHER; PL,QUAD BOX
ID=10.5 		9-09164-510-0 06 1 9205-9205 ●
225 WASHER; LK,QUAD BOX
ID=10.2 		9-09150-510-0 02 1 9101-9205 ● ● ● ● ● ●
225 WASHER; LK,QUAD BOX
ID=10.2 		9-09150-510-0 09 1 9101-9205 ●
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 9101- ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33542-036-2 01 1 0204- ● ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33542-037-1 01 1 0204- ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33542-036-2 01 1 9101-0203 ● ● ● ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). LEFT HAND DRIVE(MTR6FB). (B) 		1-33542-046-0 01 1 9101-9108 ● ● ● ● ● ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33542-046-0 01 1 9101-9108 ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33542-037-1 01 1 9101-0203 ● ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). RIGHT HAND DRIVE(MTR5FB). 		1-09625-269-0 01 1 0204- ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-269-0 01 1 0204- ● ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). RIGHT HAND DRIVE(MTR5FB) 		1-09625-269-0 01 1 9101-0203 ● ● ● ● ● ●
271 BUSHING; QUAD BOX
(A) ID=25 OD=28 		1-33549-107-0 01 1 9101- ● ● ● ● ● ●
271 BUSHING; QUAD BOX
(B) ID=17 OD=19 		1-33549-108-0 01 1 9101- ● ● ● ● ● ●
285 BREATHER; AIR,QUAD BOX
RIGHT HAND DRIVE(MTR5FB) 		1-33547-013-0 01 1 0204- ●
285 BREATHER; AIR,QUAD BOX 1-33547-013-0 01 1 0204- ● ●
285 BREATHER; AIR,QUAD BOX
RIGHT HAND DRIVE(MTR5FB) 		1-33547-013-0 01 1 9101-0203 ● ● ● ● ● ●
285 BREATHER; AIR,QUAD BOX
LEFT HAND DRIVE(MTR6FB) 		1-33149-008-0 01 1 9101-0203 ● ● ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9101-0203 ●
285 BREATHER; AIR,QUAD BOX
LEFT HAND DRIVE(MTR6FB) 		1-33149-008-0 01 1 0204- ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0204- ●
286 PLATE; BAFFLE,AIR BREATHER
RIGHT HAND DRIVE(MTR5FB) 		1-33549-102-0 01 1 0204- ●
286 PLATE; BAFFLE,AIR BREATHER 1-33549-102-0 01 1 0204- ● ●
286 PLATE; BAFFLE,AIR BREATHER
RIGHT HAND DRIVE(MTR5FB) 		1-33549-102-0 01 1 9101-0203 ● ● ● ● ● ●
287 COVER; AIR BREATHER
RIGHT HAND DRIVE(MTR5FB) 		1-33549-103-0 01 1 0204- ●
287 COVER; AIR BREATHER 1-33549-103-0 01 1 0204- ● ●
287 COVER; AIR BREATHER
RIGHT HAND DRIVE(MTR5FB) 		1-33549-103-0 01 1 9101-0203 ● ● ● ● ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). RIGHT HAND DRIVE(MTR5FB). 		1-09625-369-0 01 1 0204- ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-369-0 01 1 0204- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). RIGHT HAND DRIVE(MTR5FB) 		1-09625-369-0 01 1 9101-0203 ● ● ● ● ● ●
298 SHAFT; SHIFT LEVER
RIGHT HAND DRIVE(MTR5FB) 		1-33522-106-0 01 1 0204- ●
298 SHAFT; SHIFT LEVER 1-33522-106-0 01 1 0204- ● ●
298 SHAFT; SHIFT LEVER
LEFT HAND DRIVE(MTR6FB) 		1-33522-098-0 01 1 0204- ●
298 SHAFT; SHIFT LEVER
RIGHT HAND DRIVE(MTR5FB) 		1-33522-106-0 01 1 9101-0203 ● ● ● ● ● ●
298 SHAFT; SHIFT LEVER
LEFT HAND DRIVE(MTR6FB) 		1-33522-098-0 01 1 9101-0203 ● ● ● ● ● ●
298 SHAFT; SHIFT LEVER 1-33522-058-1 01 1 9101- ●
389 PLUG; QUAD BOX,NEUTRAL SW
M14X9 		9-99202-314-0 01 1 0204- ● ● ●
389 PLUG; QUAD BOX,NEUTRAL SW
M14X9 		9-99202-314-0 01 1 9101-0203 ● ● ● ● ● ●
389 PLUG; QUAD BOX,NEUTRAL SW
EXC. CLUTCH SYSTEM MINIPACK(B1Z) M18X12 		9-99202-318-0 01 1 9101-9204 ●
389 PLUG; QUAD BOX,NEUTRAL SW
M18X12 		9-99202-318-0 01 1 9205-0203 ●
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 0204- ● ● ●
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14 		9-09920-393-0 01 1 9101-9208 ● ● ● ● ● ●
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 9209-0203 ● ● ● ● ● ●
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). EXC. CLUTCH SYSTEM MINIPACK(B1Z) ID=18 		9-09571-418-0 01 1 9101-9204 ●
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). ID=18 		9-09571-418-0 01 1 9205-0203 ●
398 SWITCH; REV LAMP 1-82440-050-1 01 1 0204- ● ● ●
398 SWITCH; REV LAMP 1-82440-050-1 01 1 9101-0203 ● ● ● ● ● ●
398 SWITCH; REV LAMP 1-82440-054-0 01 1 9101- ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 0204- ● ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14 		9-09920-393-0 01 1 9101-9208 ● ● ● ● ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 9209-0203 ● ● ● ● ● ●
çizim 29377
15 20 17 11 52 53 18 1 52 22 53 36 25 49 2 38 39 28 35 52 38 39 38 39 28 28 53 53 52 28 28 26 228 233 234 30 34 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 ARM; SHIFT,1ST & REV
(C) 		1-33511-078-3 01 1 0204- ● ● ●
1 ARM; SHIFT,1ST & REV
(C) 		1-33511-078-3 01 1 9101-0203 ● ● ● ● ● ●
1 ARM; SHIFT,1ST & REV
(A) 		1-33511-082-0 01 1 9101- ●
1 ARM; SHIFT,1ST & REV
(B) 		1-33511-138-1 01 1 9101- ●
2 ROD; SHIFT,1ST & REV
(C) 		1-33531-318-2 01 1 0204- ● ● ●
2 ROD; SHIFT,1ST & REV
(C) 		1-33531-318-2 01 1 9101-0203 ● ● ● ● ● ●
2 ROD; SHIFT,1ST & REV
(A) L=165 		1-33531-118-2 01 1 9101- ●
2 ROD; SHIFT,1ST & REV
(B) L=313 		1-33531-119-2 01 1 9101- ●
11 SPRING; RETURN,SHIFT SLEEVE
LEFT HAND DRIVE(MTR6FB) 		9-09941-160-0 01 1 9101-0203 ● ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9101-0203 ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 0204-0212 ●
11 SPRING; RETURN,SHIFT SLEEVE
LEFT HAND DRIVE(MTR6FB) 		9-09941-160-0 01 1 0301- ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 0301- ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-308-0 01 1 0204- ●
15 SPRING; LK,SHIFT SLEEVE
LEFT HAND DRIVE(MTR6FB) (A) 		9-09940-854-0 01 1 0204- ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09940-854-0 01 1 9101-9310 ● ● ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
LEFT HAND DRIVE(MTR6FB) (A) 		9-09940-854-0 01 1 9311-0203 ● ● ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-308-0 01 1 9101-0203 ● ●
15 SPRING; LK,SHIFT SLEEVE
(C) 		1-09580-439-0 01 1 9101- ●
17 BLOCK; SHIFT,1ST & REV
RIGHT HAND DRIVE(MTR5FB) (C) 		1-33511-154-1 01 1 0204- ●
17 BLOCK; SHIFT,1ST & REV
(C) 		1-33511-154-1 01 1 0204- ● ●
17 BLOCK; SHIFT,1ST & REV
LEFT HAND DRIVE(MTR6FB) (C) 		1-33511-160-1 01 1 0204- ●
17 BLOCK; SHIFT,1ST & REV
RIGHT HAND DRIVE(MTR5FB) (C) 		1-33511-154-1 01 1 9101-0203 ● ● ● ● ● ●
17 BLOCK; SHIFT,1ST & REV
LEFT HAND DRIVE(MTR6FB) (C) 		1-33511-160-1 01 1 9101-0203 ● ● ● ● ● ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-104-0 01 1 9101- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-304-2 01 1 9101- ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK
LEFT HAND DRIVE(MTR6FB) 		1-33516-015-1 01 1 0204- ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-015-1 01 1 9101-9310 ● ● ● ● ● ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK
LEFT HAND DRIVE(MTR6FB) 		1-33516-015-1 01 1 9311-0203 ● ● ● ● ● ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-024-0 01 1 9101- ●
20 BALL; DETENT SLEEVE
LEFT HAND DRIVE(MTR6FB) 		9-00097-009-0 01 1 0204- ●
20 BALL; DETENT SLEEVE 9-00097-009-0 01 1 9101-9310 ● ● ● ● ● ●
20 BALL; DETENT SLEEVE
LEFT HAND DRIVE(MTR6FB) 		9-00097-009-0 01 1 9311-0203 ● ● ● ● ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9101- ●
22 CAP; RETURN SPR,SHIFT BLOCK
LEFT HAND DRIVE(MTR6FB) 		9-33516-060-1 01 1 9101-0203 ● ● ● ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9101-0203 ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 0204-0212 ●
22 CAP; RETURN SPR,SHIFT BLOCK
LEFT HAND DRIVE(MTR6FB) 		9-33516-060-1 01 1 0301- ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 0301- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-441-0 01 1 0204- ● ● ●
25 ARM; SHIFT,2ND & 3RD 1-33511-258-2 01 1 9101-9201 ● ● ● ● ● ●
25 ARM; SHIFT,2ND & 3RD 1-33511-441-0 01 1 9202-0203 ● ● ● ● ● ●
25 ARM; SHIFT,2ND & 3RD 1-33511-252-1 01 1 9101- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-245-0 01 1 9101-0203 ● ● ● ● ● ●
26 ROD; SHIFT,2ND & 3RD 1-33531-245-0 01 1 0204- ● ● ●
26 ROD; SHIFT,2ND & 3RD 1-33531-267-0 01 1 9101- ●
28 BALL; INTER LK 9-00097-010-0 04 1 0204- ● ●
28 BALL; INTER LK 9-00097-010-0 06 1 0204- ●
28 BALL; INTER LK 9-00097-010-0 04 1 9101-0203 ● ● ● ●
28 BALL; INTER LK 9-00097-010-0 06 1 9101-0203 ● ●
28 BALL; INTER LK
EXC. CLUTCH SYSTEM MINIPACK(B1Z) 		9-00097-501-0 02 1 9101-9204 ●
28 BALL; INTER LK 9-00097-501-0 02 1 9205-0203 ●
28 BALL; INTER LK
EXC. CLUTCH SYSTEM MINIPACK(B1Z) 		9-00097-501-0 03 1 9101-9204 ●
28 BALL; INTER LK 9-00097-501-0 03 1 9205- ●
30 PIN; INTER LK 1-33534-002-0 01 1 0204- ● ●
30 PIN; INTER LK 1-33534-002-0 02 1 0204- ●
30 PIN; INTER LK 1-33534-002-0 01 1 9101-0203 ● ● ● ●
30 PIN; INTER LK 1-33534-002-0 02 1 9101-0203 ● ●
30 PIN; INTER LK 9-33534-003-0 02 1 9101- ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-218-0 01 1 9101-0203 ● ● ● ● ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-218-0 01 1 0204- ● ● ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-244-1 01 1 9101-0203 ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-121-2 01 1 9101- ●
35 ROD; SHIFT,4TH & 5TH BLOCK 1-33531-243-1 01 1 9101-0203 ●
36 BLOCK; SHIFT,4TH & 5TH 1-33511-220-1 01 1 9101-0203 ●
38 SPRING; DETENT 1-09580-374-0 03 1 0204- ● ●
38 SPRING; DETENT 1-09580-374-0 04 1 0204- ●
38 SPRING; DETENT 1-09580-374-0 03 1 9101-0203 ● ● ● ●
38 SPRING; DETENT 1-09580-374-0 04 1 9101-0203 ● ●
38 SPRING; DETENT 1-09580-193-0 03 1 9101- ●
39 BALL; DETENT 9-00097-013-0 03 1 9101-0203 ● ● ● ● ●
39 BALL; DETENT
RIGHT HAND DRIVE(MTR5FB) 		9-00097-013-0 03 1 0204-0407 ● ●
39 BALL; DETENT
LEFT HAND DRIVE(MTR6FB) FINAL GEAR 39/7 15.5"(W3K) 		9-00097-013-0 03 1 0204-0407 ●
39 BALL; DETENT
FINAL GEAR 39/6 15.5"(W1T) 		9-00097-013-0 03 1 0204-0407 ●
39 BALL; DETENT
RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 39/6 15.5"(W1T) TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-14 LUG(41R) 		9-00097-013-0 03 1 0408- ● ●
39 BALL; DETENT
FINAL GEAR 39/7 15.5"(W3K) TIRE 9.00-20-14 RIB(10T),TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-14 LUG(41R) 		9-00097-013-0 03 1 0408- ●
39 BALL; DETENT
RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/6 15.5"(W1T) TIRE 9.00-20-14 RIB(10T) 		9-00097-013-0 03 1 0408- ●
39 BALL; DETENT
RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 43/7 15.5"(W1R) TIRE 9.00-20-14 RIB(10T) 		9-00097-013-0 03 1 0408- ●
39 BALL; DETENT
FINAL GEAR 39/6 15.5"(W1T) 		9-00097-013-0 03 1 0408- ●
39 BALL; DETENT 9-00097-013-0 04 1 9101-0203 ● ●
39 BALL; DETENT 9-00097-013-0 04 1 0204- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-444-1 01 1 0204- ● ●
49 ARM; SHIFT,4TH & 5TH 1-33511-443-0 01 1 0204- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-190-1 01 1 9101-9201 ● ● ●
49 ARM; SHIFT,4TH & 5TH 1-33511-444-1 01 1 9202-0203 ● ● ●
49 ARM; SHIFT,4TH & 5TH 1-33511-219-1 01 1 9101-0203 ●
49 ARM; SHIFT,4TH & 5TH 1-33511-189-2 01 1 9101-9201 ● ●
49 ARM; SHIFT,4TH & 5TH 1-33511-443-0 01 1 9202-0203 ● ●
49 ARM; SHIFT,4TH & 5TH 1-33511-250-1 01 1 9101- ●
52 BOLT; SHIFT ARM 1-09052-034-2 04 1 0204- ● ●
52 BOLT; SHIFT ARM 1-09052-034-2 06 1 0204- ●
52 BOLT; SHIFT ARM 1-09052-004-2 04 1 9101-9107 ● ● ●
52 BOLT; SHIFT ARM 1-09052-034-2 04 1 9108-0203 ● ● ●
52 BOLT; SHIFT ARM 1-09052-004-2 05 1 9101-9107 ●
52 BOLT; SHIFT ARM 1-09052-034-2 05 1 9108-0203 ●
52 BOLT; SHIFT ARM 1-09052-004-2 06 1 9101-9107 ● ●
52 BOLT; SHIFT ARM 1-09052-034-2 06 1 9108-0203 ● ●
53 WIRE; BOLT
L=200 		9-08351-020-0 04 1 9101-9107 ● ● ●
53 WIRE; BOLT
L=200 		9-08351-020-0 05 1 9101-9107 ●
53 WIRE; BOLT
L=200 		9-08351-020-0 06 1 9101-9107 ● ● ●
53 WIRE; BOLT
L=200 		9-08351-020-0 06 1 9108-9205 ●
228 PINION; 4TH & 5TH SHIFT 1-33539-011-0 01 1 9101-0203 ●
233 PLATE; PINION 1-33539-010-0 01 1 9101-0203 ●
234 RING; SNAP
ID=8 		9-09185-008-0 01 1 9101-0203 ●
çizim 29642
295 292 296 398 296 168 271 292 188 293 298 289 411 167 187 273 270 382 181 289 321 291 330 319 320 292 142 130 271 157 270 142 290 466 317 256 157 274 163 327 328 142 315 319 317 291 292 316 323 225 322 158 218 224 162 157 256 142 142 157 223 171 256 256 390 389 297 285 42
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
42 CAP; QUAD BOX
RIGHT HAND DRIVE(MTR5FB) OD=20 		1-33545-002-1 05 1 0204- ●
42 CAP; QUAD BOX
OD=20 		1-33545-002-1 05 1 0204- ●
42 CAP; QUAD BOX
OD=20 		1-33545-002-1 06 1 0204- ●
42 CAP; QUAD BOX
LEFT HAND DRIVE(MTR6FB) OD=20 		1-33545-002-1 04 1 0204- ●
42 CAP; QUAD BOX
RIGHT HAND DRIVE(MTR5FB) OD=20 		1-33545-002-1 05 1 9101-0203 ● ● ●
42 CAP; QUAD BOX
LEFT HAND DRIVE(MTR6FB) OD=20 		1-33545-002-1 05 1 9101-0203 ● ● ●
42 CAP; QUAD BOX
LEFT HAND DRIVE(MTR6FB) OD=20 		1-33545-002-1 04 1 9101-0203 ● ● ●
42 CAP; QUAD BOX
RIGHT HAND DRIVE(MTR5FB) OD=20 		1-33545-002-1 06 1 9101-9310 ● ● ●
42 CAP; QUAD BOX
RIGHT HAND DRIVE(MTR5FB) OD=20 		1-33545-002-1 06 1 9311-0203 ●
42 CAP; QUAD BOX
OD=20 		1-33545-002-1 06 1 9311-0203 ● ●
130 LEVER; SHIFT,INTERNAL
RIGHT HAND DRIVE(MTR5FB) 		1-33521-062-0 01 1 0204- ●
130 LEVER; SHIFT,INTERNAL 1-33521-062-0 01 1 0204- ● ●
130 LEVER; SHIFT,INTERNAL
LEFT HAND DRIVE(MTR6FB) 		1-33521-082-3 01 1 0204- ●
130 LEVER; SHIFT,INTERNAL
RIGHT HAND DRIVE(MTR5FB) 		1-33521-062-0 01 1 9101-0203 ● ● ● ● ● ●
130 LEVER; SHIFT,INTERNAL
LEFT HAND DRIVE(MTR6FB) 		1-33521-082-3 01 1 9101-0203 ● ● ● ● ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-068-3 01 1 9101- ●
142 BOLT; QUAD BOX
RIGHT HAND DRIVE(MTR5FB) M10X28 FLANGE 		0-28181-028-0 08 1 0204- ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 08 1 0204- ●
142 BOLT; QUAD BOX
M10X32 FLANGE 		0-28181-032-0 01 1 0204- ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-1 01 1 0204- ● ●
142 BOLT; QUAD BOX
M10X34 		1-09040-091-1 01 1 0204- ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 11 1 0204- ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MTR6FB) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0204- ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0204- ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MTR6FB) M10X28 FLANGE 		0-28181-028-0 12 1 0204- ●
142 BOLT; QUAD BOX
M10X35 W/LK WASHER 		0-50051-035-0 01 1 9101-9205 ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 08 1 9206-0203 ● ● ● ●
142 BOLT; QUAD BOX
M10X35 		1-09040-064-1 01 1 9101-9205 ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-1 01 1 9206-0203 ● ● ● ●
142 BOLT; QUAD BOX
RIGHT HAND DRIVE(MTR5FB) M10X32 W/LK&PL WASHER 		0-50151-032-0 08 1 9101-9205 ● ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MTR6FB) M10X28 FLANGE 		0-28181-028-0 04 1 9206-0203 ● ● ● ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MTR6FB) M10X30 W/LK WASHER 		0-50051-030-0 08 1 9101-9205 ● ● ● ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MTR6FB) M10X35 W/LK&PL WASHER 		0-50151-035-0 04 1 9101-9205 ● ● ● ● ● ●
142 BOLT; QUAD BOX
M10X35 W/LK&PL WASHER 		0-50151-035-0 04 1 9101-9205 ●
142 BOLT; QUAD BOX
M10X32 FLANGE 		0-28181-032-0 01 1 9206-0203 ● ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MTR6FB) M10X35 		1-09040-064-1 02 1 9101-9205 ● ● ● ● ● ●
142 BOLT; QUAD BOX
M10X35 		1-09040-064-1 02 1 9101-9205 ●
142 BOLT; QUAD BOX
M10X34 		1-09040-091-1 01 1 9206-0203 ● ● ● ●
142 BOLT; QUAD BOX
M10X30 		1-09040-063-1 01 1 9101-9205 ● ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-1 03 1 9206- ●
142 BOLT; QUAD BOX
RIGHT HAND DRIVE(MTR5FB) M10X32 W/LK&PL WASHER 		0-50151-032-0 11 1 9101-9205 ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MTR6FB) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9206-9310 ● ● ● ● ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MTR6FB) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 9311-0203 ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-1 02 1 9311-0203 ● ●
142 BOLT; QUAD BOX
M10X30 		1-09040-063-1 02 1 9101-9205 ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 11 1 9206-0203 ● ●
142 BOLT; QUAD BOX
LEFT HAND DRIVE(MTR6FB) M10X30 W/LK WASHER 		0-50051-030-0 11 1 9101-9205 ● ●
142 BOLT; QUAD BOX
M10X50 		0-16806-050-0 02 1 9101-9205 ●
142 BOLT; QUAD BOX
M10X45 FLANGE 		0-28181-045-0 02 1 9206- ●
142 BOLT; QUAD BOX
M10X65 		0-16806-065-0 02 1 9101-9205 ●
142 BOLT; QUAD BOX
M10X60 FLANGE 		0-28181-060-0 02 1 9206- ●
142 BOLT; QUAD BOX
M10X32 W/LK&PL WASHER 		0-50151-032-0 03 1 9101-9205 ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 07 1 9206- ●
142 BOLT; QUAD BOX
M10X33 		1-09029-040-3 02 1 9101-9205 ●
142 BOLT; QUAD BOX
M10X20,M10X26 L=56 		1-09049-014-1 02 1 9206- ●
157 BOX; QUAD,TRANS
RIGHT HAND DRIVE(MTR5FB) (A) 		1-33541-310-0 01 1 0204- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-310-0 01 1 0204- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-311-0 01 1 0204- ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MTR6FB) (B) 		1-33541-256-2 01 1 0301- ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MTR6FB) (A) 		1-33541-439-0 01 1 0204- ●
157 BOX; QUAD,TRANS
RIGHT HAND DRIVE(MTR5FB) (A) 		1-33541-310-0 01 1 9101-0203 ● ● ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MTR6FB) (A) 		1-33541-285-2 01 1 9101-9810 ● ● ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MTR6FB) (A) 		1-33541-439-0 01 1 9811-0203 ● ● ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MTR6FB) (B) 		1-33541-256-2 01 1 9101-0203 ● ● ● ● ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-256-2 01 1 9101-0203 ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MTR6FB) (B) 		1-33541-256-2 01 1 0204-0212 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-256-2 01 1 0204-0212 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-256-2 01 1 0301- ●
157 BOX; QUAD,TRANS
RIGHT HAND DRIVE(MTR5FB) (A) 		1-33541-313-0 01 1 9101-0203 ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MTR6FB) (A) 		1-33541-287-1 01 1 9101-9810 ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MTR6FB) (A) 		1-33541-431-0 01 1 9811-0203 ●
157 BOX; QUAD,TRANS
RIGHT HAND DRIVE(MTR5FB) (A) 		1-33541-311-0 01 1 9101-0203 ● ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MTR6FB) (A) 		1-33541-286-1 01 1 9101-9810 ● ●
157 BOX; QUAD,TRANS
LEFT HAND DRIVE(MTR6FB) (A) 		1-33541-430-1 01 1 9811-0203 ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-370-0 01 1 9101- ●
158 CLIP; HARNESS
ID=11 		1-09700-415-0 02 1 0204- ● ● ●
158 CLIP; HARNESS 1-09700-415-0 02 1 9101-0203 ● ● ● ● ● ●
158 CLIP; HARNESS 1-09700-415-0 01 1 9101- ●
162 COVER; SHIFT ROD,QUAD BOX 9-33545-011-1 05 1 9101- ●
163 LEVER; SELECT,INTERNAL
RIGHT HAND DRIVE(MTR5FB) 		1-33522-032-0 01 1 0301- ●
163 LEVER; SELECT,INTERNAL 1-33522-032-0 01 1 0301- ● ●
163 LEVER; SELECT,INTERNAL
RIGHT HAND DRIVE(MTR5FB) 		1-33522-032-0 01 1 9101-0203 ● ● ● ● ● ●
163 LEVER; SELECT,INTERNAL
LEFT HAND DRIVE(MTR6FB) 		1-33522-041-4 01 1 9101-0203 ● ● ● ● ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 9101-0203 ●
163 LEVER; SELECT,INTERNAL
RIGHT HAND DRIVE(MTR5FB) 		1-33522-041-4 01 1 0204- ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0204- ● ●
167 LEVER; SELECT,EXTERNAL
RIGHT HAND DRIVE(MTR5FB) 		1-33521-044-0 01 1 0204- ●
167 LEVER; SELECT,EXTERNAL 1-33521-044-0 01 1 0204- ● ●
167 LEVER; SELECT,EXTERNAL
RIGHT HAND DRIVE(MTR5FB) 		1-33521-044-0 01 1 9101-0203 ● ● ● ● ● ●
167 LEVER; SELECT,EXTERNAL
LEFT HAND DRIVE(MTR6FB) 		1-33521-064-0 01 1 9101-0203 ● ● ● ● ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-0 01 1 9101-0203 ●
167 LEVER; SELECT,EXTERNAL
LEFT HAND DRIVE(MTR6FB) 		1-33521-064-0 01 1 0204- ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-0 01 1 0204- ●
168 WASHER; LK,SELECT LEVER
ID=8.2 		9-09150-508-0 01 1 9101-9205 ● ● ● ● ● ● ●
171 SWITCH; NEUTRAL
EXC. CLUTCH SYSTEM MINIPACK(B1Z) 		1-82440-067-1 01 1 9101-9204 ●
171 SWITCH; NEUTRAL 1-82440-067-1 01 1 9205- ●
181 WASHER; PL,SELECT LEVER
RIGHT HAND DRIVE(MTR5FB) (A) OD=37 		1-09532-007-0 01 1 0204- ●
181 WASHER; PL,SELECT LEVER
(A) OD=37 		1-09532-007-0 01 1 0204- ● ●
181 WASHER; PL,SELECT LEVER
RIGHT HAND DRIVE(MTR5FB) (B) ID=8.4 OD=22 		9-09160-708-0 01 1 0204- ●
181 WASHER; PL,SELECT LEVER
(B) ID=8.4 OD=22 		9-09160-708-0 01 1 0204- ● ●
181 WASHER; PL,SELECT LEVER
RIGHT HAND DRIVE(MTR5FB) (A) OD=37 		1-09532-007-0 01 1 9101-0203 ● ● ● ● ● ●
181 WASHER; PL,SELECT LEVER
RIGHT HAND DRIVE(MTR5FB) (B) ID=8.4 OD=22 		9-09160-708-0 01 1 9101-0203 ● ● ● ● ● ●
181 WASHER; PL,SELECT LEVER
LEFT HAND DRIVE(MTR6FB) (C) OD=40 		1-09532-008-0 01 1 9101-0203 ● ● ● ● ● ●
181 WASHER; PL,SELECT LEVER
(C) OD=40 		1-09532-008-0 01 1 9101-0203 ●
181 WASHER; PL,SELECT LEVER
LEFT HAND DRIVE(MTR6FB) (C) OD=40 		1-09532-008-0 01 1 0204- ●
181 WASHER; PL,SELECT LEVER
(C) OD=40 		1-09532-008-0 01 1 0204- ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9101-0203 ● ● ● ● ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0204-0212 ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0301-0407 ● ● ● ●
187 BOLT; SELECT LEVER
RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 39/6 15.5"(W1T) TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-14 LUG(41R) M8X42 		1-33659-045-0 01 1 0408- ● ● ●
187 BOLT; SELECT LEVER
FINAL GEAR 39/7 15.5"(W3K) TIRE 9.00-20-14 RIB(10T),TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-14 LUG(41R) M8X42 		1-33659-045-0 01 1 0408- ●
187 BOLT; SELECT LEVER
RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/6 15.5"(W1T) TIRE 9.00-20-14 RIB(10T) M8X42 		1-33659-045-0 01 1 0408- ●
187 BOLT; SELECT LEVER
RIGHT HAND DRIVE(MTR5FB) FINAL GEAR 43/7 15.5"(W1R) TIRE 9.00-20-14 RIB(10T) M8X42 		1-33659-045-0 01 1 0408- ● ●
187 BOLT; SELECT LEVER
FINAL GEAR 39/6 15.5"(W1T) M8X42 		1-33659-045-0 01 1 0408- ●
188 NUT; SELECT LEVER
RIGHT HAND DRIVE(MTR5FB) M8 FLANGE 		0-91150-208-0 01 1 0204- ●
188 NUT; SELECT LEVER
M8 FLANGE 		0-91150-208-0 01 1 0204- ● ●
188 NUT; SELECT LEVER
LEFT HAND DRIVE(MTR6FB) M8 FLANGE 		1-09440-049-0 01 1 9305-9804 ● ● ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9305-9804 ●
188 NUT; SELECT LEVER
LEFT HAND DRIVE(MTR6FB) M8 FLANGE 		1-09440-062-1 01 1 9805-0203 ● ● ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9805-0203 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0204-0212 ●
188 NUT; SELECT LEVER
LEFT HAND DRIVE(MTR6FB) M8 FLANGE 		1-09440-062-1 01 1 0301- ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0301- ●
188 NUT; SELECT LEVER
M8 		9-09110-408-0 01 1 9101-9205 ● ● ● ● ● ● ●
188 NUT; SELECT LEVER
M8 		9-09110-408-0 01 1 9205-9205 ● ● ● ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		0-91150-208-0 01 1 9206-9304 ● ● ● ● ● ● ●
188 NUT; SELECT LEVER
RIGHT HAND DRIVE(MTR5FB) M8 FLANGE 		0-91150-208-0 01 1 9305-0203 ● ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX 1-47476-812-1 01 1 0204- ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX 1-47476-812-1 01 1 9208-0203 ● ● ● ● ● ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 9101- ●
224 WASHER; PL,QUAD BOX
ID=10.5 OD=18 		9-09160-510-0 01 1 9101-9205 ● ● ● ● ● ●
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 9101- ●
224 WASHER; PL,QUAD BOX
ID=10.5 		9-09164-510-0 06 1 9101-9205 ●
224 WASHER; PL,QUAD BOX
ID=10.5 		9-09164-510-0 06 1 9205-9205 ●
225 WASHER; LK,QUAD BOX
ID=10.2 		9-09150-510-0 02 1 9101-9205 ● ● ● ● ● ●
225 WASHER; LK,QUAD BOX
ID=10.2 		9-09150-510-0 09 1 9101-9205 ●
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 9101- ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33542-036-2 01 1 0204- ● ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33542-037-1 01 1 0204- ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33542-036-2 01 1 9101-0203 ● ● ● ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). LEFT HAND DRIVE(MTR6FB). (B) 		1-33542-046-0 01 1 9101-9108 ● ● ● ● ● ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33542-046-0 01 1 9101-9108 ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33542-037-1 01 1 9101-0203 ● ●
270 BEARING; NEEDLE,QUAD BOX
LEFT HAND DRIVE(MTR6FB) (A) NTN 		1-09811-006-0 01 1 0204- ●
270 BEARING; NEEDLE,QUAD BOX
LEFT HAND DRIVE(MTR6FB) (A) NSK 		1-09811-057-0 01 1 0204- ●
270 BEARING; NEEDLE,QUAD BOX
LEFT HAND DRIVE(MTR6FB) (B) NTN 		1-09811-260-0 01 1 0204- ●
270 BEARING; NEEDLE,QUAD BOX
LEFT HAND DRIVE(MTR6FB) (A) NTN 		1-09811-006-0 01 1 9101-0203 ● ● ● ● ● ●
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-006-0 01 1 9101-0203 ●
270 BEARING; NEEDLE,QUAD BOX
LEFT HAND DRIVE(MTR6FB) (A) NTN 		1-09811-006-0 01 1 0204-0212 ●
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-006-0 01 1 0204-0212 ●
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-006-0 01 1 0301- ●
270 BEARING; NEEDLE,QUAD BOX
LEFT HAND DRIVE(MTR6FB) (A) NSK 		1-09811-057-0 01 1 9101-0203 ● ● ● ● ● ●
270 BEARING; NEEDLE,QUAD BOX
(A) NSK 		1-09811-057-0 01 1 9101-0203 ●
270 BEARING; NEEDLE,QUAD BOX
LEFT HAND DRIVE(MTR6FB) (A) NSK 		1-09811-057-0 01 1 0204-0212 ●
270 BEARING; NEEDLE,QUAD BOX
(A) NSK 		1-09811-057-0 01 1 0204-0212 ●
270 BEARING; NEEDLE,QUAD BOX
(A) NSK 		1-09811-057-0 01 1 0301- ●
270 BEARING; NEEDLE,QUAD BOX
LEFT HAND DRIVE(MTR6FB) (B) NTN 		1-09811-260-0 01 1 9101-0203 ● ● ● ● ● ●
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-260-0 01 1 9101-0203 ●
270 BEARING; NEEDLE,QUAD BOX
LEFT HAND DRIVE(MTR6FB) (B) NTN 		1-09811-260-0 01 1 0204-0212 ●
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-260-0 01 1 0204-0212 ●
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-260-0 01 1 0301- ●
271 BUSHING; QUAD BOX
(A) ID=25 OD=28 		1-33549-107-0 01 1 9101- ● ● ● ● ● ●
271 BUSHING; QUAD BOX
(B) ID=17 OD=19 		1-33549-108-0 01 1 9101- ● ● ● ● ● ●
273 PIN; SPR,STOPPER
LEFT HAND DRIVE(MTR6FB) 		1-09748-016-0 01 1 9101-0203 ● ● ● ● ● ●
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 9101-0203 ●
273 PIN; SPR,STOPPER
LEFT HAND DRIVE(MTR6FB) 		1-09748-016-0 01 1 0204- ●
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 0204- ●
274 COVER; SHAFT,QUAD BOX
LEFT HAND DRIVE(MTR6FB) 		9-33545-017-1 01 1 9101-0203 ● ● ● ● ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9101-0203 ●
274 COVER; SHAFT,QUAD BOX
LEFT HAND DRIVE(MTR6FB) 		9-33545-017-1 01 1 0204- ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0204- ●
285 BREATHER; AIR,QUAD BOX
RIGHT HAND DRIVE(MTR5FB) 		1-33547-013-0 01 1 0204- ●
285 BREATHER; AIR,QUAD BOX 1-33547-013-0 01 1 0204- ● ●
285 BREATHER; AIR,QUAD BOX
RIGHT HAND DRIVE(MTR5FB) 		1-33547-013-0 01 1 9101-0203 ● ● ● ● ● ●
285 BREATHER; AIR,QUAD BOX
LEFT HAND DRIVE(MTR6FB) 		1-33149-008-0 01 1 9101-0203 ● ● ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9101-0203 ●
285 BREATHER; AIR,QUAD BOX
LEFT HAND DRIVE(MTR6FB) 		1-33149-008-0 01 1 0204- ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0204- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). LEFT HAND DRIVE(MTR6FB) (A) OD=41 		1-09625-334-0 02 1 0301-0307 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). LEFT HAND DRIVE(MTR6FB) (A) OD=41 		1-09625-334-0 01 1 0308- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). LEFT HAND DRIVE(MTR6FB) (B) OD=30 		1-09625-386-0 02 1 0301- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). LEFT HAND DRIVE(MTR6FB). (A) OD=41 		1-09625-334-0 01 1 9101-0203 ● ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9101-0203 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). LEFT HAND DRIVE(MTR6FB). (A) OD=41 		1-09625-334-0 01 1 0204-0212 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0204-0212 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). LEFT HAND DRIVE(MTR6FB). (A) OD=41 		1-09625-647-0 01 1 0301- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0301- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). LEFT HAND DRIVE(MTR6FB). (B) OD=30 		1-09625-386-0 01 1 9101-0203 ● ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9101-0203 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). LEFT HAND DRIVE(MTR6FB). (B) OD=30 		1-09625-386-0 01 1 0204-0212 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0204-0212 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0301- ●
290 WASHER; PL,QUAD BOX
LEFT HAND DRIVE(MTR6FB) ID=10.5 OD=18 		9-09160-510-0 02 1 9101-9205 ● ● ● ● ● ●
290 WASHER; PL,QUAD BOX
ID=10.5 OD=18 		9-09160-510-0 02 1 9101-9205 ●
290 WASHER; PL,QUAD BOX
LEFT HAND DRIVE(MTR6FB) ID=10.5 OD=18 		9-09160-510-0 02 1 9205-9205 ● ● ● ● ● ●
290 WASHER; PL,QUAD BOX
ID=10.5 OD=18 		9-09160-510-0 02 1 9205-9205 ●
291 WASHER; LK,LINK ROD
LEFT HAND DRIVE(MTR6FB) ID=8.2 		9-09150-508-0 02 1 9101-9205 ● ● ● ● ● ●
291 WASHER; LK,LINK ROD
ID=8.2 		9-09150-508-0 02 1 9101-9205 ●
291 WASHER; LK,LINK ROD
ID=8.2 		9-09150-508-0 02 1 9205-9205 ●
292 NUT; LINK ROD
LEFT HAND DRIVE(MTR6FB) M8 		9-09110-408-0 02 1 9101-9205 ● ● ● ● ● ●
292 NUT; LINK ROD
LEFT HAND DRIVE(MTR6FB) M8 		9-09111-408-0 02 1 9101-0203 ● ● ● ● ● ●
292 NUT; LINK ROD
M8 		9-09111-408-0 02 1 9101-0203 ●
292 NUT; LINK ROD
LEFT HAND DRIVE(MTR6FB) M8 		9-09111-408-0 02 1 0204- ●
292 NUT; LINK ROD
M8 		9-09111-408-0 02 1 0204- ●
292 NUT; LINK ROD
M8 		9-09110-408-0 02 1 9101-9102 ●
292 NUT; LINK ROD
LEFT HAND DRIVE(MTR6FB) M8 FLANGE 		0-91150-208-0 02 1 9206-9301 ● ● ● ● ● ●
292 NUT; LINK ROD
M8 FLANGE 		0-91150-208-0 02 1 9206-9301 ●
292 NUT; LINK ROD
LEFT HAND DRIVE(MTR6FB) M8 FLANGE 		1-09440-049-0 02 1 9302-9804 ● ● ● ● ● ●
292 NUT; LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9302-9804 ●
292 NUT; LINK ROD
LEFT HAND DRIVE(MTR6FB) M8 FLANGE 		1-09440-062-1 02 1 9805-0203 ● ● ● ● ● ●
292 NUT; LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9805-0203 ●
292 NUT; LINK ROD
LEFT HAND DRIVE(MTR6FB) M8 FLANGE 		1-09440-062-1 02 1 0204- ●
292 NUT; LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 0204- ●
292 NUT; LINK ROD
M8 		9-09110-408-0 02 1 9103-9205 ●
292 NUT; LINK ROD
M8 		9-09110-408-0 02 1 9205-9205 ●
293 WASHER; PL,TAPER BOLT
LEFT HAND DRIVE(MTR6FB) ID=8.4 OD=22 		9-09160-708-0 01 1 9101-0203 ● ● ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9101-0203 ●
293 WASHER; PL,TAPER BOLT
LEFT HAND DRIVE(MTR6FB) ID=8.4 OD=22 		9-09160-708-0 01 1 0204- ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0204- ●
295 ROD; LINK,RELAY LEVER
LEFT HAND DRIVE(MTR6FB) 		1-33652-275-0 01 1 9101-9402 ● ● ● ● ● ●
295 ROD; LINK,RELAY LEVER 1-33652-275-0 01 1 9101-9402 ●
295 ROD; LINK,RELAY LEVER
LEFT HAND DRIVE(MTR6FB) L=130 		1-09765-262-0 01 1 9403-0203 ● ● ● ● ● ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9403-0203 ●
295 ROD; LINK,RELAY LEVER
LEFT HAND DRIVE(MTR6FB) L=130 		1-09765-262-0 01 1 0204- ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 0204- ●
296 ROD END
LEFT HAND DRIVE(MTR6FB) 		5-09760-018-0 02 1 9101-9402 ● ● ● ● ● ●
296 ROD END 5-09760-018-0 02 1 9101-9402 ●
296 ROD END
LEFT HAND DRIVE(MTR6FB) 		1-09760-038-1 02 1 9403-0203 ● ● ● ● ● ●
296 ROD END 1-09760-038-1 02 1 9403-0203 ●
296 ROD END
LEFT HAND DRIVE(MTR6FB) L=48 		1-09760-038-1 02 1 0204-0309 ●
296 ROD END
L=48 		1-09760-038-1 02 1 0204-0309 ●
296 ROD END
LEFT HAND DRIVE(MTR6FB) L=45.5 		1-09760-118-1 02 1 0310- ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0310- ●
297 STOPPER; SELECT 1-33537-012-0 01 1 9101- ●
298 SHAFT; SHIFT LEVER
RIGHT HAND DRIVE(MTR5FB) 		1-33522-106-0 01 1 0204- ●
298 SHAFT; SHIFT LEVER 1-33522-106-0 01 1 0204- ● ●
298 SHAFT; SHIFT LEVER
LEFT HAND DRIVE(MTR6FB) 		1-33522-098-0 01 1 0204- ●
298 SHAFT; SHIFT LEVER
RIGHT HAND DRIVE(MTR5FB) 		1-33522-106-0 01 1 9101-0203 ● ● ● ● ● ●
298 SHAFT; SHIFT LEVER
LEFT HAND DRIVE(MTR6FB) 		1-33522-098-0 01 1 9101-0203 ● ● ● ● ● ●
298 SHAFT; SHIFT LEVER 1-33522-058-1 01 1 9101- ●
315 LEVER; SELECT
LEFT HAND DRIVE(MTR6FB) 		1-33651-196-0 01 1 9101-0203 ● ● ● ● ● ●
315 LEVER; SELECT 1-33651-196-0 01 1 9101-0203 ●
315 LEVER; SELECT
LEFT HAND DRIVE(MTR6FB) 		1-33651-196-0 01 1 0204- ●
315 LEVER; SELECT 1-33651-196-0 01 1 0204- ●
316 WASHER; PL,LEVER
LEFT HAND DRIVE(MTR6FB) 		1-09503-028-1 01 1 9101-0203 ● ● ● ● ● ●
316 WASHER; PL,LEVER 1-09503-028-1 01 1 9101-0203 ●
316 WASHER; PL,LEVER
LEFT HAND DRIVE(MTR6FB) 		1-09503-028-1 01 1 0204- ●
316 WASHER; PL,LEVER 1-09503-028-1 01 1 0204- ●
317 BUSHING; LEVER
LEFT HAND DRIVE(MTR6FB) 		1-09330-003-0 02 1 9101-0203 ● ● ● ● ● ●
317 BUSHING; LEVER 1-09330-003-0 02 1 9101-0203 ●
317 BUSHING; LEVER
LEFT HAND DRIVE(MTR6FB) 		1-09330-003-0 02 1 0204- ●
317 BUSHING; LEVER 1-09330-003-0 02 1 0204- ●
319 BRACKET; SELECT LEVER
LEFT HAND DRIVE(MTR6FB) (A) 		1-33657-157-0 01 1 9101-0203 ● ● ● ● ● ●
319 BRACKET; SELECT LEVER
(A) 		1-33657-157-0 01 1 9101-0203 ●
319 BRACKET; SELECT LEVER
LEFT HAND DRIVE(MTR6FB) (A) 		1-33657-157-0 01 1 0204- ●
319 BRACKET; SELECT LEVER
(A) 		1-33657-157-0 01 1 0204- ●
319 BRACKET; SELECT LEVER
LEFT HAND DRIVE(MTR6FB) (B) 		1-33657-161-0 01 1 9101-0203 ● ● ● ● ● ●
319 BRACKET; SELECT LEVER
(B) 		1-33657-161-0 01 1 9101-0203 ●
319 BRACKET; SELECT LEVER
LEFT HAND DRIVE(MTR6FB) (B) 		1-33657-161-0 01 1 0204- ●
319 BRACKET; SELECT LEVER
(B) 		1-33657-161-0 01 1 0204- ●
320 SHAFT; LEVER
LEFT HAND DRIVE(MTR6FB) 		1-33619-118-0 01 1 9101-0203 ● ● ● ● ● ●
320 SHAFT; LEVER 1-33619-118-0 01 1 9101-0203 ●
320 SHAFT; LEVER
LEFT HAND DRIVE(MTR6FB) 		1-33619-118-0 01 1 0204- ●
320 SHAFT; LEVER 1-33619-118-0 01 1 0204- ●
321 BOLT; BRKT,RELAY LEVER
LEFT HAND DRIVE(MTR6FB) M10X80 		0-10806-080-0 02 1 9101-0203 ● ● ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9101-0203 ●
321 BOLT; BRKT,RELAY LEVER
LEFT HAND DRIVE(MTR6FB) M10X80 		0-10806-080-0 02 1 0204- ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 0204- ●
322 WASHER; LK
LEFT HAND DRIVE(MTR6FB) ID=10.2 		9-09150-510-0 01 1 9101-0203 ● ● ● ● ● ●
322 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9101-0203 ●
322 WASHER; LK
LEFT HAND DRIVE(MTR6FB) ID=10.2 		9-09150-510-0 01 1 0204- ●
322 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 0204- ●
323 NUT; LK,SELECT LEVER
LEFT HAND DRIVE(MTR6FB) M10 		9-09110-410-0 01 1 9101-0203 ● ● ● ● ● ●
323 NUT; LK,SELECT LEVER
M10 		9-09110-410-0 01 1 9101-0203 ●
323 NUT; LK,SELECT LEVER
LEFT HAND DRIVE(MTR6FB) M10 		9-09110-410-0 01 1 0204- ●
323 NUT; LK,SELECT LEVER
M10 		9-09110-410-0 01 1 0204- ●
327 NUT; BRKT,RELAY LEVER
LEFT HAND DRIVE(MTR6FB) M10 		9-09110-410-0 03 1 9101-9205 ● ● ● ● ● ●
327 NUT; BRKT,RELAY LEVER
M10 		9-09110-410-0 03 1 9101-9205 ●
327 NUT; BRKT,RELAY LEVER
LEFT HAND DRIVE(MTR6FB) M10 		9-09110-410-0 01 1 9206-0203 ● ● ● ● ● ●
327 NUT; BRKT,RELAY LEVER
M10 		9-09110-410-0 01 1 9206-0203 ●
327 NUT; BRKT,RELAY LEVER
LEFT HAND DRIVE(MTR6FB) M10 		9-09110-410-0 01 1 0204- ●
327 NUT; BRKT,RELAY LEVER
M10 		9-09110-410-0 01 1 0204- ●
327 NUT; BRKT,RELAY LEVER
LEFT HAND DRIVE(MTR6FB) M10 FLANGE 		0-91150-210-0 02 1 9206-0203 ● ● ● ● ● ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-210-0 02 1 9206-0203 ●
327 NUT; BRKT,RELAY LEVER
LEFT HAND DRIVE(MTR6FB) M10 FLANGE 		0-91150-210-0 02 1 0204- ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-210-0 02 1 0204- ●
328 WASHER; LK,BRKT
LEFT HAND DRIVE(MTR6FB) ID=10.2 		9-09150-510-0 02 1 9101-9205 ● ● ● ● ● ●
328 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 9101-9205 ●
330 NIPPLE; GREASE
LEFT HAND DRIVE(MTR6FB) 		1-09380-003-0 01 1 9101-0203 ● ● ● ● ● ●
330 NIPPLE; GREASE 1-09380-003-0 01 1 9101-0203 ●
330 NIPPLE; GREASE
LEFT HAND DRIVE(MTR6FB) 		1-09380-003-0 01 1 0204- ●
330 NIPPLE; GREASE 1-09380-003-0 01 1 0204- ●
382 BRACKET; PARKING BRK CONT CABLE 1-46147-137-1 01 1 0204- ● ●
382 BRACKET; PARKING BRK CONT CABLE 1-46147-086-1 01 1 9101-9104 ● ● ● ●
382 BRACKET; PARKING BRK CONT CABLE 1-46147-137-1 01 1 9105-0203 ● ● ● ●
389 PLUG; QUAD BOX,NEUTRAL SW
M14X9 		9-99202-314-0 01 1 0204- ● ● ●
389 PLUG; QUAD BOX,NEUTRAL SW
M14X9 		9-99202-314-0 01 1 9101-0203 ● ● ● ● ● ●
389 PLUG; QUAD BOX,NEUTRAL SW
EXC. CLUTCH SYSTEM MINIPACK(B1Z) M18X12 		9-99202-318-0 01 1 9101-9204 ●
389 PLUG; QUAD BOX,NEUTRAL SW
M18X12 		9-99202-318-0 01 1 9205-0203 ●
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 0204- ● ● ●
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14 		9-09920-393-0 01 1 9101-9208 ● ● ● ● ● ●
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 9209-0203 ● ● ● ● ● ●
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). EXC. CLUTCH SYSTEM MINIPACK(B1Z) ID=18 		9-09571-418-0 01 1 9101-9204 ●
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). ID=18 		9-09571-418-0 01 1 9205-0203 ●
398 SWITCH; REV LAMP 1-82440-050-1 01 1 0204- ● ● ●
398 SWITCH; REV LAMP 1-82440-050-1 01 1 9101-0203 ● ● ● ● ● ●
398 SWITCH; REV LAMP 1-82440-054-0 01 1 9101- ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 0204- ● ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14 		9-09920-393-0 01 1 9101-9208 ● ● ● ● ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 9209-0203 ● ● ● ● ● ●
466 WASHER; CUP,LEVER
LEFT HAND DRIVE(MTR6FB) ID=16.5 OD=27.8 H=3.5 		1-09503-047-0 01 1 9101-0203 ● ● ● ● ● ●
466 WASHER; CUP,LEVER
ID=16.5 OD=27.8 H=3.5 		1-09503-047-0 01 1 9101-0203 ●
466 WASHER; CUP,LEVER
ID=16.5 OD=27.8 H=3.5 		1-09503-047-0 01 1 0204-0212 ●
466 WASHER; CUP,LEVER
LEFT HAND DRIVE(MTR6FB) ID=16.5 OD=27.8 H=3.5 		1-09503-047-0 01 1 0301- ●
466 WASHER; CUP,LEVER
ID=16.5 OD=27.8 H=3.5 		1-09503-047-0 01 1 0301- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
