◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50815 - NPR/NQR-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-02 - PROPELLER SHAFT GUARD ▶
4-02 — PROPELLER SHAFT GUARD (#22048) — 36 parça

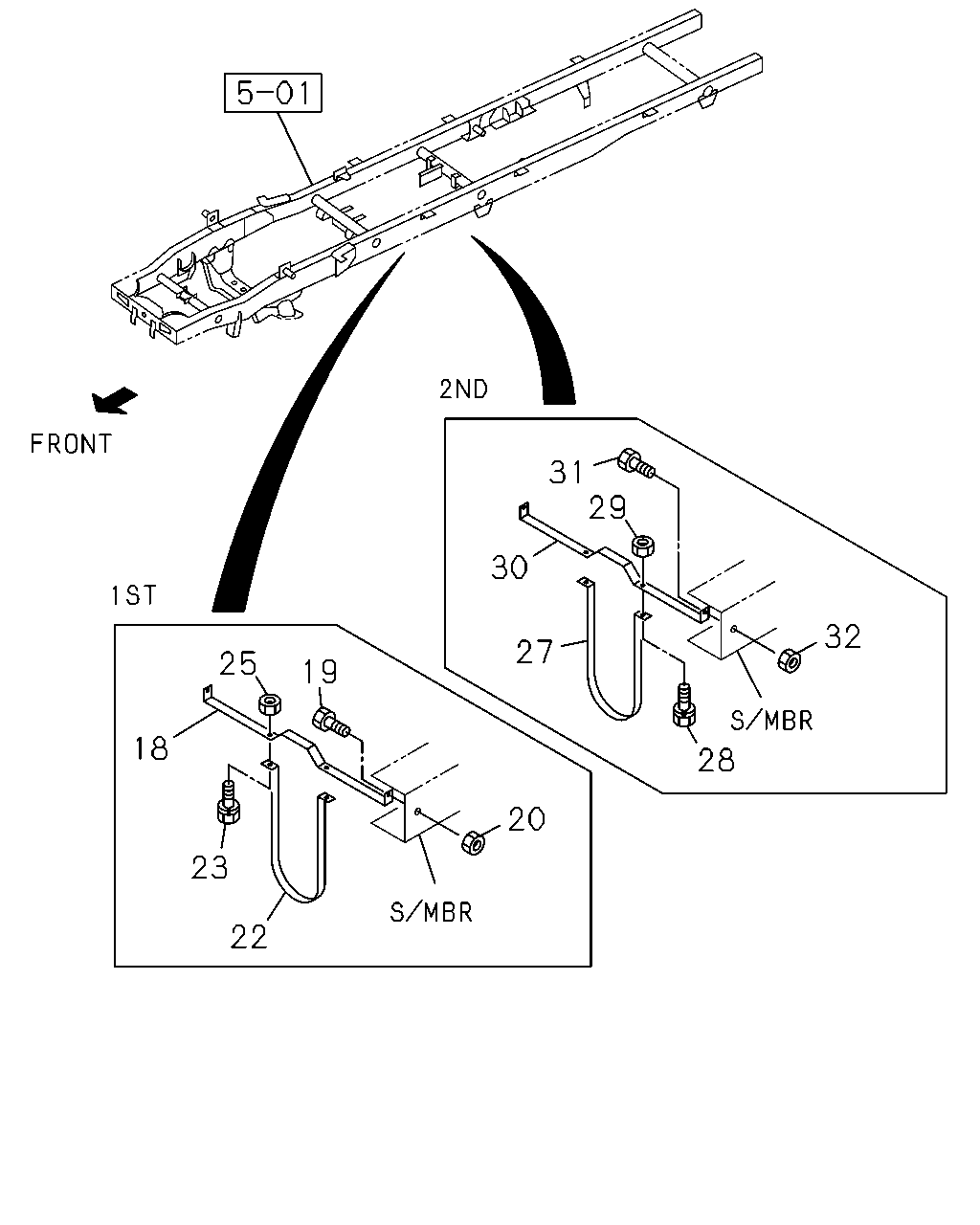

çizim 9581
31 29 30 32 27 25 19 18 28 20 23 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E
18 05.546 BRACKET; PROP SHAFT GUARD
GUARD PROP SHAFT<7NK> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97081-627-0 01 1 9811- ● ●
18 05.546 BRACKET; PROP SHAFT GUARD
FRAME STRAIGHT TYPE<7KJ> GUARD PROP SHAFT<7NK> 		8-97109-379-1 02 1 9811-0004 ● ● ●
18 05.546 BRACKET; PROP SHAFT GUARD
FRAME STRAIGHT TYPE<7KJ> GUARD PROP SHAFT<7NK> 		8-97109-379-1 02 1 0005- ● ● ● ●
18 05.546 BRACKET; PROP SHAFT GUARD
GUARD PROP SHAFT<7NK> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94406-963-2 01 1 9811- ●
19 05.546 BOLT; BRKT,PROP SHAFT GUARD
GUARD PROP SHAFT<7NK> EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 9811-0004 ● ●
19 05.546 BOLT; BRKT,PROP SHAFT GUARD
GUARD PROP SHAFT<7NK> 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0005- ● ●
19 05.546 BOLT; BRKT,PROP SHAFT GUARD
FRAME STRAIGHT TYPE<7KJ> GUARD PROP SHAFT<7NK> 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0005- ● ●
19 05.546 BOLT; BRKT,PROP SHAFT GUARD
FRAME STRAIGHT TYPE<7KJ> GUARD PROP SHAFT<7NK> 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 9811-0004 ● ● ●
19 05.546 BOLT; BRKT,PROP SHAFT GUARD
GUARD PROP SHAFT<7NK> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 02 1 9811- ●
20 05.546 NUT; BRKT,PROP SHAFT GUARD
GUARD PROP SHAFT<7NK> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 02 1 9811-0004 ● ● ●
20 05.546 NUT; BRKT,PROP SHAFT GUARD
GUARD PROP SHAFT<7NK> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0005- ● ● ●
20 05.546 NUT; BRKT,PROP SHAFT GUARD
FRAME STRAIGHT TYPE<7KJ> GUARD PROP SHAFT<7NK> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0005- ●
20 05.546 NUT; BRKT,PROP SHAFT GUARD
FRAME STRAIGHT TYPE<7KJ> GUARD PROP SHAFT<7NK> 04.785 M10 FLANGE 		0-91150-110-0 04 1 9811-0004 ● ● ●
22 05.546 GUARD; PROP SHAFT
GUARD PROP SHAFT<7NK> EXC. FRAME STRAIGHT TYPE<7KJ> L=227 		8-94116-995-1 01 1 9811- ●
22 05.546 GUARD; PROP SHAFT
GUARD PROP SHAFT<7NK> EXC. FRAME STRAIGHT TYPE<7KJ> L=170 		8-94116-994-1 01 1 9811- ● ●
22 05.546 GUARD; PROP SHAFT
FRAME STRAIGHT TYPE<7KJ> GUARD PROP SHAFT<7NK> L=160 		5-53493-064-1 01 1 9811-0004 ● ● ●
22 05.546 GUARD; PROP SHAFT
FRAME STRAIGHT TYPE<7KJ> GUARD PROP SHAFT<7NK> L=160 		5-53493-064-1 01 1 0005- ● ● ● ●
23 05.546 BOLT; GUARD
GUARD PROP SHAFT<7NK> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811-9812 ●
23 05.546 BOLT; GUARD
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811-9812 ● ● ●
23 05.546 BOLT; GUARD
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811-9812 ●
23 05.546 BOLT; GUARD
GUARD PROP SHAFT<7NK> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9901- ● ● ● ●
25 05.546 NUT; GUARD
GUARD PROP SHAFT<7NK> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-9812 ●
25 05.546 NUT; GUARD
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-9812 ● ● ●
25 05.546 NUT; GUARD
07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-9812 ●
25 05.546 NUT; GUARD
GUARD PROP SHAFT<7NK> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9901- ● ● ● ●
27 05.546 GUARD; PROP SHAFT,2ND
GUARD PROP SHAFT<7NK> EXC. FRAME STRAIGHT TYPE<7KJ> L=227 		8-94116-995-1 01 1 9811- ● ●
27 05.546 GUARD; PROP SHAFT,2ND
FRAME STRAIGHT TYPE<7KJ> GUARD PROP SHAFT<7NK> L=240 		8-97081-592-0 01 1 9811- ● ● ●
28 05.546 BOLT; GUARD,PROP SHAFT,2ND
GUARD PROP SHAFT<7NK> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811- ● ● ●
29 05.546 NUT; GUARD,PROP SHAFT,2ND
GUARD PROP SHAFT<7NK> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811- ● ● ●
30 05.546 BRACKET; PROP SHAFT,2ND
GUARD PROP SHAFT<7NK> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97081-627-0 01 1 9811- ● ●
31 05.546 BOLT; BRKT,PROP SHAFT,2ND,GUARD
GUARD PROP SHAFT<7NK> EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 9811-0004 ● ●
31 05.546 BOLT; BRKT,PROP SHAFT,2ND,GUARD
GUARD PROP SHAFT<7NK> 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0005- ● ●
31 05.546 BOLT; BRKT,PROP SHAFT,2ND,GUARD
FRAME STRAIGHT TYPE<7KJ> GUARD PROP SHAFT<7NK> 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0005- ●
32 05.546 NUT; BRKT,PROP SHAFT,2ND,GUARD
GUARD PROP SHAFT<7NK> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 02 1 9811-0004 ● ●
32 05.546 NUT; BRKT,PROP SHAFT,2ND,GUARD
GUARD PROP SHAFT<7NK> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0005- ● ●
32 05.546 NUT; BRKT,PROP SHAFT,2ND,GUARD
FRAME STRAIGHT TYPE<7KJ> GUARD PROP SHAFT<7NK> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
