3-58 — FIXING PARTS; OIL PIPING (#22045) — 232 parça
çizim 7498
20 20 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
19 04.686 BRACKET; OIL PIPE
FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97171-018-3 01 1 9811-0105 ● ● ● ●
19 04.686 BRACKET; OIL PIPE
FLOOR REMOTE SHIFT<M11> (A) 		8-97171-018-3 01 1 9811-0105 ●
19 04.686 BRACKET; OIL PIPE
FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97171-018-3 01 1 0106- ● ● ●
19 04.686 BRACKET; OIL PIPE
FLOOR REMOTE SHIFT<M11> (A) 		8-97171-018-3 01 1 0106- ●
19 04.686 BRACKET; OIL PIPE
FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97178-320-1 01 1 9811- ● ● ● ● ●
19 04.686 BRACKET; OIL PIPE
A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97174-755-3 01 1 0009- ● ● ●
19 04.686 BRACKET; OIL PIPE
A/T 4 SPEED-AISIN(RNJ) (A) 		8-97174-755-3 01 1 0009- ●
19 04.686 BRACKET; OIL PIPE
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> (B) 		8-97179-122-1 01 1 9811- ● ● ●
19 04.686 BRACKET; OIL PIPE
A/T 4 SPEED-AISIN(RNJ) (A) 		8-97178-321-1 01 1 9811-0006 ● ● ● ●
19 04.686 BRACKET; OIL PIPE
A/T 4 SPEED-AISIN(RNJ) (A) 		8-97178-321-1 01 1 0007-0008 ● ● ● ● ●
19 04.686 BRACKET; OIL PIPE
A/T 4 SPEED-AISIN(RNJ) EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97178-321-1 01 1 0009- ● ● ●
19 04.686 BRACKET; OIL PIPE
A/T 4 SPEED-AISIN(RNJ) (A) 		8-97178-321-1 01 1 0009- ●
20 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (I) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9811-0202 ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (I) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0203- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 9811-0105 ● ● ● ●
20 04.686 CLIP; BRK PIPE
CHINA EQUIPMENT(YT2) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 9811-0105 ● ●
20 04.686 CLIP; BRK PIPE
4JB1 ENG(RLF) EXC. CHINA EQUIPMENT(YT2),FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 9811-0105 ●
20 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0106-0202 ● ● ● ●
20 04.686 CLIP; BRK PIPE
CHINA EQUIPMENT(YT2) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0106-0202 ● ●
20 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0203- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
CHINA EQUIPMENT(YT2) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0203- ● ●
20 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 9811-0202 ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. CHINA EQUIPMENT(YT2),FRAME STRAIGHT TYPE<7KJ> (D) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 0203- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=6.5 & 4.8X2 		8-94424-234-0 02 1 9811-0202 ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. CHINA EQUIPMENT(YT2),FRAME STRAIGHT TYPE<7KJ> (E) ID=6.5 & 4.8X2 		8-94424-234-0 02 1 0203- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (F) ID=4.8X2 		8-94455-816-0 01 1 9811-0202 ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. CHINA EQUIPMENT(YT2),FRAME STRAIGHT TYPE<7KJ> (F) ID=4.8X2 		8-94455-816-0 01 1 0203- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(I) ID=6.4 & 4.8X2 		8-94146-043-0 03 1 9811- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. HYDRO MASTER<7LT> (I) ID=6.4 & 4.8X2 		8-94146-043-0 03 1 9811- ● ● ●
20 04.686 CLIP; BRK PIPE
04.868 (H) ID=4.6X2 		8-94241-454-0 01 1 9811- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. HYDRO MASTER<7LT> 04.868 (H) ID=4.6X2 		8-94241-454-0 01 1 9811- ● ● ●
20 04.686 CLIP; BRK PIPE
(G) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 9811- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. HYDRO MASTER<7LT> (G) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 9811- ● ● ●
20 04.686 CLIP; BRK PIPE
4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9905-0105 ●
20 04.686 CLIP; BRK PIPE
CHINA EQUIPMENT(YT2) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 		8-94131-710-2 02 1 9811-0105 ● ●
20 04.686 CLIP; BRK PIPE
4JB1 ENG(RLF) EXC. CHINA EQUIPMENT(YT2),FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 		8-94131-710-2 02 1 9811-0105 ●
20 04.686 CLIP; BRK PIPE
CHINA EQUIPMENT(YT2) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 		8-94131-710-2 02 1 0106- ● ●
20 04.686 CLIP; BRK PIPE
CHINA EQUIPMENT(YT2) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2 		8-94316-410-0 01 1 9811-0105 ● ●
20 04.686 CLIP; BRK PIPE
4JB1 ENG(RLF) EXC. CHINA EQUIPMENT(YT2),FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2 		8-94316-410-0 01 1 9811-0105 ●
20 04.686 CLIP; BRK PIPE
CHINA EQUIPMENT(YT2) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2 		8-94316-410-0 01 1 0106- ● ●
20 04.686 CLIP; BRK PIPE
HYDRO MASTER<7LT> 03.162 (K) 		8-94110-461-1 01 1 9811- ● ● ●
20 04.686 CLIP; BRK PIPE
HYDRO MASTER<7LT> 03.162 (J) 		8-97026-150-0 02 1 9811- ● ● ●

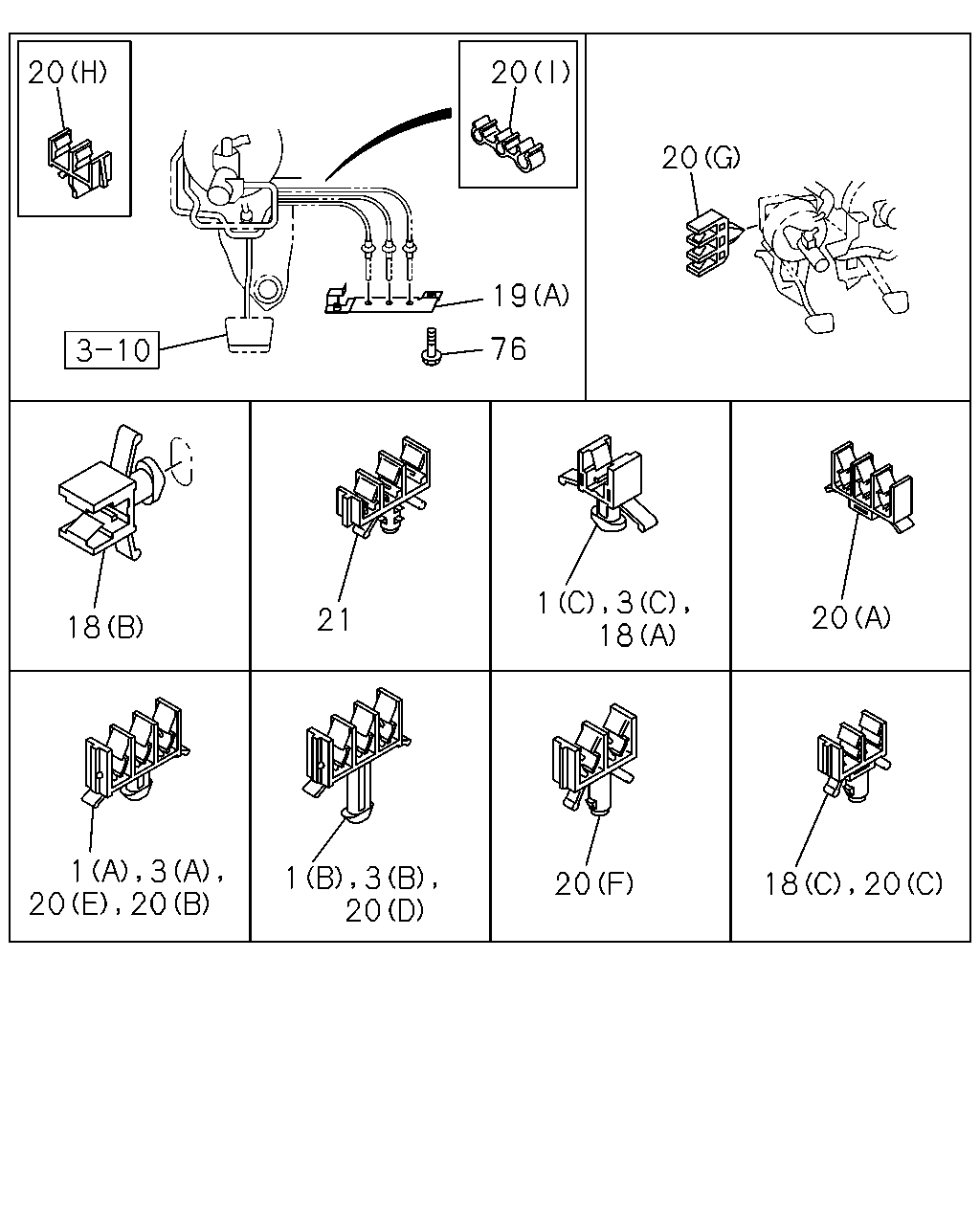

çizim 48176
20 20 20 19 76 18 20 21 18 20 20 1 3 18 20 1 3 20 20 1 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.686 CLIP; OIL PIPE TO BODY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 9811-0202 ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. CHINA EQUIPMENT(YT2),FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 0203- ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8 H=32.5 		8-94405-141-0 01 1 9811-0202 ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. CHINA EQUIPMENT(YT2),FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8 H=32.5 		8-94405-141-0 01 1 0203- ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
CHINA EQUIPMENT(YT2) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 9811-0105 ● ●
1 04.686 CLIP; OIL PIPE TO BODY
4JB1 ENG(RLF) EXC. CHINA EQUIPMENT(YT2),FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 9811-0105 ●
1 04.686 CLIP; OIL PIPE TO BODY
CHINA EQUIPMENT(YT2) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0106- ● ●
1 04.686 CLIP; OIL PIPE TO BODY
CHINA EQUIPMENT(YT2) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8 H=26 		8-94249-685-0 01 1 9811-0105 ● ●
1 04.686 CLIP; OIL PIPE TO BODY
4JB1 ENG(RLF) EXC. CHINA EQUIPMENT(YT2),FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8 H=26 		8-94249-685-0 01 1 9811-0105 ●
1 04.686 CLIP; OIL PIPE TO BODY
CHINA EQUIPMENT(YT2) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8 H=26 		8-94249-685-0 01 1 0106- ● ●
3 04.685 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 9811-0202 ● ● ● ●
3 04.685 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 9811-0202 ● ●
3 04.685 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 0203- ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 0203- ● ●
3 04.685 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> 04.686 (C) ID=4.8 H=26 		8-94249-685-0 02 1 9811-0202 ● ● ● ●
3 04.685 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> 04.686 (C) ID=4.8 H=26 		8-94249-685-0 02 1 0203- ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER<7QQ> 04.047 (D) ID=13 & 13 L=16 & 16 		1-09700-072-0 01 1 9811-0105 ● ● ● ●
3 04.685 CLIP; BRK PIPE
04.047 (D) ID=13 & 13 L=16 & 16 		1-09700-072-0 01 1 9811-0105 ●
3 04.685 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER<7QQ> 04.047 (D) ID=13 & 13 L=16 & 16 		1-09700-072-0 01 1 0106- ● ● ●
3 04.685 CLIP; BRK PIPE
04.047 (D) ID=13 & 13 L=16 & 16 		1-09700-072-0 01 1 0106- ●
3 04.685 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 03 1 9811-0202 ●
3 04.685 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 03 1 0203- ● ●
3 04.685 CLIP; BRK PIPE
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 9811-0105 ●
3 04.685 CLIP; BRK PIPE
CHINA EQUIPMENT(YT2) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 9811-0105 ●
3 04.685 CLIP; BRK PIPE
CHINA EQUIPMENT(YT2) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0106- ●
3 04.685 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 9811-0202 ● ●
3 04.685 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> EXC. CHINA EQUIPMENT(YT2),FRAME STRAIGHT TYPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 9811-0202 ●
3 04.685 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 0203- ● ●
3 04.685 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> EXC. CHINA EQUIPMENT(YT2),FRAME STRAIGHT TYPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 0203- ●
3 04.685 CLIP; BRK PIPE
4HF1 ENG(RLS),4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 0203- ●
18 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2 		8-94316-410-0 01 1 9811-0202 ● ● ● ●
18 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2 		8-94316-410-0 01 1 9811-0202 ●
18 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2 		8-94316-410-0 01 1 0203- ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2 		8-94316-410-0 01 1 0203- ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5 		8-94405-141-0 01 1 9811-0202 ● ● ● ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5 		8-94405-141-0 01 1 9811-0202 ● ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHINA EQUIPMENT(YT2),BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5 		8-94405-141-0 01 1 9811-0202 ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5 		8-94405-141-0 01 1 0203- ● ● ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5 		8-94405-141-0 01 1 0203- ● ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHINA EQUIPMENT(YT2),BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5 		8-94405-141-0 01 1 0203- ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5 		8-94405-141-0 01 1 0203- ●
18 04.686 CLIP; BRK PIPE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5 		8-94405-141-0 01 1 0203- ●
18 04.686 CLIP; BRK PIPE
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5 		8-94405-141-0 01 1 0203- ●
18 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=26 		8-94249-685-0 02 1 9811- ● ●
18 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=26 		8-94249-685-0 03 1 9811-0202 ●
18 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=26 		8-94249-685-0 03 1 0203- ● ●
18 04.686 CLIP; BRK PIPE
4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=26 		8-94249-685-0 01 1 9811-0105 ●
18 04.686 CLIP; BRK PIPE
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=26 		8-94249-685-0 01 1 9811-0105 ●
18 04.686 CLIP; BRK PIPE
CHINA EQUIPMENT(YT2) EXC. BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=26 		8-94249-685-0 01 1 9811-0105 ●
18 04.686 CLIP; BRK PIPE
CHINA EQUIPMENT(YT2) EXC. BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=26 		8-94249-685-0 01 1 0106- ●
19 04.686 BRACKET; OIL PIPE
FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97171-018-3 01 1 9811-0105 ● ● ● ●
19 04.686 BRACKET; OIL PIPE
FLOOR REMOTE SHIFT<M11> (A) 		8-97171-018-3 01 1 9811-0105 ●
19 04.686 BRACKET; OIL PIPE
FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97171-018-3 01 1 0106- ● ● ●
19 04.686 BRACKET; OIL PIPE
FLOOR REMOTE SHIFT<M11> (A) 		8-97171-018-3 01 1 0106- ●
19 04.686 BRACKET; OIL PIPE
FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97178-320-1 01 1 9811- ● ● ● ● ●
19 04.686 BRACKET; OIL PIPE
A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97174-755-3 01 1 0009- ● ● ●
19 04.686 BRACKET; OIL PIPE
A/T 4 SPEED-AISIN(RNJ) (A) 		8-97174-755-3 01 1 0009- ●
19 04.686 BRACKET; OIL PIPE
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> (B) 		8-97179-122-1 01 1 9811- ● ● ●
19 04.686 BRACKET; OIL PIPE
A/T 4 SPEED-AISIN(RNJ) (A) 		8-97178-321-1 01 1 9811-0006 ● ● ● ●
19 04.686 BRACKET; OIL PIPE
A/T 4 SPEED-AISIN(RNJ) (A) 		8-97178-321-1 01 1 0007-0008 ● ● ● ● ●
19 04.686 BRACKET; OIL PIPE
A/T 4 SPEED-AISIN(RNJ) EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97178-321-1 01 1 0009- ● ● ●
19 04.686 BRACKET; OIL PIPE
A/T 4 SPEED-AISIN(RNJ) (A) 		8-97178-321-1 01 1 0009- ●
20 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (I) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9811-0202 ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (I) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0203- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 9811-0105 ● ● ● ●
20 04.686 CLIP; BRK PIPE
CHINA EQUIPMENT(YT2) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 9811-0105 ● ●
20 04.686 CLIP; BRK PIPE
4JB1 ENG(RLF) EXC. CHINA EQUIPMENT(YT2),FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 9811-0105 ●
20 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0106-0202 ● ● ● ●
20 04.686 CLIP; BRK PIPE
CHINA EQUIPMENT(YT2) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0106-0202 ● ●
20 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0203- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
CHINA EQUIPMENT(YT2) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0203- ● ●
20 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 9811-0202 ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. CHINA EQUIPMENT(YT2),FRAME STRAIGHT TYPE<7KJ> (D) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 0203- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=6.5 & 4.8X2 		8-94424-234-0 02 1 9811-0202 ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. CHINA EQUIPMENT(YT2),FRAME STRAIGHT TYPE<7KJ> (E) ID=6.5 & 4.8X2 		8-94424-234-0 02 1 0203- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (F) ID=4.8X2 		8-94455-816-0 01 1 9811-0202 ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. CHINA EQUIPMENT(YT2),FRAME STRAIGHT TYPE<7KJ> (F) ID=4.8X2 		8-94455-816-0 01 1 0203- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(I) ID=6.4 & 4.8X2 		8-94146-043-0 03 1 9811- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. HYDRO MASTER<7LT> (I) ID=6.4 & 4.8X2 		8-94146-043-0 03 1 9811- ● ● ●
20 04.686 CLIP; BRK PIPE
04.868 (H) ID=4.6X2 		8-94241-454-0 01 1 9811- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. HYDRO MASTER<7LT> 04.868 (H) ID=4.6X2 		8-94241-454-0 01 1 9811- ● ● ●
20 04.686 CLIP; BRK PIPE
(G) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 9811- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. HYDRO MASTER<7LT> (G) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 9811- ● ● ●
20 04.686 CLIP; BRK PIPE
4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9905-0105 ●
20 04.686 CLIP; BRK PIPE
CHINA EQUIPMENT(YT2) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 		8-94131-710-2 02 1 9811-0105 ● ●
20 04.686 CLIP; BRK PIPE
4JB1 ENG(RLF) EXC. CHINA EQUIPMENT(YT2),FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 		8-94131-710-2 02 1 9811-0105 ●
20 04.686 CLIP; BRK PIPE
CHINA EQUIPMENT(YT2) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 		8-94131-710-2 02 1 0106- ● ●
20 04.686 CLIP; BRK PIPE
CHINA EQUIPMENT(YT2) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2 		8-94316-410-0 01 1 9811-0105 ● ●
20 04.686 CLIP; BRK PIPE
4JB1 ENG(RLF) EXC. CHINA EQUIPMENT(YT2),FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2 		8-94316-410-0 01 1 9811-0105 ●
20 04.686 CLIP; BRK PIPE
CHINA EQUIPMENT(YT2) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2 		8-94316-410-0 01 1 0106- ● ●
20 04.686 CLIP; BRK PIPE
HYDRO MASTER<7LT> 03.162 (K) 		8-94110-461-1 01 1 9811- ● ● ●
20 04.686 CLIP; BRK PIPE
HYDRO MASTER<7LT> 03.162 (J) 		8-97026-150-0 02 1 9811- ● ● ●
21 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 9811-0105 ● ● ● ●
21 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8 		8-97064-484-1 04 1 0106-0202 ● ● ● ●
21 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8 		8-97064-484-1 04 1 0203- ● ● ● ● ●
21 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9811-9904 ● ● ● ●
21 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9905-0202 ● ● ●
21 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9905-0202 ●
21 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0203- ● ● ● ● ●
76 04.686 BOLT; BRKT,OIL PIPE
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811- ● ● ● ● ● ●

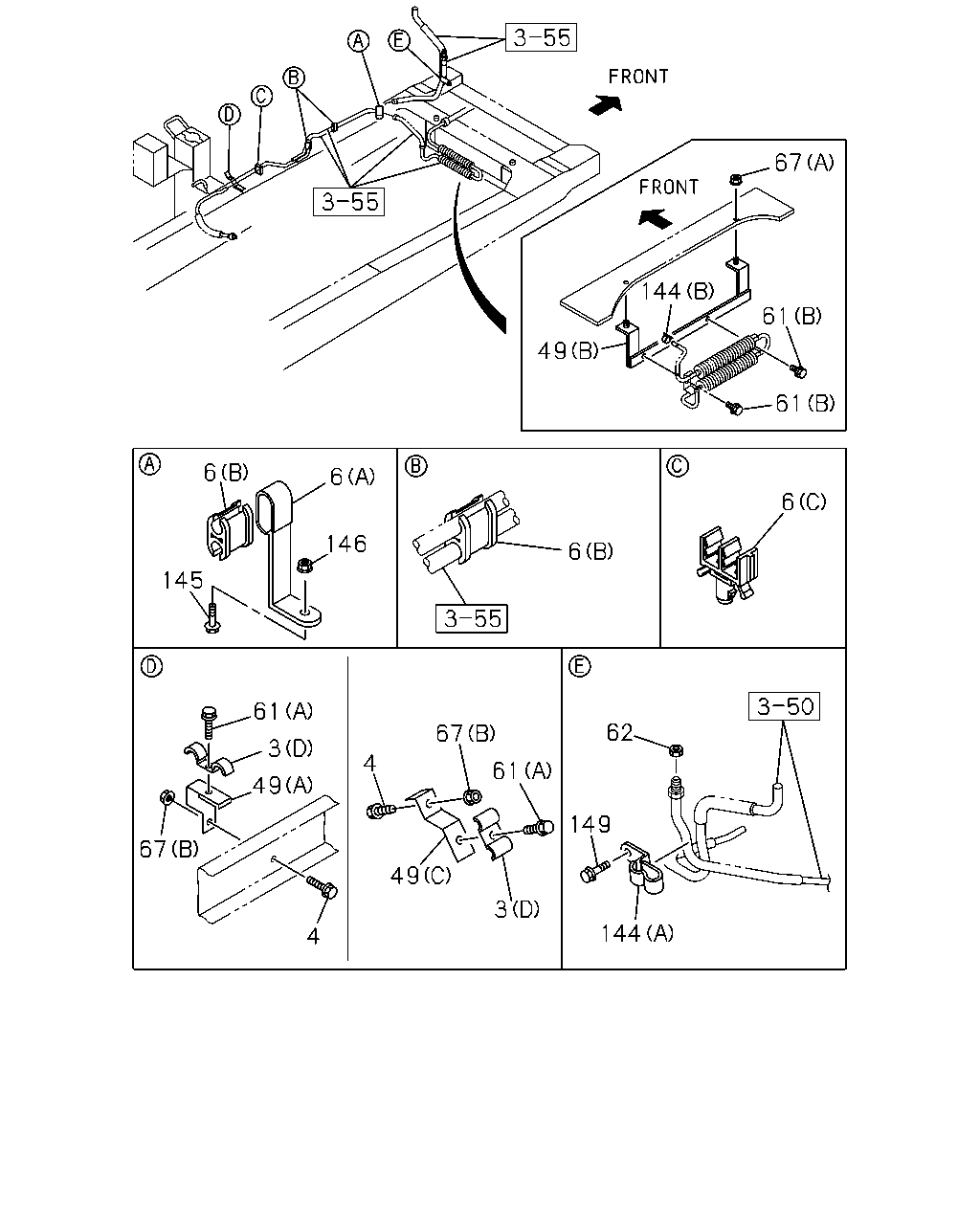

çizim 50647
67 144 61 49 61 6 6 6 146 6 145 61 62 67 3 4 61 49 149 67 49 3 144 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 04.685 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 9811-0202 ● ● ● ●
3 04.685 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 9811-0202 ● ●
3 04.685 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 0203- ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 0203- ● ●
3 04.685 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> 04.686 (C) ID=4.8 H=26 		8-94249-685-0 02 1 9811-0202 ● ● ● ●
3 04.685 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> 04.686 (C) ID=4.8 H=26 		8-94249-685-0 02 1 0203- ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER<7QQ> 04.047 (D) ID=13 & 13 L=16 & 16 		1-09700-072-0 01 1 9811-0105 ● ● ● ●
3 04.685 CLIP; BRK PIPE
04.047 (D) ID=13 & 13 L=16 & 16 		1-09700-072-0 01 1 9811-0105 ●
3 04.685 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER<7QQ> 04.047 (D) ID=13 & 13 L=16 & 16 		1-09700-072-0 01 1 0106- ● ● ●
3 04.685 CLIP; BRK PIPE
04.047 (D) ID=13 & 13 L=16 & 16 		1-09700-072-0 01 1 0106- ●
3 04.685 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 03 1 9811-0202 ●
3 04.685 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 03 1 0203- ● ●
3 04.685 CLIP; BRK PIPE
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 9811-0105 ●
3 04.685 CLIP; BRK PIPE
CHINA EQUIPMENT(YT2) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 9811-0105 ●
3 04.685 CLIP; BRK PIPE
CHINA EQUIPMENT(YT2) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0106- ●
3 04.685 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 9811-0202 ● ●
3 04.685 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> EXC. CHINA EQUIPMENT(YT2),FRAME STRAIGHT TYPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 9811-0202 ●
3 04.685 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 0203- ● ●
3 04.685 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> EXC. CHINA EQUIPMENT(YT2),FRAME STRAIGHT TYPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 0203- ●
3 04.685 CLIP; BRK PIPE
4HF1 ENG(RLS),4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 0203- ●
4 04.686 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9811-0105 ● ● ● ●
4 04.686 BOLT; BRKT
CHARGE AIR COOLER<6PL> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9811-0105 ●
4 04.686 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0106- ● ● ●
4 04.686 BOLT; BRKT
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0106- ●
4 04.686 BOLT; BRKT
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9811-0105 ● ● ● ● ●
4 04.686 BOLT; BRKT
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0106- ● ● ●
6 04.686 CLIP; PIPE
HYDRO BRAKE BOOSTER<7QQ> 04.047 (A) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9811-0105 ● ● ● ●
6 04.686 CLIP; PIPE
04.047 (A) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9811-0105 ●
6 04.686 CLIP; PIPE
HYDRO BRAKE BOOSTER<7QQ> 04.047 (A) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 0106- ● ● ●
6 04.686 CLIP; PIPE
04.047 (A) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 0106- ●
6 04.686 CLIP; PIPE
HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=10X2 H=22 		8-94252-455-2 03 1 9811-0105 ● ● ● ●
6 04.686 CLIP; PIPE
06.672 (B) ID=10X2 H=22 		8-94252-455-2 03 1 9811-0105 ●
6 04.686 CLIP; PIPE
HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=10X2 H=22 		8-94252-455-2 03 1 0106- ● ● ●
6 04.686 CLIP; PIPE
06.672 (B) ID=10X2 H=22 		8-94252-455-2 03 1 0106- ●
6 04.686 CLIP; PIPE
HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=10X2 H=37.5 		8-97018-546-0 01 1 9811-0105 ● ● ● ●
6 04.686 CLIP; PIPE
04.930 (C) ID=10X2 H=37.5 		8-97018-546-0 01 1 9811-0105 ●
6 04.686 CLIP; PIPE
HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=10X2 H=37.5 		8-97018-546-0 01 1 0106- ● ● ●
6 04.686 CLIP; PIPE
04.930 (C) ID=10X2 H=37.5 		8-97018-546-0 01 1 0106- ●
49 04.686 BRACKET; BRK PIPE
HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97180-993-0 01 1 9811-0105 ● ● ● ●
49 04.686 BRACKET; BRK PIPE
(B) 		8-97180-993-0 01 1 9811-0105 ●
49 04.686 BRACKET; BRK PIPE
HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97180-993-1 01 1 0106- ● ● ●
49 04.686 BRACKET; BRK PIPE
(B) 		8-97180-993-1 01 1 0106- ●
49 04.686 BRACKET; BRK PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97174-638-0 01 1 9811-0105 ● ● ● ●
49 04.686 BRACKET; BRK PIPE
CHARGE AIR COOLER<6PL> (A) 		8-97174-638-0 01 1 9811-0105 ●
49 04.686 BRACKET; BRK PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97174-638-0 01 1 0106- ● ● ●
49 04.686 BRACKET; BRK PIPE
(A) 		8-97174-638-0 01 1 0106- ●
49 04.686 BRACKET; BRK PIPE
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (C) 		8-97177-074-0 01 1 9811-0105 ● ● ● ● ●
49 04.686 BRACKET; BRK PIPE
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (C) 		8-97177-074-0 01 1 0106- ● ● ●
61 04.686 BOLT; BRK PIPE
HYDRO BRAKE BOOSTER<7QQ> 01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9811-0105 ● ● ● ●
61 04.686 BOLT; BRK PIPE
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9811-0105 ●
61 04.686 BOLT; BRK PIPE
HYDRO BRAKE BOOSTER<7QQ> 01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 0106- ● ● ●
61 04.686 BOLT; BRK PIPE
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 0106- ●
61 04.686 BOLT; BRK PIPE
HYDRO BRAKE BOOSTER<7QQ> 03.405 (B) M10X25 FLANGE 		0-28681-025-0 02 1 9811-0105 ● ● ● ●
61 04.686 BOLT; BRK PIPE
03.405 (B) M10X25 FLANGE 		0-28681-025-0 02 1 9811-0105 ●
61 04.686 BOLT; BRK PIPE
HYDRO BRAKE BOOSTER<7QQ> 03.405 (B) M10X25 FLANGE 		0-28681-025-0 02 1 0106- ● ● ●
61 04.686 BOLT; BRK PIPE
03.405 (B) M10X25 FLANGE 		0-28681-025-0 02 1 0106- ●
62 04.686 NUT
HYDRO BRAKE BOOSTER<7QQ> 06.172 M14 		9-99111-414-0 01 1 9811-0105 ● ● ● ●
62 04.686 NUT
06.172 M14 		9-99111-414-0 01 1 9811-0105 ●
62 04.686 NUT
HYDRO BRAKE BOOSTER<7QQ> 06.172 M14 		9-99111-414-0 01 1 0106- ● ● ●
62 04.686 NUT
06.172 M14 		9-99111-414-0 01 1 0106- ●
67 04.686 NUT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE 		0-91150-110-0 02 1 9811-0105 ● ● ● ●
67 04.686 NUT; BRKT
04.785 (A) M10 FLANGE 		0-91150-110-0 02 1 9811-0105 ●
67 04.686 NUT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE 		0-91150-110-0 02 1 0106- ● ● ●
67 04.686 NUT; BRKT
04.785 (A) M10 FLANGE 		0-91150-110-0 02 1 0106- ●
67 04.686 NUT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 9811-0105 ● ● ● ●
67 04.686 NUT; BRKT
CHARGE AIR COOLER<6PL> 04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 9811-0105 ●
67 04.686 NUT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ●
67 04.686 NUT; BRKT
04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 0106- ●
67 04.686 NUT; BRKT
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ● ● ●
67 04.686 NUT; BRKT
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ●
144 04.686 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> (A) ID=19 & 19 L=53 		1-09700-681-0 01 1 9811-0105 ● ● ● ●
144 04.686 CLIP; HOSE
(A) ID=19 & 19 L=53 		1-09700-681-0 01 1 9811-0105 ●
144 04.686 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> (A) ID=19 & 19 L=53 		1-09700-681-0 01 1 0106- ● ● ●
144 04.686 CLIP; HOSE
(A) ID=19 & 19 L=53 		1-09700-681-0 01 1 0106- ●
144 04.686 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> (B) ID=11-19.5 		8-94426-597-0 03 1 9811-0105 ● ● ● ●
144 04.686 CLIP; HOSE
(B) ID=11-19.5 		8-94426-597-0 03 1 9811-0105 ●
144 04.686 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> (B) ID=11-19.5 		8-94426-597-0 03 1 0106- ● ● ●
144 04.686 CLIP; HOSE
(B) ID=11-19.5 		8-94426-597-0 03 1 0106- ●
145 04.686 BOLT; PIPE
HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ● ●
145 04.686 BOLT; PIPE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ●
145 04.686 BOLT; PIPE
HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ●
145 04.686 BOLT; PIPE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ●
146 04.686 NUT; PIPE
HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ● ●
146 04.686 NUT; PIPE
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ●
146 04.686 NUT; PIPE
HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ●
146 04.686 NUT; PIPE
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
149 04.686 BOLT; HOSE
HYDRO BRAKE BOOSTER<7QQ> 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9811-0105 ● ● ● ●
149 04.686 BOLT; HOSE
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9811-0105 ●
149 04.686 BOLT; HOSE
HYDRO BRAKE BOOSTER<7QQ> 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0106- ● ● ●
149 04.686 BOLT; HOSE
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0106- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
