Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#22042) — 238 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 04.685	5-47411-777-0	01	1	9811-	●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97091-938-3	01	1	9811-0105	●
55	04.686 PIPE; BRK,VLV TO UNION 4HG1 ENG(RJH),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97091-938-3	01	1	0106-	●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ>	5-47411-784-0	01	1	9811-0202		●
55	04.686 PIPE; BRK,VLV TO UNION	5-47411-784-0	01	1	9811-0202			●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ>	5-47411-784-0	01	1	0203-		●	●
55	04.686 PIPE; BRK,VLV TO UNION 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97149-122-1	01	1	9811-0105		●
55	04.686 PIPE; BRK,VLV TO UNION 4HG1 ENG(RJH),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97184-238-0	01	1	9811-0105		●
55	04.686 PIPE; BRK,VLV TO UNION 4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. EURO2 SPECIFICATION<7AF>,FRAME STRAIGHT TYPE<7KJ>	8-97184-238-0	01	1	9811-0105		●
55	04.686 PIPE; BRK,VLV TO UNION 4HG1 ENG(RJH),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97184-238-0	01	1	0106-0202		●
55	04.686 PIPE; BRK,VLV TO UNION 4HG1 ENG(RJH),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97184-238-0	01	1	0203-		●
55	04.686 PIPE; BRK,VLV TO UNION 4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97184-238-0	01	1	0203-			●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 04.685	5-47411-786-0	01	1	9811-				●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97073-486-4	01	1	9811-0105				●
55	04.686 PIPE; BRK,VLV TO UNION 4HG1 ENG(RJH),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97073-486-4	01	1	0106-				●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> SERVICED BY L=3035	5-47411-789-0	01	1	9811-					●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH>	5-47411-790-0	01	1	9811-0105						●
55	04.686 PIPE; BRK,VLV TO UNION	5-47411-790-0	01	1	0106-						●

193 192 195 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E	F
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER<7QQ>	8-97148-805-2	01	1	9811-0105	●	●	●	●
192	04.685 PIPE; PRESSURE	8-97148-805-2	01	1	9811-0105					●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER<7QQ>	8-97148-805-2	01	1	0106-		●	●	●
192	04.685 PIPE; PRESSURE	8-97148-805-2	01	1	0106-					●
193	04.685 PIPE; RETURN HYDRO BRAKE BOOSTER<7QQ>	8-97171-016-2	01	1	9811-0105	●	●	●	●
193	04.685 PIPE; RETURN	8-97171-016-2	01	1	9811-0105					●
193	04.685 PIPE; RETURN HYDRO BRAKE BOOSTER<7QQ>	8-97171-016-2	01	1	0106-		●	●	●
193	04.685 PIPE; RETURN	8-97171-016-2	01	1	0106-					●
194	04.681 HOSE; CAB TO PIPE HYDRO BRAKE BOOSTER<7QQ>	8-97201-847-3	01	1	9811-0105	●	●	●	●
194	04.681 HOSE; CAB TO PIPE	8-97201-847-3	01	1	9811-0105					●
194	04.681 HOSE; CAB TO PIPE HYDRO BRAKE BOOSTER<7QQ>	8-97201-847-3	01	1	0106-		●	●	●
194	04.681 HOSE; CAB TO PIPE	8-97201-847-3	01	1	0106-					●
195	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.686 ID=11-19.5	8-94426-597-0	01	1	9811-0105	●	●	●	●
195	04.681 CLIP; HOSE 04.686 ID=11-19.5	8-94426-597-0	01	1	9811-0105					●
195	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.686 ID=11-19.5	8-94426-597-0	01	1	0106-		●	●	●
195	04.681 CLIP; HOSE 04.686 ID=11-19.5	8-94426-597-0	01	1	0106-					●

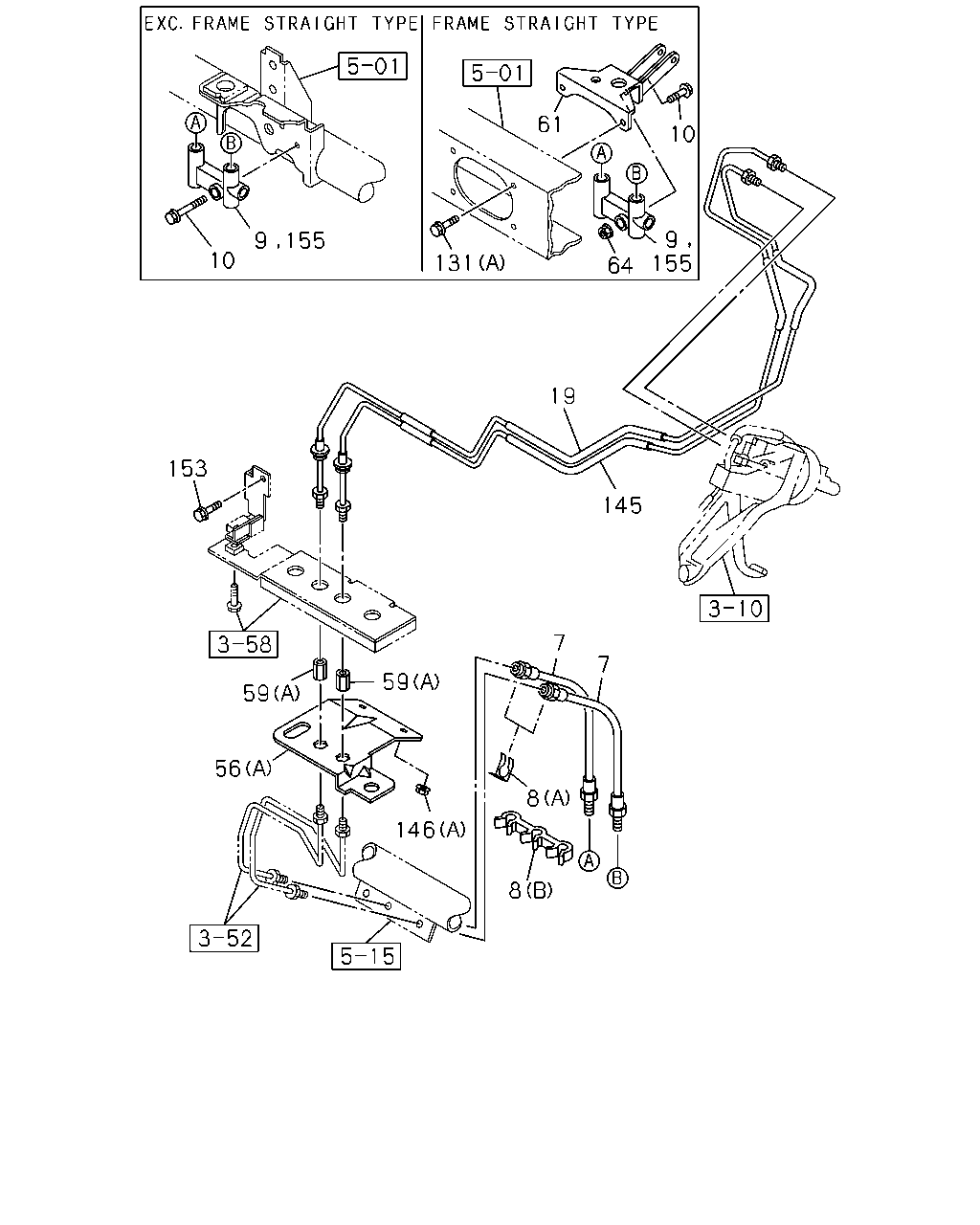

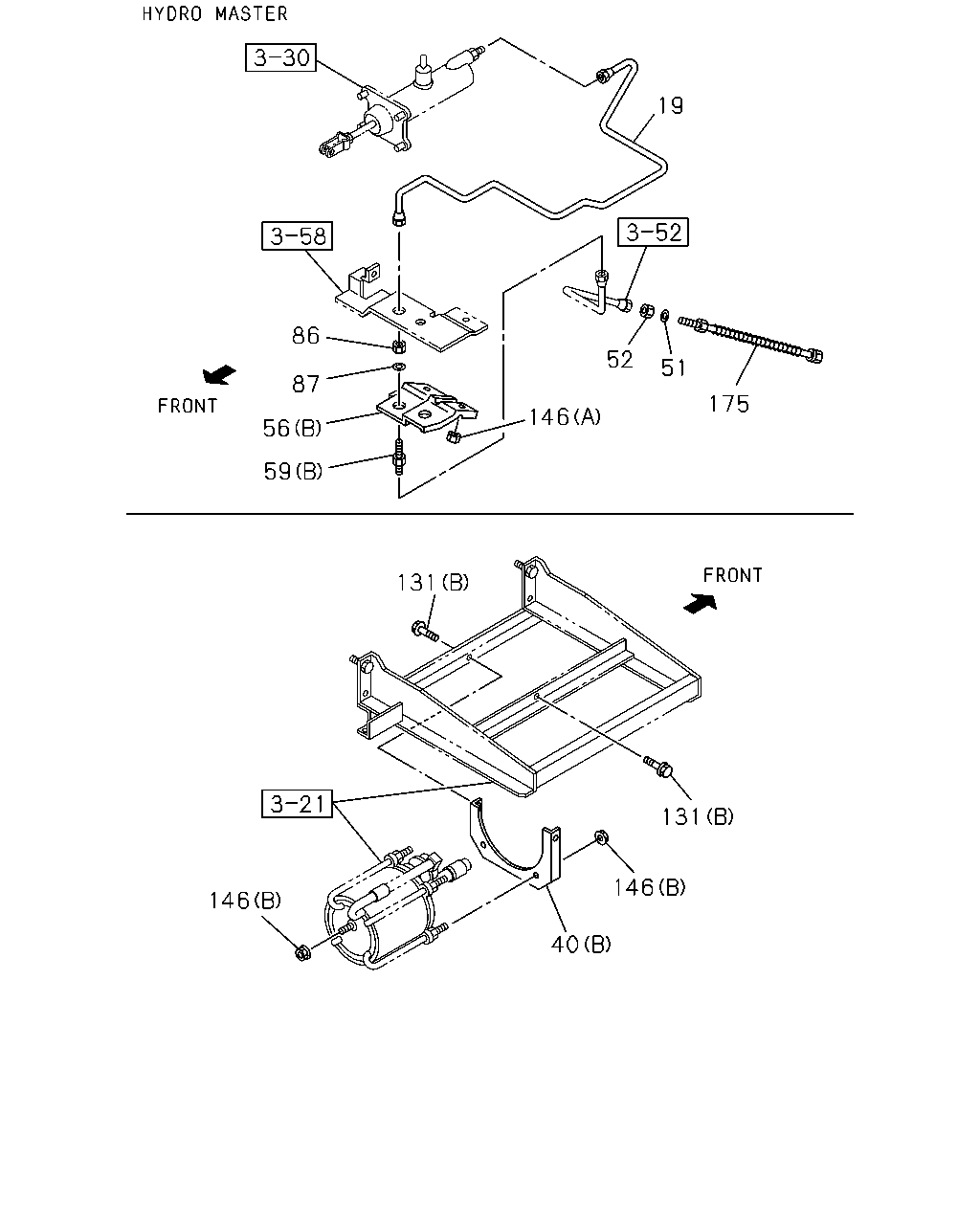

19 86 52 51 87 175 146 56 59 131 131 146 146 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
19	04.685 PIPE; BRK,M/CYL TO UNION	8-97314-593-0	01	1	0110-	●		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97314-593-0	01	1	0110-		●		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION	8-97119-830-0	01	1	9811-0109	●		●			●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO MASTER<7LT>	8-97119-830-0	01	1	9811-0109		●		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER<7QQ>	8-97119-830-0	01	1	0110-		●		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION	8-97119-830-0	01	1	0110-						●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO MASTER<7LT>	8-97129-522-0	01	1	9811-		●		●	●
40	04.690 BRACKET HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (A)	8-97188-262-0	01	1	9811-0105	●	●		●	●	●
40	04.690 BRACKET HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (A)	8-97188-262-0	01	1	0106-		●		●	●
40	04.690 BRACKET HYDRO MASTER<7LT> (B)	8-97145-247-1	01	1	9811-		●		●	●
51	04.681 WASHER; LK,FLEX HOSE HYDRO MASTER<7LT> 00.796 ID=14.2	9-09150-514-0	02	1	9811-		●		●	●
52	04.681 NUT; FLEX HOSE HYDRO MASTER<7LT> 06.232 M14	9-99110-414-0	02	1	9811-		●		●	●
56	04.686 BRACKET; UNION,BRK (A)	8-97171-017-1	01	1	9811-	●		●			●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO MASTER<7LT> (A)	8-97171-017-1	01	1	9811-		●		●	●
56	04.686 BRACKET; UNION,BRK HYDRO MASTER<7LT> (B)	1-71998-934-2	01	1	9811-		●		●	●
59	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	9811-	●		●			●
59	04.686 UNION; BRK PIPE EXC. HYDRO MASTER<7LT> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	9811-		●		●	●
59	04.686 UNION; BRK PIPE HYDRO MASTER<7LT> 04.866 (B) M14	9-09223-308-1	01	1	9811-		●		●	●
86	04.681 NUT; UNION HYDRO MASTER<7LT> 06.172 M14	9-99111-414-0	01	1	9811-		●		●	●
87	04.681 WASHER; LK,UNION HYDRO MASTER<7LT> 00.796 ID=14.2	9-09150-514-0	01	1	9811-		●		●	●
131	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	9811-0202	●
131	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	9811-0202		●		●	●
131	04.710 BOLT; BRKT 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	9811-0202			●			●
131	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0203-	●		●
131	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0203-		●		●	●
131	04.710 BOLT; BRKT 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0203-						●
131	04.710 BOLT; BRKT HYDRO MASTER<7LT> 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	9811-		●		●	●
146	04.685 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	9811-0105	●	●		●	●	●
146	04.685 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0106-		●		●	●
146	04.685 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	9811-	●	●	●	●	●	●
146	04.685 NUT; BRKT HYDRO MASTER<7LT> 04.785 (B) M10 FLANGE	0-91150-110-0	03	1	9811-		●		●	●
175	04.681 HOSE; FLEX HYDRO MASTER<7LT> 00.785 L=420	1-09364-615-0	01	1	9811-		●		●	●

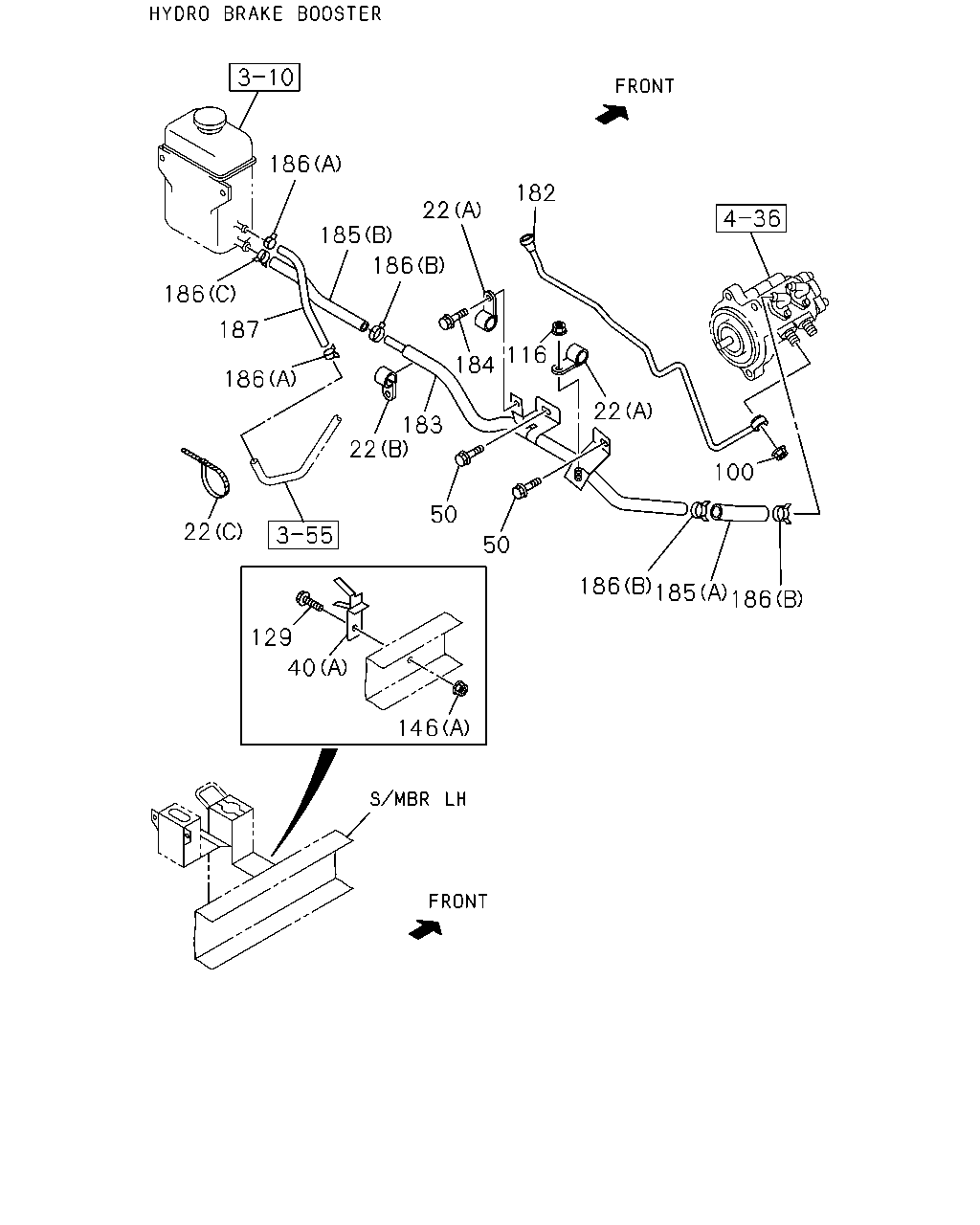

186 182 22 185 186 186 187 116 184 186 22 183 22 100 50 22 50 186 185 186 129 40 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	9811-0105	●	●		●	●
22	04.685 CLIP 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	9811-0105						●
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	0106-		●		●	●
22	04.685 CLIP 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	0106-						●
22	04.685 CLIP CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	9811-0105	●	●		●	●	●
22	04.685 CLIP CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	0106-		●		●	●	●
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.559 (C) L=250	5-09707-030-1	01	1	9811-0105	●	●		●	●	●
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.559 (C) L=250	5-09707-030-1	01	1	0106-		●		●	●
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 08.846 (B) ID=19 L=32	9-09525-866-0	01	1	9811-0105	●	●		●	●	●
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 08.846 (B) ID=19 L=32	9-09525-866-0	01	1	0106-		●		●	●
40	04.690 BRACKET HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (A)	8-97188-262-0	01	1	9811-0105	●	●		●	●	●
40	04.690 BRACKET HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (A)	8-97188-262-0	01	1	0106-		●		●	●
40	04.690 BRACKET HYDRO MASTER<7LT> (B)	8-97145-247-1	01	1	9811-		●		●	●
50	04.710 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9811-0105	●	●		●	●
50	04.710 BOLT; PIPE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9811-0105						●
50	04.710 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0106-		●		●	●
50	04.710 BOLT; PIPE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0106-						●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER<7QQ> 06.606 M12 SELF LOCK	8-97028-390-1	01	1	9811-0105	●	●		●	●
100	04.730 NUT; HYDRAULIC UNIT 06.606 M12 SELF LOCK	8-97028-390-1	01	1	9811-0105						●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER<7QQ> 06.606 M12 SELF LOCK	8-97028-390-1	01	1	0106-		●		●	●
100	04.730 NUT; HYDRAULIC UNIT 06.606 M12 SELF LOCK	8-97028-390-1	01	1	0106-						●
116	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-0005	●	●		●	●
116	04.686 NUT 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-0005						●
116	04.686 NUT FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0006-0105	●	●		●	●
116	04.686 NUT FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE	0-91150-108-0	02	1	0006-0105						●
116	04.686 NUT FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-		●		●	●
116	04.686 NUT FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-						●
116	04.686 NUT A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0006-0006		●		●	●
116	04.686 NUT A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0007-		●		●	●
116	04.686 NUT A/T 4 SPEED-AISIN(RNJ) 07.633 M8 FLANGE	0-91150-108-0	01	1	0007-						●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0105	●	●		●	●	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-		●		●	●
146	04.685 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	9811-0105	●	●		●	●	●
146	04.685 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0106-		●		●	●
146	04.685 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	9811-	●	●	●	●	●	●
146	04.685 NUT; BRKT HYDRO MASTER<7LT> 04.785 (B) M10 FLANGE	0-91150-110-0	03	1	9811-		●		●	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER M/T MZZ6U(RSF) HYDRO BRAKE BOOSTER<7QQ>	8-97328-692-0	01	1	0208-				●	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ>	8-97181-945-0	01	1	9811-0005	●	●		●	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER	8-97181-945-0	01	1	9811-0005						●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ>	8-97181-945-0	01	1	0006-0009	●	●		●	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER FLOOR REMOTE SHIFT<M11>	8-97181-945-0	01	1	0006-0009						●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ>	8-97264-895-0	01	1	0010-0105	●	●		●	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER FLOOR REMOTE SHIFT<M11>	8-97264-895-0	01	1	0010-0105						●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ>	8-97264-895-0	01	1	0106-0112		●		●	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER FLOOR REMOTE SHIFT<M11>	8-97264-895-0	01	1	0106-0112						●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER M/T MBP6P(RNC),M/T MBP6Q(RNM) HYDRO BRAKE BOOSTER<7QQ>	8-97264-895-0	01	1	0201-		●		●	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER M/T MBP6Q(RNM)	8-97264-895-0	01	1	0201-						●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ>	8-97182-977-2	01	1	0006-0006		●		●	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ>	8-97182-977-2	01	1	0007-0009		●		●	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER A/T 4 SPEED-AISIN(RNJ)	8-97182-977-2	01	1	0007-0009						●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ>	8-97264-896-0	01	1	0010-		●		●	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER A/T 4 SPEED-AISIN(RNJ)	8-97264-896-0	01	1	0010-						●
183	04.685 PIPE; SUCTION M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97328-693-0	01	1	0208-				●	●
183	04.685 PIPE; SUCTION M/T MZZ6U(RSF) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97328-694-0	01	1	0208-				●	●
183	04.685 PIPE; SUCTION CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97184-067-4	01	1	9811-0005	●	●		●	●	●
183	04.685 PIPE; SUCTION FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97184-067-4	01	1	0006-0105	●	●		●	●
183	04.685 PIPE; SUCTION FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97184-067-4	01	1	0006-0105						●
183	04.685 PIPE; SUCTION FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97184-067-4	01	1	0106-0112		●		●	●
183	04.685 PIPE; SUCTION FLOOR REMOTE SHIFT<M11>	8-97184-067-4	01	1	0106-0112						●
183	04.685 PIPE; SUCTION M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97184-067-4	01	1	0201-		●		●	●
183	04.685 PIPE; SUCTION M/T MBP6Q(RNM)	8-97184-067-4	01	1	0201-						●
183	04.685 PIPE; SUCTION HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97181-946-5	01	1	9811-0005	●	●		●	●	●
183	04.685 PIPE; SUCTION FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97181-946-5	01	1	0006-0105	●	●		●	●
183	04.685 PIPE; SUCTION FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97181-946-5	01	1	0006-0105						●
183	04.685 PIPE; SUCTION FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97181-946-5	01	1	0106-0112		●		●	●
183	04.685 PIPE; SUCTION M/T MBP6P(RNC),M/T MBP6Q(RNM) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97181-946-5	01	1	0201-		●		●	●
183	04.685 PIPE; SUCTION A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97181-947-4	01	1	0006-0006		●		●	●
183	04.685 PIPE; SUCTION A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97181-947-4	01	1	0007-0105		●		●	●
183	04.685 PIPE; SUCTION A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL>	8-97181-947-4	01	1	0007-0105						●
183	04.685 PIPE; SUCTION A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97181-947-4	01	1	0106-		●		●	●
183	04.685 PIPE; SUCTION A/T 4 SPEED-AISIN(RNJ)	8-97181-947-4	01	1	0106-						●
184	04.681 BOLT; CLIP HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9811-0005	●	●		●	●	●
184	04.681 BOLT; CLIP HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9811-0005	●	●		●	●
184	04.681 BOLT; CLIP 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9811-0005					●
184	04.681 BOLT; CLIP HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0006-0006	●	●		●	●
184	04.681 BOLT; CLIP A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0006-0006		●		●	●
184	04.681 BOLT; CLIP EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0006-0006						●
184	04.681 BOLT; CLIP HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0007-0105	●	●		●	●
184	04.681 BOLT; CLIP A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0007-0105		●		●	●
184	04.681 BOLT; CLIP A/T 4 SPEED-AISIN(RNJ) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0007-0105						●
184	04.681 BOLT; CLIP EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0007-0105						●
184	04.681 BOLT; CLIP A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-		●		●	●
184	04.681 BOLT; CLIP HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-		●		●	●
184	04.681 BOLT; CLIP A/T 4 SPEED-AISIN(RNJ) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-						●
185	04.681 HOSE; RUBBER,SUCTION M/T MZZ6U(RSF) HYDRO BRAKE BOOSTER<7QQ> (A)	8-97330-513-0	01	1	0208-				●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> 06.670 (A)	0-09814-120-0	01	1	9811-0105	●	●		●	●
185	04.681 HOSE; RUBBER,SUCTION 06.670 (A)	0-09814-120-0	01	1	9811-0105						●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> 06.670 (A)	0-09814-120-0	01	1	0106-0204		●		●	●
185	04.681 HOSE; RUBBER,SUCTION 06.670 (A)	0-09814-120-0	01	1	0106-0204						●
185	04.681 HOSE; RUBBER,SUCTION M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) HYDRO BRAKE BOOSTER<7QQ> 06.670 (A)	0-09814-120-0	01	1	0205-		●		●	●	●
185	04.681 HOSE; RUBBER,SUCTION CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	9811-0105	●	●		●	●	●
185	04.681 HOSE; RUBBER,SUCTION CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	0106-		●		●	●
185	04.681 HOSE; RUBBER,SUCTION 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	0106-						●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (B)	8-97188-851-0	01	1	9811-0105	●	●		●	●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (B)	8-97188-851-0	01	1	0106-		●		●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	02	1	9811-0105	●	●		●	●
186	04.681 CLIP; HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	9811-0105						●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	02	1	0106-		●		●	●
186	04.681 CLIP; HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0106-						●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=21	8-94242-034-0	03	1	9811-0105	●	●		●	●
186	04.681 CLIP; HOSE 06.672 (B) ID=21	8-94242-034-0	03	1	9811-0105						●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=21	8-94242-034-0	03	1	0106-		●		●	●
186	04.681 CLIP; HOSE 06.672 (B) ID=21	8-94242-034-0	03	1	0106-						●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 08.846 (C) ID=22	8-94382-401-0	01	1	9811-0105	●	●		●	●
186	04.681 CLIP; HOSE 08.846 (C) ID=22	8-94382-401-0	01	1	9811-0105						●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 08.846 (C) ID=22	8-94382-401-0	01	1	0106-		●		●	●
186	04.681 CLIP; HOSE 08.846 (C) ID=22	8-94382-401-0	01	1	0106-						●
187	04.681 HOSE; RUBBER,OIL TANK CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> L=270	0-09809-270-0	01	1	9811-0105	●	●		●	●	●
187	04.681 HOSE; RUBBER,OIL TANK CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> L=270	0-09809-270-0	01	1	0106-		●		●	●
187	04.681 HOSE; RUBBER,OIL TANK L=270	0-09809-270-0	01	1	0106-						●
187	04.681 HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97181-961-2	01	1	9811-0105	●	●		●	●	●
187	04.681 HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97181-961-2	01	1	0106-		●		●	●

61 10 9 155 9 155 10 131 64 19 153 145 7 7 59 59 56 8 146 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97171-031-0	02	1	9811-	●		●			●
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT EXC. HYDRO MASTER<7LT>	8-97171-031-0	02	1	9811-		●		●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 00.785 (A)	8-94167-006-0	02	1	9811-	●		●			●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE EXC. HYDRO MASTER<7LT> 00.785 (A)	8-94167-006-0	02	1	9811-		●		●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	9811-	●		●			●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE EXC. HYDRO MASTER<7LT> 04.686 (B)	8-97076-471-0	01	1	9811-		●		●	●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE EXC. BRK WHL LK CONT LSPV<6PH>,HYDRO MASTER<7LT>	5-47456-009-0	01	1	9811-0105	●	●		●	●	●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE EXC. BRK WHL LK CONT LSPV<6PH>,HYDRO MASTER<7LT>	5-47456-009-1	01	1	0106-0202	●	●		●	●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE EXC. BRK WHL LK CONT LSPV<6PH>,HYDRO MASTER<7LT>	5-47456-009-1	01	1	0203-	●	●	●	●	●
10	04.686 BOLT; JOINT 03.163 M6X40 FLANGE	0-28680-640-0	01	1	9811-	●		●			●
10	04.686 BOLT; JOINT EXC. HYDRO MASTER<7LT> 03.163 M6X40 FLANGE	0-28680-640-0	01	1	9811-		●		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION	8-97314-593-0	01	1	0110-	●		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97314-593-0	01	1	0110-		●		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION	8-97119-830-0	01	1	9811-0109	●		●			●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO MASTER<7LT>	8-97119-830-0	01	1	9811-0109		●		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER<7QQ>	8-97119-830-0	01	1	0110-		●		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION	8-97119-830-0	01	1	0110-						●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO MASTER<7LT>	8-97129-522-0	01	1	9811-		●		●	●
56	04.686 BRACKET; UNION,BRK (A)	8-97171-017-1	01	1	9811-	●		●			●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO MASTER<7LT> (A)	8-97171-017-1	01	1	9811-		●		●	●
56	04.686 BRACKET; UNION,BRK HYDRO MASTER<7LT> (B)	1-71998-934-2	01	1	9811-		●		●	●
59	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	9811-	●		●			●
59	04.686 UNION; BRK PIPE EXC. HYDRO MASTER<7LT> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	9811-		●		●	●
59	04.686 UNION; BRK PIPE HYDRO MASTER<7LT> 04.866 (B) M14	9-09223-308-1	01	1	9811-		●		●	●
61	04.686 BRACKET; 5 WAY JOINT FRAME STRAIGHT TYPE<7KJ>	8-97170-632-0	01	1	9811-0202	●
61	04.686 BRACKET; 5 WAY JOINT FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>	8-97170-632-0	01	1	9811-0202		●		●	●
61	04.686 BRACKET; 5 WAY JOINT	8-97170-632-0	01	1	9811-0202			●			●
61	04.686 BRACKET; 5 WAY JOINT FRAME STRAIGHT TYPE<7KJ>	8-97170-632-0	01	1	0203-	●		●
61	04.686 BRACKET; 5 WAY JOINT FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>	8-97170-632-0	01	1	0203-		●		●	●
61	04.686 BRACKET; 5 WAY JOINT	8-97170-632-0	01	1	0203-						●
64	04.686 NUT; 5 WAY TO BRKT FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	9811-0202	●
64	04.686 NUT; 5 WAY TO BRKT FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.594 M6 FLANGE	0-91150-106-0	01	1	9811-0202		●		●	●
64	04.686 NUT; 5 WAY TO BRKT 04.594 M6 FLANGE	0-91150-106-0	01	1	9811-0202			●			●
64	04.686 NUT; 5 WAY TO BRKT FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0203-	●		●
64	04.686 NUT; 5 WAY TO BRKT FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.594 M6 FLANGE	0-91150-106-0	01	1	0203-		●		●	●
64	04.686 NUT; 5 WAY TO BRKT 04.594 M6 FLANGE	0-91150-106-0	01	1	0203-						●
131	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	9811-0202	●
131	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	9811-0202		●		●	●
131	04.710 BOLT; BRKT 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	9811-0202			●			●
131	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0203-	●		●
131	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0203-		●		●	●
131	04.710 BOLT; BRKT 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0203-						●
131	04.710 BOLT; BRKT HYDRO MASTER<7LT> 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	9811-		●		●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-97314-586-0	01	1	0110-	●		●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97314-586-0	01	1	0110-		●		●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-97119-829-0	01	1	9811-0109	●		●			●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO MASTER<7LT>	8-97119-829-0	01	1	9811-0109		●		●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER<7QQ>	8-97119-829-0	01	1	0110-		●		●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-97119-829-0	01	1	0110-						●
146	04.685 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	9811-0105	●	●		●	●	●
146	04.685 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0106-		●		●	●
146	04.685 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	9811-	●	●	●	●	●	●
146	04.685 NUT; BRKT HYDRO MASTER<7LT> 04.785 (B) M10 FLANGE	0-91150-110-0	03	1	9811-		●		●	●
153	04.730 SCREW; BRKT FIX 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9811-	●		●			●
153	04.730 SCREW; BRKT FIX EXC. HYDRO MASTER<7LT> 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9811-		●		●	●
155	04.686 JOINT; 6WAY BRK WHL LK CONT LSPV<6PH>	8-97120-033-1	01	1	9811-0105	●	●	●	●	●	●
155	04.686 JOINT; 6WAY BRK WHL LK CONT LSPV<6PH>	8-97120-033-2	01	1	0106-0202	●	●		●	●
155	04.686 JOINT; 6WAY	8-97120-033-2	01	1	0106-0202			●			●
155	04.686 JOINT; 6WAY BRK WHL LK CONT LSPV<6PH>	8-97120-033-2	01	1	0203-	●	●	●	●	●
155	04.686 JOINT; 6WAY	8-97120-033-2	01	1	0203-						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
