Sayfa 2-26 - Isuzu EPC

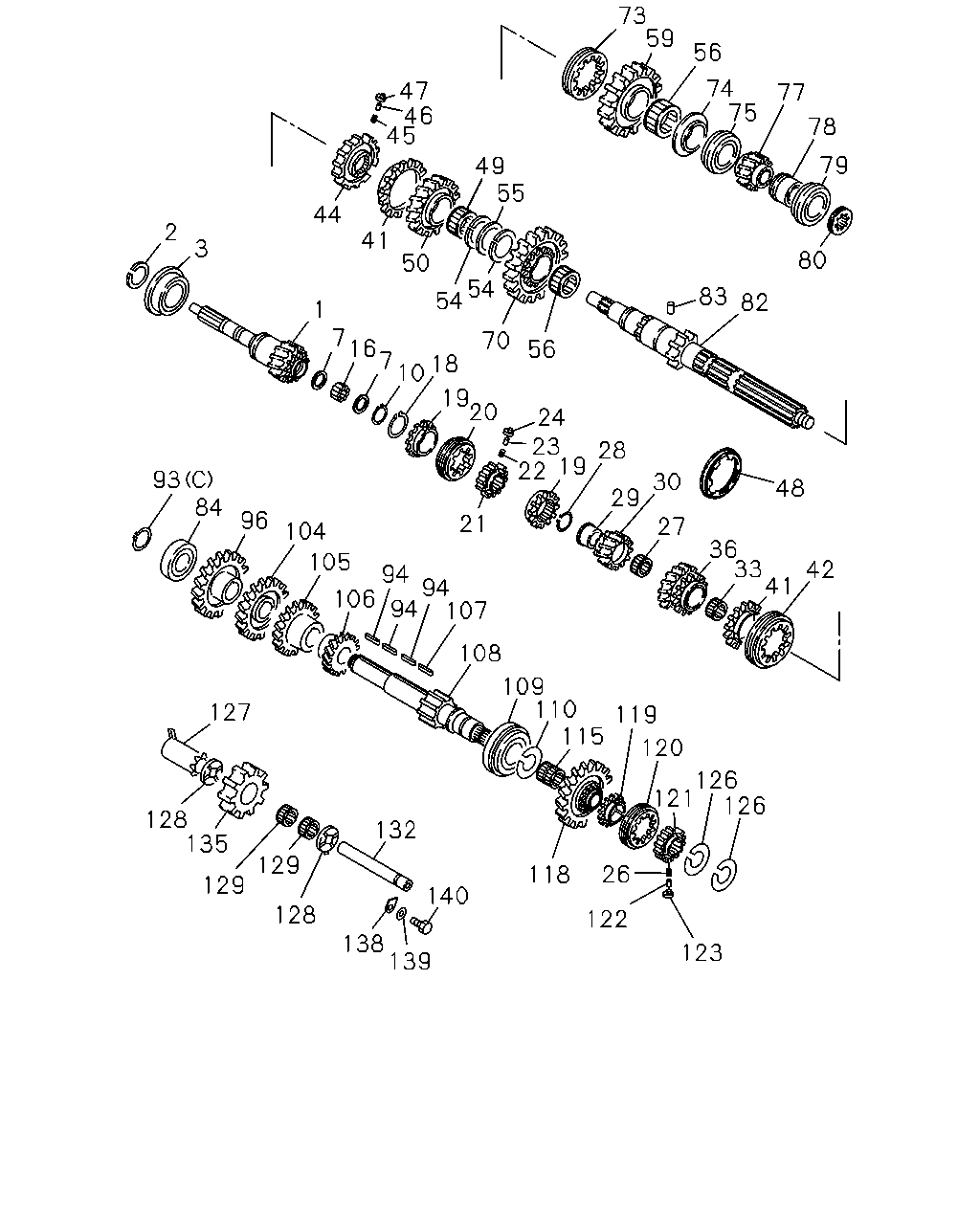

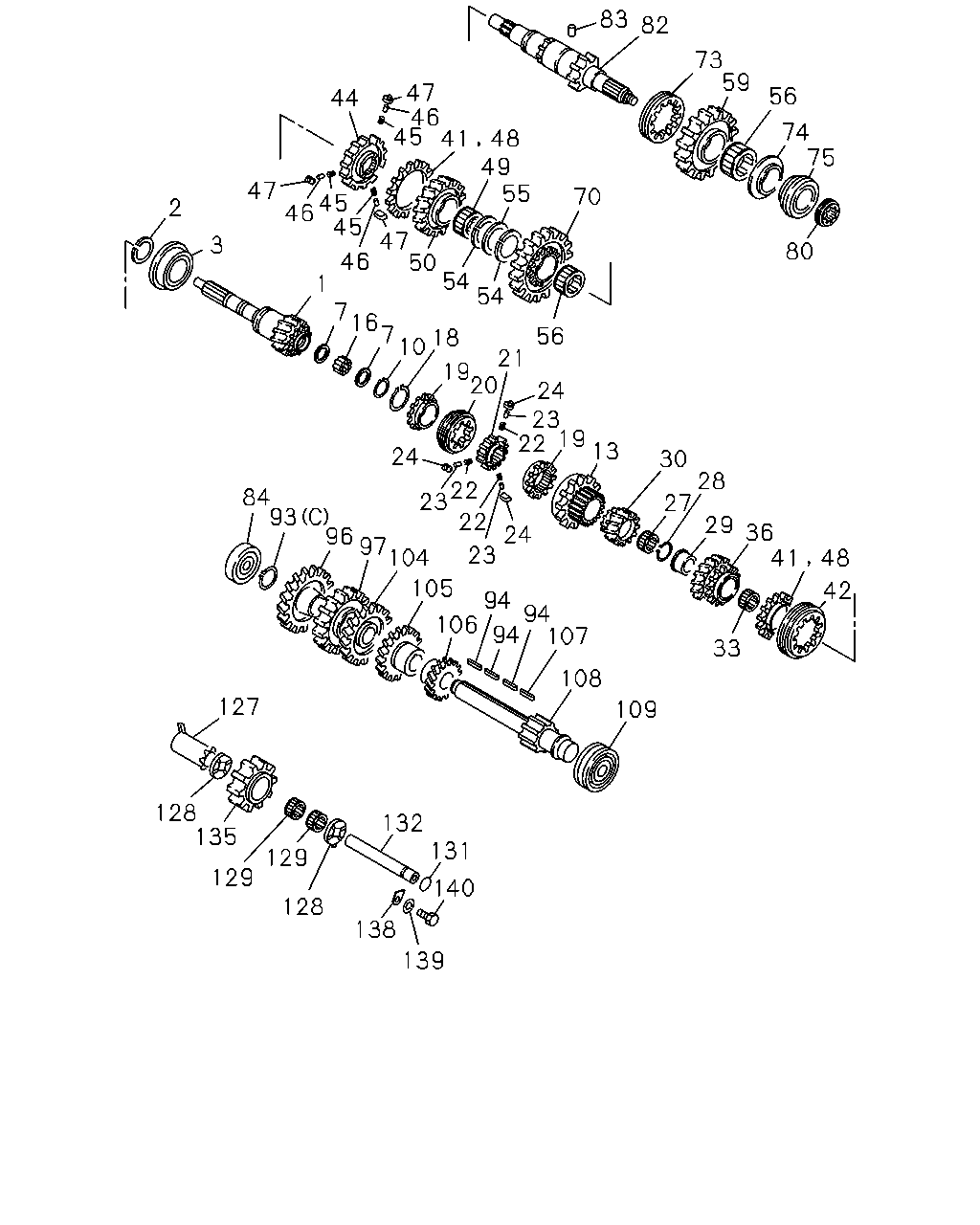

2-26 — MANUAL TRANSMISSION GEAR (#2204) — 838 parça

83 82 73 59 47 46 56 44 74 75 48 49 55 47 45 46 45 70 2 47 50 54 54 3 80 46 1 7 16 7 18 10 56 21 19 20 24 23 19 22 13 24 30 22 23 28 27 84 93 96 97 104 22 29 36 41 24 23 48 105 42 94 106 94 94 107 33 108 127 109 128 135 132 131 129 129 140 128 138 139 41 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-777-0	01	1	0204-	●	●	●
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-725-0	01	1	9101-9309				●	●
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-776-0	01	1	9310-0203				●	●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-723-0	01	1	9101-9309	●	●	●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-777-0	01	1	9310-0203	●	●	●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-727-0	01	1	9101-0203						●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-524-0	01	1	9101-							●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9101-0203	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0204-	●	●	●				●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9101-0203	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0204-	●	●	●				●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9101-0203	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0204-	●	●	●				●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9101-0203	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0204-	●	●	●				●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	0204-	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-138-1	01	1	9101-9501	●	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9502-9909	●	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	9910-0203	●	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9101-9205							●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0204-							●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	9101-0203	●	●	●	●	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	0204-	●	●	●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	9101-0203	●	●	●	●	●	●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	0204-	●	●	●
10	RING; SNAP,PILOT BRG	1-09588-157-0	01	1	9101-							●
13	GEAR; 5TH,MAINSHAFT Z=17	1-33253-385-0	01	1	9101-9309						●
13	GEAR; 5TH,MAINSHAFT Z=17	1-33253-570-0	01	1	9310-0203						●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-021-0	14	1	0204-	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-022-0	14	1	0204-	●	●	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-023-0	14	1	0204-	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-006-1	14	1	9101-9810	●	●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-021-0	14	1	9811-0203	●	●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-007-1	14	1	9101-9810	●	●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-022-0	14	1	9811-0203	●	●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-008-2	14	1	9101-9810	●	●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-023-0	14	1	9811-0203	●	●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-038-1	01	1	9101-							●
16	BEARING; PILOT,MAINSHAFT NSK	9-00094-108-1	01	1	9101-							●
18	RING; SNAP,CLU HUB ID=46.3 T=1.75	1-09588-121-1	01	1	9101-0203	●	●	●	●	●
18	RING; SNAP,CLU HUB ID=46.3 T=1.75	1-09588-121-1	01	1	0204-	●	●	●
18	RING; SNAP,CLU HUB ID=43.8 T=1.75	1-09588-104-0	01	1	9101-0203						●
18	RING; SNAP,CLU HUB ID=53.3 T=2.5	1-09588-102-0	01	1	9101-							●
19	RING; BLOCK,4TH & 5TH Z=39	1-33265-408-0	02	1	0204-	●	●	●
19	RING; BLOCK,4TH & 5TH	1-33265-283-0	02	1	9101-9212	●	●	●	●	●	●
19	RING; BLOCK,4TH & 5TH Z=39	1-33265-408-0	02	1	9301-0203	●	●	●	●	●	●
19	RING; BLOCK,4TH & 5TH	1-33265-169-3	02	1	9101-							●
20	SLEEVE	1-33262-094-1	01	1	0204-	●	●	●
20	SLEEVE	1-33262-094-1	01	1	9101-0203	●	●	●	●	●	●
20	SLEEVE	1-33262-074-0	01	1	9101-							●
21	HUB; CLU,4TH & 5TH	1-33261-148-0	01	1	9101-0203	●	●	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-148-0	01	1	0204-	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-147-0	01	1	9101-0203						●
21	HUB; CLU,4TH & 5TH	1-33261-115-0	01	1	9101-							●
22	SPRING; BLOCK,INSERT	1-09580-395-0	03	1	9101-0203	●	●	●	●	●	●
22	SPRING; BLOCK,INSERT	1-09580-395-0	03	1	0204-	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0204-	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9101-0203	●	●	●	●	●	●
24	BLOCK; INDEX,SYN	1-33269-009-1	03	1	0204-							●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0204-	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9101-0203	●	●	●	●	●	●
24	BLOCK; INDEX,SYN	1-33269-009-1	03	1	9101-0203							●
27	BEARING; 4TH GEAR NSK	1-09811-263-0	01	1	0204-	●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-265-0	01	1	0204-	●	●	●
27	BEARING; 4TH GEAR KOYO	1-09811-266-0	01	1	0204-	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-263-0	01	1	9101-0203	●	●	●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-265-0	01	1	9101-0203	●	●	●	●	●
27	BEARING; 4TH GEAR KOYO	1-09811-266-0	01	1	9101-0203	●	●	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-289-0	01	1	9101-0203						●
27	BEARING; 4TH GEAR NTN	1-09811-290-0	01	1	9101-0203						●
27	BEARING; 4TH GEAR KOYO	1-09811-291-0	01	1	9101-0203						●
27	BEARING; 4TH GEAR NTN	1-09811-207-0	01	1	9101-							●
27	BEARING; 4TH GEAR NSK	1-09811-209-0	01	1	9101-							●
28	RING; SNAP,3RD GEAR	1-09588-120-0	01	1	9101-0203	●	●	●	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-120-0	01	1	0204-	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-103-0	01	1	9101-							●
29	COLLAR; 3RD GEAR	1-33234-042-2	01	1	0204-	●	●	●
29	COLLAR; 3RD GEAR	1-33234-042-2	01	1	9101-0203	●	●	●	●	●
29	COLLAR; 3RD GEAR	1-33234-031-1	01	1	9101-0203						●
30	GEAR; 4TH,MAINSHAFT Z=25	1-33253-496-0	01	1	0204-	●	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-495-0	01	1	0204-			●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-454-0	01	1	9101-9309			●	●	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-495-0	01	1	9310-0203			●	●	●
30	GEAR; 4TH,MAINSHAFT Z=25	1-33253-452-0	01	1	9101-9309	●	●
30	GEAR; 4TH,MAINSHAFT Z=25	1-33253-496-0	01	1	9310-0203	●	●
30	GEAR; 4TH,MAINSHAFT Z=27	1-33253-350-0	01	1	9101-							●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-198-0	01	1	9101-0203	●	●	●	●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK NSK	1-09811-198-0	01	1	0204-	●	●	●
33	BEARING; NEEDLE,3RD GEAR KOYO	1-09811-199-0	01	1	9101-0203	●	●	●	●	●	●
33	BEARING; NEEDLE,3RD GEAR KOYO	1-09811-199-0	01	1	0204-	●	●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-205-0	01	1	9101-							●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-206-0	01	1	9101-							●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-358-1	01	1	0204-	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-326-0	01	1	9101-9108	●	●	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-322-1	01	1	9109-9301	●	●	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-406-0	01	1	9302-9309	●	●	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-358-1	01	1	9310-0203	●	●	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=30	1-33252-329-0	01	1	9101-9108						●
36	GEAR; 3RD,MAINSHAFT Z=30	1-33252-320-1	01	1	9109-9301						●
36	GEAR; 3RD,MAINSHAFT Z=30	1-33252-403-1	01	1	9302-0203						●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-231-1	01	1	9101-							●
41	RING; BLOCK,2ND & 3RD	1-33265-282-0	02	1	9101-9108	●	●	●	●	●	●
42	SLEEVE Z=45	1-33262-162-0	01	1	0204-	●	●	●
42	SLEEVE Z=42	1-33262-136-0	01	1	9101-9108	●	●	●	●	●	●
42	SLEEVE Z=45	1-33262-140-1	01	1	9109-9209	●	●	●	●	●	●
42	SLEEVE Z=45	1-33262-164-0	01	1	9210-9503	●	●	●	●	●	●
42	SLEEVE Z=45	1-33262-162-0	01	1	9504-0203	●	●	●	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-216-0	01	1	0204-	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-146-3	01	1	9101-9108	●	●	●	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-172-1	01	1	9109-9112	●	●	●	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-196-0	01	1	9201-9405	●	●	●	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-216-0	01	1	9406-0203	●	●	●	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-106-0	01	1	9101-							●
45	SPRING; BLOCK INSERT	1-09580-395-0	03	1	0204-	●	●	●
45	SPRING; BLOCK INSERT	1-09580-395-0	03	1	9101-9108	●	●	●	●	●	●
45	SPRING; BLOCK INSERT	1-09580-373-0	03	1	9109-9209	●	●	●	●	●	●
45	SPRING; BLOCK INSERT	1-09580-395-0	03	1	9210-0203	●	●	●	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0204-	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9101-0203	●	●	●	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0204-	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9101-0203	●	●	●	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-409-0	02	1	0204-	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-352-0	02	1	9109-9205	●	●	●	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-402-0	02	1	9206-9301	●	●	●	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-409-0	02	1	9302-0203	●	●	●	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-086-1	01	1	9101-							●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-141-1	01	1	0204-	●	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-141-1	01	1	9101-0203	●	●	●	●	●	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-205-0	01	1	9101-							●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-206-0	01	1	9101-							●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-290-1	01	1	0204-	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-275-0	01	1	9101-9108	●	●	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-259-1	01	1	9109-9301	●	●	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-325-0	01	1	9302-9309	●	●	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-290-1	01	1	9310-0203	●	●	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=41	1-33251-274-0	01	1	9101-9108						●
50	GEAR; 2ND,MAINSHAFT Z=41	1-33251-258-1	01	1	9109-9301						●
50	GEAR; 2ND,MAINSHAFT Z=41	1-33251-324-1	01	1	9302-0203						●
50	GEAR; 2ND,MAINSHAFT Z=44	1-33251-179-1	01	1	9101-							●
54	RING; SNAP,THRUST WASHER	1-09588-080-0	02	1	9101-0203	●	●	●	●	●	●
54	RING; SNAP,THRUST WASHER	1-09588-080-0	02	1	0204-	●	●	●
55	WASHER; THRUST,MAINSHAFT	1-33239-016-0	01	1	9101-0203	●	●	●	●	●	●
55	WASHER; THRUST,MAINSHAFT	1-33239-016-0	01	1	0204-	●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-019-0	02	1	9101-0203	●	●	●	●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-019-0	02	1	0204-	●	●	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-020-0	02	1	9101-0203	●	●	●	●	●	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-020-0	02	1	0204-	●	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-118-0	02	1	9101-							●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-119-0	02	1	9101-							●
59	GEAR; REV MAINSHAFT Z=43	1-33257-059-0	01	1	0204-	●	●	●
59	GEAR; REV MAINSHAFT Z=43	1-33257-022-0	01	1	9101-9110	●	●	●	●	●	●
59	GEAR; REV MAINSHAFT Z=43	1-33257-052-0	01	1	9111-9309	●	●	●	●	●	●
59	GEAR; REV MAINSHAFT Z=43	1-33257-059-0	01	1	9310-0203	●	●	●	●	●	●
59	GEAR; REV MAINSHAFT Z=40	1-33257-034-0	01	1	9101-							●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-054-1	01	1	0204-	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-021-1	01	1	9101-9309	●	●	●	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-054-1	01	1	9310-0203	●	●	●	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=46	1-33255-036-0	01	1	9101-							●
73	CLUTCH; SYN 1ST	1-33261-133-0	01	1	9101-0203	●	●	●	●	●	●
73	CLUTCH; SYN 1ST	1-33261-133-0	01	1	0204-	●	●	●
74	WASHER; THRUST,REV GEAR	1-33239-018-1	01	1	0204-	●	●	●
74	WASHER; THRUST,REV GEAR	1-33239-018-1	01	1	9101-0203	●	●	●	●	●	●
75	BEARING; MAINSHAFT KOYO	1-09810-155-0	01	1	0301-	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-082-0	01	1	9101-0203	●	●	●	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-082-0	01	1	0204-0212	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-082-0	02	1	0301-	●	●	●
75	BEARING; MAINSHAFT KOYO	1-09810-155-0	01	1	9101-0203	●	●	●	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9101-							●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9101-							●
80	GEAR; SPD DRIVE Z=6	1-33371-042-2	01	1	0204-	●	●	●
80	GEAR; SPD DRIVE Z=6	1-33371-025-0	01	1	9101-9110	●	●	●	●	●	●
80	GEAR; SPD DRIVE Z=6	1-33371-042-2	01	1	9111-0203	●	●	●	●	●	●
80	GEAR; SPD DRIVE Z=4	1-33371-012-0	01	1	9101-							●
82	SHAFT; MAIN,TRANS Z=24-21-26	1-33231-318-0	01	1	0204-	●		●
82	SHAFT; MAIN,TRANS Z=24-21-26	1-33231-316-0	01	1	0204-		●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-201-1	01	1	9101-9309	●		●	●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-266-0	01	1	9310-9912	●		●	●
82	SHAFT; MAIN,TRANS Z=24-21-26	1-33231-318-0	01	1	0001-0203	●		●	●
82	SHAFT; MAIN,TRANS Z=26-22-21	1-33231-198-1	01	1	9101-9309						●
82	SHAFT; MAIN,TRANS Z=22-21-26	1-33231-265-0	01	1	9310-9912						●
82	SHAFT; MAIN,TRANS Z=22-21-26	1-33231-317-0	01	1	0001-0203						●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-202-1	01	1	9101-9309		●			●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-247-0	01	1	9310-9912		●			●
82	SHAFT; MAIN,TRANS Z=24-21-26	1-33231-316-0	01	1	0001-0203		●			●
82	SHAFT; MAIN,TRANS Z=37-37-20-18	1-33231-143-5	01	1	9101-							●
83	PIN; THRUST WASHER	1-09740-032-0	01	1	9101-0203	●	●	●	●	●	●
83	PIN; THRUST WASHER	1-09740-032-0	01	1	0204-	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-127-0	01	1	9101-0203	●	●	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-127-0	01	1	0204-	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-128-0	01	1	9101-0203	●	●	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-128-0	01	1	0204-	●	●	●
84	BEARING; COUNTER SHAFT,FRT KOYO	1-09810-129-0	01	1	9101-0203	●	●	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT KOYO	1-09810-129-0	01	1	0204-	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-102-0	01	1	9101-							●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-103-0	01	1	9101-							●
93	RING; SNAP,COUNTER FRT BRG (C) ID=53.3 T=2.5	1-09588-102-0	01	1	9101-0203	●	●	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG (C) ID=53.3 T=2.5	1-09588-102-0	01	1	0204-	●	●	●
93	RING; SNAP,COUNTER FRT BRG (A) ID=46.3	1-09588-047-0	01	1	9101-							●
93	RING; SNAP,COUNTER FRT BRG (B) ID=60.8	9-09180-065-0	01	1	9101-							●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	03	1	9101-0203	●	●	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	03	1	0204-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=40	1-09735-033-0	01	1	9101-							●
96	GEAR; COUNTER DRIVE Z=39-38	1-33331-210-0	01	1	0204-	●	●	●
96	GEAR; COUNTER DRIVE Z=38	1-33331-168-2	01	1	9101-9110		●		●	●
96	GEAR; COUNTER DRIVE Z=38	1-33331-198-0	01	1	9111-9309		●		●	●
96	GEAR; COUNTER DRIVE Z=38	1-33331-209-0	01	1	9310-9310		●		●	●
96	GEAR; COUNTER DRIVE Z=38	1-33331-209-0	01	1	9311-0203				●	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-167-2	01	1	9101-9110	●		●
96	GEAR; COUNTER DRIVE Z=39-38	1-33331-218-0	01	1	9111-9309	●		●
96	GEAR; COUNTER DRIVE Z=39-38	1-33331-210-0	01	1	9310-9310	●		●
96	GEAR; COUNTER DRIVE Z=39-38	1-33331-210-0	01	1	9311-0203	●	●	●
96	GEAR; COUNTER DRIVE Z=37	1-33331-172-1	01	1	9101-9110						●
96	GEAR; COUNTER DRIVE Z=37	1-33331-217-0	01	1	9111-9404						●
96	GEAR; COUNTER DRIVE Z=37	1-33331-211-0	01	1	9405-0203						●
96	GEAR; COUNTER DRIVE Z=43	1-33331-149-0	01	1	9101-							●
97	GEAR; 5TH,COUNTER Z=41	1-33332-077-2	01	1	9101-9309						●
97	GEAR; 5TH,COUNTER Z=41	1-33332-112-0	01	1	9310-0203						●
104	GEAR; 4TH,COUNTER Z=35	1-33332-094-0	01	1	0204-	●	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-093-0	01	1	0204-			●
104	GEAR; 4TH,COUNTER Z=34	1-33332-070-4	01	1	9101-9110			●	●	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-084-0	01	1	9111-9309			●	●	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-093-0	01	1	9310-0203			●	●	●
104	GEAR; 4TH,COUNTER Z=35	1-33332-069-4	01	1	9101-9110	●	●
104	GEAR; 4TH,COUNTER Z=35	1-33332-106-0	01	1	9111-9309	●	●
104	GEAR; 4TH,COUNTER Z=35	1-33332-094-0	01	1	9310-0203	●	●
104	GEAR; 4TH,COUNTER Z=38	1-33332-064-0	01	1	9101-							●
105	GEAR; 3RD,COUNTER Z=28	1-33333-151-0	01	1	0204-	●	●	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-098-2	01	1	9101-9309	●	●	●	●	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-151-0	01	1	9310-0203	●	●	●	●	●
105	GEAR; 3RD,COUNTER Z=32	1-33333-104-2	01	1	9101-0203						●
105	GEAR; 3RD,COUNTER Z=28	1-33333-093-0	01	1	9101-							●
106	GEAR; 2ND,COUNTER Z=22	1-33334-019-0	01	1	0204-	●	●	●
106	GEAR; 2ND,COUNTER Z=22	1-33334-017-0	01	1	9101-9309	●	●	●	●	●
106	GEAR; 2ND,COUNTER Z=22	1-33334-019-0	01	1	9310-0203	●	●	●	●	●
106	GEAR; 2ND,COUNTER Z=23	1-33334-016-1	01	1	9101-0203						●
107	KEY; FEATHER,2ND COUNTER L=41	1-09735-021-0	01	1	9101-0203	●	●	●	●	●	●
107	KEY; FEATHER,2ND COUNTER L=41	1-09735-021-0	01	1	0204-	●	●	●
108	SHAFT; COUNTER Z=14	1-33311-268-1	01	1	0204-	●		●
108	SHAFT; COUNTER Z=14	1-33311-233-1	01	1	0204-		●
108	SHAFT; COUNTER Z=14	1-33311-170-2	01	1	9101-9309	●		●	●		●
108	SHAFT; COUNTER Z=14	1-33311-268-1	01	1	9310-0203	●		●	●		●
108	SHAFT; COUNTER Z=14	1-33311-176-2	01	1	9101-9309		●			●
108	SHAFT; COUNTER Z=14	1-33311-233-1	01	1	9310-0203		●			●
108	SHAFT; COUNTER Z=20	1-33311-156-0	01	1	9101-							●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	0204-	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-080-0	01	1	9101-0112	●	●	●	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	0201-0203	●	●	●	●	●	●
109	BEARING; COUNTER SHAFT,RR K0Y0	1-09810-039-1	01	1	9101-							●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9101-							●
127	COLLAR; THRUST,REV SHAFT	1-33363-005-0	01	1	9101-0203	●	●	●	●	●	●
127	COLLAR; THRUST,REV SHAFT	1-33363-005-0	01	1	0204-	●	●	●
128	WASHER; THRUST,REV SHAFT	9-33271-033-0	02	1	9101-0203	●	●	●	●	●	●
128	WASHER; THRUST,REV SHAFT T=2.9	9-33271-033-0	02	1	0204-	●	●	●
128	WASHER; THRUST,REV SHAFT	1-33239-066-0	02	1	9101-							●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	9101-0203	●	●	●	●	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	0204-	●	●	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-017-0	02	1	9101-0203	●	●	●	●	●	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-017-0	02	1	0204-	●	●	●
129	BEARING; NEEDLE,IDLER K0Y0	1-09811-102-0	02	1	9101-							●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9101-							●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0204-	●		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	9101-0203	●		●	●		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=33.2	1-09623-378-0	01	1	9101-							●
132	SHAFT; REV	1-33351-013-1	01	1	0204-	●		●
132	SHAFT; REV	1-33351-018-2	01	1	0204-		●
132	SHAFT; REV	1-33351-013-1	01	1	9101-0203	●		●	●		●
132	SHAFT; REV	1-33351-018-2	01	1	9101-0203		●			●
132	SHAFT; REV	1-33351-011-2	01	1	9101-							●
135	GEAR; REV IDLER Z=27	1-33361-062-0	01	1	0204-	●	●	●
135	GEAR; REV IDLER Z=27	1-33361-017-0	01	1	9101-9309	●	●	●	●	●	●
135	GEAR; REV IDLER Z=27	1-33361-062-0	01	1	9310-0203	●	●	●	●	●	●
135	GEAR; REV IDLER Z=26-22	1-33361-033-0	01	1	9101-							●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9101-0203	●	●	●	●	●	●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0204-	●	●	●
139	WASHER; LK,PIECE	9-09151-210-0	01	1	9101-9205	●	●	●	●	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	0204-	●	●	●
140	BOLT; LK PIECE M10X16	0-23801-016-0	01	1	9101-9205	●	●	●	●	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9206-0203	●	●	●	●	●	●

73 59 56 74 75 47 46 45 77 78 79 49 55 44 2 41 3 80 50 54 54 83 82 1 7 16 7 18 10 70 56 19 20 24 23 19 22 28 93 84 30 48 29 96 21 27 104 36 33 41 105 42 94 106 94 94 107 108 109 110 115 127 119 120 126 121 126 128 135 132 129 26 118 129 140 128 122 138 139 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-777-0	01	1	0204-	●	●	●
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-725-0	01	1	9101-9309				●	●
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-776-0	01	1	9310-0203				●	●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-723-0	01	1	9101-9309	●	●	●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-777-0	01	1	9310-0203	●	●	●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-727-0	01	1	9101-0203						●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-524-0	01	1	9101-							●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9101-0203	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0204-	●	●	●				●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9101-0203	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0204-	●	●	●				●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9101-0203	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0204-	●	●	●				●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9101-0203	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0204-	●	●	●				●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	0204-	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-138-1	01	1	9101-9501	●	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9502-9909	●	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	9910-0203	●	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9101-9205							●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0204-							●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	9101-0203	●	●	●	●	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	0204-	●	●	●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	9101-0203	●	●	●	●	●	●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	0204-	●	●	●
10	RING; SNAP,PILOT BRG	1-09588-157-0	01	1	9101-							●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-021-0	14	1	0204-	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-022-0	14	1	0204-	●	●	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-023-0	14	1	0204-	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-006-1	14	1	9101-9810	●	●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-021-0	14	1	9811-0203	●	●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-007-1	14	1	9101-9810	●	●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-022-0	14	1	9811-0203	●	●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-008-2	14	1	9101-9810	●	●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-023-0	14	1	9811-0203	●	●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-038-1	01	1	9101-							●
16	BEARING; PILOT,MAINSHAFT NSK	9-00094-108-1	01	1	9101-							●
18	RING; SNAP,CLU HUB ID=46.3 T=1.75	1-09588-121-1	01	1	9101-0203	●	●	●	●	●
18	RING; SNAP,CLU HUB ID=46.3 T=1.75	1-09588-121-1	01	1	0204-	●	●	●
18	RING; SNAP,CLU HUB ID=43.8 T=1.75	1-09588-104-0	01	1	9101-0203						●
18	RING; SNAP,CLU HUB ID=53.3 T=2.5	1-09588-102-0	01	1	9101-							●
19	RING; BLOCK,4TH & 5TH Z=39	1-33265-408-0	02	1	0204-	●	●	●
19	RING; BLOCK,4TH & 5TH	1-33265-283-0	02	1	9101-9212	●	●	●	●	●	●
19	RING; BLOCK,4TH & 5TH Z=39	1-33265-408-0	02	1	9301-0203	●	●	●	●	●	●
19	RING; BLOCK,4TH & 5TH	1-33265-169-3	02	1	9101-							●
20	SLEEVE	1-33262-094-1	01	1	0204-	●	●	●
20	SLEEVE	1-33262-094-1	01	1	9101-0203	●	●	●	●	●	●
20	SLEEVE	1-33262-074-0	01	1	9101-							●
21	HUB; CLU,4TH & 5TH	1-33261-148-0	01	1	9101-0203	●	●	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-148-0	01	1	0204-	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-147-0	01	1	9101-0203						●
21	HUB; CLU,4TH & 5TH	1-33261-115-0	01	1	9101-							●
22	SPRING; BLOCK,INSERT	1-09580-395-0	03	1	9101-0203	●	●	●	●	●	●
22	SPRING; BLOCK,INSERT	1-09580-395-0	03	1	0204-	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0204-	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9101-0203	●	●	●	●	●	●
24	BLOCK; INDEX,SYN	1-33269-009-1	03	1	0204-							●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0204-	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9101-0203	●	●	●	●	●	●
24	BLOCK; INDEX,SYN	1-33269-009-1	03	1	9101-0203							●
26	SPRING; BLOCK,INSERT	1-09580-373-0	03	1	9101-0203		●			●
26	SPRING; BLOCK,INSERT	1-09580-373-0	03	1	0204-		●
27	BEARING; 4TH GEAR NSK	1-09811-263-0	01	1	0204-	●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-265-0	01	1	0204-	●	●	●
27	BEARING; 4TH GEAR KOYO	1-09811-266-0	01	1	0204-	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-263-0	01	1	9101-0203	●	●	●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-265-0	01	1	9101-0203	●	●	●	●	●
27	BEARING; 4TH GEAR KOYO	1-09811-266-0	01	1	9101-0203	●	●	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-289-0	01	1	9101-0203						●
27	BEARING; 4TH GEAR NTN	1-09811-290-0	01	1	9101-0203						●
27	BEARING; 4TH GEAR KOYO	1-09811-291-0	01	1	9101-0203						●
27	BEARING; 4TH GEAR NTN	1-09811-207-0	01	1	9101-							●
27	BEARING; 4TH GEAR NSK	1-09811-209-0	01	1	9101-							●
28	RING; SNAP,3RD GEAR	1-09588-120-0	01	1	9101-0203	●	●	●	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-120-0	01	1	0204-	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-103-0	01	1	9101-							●
29	COLLAR; 3RD GEAR	1-33234-042-2	01	1	0204-	●	●	●
29	COLLAR; 3RD GEAR	1-33234-042-2	01	1	9101-0203	●	●	●	●	●
29	COLLAR; 3RD GEAR	1-33234-031-1	01	1	9101-0203						●
30	GEAR; 4TH,MAINSHAFT Z=25	1-33253-496-0	01	1	0204-	●	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-495-0	01	1	0204-			●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-454-0	01	1	9101-9309			●	●	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-495-0	01	1	9310-0203			●	●	●
30	GEAR; 4TH,MAINSHAFT Z=25	1-33253-452-0	01	1	9101-9309	●	●
30	GEAR; 4TH,MAINSHAFT Z=25	1-33253-496-0	01	1	9310-0203	●	●
30	GEAR; 4TH,MAINSHAFT Z=27	1-33253-350-0	01	1	9101-							●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-198-0	01	1	9101-0203	●	●	●	●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK NSK	1-09811-198-0	01	1	0204-	●	●	●
33	BEARING; NEEDLE,3RD GEAR KOYO	1-09811-199-0	01	1	9101-0203	●	●	●	●	●	●
33	BEARING; NEEDLE,3RD GEAR KOYO	1-09811-199-0	01	1	0204-	●	●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-205-0	01	1	9101-							●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-206-0	01	1	9101-							●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-358-1	01	1	0204-	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-326-0	01	1	9101-9108	●	●	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-322-1	01	1	9109-9301	●	●	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-406-0	01	1	9302-9309	●	●	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-358-1	01	1	9310-0203	●	●	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=30	1-33252-329-0	01	1	9101-9108						●
36	GEAR; 3RD,MAINSHAFT Z=30	1-33252-320-1	01	1	9109-9301						●
36	GEAR; 3RD,MAINSHAFT Z=30	1-33252-403-1	01	1	9302-0203						●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-231-1	01	1	9101-							●
41	RING; BLOCK,2ND & 3RD	1-33265-282-0	02	1	9101-9108	●	●	●	●	●	●
42	SLEEVE Z=45	1-33262-162-0	01	1	0204-	●	●	●
42	SLEEVE Z=42	1-33262-136-0	01	1	9101-9108	●	●	●	●	●	●
42	SLEEVE Z=45	1-33262-140-1	01	1	9109-9209	●	●	●	●	●	●
42	SLEEVE Z=45	1-33262-164-0	01	1	9210-9503	●	●	●	●	●	●
42	SLEEVE Z=45	1-33262-162-0	01	1	9504-0203	●	●	●	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-216-0	01	1	0204-	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-146-3	01	1	9101-9108	●	●	●	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-172-1	01	1	9109-9112	●	●	●	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-196-0	01	1	9201-9405	●	●	●	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-216-0	01	1	9406-0203	●	●	●	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-106-0	01	1	9101-							●
45	SPRING; BLOCK INSERT	1-09580-395-0	03	1	0204-	●	●	●
45	SPRING; BLOCK INSERT	1-09580-395-0	03	1	9101-9108	●	●	●	●	●	●
45	SPRING; BLOCK INSERT	1-09580-373-0	03	1	9109-9209	●	●	●	●	●	●
45	SPRING; BLOCK INSERT	1-09580-395-0	03	1	9210-0203	●	●	●	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0204-	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9101-0203	●	●	●	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0204-	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9101-0203	●	●	●	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-409-0	02	1	0204-	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-352-0	02	1	9109-9205	●	●	●	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-402-0	02	1	9206-9301	●	●	●	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-409-0	02	1	9302-0203	●	●	●	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-086-1	01	1	9101-							●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-141-1	01	1	0204-	●	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-141-1	01	1	9101-0203	●	●	●	●	●	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-205-0	01	1	9101-							●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-206-0	01	1	9101-							●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-290-1	01	1	0204-	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-275-0	01	1	9101-9108	●	●	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-259-1	01	1	9109-9301	●	●	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-325-0	01	1	9302-9309	●	●	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-290-1	01	1	9310-0203	●	●	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=41	1-33251-274-0	01	1	9101-9108						●
50	GEAR; 2ND,MAINSHAFT Z=41	1-33251-258-1	01	1	9109-9301						●
50	GEAR; 2ND,MAINSHAFT Z=41	1-33251-324-1	01	1	9302-0203						●
50	GEAR; 2ND,MAINSHAFT Z=44	1-33251-179-1	01	1	9101-							●
54	RING; SNAP,THRUST WASHER	1-09588-080-0	02	1	9101-0203	●	●	●	●	●	●
54	RING; SNAP,THRUST WASHER	1-09588-080-0	02	1	0204-	●	●	●
55	WASHER; THRUST,MAINSHAFT	1-33239-016-0	01	1	9101-0203	●	●	●	●	●	●
55	WASHER; THRUST,MAINSHAFT	1-33239-016-0	01	1	0204-	●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-019-0	02	1	9101-0203	●	●	●	●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-019-0	02	1	0204-	●	●	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-020-0	02	1	9101-0203	●	●	●	●	●	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-020-0	02	1	0204-	●	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-118-0	02	1	9101-							●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-119-0	02	1	9101-							●
59	GEAR; REV MAINSHAFT Z=43	1-33257-059-0	01	1	0204-	●	●	●
59	GEAR; REV MAINSHAFT Z=43	1-33257-022-0	01	1	9101-9110	●	●	●	●	●	●
59	GEAR; REV MAINSHAFT Z=43	1-33257-052-0	01	1	9111-9309	●	●	●	●	●	●
59	GEAR; REV MAINSHAFT Z=43	1-33257-059-0	01	1	9310-0203	●	●	●	●	●	●
59	GEAR; REV MAINSHAFT Z=40	1-33257-034-0	01	1	9101-							●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-054-1	01	1	0204-	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-021-1	01	1	9101-9309	●	●	●	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-054-1	01	1	9310-0203	●	●	●	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=46	1-33255-036-0	01	1	9101-							●
73	CLUTCH; SYN 1ST	1-33261-133-0	01	1	9101-0203	●	●	●	●	●	●
73	CLUTCH; SYN 1ST	1-33261-133-0	01	1	0204-	●	●	●
74	WASHER; THRUST,REV GEAR	1-33239-018-1	01	1	0204-	●	●	●
74	WASHER; THRUST,REV GEAR	1-33239-018-1	01	1	9101-0203	●	●	●	●	●	●
75	BEARING; MAINSHAFT KOYO	1-09810-155-0	01	1	0301-	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-082-0	01	1	9101-0203	●	●	●	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-082-0	01	1	0204-0212	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-082-0	02	1	0301-	●	●	●
75	BEARING; MAINSHAFT KOYO	1-09810-155-0	01	1	9101-0203	●	●	●	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9101-							●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9101-							●
77	GEAR; 6TH,MAINSHAFT Z=16	1-33253-515-0	01	1	0204-		●
77	GEAR; 6TH,MAINSHAFT Z=17	1-33253-374-0	01	1	9101-9309					●
77	GEAR; 6TH,MAINSHAFT Z=17	1-33253-516-0	01	1	9310-0203					●
77	GEAR; 6TH,MAINSHAFT Z=16	1-33253-372-0	01	1	9101-9309		●
77	GEAR; 6TH,MAINSHAFT Z=16	1-33253-515-0	01	1	9310-0203		●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-095-0	01	1	0204-		●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-020-0	01	1	9101-9305		●			●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-095-0	01	1	9306-0203		●			●
79	BEARING; BALL,MAINSHAFT KOYO	1-09800-120-1	01	1	0204-		●
79	BEARING; BALL,MAINSHAFT NSK	1-09800-287-0	01	1	0204-		●
79	BEARING; BALL,MAINSHAFT NSK	1-09800-019-0	01	1	9101-9902		●			●
79	BEARING; BALL,MAINSHAFT NSK	1-09800-287-0	01	1	9903-0203		●			●
79	BEARING; BALL,MAINSHAFT KOYO	1-09800-120-1	01	1	9101-0203		●			●
80	GEAR; SPD DRIVE Z=6	1-33371-042-2	01	1	0204-	●	●	●
80	GEAR; SPD DRIVE Z=6	1-33371-025-0	01	1	9101-9110	●	●	●	●	●	●
80	GEAR; SPD DRIVE Z=6	1-33371-042-2	01	1	9111-0203	●	●	●	●	●	●
80	GEAR; SPD DRIVE Z=4	1-33371-012-0	01	1	9101-							●
82	SHAFT; MAIN,TRANS Z=24-21-26	1-33231-318-0	01	1	0204-	●		●
82	SHAFT; MAIN,TRANS Z=24-21-26	1-33231-316-0	01	1	0204-		●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-201-1	01	1	9101-9309	●		●	●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-266-0	01	1	9310-9912	●		●	●
82	SHAFT; MAIN,TRANS Z=24-21-26	1-33231-318-0	01	1	0001-0203	●		●	●
82	SHAFT; MAIN,TRANS Z=26-22-21	1-33231-198-1	01	1	9101-9309						●
82	SHAFT; MAIN,TRANS Z=22-21-26	1-33231-265-0	01	1	9310-9912						●
82	SHAFT; MAIN,TRANS Z=22-21-26	1-33231-317-0	01	1	0001-0203						●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-202-1	01	1	9101-9309		●			●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-247-0	01	1	9310-9912		●			●
82	SHAFT; MAIN,TRANS Z=24-21-26	1-33231-316-0	01	1	0001-0203		●			●
82	SHAFT; MAIN,TRANS Z=37-37-20-18	1-33231-143-5	01	1	9101-							●
83	PIN; THRUST WASHER	1-09740-032-0	01	1	9101-0203	●	●	●	●	●	●
83	PIN; THRUST WASHER	1-09740-032-0	01	1	0204-	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-127-0	01	1	9101-0203	●	●	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-127-0	01	1	0204-	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-128-0	01	1	9101-0203	●	●	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-128-0	01	1	0204-	●	●	●
84	BEARING; COUNTER SHAFT,FRT KOYO	1-09810-129-0	01	1	9101-0203	●	●	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT KOYO	1-09810-129-0	01	1	0204-	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-102-0	01	1	9101-							●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-103-0	01	1	9101-							●
93	RING; SNAP,COUNTER FRT BRG (C) ID=53.3 T=2.5	1-09588-102-0	01	1	9101-0203	●	●	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG (C) ID=53.3 T=2.5	1-09588-102-0	01	1	0204-	●	●	●
93	RING; SNAP,COUNTER FRT BRG (A) ID=46.3	1-09588-047-0	01	1	9101-							●
93	RING; SNAP,COUNTER FRT BRG (B) ID=60.8	9-09180-065-0	01	1	9101-							●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	03	1	9101-0203	●	●	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	03	1	0204-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=40	1-09735-033-0	01	1	9101-							●
96	GEAR; COUNTER DRIVE Z=39-38	1-33331-210-0	01	1	0204-	●	●	●
96	GEAR; COUNTER DRIVE Z=38	1-33331-168-2	01	1	9101-9110		●		●	●
96	GEAR; COUNTER DRIVE Z=38	1-33331-198-0	01	1	9111-9309		●		●	●
96	GEAR; COUNTER DRIVE Z=38	1-33331-209-0	01	1	9310-9310		●		●	●
96	GEAR; COUNTER DRIVE Z=38	1-33331-209-0	01	1	9311-0203				●	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-167-2	01	1	9101-9110	●		●
96	GEAR; COUNTER DRIVE Z=39-38	1-33331-218-0	01	1	9111-9309	●		●
96	GEAR; COUNTER DRIVE Z=39-38	1-33331-210-0	01	1	9310-9310	●		●
96	GEAR; COUNTER DRIVE Z=39-38	1-33331-210-0	01	1	9311-0203	●	●	●
96	GEAR; COUNTER DRIVE Z=37	1-33331-172-1	01	1	9101-9110						●
96	GEAR; COUNTER DRIVE Z=37	1-33331-217-0	01	1	9111-9404						●
96	GEAR; COUNTER DRIVE Z=37	1-33331-211-0	01	1	9405-0203						●
96	GEAR; COUNTER DRIVE Z=43	1-33331-149-0	01	1	9101-							●
104	GEAR; 4TH,COUNTER Z=35	1-33332-094-0	01	1	0204-	●	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-093-0	01	1	0204-			●
104	GEAR; 4TH,COUNTER Z=34	1-33332-070-4	01	1	9101-9110			●	●	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-084-0	01	1	9111-9309			●	●	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-093-0	01	1	9310-0203			●	●	●
104	GEAR; 4TH,COUNTER Z=35	1-33332-069-4	01	1	9101-9110	●	●
104	GEAR; 4TH,COUNTER Z=35	1-33332-106-0	01	1	9111-9309	●	●
104	GEAR; 4TH,COUNTER Z=35	1-33332-094-0	01	1	9310-0203	●	●
104	GEAR; 4TH,COUNTER Z=38	1-33332-064-0	01	1	9101-							●
105	GEAR; 3RD,COUNTER Z=28	1-33333-151-0	01	1	0204-	●	●	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-098-2	01	1	9101-9309	●	●	●	●	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-151-0	01	1	9310-0203	●	●	●	●	●
105	GEAR; 3RD,COUNTER Z=32	1-33333-104-2	01	1	9101-0203						●
105	GEAR; 3RD,COUNTER Z=28	1-33333-093-0	01	1	9101-							●
106	GEAR; 2ND,COUNTER Z=22	1-33334-019-0	01	1	0204-	●	●	●
106	GEAR; 2ND,COUNTER Z=22	1-33334-017-0	01	1	9101-9309	●	●	●	●	●
106	GEAR; 2ND,COUNTER Z=22	1-33334-019-0	01	1	9310-0203	●	●	●	●	●
106	GEAR; 2ND,COUNTER Z=23	1-33334-016-1	01	1	9101-0203						●
107	KEY; FEATHER,2ND COUNTER L=41	1-09735-021-0	01	1	9101-0203	●	●	●	●	●	●
107	KEY; FEATHER,2ND COUNTER L=41	1-09735-021-0	01	1	0204-	●	●	●
108	SHAFT; COUNTER Z=14	1-33311-268-1	01	1	0204-	●		●
108	SHAFT; COUNTER Z=14	1-33311-233-1	01	1	0204-		●
108	SHAFT; COUNTER Z=14	1-33311-170-2	01	1	9101-9309	●		●	●		●
108	SHAFT; COUNTER Z=14	1-33311-268-1	01	1	9310-0203	●		●	●		●
108	SHAFT; COUNTER Z=14	1-33311-176-2	01	1	9101-9309		●			●
108	SHAFT; COUNTER Z=14	1-33311-233-1	01	1	9310-0203		●			●
108	SHAFT; COUNTER Z=20	1-33311-156-0	01	1	9101-							●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	0204-	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-080-0	01	1	9101-0112	●	●	●	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	0201-0203	●	●	●	●	●	●
109	BEARING; COUNTER SHAFT,RR K0Y0	1-09810-039-1	01	1	9101-							●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9101-							●
110	RING; SNAP,COUNTER BRG	1-09588-075-1	01	1	0204-		●
110	RING; SNAP,COUNTER BRG	1-09588-075-1	01	1	9101-0203		●			●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-267-0	01	1	9101-0203		●			●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-267-0	01	1	0204-		●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-268-0	01	1	9101-0203		●			●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-268-0	01	1	0204-		●
115	BEARING; NEEDLE,6TH,COUNTER KOYO	1-09811-269-0	01	1	9101-0203		●			●
115	BEARING; NEEDLE,6TH,COUNTER KOYO	1-09811-269-0	01	1	0204-		●
118	GEAR; 6TH,COUNTER Z=42	1-33338-272-0	01	1	0204-		●
118	GEAR; 6TH,COUNTER Z=41	1-33338-212-1	01	1	9101-9110					●
118	GEAR; 6TH,COUNTER Z=41	1-33338-278-0	01	1	9111-9309					●
118	GEAR; 6TH,COUNTER Z=41	1-33338-273-0	01	1	9310-0203					●
118	GEAR; 6TH,COUNTER Z=42	1-33338-210-2	01	1	9101-9110		●
118	GEAR; 6TH,COUNTER Z=42	1-33338-279-0	01	1	9111-9309		●
118	GEAR; 6TH,COUNTER Z=42	1-33338-272-0	01	1	9310-0203		●
119	RING; BLOCK,6TH SYN Z=39	1-33265-408-0	01	1	0204-		●
119	RING; BLOCK,6TH SYN	1-33265-283-0	01	1	9101-9212		●			●
119	RING; BLOCK,6TH SYN Z=39	1-33265-408-0	01	1	9301-0203		●			●
120	SLEEVE	1-33262-095-0	01	1	9101-0203		●			●
120	SLEEVE	1-33262-095-0	01	1	0204-		●
121	HUB; CLU,6TH	1-33261-143-1	01	1	9101-0203		●			●
121	HUB; CLU,6TH	1-33261-143-1	01	1	0204-		●
122	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0204-		●
122	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9101-0203		●			●
123	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0204-		●
123	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9101-0203		●			●
126	RING; SNAP,CLU HUB OD=100 T=2	1-09587-032-0	01	1	9101-0203		●			●
126	RING; SNAP,CLU HUB OD=100 T=2	1-09587-032-0	01	1	0204-		●
126	RING; SNAP,CLU HUB ID=46.3 T=1.75	1-09588-121-1	01	1	9101-0203		●			●
126	RING; SNAP,CLU HUB ID=46.3 T=1.75	1-09588-121-1	01	1	0204-		●
127	COLLAR; THRUST,REV SHAFT	1-33363-005-0	01	1	9101-0203	●	●	●	●	●	●
127	COLLAR; THRUST,REV SHAFT	1-33363-005-0	01	1	0204-	●	●	●
128	WASHER; THRUST,REV SHAFT	9-33271-033-0	02	1	9101-0203	●	●	●	●	●	●
128	WASHER; THRUST,REV SHAFT T=2.9	9-33271-033-0	02	1	0204-	●	●	●
128	WASHER; THRUST,REV SHAFT	1-33239-066-0	02	1	9101-							●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	9101-0203	●	●	●	●	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	0204-	●	●	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-017-0	02	1	9101-0203	●	●	●	●	●	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-017-0	02	1	0204-	●	●	●
129	BEARING; NEEDLE,IDLER K0Y0	1-09811-102-0	02	1	9101-							●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9101-							●
132	SHAFT; REV	1-33351-013-1	01	1	0204-	●		●
132	SHAFT; REV	1-33351-018-2	01	1	0204-		●
132	SHAFT; REV	1-33351-013-1	01	1	9101-0203	●		●	●		●
132	SHAFT; REV	1-33351-018-2	01	1	9101-0203		●			●
132	SHAFT; REV	1-33351-011-2	01	1	9101-							●
135	GEAR; REV IDLER Z=27	1-33361-062-0	01	1	0204-	●	●	●
135	GEAR; REV IDLER Z=27	1-33361-017-0	01	1	9101-9309	●	●	●	●	●	●
135	GEAR; REV IDLER Z=27	1-33361-062-0	01	1	9310-0203	●	●	●	●	●	●
135	GEAR; REV IDLER Z=26-22	1-33361-033-0	01	1	9101-							●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9101-0203	●	●	●	●	●	●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0204-	●	●	●
139	WASHER; LK,PIECE	9-09151-210-0	01	1	9101-9205	●	●	●	●	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	0204-	●	●	●
140	BOLT; LK PIECE M10X16	0-23801-016-0	01	1	9101-9205	●	●	●	●	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9206-0203	●	●	●	●	●	●

2 3 228 1 229 10 18 24 16 19 20 21 19 30 27 28 32 36 50 49 82 33 56 48 59 44 68 67 70 56 84 69 103 103 76 94 93 75 96 212 94 236 80 104 105 235 128 108 129 130 129 135 132 109 131 93 134 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-777-0	01	1	0204-	●	●	●
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-725-0	01	1	9101-9309				●	●
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-776-0	01	1	9310-0203				●	●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-723-0	01	1	9101-9309	●	●	●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-777-0	01	1	9310-0203	●	●	●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-727-0	01	1	9101-0203						●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-524-0	01	1	9101-							●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9101-0203	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0204-	●	●	●				●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9101-0203	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0204-	●	●	●				●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9101-0203	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0204-	●	●	●				●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9101-0203	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0204-	●	●	●				●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	0204-	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-138-1	01	1	9101-9501	●	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9502-9909	●	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	9910-0203	●	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9101-9205							●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0204-							●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	9101-0203	●	●	●	●	●	●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	0204-	●	●	●
10	RING; SNAP,PILOT BRG	1-09588-157-0	01	1	9101-							●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-021-0	14	1	0204-	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-022-0	14	1	0204-	●	●	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-023-0	14	1	0204-	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-006-1	14	1	9101-9810	●	●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-021-0	14	1	9811-0203	●	●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-007-1	14	1	9101-9810	●	●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-022-0	14	1	9811-0203	●	●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-008-2	14	1	9101-9810	●	●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-023-0	14	1	9811-0203	●	●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-038-1	01	1	9101-							●
16	BEARING; PILOT,MAINSHAFT NSK	9-00094-108-1	01	1	9101-							●
18	RING; SNAP,CLU HUB ID=46.3 T=1.75	1-09588-121-1	01	1	9101-0203	●	●	●	●	●
18	RING; SNAP,CLU HUB ID=46.3 T=1.75	1-09588-121-1	01	1	0204-	●	●	●
18	RING; SNAP,CLU HUB ID=43.8 T=1.75	1-09588-104-0	01	1	9101-0203						●
18	RING; SNAP,CLU HUB ID=53.3 T=2.5	1-09588-102-0	01	1	9101-							●
19	RING; BLOCK,4TH & 5TH Z=39	1-33265-408-0	02	1	0204-	●	●	●
19	RING; BLOCK,4TH & 5TH	1-33265-283-0	02	1	9101-9212	●	●	●	●	●	●
19	RING; BLOCK,4TH & 5TH Z=39	1-33265-408-0	02	1	9301-0203	●	●	●	●	●	●
19	RING; BLOCK,4TH & 5TH	1-33265-169-3	02	1	9101-							●
20	SLEEVE	1-33262-094-1	01	1	0204-	●	●	●
20	SLEEVE	1-33262-094-1	01	1	9101-0203	●	●	●	●	●	●
20	SLEEVE	1-33262-074-0	01	1	9101-							●
21	HUB; CLU,4TH & 5TH	1-33261-148-0	01	1	9101-0203	●	●	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-148-0	01	1	0204-	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-147-0	01	1	9101-0203						●
21	HUB; CLU,4TH & 5TH	1-33261-115-0	01	1	9101-							●
24	BLOCK; INDEX,SYN	1-33269-009-1	03	1	0204-							●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0204-	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9101-0203	●	●	●	●	●	●
24	BLOCK; INDEX,SYN	1-33269-009-1	03	1	9101-0203							●
27	BEARING; 4TH GEAR NSK	1-09811-263-0	01	1	0204-	●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-265-0	01	1	0204-	●	●	●
27	BEARING; 4TH GEAR KOYO	1-09811-266-0	01	1	0204-	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-263-0	01	1	9101-0203	●	●	●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-265-0	01	1	9101-0203	●	●	●	●	●
27	BEARING; 4TH GEAR KOYO	1-09811-266-0	01	1	9101-0203	●	●	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-289-0	01	1	9101-0203						●
27	BEARING; 4TH GEAR NTN	1-09811-290-0	01	1	9101-0203						●
27	BEARING; 4TH GEAR KOYO	1-09811-291-0	01	1	9101-0203						●
27	BEARING; 4TH GEAR NTN	1-09811-207-0	01	1	9101-							●
27	BEARING; 4TH GEAR NSK	1-09811-209-0	01	1	9101-							●
28	RING; SNAP,3RD GEAR	1-09588-120-0	01	1	9101-0203	●	●	●	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-120-0	01	1	0204-	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-103-0	01	1	9101-							●
30	GEAR; 4TH,MAINSHAFT Z=25	1-33253-496-0	01	1	0204-	●	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-495-0	01	1	0204-			●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-454-0	01	1	9101-9309			●	●	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-495-0	01	1	9310-0203			●	●	●
30	GEAR; 4TH,MAINSHAFT Z=25	1-33253-452-0	01	1	9101-9309	●	●
30	GEAR; 4TH,MAINSHAFT Z=25	1-33253-496-0	01	1	9310-0203	●	●
30	GEAR; 4TH,MAINSHAFT Z=27	1-33253-350-0	01	1	9101-							●
32	COLLAR; 3RD GEAR	1-33234-033-0	01	1	9101-							●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-198-0	01	1	9101-0203	●	●	●	●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK NSK	1-09811-198-0	01	1	0204-	●	●	●
33	BEARING; NEEDLE,3RD GEAR KOYO	1-09811-199-0	01	1	9101-0203	●	●	●	●	●	●
33	BEARING; NEEDLE,3RD GEAR KOYO	1-09811-199-0	01	1	0204-	●	●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-205-0	01	1	9101-							●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-206-0	01	1	9101-							●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-358-1	01	1	0204-	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-326-0	01	1	9101-9108	●	●	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-322-1	01	1	9109-9301	●	●	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-406-0	01	1	9302-9309	●	●	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-358-1	01	1	9310-0203	●	●	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=30	1-33252-329-0	01	1	9101-9108						●
36	GEAR; 3RD,MAINSHAFT Z=30	1-33252-320-1	01	1	9109-9301						●
36	GEAR; 3RD,MAINSHAFT Z=30	1-33252-403-1	01	1	9302-0203						●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-231-1	01	1	9101-							●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-216-0	01	1	0204-	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-146-3	01	1	9101-9108	●	●	●	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-172-1	01	1	9109-9112	●	●	●	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-196-0	01	1	9201-9405	●	●	●	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-216-0	01	1	9406-0203	●	●	●	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-106-0	01	1	9101-							●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-409-0	02	1	0204-	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-352-0	02	1	9109-9205	●	●	●	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-402-0	02	1	9206-9301	●	●	●	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-409-0	02	1	9302-0203	●	●	●	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-086-1	01	1	9101-							●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-141-1	01	1	0204-	●	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-141-1	01	1	9101-0203	●	●	●	●	●	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-205-0	01	1	9101-							●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-206-0	01	1	9101-							●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-290-1	01	1	0204-	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-275-0	01	1	9101-9108	●	●	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-259-1	01	1	9109-9301	●	●	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-325-0	01	1	9302-9309	●	●	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-290-1	01	1	9310-0203	●	●	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=41	1-33251-274-0	01	1	9101-9108						●
50	GEAR; 2ND,MAINSHAFT Z=41	1-33251-258-1	01	1	9109-9301						●
50	GEAR; 2ND,MAINSHAFT Z=41	1-33251-324-1	01	1	9302-0203						●
50	GEAR; 2ND,MAINSHAFT Z=44	1-33251-179-1	01	1	9101-							●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-019-0	02	1	9101-0203	●	●	●	●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-019-0	02	1	0204-	●	●	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-020-0	02	1	9101-0203	●	●	●	●	●	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-020-0	02	1	0204-	●	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-118-0	02	1	9101-							●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-119-0	02	1	9101-							●
59	GEAR; REV MAINSHAFT Z=43	1-33257-059-0	01	1	0204-	●	●	●
59	GEAR; REV MAINSHAFT Z=43	1-33257-022-0	01	1	9101-9110	●	●	●	●	●	●
59	GEAR; REV MAINSHAFT Z=43	1-33257-052-0	01	1	9111-9309	●	●	●	●	●	●
59	GEAR; REV MAINSHAFT Z=43	1-33257-059-0	01	1	9310-0203	●	●	●	●	●	●
59	GEAR; REV MAINSHAFT Z=40	1-33257-034-0	01	1	9101-							●
67	HUB; CLU,1ST TO REV	1-33261-107-0	01	1	9101-							●
68	SLEEVE; 1ST TO REV	1-33262-061-0	01	1	9101-							●
69	COLLAR; 1ST GEAR MAIN	1-33234-058-0	01	1	9101-9302							●
69	COLLAR; 1ST GEAR MAIN	1-33234-082-0	01	1	9303-0012							●
69	COLLAR; 1ST GEAR MAIN	1-33234-096-0	01	1	0101-							●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-054-1	01	1	0204-	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-021-1	01	1	9101-9309	●	●	●	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-054-1	01	1	9310-0203	●	●	●	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=46	1-33255-036-0	01	1	9101-							●
75	BEARING; MAINSHAFT KOYO	1-09810-155-0	01	1	0301-	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-082-0	01	1	9101-0203	●	●	●	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-082-0	01	1	0204-0212	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-082-0	02	1	0301-	●	●	●
75	BEARING; MAINSHAFT KOYO	1-09810-155-0	01	1	9101-0203	●	●	●	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9101-							●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9101-							●
76	WASHER; THRUST,MAIN LOW	1-33239-035-2	01	1	9101-							●
80	GEAR; SPD DRIVE Z=6	1-33371-042-2	01	1	0204-	●	●	●
80	GEAR; SPD DRIVE Z=6	1-33371-025-0	01	1	9101-9110	●	●	●	●	●	●
80	GEAR; SPD DRIVE Z=6	1-33371-042-2	01	1	9111-0203	●	●	●	●	●	●
80	GEAR; SPD DRIVE Z=4	1-33371-012-0	01	1	9101-							●
82	SHAFT; MAIN,TRANS Z=24-21-26	1-33231-318-0	01	1	0204-	●		●
82	SHAFT; MAIN,TRANS Z=24-21-26	1-33231-316-0	01	1	0204-		●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-201-1	01	1	9101-9309	●		●	●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-266-0	01	1	9310-9912	●		●	●
82	SHAFT; MAIN,TRANS Z=24-21-26	1-33231-318-0	01	1	0001-0203	●		●	●
82	SHAFT; MAIN,TRANS Z=26-22-21	1-33231-198-1	01	1	9101-9309						●
82	SHAFT; MAIN,TRANS Z=22-21-26	1-33231-265-0	01	1	9310-9912						●
82	SHAFT; MAIN,TRANS Z=22-21-26	1-33231-317-0	01	1	0001-0203						●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-202-1	01	1	9101-9309		●			●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-247-0	01	1	9310-9912		●			●
82	SHAFT; MAIN,TRANS Z=24-21-26	1-33231-316-0	01	1	0001-0203		●			●
82	SHAFT; MAIN,TRANS Z=37-37-20-18	1-33231-143-5	01	1	9101-							●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-127-0	01	1	9101-0203	●	●	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-127-0	01	1	0204-	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-128-0	01	1	9101-0203	●	●	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-128-0	01	1	0204-	●	●	●
84	BEARING; COUNTER SHAFT,FRT KOYO	1-09810-129-0	01	1	9101-0203	●	●	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT KOYO	1-09810-129-0	01	1	0204-	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-102-0	01	1	9101-							●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-103-0	01	1	9101-							●
93	RING; SNAP,COUNTER FRT BRG (C) ID=53.3 T=2.5	1-09588-102-0	01	1	9101-0203	●	●	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG (C) ID=53.3 T=2.5	1-09588-102-0	01	1	0204-	●	●	●
93	RING; SNAP,COUNTER FRT BRG (A) ID=46.3	1-09588-047-0	01	1	9101-							●
93	RING; SNAP,COUNTER FRT BRG (B) ID=60.8	9-09180-065-0	01	1	9101-							●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	03	1	9101-0203	●	●	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	03	1	0204-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=40	1-09735-033-0	01	1	9101-							●
96	GEAR; COUNTER DRIVE Z=39-38	1-33331-210-0	01	1	0204-	●	●	●
96	GEAR; COUNTER DRIVE Z=38	1-33331-168-2	01	1	9101-9110		●		●	●
96	GEAR; COUNTER DRIVE Z=38	1-33331-198-0	01	1	9111-9309		●		●	●
96	GEAR; COUNTER DRIVE Z=38	1-33331-209-0	01	1	9310-9310		●		●	●
96	GEAR; COUNTER DRIVE Z=38	1-33331-209-0	01	1	9311-0203				●	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-167-2	01	1	9101-9110	●		●
96	GEAR; COUNTER DRIVE Z=39-38	1-33331-218-0	01	1	9111-9309	●		●
96	GEAR; COUNTER DRIVE Z=39-38	1-33331-210-0	01	1	9310-9310	●		●
96	GEAR; COUNTER DRIVE Z=39-38	1-33331-210-0	01	1	9311-0203	●	●	●
96	GEAR; COUNTER DRIVE Z=37	1-33331-172-1	01	1	9101-9110						●
96	GEAR; COUNTER DRIVE Z=37	1-33331-217-0	01	1	9111-9404						●
96	GEAR; COUNTER DRIVE Z=37	1-33331-211-0	01	1	9405-0203						●
96	GEAR; COUNTER DRIVE Z=43	1-33331-149-0	01	1	9101-							●
103	KEY; COUNTER GEAR	1-09735-040-0	02	1	9101-							●
104	GEAR; 4TH,COUNTER Z=35	1-33332-094-0	01	1	0204-	●	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-093-0	01	1	0204-			●
104	GEAR; 4TH,COUNTER Z=34	1-33332-070-4	01	1	9101-9110			●	●	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-084-0	01	1	9111-9309			●	●	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-093-0	01	1	9310-0203			●	●	●
104	GEAR; 4TH,COUNTER Z=35	1-33332-069-4	01	1	9101-9110	●	●
104	GEAR; 4TH,COUNTER Z=35	1-33332-106-0	01	1	9111-9309	●	●
104	GEAR; 4TH,COUNTER Z=35	1-33332-094-0	01	1	9310-0203	●	●
104	GEAR; 4TH,COUNTER Z=38	1-33332-064-0	01	1	9101-							●
105	GEAR; 3RD,COUNTER Z=28	1-33333-151-0	01	1	0204-	●	●	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-098-2	01	1	9101-9309	●	●	●	●	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-151-0	01	1	9310-0203	●	●	●	●	●
105	GEAR; 3RD,COUNTER Z=32	1-33333-104-2	01	1	9101-0203						●
105	GEAR; 3RD,COUNTER Z=28	1-33333-093-0	01	1	9101-							●
108	SHAFT; COUNTER Z=14	1-33311-268-1	01	1	0204-	●		●
108	SHAFT; COUNTER Z=14	1-33311-233-1	01	1	0204-		●
108	SHAFT; COUNTER Z=14	1-33311-170-2	01	1	9101-9309	●		●	●		●
108	SHAFT; COUNTER Z=14	1-33311-268-1	01	1	9310-0203	●		●	●		●
108	SHAFT; COUNTER Z=14	1-33311-176-2	01	1	9101-9309		●			●
108	SHAFT; COUNTER Z=14	1-33311-233-1	01	1	9310-0203		●			●
108	SHAFT; COUNTER Z=20	1-33311-156-0	01	1	9101-							●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	0204-	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-080-0	01	1	9101-0112	●	●	●	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	0201-0203	●	●	●	●	●	●
109	BEARING; COUNTER SHAFT,RR K0Y0	1-09810-039-1	01	1	9101-							●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9101-							●
128	WASHER; THRUST,REV SHAFT	9-33271-033-0	02	1	9101-0203	●	●	●	●	●	●
128	WASHER; THRUST,REV SHAFT T=2.9	9-33271-033-0	02	1	0204-	●	●	●
128	WASHER; THRUST,REV SHAFT	1-33239-066-0	02	1	9101-							●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	9101-0203	●	●	●	●	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	0204-	●	●	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-017-0	02	1	9101-0203	●	●	●	●	●	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-017-0	02	1	0204-	●	●	●
129	BEARING; NEEDLE,IDLER K0Y0	1-09811-102-0	02	1	9101-							●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9101-							●
130	COLLAR; DIST,NEEDLE BRG	1-33363-016-0	01	1	9101-							●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0204-	●		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	9101-0203	●		●	●		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=33.2	1-09623-378-0	01	1	9101-							●
132	SHAFT; REV	1-33351-013-1	01	1	0204-	●		●
132	SHAFT; REV	1-33351-018-2	01	1	0204-		●
132	SHAFT; REV	1-33351-013-1	01	1	9101-0203	●		●	●		●
132	SHAFT; REV	1-33351-018-2	01	1	9101-0203		●			●
132	SHAFT; REV	1-33351-011-2	01	1	9101-							●
133	SCREW; SET,REV SHAFT	1-09122-014-1	01	1	9101-9203							●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	9204-							●
134	WASHER; LK,REV SHAFT	9-09150-508-0	01	1	9101-							●
135	GEAR; REV IDLER Z=27	1-33361-062-0	01	1	0204-	●	●	●
135	GEAR; REV IDLER Z=27	1-33361-017-0	01	1	9101-9309	●	●	●	●	●	●
135	GEAR; REV IDLER Z=27	1-33361-062-0	01	1	9310-0203	●	●	●	●	●	●
135	GEAR; REV IDLER Z=26-22	1-33361-033-0	01	1	9101-							●
212	COLLAR; DIST,MAINSHAFT	1-33235-044-0	01	1	9101-							●
228	PLUNGER; SYN	1-33269-010-0	03	1	9101-							●
229	SPRING; PLUNGER	1-09580-255-0	03	1	9101-							●
235	COLLAR; DIST,DRIVE GEAR	1-33314-021-0	01	1	9101-							●
236	COLLAR; DIST,3RD GEAR	1-33314-020-0	01	1	9101-							●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
