◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50815 - NPR/NQR-LHD ▶ 3 - Brakes, Brake System ▶ 3-32 - HYDRO BOOSTING SYSTEM ▶
3-32 — HYDRO BOOSTING SYSTEM (#22039) — 43 parça

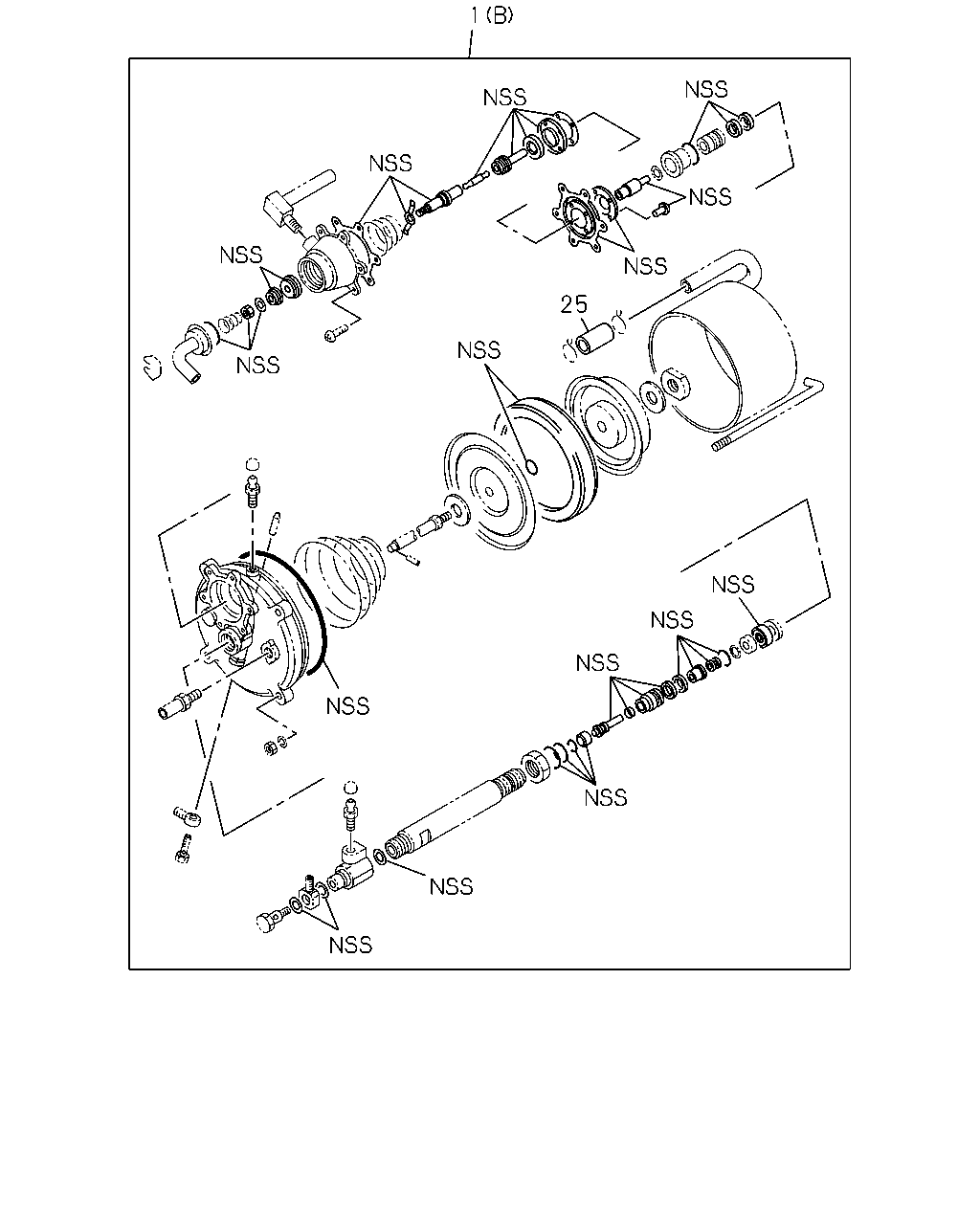

çizim 8876
1 25
BalonParca AdiParca NoAdetTipApplied Date
1 04.880 REPAIR KIT; HYDROMASTER
(A) 1 YEAR ASM PART: A = 8-97129-512-0, 97129512 		8-97174-081-0 01 1 -
1 04.880 REPAIR KIT; HYDROMASTER
(B) 2 YEAR ASM PART: A = 8-97129-512-0, 97129512 		8-97174-082-0 01 1 -
25 04.890 HOSE; SHELL TO ELBOW,HYDROMASTER
ASM PART: A = 8-97129-512-0, 97129512 		9-83315-007-0 01 1 -

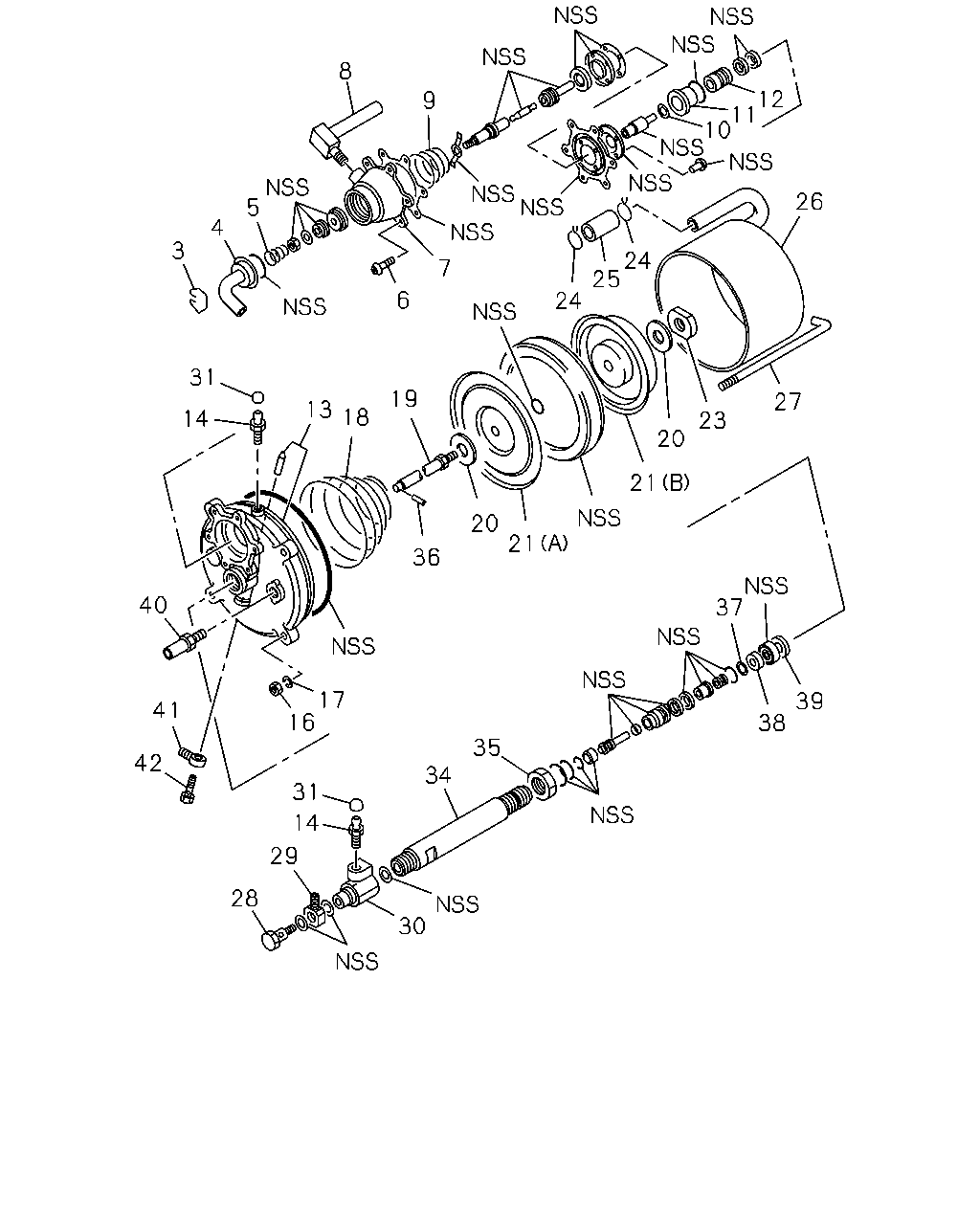

çizim 9810
8 12 11 10 9 5 26 4 3 24 25 7 6 24 31 19 27 13 18 14 23 20 21 20 21 36 37 40 17 16 39 38 41 35 42 34 31 14 29 28 30
BalonParca AdiParca NoAdetTipApplied Date
3 04.890 RETAINER; POPPET VLV,HYDROMASTER
ASM PART: A = 8-97129-512-0, 97129512 		1-47819-061-0 01 1 -
4 04.890 PIPE; HYDROMASTER
ASM PART: A = 8-97129-512-0, 97129512 		1-47849-004-0 01 1 -
5 04.890 SPRING; POPPET VLV,HYDROMASTER
ASM PART: A = 8-97129-512-0, 97129512 		9-83341-308-0 01 1 -
6 04.886 SCREW; POPPET VLV,HYDROMASTER
ASM PART: A = 8-97129-512-0, 97129512 		9-88510-210-0 06 1 -
7 04.890 BODY; POPPET VLV,HYDROMASTER
ASM PART: A = 8-97129-512-0, 97129512 		1-47811-052-0 01 1 -
8 04.892 ELBOW; SHELL,HYDROMASTER
T=0.925 ASM PART: A = 8-97129-512-0, 97129512 		8-97174-159-0 01 1 -
9 04.890 SPRING; DIAPH,HYDROMASTER
ASM PART: A = 8-97129-512-0, 97129512 		1-47811-056-0 01 1 -
10 04.890 RING; RET,FITTING,HYDROMASTER
ASM PART: A = 8-97129-512-0, 97129512 		1-22189-193-0 01 1 -
11 04.890 FITTING; POPPET VLV,HYDROMASTER
ASM PART: A = 8-97129-512-0, 97129512 		1-47811-069-0 01 1 -
12 04.882 PISTON; POPPET VLV,HYDROMASTER
ASM PART: A = 8-97129-512-0, 97129512 		1-47811-071-0 01 1 -
13 04.880 PLATE; END,HYDROMASTER
ASM PART: A = 8-97129-512-0, 97129512 		1-47811-054-0 01 1 -
14 04.882 PLUG; CAP,HYDROMASTER
06.806 ASM PART: A = 8-97129-512-0, 97129512 		9-83331-704-0 02 1 -
16 04.892 NUT; END PLATE TO SHELL,HYDROMAS
ASM PART: A = 8-97129-512-0, 97129512 		9-83315-080-0 04 1 -
17 04.890 WASHER; END PLATE TO SHELL,HYDRO
00.002, ID=10.2 ASM PART: A = 8-97129-512-0, 97129512 		9-09150-510-0 04 1 -
18 04.886 SPRING; CYL SHELL,HYDROMASTER
ASM PART: A = 8-97129-512-0, 97129512 		9-83321-402-0 01 1 -
19 04.880 ROD; PUSH,HYDROMASTER
ASM PART: A = 8-97129-512-0, 97129512 		1-47825-003-0 01 1 -
20 04.890 WASHER; LK,HYDROMASTER
ASM PART: A = 8-97129-512-0, 97129512 		9-83325-031-0 02 1 -
21 04.886 PLATE; PISTON,SHELL,HYDROMASTER
(B) ASM PART: A = 8-97129-512-0, 97129512 		1-47811-084-0 01 1 -
21 04.886 PLATE; PISTON,SHELL,HYDROMASTER
(A) ASM PART: A = 8-97129-512-0, 97129512 		1-47811-085-0 01 1 -
23 04.886 NUT; PUSH ROD,SHELL,HYDROMASTER
ASM PART: A = 8-97129-512-0, 97129512 		9-83325-032-0 01 1 -
24 04.890 CLAMP; HOSE,HYDROMASTER
ASM PART: A = 8-97129-512-0, 97129512 		9-83315-023-0 02 1 -
25 04.890 HOSE; SHELL TO ELBOW,HYDROMASTER
ASM PART: A = 8-97129-512-0, 97129512 		9-83315-007-0 01 1 -
26 04.890 SHELL; CYL,HYDROMASTER
T=0.850 ASM PART: A = 8-97129-512-0, 97129512 		8-97174-156-0 01 1 -
27 04.886 BOLT; HOOK,HYDROMASTER
T=0.825 ASM PART: A = 8-97129-512-0, 97129512 		8-97174-155-0 04 1 -
28 04.892 BOLT; EYE,CAP,HYDROMASTER
00.785 ASM PART: A = 8-97129-512-0, 97129512 		9-83315-047-0 01 1 -
29 04.892 CONNECTOR; EYE,CAP,HYDROMASTER
ASM PART: A = 8-97129-512-0, 97129512 		1-47819-118-0 01 1 -
30 04.892 CAP; CYL,HYDROMASTER
ASM PART: A = 8-97129-512-0, 97129512 		1-47819-047-0 01 1 -
31 04.882 PROTECTOR; CAP,HYDROMASTER
06.806 ASM PART: A = 8-97129-512-0, 97129512 		9-83335-044-0 02 1 -
34 04.880 CYLINDER; HYDROMASTER
T=0.900 ASM PART: A = 8-97129-512-0, 97129512 		8-97174-158-0 01 1 -
35 04.886 NUT; CYL,HYDROMASTER
ASM PART: A = 8-97129-512-0, 97129512 		9-83335-012-0 01 1 -
36 04.890 PIN; PISTON,HYDROMASTER
ASM PART: A = 8-97129-512-0, 97129512 		9-83325-023-0 01 1 -
37 04.890 WASHER; PISTON,HYDROMASTER
ASM PART: A = 8-97129-512-0, 97129512 		1-47819-028-0 01 1 -
38 04.890 RETAINER; PISTON,HYDROMASTER
ASM PART: A = 8-97129-512-0, 97129512 		1-47819-029-0 01 1 -
39 04.890 WASHER; OIL SEAL,PISTON,HYDROMAS
ASM PART: A = 8-97129-512-0, 97129512 		1-47819-031-0 01 1 -
40 04.892 CONNECTOR; HOSE,HYDROMASTER
ASM PART: A = 8-97129-512-0, 97129512 		1-47811-047-0 01 1 -
41 04.892 CONNECTOR; EYE,END PLATE,HYDROMA
ASM PART: A = 8-97129-512-0, 97129512 		1-47819-119-0 01 1 -
42 04.886 BOLT; EYE,END PLATE,HYDROMASTER
ASM PART: A = 8-97129-512-0, 97129512 		1-47811-088-0 01 1 -

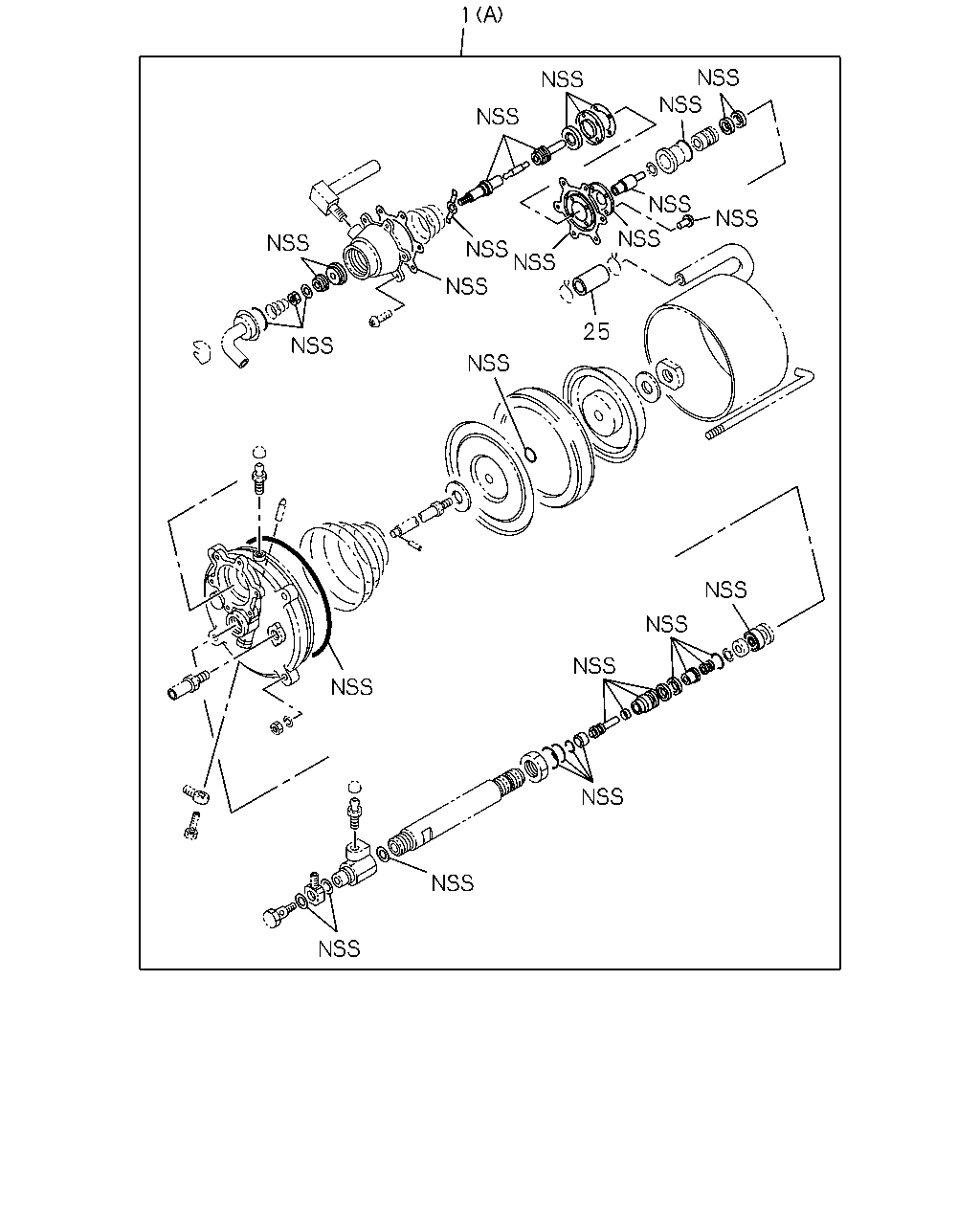

çizim 46085
1 25
BalonParca AdiParca NoAdetTipApplied Date
1 04.880 REPAIR KIT; HYDROMASTER
(A) 1 YEAR ASM PART: A = 8-97129-512-0, 97129512 		8-97174-081-0 01 1 -
1 04.880 REPAIR KIT; HYDROMASTER
(B) 2 YEAR ASM PART: A = 8-97129-512-0, 97129512 		8-97174-082-0 01 1 -
25 04.890 HOSE; SHELL TO ELBOW,HYDROMASTER
ASM PART: A = 8-97129-512-0, 97129512 		9-83315-007-0 01 1 -
