◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50815 - NPR/NQR-LHD ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#22035) — 334 parça

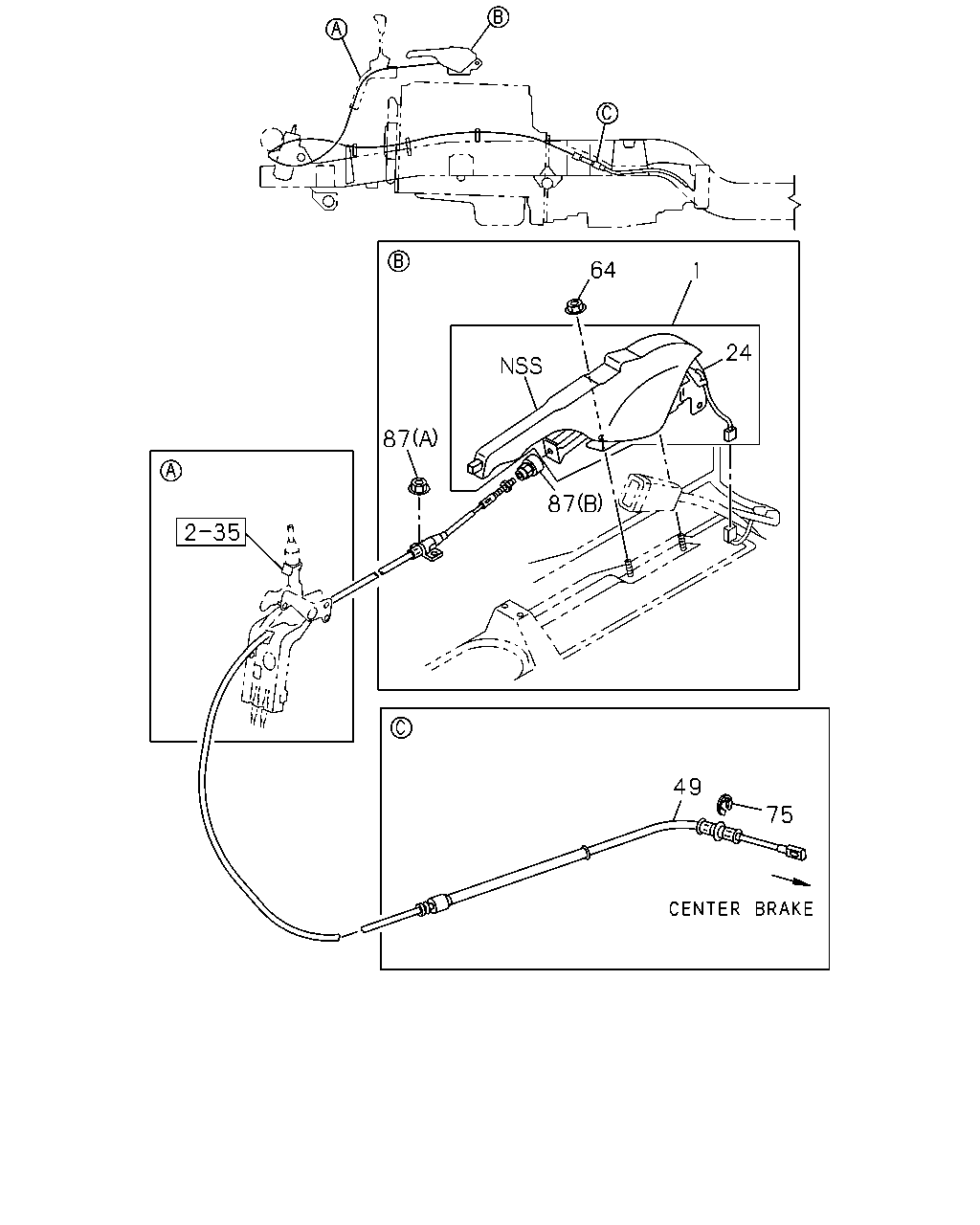

çizim 8807
64 1 24 87 87 49 75
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97890-439-1 01 1 9811-0108 ● ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97995-930-0 01 1 0109-0110 ● ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-543-1 01 1 0111- ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97890-859-0 01 1 9811-0108 ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0109- ● ● ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) FRAME STRAIGHT TYPE<7KJ> 		8-97215-433-0 01 1 9811-0202 ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) FRAME STRAIGHT TYPE<7KJ> 		8-97215-433-0 01 1 0203- ● ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97215-435-2 01 1 9811-0202 ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97215-435-2 01 1 0203- ● ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) CHARGE AIR COOLER<6PL> 		8-97215-434-0 01 1 9811- ● ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA6S(RNB) FRAME STRAIGHT TYPE<7KJ> 		8-97215-434-0 01 1 9811- ● ●
49 04.779 CABLE; PARKING BRK
M/T MSB5R(RNN) 		8-97184-277-2 01 1 9811-0105 ●
64 04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 9811- ● ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) 04.681 ID=12 		9-09185-412-0 01 1 9811-0105 ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.681 ID=12 		9-09185-412-0 01 1 9811-0105 ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) 04.681 ID=12 		9-09185-412-0 01 1 0106-0202 ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) 04.681 ID=12 		9-09185-412-0 01 1 0106-0202 ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) 04.681 ID=12 		9-09185-412-0 01 1 0203- ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) 04.681 ID=12 		9-09185-412-0 01 1 0203- ● ● ● ● ●
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 9811- ● ● ● ● ● ●
87 04.785 NUT
(B) M6 		8-97088-730-1 01 1 9811- ● ● ● ● ● ●

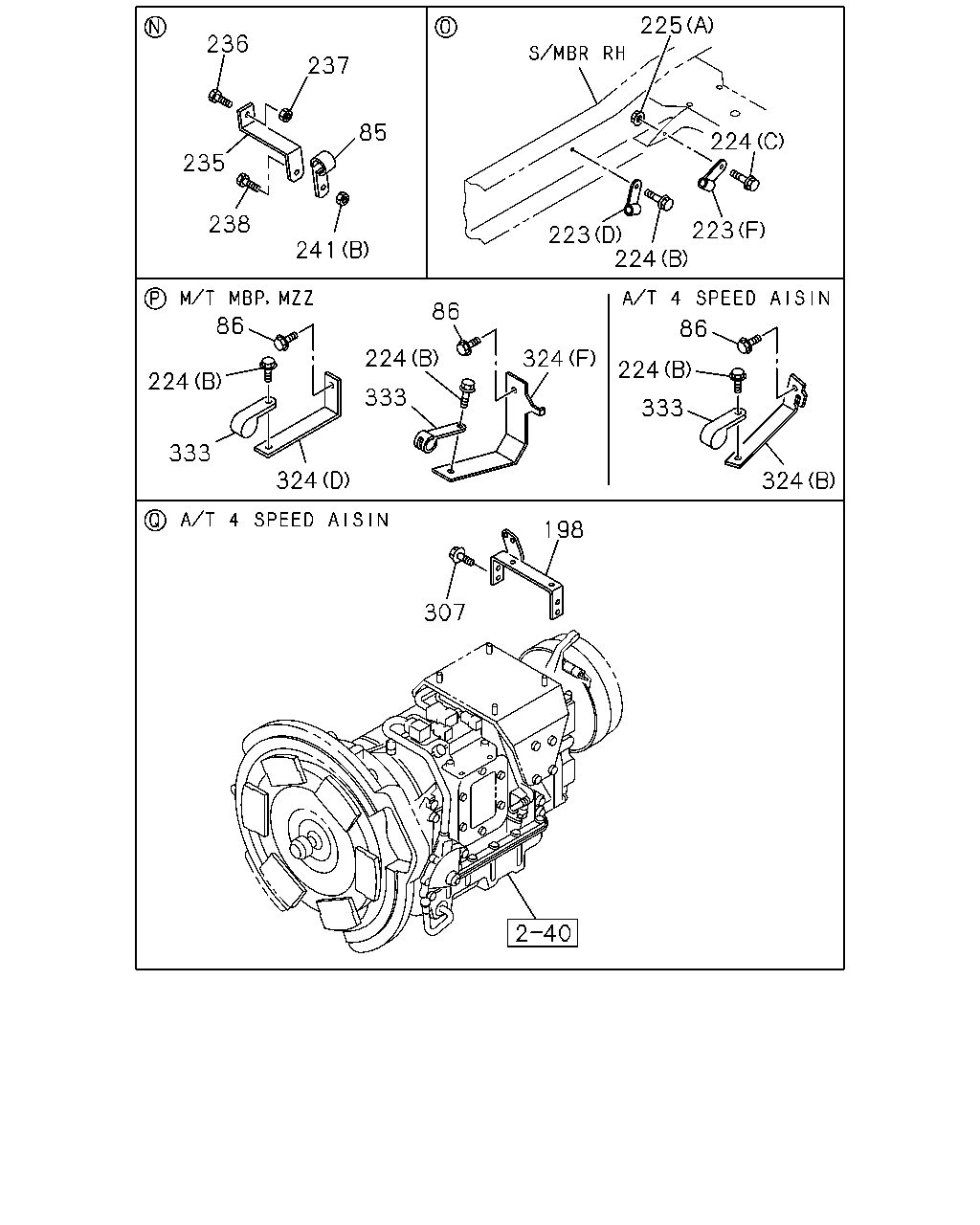

çizim 47237
225 236 237 85 224 235 238 223 223 224 241 86 86 86 224 324 224 224 333 333 333 324 324 198 307
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
85 04.785 CLIP; BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) ID=12 L=70 		1-09700-097-1 01 1 9811-0202 ● ● ● ● ●
85 04.785 CLIP; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> ID=12 L=70 		1-09700-097-1 01 1 9811-0202 ● ● ● ●
85 04.785 CLIP; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> ID=12 L=70 		1-09700-097-1 01 1 0203- ● ● ● ● ●
85 04.785 CLIP; BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) ID=12 L=70 		1-09700-097-1 01 1 0203- ● ● ● ● ●
86 04.785 BOLT
M/T MBP6P(RNC),M/T MBP6Q(RNM) FRAME STRAIGHT TYPE<7KJ> 03.604 M10X16 FLANGE 		0-28181-016-0 01 1 9811-0207 ● ● ● ●
86 04.785 BOLT
M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> 03.604 M10X16 FLANGE 		0-28181-016-0 01 1 0208- ● ● ● ●
86 04.785 BOLT
A/T 4 SPEED-AISIN(RNJ) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811- ● ● ● ● ●
198 04.785 BRACKET; CABLE
A/T 4 SPEED-AISIN(RNJ) 		8-97160-905-2 01 1 9811- ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=11 L=28 		9-09525-055-0 01 1 0203- ●
223 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 01.531 (C) ID=16 L=28 		9-09525-556-0 01 1 9811-0105 ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
01.531 (C) ID=16 L=28 		9-09525-556-0 01 1 9811-0105 ● ●
223 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 01.531 (C) ID=16 L=28 		9-09525-556-0 01 1 0106- ● ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 9811-0105 ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 9811-0105 ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 9811-0105 ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0106-0202 ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0106-0202 ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0203- ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0203- ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 9811-0012 ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 9811-0012 ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 0101-0104 ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 0105-0105 ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 0105-0105 ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 0106-0202 ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 0203- ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 (F) ID=13 L=20 		1-09701-138-1 01 1 9811-0202 ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 (F) ID=13 L=20 		1-09701-138-1 01 1 0203- ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JB1 ENG(RLF) (D) ID=13 L=50 		9-09525-286-0 01 1 9811-0105 ●
223 04.785 CLIP; PARKING BRK CABLE
4JB1 ENG(RLF) POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=11 L=28 		9-09525-055-0 01 1 9811-0105 ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (C) M10X25 FLANGE 		0-28681-025-0 01 1 9811-0202 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (C) M10X25 FLANGE 		0-28681-025-0 01 1 0203- ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 9811-0105 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4JB1 ENG(RLF) POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 9811-0105 ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0106-0202 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0203- ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9811-0006 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0007-0105 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0007-0105 ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0106 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0106 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0106 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0106 ●
224 04.785 BOLT; CABLE CLIP
4JB1 ENG(RLF) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0106 ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0202 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0202 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0202 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0203-0207 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0203-0207 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0203-0207 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0208- ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0208- ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0208- ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (B) M10 FLANGE 		0-91150-110-0 01 1 9811-0202 ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (B) M10 FLANGE 		0-91150-110-0 01 1 0203- ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0106-0106 ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0106-0106 ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0106-0106 ●
225 04.785 NUT; CABLE CLIP
4JB1 ENG(RLF) 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0106-0106 ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0107-0202 ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0107-0202 ● ● ● ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0203- ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0203- ● ● ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97148-597-3 01 1 9811-0202 ● ● ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97148-597-3 01 1 9811-0202 ● ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97148-597-3 01 1 0203- ● ● ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97148-597-3 01 1 0203- ● ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 9811-0202 ● ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 9811-0202 ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0203- ● ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0203- ● ● ● ● ●
237 04.785 NUT; BRKT TO FRAME
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) M10 FLANGE 		0-91150-110-0 01 1 9811-0202 ● ● ● ● ●
237 04.785 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91150-110-0 01 1 9811-0202 ● ● ● ●
237 04.785 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91150-110-0 01 1 0203- ● ● ● ● ●
237 04.785 NUT; BRKT TO FRAME
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) M10 FLANGE 		0-91150-110-0 01 1 0203- ● ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0202 ● ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0202 ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0203- ● ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0203- ● ● ● ● ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 9811-0105 ● ● ● ● ● ●
241 04.785 NUT; BRKT
M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 9811-0105 ● ● ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ● ● ● ●
241 04.785 NUT; BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-0202 ● ● ● ● ●
241 04.785 NUT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-0202 ● ● ● ●
241 04.785 NUT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0203- ● ● ● ● ●
241 04.785 NUT; BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0203- ● ● ● ● ●
307 04.651 BOLT; BRKT,PARKING BRK CABLE
A/T 4 SPEED-AISIN(RNJ) 02.559 M10X16 FLANGE 		0-28081-016-0 04 1 9811-0009 ● ● ● ● ●
307 04.651 BOLT; BRKT,PARKING BRK CABLE
A/T 4 SPEED-AISIN(RNJ) 03.417 M10X25 FLANGE 		0-28081-025-0 04 1 0010-0105 ● ● ● ● ●
307 04.651 BOLT; BRKT,PARKING BRK CABLE
A/T 4 SPEED-AISIN(RNJ) 03.405 M10X25 FLANGE 		0-28681-025-0 04 1 0106- ● ● ● ● ●

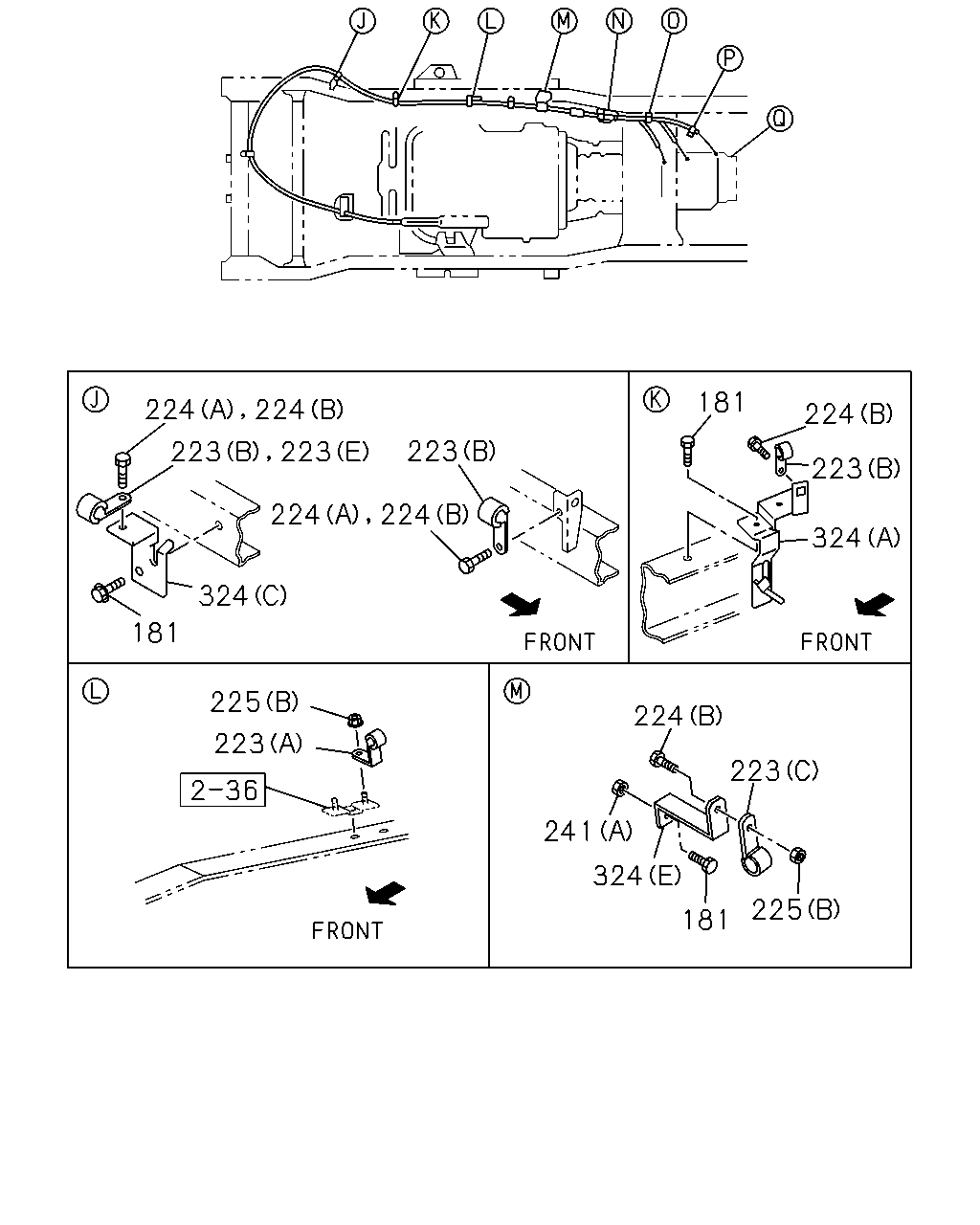

324 04.785 BRACKET
M/T MZZ6U(RSF) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) (F) 		8-97307-874-0 01 1 0208- ● ●
324 04.785 BRACKET
M/T MZZ6U(RSF) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> (F) 		8-97307-874-0 01 1 0208- ●
324 04.785 BRACKET
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97329-909-0 01 1 0203- ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 9811-0105 ● ● ● ●
324 04.785 BRACKET
4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 9811-0105 ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 0106- ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97071-354-2 01 1 9811-0202 ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97071-354-2 01 1 0203- ● ● ● ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97188-151-0 01 1 9811- ● ● ● ● ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (E) 		8-97103-822-1 01 1 9811-0105 ● ● ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (E) 		8-97103-822-1 01 1 9811-0105 ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (E) 		8-97103-822-1 01 1 0106-0202 ● ● ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (E) 		8-97103-822-1 01 1 0106-0202 ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (E) 		8-97103-822-1 01 1 0203- ● ● ● ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (E) 		8-97103-822-1 01 1 0203- ● ● ● ● ●
324 04.785 BRACKET
4JB1 ENG(RLF) (A) 		8-97202-877-0 01 1 9811-0105 ●
324 04.785 BRACKET
M/T MBP6P(RNC),M/T MBP6Q(RNM) BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97181-744-0 01 1 9811-0103 ● ● ● ●
324 04.785 BRACKET
M/T MBP6P(RNC),M/T MBP6Q(RNM) BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> (F) 		8-97307-640-0 01 1 0104-0207 ● ● ● ●
324 04.785 BRACKET
M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) FRAME STRAIGHT TYPE<7KJ> (F) 		8-97307-640-0 01 1 0208- ● ● ● ●
324 04.785 BRACKET
M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) (D) 		8-97181-745-0 01 1 9811-0105 ● ● ● ●
324 04.785 BRACKET
M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97181-745-0 01 1 9811-0105 ● ●
324 04.785 BRACKET
M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) (D) 		8-97181-745-0 01 1 0106-0106 ● ● ●
324 04.785 BRACKET
M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97181-745-0 01 1 0106-0106 ● ●
324 04.785 BRACKET
M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) (D) 		8-97181-745-0 01 1 0107- ● ● ●
324 04.785 BRACKET
M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97181-745-0 01 1 0107- ● ●
324 04.785 BRACKET
A/T 4 SPEED-AISIN(RNJ) (B) 		8-97148-596-1 01 1 9811- ● ● ● ● ●
333 04.785 CLIP; CABLE
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) FRAME STRAIGHT TYPE<7KJ> ID=11 L=60 		9-09525-096-0 01 1 9811-0207 ● ● ● ● ●
333 04.785 CLIP; CABLE
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> ID=11 L=60 		9-09525-096-0 01 1 0208- ● ● ● ● ●

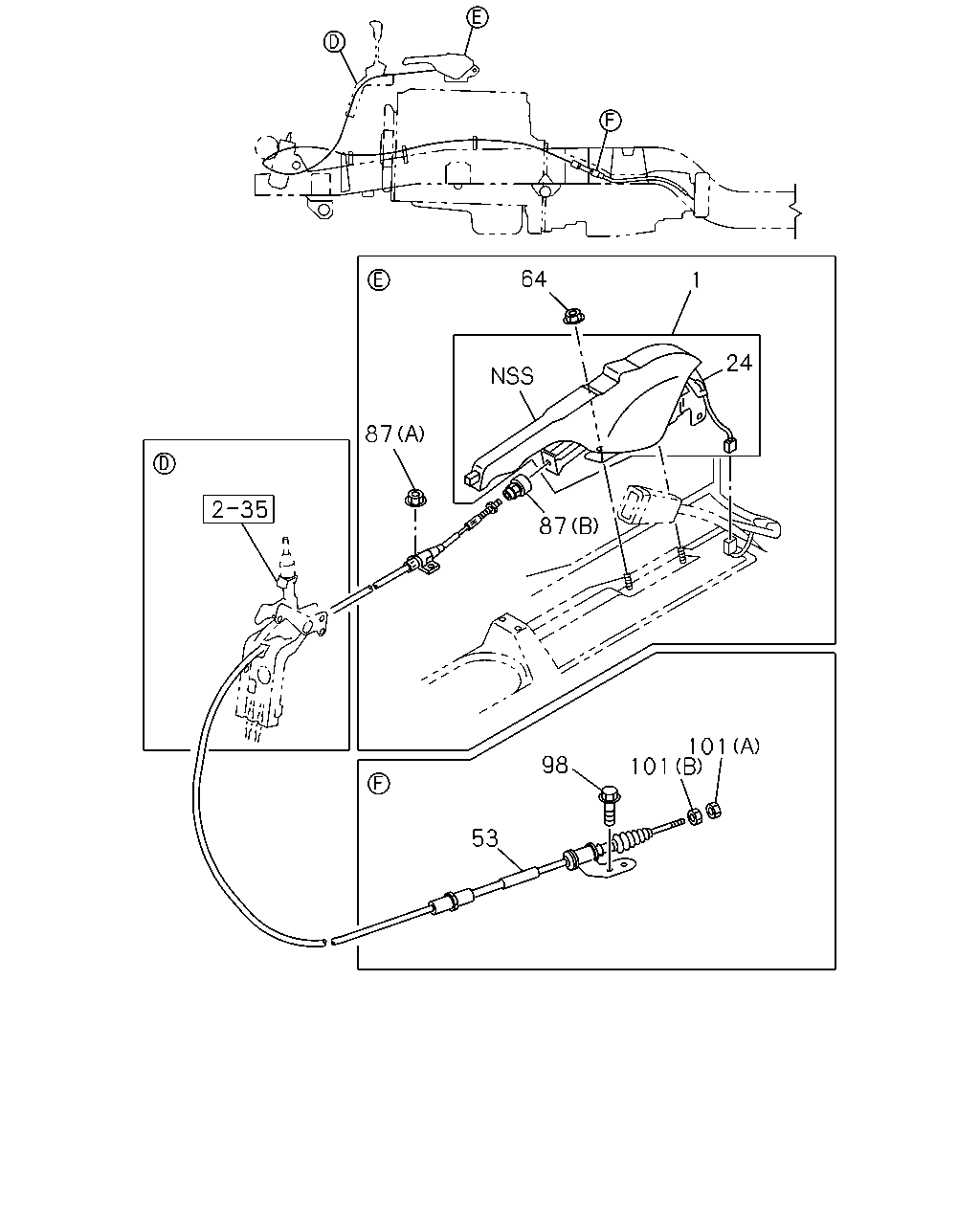

çizim 47238
64 1 24 87 87 101 101 98 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97890-439-1 01 1 9811-0108 ● ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97995-930-0 01 1 0109-0110 ● ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-543-1 01 1 0111- ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97890-859-0 01 1 9811-0108 ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0109- ● ● ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 		8-97148-609-3 01 1 9811-0008 ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-3 01 1 9811-0008 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 		8-97148-609-3 01 1 0009-0105 ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
A/T 4 SPEED-AISIN(RNJ) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ISRAEL EQUIPMENT(7LX) 		8-97148-609-3 01 1 0009-0105 ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-3 01 1 0009-0105 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 		8-97148-609-4 01 1 0106-0106 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
A/T 4 SPEED-AISIN(RNJ) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ISRAEL EQUIPMENT(7LX) 		8-97148-609-4 01 1 0106-0106 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-4 01 1 0106-0106 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
A/T 4 SPEED-AISIN(RNJ) 		8-97148-609-4 01 1 0106-0106 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 		8-97148-609-4 01 1 0107-0202 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
A/T 4 SPEED-AISIN(RNJ) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ISRAEL EQUIPMENT(7LX) 		8-97148-609-4 01 1 0107-0202 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-4 01 1 0107-0202 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
A/T 4 SPEED-AISIN(RNJ) 		8-97148-609-4 01 1 0107-0202 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 		8-97148-609-4 01 1 0203-0207 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
A/T 4 SPEED-AISIN(RNJ) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ISRAEL EQUIPMENT(7LX) 		8-97148-609-4 01 1 0203-0207 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-4 01 1 0203-0207 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
A/T 4 SPEED-AISIN(RNJ) 		8-97148-609-4 01 1 0203-0207 ●
53 04.779 CABLE; PARK BRK,FRT LWR
A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-4 01 1 0203-0207 ●
53 04.779 CABLE; PARK BRK,FRT LWR
A/T 4 SPEED-AISIN(RNJ) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ISRAEL EQUIPMENT(7LX) 		8-97148-609-4 01 1 0208- ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM),M/T MZZ6U(RSF) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 		8-97148-609-4 01 1 0208- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM),M/T MZZ6U(RSF) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-4 01 1 0208- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),M/T MBP6Q(RNM) BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97169-967-4 01 1 9811-0105 ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97169-967-4 01 1 0106-0207 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6Q(RNM) 		8-97169-967-4 01 1 0106-0207 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97169-967-4 01 1 0208- ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),M/T MBP6Q(RNM) BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97169-969-2 01 1 9811-0105 ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97169-969-3 01 1 0106-0207 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97169-969-3 01 1 0208- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF),CHARGE AIRCOOLER<6PL>,ISRAEL EQUIPMENT(7LX) 		8-97096-461-3 01 1 9811-0105 ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97096-461-3 01 1 9811-0105 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF),CHARGE AIRCOOLER<6PL>,ISRAEL EQUIPMENT(7LX) 		8-97096-461-3 01 1 0106-0207 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97096-461-3 01 1 0106-0207 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF),CHARGE AIRCOOLER<6PL>,ISRAEL EQUIPMENT(7LX) 		8-97096-461-3 01 1 0208- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97096-461-3 01 1 0208- ● ●
64 04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 9811- ● ● ● ● ● ●
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 9811- ● ● ● ● ● ●
87 04.785 NUT
(B) M6 		8-97088-730-1 01 1 9811- ● ● ● ● ● ●
98 04.785 BOLT; RR COVER
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 9811-0207 ● ● ● ● ●
98 04.785 BOLT; RR COVER
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM),M/T MZZ6U(RSF) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0208- ● ● ● ● ●
101 04.785 NUT; CABLE TO LEVER
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) 02.559 (A) M8 		9-09110-408-0 01 1 9811-0207 ● ● ● ● ●
101 04.785 NUT; CABLE TO LEVER
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM),M/T MZZ6U(RSF) 02.559 (A) M8 		9-09110-408-0 01 1 0208- ● ● ● ● ●
101 04.785 NUT; CABLE TO LEVER
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) (B) M8 FLANGE 		9-46259-016-0 01 1 9811-0207 ● ● ● ● ●
101 04.785 NUT; CABLE TO LEVER
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM),M/T MZZ6U(RSF) (B) M8 FLANGE 		9-46259-016-0 01 1 0208- ● ● ● ● ●

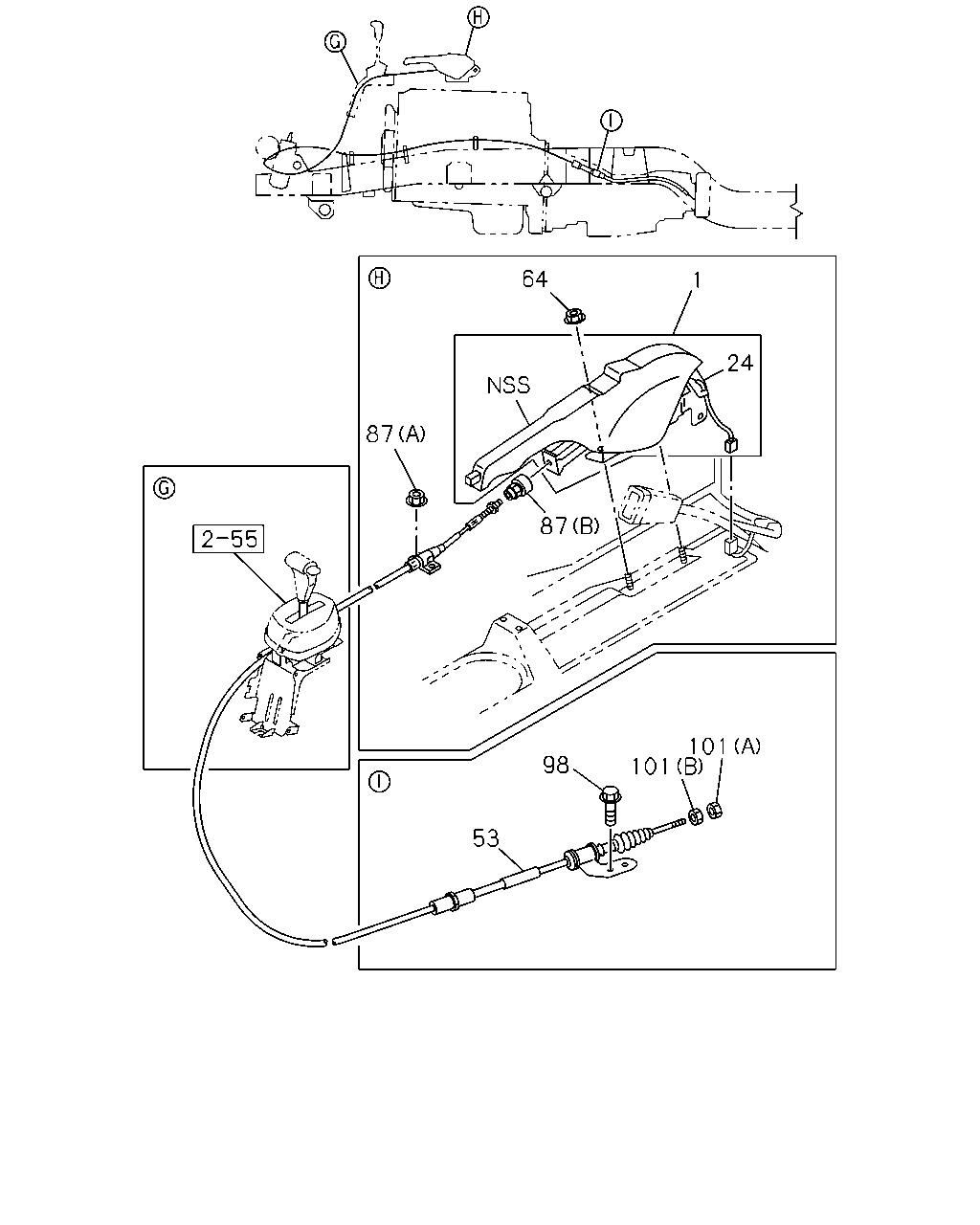

çizim 48146
64 1 24 87 87 101 101 98 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97890-439-1 01 1 9811-0108 ● ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97995-930-0 01 1 0109-0110 ● ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-543-1 01 1 0111- ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97890-859-0 01 1 9811-0108 ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0109- ● ● ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 		8-97148-609-3 01 1 9811-0008 ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-3 01 1 9811-0008 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 		8-97148-609-3 01 1 0009-0105 ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
A/T 4 SPEED-AISIN(RNJ) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ISRAEL EQUIPMENT(7LX) 		8-97148-609-3 01 1 0009-0105 ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-3 01 1 0009-0105 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 		8-97148-609-4 01 1 0106-0106 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
A/T 4 SPEED-AISIN(RNJ) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ISRAEL EQUIPMENT(7LX) 		8-97148-609-4 01 1 0106-0106 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-4 01 1 0106-0106 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
A/T 4 SPEED-AISIN(RNJ) 		8-97148-609-4 01 1 0106-0106 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 		8-97148-609-4 01 1 0107-0202 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
A/T 4 SPEED-AISIN(RNJ) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ISRAEL EQUIPMENT(7LX) 		8-97148-609-4 01 1 0107-0202 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-4 01 1 0107-0202 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
A/T 4 SPEED-AISIN(RNJ) 		8-97148-609-4 01 1 0107-0202 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 		8-97148-609-4 01 1 0203-0207 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
A/T 4 SPEED-AISIN(RNJ) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ISRAEL EQUIPMENT(7LX) 		8-97148-609-4 01 1 0203-0207 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-4 01 1 0203-0207 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
A/T 4 SPEED-AISIN(RNJ) 		8-97148-609-4 01 1 0203-0207 ●
53 04.779 CABLE; PARK BRK,FRT LWR
A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-4 01 1 0203-0207 ●
53 04.779 CABLE; PARK BRK,FRT LWR
A/T 4 SPEED-AISIN(RNJ) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ISRAEL EQUIPMENT(7LX) 		8-97148-609-4 01 1 0208- ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM),M/T MZZ6U(RSF) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 		8-97148-609-4 01 1 0208- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM),M/T MZZ6U(RSF) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-4 01 1 0208- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),M/T MBP6Q(RNM) BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97169-967-4 01 1 9811-0105 ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97169-967-4 01 1 0106-0207 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6Q(RNM) 		8-97169-967-4 01 1 0106-0207 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97169-967-4 01 1 0208- ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),M/T MBP6Q(RNM) BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97169-969-2 01 1 9811-0105 ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97169-969-3 01 1 0106-0207 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97169-969-3 01 1 0208- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF),CHARGE AIRCOOLER<6PL>,ISRAEL EQUIPMENT(7LX) 		8-97096-461-3 01 1 9811-0105 ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97096-461-3 01 1 9811-0105 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF),CHARGE AIRCOOLER<6PL>,ISRAEL EQUIPMENT(7LX) 		8-97096-461-3 01 1 0106-0207 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97096-461-3 01 1 0106-0207 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF),CHARGE AIRCOOLER<6PL>,ISRAEL EQUIPMENT(7LX) 		8-97096-461-3 01 1 0208- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97096-461-3 01 1 0208- ● ●
64 04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 9811- ● ● ● ● ● ●
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 9811- ● ● ● ● ● ●
87 04.785 NUT
(B) M6 		8-97088-730-1 01 1 9811- ● ● ● ● ● ●
98 04.785 BOLT; RR COVER
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 9811-0207 ● ● ● ● ●
98 04.785 BOLT; RR COVER
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM),M/T MZZ6U(RSF) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0208- ● ● ● ● ●
101 04.785 NUT; CABLE TO LEVER
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) 02.559 (A) M8 		9-09110-408-0 01 1 9811-0207 ● ● ● ● ●
101 04.785 NUT; CABLE TO LEVER
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM),M/T MZZ6U(RSF) 02.559 (A) M8 		9-09110-408-0 01 1 0208- ● ● ● ● ●
101 04.785 NUT; CABLE TO LEVER
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) (B) M8 FLANGE 		9-46259-016-0 01 1 9811-0207 ● ● ● ● ●
101 04.785 NUT; CABLE TO LEVER
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM),M/T MZZ6U(RSF) (B) M8 FLANGE 		9-46259-016-0 01 1 0208- ● ● ● ● ●
çizim 50241
181 224 224 223 223 224 324 324 181 225 224 223 223 324 241 225 181 224 223 223 224
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
181 04.785 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ● ●
181 04.785 BOLT; BRKT
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ● ●
181 04.785 BOLT; BRKT
4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ●
181 04.785 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0202 ● ● ● ●
181 04.785 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0202 ● ● ● ●
181 04.785 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0203- ● ● ● ● ●
181 04.785 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0203- ● ● ● ● ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 9811-0105 ● ● ● ● ● ●
181 04.785 BOLT; BRKT
M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 9811-0105 ● ● ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 0106- ● ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=11 L=28 		9-09525-055-0 01 1 0203- ●
223 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 01.531 (C) ID=16 L=28 		9-09525-556-0 01 1 9811-0105 ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
01.531 (C) ID=16 L=28 		9-09525-556-0 01 1 9811-0105 ● ●
223 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 01.531 (C) ID=16 L=28 		9-09525-556-0 01 1 0106- ● ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 9811-0105 ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 9811-0105 ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 9811-0105 ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0106-0202 ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0106-0202 ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0203- ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0203- ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 9811-0012 ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 9811-0012 ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 0101-0104 ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 0105-0105 ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 0105-0105 ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 0106-0202 ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 0203- ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 (F) ID=13 L=20 		1-09701-138-1 01 1 9811-0202 ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 (F) ID=13 L=20 		1-09701-138-1 01 1 0203- ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JB1 ENG(RLF) (D) ID=13 L=50 		9-09525-286-0 01 1 9811-0105 ●
223 04.785 CLIP; PARKING BRK CABLE
4JB1 ENG(RLF) POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=11 L=28 		9-09525-055-0 01 1 9811-0105 ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (C) M10X25 FLANGE 		0-28681-025-0 01 1 9811-0202 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (C) M10X25 FLANGE 		0-28681-025-0 01 1 0203- ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 9811-0105 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4JB1 ENG(RLF) POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 9811-0105 ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0106-0202 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0203- ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9811-0006 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0007-0105 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0007-0105 ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0106 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0106 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0106 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0106 ●
224 04.785 BOLT; CABLE CLIP
4JB1 ENG(RLF) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0106 ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0202 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0202 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0202 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0203-0207 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0203-0207 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0203-0207 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0208- ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0208- ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) ,M/T MBP6Q(RNM),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0208- ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (B) M10 FLANGE 		0-91150-110-0 01 1 9811-0202 ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (B) M10 FLANGE 		0-91150-110-0 01 1 0203- ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0106-0106 ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0106-0106 ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0106-0106 ●
225 04.785 NUT; CABLE CLIP
4JB1 ENG(RLF) 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0106-0106 ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0107-0202 ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0107-0202 ● ● ● ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0203- ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0203- ● ● ● ● ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 9811-0105 ● ● ● ● ● ●
241 04.785 NUT; BRKT
M/T MBP6P(RNC),M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 9811-0105 ● ● ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ● ● ● ●
241 04.785 NUT; BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-0202 ● ● ● ● ●
241 04.785 NUT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-0202 ● ● ● ●
241 04.785 NUT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0203- ● ● ● ● ●
241 04.785 NUT; BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0203- ● ● ● ● ●
324 04.785 BRACKET
M/T MZZ6U(RSF) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) (F) 		8-97307-874-0 01 1 0208- ● ●
324 04.785 BRACKET
M/T MZZ6U(RSF) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> (F) 		8-97307-874-0 01 1 0208- ●
324 04.785 BRACKET
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97329-909-0 01 1 0203- ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 9811-0105 ● ● ● ●
324 04.785 BRACKET
4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 9811-0105 ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 0106- ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97071-354-2 01 1 9811-0202 ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97071-354-2 01 1 0203- ● ● ● ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97188-151-0 01 1 9811- ● ● ● ● ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (E) 		8-97103-822-1 01 1 9811-0105 ● ● ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (E) 		8-97103-822-1 01 1 9811-0105 ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (E) 		8-97103-822-1 01 1 0106-0202 ● ● ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (E) 		8-97103-822-1 01 1 0106-0202 ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (E) 		8-97103-822-1 01 1 0203- ● ● ● ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (E) 		8-97103-822-1 01 1 0203- ● ● ● ● ●
324 04.785 BRACKET
4JB1 ENG(RLF) (A) 		8-97202-877-0 01 1 9811-0105 ●
324 04.785 BRACKET
M/T MBP6P(RNC),M/T MBP6Q(RNM) BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97181-744-0 01 1 9811-0103 ● ● ● ●
324 04.785 BRACKET
M/T MBP6P(RNC),M/T MBP6Q(RNM) BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> (F) 		8-97307-640-0 01 1 0104-0207 ● ● ● ●
324 04.785 BRACKET
M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) FRAME STRAIGHT TYPE<7KJ> (F) 		8-97307-640-0 01 1 0208- ● ● ● ●
324 04.785 BRACKET
M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) (D) 		8-97181-745-0 01 1 9811-0105 ● ● ● ●
324 04.785 BRACKET
M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97181-745-0 01 1 9811-0105 ● ●
324 04.785 BRACKET
M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) (D) 		8-97181-745-0 01 1 0106-0106 ● ● ●
324 04.785 BRACKET
M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97181-745-0 01 1 0106-0106 ● ●
324 04.785 BRACKET
M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) (D) 		8-97181-745-0 01 1 0107- ● ● ●
324 04.785 BRACKET
M/T MBP6P(RNC),M/T MBP6Q(RNM) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97181-745-0 01 1 0107- ● ●
324 04.785 BRACKET
A/T 4 SPEED-AISIN(RNJ) (B) 		8-97148-596-1 01 1 9811- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
